Haier XQG6511SU - Front-Load Washer/Dryer Combo User manual

Operation Manual
XQG65-11SU
Automatic Drum Washing Machine
Names of parts---------inside front cover
Matters needing attention--------------1-3
Installation--------------------------------- 4-5
Control Panel --------------------------------6
Functions-----------------------------------7
Program description table-----------------8
Preparation-----------------------------------9
Washing Procedure-------------------10-11
Maintenance--------------------------------12
Troubleshooting Guide-------------------13
Technical Specifications-----------------14
Wiring Circuit-------------------------------15
Before using the appliance
How to operate the washing machine
Maintenance
Table of Contents

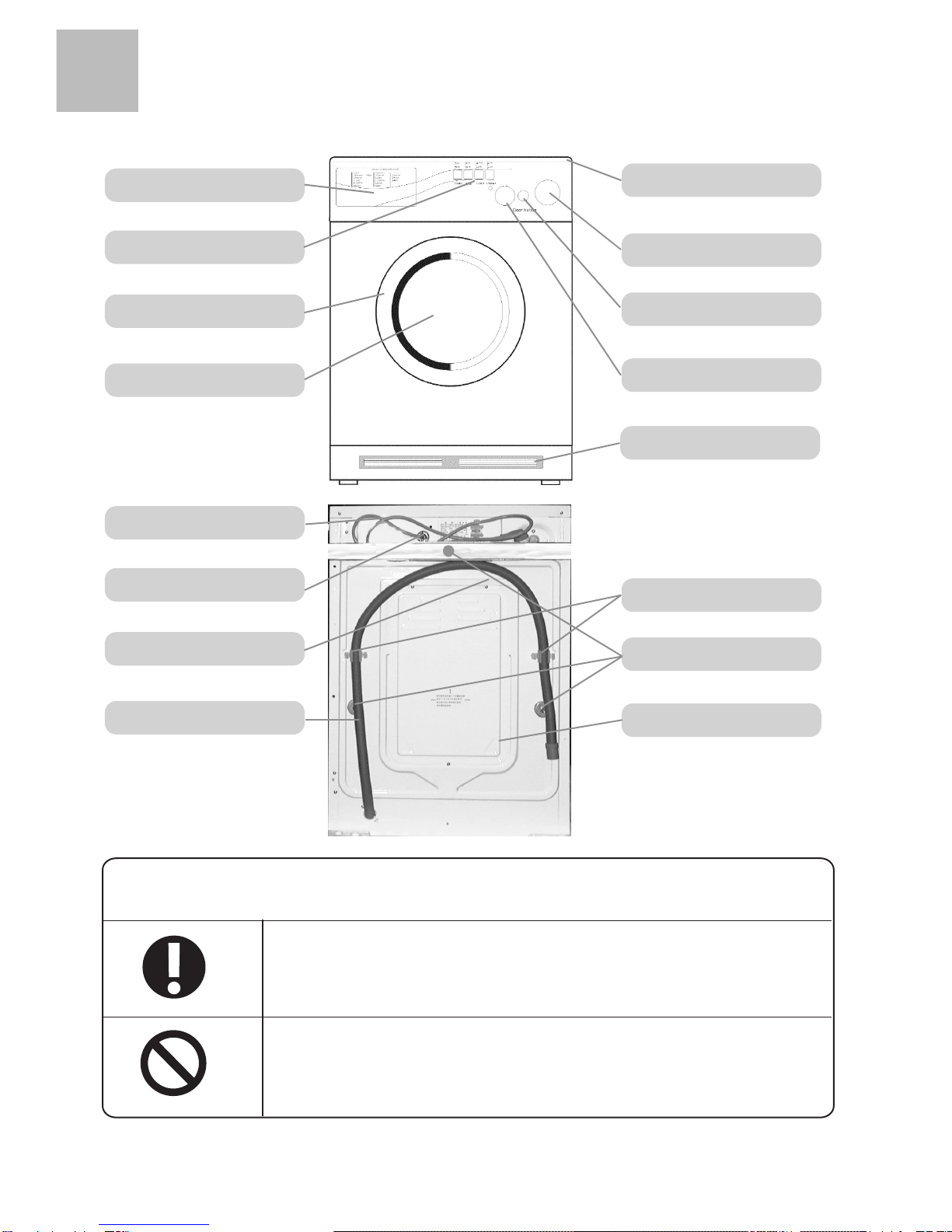

Names of Parts
This diagram may be slightly different from the layout of the washing
machine you have just purchased due to technical improvements.
Caution and Warning symbols
For your safety, any instructions in this manual with this "Warning"
sign must be followed strictly.
For your safety and to prevent damage to the washing machine,
any instructions in this manual with this "Stop" sign must be
followed strictly.
Detergent dispenser Top
Function button
Door button
Door
Program selector
Porthole Dryer selector
Power supply cable
Earth terminal Drain hose clip
Back plate screw (3) Packing bolt (3)
Drain hose Back plate
Caster release levers

1
1. A separate earthed socket is
required for the power supply.
After installation of the washing
machine the power plug must be
accessible during normal
operation.
2. Pull the plug and not the electric cable
when unplugging the washing machine.
3. Fuses in the power circuit should be
rated for 15A. Contact a washing
machine tech-nician or a Haier
designated service point for power cable
replacement.
4. For your safety, dry your hands
before touch-ing the washing machine
and wear appro-priate footwear.
5. Do not use flammable detergents or
dry cleaning agents; do not use
flammable sprays near the washing
machine; do not remove or insert the
plug in the pres-ence of flammable gas.
6. The door of the washing machine be-
comes hot during the water heating
process. Avoid contact with the door
during the heat-ing process. For safety,
keep children away from the washing
machine.
7. Do not allow children to play with the
packing materials after unpacking.
Matters Needing Attention
Safety
8. Do not touch the inside of the door if it
is opened during the drying process.

2
Matters Needing Attention
Use
8. The washing machine must not be used
in the open or in an area of high humidity
as water droplets may form on the
electrical components. Air dry the
appliance if the washing machine
components become wet.
9. The washing machine should be
placed in a well-ventilated area, leaving a
space between the appliance and
adjacent walls or furniture.
10. Keep away from heat sources and
direct sunlight to prevent plastic and
rubber components from ageing.
11. During installation, ensure that the
electric cable is not trapped by the
washing machine and damaged.
1. Make sure that the washing machine is
securely connected to the water supply.
Take the necessary precautions or contact
the local service centre if the connection is
poor or there is a water leak.
2. After turning the power off, turn the
program knob clockwise to set the wash
cycle.

3
Matters Needing Attention
3. Never place heavy objects, e.g. a
heating appliance or water container, on
the top panel of the washing machine.
4. Do not wash foam rubber or similar
sponge materials.
5. Before washing, close zippers, buttons,
laces and repair damaged areas.
Underwear and small items should be
placed in a laundry bag or pillow slip. Do
not wash clothes containing wire frames.
6. Do not open the detergent dispenser
during the wash cycle.
7. The door is fitted with a self-locking
device and will only open 2-3 minutes after
the washing machine stops. Do not force
the door open. Do not open the door when
the water level reaches the porthole.
8. After washing, turn off the tap to prevent
leaking; unplug the washing machine and
wipe clean the lower part of the porthole.
9. Keep the door slightly open when the washing machine is not being used. Never
cover the machine with a plastic sheet.

4
Installation
Remove all the packing materials as shown in figure
1 (including the foam base)
Fig.1
Check attachments and materials
The packing bolts protect the appliance from
impact damage during transportation. Follow the
steps below before using the appliance.
1. Remove the rear panel of the washing
machine;
2. remove the three packing bolts from the rear
panel of the washing machine, the rubber hose
and then the shock absorption steel channel;
3. refit the back plate;
4. fill the holes left by the packing bolts with
plastic plugs.
(Attention: the packing bolts and rubber hose
should be kept in a safe place for later use)
Remove the packing screws as shown in figure 2.
Fig.2
Adjusting the position of the washing machine.
The washing machine is provided with
adjustable feet. Before use, adjust the
feet until the appliance is level, as shown
in figure 3.
Fig.3
Name
Qty Operational Quality
Water Drain Plastic
manual certificate hose holder plugs
Model
XQG65-11SU
1113 1

Check the following items before connecting the appliance to the power supply.
The socket conforms to the maximum power load (the maximum current
load of the socket and power supply cable should not be less than 15A).
The power supply voltage conforms to the required value.
The power supply socket and plug of the washing machine are compatible;
if they are not compatible, contact a washing machine technician or a Haier
designated service point for power cable replacement. The washing machine
must be connected to the earth before use.
A supplementary earth cable should not be necessary if the socket is
connected to the earth.
A supplementary earth cable should be installed on the upper rear part of
the washing machine and connected to the earth if the power supply socket has
no earth connection.
Caution: the supplementary earth cable should not be connected to water or
heating pipes.
5
Installation
Connection of water inlet hose and washing machine
1. Place the water inlet hose nut on the
connector of the water inlet valve.
2. Make sure that the water inlet hose is
fixed tightly and properly.
water inlet hose nut
water inlet valve connector
Water drain hose
Connection of power supply
The height of the water drain hose terminal should be
between 80cm and100cm. The water drain hose must be
securely placed on the clip at the rear of the washing
machine.
Use the water drain support supplied as an
accessory to install the water drain hose. Fix the water
drain hose support with a waterproof ring. Do not use an
excessively long water drain hose and contact an
authorised technician if the water drain hose needs to be
extended. The water drain hose should not be extended
more than 250 cm (a longer extension will result in
concurrent water inflow and outflow). The diameter of the
extension hose should be the same as the original hose.
Caution: the water drain hose must not be immersed in
water. The original hose and the extension must be
connected tightly.
100cm
80cm

6
C HG E D
AB IF

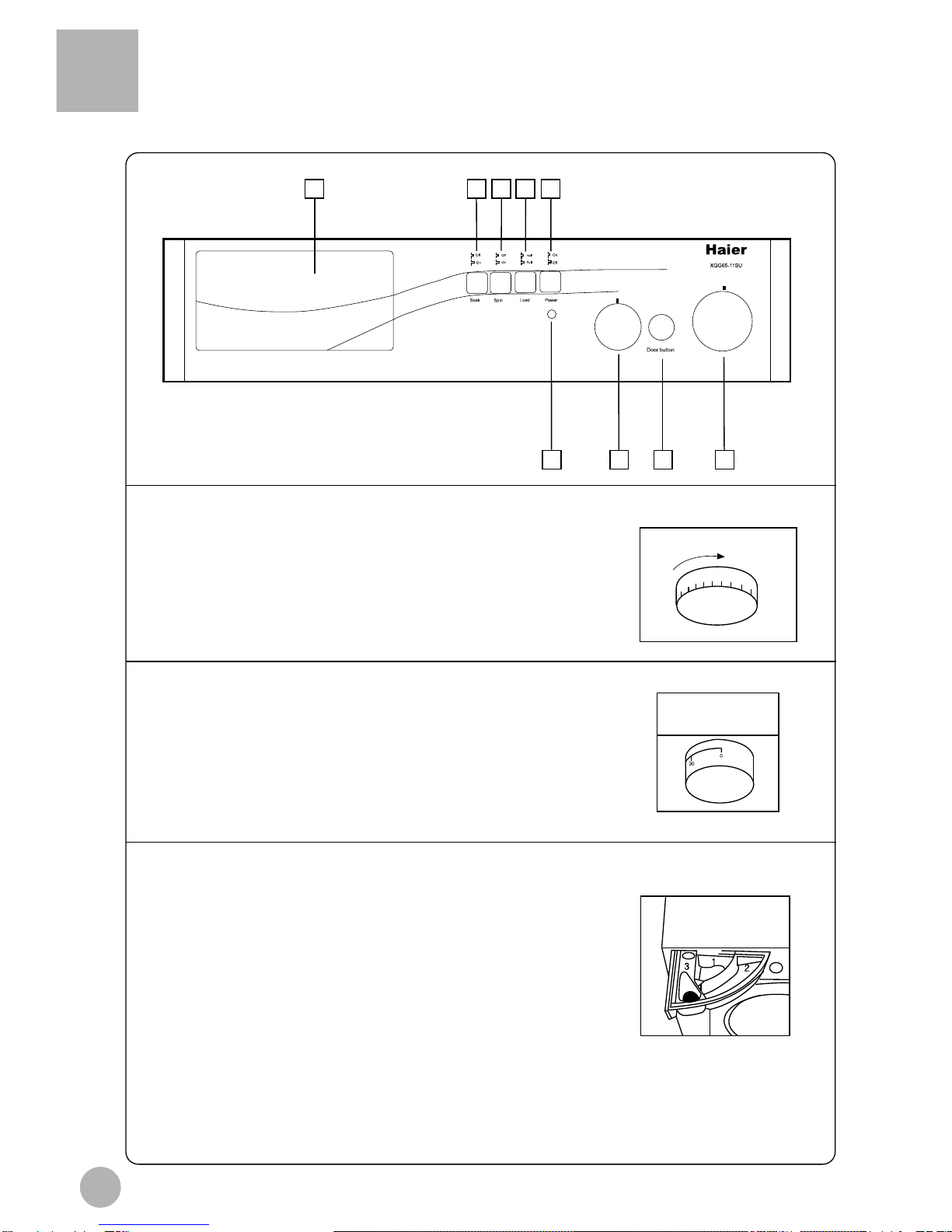

Control Panel
A Wash program
Turn the knob clockwise to select the desired wash
program.
Caution: Turn off the power before turning the
program knob clockwise to set the desired wash
program.
B Drying knob
This knob is for selecting a drying program.
0-120 minutes for cotton fabrics and coarse fibre
fabrics,
0-80 minutes for chemical fabrics. When a drying
program finishes, the washing machine o
C Detergent dispenser
Program description is printed on the front of the
detergent dispenser drawer. The detergent
dispenser is provided with three compartments
numbered 1, 2 and 3:
Compartment 1: pre-wash detergent
Compartment 2: normal wash-extra-fast wash
Compartment 3:softening agent, adjusting agent ,
fragrance

7
F Power light
The light turns on when the appliance is connected to
the power supply and switched on.
Functions
D Power Button
Push the button in to have your washer "ON". The light
will turn on indicating that power is "ON". Push the button
out to have your washer "OFF". The light will go off
indicating that power is "OFF".
E Load Button
Push the button in if you want to reduce water usage
during the rinse cycle. Push the button out if you want
maximum water usage during the rinse cycle.
Note: Half=Minimum Water Rinse
Full=Maximum Water Rinse
G Soak Button
Push the button in to have soak "OFF" and push the
button out to have soak "ON". After the rinse water fill and
the softener is dispensed, the cycle will allow the clothes
to soak before completing the rinse portion of the wash
cycle.
H Spin Button
If you want to extract more water from your clothes during
the wash cycle, push the button out. Clothes will be drier
when this option is selected.
If you do not want to extract water from your clothes using
the spin cycle, push the button in. If this option is
selected, only the excess water in the tub will drain
leaving the clothes wet.
Note: When the spin cycle is in the OFF position, the
machine will not automatically go to the spin dry function.
I Door Button
Push the button to open the door. This wash & dry combo
unit has built-in safety lock device. You must wait 3
minutes to open the door after the machine has stopped.

Note: indicates that softener or bleach can be added if needed;
indicates that detergent must be added;
indicates that detergent must not be added.
8
 Program description table
26.5 min
Mode
Selection(program
selector position)
Intensive wash(cotton fabrics)
Normal wash(synthetics)
Delicates(wool fabrics)
Recommended
laundry Program
time
Detergent
Compartment
1 Pre-wash
detergent
Compartment
2 detergent
Compartment
3 softener
Remarks
Pre-wash
Wash
Quick wash
Super quick
wash
Rinse
soften
spin
End(dry)
Wash
Quick wash
Super quick
wash
Rinse
soften
spin
End(dry)
Wash
Rinse
Soften
Spin
Drain
End
Heavily soiled
Soiled cotton
Non-fast coloureds and
medium soiled fabrics
Medium soiled or light
coloured fabrics
Capable of softening if
softener added
The intensive wash program ends
Separate rinsing
possible
Softening only
possible
Spinning only
possible
Separate rinsing
possible
Softening only
possible
Spinning only
possible
Separate rinsing
possible
Softening only
possible
Spinning only
possible
Colourfast heavily soiled
synthetics
Colourfast medium soiled
synthetics
Non-fast coloureds and
medium soiled synthetics
Capable of softening if
softener added
The normal wash program ends
Woollen fabrics
Capable of softening if
softener added
The delicate wash program ends and the machine stops operation
7

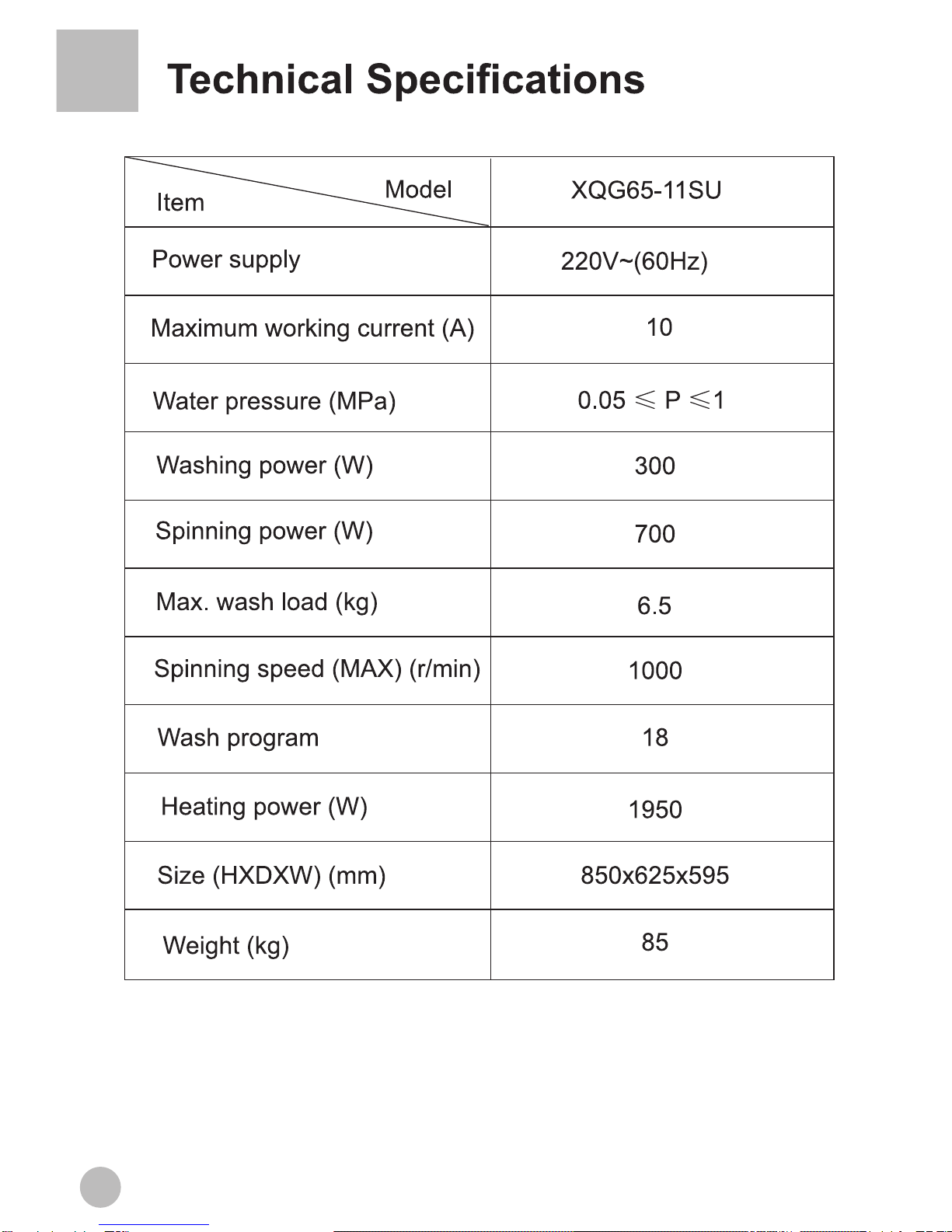

XQG65-11SU
10
3
3
3
10
8.5
8.5
15
8.5
5
5
7
7
3.5
3.5

9
Preparation
1. Power supply
Plug in the power supply
220V/60Hz.
2. Water supply
Turn on the tap to ensure that the water is clear.
Caution: Before starting the washing machine turn on
the water supply and make sure that the water tap and
inlet hose are connected correctly and do not leak.
3. Laundry
- Sort clothes according to fabric type and level of
soiling. There are three types of laundry: cotton,
synthetic and woollen (silk) fabrics.
- Separate whites from coloureds. If white and coloured
laundry are washed together, make sure that the
coloured fabrics are colourfast.
- Remove all objects from pockets that may cause
damage to the machine, such as keys and coins.
Clothing with frayed edges or rips should be put in a
wash bag or special bag before washing.
- Repair damaged clothing, lose buttons or damaged zips
and hooks before washing.
- Bed and table linen should be loaded loosely and
unfolded.
This washing machine is for household use and
designed for machine washable clothes. When sorting
laundry, refer to the clothes labels in order to separate
non machine-washable fabrics.
4. Detergents
Only special low
foam detergents
should be used in the
automatic drum
washing machine.
Special detergents
should be used for
blended or wool
fabrics.. Dry cleaning
solvents, such as
trichloroethylene,
should not be used
(caution: load the
required amount of
detergent only).
5. Wash Load
Type Colourfast Delicate Woollen Blended
fabrics
cottons fabrics fabrics
Max load 6.5kg 2.5 kg 1 kg 2.5kg

10
Blended fabric
clothes (800g)
Underwear
(blended
fabrics 70g)
Single bed
sheets
(cotton 800g)
Socks (blended
fabrics 50g)
Woollen blankets (3000g)
Jackets (cotton 800g)
2. How to fill the detergent dispenser
Open the detergent drawer, put the required detergent,
softening agent and bleaching agent into the
corresponding compartments. Gently close the drawer.
Caution:
1) Do not add liquid detergent into compartments 1
and 2
2) For the pre-wash program, detergent should be
added to both compartments 1 and 2; for other
programs, do not put detergent into compartment 1
3) Do not use too much softening agent as this may
damage synthetic fabrics.
3. Selecting the wash program
Set the wash program correctly depending on the laundry loaded. The wash
programs are indicated on the front the detergent dispenser. Turn the program
selector clockwise to the desired program.
Caution: Turn off the power before setting the wash program.
1. Laden van de wasmachine Reference load
Overalls (contton 950g) Jeans (800 g)
Pyjamas (200 g)
shirts
(cotton 300 g)
shirts 300 g)
Load the laundry into the washing
machine and the close the door.
Note: 1) When using the washing
machine for the first time, let it run
unloaded for one program to prevent
the laundry from being spotted by oil
or dirty water from the washing
machine. 2) Do not overload the
washing machine.
Washing Procedure

11
Washing Procedure
5. Selecting the function button
Select the function buttons as required (refer to the indications printed on the
control panel), otherwise leave all the buttons released.
6. Washing
Press the ON/OFF button: the washing machine will automatically start the
selected wash cycle.
7. End
Wait for 2-3 minutes after the wash cycle has finished. Press the ON/OFF
button again to cut off the power supply. Open the door and unload the
laundry. Turn off the tap and unplug the washing machine.
Additional information
Energy and water saving tips
1. Collect clothes for one full wash load.
2. Do not overload the washing machine.
3. Pre-wash heavily soiled clothes.
4. Reduce the amount of detergent or choose fast or minimal wash programs for
lightly soiled clothes
5. Choose the appropriate wash temperature. Only exceed 60¡ãC for heavily
soiled clothes.
6. Do not use more detergent than required.
7. Softening agents make clothes softer and easier to iron.

12
Maintenance
1. Turn off the water and
power supply after every
wash. Open the door to
prevent the formation of
dampness and odours. If the
washing machine is left idle for
a long period, drain any
remaining water in the
machine and replace the drain
2. Unplug the machine during cleaning and
maintenance. Use a soft cloth dampened with
soapy water to clean the machine exterior and
rubber components. Do not use corrosive or
abrasive chemicals or solvents.
4. Cleaning the Filter (once a month).
5. To prevent the water
supply from being blocked
and impurities from entering
into the machine, clean the
water inlet and filter
regularly.
7. If the washing machine
is left idle for a prolonged
period, turn off the water
and power supply and
open the door slightly to
prevent the formation of
dampness and odours.
6. If the appliance is to be moved any great distance,
replace the packing bolts which were removed during
installation. Proceed as shown below.
Remove the rear
panel. Remove the rubber
plugs. Insert the packing
bolts.
Tighten the bolts with the
spanner provided. Replace the rear
panel.
This machine has a lint trap which is located behind
the removable front panel on the bottom right front
of the machine. To remove panel, pull the castor
levers out. Grip the sides of the front panel and pull
gently towards you. To remove the lint trap, turn
knob to counter clockwise position. this will unlock
the lint trap, to put it back, turn the knob to
clockwise position, this will lock the lint trap. To
replace front panel, line up the tabs on the panel
with the holes and push in gently. Release castor
levers.

13
Before contacting the after-sales service, see if you can solve the problem yourself
with the help of the Troubleshooting Guide.
Troubleshooting Guide
Fault Possible Cause
The detergent is not a low foam type
Excessive detergent has been used
Poor connection to power supply
Power failure
The door is not properly closed
The machine has not been switched on
The water is not turned on
The water pressure is less than 0.05MPa
The inlet hose is kinked
Water supply failure
The program knob is not properly set
The door is not properly closed
Check that the height of the water hose is
less than 80cm
Some packing bolts have not been removed
The washing machine is positioned on an
uneven surface
The drain hose is blocked
The drain hose end is less than 100cm
above the floor level
The washing machine
does not function
The washing machine
does not fill with water
The water supply and
draining do not stop
The washing machine
does not drain
Strong vibration
during spinning
Water or electricity failure
The machine stops before
completing the wash cycle
Excessive foam
in the drum

14

15

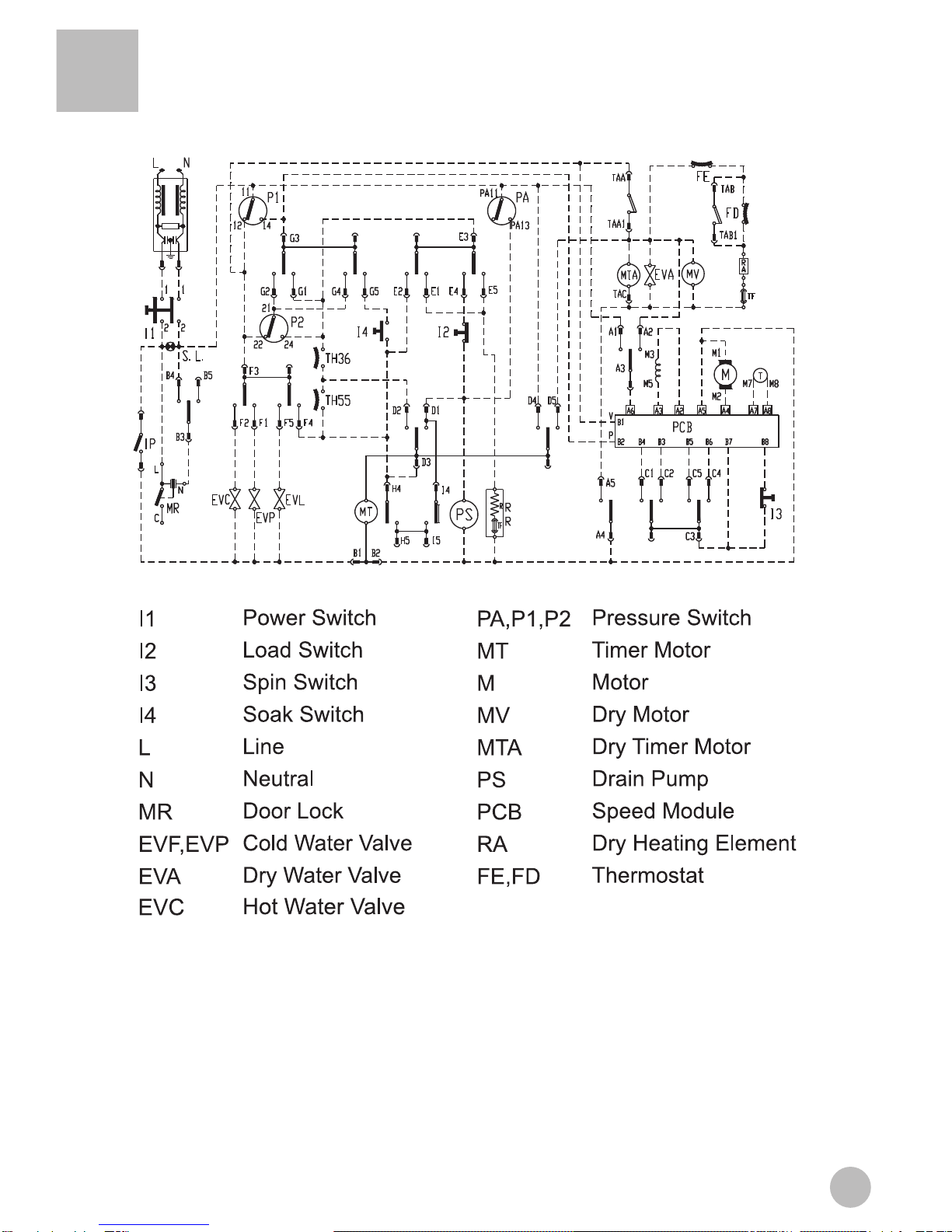

Wiring Circuit
