Haier JC-82G User manual

JC-82G
Wine Cooler
Service Manual
●Features
●Optimized for Preservation of Wine Flavors.
●Temperature adjustable,electrical control .
●Temperature range:A-3～A+3℃(A=7～15).
●Interior lights.
●wine rack. Haier Group
Manual No.: JC-82G Edition:20050820
JC-82G
JC-112G
JC-152G

１
CONTENTS
Contents
1. Contents…………………………………………………… ………….……. 1
2. Product Code illustration and Series Introduction…………………… . …2
3. Features ……………………………………………………………………...3
4. Specifications…………………………………………………………………4
5. Safety Precautions(including Warning and Cautions)…………………....5
6. Net Dimension……………………………………………………..………....7
7. Installation and Accessory Parts…………………… ……………..…….…8
8. Parts and Functions………………………………… ………….….………13
9. System Flow Chart………………………………………………....………14
10. Function Schedule…………………………………………….. …….…15
11. Circuit Diagram………………………………………………..….….….16
12. Maintenance Service and Trouble Shooting…………………..…..….17
13. Exlpoded View……………………………………………………...……20
14. List of Parts………………………………………………………...…….21

２
PRODUCT CODE ILLUMINNATION AND SERIES INTRODUCTION
Product Code illustration and Series Introduction
J
C-□G □
A B C D E
A: The first letter of “wine” in Chinese spelling.
B: Abbreviation of Cooler or Celler.
C: Capacity .( Unit:Litre ).
D:G stands for “Freon free”.
E:A Stands for “Mechanical thermostat control” .
Examples:
JC-112G
-It represents wine cooler (or cellar) with capacity 112 l,controlled by
Control Panel.
JC-112GA
-It represents wine cooler (or cellar) with capacity 112 l,controlled by
the thermostat.

３
FEATURES
Features
1. Optimized for Preservation of Wine Flavors
The wine cooler can be set to any temperature you desire to accommodate your
wine storage requirements.
2. Temperature adjustable
The wine cooler can be set to any temperature you desire to accommodate your
wine storage requirements.
3. Temperature range:A-3～A+3℃(A=7～15).
4.Interior lights（Only for the style of electrical control）
To complement the look of your wine collection, soft light has been built into the
wine cooler. Simply push the “Light/Set” button on the electronic controlled unit,
and the light comes on, push again for off. On the mechanical control units ,the
light switch is on the front for your convenience. For maximum energy efficiency,
leave light off when not viewing your collection.
5.wine rack.
The shelves are designed for flexibility and easy cleaning. To accommodate
different sized bottles the shelves slide out and can be moved up or down into
any of the tracks molded into the cooler cabinet. Larger bottles or Magnums can
be more easily accommodated on the cross shelves of the bottom basket of the
cooler, You will notice that the shelves are designed so the bottles do not line-up
directly over one another, This allows free air movement and provides more
space.

４
SPECIFICATIONS
Specifications
SAFETY PRECAUTIONS
Safety Precautions
Read all of the instructions before using this appliance. When using this
appliance ,always exercise basic safety precautions, including the
following:
1. Use this appliance only for its intended purpose as described in this use
and care guide.
2. This wine cooler must be properly installed in accordance with the
installation section. instructions before it is used ,See grounding
instructions in the installation section.
3. Never unplug your wine cooler by puling on the power cord, Always
grasp the plug firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged ,Do not sue a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
5. Unplug your wine cooler before cleaning or before making any repairs,
Note: If for any reason this product requires service ,we strongly,
recommend that a certified technician performs the service.

５
6. If your old wine cooler is not being used, we recommend that you
remove the door and leave the shelves in place ,This will reduce the
possibility of danger to children.
7. This wine cooler should not be recessed or built-in an enclosed
SAFETY PRECAUTIONS
cabinet ,It is designed for freestanding installation only
8. Do not operate your wine cooler in the presence of explosive fumes.
9. Do not store foods in wine cooler as interior temperature may not be
cool enough to prevent spoilage.

６
NET DIMENSION
Net Dimesion
Model JC-82G JC-112G
JC-152G
Unit Dimersion(W*D*H) 506*550*780 506*550*980 506*550*1280
Dimersion
(Opening door:1350)
506*950*780 506*950*980 506*950*1280
D
W
H

７
INSTALLATION AND ACCESSORY PARTS
INSTALLATION AND ACCESSORY PARTS
Unpacking Your Wine Cooler
1.Remove all packaging material, This includes the foam base and all adhesive
tape holding the wine cooler accessories inside and outside ,compressor from
shipping damage due to vibration and shock.
2.Inspect and remove any remains of packing ,tape or printed materials before
powering on the wine cooler.
Leveling Your Wine Cooler
Your wine cooler has four leveling legs which are located in the front and rear
Corners of your wine cooler . After properly placing your wine cooler in its final
position ,you can level your wine cooler.
Leveling cooler or by turning them clockwise to lower your wine cooler, The wine
cooler door will close easier when the leveling legs are extended.
Proper Air Circulation
zTo assure your wine cooler works at the maximum efficiency it was designed
for ,you should install it in a location where there is proper air
circulation ,plumbing and electrical connections.
zThe following are recommended clearances around the wine cooler:
Sides…………..2”(50mm)
Top ……….……2”(50mm)

８
Back…………..2”(50mm)
zDo not over fill your wine cooler for proper internal air circulation.
INSTALLATION AND ACCESSORY PARTS
Electrical Requirement
zMake sure there is a suitable power Outlet(220-230V)with proper grounding to
power the wine cooler.
zAvoid the use of three plug adapters or cutting off the third grounding in order
to accommodate a two plug outlet ,This is a dangerous practice since it
provides no effective grounding for the wine cooler and may result in shock
hazard.
Install Limitations
zDo not install your wine cooler in any location not properly insulated or heated
e.g. garage etc, Your wine cooler was not designed to operate in temperature
settings below 13℃Centigrade.
zSelect a suitable location for the wine cooler on a hard even surface away
from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking
appliances etc, Any floor unevenness should be corrected with the leveling
legs located on the front and rear bottom corners of the wine cooler.
zYour wine cooler is designed for free-standing installation only, It is not
designed for built-in application.
Electronic Controlled Units:See fig.#1
Once you have plugged the unit into an electrical outlet, Let the unit run for at
least 30 minutes to acclimate itself before making any adjustments, during this

９
time the Red Wine light may stay on.
INSTALLATION AND ACCESSORY PARTS
Temperature Adjustments:
Electronic control unit: See fig.#1
zThe wine cooler is preset in the factory to automatically accommodate
temperature requirements for red or white wines. If you store mostly white
wines, press the “White Wine” button and the wine cooler will maintain an
average temperature between 7℃to 10℃.Pushing the “Red wine” button will
yield an average temperature between 13℃to 16℃.
zThe wine cooler can be set to any temperature you desire to accommodate
your wine storage requirements. To set the temperature, press both the
“White Wine” and “Red Wine” button simultaneously and hold for
approximately 3 seconds. Now you are in temperature set mode. Decrease
the temperature by pushing the “Whine Wine” button and increase the
temperature by pressing the “Red Wine” button. Pressing the appropriate
button 3 times will adjust the temperature 3 degrees, press 4 times equals 4

１０
degrees, 5 times equals 5 degrees, and so on. Once you have selected the
temperature you desire, push the “Light/Set” button. Now the wine cooler is
INSTALLATION AND ACCESSORY PARTS
programmed and the LED readout will return to current internal temperature
reading.
zThere will be a 3 degree variance +/- between the temperature you select and
the temperature indicated on the LED readout. This occurs because the wine
cooler activates and deactivates trying to maintain your desired temperature.
There is often a 10℃variance between the top and bottom shelves of the
wine cooler. Therefore, if you have set the wine cooler for 10℃and have a
mix of red and white wines, you may want to put the white wine on the bottom
shelf where the temperature will be 7℃,and place the red wine on the top shelf
where the temperature will be 13℃.
Mechanical Control Unit: See fig.#2
zYour wine cooler has a temperature control knob on the back of the
unit ,There are 6 settings:1 being the warmest and 6 being the coolest, You
can set the temperature of your wine cooler any setting you desire.
zFig. #2
White
OFF
Red
Mid Range
Coldest

１１
INSTALLATION AND ACCESSORY PARTS
Shelving
zThe shelves are designed for flexibility and easy cleaning. To accommodate
different sized bottles the shelves slide out and can be moved up or down into
any of the tracks molded into the cooler cabinet. Larger bottles or Magnums can
be more easily accommodated on the cross shelves of the bottom basket of the
cooler, You will notice tat the shelves are designed so the bottles do not line-up
directly over one another, This allows free air movement and provides more
space.

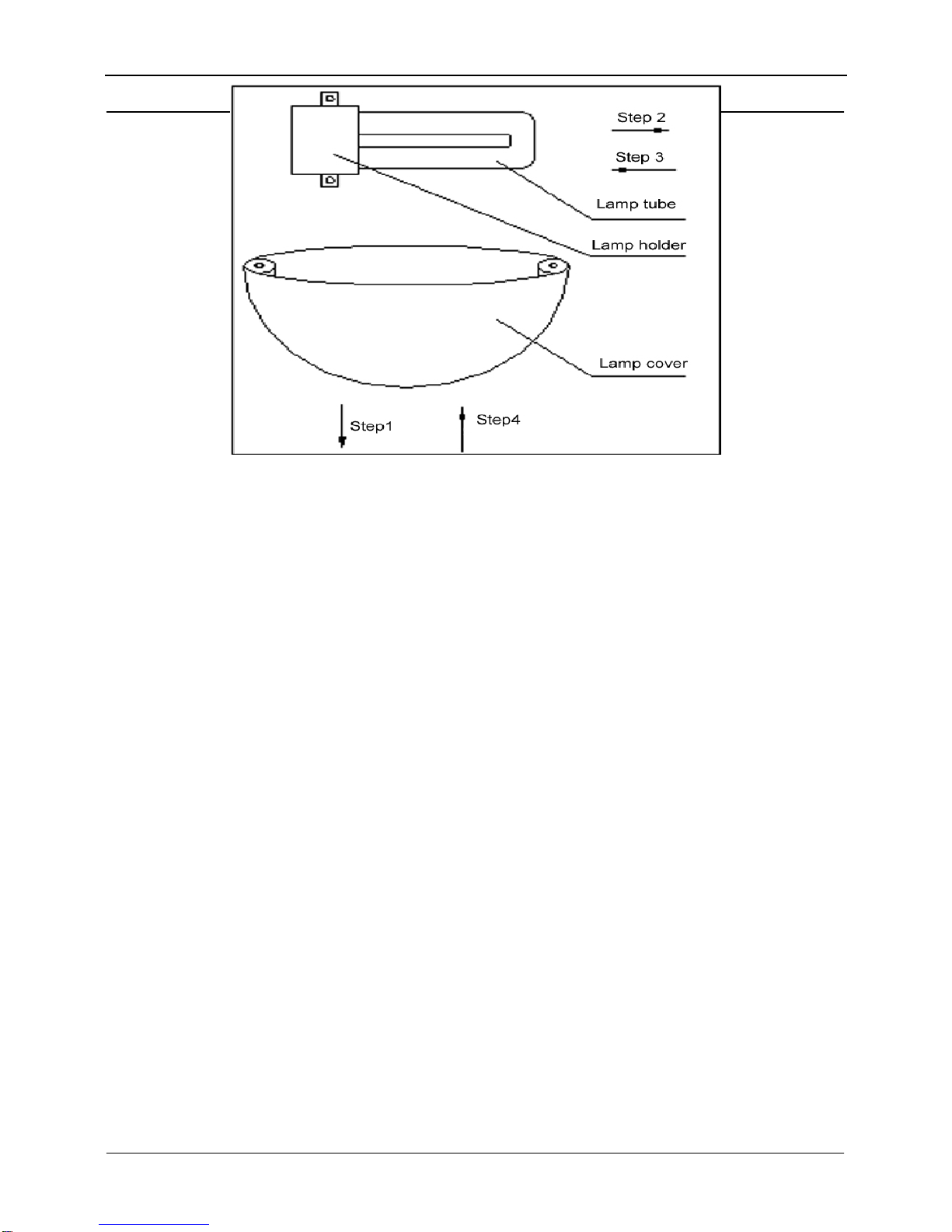

Interior Light
To complement the look of your wine collection, soft light has been built into the
wine cooler. Simply push the “Light/Set” button on the electronic controlled unit,
and the light comes on, push again for off. On the mechanical control units ,the
light switch is on the front for your convenience. For maximum energy efficiency,
leave light off when not viewing your collection.
Door lock (electronic controlled unit only)
zFor safety and security, your wine cooler is equipped with a door lock. To
eliminate the risk of accidental child entrapment, the lock was designed so
that the door will not lock until the key is removed (consistent with VDE
requirements).

１２
PARTS AND FUNCTIONS
Parts and Functions
1 2 3 4 5 6 7 8 9 10 11 12
JC-82G ●●●●●●●●●●
JC-82GA
●●●●●●
JC-112G ●●●●●●●●●●
JC-112GA
●●●●●●

１３
JC-152G ●●●●●●●●●●
JC-152GA
●●●●●●

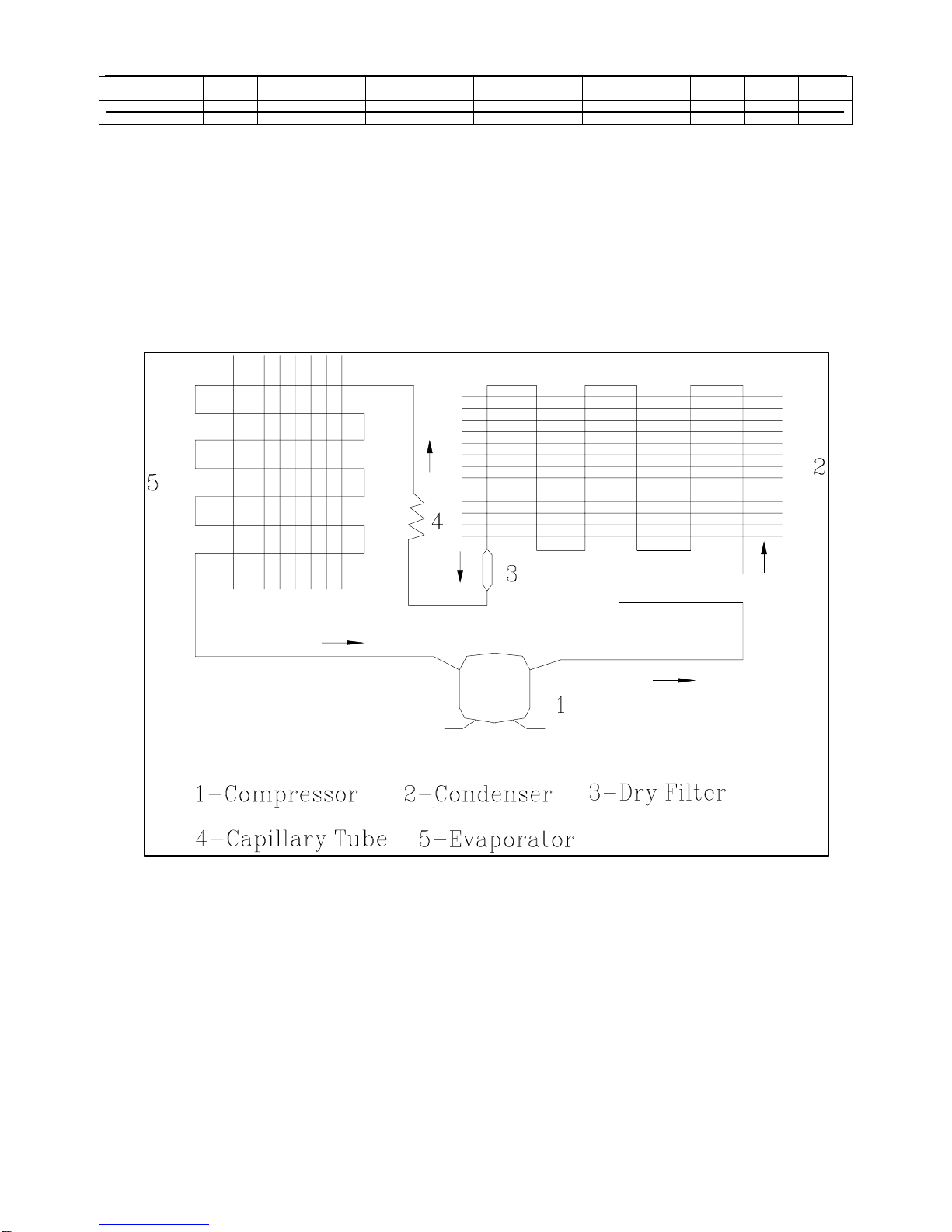

SYSTEM FLOW CHART
System Flow Chart

１４
FUNCTION SCHEDULE
Function Schedule
The illustration of the function in the subject of
“Temperature Adjustments” of “Installation and Accessory
Parts”.
Function Description
white Press the “white wine” button
red Press the “red wine” button
light Press the “light” button

１５
CIRCUIT DIAGRAM
Circuit Diagram
JC-82G

１６
MAINTENANCE SERVICE AND TROUBLE SHOOTING
Maintenance Service and Trouble Shooting
Cleaning and Maintenance
Warning: To avoid electric shock always unplug your wine cooler before cleaning,
Lgnoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow manufacture’s
instructions and warnings to avoid personal injury or product damage.
General:
zPrepare a cleaning solution of 3-4 tablespoons of baking soda mixed with
warm water, Use sponge or soft cloth, dampened with the cleaning solution,
to wipe down your wine cooler.
zRinse with clean warm water and dry with a soft cloth.
zDo not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergent solvents or metal scouting pads ,SOME of these
chemical may dissolve , damage and/or discolor your wine cooler.
Door Gaskets:
zClean door gaskets every three months according to general instructions,
Gaskets must be kept clean and pliable to assure a proper seal,
zPetroleum jelly applied lightly on the hinge side of gaskets will keep the
gasket pliable and assure a good seal.
Power Interruptions

１７
zOccasionally there may be power interruptions due to thunderstorms or other
MAINTENANCE SERVICE AND TROUBLE SHOOTING
Maintenance Service and Trouble Shooting
causes, Remove the power cord from AC outlet when a power outage occurs,
When power has been restored ,replug power cord to AC outlet.
Vacation and Moving Care
zFor ling vacations or absences ,unplug the wine cooler and clean the
wine cooler and door gaskets according to “General cleaning “ section,
Prop doors open, so air can circulate inside. When moving always move
the wine cooler vertically, Do not move with the unit lying down,
Possible damage to the sealed system could occur.
Trouble Shooting
Normal Operating Sounds You May Hear
zBoiling water, gurgling sounds or slight vibrations that are the result of the refrigerant
circulating through the cooling coils.
zThe thermostat control will click when it cycles on and off.
Wine Cooler Does Not Operate
zCheck if wine cooler is plugged in.
zCheck if there is power at the ac outlet ,by checking the circuit breaker.
Wine appears too warm
zFrequent door openings.
zAllow time for recently added wine to reach desired temperature.
zCheck gaskets for proper seal.
zClean condenser coils.
zAdjust temperature control to colder setting.

１８
Wine temperature is too cold.
zIf temperature control setting is too cold, adjust to a warmer setting.
MAINTENANCE SERVICE AND TROUBLE SHOOTING
Maintenance Service and Trouble Shooting
Wine cooler runs too frequently
zThis may be normal to maintain constant temperature during high temperature and humid
days.
zDoors may have been opened frequently or for an extended period of time .
zClean condenser coils,
zCheck gasket for proper seal.
zCheck to see if doors are completely closed.
Moisture build up on interior or exterior of the wine cooler:
zThis is normal during high humidity periods.
zProlonged or frequent door openings.
zCheck door gaskets for proper seal.
Wine Cooler door does not shut properly:
zLevel the wine cooler.
zCheck for blockages e.g. wine bottles, shelves.
How to change the lamp tube
1.Using screwdriver, take down the 2 bolts that tighten the lamp cover , and then take off the
light cover (step 1)
2.Pull put the “u” shape lamp tube from the lamp holder (step 2)
3.Put a new lamp tube into the holder and lock it (step 3)
4. Take back the lamp cover ,place it at the original location and fasten the bolts (step 4).

１９
EXPLODED VIEW
Exploded View
