WINE COOLER
Service Manual
PART # RF-8888-395
HAIER AMERICA TRADING, LLC
www.haieramerica.com

ManualNo.:JC-A(A) Edition:20030108
JC-A(A)
Wine Cooler
Service Manual
●Features
●Optimized for Preservation of Wine Flavors.
●Temperature adjustable,electrical control .
●Temperature range:A-3～A+3℃(A=7～15).
●Interior lights.
●wine rack. Haier Group
HVF020ABB
HVF020ABL
HVF030ABB
HVF046ABB
HVF042ABL
HVFM020ABB
HVFM030ABB

１
CONTENTS
Contents
1. Contents…………………………………………………… ………….……. 1
2. Product Code illustration and Series Introduction…………………… . …2
3. Features ……………………………………………………………………...3
4. Specifications…………………………………………………………………4
5. Safety Precautions(including Warning and Cautions)…………………....5
6. Net Dimension……………………………………………………..………....7
7. Installation and Accessory Parts…………………… ……………..…….…8
8. Parts and Functions………………………………… ………….….………13
9. System Flow Chart………………………………………………....………14
10. Function Schedule…………………………………………….. …….…15
11. Circuit Diagram………………………………………………..….….….16
12. Maintenance Service and Trouble Shooting…………………..…..….17
13. Exlpoded View and List of Parts…………...………... ...……………20

２
PRODUCT CODE ILLUMINNATION AND SERIES INTRODUCTION
Product Code illustration and Series Introduction
HVF□□□AB□
A B C D E FG H
A:The abbreviation of “Haier”
B:Stands for the “wine”
C: The first letter of “Freezer”
D:If it is “M”,it stands for “Mechanical thermostat control” ;Or else “0” stands
for”macrocomputer control”.
E: The most of the bottles which may hold in the cabinet.
F:It means the first improvement of technology.
G:The color of the cabinet is Black.
H:”B” stands for the color of the door and the shelves are Black; “L” stands for the
the color of the door and the shelves are “Silver”.
Examples:
HVF020ABB
-It represents wine cooler with 20 bottles,controlled by Control
Panel,with the black cabinet,black door and black shelves.
HVFM20ABB
-It represents wine cooler with 20 bottles,controlled by mechanical
thermostat,with the black cabinet,black door and black shelves

３
FEATURES
Features
1. Optimized for Preservation of Wine Flavors
The wine cooler can be set to any temperature you desire to accommodate your
wine storage requirements.
2. Temperature adjustable.
The wine cooler can be set to any temperature you desire to accommodate your
wine storage requirements.
3. Temperature range:A-3～A+3℃(A=7～15).
4.Interior lights.
To complement the look of your wine collection, soft light has been built into the
wine cooler. Simply push the “Light/Set” button on the electronic controlled unit,
and the light comes on, push again for off. On the mechanical control units ,the
light switch is on the front for your convenience. For maximum energy efficiency,
leave light off when not viewing your collection.
5.wine rack.
The shelves are designed for flexibility and easy cleaning. To accommodate
different sized bottles the shelves slide out and can be moved up or down into
any of the tracks molded into the cooler cabinet. Larger bottles or Magnums can
be more easily accommodated on the cross shelves of the bottom basket of the
cooler, You will notice that the shelves are designed so the bottles do not line-up
directly over one another, This allows free air movement and provides more
space.

４
SPECIFICATIONS
Specifications
Model HVF020ABB/
HVFM20ABB
HVF030ABB/HV
FM30ABB/HVF0
42ABL
HVF046ABB/HV
F060ABL
Capacity(Cubic Feet) 2.9 4.0 5.37
Power Supply(V/Hz) 220-230V~/50Hz 220-230V~/50H
z 220-230V~/50Hz
Power
Consumption(kW.h/year) 251.9 270.1 288.3
Unit Dimersion(W*D*H) 506*550*780 506*550*980 506*550*1280
Unit Weight(Lbs.) 34 45 49
Box Dimensions(W*D*H) 586*616*810 586*616*1010 586*616*1310
Box Weight(Lbs) 37 50 54
Container Quantity(40HC’) 234 156 156

５
SAFETY PRECAUTIONS
Safety Precautions
Read all of the instructions before using this appliance. When using this
appliance ,always exercise basic safety precautions, including the
following:
1. Use this appliance only for its intended purpose as described in this use
and care guide.
2. This wine cooler must be properly installed in accordance with the
installation section. instructions before it is used ,See grounding
instructions in the installation section.
3. Never unplug your wine cooler by puling on the power cord, Always
grasp the plug firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged ,Do not sue a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
5. Unplug your wine cooler before cleaning or before making any repairs,
Note: If for any reason this product requires service ,we strongly,
recommend that a certified technician performs the service.
6. If your old wine cooler is not being used, we recommend that you
remove the door and leave the shelves in place ,This will reduce the
possibility of danger to children.
7. This wine cooler should not be recessed or built-in an enclosed

６
SAFETY PRECAUTIONS
cabinet ,It is designed for freestanding installation only
8. Do not operate your wine cooler in the presence of explosive fumes.
9. Do not store foods in wine cooler as interior temperature may not be
cool enough to prevent spoilage.

７

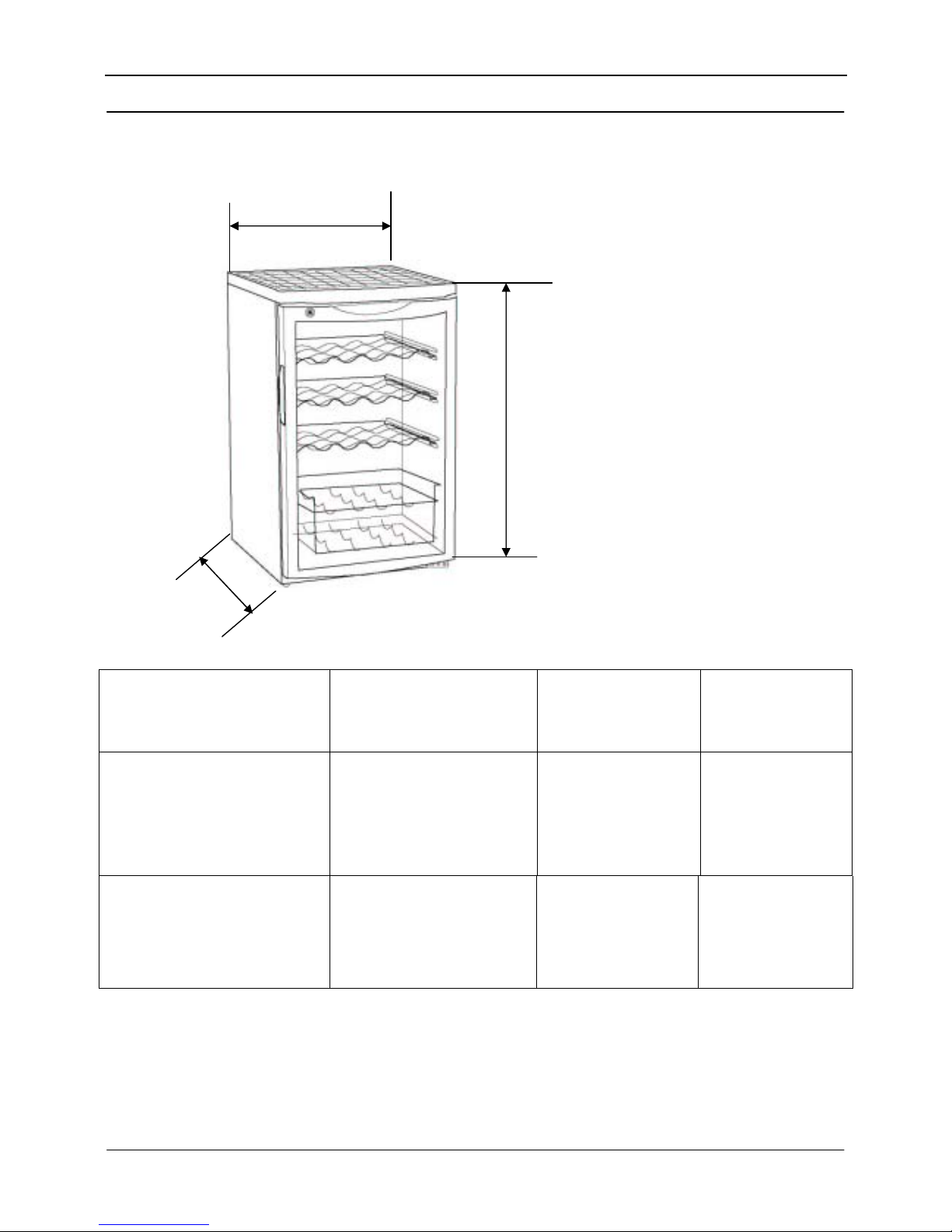

NET DIMENSION
Net Dimesion
Model HVF020ABB/
HVFM20ABB
HVF030ABB/HVF
M30ABB/HVF042
ABL
HVF046ABB/HV
F060ABL
Unit Dimersion(W*D*H) 506*550*780 506*550*980 506*550*1280
Dimersion
(Opening door:1350) 506*950*780 506*950*980 506*950*1280
D
W
H

８
INSTALLATION AND ACCESSORY PARTS
INSTALLATION AND ACCESSORY PARTS
Unpacking Your Wine Cooler
1.Remove all packaging material, This includes the foam base and all adhesive
tape holding the wine cooler accessories inside and outside ,compressor from
shipping damage due to vibration and shock.
2.Inspect and remove any remains of packing ,tape or printed materials before
powering on the wine cooler.
Leveling Your Wine Cooler
Your wine cooler has four leveling legs which are located in the front and rear
Corners of your wine cooler . After properly placing your wine cooler in its final
position ,you can level your wine cooler.
Leveling cooler or by turning them clockwise to lower your wine cooler, The wine
cooler door will close easier when the leveling legs are extended.
Proper Air Circulation
zTo assure your wine cooler works at the maximum efficiency it was designed
for ,you should install it in a location where there is proper air
circulation ,plumbing and electrical connections.
zThe following are recommended clearances around the wine cooler:
Sides…………..2”(50mm)
Top ……….……2”(50mm)
Back…………..2”(50mm)
zDo not over fill your wine cooler for proper internal air circulation.

９
INSTALLATION AND ACCESSORY PARTS
Electrical Requirement
zMake sure there is a suitable power Outlet(115 volts, 15 amps outlet)with
proper grounding to power the wine cooler.
zAvoid the use of three plug adapters or cutting off the third grounding in order
to accommodate a two plug outlet ,This is a dangerous practice since it
provides no effective grounding for the wine cooler and may result in shock
hazard.
Install Limitations
zDo not install your wine cooler in any location not properly insulated or heated
e.g. garage etc, Your wine cooler was not designed to operate in temperature
settings below 55oF.
zSelect a suitable location for the wine cooler on a hard even surface away
from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking
appliances etc, Any floor unevenness should be corrected with the leveling
legs located on the front and rear bottom corners of the wine cooler.
zYour wine cooler is designed for free-standing installation only, It is not
designed for built-in application.
Initial Setup
Electronic Controlled Units
Once you have plugged the unit into an electrical outlet, Let the unit run for at
least 30 minutes to acclimate itself before making any adjustments, during this
time the Red Wine light may stay on.

１０
INSTALLATION AND ACCESSORY PARTS
Mechanical Controlled Units:
The control for this is on the back of the unit. There are 6 settings plus 0 (OFF).
Initially set the temperature setting to 3. Let the unit run for at least 30 minutes to
acclimate itself before making any adjustments.
Temperature Adjustments:
Electronic control unit: See fig.#1
zThe wine cooler is preset in the factory to automatically ac
zoF
z
z
●The wine cooler is preset from the factory to automatically accommodate
temperature requirements for red or white wines. If you store mostly white wines,
press the "White Wine" button and the wine cooler will maintain an average
temperature between 45° to 50° F. Pushing the "Red Wine" button will yield an
average temperature between 55° to 60° F.
●The wine cooler can be set to any temperature you desire to accommodate
your wine storage requirements. To set the temperature, press both the
"White Wine" and "Red Wine" buttons simultaneously and hold for
approximately 3 seconds. Now you are in temperature set mode. Decrease
the temperature by pushing the "White Wine" button and increase the
temperature by pressing the "Red Wine" button. Pressing the appropriate

１１
INSTALLATION AND ACCESSORY PARTS
button 3 times will adjust the temperature 3 degrees, press 4 times equals 4
degrees, 5 times equals 5 degrees, and so on. Once you have selected the
temperature you desire, push the "Light/Set" button. Now the wine cooler is
programmed and the LED readout will return to current internal temperature
reading
●There will be a 3 degree variance +/- between the temperature you select and
the temperature indicated on the LED readout. This occurs because the wine
cooler activates and deactivates trying to maintain your desired temperature.
There is often a 10° variance between the top and bottom shelves of the wine
cooler. Therefore, if you have set the wine cooler for 50° and have a mix of red
and white wines, you may want to put the white wine on the bottom shelf where
the temperature will be 45° F, and place the red wine on the top shelf where the
temperature will be 55° F.
Mechanical Control Unit: See fig. # 2
Fig. #2 :
●Your wine cooler has a temperature control knob on the back of the unit.
Whi te
OFF
Red
Mid Range
Coldest

１２
INSTALLATION AND ACCESSORY PARTS
There are 6 settings: 1 being the warmest and 6 being the coolest. You can set
the temperature of your wine cooler at any setting you desire.
Shelving
zThe shelves are designed for flexibility and easy cleaning. To accommodate
different sized bottles the shelves slide out and can be moved up or down into
any of the tracks molded into the cooler cabinet. Larger bottles or Magnums can
be more easily accommodated on the cross shelves of the bottom basket of the
cooler, You will notice tat the shelves are designed so the bottles do not line-up
directly over one another, This allows free air movement and provides more
space.
Interior Light
To complement the look of your wine collection, soft light has been built into the
wine cooler. Simply push the “Light/Set” button on the electronic controlled unit,
and the light comes on, push again for off. On the mechanical control units ,the
light switch is on the front for your convenience. For maximum energy efficiency,
leave light off when not viewing your collection.
Door lock (electronic controlled unit only)
zFor safety and security, your wine cooler is equipped with a door lock. To
eliminate the risk of accidental child entrapment, the lock was designed so
that the door will not lock until the key is removed (consistent with VDE
requirements).

１３
PARTS AND FUNCTIONS
Parts and Functions
1 2 3 4 5 6 7 8 9 10 11 12
HVF020ABB ●●●●●●●●●●
HVFM30ABB
●●●●●●●
HVF030ABB ●●●●●●●●●●
HFVM30ABB
●●●●●●●
HVF042ABL ●●●●●●●●●●
HVF046ABB ●●●●●●●●●●
HVF060ABL ●●●●●●●●●●

１４

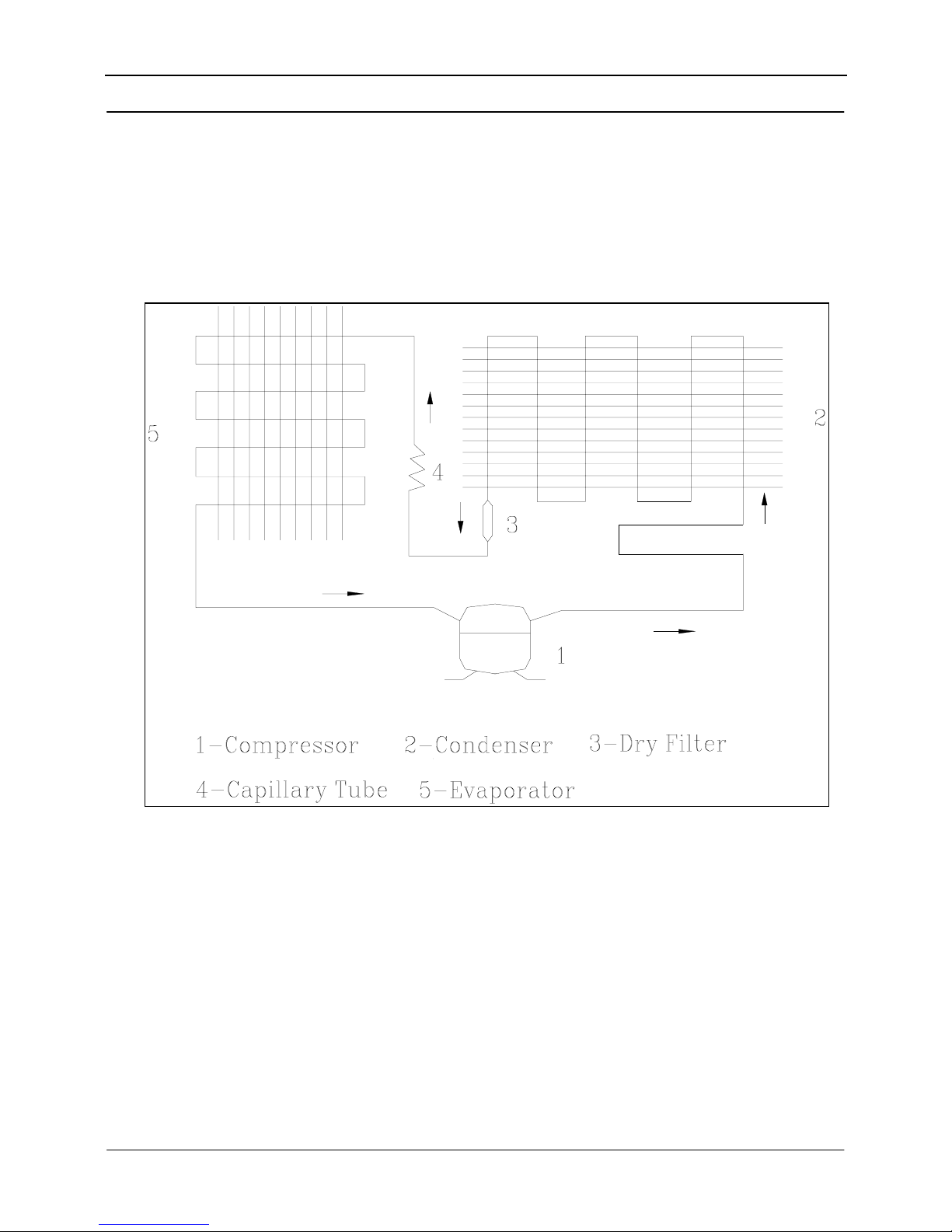

SYSTEM FLOW CHART
System Flow Chart

１５
FUNCTION SCHEDULE
Function Schedule for the Electronic Controlled Wine
Cooler
The illustration of the function in the subject of
“Temperature Adjustments” of “Installation and Accessory
Parts”.
Function Description
white Press the “white wine” button
red Press the “red wine” button
light Press the “light” button

１６
CIRCUIT DIAGRAM
Circuit Diagram
HVF020ABB/HVF042ABL HVF046ABB/HVF060ABL
HVF030ABB HVFM20ABB/HVFM30ABB

１７
MAINTENANCE SERVICE AND TROUBLE SHOOTING
Maintenance Service and Trouble Shooting
Cleaning and Maintenance
Warning: To avoid electric shock always unplug your wine cooler before cleaning,
Lgnoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow manufacture’s
instructions and warnings to avoid personal injury or product damage.
General:
zPrepare a cleaning solution of 3-4 tablespoons of baking soda mixed with
warm water, Use sponge or soft cloth, dampened with the cleaning solution,
to wipe down your wine cooler.
zRinse with clean warm water and dry with a soft cloth.
zDo not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergent solvents or metal scouting pads ,SOME of these
chemical may dissolve , damage and/or discolor your wine cooler.
Door Gaskets:
zClean door gaskets every three months according to general instructions,
Gaskets must be kept clean and pliable to assure a proper seal,
zPetroleum jelly applied lightly on the hinge side of gaskets will keep the
gasket pliable and assure a good seal.
Power Interruptions
zOccasionally there may be power interruptions due to thunderstorms or other

１８
MAINTENANCE SERVICE AND TROUBLE SHOOTING
Maintenance Service and Trouble Shooting
causes, Remove the power cord from AC outlet when a power outage occurs,
When power has been restored ,replug power cord to AC outlet.
Vacation and Moving Care
zFor ling vacations or absences ,unplug the wine cooler and clean the
wine cooler and door gaskets according to “General cleaning “ section,
Prop doors open, so air can circulate inside. When moving always move
the wine cooler vertically, Do not move with the unit lying down,
Possible damage to the sealed system could occur.
Trouble Shooting
Normal Operating Sounds You May Hear
zBoiling water, gurgling sounds or slight vibrations that are the result of the refrigerant
circulating through the cooling coils.
zThe thermostat control will click when it cycles on and off.
Wine Cooler Does Not Operate
zCheck if wine cooler is plugged in.
zCheck if there is power at the ac outlet ,by checking the circuit breaker.
Wine appears too warm
zFrequent door openings.
zAllow time for recently added wine to reach desired temperature.
zCheck gaskets for proper seal.
zClean condenser coils.
zAdjust temperature control to colder setting.
Wine temperature is too cold.
zIf temperature control setting is too cold, adjust to a warmer setting.
