Halo HALO-BOLT-ACDC-MAX User manual

OPERATING INSTRUCTIONS
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
BOLT ACDC MAX
HALO-BOLT-ACDC-MAX

THANK YOU
We appreciate your business and would
like to thank you for choosing HALO!
Your safety is important to us.
Please read the instructions carefully
and utilize the proper precautions before
operating this equipment.
TABLE OF CONTENTS
Included Items...............................................................................................................1-2
DigitalDisplay Reference Guide.................................................................................3
ChargingBOLTACDCMAX.............................................................................................4
Jump Starting..............................................................................................................5-6
JumpStartTroubleShooting........................................................................................7
Air Compressor...........................................................................................................8-9
USB Charging..................................................................................................................10
Laptop Charging..............................................................................................................11
UsingYourFloodlight.....................................................................................................12
FCC Compliance.............................................................................................................13
Specifications...........................................................................................14
Warranty and Contact Information..........................................................................16
Safety Precautions/Moving And Storage Instructions.............................17-18
www.HALOPOWER.com

1 2
| POWER YOUR LIFE POWER YOUR LIFE |
INCLUDED ITEMS
- HALO BOLT ACDC MAX
- Air Compressor
- Jumper Cables
- Interchangeable Nozzle Kit
- 10W USB Charger
- USB-A to USB-C Cable
- DC to DC Cable
- 24 inch Extension Hose
- 10ft Air Compressor Cord
- Carrying Pouch
AC Outlet
AC Power
Button
Power
Button
Presta Valve
Adapter
DC Ouput
5V/2.4A
USB Ports
Negative
Clamp (-)
Positive
Clamp (+)
Jumper
Cables
USB-A to
USB-C Cable
DC to DC
Cable
10 ft Air
Compressor Cord
24 inch
Extension Hose
10W USB
Charger
Tapered
Air Nozzle
Ination
Needle
USB/DC
Power Button
Floodlight
DC Input
USB-C
Input
Universal Nozzle
Air Hose
Digital
Display
Digital
Display
Floodlight
ON/OFF Button
Jump Start
Jump Start
Button
Back
Back

3 4
| POWER YOUR LIFE POWER YOUR LIFE |
SAFETSAFETYY
CHECKCHECK
FFAIAILL
VEHICLEVEHICLE
BBAATTETTERYRY
VOVOLTLTAGEAGE
VV
BBAATTTT
TTOOOO
LOWLOW
TEMTEMPP
CHARGINGCHARGING
%%
TEMTEMPP
CHARGING YOUR HALO BOLT ACDC MAX
1. Plug the included USB-C Cable into the corresponding port, as shown
below.
2. Connect the other end to the included 10W USB Charger and plug into
an outlet, as illustrated. Charging will begin automatically.
While charging, the Digital Display will illustrate the charge percentage.
When fully charged, the digital screen will indicate 100%. (Full charge
could take up to 6 hours).
Once charging is complete, disconnect the cable and enjoy!
DIGITAL DISPLAY REFERENCE GUIDE
HALO BOLT ACDC MAX
AIR COMPRESSOR
Charge Percentage
Displays current battery
percentage of the BOLT
ACDC MAX
Vehicle Battery
Voltage
Displays battery voltage
Temperature
A low or high temperature
has been detected
Safety
Check
Displays if jump start
safety condition is
triggered
Battery Low
Displays when
battery is low
Charging
Indicates the BOLT ACDC
MAX is charging
Overload
Displays abnormal
input voltage
Pressure
Displays current pressure
in KPA, BAR or PSI
Temperature
A high temperature has
been detected

5 6
| POWER YOUR LIFE POWER YOUR LIFE |
JUMP STARTING
1. Connect the included jumper cables into the Jump Start Output Port.
2. Attach the jumper cable clamps to the vehicle battery.
- Red clamp on positive terminal (+)
- Black clamp on negative terminal (-)
3. Press the Jump Start button and wait for the solid green light.
NOTE: A ashing green light indicates safety checks are in
progress.
4. Start your vehicle.
5. Disconnect the jumper cable clamps from the vehicle battery.
NOTE: Do not touch the red (positive) and black (negtaive) clamps
together at any point.
- If your vehicle does not start after three attempts, please consult
a certied mechanic.
- The jump start function can not be used in conjunction with USB
charging or AC outlet. Do not use when attempting to jump start
your vehicle.
- The HALO BOLT ACDC MAX is designed to allow a jump start when
used within a safe temperature range. A “TEMP” indicator will be
illustrated on the Digital Display if used outside of the temperature
operating range.

7 8
| POWER YOUR LIFE POWER YOUR LIFE |
TROUBLESHOOTING AIR COMPRESSOR
1. Plug one end of the included DC to DC cable into the BOLT ACDC MAX
DC output port.
2. Plug the other end into the DC input port of the Air Compressor.
3. Connect the air hose to the valve stem, as illustrated.
4. Press the USB/DC Power Button to power the Air Compressor.
5. Press the Power ON/OFF Button on the Air Compressor to begin
inating.
Condition Potential Cause Solution
Jump Start button was
pressed but nothing happens
The USB or AC Power Button
has been pressed
The jump start output can
not be used in conjunction
with the USB or AC outlets.
Ensure that both USB and AC
outlets are off.
Displays “BATT TOO LOW”
indicator
Battery is low Recharge the BOLT ACDC
MAX
Jump start button ashes
red and “SAFETY CHECK
FAlL” indicator is displayed
Jumper cables are not
properly connected to the
vehicle battery
Make sure the red clamp is
connected to the positive
terminal (+) and the black
clamp is connected to the
negative terminal (-)
Jump start button ashes
green
HALO BOLT ACDC MAX is
waiting to be connected to
a battery
Check that the jumper cables
are properly connected to
the battery and the vehicle
battery voltage is greater
than 2.0V
SAFETY CHECK FAIL has
been triggered
Consult with a certied
mechanic
Displays a blue or red
“TEMP” indicator
A low or high temperature
condition has been detected
Disconnect and allow unit
to acclimate to operating
temperature range
(14°F-122°F) (-10°C-50°C)
Unable to successfully jump
start vehicle. The HALO BOLT
ACDC MAX displays a vehicle
battery voltage greater than
12.0V
Detecs that it is connected
to a vehicle battery with a
normal starting voltage. This
could indicate that another
vehicle component is faulty
Consult with a certied
mechanic
Jump Start and ON/OFF
Button ashes red and blue
Occurs when other electrical
components (i.e. headlights,
heater, radio, etc.) are on.
Turn off headlights and any
other components that may
drain your car battery. Try the
jump start process again
Vehicle battery may be faulty Consult with a certified
mechanic
BBAATTTT
TTOO OO
LOWLOW
SAFETSAFETYY
CHECKCHECK
FFAIAILL
TEMTEMPPTEMTEMPP

9 10
| POWER YOUR LIFE POWER YOUR LIFE |

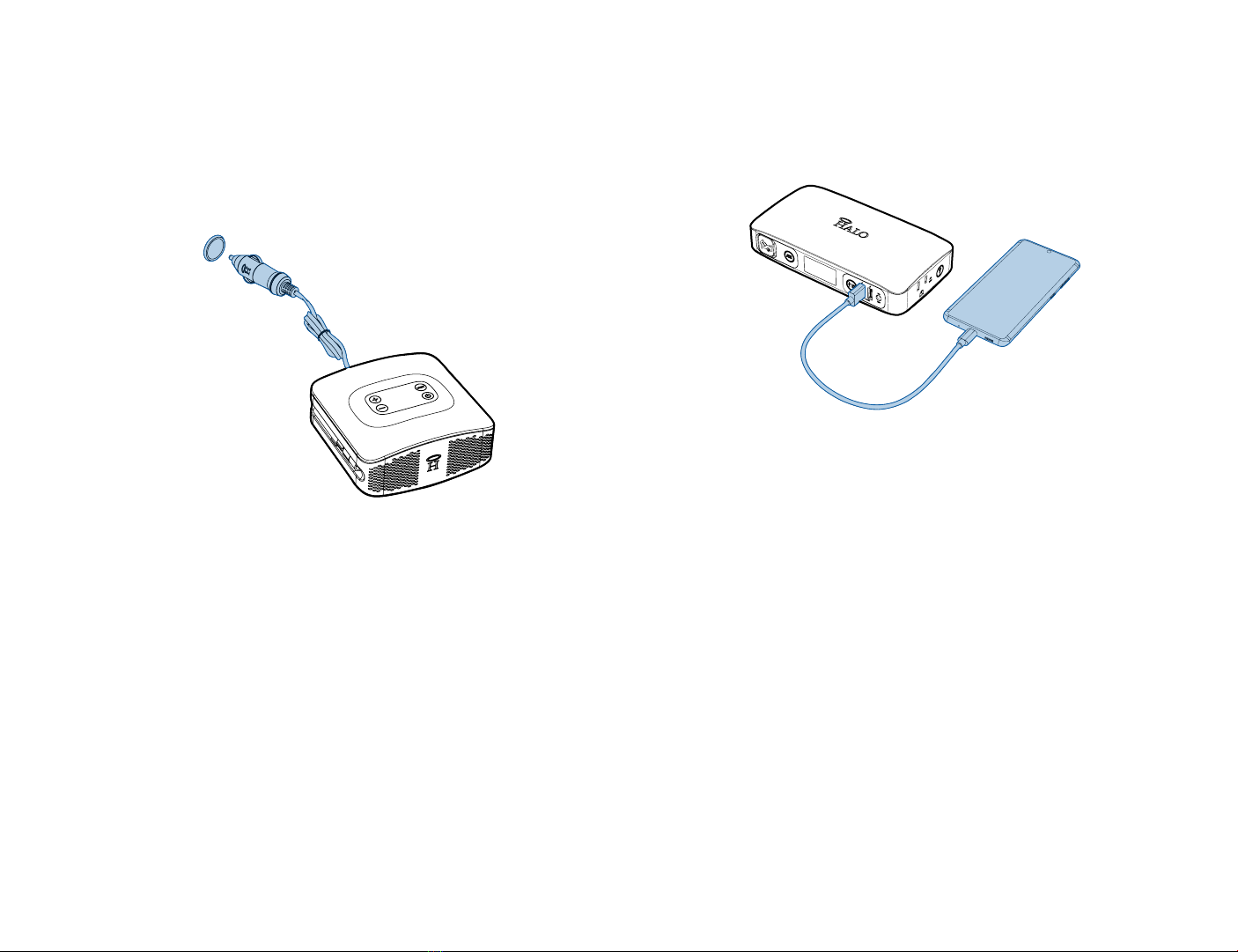

USB CHARGING
1. Connect the standard USB cable that came with your electronic device
into the USB 5V/2.4A output port.
2. Turn on the USB charging by pressing the USB Power Button. The Digital
Display will indicate that the device is being charged.
HALO SMART CHARGE TECHNOLOGY
Our SMART CHARGE TECHNOLOGY achieves higher compatibility for
charging standard USB electronic devices. When using the USB 5V/2.4A
port, this technology allows the BOLT ACDC MAX to communicate with
your electronic device to provide the fastest and safest charge possible.
The Air Compressor can also be powered using the included 10 ft Air
Compressor Cord.
1. Plug the DC end of the 10 ft Air Compressor Cord into the Air Compressor.
2. Plug the car charger end into your vehicle 12V Output Plug.
3. Connect the air hose to a valve stem.
4. Press the Power ON/OFF Button on the Air Compressor to begin
inating.
Vehicle 12V Output

11 12
| POWER YOUR LIFE POWER YOUR LIFE |

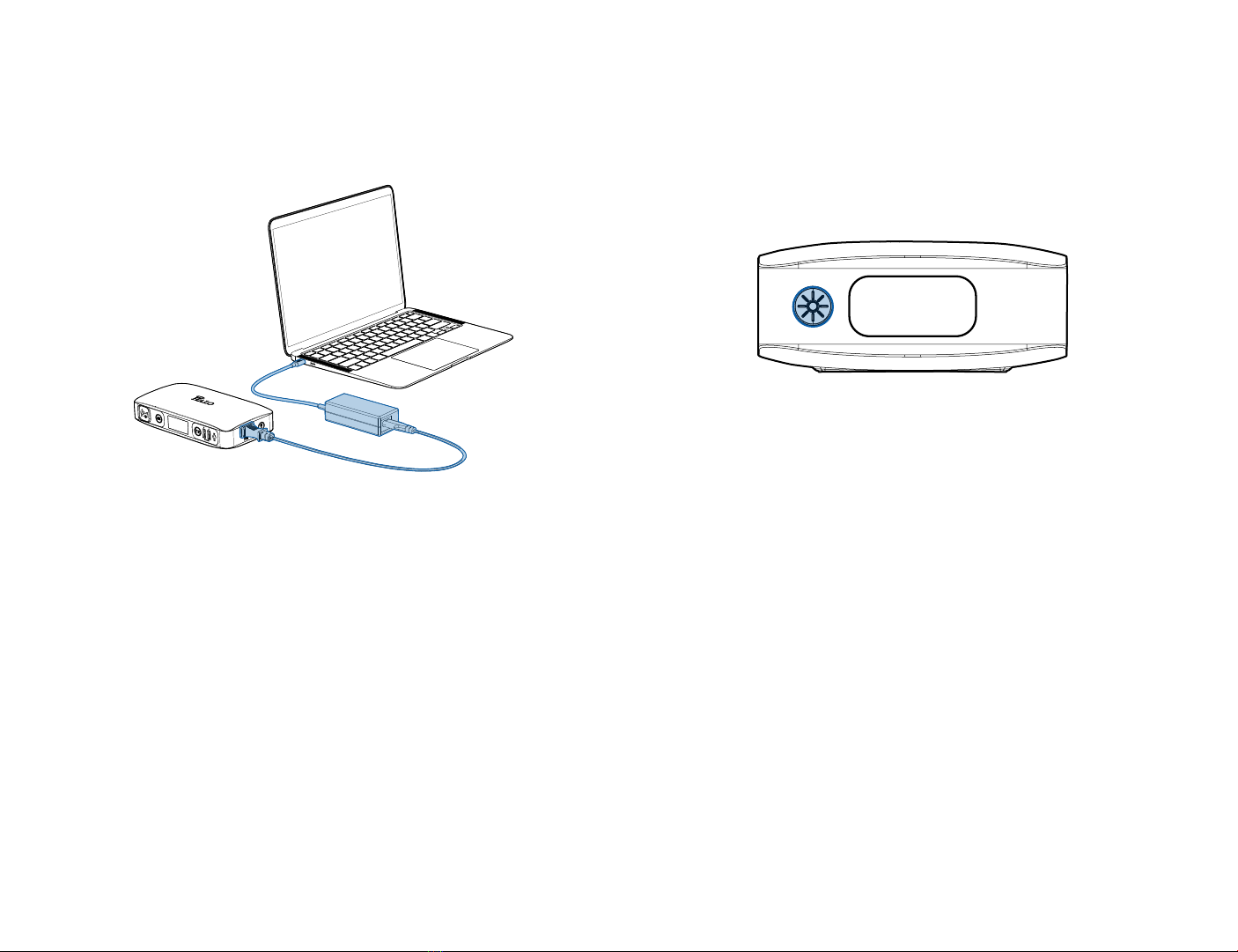

CHARGING YOUR LAPTOP
1. Connect the AC power plug from your laptop (or other electronic device*)
into the AC port, as shown below.
*Any electronic device can be powered by the AC port, as long as
it is rated at 70 watts or less. Be sure to check that your device is
rated at 70 Watts or less.
NOTE: Make sure the AC power plug is fully plugged into the AC
port before pressing the AC Power ON/OFF Button.
2. Press the AC Power Button to begin charging.
USING YOUR FLOODLIGHT
To activate the oodlight, simply press the oodlight ON/OFF button. The
rst press will turn on the oodlight. The second press will turn on the red
oodlight. And the third press will turn on the red S.O.S. light mode. The
oodlight can be turned off by pressing the button a fourth time; otherwise,
the oodlight will automatically turn off after 2 hours of inactivity.
3 LIGHT MODES
• White Floodlight
• Red Floodlight
• Red S.O.S.

13 14
| POWER YOUR LIFE POWER YOUR LIFE |
FCC Caution: FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference,and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SPECIFICATIONS
Model..............................................................................HALO-BOLT-ACDC-MAX+DC
Battery Pack Energy...........................Contains a 44400 mWh internal battery
Capacity.............................................................................................44400 mWh, 11.1V
Input:
USB-C.................................................................................................................5V/2.1A
Output:
2x USB A...........................................................................................................5V/2.4A
AC.....................................................................................................110V~60Hz 0.68A
Charging Temp.............................................................................................32°F - 113°F
Discharging Temp.......................................................................................14°F - 104°F
Dimensions.......................................................................................7.17” x 3.83” x 1.61”
Weight.....................................................................................................................1.47 lbs
Operating Temperature (During Charging)...............32°F - 113°F (0°C - 45°C)
Operating Temperature................................................14°F - 122°F (-10°C - 50°C)

15 16
| POWER YOUR LIFE POWER YOUR LIFE |
All copyrighted and copyrightable materials, including, without limitation, the logo, design, text, graphics,
pictures, copy writing and the selection and arrangement (“Materials”) thereof are ALL RIGHTS RESERVED
Copyright © 2022 Alliance Sports Group, L.P.
Alliance Consumer Group
700 Henrietta Creek Road
Roanoke, Texas 76262
Made in China
LIMITED WARRANTY
At HALO, we are dedicated to making the best quality products. To back
this up, this product is warranted. HALO warrants its products to be free
from defects in material and workmanship under normal use. During
the rst 90 days from date of purchase, HALO will repair or replace the
defective product. This warranty does not affect any statutory rights that
you may be entitled to. Keep a copy of your purchase receipt as proof of
purchase.
For all questions about the warranty or exchange requests, please call
888-907-6274.
