Halo2Cloud Pocket Power 5500 User manual

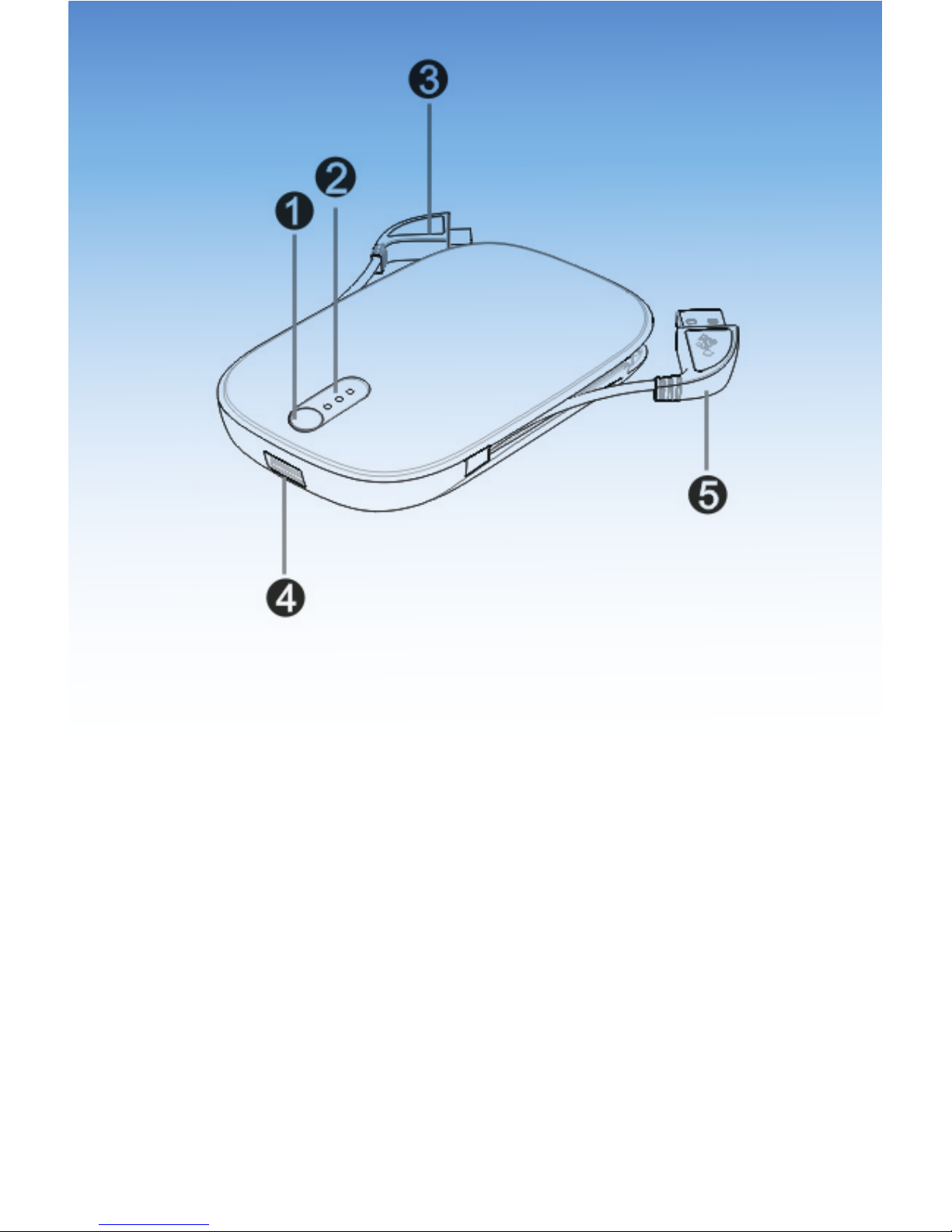

Operating Instructions

1. Power Button
2. LED
3. Micro USB output connector
4. USB output port
5. Recharge USB input connector
Included Items
- 1 HALO Pocket Power 5500
- 1 USB to DC output cable
- 1 Mini USB tip
- 1 Micro USB tip
- 1 30 Pin tip
- Operating Instruction

Getting Started
Quickly press and release the power button to check how
much battery power the HALO charger has left. One blue
light indicates 0%-33% battery life, two blue lights indicate
34%-66% battery life and three blue lights indicate 67%-
100% battery life.
Turning On/O the HALO Pocket Power 5500
Press and hold down the power button for three seconds to
turn the HALO charger on. The LEDs will remain lit when the
power is on. Press and hold the power button for three
seconds to then turn HALO charger’s power o.
Charging the HALO Pocket Power 5500
To recharge the HALO charger pull the built in USB Cable,
found next to the words “USB in” on your HALO charger, out
from the top of the device. This built in USB cable is the only
cord that can be used to recharge your HALO charger. Once
this cable is pulled out from the HALO charger, plug the USB
input connector into the standard USB port on your com-
puter or an AC wall adapter that accepts USB connections.
When recharging your HALO charger the three LED’s will
blink upwards from the bottom of the HALO charger where
the Power Button is located. When fully recharged all three
blue LEDs will remain a solid blue color.
Charging Your Personal Electronic Device
There are two methods that can be used to charge your
personal electronic device. The rst method involves using
the supplied USB charging cable. Plug the USB connector
into the bottom of your HALO charger where it reads “5V/2A
out”. Find the tip that ts with the electronic device you are
going to charge and plug it into the circular DC output end
of the USB cable. Plug the tip into the device you are going
to charge and make sure to turn the HALO charger on. The
second method involves using the built in micro USB
connector. You can nd this cord to the right of the words
“Micro USB out” on the HALO charger. When charging your
device, the HALO chargers three blue LEDs will begin to blink
from the top light downwards.
HALO Pocket Power 5500 Intelligent Recognition
The HALO charger is programmed with an intelligent
recognition system to achieve a higher compatibility for
charging dierent electronic devices. If it does not charge
your device when the USB cable is plugged into your device,
please restart the power charger while it is still connected to
your mobile phone.
Features
- Lithium Polymer battery pack with high safety and stability.
- Unique Equilibrium PCBA protection ensures longer device
life.
- Lower static power.
- Overcharge protection.
- Over discharge protection.
- Short circuit protection: if any of the output ports meet a
short circuit, the HALO charger will shut down
automatically; recharge it to restart the HALO charger.

Getting Started
Quickly press and release the power button to check how
much battery power the HALO charger has left. One blue
light indicates 0%-33% battery life, two blue lights indicate
34%-66% battery life and three blue lights indicate 67%-
100% battery life.
Turning On/O the HALO Pocket Power 5500
Press and hold down the power button for three seconds to
turn the HALO charger on. The LEDs will remain lit when the
power is on. Press and hold the power button for three
seconds to then turn HALO charger’s power o.
Charging the HALO Pocket Power 5500
To recharge the HALO charger pull the built in USB Cable,
found next to the words “USB in” on your HALO charger, out
from the top of the device. This built in USB cable is the only
cord that can be used to recharge your HALO charger. Once
this cable is pulled out from the HALO charger, plug the USB
input connector into the standard USB port on your com-
puter or an AC wall adapter that accepts USB connections.
When recharging your HALO charger the three LED’s will
blink upwards from the bottom of the HALO charger where
the Power Button is located. When fully recharged all three
blue LEDs will remain a solid blue color.
Charging Your Personal Electronic Device
There are two methods that can be used to charge your
personal electronic device. The rst method involves using
the supplied USB charging cable. Plug the USB connector
into the bottom of your HALO charger where it reads “5V/2A
out”. Find the tip that ts with the electronic device you are
going to charge and plug it into the circular DC output end
of the USB cable. Plug the tip into the device you are going
to charge and make sure to turn the HALO charger on. The
second method involves using the built in micro USB
connector. You can nd this cord to the right of the words
“Micro USB out” on the HALO charger. When charging your
device, the HALO chargers three blue LEDs will begin to blink
from the top light downwards.
HALO Pocket Power 5500 Intelligent Recognition
The HALO charger is programmed with an intelligent
recognition system to achieve a higher compatibility for
charging dierent electronic devices. If it does not charge
your device when the USB cable is plugged into your device,
please restart the power charger while it is still connected to
your mobile phone.
Features
- Lithium Polymer battery pack with high safety and stability.
- Unique Equilibrium PCBA protection ensures longer device
life.
- Lower static power.
- Overcharge protection.
- Over discharge protection.
- Short circuit protection: if any of the output ports meet a
short circuit, the HALO charger will shut down
automatically; recharge it to restart the HALO charger.

Safety Precautions
- This HALO charger has been designed and manufactured to
ensure personal safety. Please read the following carefully
before using. Incorrect operation or incompatibility with
your personal electronic device may result in reduced
battery performance or damage.
- Carefully read the operating instructions, and use the HALO
charger correctly.
- Caution: The lithium-ion rechargeable battery used in this
charging device may present a risk of re or chemical burn if
mistreated. Do not disassemble, expose to heat above
212°F or incinerate.
- Misusing or incorrectly connecting the HALO charger may
cause electric shock to users and damage equipment. The
HALO charger may become warm under extended high
power operation. During operation, keep the HALO charger
away from materials that may be aected by these
temperatures.
- When used correctly, lithium-ion rechargeable batteries
provide a safe and dependable source of portable power.
However, if they are misused or abused, this may result in
leakage, burns, re or explosion, causing personal injury or
damage to other devices.
- Do not disassemble the HALO charger. There are no user-
serviceable parts inside. Incorrect reassembly may result in
shock or re hazard.
- Do not drop or subject to strong impacts. Do not operate
the HALO charger if it has received a sharp blow, or other
wise been damaged in any way.
- Do not expose the HALO charger to moisture, water, rain or
snow.
- Do not insert any object into the ports or openings of the
HALO charger.
- Never charge the HALO charger unattended.
- There is a risk of the batteries exploding, overheating, or
igniting. Do not disassemble, modify, heat or short-circuit
the batteries. Do not place in re or leave in hot places. Do
not expose to direct sunlight.
- Only charge the HALO charger by the specied method with
the specied USB cable.
- In the unlikely event of leakage or explosion use sand or a
chemical re extinguisher.
- Batteries should be recycled or disposed of as per state and
local guidelines.
Specications
Battery Cell: Rechargeable lithium polymer
Capacity: 5500 mAh
Input: 5V/1A
Micro USB output: 5V/1A
USB output: 5V/2A
Dimension: 4.6 x 3 x 0.7 inches
116 x 78 x 18 mm
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including
interference that may cause undesired operation.
15.21
You are cautioned that changes or modications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with
the limits for Class B digital devices, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Limited Warranty
HALO2CLOUD, LLC warrants its products to be free from
defects in material and workmanship under normal use.
Conditions are as follows:
- During the rst one year from date of purchase,
HALO2CLOUD, LLC will repair or replace the defective
product.
- HALO2CLOUD, LLC will, subject to inspection, repair the
defective product or replace it with a new or reconditioned
unit. The return must be accompanied by a Return Materials
Authorization (RMA) number to be issued upon request, and
must be shipped prepaid. A shipping rebate will only be
extended to the customer in the event that a defect in mate-
rial or workmanship is conrmed.
- Warranty is void if the product has been improperly handled
or misused in any way, or if the label and/or bar-coded
warranty label has been removed or tampered with.
- Warranty returns require a check for $14.95 for processing
and handling made payable to HALO2CLOUD, LLC.
- Where applicable, all requests for warranty returns must be
accompanied by a proof of purchase and be sent to
HALO2CLOUD, LLC (www.halo2cloud.com).
- The warranty does not extend to the electronic equipment
that is used or which incorporates with any of our products
and accessories. HALO2CLOUD, LLC shall not be held respon-
sible for the improper use of its products.
To contact us, email us at
[e-mail]
or call 888-907-6274

Safety Precautions
- This HALO charger has been designed and manufactured to
ensure personal safety. Please read the following carefully
before using. Incorrect operation or incompatibility with
your personal electronic device may result in reduced
battery performance or damage.
- Carefully read the operating instructions, and use the HALO
charger correctly.
- Caution: The lithium-ion rechargeable battery used in this
charging device may present a risk of re or chemical burn if
mistreated. Do not disassemble, expose to heat above
212°F or incinerate.
- Misusing or incorrectly connecting the HALO charger may
cause electric shock to users and damage equipment. The
HALO charger may become warm under extended high
power operation. During operation, keep the HALO charger
away from materials that may be aected by these
temperatures.
- When used correctly, lithium-ion rechargeable batteries
provide a safe and dependable source of portable power.
However, if they are misused or abused, this may result in
leakage, burns, re or explosion, causing personal injury or
damage to other devices.
- Do not disassemble the HALO charger. There are no user-
serviceable parts inside. Incorrect reassembly may result in
shock or re hazard.
- Do not drop or subject to strong impacts. Do not operate
the HALO charger if it has received a sharp blow, or other
wise been damaged in any way.
- Do not expose the HALO charger to moisture, water, rain or
snow.
- Do not insert any object into the ports or openings of the
HALO charger.
- Never charge the HALO charger unattended.
- There is a risk of the batteries exploding, overheating, or
igniting. Do not disassemble, modify, heat or short-circuit
the batteries. Do not place in re or leave in hot places. Do
not expose to direct sunlight.
- Only charge the HALO charger by the specied method with
the specied USB cable.
- In the unlikely event of leakage or explosion use sand or a
chemical re extinguisher.
- Batteries should be recycled or disposed of as per state and
local guidelines.
Specications
Battery Cell: Rechargeable lithium polymer
Capacity: 5500 mAh
Input: 5V/1A
Micro USB output: 5V/1A
USB output: 5V/2A
Dimension: 4.6 x 3 x 0.7 inches
116 x 78 x 18 mm
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including
interference that may cause undesired operation.
15.21
You are cautioned that changes or modications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with
the limits for Class B digital devices, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Limited Warranty
HALO2CLOUD, LLC warrants its products to be free from
defects in material and workmanship under normal use.
Conditions are as follows:
- During the rst one year from date of purchase,
HALO2CLOUD, LLC will repair or replace the defective
product.
- HALO2CLOUD, LLC will, subject to inspection, repair the
defective product or replace it with a new or reconditioned
unit. The return must be accompanied by a Return Materials
Authorization (RMA) number to be issued upon request, and
must be shipped prepaid. A shipping rebate will only be
extended to the customer in the event that a defect in mate-
rial or workmanship is conrmed.
- Warranty is void if the product has been improperly handled
or misused in any way, or if the label and/or bar-coded
warranty label has been removed or tampered with.
- Warranty returns require a check for $14.95 for processing
and handling made payable to HALO2CLOUD, LLC.
- Where applicable, all requests for warranty returns must be
accompanied by a proof of purchase and be sent to
HALO2CLOUD, LLC (www.halo2cloud.com).
- The warranty does not extend to the electronic equipment
that is used or which incorporates with any of our products
and accessories. HALO2CLOUD, LLC shall not be held respon-
sible for the improper use of its products.
To contact us, email us at
[e-mail]
or call 888-907-6274

Safety Precautions
- This HALO charger has been designed and manufactured to
ensure personal safety. Please read the following carefully
before using. Incorrect operation or incompatibility with
your personal electronic device may result in reduced
battery performance or damage.
- Carefully read the operating instructions, and use the HALO
charger correctly.
- Caution: The lithium-ion rechargeable battery used in this
charging device may present a risk of re or chemical burn if
mistreated. Do not disassemble, expose to heat above
212°F or incinerate.
- Misusing or incorrectly connecting the HALO charger may
cause electric shock to users and damage equipment. The
HALO charger may become warm under extended high
power operation. During operation, keep the HALO charger
away from materials that may be aected by these
temperatures.
- When used correctly, lithium-ion rechargeable batteries
provide a safe and dependable source of portable power.
However, if they are misused or abused, this may result in
leakage, burns, re or explosion, causing personal injury or
damage to other devices.
- Do not disassemble the HALO charger. There are no user-
serviceable parts inside. Incorrect reassembly may result in
shock or re hazard.
- Do not drop or subject to strong impacts. Do not operate
the HALO charger if it has received a sharp blow, or other
wise been damaged in any way.
- Do not expose the HALO charger to moisture, water, rain or
snow.
- Do not insert any object into the ports or openings of the
HALO charger.
- Never charge the HALO charger unattended.
- There is a risk of the batteries exploding, overheating, or
igniting. Do not disassemble, modify, heat or short-circuit
the batteries. Do not place in re or leave in hot places. Do
not expose to direct sunlight.
- Only charge the HALO charger by the specied method with
the specied USB cable.
- In the unlikely event of leakage or explosion use sand or a
chemical re extinguisher.
- Batteries should be recycled or disposed of as per state and
local guidelines.
Specications
Battery Cell: Rechargeable lithium polymer
Capacity: 5500 mAh
Input: 5V/1A
Micro USB output: 5V/1A
USB output: 5V/2A
Dimension: 4.6 x 3 x 0.7 inches
116 x 78 x 18 mm
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including
interference that may cause undesired operation.
15.21
You are cautioned that changes or modications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with
the limits for Class B digital devices, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Limited Warranty
HALO2CLOUD, LLC warrants its products to be free from
defects in material and workmanship under normal use.
Conditions are as follows:
- During the rst one year from date of purchase,
HALO2CLOUD, LLC will repair or replace the defective
product.
- HALO2CLOUD, LLC will, subject to inspection, repair the
defective product or replace it with a new or reconditioned
unit. The return must be accompanied by a Return Materials
Authorization (RMA) number to be issued upon request, and
must be shipped prepaid. A shipping rebate will only be
extended to the customer in the event that a defect in mate-
rial or workmanship is conrmed.
- Warranty is void if the product has been improperly handled
or misused in any way, or if the label and/or bar-coded
warranty label has been removed or tampered with.
- Warranty returns require a check for $14.95 for processing
and handling made payable to HALO2CLOUD, LLC.
- Where applicable, all requests for warranty returns must be
accompanied by a proof of purchase and be sent to
HALO2CLOUD, LLC (www.halo2cloud.com).
- The warranty does not extend to the electronic equipment
that is used or which incorporates with any of our products
and accessories. HALO2CLOUD, LLC shall not be held respon-
sible for the improper use of its products.
To contact us, email us at
[e-mail]
or call 888-907-6274

Safety Precautions
- This HALO charger has been designed and manufactured to
ensure personal safety. Please read the following carefully
before using. Incorrect operation or incompatibility with
your personal electronic device may result in reduced
battery performance or damage.
- Carefully read the operating instructions, and use the HALO
charger correctly.
- Caution: The lithium-ion rechargeable battery used in this
charging device may present a risk of re or chemical burn if
mistreated. Do not disassemble, expose to heat above
212°F or incinerate.
- Misusing or incorrectly connecting the HALO charger may
cause electric shock to users and damage equipment. The
HALO charger may become warm under extended high
power operation. During operation, keep the HALO charger
away from materials that may be aected by these
temperatures.
- When used correctly, lithium-ion rechargeable batteries
provide a safe and dependable source of portable power.
However, if they are misused or abused, this may result in
leakage, burns, re or explosion, causing personal injury or
damage to other devices.
- Do not disassemble the HALO charger. There are no user-
serviceable parts inside. Incorrect reassembly may result in
shock or re hazard.
- Do not drop or subject to strong impacts. Do not operate
the HALO charger if it has received a sharp blow, or other
wise been damaged in any way.
- Do not expose the HALO charger to moisture, water, rain or
snow.
- Do not insert any object into the ports or openings of the
HALO charger.
- Never charge the HALO charger unattended.
- There is a risk of the batteries exploding, overheating, or
igniting. Do not disassemble, modify, heat or short-circuit
the batteries. Do not place in re or leave in hot places. Do
not expose to direct sunlight.
- Only charge the HALO charger by the specied method with
the specied USB cable.
- In the unlikely event of leakage or explosion use sand or a
chemical re extinguisher.
- Batteries should be recycled or disposed of as per state and
local guidelines.
Specications
Battery Cell: Rechargeable lithium polymer
Capacity: 5500 mAh
Input: 5V/1A
Micro USB output: 5V/1A
USB output: 5V/2A
Dimension: 4.6 x 3 x 0.7 inches
116 x 78 x 18 mm
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including
interference that may cause undesired operation.
15.21
You are cautioned that changes or modications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with
the limits for Class B digital devices, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Limited Warranty
HALO2CLOUD, LLC warrants its products to be free from
defects in material and workmanship under normal use.
Conditions are as follows:
- During the rst one year from date of purchase,
HALO2CLOUD, LLC will repair or replace the defective
product.
- HALO2CLOUD, LLC will, subject to inspection, repair the
defective product or replace it with a new or reconditioned
unit. The return must be accompanied by a Return Materials
Authorization (RMA) number to be issued upon request, and
must be shipped prepaid. A shipping rebate will only be
extended to the customer in the event that a defect in mate-
rial or workmanship is conrmed.
- Warranty is void if the product has been improperly handled
or misused in any way, or if the label and/or bar-coded
warranty label has been removed or tampered with.
- Warranty returns require a check for $14.95 for processing
and handling made payable to HALO2CLOUD, LLC.
- Where applicable, all requests for warranty returns must be
accompanied by a proof of purchase and be sent to
HALO2CLOUD, LLC (www.halo2cloud.com).
- The warranty does not extend to the electronic equipment
that is used or which incorporates with any of our products
and accessories. HALO2CLOUD, LLC shall not be held respon-
sible for the improper use of its products.
To contact us, email us at
suppor[email protected]om
or call 888-907-6274
The HALO cloud logo is a
registered trademark of
HALO2CLOUD, LLC
HALO2CLOUD, LLC
148 Eastern Boulevard, Suite 210
Glastonbury, CT 06033
www.halo2cloud.com
