Hamilton Beach Big Mouth 70570C User manual

Big Mouth™
Food Processor
Robot culinaire
Procesador de alimentos
English ...................... 2
Français .................. 15
Español .................. 28
READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente
este instructivo antes de usar su
aparato.
Visit www.hamiltonbeach.com for our
complete line of products and Use and
Care Guides – as well as
delicious recipes, tips, and
to register your product online!
Rendez-vous sur www.hamiltonbeach.ca
pour notre liste complète de produits et de
nos manuels utilisateur – ainsi que nos
délicieuses recettes, nos conseils et pour
enregistrer votre produit en ligne !
¡Visite www.hamiltonbeach.com.mx para
obtener nuestra línea completa de productos
y las Guías de Uso y Cuidado, además de
deliciosas recetas, consejos y para registrar
su producto en línea!
Questions ?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN : 1.800.267.2826
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 1

2
IMPORTANT SAFEGUARDS
1. Read and save all instructions.
2. To protect against risk of electrical shock, do not immerse base,
motor, cord, or plug in water or other liquid.
3. Close supervision is necessary when any appliance is used by or
near children.
4. This appliance should not be used by children.
5. Unplug cord from outlet when not in use, before putting on or
taking off parts, and before cleaning.
6. Avoid contacting moving parts.
7. Do not operate any appliance with a damaged cord or plug
or after the appliance malfunctions or is dropped or damaged
in any manner. Call our toll-free customer service number
for information on examination, repair, or electrical or
mechanical adjustment.
8. The use of attachments not recommended or sold by the appli-
ance manufacturer may cause fire, electric shock, or injury.
9. Do not use your food processor if any part is broken.
10. Do not use appliance outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot
surfaces.
12. Keep hands and utensils away from moving blade and disc while
processing food to reduce the risk of severe personal injury
and/or damage to the food processor. A rubber scraper may be
used but ONLY when the food processor is not running.
13. The blade and disc are sharp. Handle carefully. Store out of reach
of children.
14. To reduce the risk of injury, never place cutting blade or disc on
base without first putting bowl properly in place.
15. Be certain lid is securely locked in place before operating appliance.
16. Never feed food into food chute by hand. Always use the food
pushers.
17. Do not attempt to defeat the lid interlock mechanism.
18. Make sure the blade or disc has come to a full stop before
removing lid.
19. To reduce the risk of injury, be sure to insert or remove blade and
disc using hubs provided for this purpose. Use caution when
removing blade and disc from the bowl, when emptying the
bowl, and when cleaning.
20. Be sure to turn switch to OFF (O) position after each use. Always
use the pushers to clear the food chute. When this method is not
possible, turn the motor off and disassemble unit to remove the
remaining food.
21. The appliance is not intended for commercial, professional, or
industrial use. It is designed and built exclusively for household
use only.
22. Never use appliance for a longer period or with a larger amount
of ingredients other than that recommended by appliance
manufacturer. See section titled “Processing Charts.”
23. Do not place on or near a hot gas or electric burner or in a heated
oven.
24. Do not use appliance for other than intended use.
When using electrical appliances, basic safety precautions should always be followed, including the following:
SAVE THESE INSTRUCTIONS!
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 2

3
OTHER CONSUMER SAFETY INFORMATION
This product is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug (one
wide blade) that reduces the risk of electric shock. The plug fits only
one way into a polarized outlet. Do not defeat the safety purpose of
the plug by modifying the plug in any way or by using an adapter. If
the plug does not fit, reverse the plug. If it still does not fit, have an
electrician replace the outlet.
To avoid an electrical circuit overload, do not use another high-
wattage appliance on the same circuit with your food processor.
The length of the cord used on this appliance was selected to reduce
the hazards of becoming tangled in or tripping over a longer cord. If
a longer cord is necessary, an approved extension cord may be
used. The electrical rating of the extension cord must be equal to or
greater than the rating of the appliance. Care must be taken to
arrange the extension cord so that it will not drape over the counter-
top or tabletop where it can be pulled on by children or accidentally
tripped over.
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 3

4
Parts and Features
Small Food Pusher
Lid
Control Knob
Food Chute
Lid
Reversible Slicing/Shredding Disc
(Speeds 1 or 2)
(for use with large bowl only)
Use to shred cheese or to slice or shred
a variety of foods (such as potatoes,
pepperoni, carrots, celery).
Chopping/Mixing Blade
(Pulse or Speeds 1–3)
Use to coarsely chop, mince,
mix, or puree food.
Food Chute
Lid Latch
Large Bowl
Motor Shaft
BEFORE FIRST USE: Unpack processor. Handle Blade and Disc(s) carefully; they
are very sharp. Wash all parts except base in hot, soapy water. Rinse; then dry.
French Fry Blade (Speeds 1 or 2)
(on select models or
optional accessory)
To order:
1.800.851.8900 (US)
1.800.267.2826 (Canada)
Large Food Pusher
Small Bowl
(on select models)
S-Blade Adapter Shaft
(for use with small bowl only)
ON SELECT MODELS OR OPTIONAL ACCESSORY
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 4

5

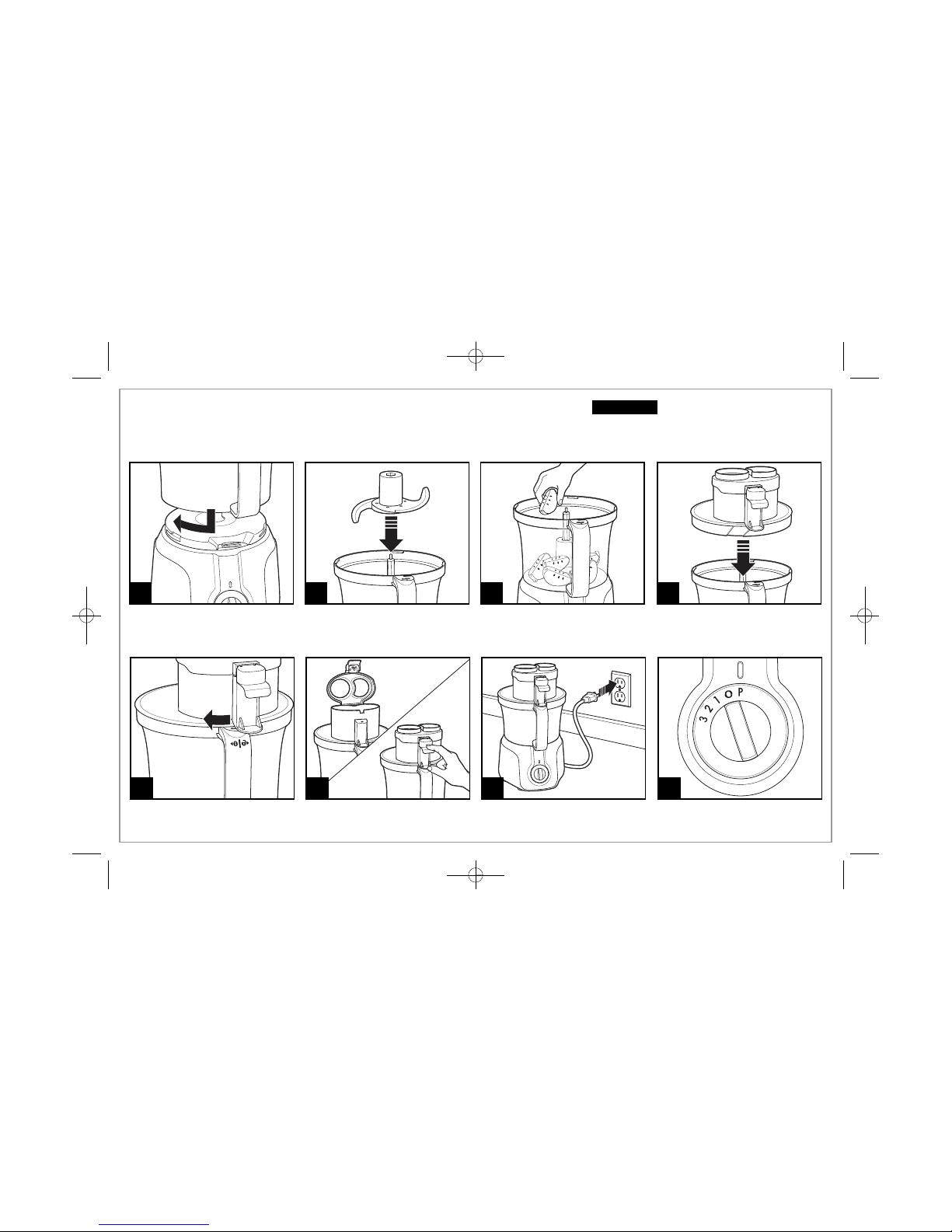

How to Use Chopping/Mixing Blade
1 2 3
Align large bowl and base. Turn
large bowl clockwise to lock into
place. NOTE: Unit will not work
unless large bowl is locked.
Carefully place blade onto motor
shaft.
4
Align lid and large bowl.
5 6 7 8
Turn lid clockwise to lock into place.
NOTE: Unit will not work unless lid
is locked.
Push lid latch firmly to lock.
NOTE: Unit will not work unless
latch is locked.
Pulse=Highest, 3=High,
2=Medium, 1=Low
Laceration Hazard. Handle blade
carefully; it is very sharp.
Make sure control knob is turned to OFF (O) and
unit is unplugged. NOTE: Operate using only one
blade or disc at a time.
wWARNING
(with Large Bowl) (Pulse or Speeds 1–3)
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 5

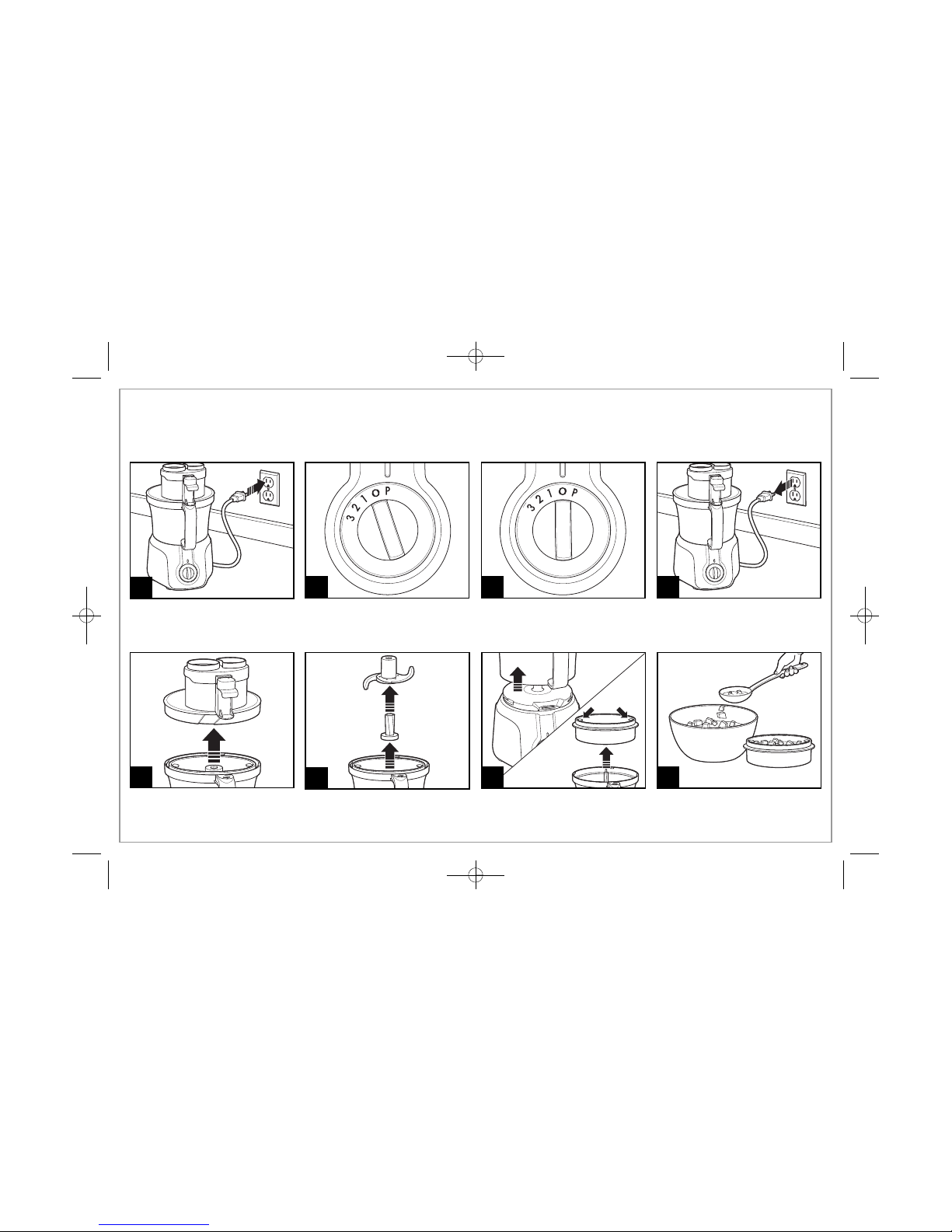

6
910 11
WARNING! Laceration Hazard:
Always wait until blade has
stopped moving before
removing lid.
Always remove lid before
removing bowl to avoid possible
damage to the appliance.
12
Carefully remove blade from
motor shaft.
13 14
When finished, turn to OFF (O) .
How to Use Chopping/Mixing Blade
(with Large Bowl) (Pulse or Speeds 1–3) (cont.)
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 6

77

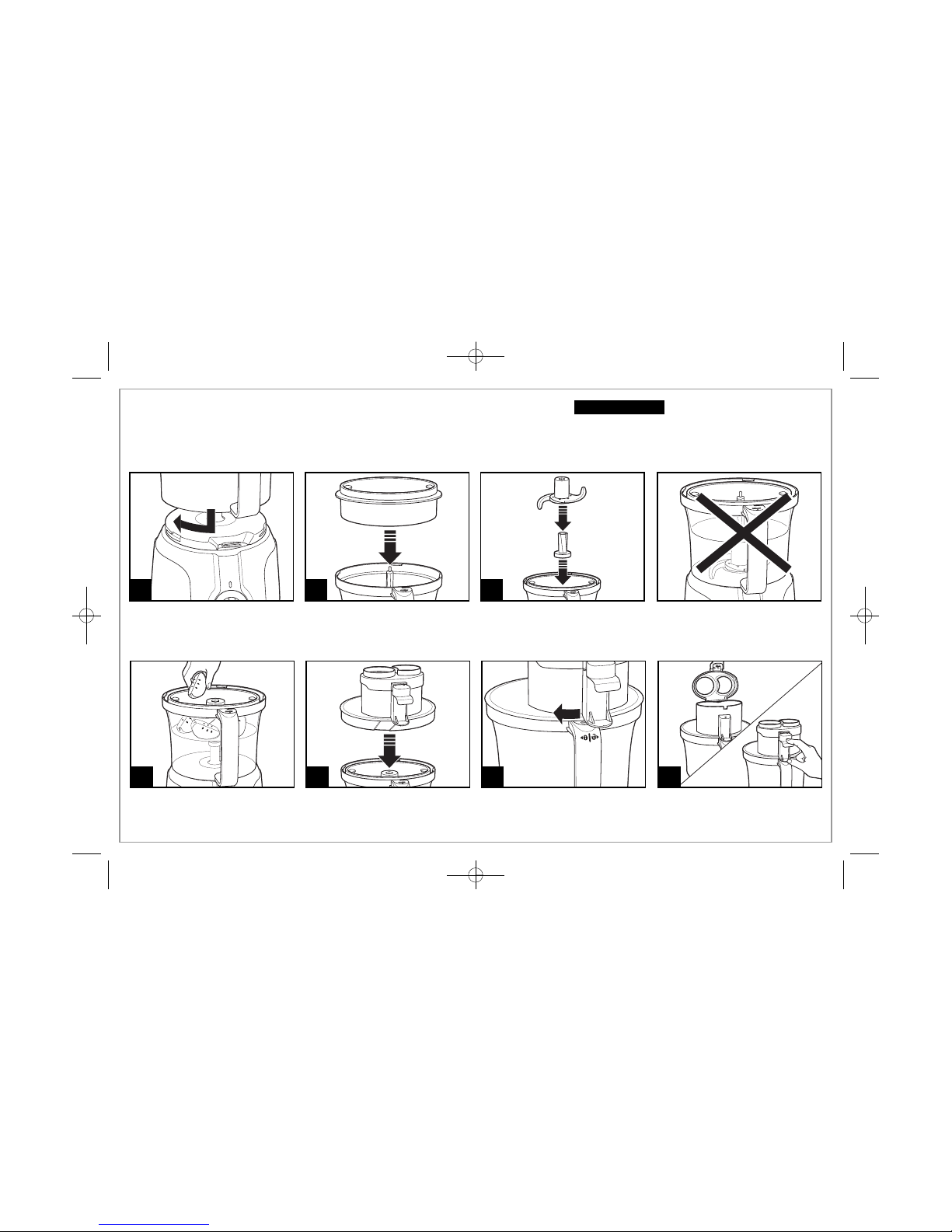

How to Use Chopping/Mixing Blade
1 2
Align large bowl and base. Turn
large bowl clockwise to lock into
place. NOTE: Unit will not work
unless large bowl is locked.
Place small bowl over motor
shaft and set in place (small bowl
will not lock).
4
Align lid and large bowl.
6 7
Turn lid clockwise to lock into
place. NOTE: Unit will not work
unless lid is locked.
Push lid latch firmly to lock.
NOTE: Unit will not work unless
latch is locked.
Laceration Hazard. Handle blade
carefully; it is very sharp.
Make sure control knob is turned to OFF (O) and
unit is unplugged. NOTE: Operate using only one
blade or disc at a time.
wWARNING
(with Small Bowl on select models) (Pulse or Speeds 1–3)
Place adapter shaft and then
mixing blade on motor shaft.
5
3
DO NOT use small bowl with
chopping blade in bottom
position.
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 7

88
How to Use Chopping/Mixing Blade
(with Small Bowl on select models) (Pulse or Speeds 1–3) (cont.)
10 11
12
WARNING! Laceration Hazard:
Always wait until blade has
stopped moving before
removing lid.
Always remove lid before remov-
ing small bowl to avoid possible
damage to the appliance.
13
Carefully remove mixing blade
and adapter shaft from motor
shaft before dispensing food.
14 15
When finished, turn to OFF (O) .
9
Pulse=Highest, 3=High,
2=Medium, 1=Low
8
Use tabs on small bowl to
remove from large bowl.
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 8

9
1 2 3
Align large bowl and base. Turn
large bowl clockwise to lock into
place. NOTE: Unit will not work
unless large bowl is locked.
Carefully place disc onto motor
shaft with desired side facing UP. Align lid and large bowl. Turn lid
clockwise to lock into place.
NOTE: Unit will not work unless
lid is locked.
LARGER FOODS
How to Use Slicer/Shredder Disc
SMALLER, THINNER FOODS
Put large food pusher into place.
Place food into open tube of
large food pusher.
SMALLER, THINNER FOODS
Close lid and push lid latch firmly
to lock. NOTE: Unit will not work
unless latch is locked.
SMALLER, THINNER FOODS
Push small, thin food with small
food pusher. Never push food
through chute with fingers.
LARGER FOODS
Close lid and push lid latch firmly
to lock. NOTE: Unit will not work
unless latch is locked.
4A
4B
Laceration Hazard. Handle blade
carefully; it is very sharp.
Make sure control knob is turned to OFF (O) and
unit is unplugged. NOTE: Operate using only one
blade or disc at a time.
wWARNING
OR
(with Large Bowl only) (Speeds 1 or 2)
Push large foods using large and
small food pushers together.
Never push food through chute
with fingers.
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 9

8
WARNING! Laceration Hazard:
Always wait until blade has
stopped moving before
removing lid.
How to Use Slicer/Shredder Disc
(with Large Bowl only) (Speeds 1 or 2) (cont.)
10
67
When finished, turn OFF (O).
910
Always remove lid before
removing large bowl to avoid
possible damage to the appliance.
Carefully remove blade from
motor shaft.
11 12
5
2=Medium, 1=Low
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 10

11
Tips and Techniques
• For a more uniform consistency,
start with pieces of food that
are similar in size. Cut food
into 1-inch (2.5 cm) pieces
before processing with
Chopping/Mixing Blade.
• This food processor is excel-
lent to chop, mix, slice, or
shred most foods. However, to
maintain peak performance, do
not use your food processor
for the following: grinding
grain, coffee beans, or spices;
slicing frozen meats; kneading
dough; or crushing ice.
• When chopping foods, pulsing
on and off will produce the
best results.
• Operating time will depend
on quantity of food being
processed. Most foods can be
sliced, chopped, or shredded
in seconds. If unit is operated
for 2 minutes continuously,
let the processor rest about
4 minutes before continuing.
• Do not puree or mash starchy
vegetables like potatoes as
they are easily over-processed
and will become gummy.
• To slice or shred cheese, select
firm cheese like Cheddar,
Monterey Jack, or Swiss. For
best results, process cheese
that is well chilled.
• The Reversible Slicing/
Shredding Disc has a slicing
blade on one side and shred-
ding teeth on the other and
can only be used with the large
bowl. The name engraved on
the blade, facing up, is the
function selected. Place on
motor shaft with desired cut-
ting edge facing up.
• To julienne vegetables, slice,
remove from bowl, and restack
the vegetables. Pack into food
chute with slices vertical. Slice
again to make matchstick-cut
vegetables.
Processing Charts
ATTACHMENT FOODS SPEED
Chopping/Mixing Blade Vegetables, Fruit, Meat,
(chop, mince, mix, puree) Nuts, Hard Cheeses
such as Parmesan (chilled)
Slicing Disc Vegetables, Fruit 1–2
(slicing side facing UP) Firm Cheeses (chilled) 1 only
Shredding Disc Vegetables 1–2
(shredding side facing UP) Cheese (chilled) 1 only
FOOD
Fruits and
Vegetables
Meats
Parmesan
or Romano
Crackers
Nuts
Disc attachments are reversible and labeled. This label should face
up for the desired function. When using disc attachments, do not
process past the MAX LEVEL on the Bowl.
For best results do not exceed the following amounts when
chopping, mincing, or pureeing with the Chopping/Mixing Blade.
MAXIMUM AMOUNT
LARGE BOWL
3 to 4 cups (.75 L to 1 L)
(cut in 1" [2.5 cm] cubes)
2 lbs. (900 g) (cut in 1"
[2.5 cm] cubes)
15 ounces (425 g) (cut in
1" [2.5 cm] cubes)
14 cups (3.5 L) (can fill
bowl and lid up into chute)
4 cups (1 L)
MAXIMUM AMOUNT
SMALL BOWL
1.5 to 2 cups (.38 L to .5 L)
(cut in 1" [2.5 cm] cubes)
1 lbs. (450 g) (cut in 1"
[2.5 cm] cubes)
8 ounces (225 g) (cut in
1" [2.5 cm] cubes)
7 cups (1.75 L) (can fill
bowl and lid up into chute)
2 cups (.5 L)
Pulse or
Speeds
1–3
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 11

12
Cleaning and Care
3
1 2
Wipe base, control knob, and
cord with a damp cloth or
sponge. If necessary, use a mild
nonabrasive cleanser.
Electrical Shock Hazard.
Disconnect power before cleaning. Do not immerse cord, plug,
or base in any liquid.
wWARNING
4
DISHWASHER-SAFE
TO STORE: Place large bowl on base. (For a unit that includes the
small bowl, place the large bowl on the base and set the small bowl
inside. Lay the adapter shaft loose in the small bowl.) Place
Chopping/Mixing Blade and Slicer/Shredder Disc onto the motor
shaft. Place lid on bowl(s). To prevent damage to the bowl,
DO NOT LOCK.
Visit www.hamiltonbeach.com for our
complete line of products and Use and Care
Guides – as well as delicious
recipes, tips, and to register
your product online!
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 12

13
PROBLEM
Unit does not operate
on any speed or Pulse.
Food is not chopped,
sliced or shredded
uniformly.
Unit stops and will
not come back on.
Unit has a burning smell.
Motor seems weak.
PROBABLE CAUSE
• Is the unit plugged in? Does the outlet work?
• Are the bowl, bowl lid, and food chute lid all locked in place? See “How to Use” sections.
• If using small bowl, adapter shaft may be missing and must be placed on motor shaft for S-blade to operate.
• Packing too much food in the food chute or pushing too hard on the food pusher may cause the
processed food to be irregulary sliced or shredded.
• Recommended speed for slicing and shredding disc should be 1 for cheeses and 1 or 2 for vegetables
or fruit.
• Refer to the food processing charts for recommended sizes, speeds, and quantities.
• Are the bowl, bowl lid, and food chute lid all locked in place? They may have moved slighty during
processing. See “How to Use” sections.
• Is the outlet still working? Check it by plugging in a working lamp or other appliance. You may have
overloaded the circuit and blown a fuse or tripped the circuit breaker.
• Turn unit OFF, allow to stand for 3 to 4 minutes, and then turn back ON. If none of these suggestions
correct the problem, DO NOT attempt to repair the unit. Call the Customer Service number to get the
name of your nearest Authorized Service Center.
• There may be a residue left on the motor from the manufacturing process, causing a slight odor
during initial use. This will go away. If a strong odor or any visible smoke appears, unplug unit
IMMEDIATELY and call the Customer Service number.
• Are you using the recommended food size and quantity to be processed? Refer to the Food Processing
Charts for recommended food sizes and speeds.
Troubleshooting
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 13

14
Limited Warranty
This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of
any other warranty or condition.
This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original
purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective,
at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or
component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal
or greater value.
This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the
product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift
recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product
is used for other than single-family household use.
We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability
is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability
or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is
limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary
depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or
consequential damages, so the foregoing limitations may not apply to you.
To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada
or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers
on your appliance.
840174102 ENv01.qxd:Layout 1 8/26/10 8:18 AM Page 14

15
IMPORTANTS CONSEILS DE SÉCURITÉ
1. Lire et conserver toutes les instructions.
2. Pour éviter les risques d’électrocution, ne pas immerger la base,
le moteur, le cordon et la fiche dans l’eau ou tout autre liquide.
3. Une supervision vigilante est nécessaire pendant l’utilisation de
tout appareil par ou près des enfants.
4. Cet appareil ne doit pas être utilisé par un enfant.
5. Débrancher le cordon de la prise dès la fin de l’utilisation, avant
d’installer ou de retirer des pièces et avant le nettoyage.
6. Éviter de toucher des pièces mobiles.
7. Ne pas utiliser aucun appareil dont le cordon ou la prise est
endommagé, ou toutes anomalies de fonctionnement de
l’appareil, une chute ou tout autre dommage quel qu’il soit.
Composer notre numéro de service aux clients sans frais pour
renseignements concernant l’examen, la réparation ou l’ajuste-
ment électrique ou mécanique.
8. L’utilisation d’accessoires non recommandés par le fabricant ou
vendus par le fabricant de l’appareil peut provoquer un incendie,
une électrocution ou des blessures.
9. Ne pas utiliser votre robot culinaire avec des pièces brisées.
10. Ne pas utiliser cet appareil à l’extérieur.
11. Ne pas laisser pendre le cordon de la table ou du comptoir et
éviter tout contact avec les surfaces chaudes.
12. Tenir les mains et les ustensiles éloignés d’une lame et d’un
disque en mouvement pendant la transformation des aliments
pour éviter les blessures graves et les dommages au robot culi-
naire. Un racloir en plastique peut être utilisé, mais UNIQUEMENT
pendant l’arrêt du robot culinaire.
13. La lame et le disque sont coupants. Manipuler avec soins. Ranger
hors de la portée des enfants.
14. Pour éviter les risques de blessures, ne jamais placer la lame de
coupe ou un disque sur le socle sans avoir préalablement installé
le récipient correctement.
15. S’assurer que le couvercle est en place et bien verrouillé avant de
faire fonctionner l’appareil.
16. Ne jamais introduire d’aliments dans l’entonnoir avec les mains.
Toujours utiliser les poussoirs.
17. Ne pas tenter de démonter le mécanisme de verrouillage.
18. S’assurer que la lame ou le disque effectue un arrêt complet
avant de retirer le couvercle.
19. Pour éviter les risques de blessures, s’assurer d’installer ou de
retirer la lame et le disque en utilisant les embouts fournis à cet
effet. Utiliser la prudence lors du retrait de la lame ou du disque
du récipient, pendant le vidage du récipient et lors du nettoyage.
20. S’assurer que le commutateur est en position d’arrêt (O) après
chaque utilisation. Toujours utiliser les poussoirs pour désob-
struer l’entonnoir. Lorsque cette méthode est impossible, arrêter
le moteur et démonter le récipient pour retirer les aliments
coincés.
21. Cet appareil n’est pas conçu pour une utilisation commerciale,
professionnelle ou industrielle. Cet appareil est uniquement conçu
pour une utilisation domestique.
22. Ne jamais prolonger le temps de fonctionnement de cet appareil
ou utiliser des quantités d’aliments supérieures aux recommanda-
tions du fabricant. Voir le chapitre « Tableaux de transformation ».
23. Ne pas placer sur ou près d’un brûleur à gaz ou électrique chaud
ou dans un four chaud.
24. N’utiliser cet appareil que pour les fonctions auxquelles il est destiné.
Pendant l’utilisation d’appareils électriques, des mesures de sécurité élémentaires doivent toujours être respectées, incluant les suivantes :
CONSERVER CES INSTRUCTIONS !
840174102 FRv01.qxd:Layout 1 8/26/10 8:19 AM Page 15

16
AUTRE CONSIGNE DE SÉCURITÉ POUR LE CONSOMMATEUR
Cet appareil est conçu pour une utilisation domestique seulement.
AVERTISSEMENT! Risque d’électrocution : Cet appareil est doté
d’une fiche polarisée (lame large) qui réduit le risque d’électrocution.
Cette fiche s’insère d’une seule manière dans une prise polarisée. Ne
pas transformer le dispositif de sécurité de la fiche en modifiant
celle-ci de quelque manière que ce soit ou en utilisant un adaptateur.
Si la fiche refuse de s’insérer, inversez-la. Si elle refuse toujours de
s’insérer, faites remplacer la prise par un électricien.
Pour éviter la surcharge du circuit électrique, ne pas faire fonctionner
d’autre appareil à grande puissance sur le même circuit que le robot
culinaire.
La longueur du cordon installé sur cet appareil a été sélectionnée
afin de réduire les risques d’enchevêtrement ou de faux pas causés
par un fil trop long. L’utilisation d’une rallonge approuvée est permise
si le cordon est trop court. Les caractéristiques électriques de la ral-
longe doivent être équivalentes ou supérieures aux caractéristiques
de l’appareil. Prendre toutes les précautions nécessaires pour
installer la rallonge de manière à ne pas faire courir sur le comptoir
ou sur une table pour éviter qu’un enfant ne tire sur le cordon ou
trébuche accidentellement.
840174102 FRv01.qxd:Layout 1 8/26/10 8:19 AM Page 16

Pièces et caractéristiques
17
Pétite poussoir
Couvercle
Bouton de
commande
Couvercle
de l’entonnoir
Disque à trancher/râper réversible
(Vitesses 1 ou 2)
(uniquement à utiliser avec un grand bol)
Utiliser ce disque pour râper le fromage ou couper
en tranches or raper un assortiment d’aliments
(comme pommes de terre, saucisson épicé,
carottes, céleri).
Lame à hacher/mélanger
(Impulsion ou vitesses 1–3)
Utiliser pour hacher et émincer grossièrement, mélanger
ou mettre des aliments en purée jusqu’à consistance lisse.
Taquet de
couvercle de
l’entonnoir
Grand bol
Arbre du
moteur
Lame pour patates frites
(Vitesses 1 ou 2) (sur certains
modèles ou accessoire optionnel)
Pour commander :
1.800.851.8900 (É.-U.)
1.800.267.2826 (Canada)
Gros poussoir
Petit bol
(pour les modèles sélectionnés)
Tige adaptatrice pour lame en forme de S
(uniquement à utiliser avec un petit bol)
EN FONCTION DU MODÈLE SÉLECTIONNÉ OU
DE L’ACCESSOIRE EN OPTION
AVANT LA PREMIÈRE UTILISATION : Déballage du robot culinaire
Manipuler la lame et les disques avec soins; elles sont très
coupantes. Laver toutes les pièces, sauf le socle, à l’eau chaude
savonneuse. Rincer et sécher.
840174102 FRv01.qxd:Layout 1 8/26/10 8:25 AM Page 17

18
Utilisation de la lame à hacher/mélanger
12 3
Placer soigneusement la lame sur l’arbre
du moteur.
4
Aligner le grand bol et couvercle.
56 7 8
Tourner le couvercle dans le sens des aigu-
illes d’une montre pour verrouiller en place.
NOTE : L’appareil ne fonctionne que si le
couvercle est verrouillé.
Appuyer sur le taquet couvercle pour le
verrouiller fermement. NOTE : L’appareil ne
fonctionne que si le taquet de couvercle
est verrouillé.
Impulsion (P) = Maximale,
3 = Élevée, 2 = Moyenne,
1 = Minimale
Risque de déchirures. Tenir la lame
avec soins; elle est très coupante.
S’assurer que le bouton de commande est en position d’arrêt (O)
et que l’appareil est débranché. NOTE : N’utiliser qu’une seule
lame ou un seul disque à la fois.
w AVERTISSEMENT
Aligner le grand bol au socle. Tourner le
grand bol dans le sens des aiguilles
d’une montre pour le verrouiller en place.
NOTE : L’appareil ne fonctionne que si
le grand bol est verrouillé.
(avec un grand bol) (Impulsion ou vitesses 1–3)
840174102 FRv01.qxd:Layout 1 8/26/10 8:19 AM Page 18

910 11
AVERTISSEMENT ! Risque de
déchirures : Attendre la fin de la rotation
de la lame avant de retirer le couvercle.
Pour éviter tout risque de dommage à
l’appareil, toujours retirer le couvercle
avant de retirer le bol.
12
Retirer soigneusement la lame de l’arbre
du moteur.
13 14
Mettre hors tension (O) dès la fin de
l’utilisation.
Utilisation de la lame à hacher/mélanger
(avec un grand bol) (Impulsion ou vitesses 1–3) (suite)
19
840174102 FRv01.qxd:Layout 1 8/26/10 8:19 AM Page 19

20
Utilisation de la lame à hacher/mélanger
12 3
Positionner la tige adaptatrice puis la
lame du mélangeur sur la tige motorisée. N’utiliser PAS le petit bol avec une lame de découpage en position basse.
45 6 7
Aligner le grand bol et couvercle. Tourner le couvercle dans le sens des
aiguilles d’une montre pour verrouiller en
place. NOTE : L’appareil ne fonctionne
que si le couvercle est verrouillé.
Appuyer sur le taquet couvercle pour le
verrouiller fermement. NOTE : L’appareil
ne fonctionne que si le taquet de couver-
cle est verrouillé.
Risque de déchirures. Tenir la lame
avec soins; elle est très coupante.
S’assurer que le bouton de commande est en position d’arrêt (O)
et que l’appareil est débranché. NOTE : N’utiliser qu’une seule
lame ou un seul disque à la fois.
w AVERTISSEMENT
Aligner le grand bol au socle. Tourner le
grand bol dans le sens des aiguilles
d’une montre pour le verrouiller en place.
NOTE : L’appareil ne fonctionne que si
le grand bol est verrouillé.
(avec un petit bol pour les modèles sélectionnés)
(Impulsion ou vitesses 1–3)
Placer le petit bol sur la tige motorisée
et fixez-le dessus (sinon le petit bol ne
se verrouillera pas).
840174102 FRv01.qxd:Layout 1 8/26/10 8:19 AM Page 20
