IMPORTANT SAFEGUARDS
Use for food or liquids only. When using electrical appliances, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
1. Read all instructions.
2. This appliance is not intended for use by persons
with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless they are closely supervised and instructed
concerning the use of the appliance by a person
responsible for their safety.
3. This appliance should not be used by children.
Keep the appliance and its cord out of reach of
children.
4. Close supervision is necessary when any
appliance is used near children. Children should
be supervised to ensure that they do not play with
the appliance.
5. To protect against risk of electrical shock, do not
immerse cord, plug, or motor base in water or other
liquid.
6. Always disconnect the appliance from the
power supply if it is left unattended and before
assembling, disassembling, or cleaning.
7. Avoid contacting moving parts. Keep fingers out
of feed chute.
8. Never feed food by hand—always use the food
pusher.
9. Always make sure the juice extractor is
properly and completely assembled before the
motor is turned ON. The unit will not turn ON
unless properly assembled. Do not release
safety locking latches while juice extractor is in
operation.
10. Never operate without pulp container in place.
11. Be sure to turn switch to OFF ( ) position after
each use of your juice extractor. Make sure the
motor stops completely before disassembling.
840273700 ENv01.indd 2 9/15/2016 3:55:55 PM

3
12. Do not put fingers or other objects into the juice
extractor feed chute while it is in operation. If
food becomes lodged in the opening, use food
pusher to push it down. When this method is not
possible, turn the motor OFF ( ), unplug the cord
from the outlet, and disassemble juicer to remove
the remaining food.
13. Do not operate any appliance with a damaged
supply cord or plug, or after the appliance
malfunctions or has been dropped or damaged in
any manner. Call our toll-free customer service
number for information on examination, repair,
or electrical or mechanical adjustment. If the
supply cord is damaged, it must be replaced by
the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
14. The use of attachments not recommended or
sold by the appliance manufacturer may cause fire,
electric shock, or injury.
15. Do not use outdoors.
16. Do not let cord hang over edge of table or
counter, or touch hot surfaces, including stove.
17. Do not leave juice extractor unattended while it is
operating.
18. Blades are sharp; handle carefully. Do not
touch the small cutting blades in the base of the
stainless steel strainer basket.
19. Keep hair, clothing, and jewelry, as well as
spatulas and other utensils, away from feed
chute during operation to prevent the possibility
of severe injury to persons and/or damage to the
appliance.
20. Do not use the appliance if the rotating strainer
basket or the protecting cover is damaged or has
visible cracks.
21. Always use the juice extractor on a dry, level
surface.
840273700 ENv01.indd 3 9/15/2016 3:55:55 PM

4
SAVE THESE INSTRUCTIONS!
Recycling the Product at the End of Its Service Life
The wheeled bin symbol marked on this appliance signifies that it must be taken over by a selective
collection system conforming to the WEEE Directive so that it can be either recycled or dismantled in
order to reduce any impact to the environment. The user is responsible for returning the product to
the appropriate collection facility, as specified by your local code. For additional information regarding
applicable local laws, please contact the municipal facility and/or local distributor.
22. Any maintenance other than cleaning should be
performed by an authorized service center.
23. To reduce the risk of personal injury and/or
damage to the appliance, do not use bent,
dented, or otherwise damaged strainer basket.
24. D o not place on or near a hot gas or electric
burner or in a heated oven.
25. Check that the control is OFF ( ) before
plugging cord into outlet. To disconnect, turn
control to OFF ( ) and then remove plug from
wall outlet.
26. CAUTION:In order to avoid a hazard due
to inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.
27. Your plug is provided with a 13-amp fuse
approved by ASTA to B.S. 1362. If you
need a replacement fuse carrier, it must be
replaced with the same colour-coded carrier with
the same markings. Fuse covers and carriers
can be obtained from approved service agents.
840273700 ENv01.indd 4 9/15/2016 3:55:55 PM

5
Other Consumer Safety Information
This appliance is intended to be used in household and similar
applications such as:
– staff kitchen areas in shops, offices and other working
environments;
– farm houses;
– by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments.
The appliance is not intended for commercial, professional, or
industrial use.
The length of the cord used on this appliance was selected to reduce
the hazards of becoming tangled in or tripping over a longer cord.
If a longer cord is necessary, an approved extension cord may be
used. The electrical rating of the extension cord must be equal to
or greater than the rating of the appliance. Care must be taken to
arrange the extension cord so that it will not drape over the
countertop or tabletop where it can be pulled on by children or
accidentally tripped over.
The electrical rating of this appliance is listed on the bottom panel
of the unit.
The strainer basket is a delicate screen. If bent or damaged, do not
use, as it could break into small pieces and cause personal injury
and/or damage the appliance. Call our toll-free customer service
number to order a new basket. Replace basket when it shows signs
of wear.
If the juice cover broken or cracked, do not use, Call our toll-free
customer service number to order a new juice cover.
Do not operate more than 45 seconds ON at a time.
This machine is equipped with motor overload protection. If the
motor stops during operation due to overheating, unplug and allow
it to cool down for 15 minutes. Plug machine back in to resume
normal operation.
WARNING Laceration Hazard.
Extra-wide feed chute. Do not place hands or fingers down feed
chute. Always use the food pusher.
840273700 ENv01.indd 5 9/15/2016 3:55:55 PM

6

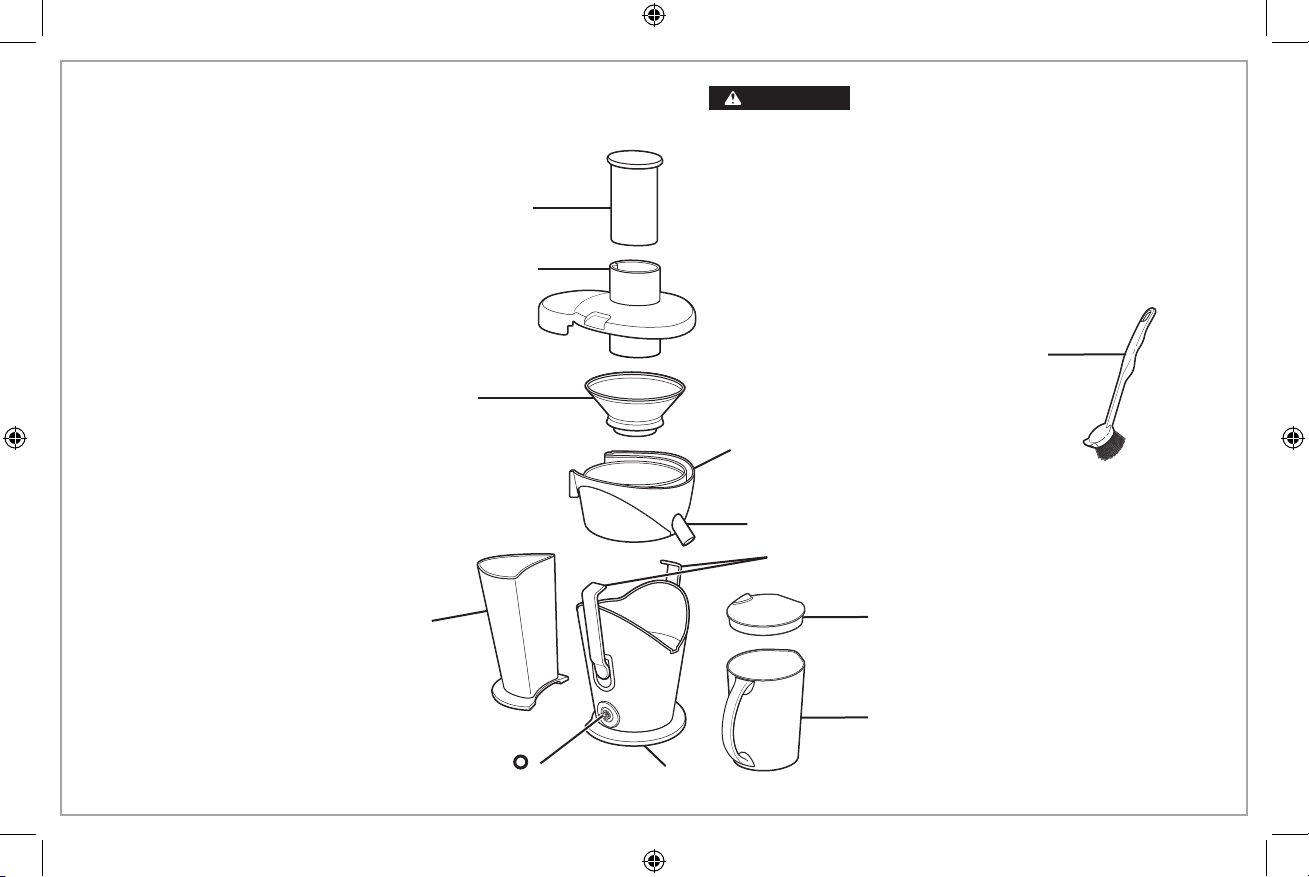

Parts and Features WARNING Laceration Hazard.
Micro-mesh strainer basket may fly apart during use if it is
damaged, resulting in the risk of cuts and bruises. To reduce
the risk of personal injury:
• Always inspect micro-mesh strainer basket before each use.
• Never use a cracked, bent, or damaged micro-mesh strainer
basket.
Food Pusher
Stainless Steel
Micro-Mesh Strainer
Basket
Extra-Wide Feed Chute
Juice Spout
Strainer Bowl
Large Pulp
Container
Locking Latch
Motor Base
Cleaning Brush
Pitcher
Pitcher Lid
HI/LO/OFF (II/I/ )
Switch
840273700 ENv01.indd 6 9/15/2016 3:55:56 PM

7

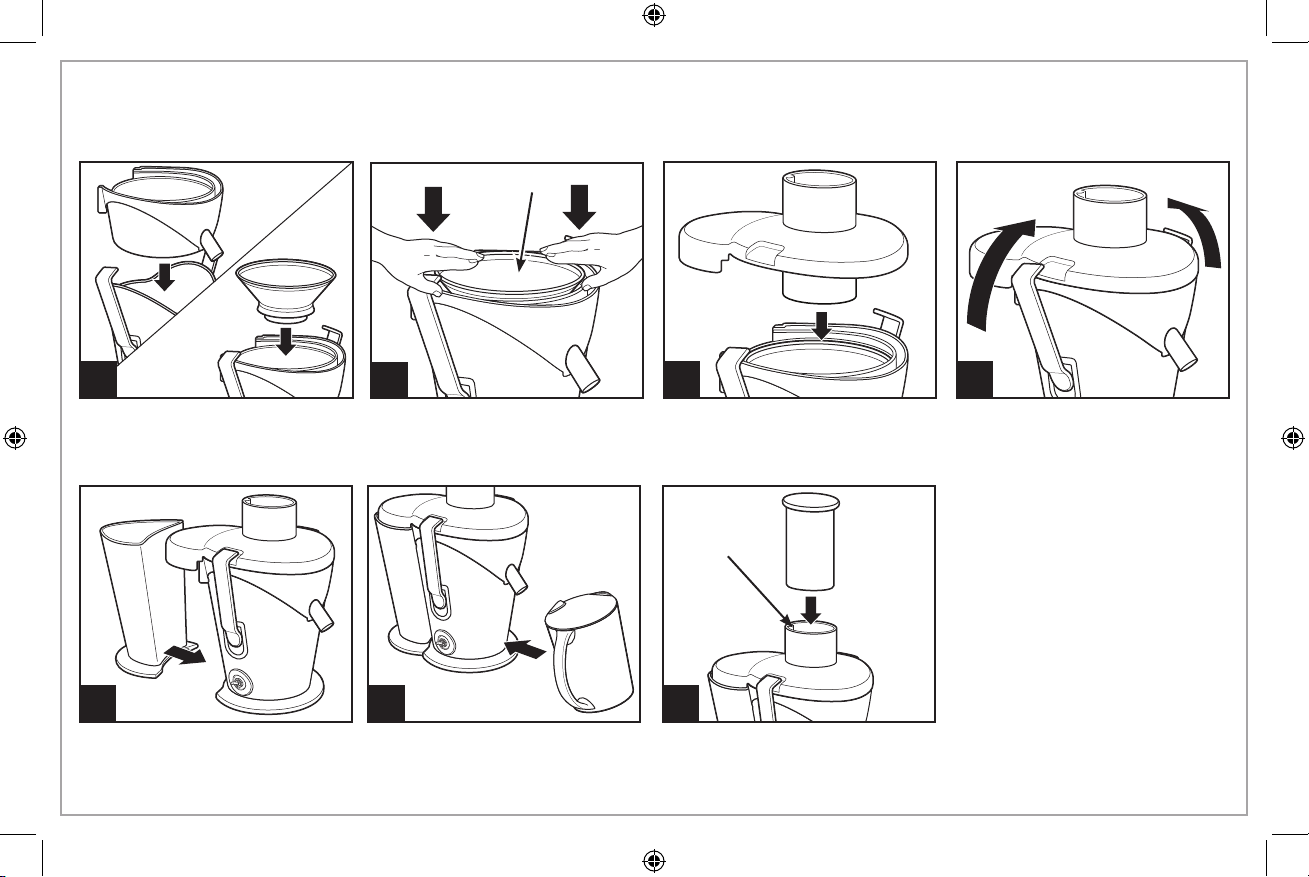

How to Assemble
2
5 6
14
3
Place strainer bowl on top of the
motor base. Then place the
stainless steel strainer basket
inside the strainer bowl.
Raise the locking latches up to
lock into place.
BEFORE FIRST USE: After unpacking the juice extractor, remove
cardboard from filter basket and wash everything except the base in
warm, soapy water. Rinse and dry immediately. Never immerse the
base in water or other liquids; wipe it with a damp sponge.
Place the pulp container into
position by tilting the container
slightly.
Place pitcher with lid under the juice spout. Slide the food pusher
down the feed chute by aligning the groove in the food pusher with
the small ridge on the inside of the top of the feed tube.
HINT:
To minimize cleanup, place
a plastic grocery bag in the pulp
container to collect the pulp. (See
page 8 for more information.)
With hands on outer edge, press
strainer basket down firmly to
latch into position.
Place the juicer cover over the
strainer bowl, positioning the
feed chute over the strainer
basket, and lower into position.
Strainer Basket
7
Small Ridge
Inside Feed
Chute
840273700 ENv01.indd 7 9/15/2016 3:55:57 PM

8
How to Use
Wash fruits and vegetables.
NOTE: Most fruits and vegetables
such as apples, carrots, and
cucumbers will not need to be
cut since they will fit into feed
chute whole. It is recommended
that fruits or vegetables such as
oranges, melons, or mangoes are
peeled before placing in unit for
best juice flavor.
WARNING Laceration Hazard.
Never use fingers to push food down the feed chute or to clear the
feed chute. Always use the food pusher provided.
1
4
2 3
Ensure that unit is correctly
assembled (see page 7) and place
pitcher with lid under spout.
Turn switch to OFF ( ) position.
Plug into outlet.
With the motor running, place food
down the feed chute. Using food
pusher, gently guide food down
feed chute. To extract the maximum
amount of juice, always push food
pusher down slowly.
Juice will flow into pitcher and
separated pulp will accumulate
in pulp container.
NOTE: Pulp container can be
emptied during juicing by turning
juice extractor OFF ( ) and then
carefully removing pulp container.
(Replace empty pulp container
before continuing to juice.)
Do not operate more than
45 seconds ON at a time.
To minimize cleanup, place a
plastic grocery bag in pulp
container to collect pulp. When
juicing is completed, simply
remove grocery bag containing
pulp.
NOTE: Do not allow pulp container
to overfill since this may prevent
correct operation or damage the
unit.
840273700 ENv01.indd 8 9/15/2016 3:55:57 PM

9
How to Disassemble
1
5
2
6
3
7
4
Turn juice extractor OFF ( ) and
unplug. Allow strainer basket
to stop turning.
Remove the pulp container by
sliding away from motor base.
Release locking latches.
Lift off the strainer bowl with the
strainer basket still in place.
Move the locking latches down.
To remove the strainer basket, turn the strainer bowl upside down
and carefully remove the strainer basket. (It is recommended to
remove the strainer basket over a sink.)
Lift off the cover.
840273700 ENv01.indd 9 9/15/2016 3:55:57 PM

10
Care and Cleaning WARNING Shock Hazard.
Do not immerse motor base in water or any other liquid.
1
STRAINER BASKET
2 DISHWASHER-SAFE
CAUTION Laceration Hazard.
The center of the strainer basket contains small, sharp blades to
process fruits and vegetables during the juicing function. Do not
touch blades when handling the strainer basket.
Always treat the strainer basket with care; it can be damaged easily.
To assist with cleaning, soak the strainer basket in hot, soapy water
for approximately 10 minutes immediately after juicing is completed.
If pulp is left to dry on the basket it may clog the fine pores of the filter
mesh, thereby lessening the effectiveness of the juice extractor.
DO NOT use the “SANI” setting
when washing in the dishwasher.
“SANI” cycle temperatures could
damage your product. Do not
place the motor base in the
dishwasher. Some part distortion
may occur if your household
dishwasher’s temperature is
higher than normal or if the
parts are placed too close to
the heating element.
The cleaning brush included with
the unit is the most effective way to
clean the strainer basket. Using the
brush, hold the strainer basket under
running water and brush inside and
outside of the basket.
Discoloration of the plastic may occur with some fruit and vegetables.
To help prevent this, wash all parts immediately after use.
840273700 ENv01.indd 10 9/15/2016 3:55:58 PM

11
Juicing Tips, Techniques, and Recipes
PURCHASING AND STORING FRUITS AND VEGETABLES:
• Always wash fruits and vegetables before juicing.
• Always use fresh fruits and vegetables for juicing.
• To save money and obtain fresher produce, purchase fruits or
vegetables that are in season.
• Keep your fruits and vegetables ready for juicing by washing
them before storing.
• Most fruits and hardier-type vegetables can be stored at cool
room temperature. More delicate and perishable items such as
berries, leafy greens, celery, cucumbers, and herbs should be
stored in the refrigerator until required.
PREPARING FRUITS AND VEGETABLES:
• It is recommended that fruits or vegetables such as oranges,
melons, or mangoes are peeled before placing in juice extractor
for best juice flavor.
• All fruits with pits and large seeds such as nectarines, peaches,
apricots, plums, and cherries MUST be pitted before juicing.
USING THE PULP:
• The remaining pulp left after juicing fruits or vegetables is mostly
fiber and cellulose which, like the juice, contain vital nutrients
necessary for the daily diet and can be used in many ways. Pulp
can be frozen for later use.
• There are a number of recipes that use pulp. You can also use
pulp to thicken casseroles or soups.
• Pulp is great used in the garden for compost.
SOY MILK, ALMOND MILK, AND RICE MILK:
This juice extractor may be used to make soy milk, almond milk,
and rice milk. Follow these steps:
1. Soak 1 cup (237 ml) of soybeans, almonds, or rice in 4 cups
(946 ml) of water for 8 to 12 hours covered in the refrigerator.
2. Drain nuts and discard water. Cover nuts, beans, or rice with
1 1/2 cups (355 ml) fresh water.
3. Slowly ladle the nuts, beans, or rice with the water into the food
chute.
4. Place cheesecloth in a container. Pour mixture into a tight woven
cheesecloth and let stand until completely drained. Squeeze
cheesecloth, if necessary. Refrigerate milk immediately.
NOTES:
• Almonds must be soaked 8 to 12 hours before juicing.
• Soy milk should be boiled to improve the flavor.
• Vanilla, honey, and sugar may be added to enhance the flavor of
each milk type.
840273700 ENv01.indd 11 9/15/2016 3:55:58 PM

12
Fruit or Vegetables Examples Speed
Firm Fruits and Vegetables Apples, Peeled Oranges, Carrots, Beets, Cucumbers, Ginger HIGH
Soft Fruits and Vegetables Strawberries, Pitted Peaches, Watermelons, Grapes, Tomatoes LOW
Leafy Greens Spinach, Kale, Beet Greens LOW
Juicing Chart
840273700 ENv01.indd 12 9/15/2016 3:55:58 PM

13
Carrot, Ginger, and Apple Juice
Ingredients:
6 medium carrots
1/4-inch-thick (0.6-cm) slice fresh ginger (about 1-inch [2.5-cm]
diameter)
1 large Granny Smith apple
Directions:
1. Cut apple as needed to fit through the chute of the juice extractor.
2. Juice the ingredients in the order listed.
3. Stir and serve immediately.
Serves: 2
Blueberry, Raspberry, Strawberry, and Apple Juice
Ingredients:
1 cup (237 ml) blueberries
1 cup (237 ml) raspberries
4 large strawberries, hulled
1/4 of a Granny Smith apple
Directions:
1. Juice the ingredients in the order listed.
2. Stir and serve immediately
Serves: 1–2
Recipes
Beet, Orange, Ginger, and Carrot Juice
Ingredients:
1 large beet, trimmed
1 medium orange, peeled
3 medium carrots
1/4-inch-thick (0.6-cm) slice fresh ginger (about 1-inch [2.5-cm]
diameter)
Directions:
1. Cut beet, orange, and carrots as needed to fit through the chute
of the juice extractor.
2. Juice the ingredients in the order listed.
3. Stir and serve immediately.
Serves: 1–2
Go-Getter Green Juice
Ingredients:
4 medium kale leaves
2 medium carrots, trimmed
1/2 lemon, peeled
1-inch (2.5-cm) piece fresh ginger
1 cup (237 ml) baby spinach leaves
1 medium Granny Smith apple
Directions:
1. Cut carrots, apple, and lemon as needed to fit through the chute
of the juice extractor.
2. Juice the ingredients in the order listed.
3. Stir and serve immediately
Serves: 1–2
840273700 ENv01.indd 13 9/15/2016 3:55:58 PM

14
Veggie Cocktail
Ingredients:
8 medium tomatoes
1 small lemon, peeled
1 large rib celery
1 medium carrot
1 onion slice
1 teaspoon (5 ml) Worcestershire sauce
1/2 teaspoon (2.5 ml) salt, if desired
Directions:
1. Cut tomatoes, lemon, and carrot as needed to fit through the chute
of the juice extractor.
2. Juice the ingredients in the order listed except Worcestershire
sauce and salt.
3. Stir in Worcestershire sauce and salt. Serve immediately.
Serves: 2–3
Pomegranate Blueberry Juice
Ingredients:
2 cups (473 ml) pomegranate seeds
1 cup (237 ml) blueberries
Directions:
1. Juice the ingredients in the order listed.
2. Stir and serve immediately.
Serves: 1–2
Test Kitchen Tip: Use just the seeds of a pomegranate for juicing
since the membranes will make the juice bitter. To deseed the
pomegranate, start by making a thin slice from the bottom to make
it stable for cutting. Cut out the core at the top. Make shallow cuts
to section into 6 wedges. Gently break the pomegranate apart and
pry the seeds out with your fingers. Pomegranate juice can stain, so
we suggest wearing gloves and something like an old T-shirt. Work
over a bowl to catch the seeds and drips before placing in the juice
extractor.
Recipes (cont.)
Kale, Cucumber, and Cilantro Green Juice
Ingredients:
6 large leaves kale
1 large cucumber
1 rib celery with leaves
1 medium lime, peeled
2 small handfuls cilantro
1 medium Granny Smith apple
Directions:
1. Cut cucumber and apple as needed to fit through the chute of the
juice extractor.
2. Juice the ingredients in the order listed.
3. Stir and serve immediately
Serves: 1–2
840273700 ENv01.indd 14 9/15/2016 3:55:58 PM

15
Troubleshooting
PROBLEM PROBABLE CAUSE/SOLUTION
Machine will not work
when switched ON. • The locking latches may not be correctly engaged. Check to see if the locking latches are properly positioned in the two grooves on either side of the juice cover. Refer to page 7, Steps 3 and 4.
• This machine is equipped with motor overload protection. If the motor stops during operation due
to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in to resume
normal operation.
Motor appears to stall
when juicing. • The juicing action may be too vigorous. Try slower juicing action by pushing the food pusher down more slowly. Refer to page 8, Step 3.
• Wet pulp can build up under the juicer cover or pulp container. Turn unit OFF ( ) and unplug. Empty the
pulp bin; then clean juice cover and strainer basket.
Excess pulp building up
in the micro-mesh
strainer basket.
• Turn OFF ( ) and unplug. Remove strainer basket and clean mesh walls with a fine brush. This will remove
excess fiber buildup which could be inhibiting the juice flow. Refer to pages 9 and 10.
Pulp is too wet and
insufficient juice is
produced.
• Try a slower juicing action.
• Turn OFF ( ) and unplug. Remove strainer basket and clean mesh walls with a fine brush. This will remove
excess fiber buildup which could be inhibiting the juice flow. Refer to pages 9 and 10.
Juice sprays out of spout. • Try slower juicing action by pushing the food pusher down more slowly. Refer to page 8, Step 3.
Juice drips out of spout
immediately after juicing. • With motor ON, raise and lower food pusher in feed chute several times. The action forces remaining pulp and juice out of strainer bowl.
Machine vibrates
excessively. • Buildup of pulp in mesh of strainer basket. Turn unit OFF ( ) and unplug. Clean strainer basket. Refer to
page 10. If machine vibration continues after cleaning, this could be a sign of a damaged strainer basket.
Call our toll-free customer service number to order a new strainer basket.
840273700 ENv01.indd 15 9/15/2016 3:55:58 PM

16
Notes
840273700 ENv01.indd 16 9/15/2016 3:55:58 PM

17
Notes
840273700 ENv01.indd 17 9/15/2016 3:55:58 PM

18
Notes
840273700 ENv01.indd 18 9/15/2016 3:55:58 PM

19
840273700 ENv01.indd 19 9/15/2016 3:55:58 PM

20
840273700 ENv01.indd 20 9/15/2016 3:55:58 PM
