HAMPTON BAY 284-485 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
284-485
219032
792145350378

Safety Rules.....................................................................................................................................
Unpacking Your Fan .........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit......................................................................................................................
Your .............................................................................................................
Care of Your Fan .............................................................................................................................
Troubleshooting .............................................................................................................................
Specifications ................................................................................................................................
Operating Transmitter
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breakeror fuse boxbefore beginning.
2. Allwiring must bein accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan withany solid-state fanspeed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to bereplaced, consult aqualified electrician ifin doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
10. Do not use water or detergents when cleaningthe fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side ofthe outlet box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the Instructions packaged with the light kits
and switches forproper assembly.
WARNING
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxesmarked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge ofthe blades tothe floor.
7. Do not operate the reverse switch while the fan blades are in motion.
The fan must be turned off and the blades stopped before reversing the
blades direction.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE ARMS(ALSO REFERRED TO ASBRACKETS) DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!

Unpacking Your Fan 2.
Unpack your fanand check thecontents. You should havethe following items:
1.
2. Canopy assembly
3.
4.
Set of blades(5)
Ball/downrod assembly (1)
& extra downrod(1)
Collar cover
5. Glass plate(2)
6. Fan motorassembly
7. Top glass shade
8. Set ofblade arms (5 )
9
10. Bottom glassshade
11. Finial
Receiver+6 wire nuts
Transmitter+holder+2 mounting screws
candelabra
candelabra
Balancing kit
. Light kit
12.
13.
14. 15
16.
W Bulbs (6)
15. 40W Bulbs (3)
17. Loose partsbag containing:
a. Blade attachmenthardware
()
b. Mounting hardware
( 3 plasticwire connectors)
16 screws
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 1-877-898-1881
ab
17
3
6
7
8
4
5
1
29
11
12
10
13
14
15
16
ONON
UPLIGHT
DOWNLIGHT
LO MED HI
FANOFF

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing ULlisted mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at yourHampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling
maximum
20 angle

Hanging the Fan
REMEMBER to turn off the power. Follow
the steps belowto hang yourfan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise.(Fig.6)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket turn
from the screw head and turning the canopy
counter clockwise.(Fig, 6)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shownin Fig.7.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided withyour outlet box.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through the
ball / downrod.(Fig. 8)
Step 7. Align the holes at the bottom of the
downrod with theholes in the collar on topof
the motor housing (Fig.8). Carefully insert
a half
WARNING
FAILURETO PROPERLY INSTALL LOCKINGPIN
AS NOTED INSTEP 7 COULD RESULT IN FAN
LOOSENING ANDPOSSIBLYFALLING.
Step 8. Tighten twoset screws ontop of the fan
motor firmly (Figure8)
Step 9. Place the downrod ball into the hanger
bracket socket.
CHANGING THE DOWNROD(OPTIONAL)
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you
have been provided with a 6"downrod to use if
desired. If you choose to use the 6" downrod,
perform the followingsteps:
1. Remove the hanger ball from the 4"
downrod by loosening the set screw at the
top of the downrod which holds the hanger
ball to thedownrod.
2. Slide the hanger ball down the downrod and
remove the supportpin.
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as notedin the circleinset of Fig. 8.
4.
Figure 5
Installing the bulbs
and glass plate
Step 1. Install 6 x15W bulbs (provided) into
the sockets of the bulb holder bracket on the
top of motor,
Step 2. Loose the four thumb screws and
rubber washers from the bulb holder bracket.
Step 3. Place the two glass plates over the bulb
holder bracket and secure them in place with
the four thumb screws and rubber washers
previously removed. Tighten the thumb screws,
DO NOT OVER TIGHTEN.
Glass plate
Bulb holder bracket
Bulbs
Thumb screw
Rubber washer

5.
Make the Electric Connections
WARNING: To avoid possible electrical
shock, be sureelectricity is turned off at the
main fuse boxbefore wiring.
NOTE: This remote control unit is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency switches
on your receiver and transmitter have been
preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan
as long as the transmitter and receiver are
set to thesame position.(Figure 9)

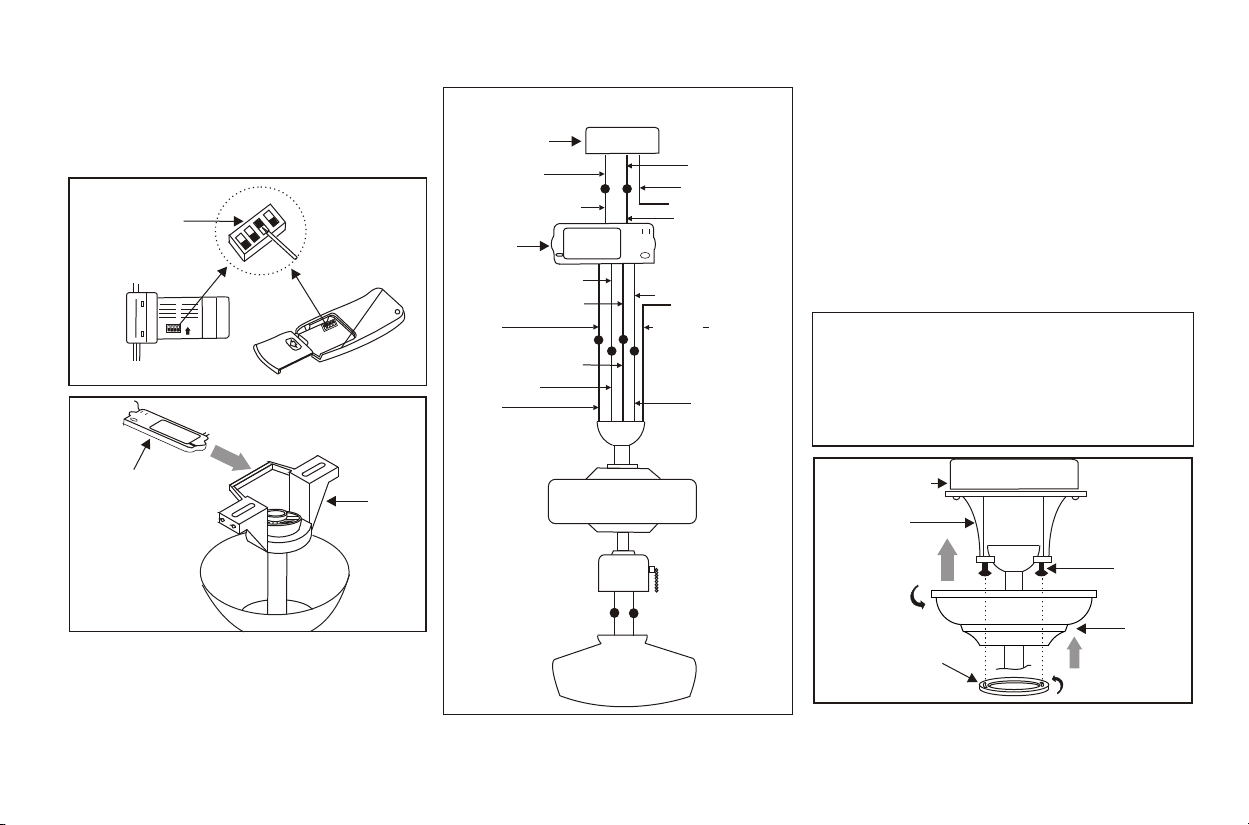

Step 1. (Figure 10) Insert the receiver into
the mounting bracket with the flat side of
the receiver facingthe ceiling.
Step 2. (Figure 11) Motor to Receiver
Electrical Connections: Connect the Black
wire from the fan to Black wire marked "TO
MOTOR L". Connect the White wire from
the fan to the White wire marked "TO
MOTOR N" from the receiver. Connect the
Blue wire fromthe fan to the Blue wiremarked
"For bottom Light" from the receiver.
Connect the Orange wire from fan to the
Orange wire from receiver marked "For
Upper Light". Secure wire connections with
the plastic wire nuts provided. Wire nuts
provided.
Step 3. (Figure 11) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire
connections with the plastic wire nuts
provided.
Step 4. (Figure 11) If your outlet box has a
ground wire (green or bare copper) connect it
To the fan ground wires; otherwise connect
the hanging bracket ground wire to the
mounting bracket. Secured the wire
connection with a plastic nut provided. After
connecting the wires spread them apart so
that the green and white wires are on one side
of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up into the outlet box.
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Tighten
screws
firmly
Figure 8
Hanger pin
Locking pin Collar cover
Canopy
cover
Figure 6
Ceiling
mounting
plate
Ceiling
canopy
Canopy
cover
Mounting
screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
UL Listed
electrial
box
Figure 7 120V Wires
Washers
3. Insert the support pin in the holes at the
top of the 6" downrod and slide the
hanger ball up the 6" downrod. Make
sure the support pin is properlyseated in
the grooves inthe top ofthe hanger ball.
4. Tightenthe set screwfirmly.

6.
Figure 12
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
Finishing the Installation
Step 1. Slide the canopy up to the ceiling and over
the 2 screws on the hanger bracket. Rotate canopy to
lock in place. Next, while holding the canopy with
one hand, slide the canopy cover up and over the
screws, rotate and lock in place.
NOTE: Adjust the canopy screws as necessary until
the canopy and canopy cover are snug. (Fig. 12)
Figure 10
Receiver
Hanger
bracket
ONON
Figure 9
Code switch
WARNING
Make sure thenotch on thehanging bracket
properly sits inthe groove inthe hanger ball
before attaching thecanopy to thebracket by
turning the housinguntil it dropsinto place.
SUPPLYCIRCUIT
WHITE
WHITE
BLUE
BLACK
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC INN")
White ("to motor N")
Orange
(for upper light)
Orange
(for upper light)
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC INL")
Black ("to motor L")
Receiver
Black (motor)
Figure 10
Blue (for bottom light)
Blue (for bottom light)
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit
for proper signal transmission between the
transmitting unit andthe fan's receivingunit.

7.
Figure 13
Attaching the top
glass housing
Remember to disconnect the power.
Loose the three screws on the glass housing
assembly. Hold up the glass housing assembly to
ceiling fan assembly, and take the three screws on
the glass housing assembly over the three key
holes in the motor assembly plate, twist clockwise
to set glass housing firmly with motor fan
assembly. Be sure to tighten the three screws to
avoid the glass falling.
NOTE: Check to make sure the three screws
from the glass housing assembly are completely
through the key holes in the fan motor assembly
and sit firmly.
Topglass housing
assembly
Screws
Motor assembly
Rubber
washer
Blade
arm
Figure 14
Blade
Screws
Attaching the Fan
Blades
Step 1 Attach blades to blade arms using
three screws and rubber washers as shown in
Figure 14. Start a screw into the arm, do not
tighten. Repeat for the 2 remaining screws
and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the
slot in the bottom motor housing, then
tighten the two screws and washers already
installed in theblade arms. (Figure15)
Step 4 Install an optionallight kit ifyou wish.
Follow the instructionsincluded with thekit.
Figure 15
Motor
Blade arm
Slot
Tab

8.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weighed
equally.
The following procedure should correct
most fan wobbling problems. Check after
each step.
1. Check that all blade and blade arms
screws are secure.

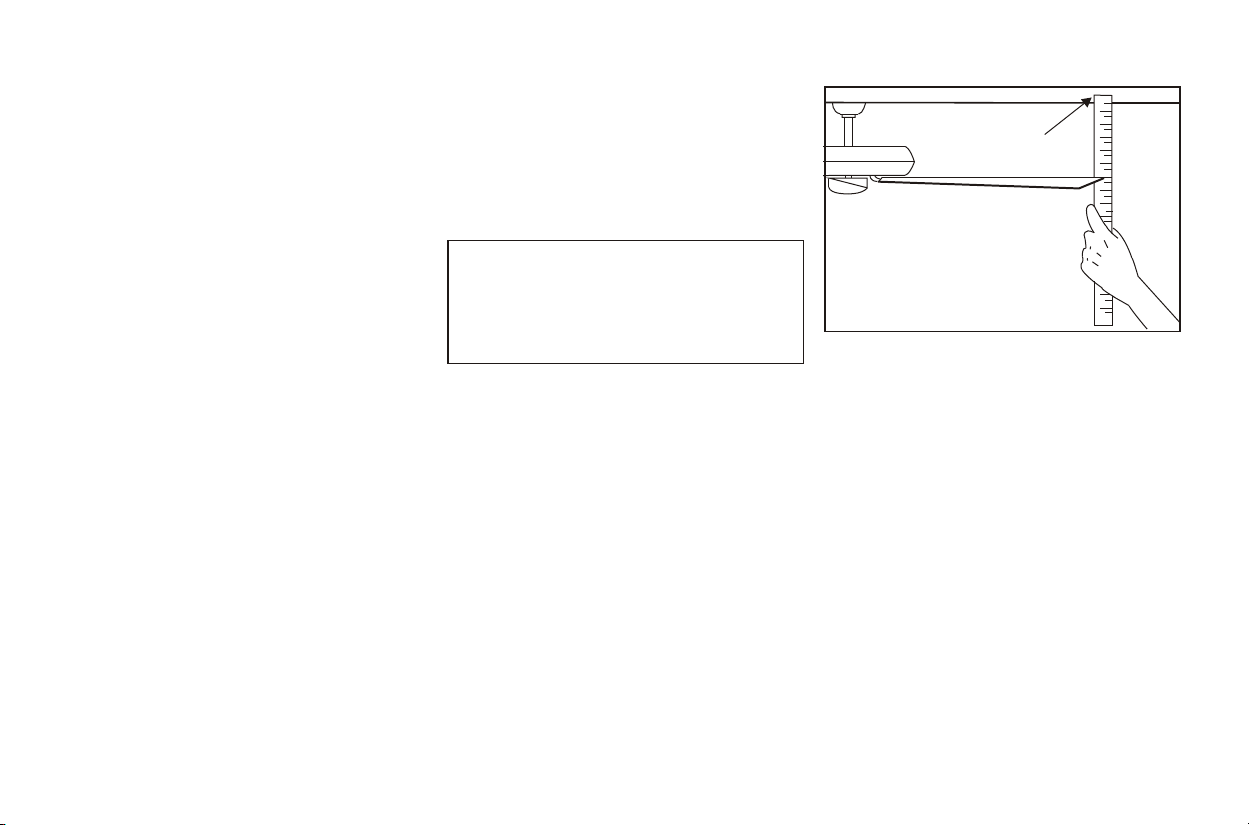

2. Most fan wobbling problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 16. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within
1/8".
deviation
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADE HOLDERS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.
Touching
ceiling
Figure 16
3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.

9. Installing the Light Kit
REMEMBER: To disconnect the power. The fan blades must
be already attachedto the fan.
Your fan and light kit though pre-wired have been
disassembled at the factory to ease in shipping. Please follow
these steps to complete the installation of your fan and light.
TO REDUCE THE RISK OF FIRE DO NOT EXCEED
MAXIMUM WATTAGE RATING.
Step 1. Remove 1 of the 3 screws from the mounting ring and
keep it for future use. Loosen the other 2 screws (Do not
remove)
Step 2. Raise and hold the light kit close to the mounting ring
and proceed to do the wire connections. Connect the white
wire connectors from the light kit and fan, follow the same
procedure with theblack wire connectors.(Fig. 17)
Step 3. Place the key holes on the light kit over the 2 screws
previously loosened from the mounting ring, turn light kit
until it locks in place at the narrow section of the key holes.
secure by tightening the 2 screws previously loosened and the
one previously removed.(Fig. 17).
Step 4. Install 3 x 40W bulbs (included). (Fig.17)
Step 5. Place glass shade over the light kit and secure it with
the finial provided.DO NOT OVER TIGHTEN. (Fig. 17)
candelabra
Figure 17
Mounting ring
Glass shade
Screws
Connection plugs
Light kit
decorative nut
NOTE: Light bulbs have no warranty, can be purchased at
local light bulbspecialty store orfrom our service center.
Bulbs

Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, etc.
The Reverse switch is located on top of the
motor assembly. Slide the switch to the Left
for warm weatheroperation. Slide the switch
to the Rightfor cool weatheroperation.
NOTE: Wait for fan to stop before changing
the setting ofthe slide switch.
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown in
Figure 19. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 20. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Operating Your Transmitter 10.
Figure 19
Figure 20
Figure18
Operating Your Transmitter
Restore power to ceiling fan and test for
proper operation.
1. "LO. MED, HI"buttons:
These three buttons are used to set thefan speed
as follows:
LO=Low speed MED= Medium speed
HI=High speed
2. "FAN OFF" button:
This button turnsthe fan off.
3. The "UP LIGHT" button turns the upper light
ON or OFF and also controls the brightness
setting. The "DOWN LIGHT" button turns the
bottom light ON or OFF and also controls the
brightness setting. Press and release the button to
turn the light ON or OFF. Press and hold the
button to set the desired brightness. The light
button has an auto-resume, it will stay at the same
brightness as the last time it was turned off.
UP LIGHT
DOWN LIGHT
LO MED HI
FAN OFF

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
11. Care of Your Fan
Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove the
battery if notused for long periods.
9 Volt
Battery
Figure21

Troubleshooting 12.
Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction:
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections tothe fan and switch wire connectionsin the switchhousing.
CAUTION: Make sure main power isoff.
3. Check tomake sure thedip switches from the transmitter andreceiver are setto the samefrequency.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbing against each otheror the interiorwall of theswitch housing.
CAUTION: Make sure main power isoff.
4. Allowa 24-hour "breaking-in"period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional lightkit, make sure the screws securingthe glassware aretight. Check that light bulb is
also secure.
6.
7. Make surethe upper canopyis a short distance from theceiling. It should not touch the ceiling.
Do not connectthe fan withwall mounted variable speed control (s)
1. Do notconnect the fanwith wall mounted variable speed control(s)
2. Make surethe dip switchesare set correctly.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120
3.96'
kgs kgs
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
13. Specifications
Distributed by
Your Other Warehouse, LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
2005 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
C
