HAMPTON BAY 285-167 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
285-167
11289
792145330806

Safety Rules.....................................................................................................................................
Unpacking Your Fan ........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit......................................................................................................................
Your Fan ........................................................................................................................
Troubleshooting .............................................................................................................................
Specifications ................................................................................................................................
Operating
Care of Your Fan.............................................................................................................................
1.
2.
3.
10.
11.
12.
13.
14.
Table of Contents

1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breakeror fuse boxbefore beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan withany solid-state fanspeed control device.
4. WARNING: To reduce the riskof personal injury, use only the two steel
screws (and lock washers) provided with the outlet box for mounting to
the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be
replaced, consult aqualified electrician ifin doubt.
7. Do not operate reversing switch while fan blades are in motion. Fan
must be turned off and blades stopped before reversing blade
direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side ofthe outlet box.
12. Electrical diagrams are reference only. Light kit that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for properassembly.
WARNING
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxesmarked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge ofthe blades tothe floor.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE BRACKETS (ALSOREFERRED TOAS FLANGES)DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!
1. Safety Rules

Unpacking Your Fan 2.
Unpack your fanand check thecontents. You should havethe following items:
1.
2. Canopy assembly
3.
4.
5.
6.
Set of blades(5)
Ball/downrod assembly (1)
& extra downrod(1)
Collar cover
Fan motor assembly
Set of bladeholders (5)
7.
8.
9.
11.
12.
Light plate
Glass shade
Pull chain and fob (2)
10. Balancing kit
Extra metal plate
Extra switch boxcover
13. Loose partsbag containing:
a. Blade attachmenthardware
(16 screws)
b. Mounting hardware
(3 plastic wireconnectors)
c. Mounting attachmenthardware
for close-to-ceiling mount
( Rubber gasket)
d. Light kithardware
(1 screw)
ab
c
13
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 877-898-1881
d
7
3
1
2
5
6
8
9
4
12
11
10

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing ULlisted mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at yourHampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4

Hanging the Fan
REMEMBER to turn off th the power. Follow
the steps below to hangyour fan properly. NOTE:
This ceiling fan is supplied with two types of
hanging assemblies; the standard ceiling
installation using the downrod with ball and
socket mounting and the "close-to-ceiling"
installation. The "close-to-ceiling" installation
is recommended in rooms with less than 8-foot
ceilings or in areas where additional space is
desired from the floor to the fan blades. When
using the standard 4" downrod, the distance
from the ceiling to the bottom of the fan blades
will be approximately 12 inches. When using
the optional 6" downrod, thisdistance will be 14
inches. The "close-to-ceiling" installation
reduces this distance to 8-inches. Once you have
selected which mounting system you will use,
proceed with the following instructions. Where
necessary, each section of the instructions will
note the different procedures to follow for the
two types of mounting.
CHANGING THE DOWNROD (OPTIONAL)
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you have
been provided with a 6" downrod to use if
desired. If you choose to use the 6" downrod,
perform the following steps.
1. Remove the hanger ball from the 4" downrod
by loosening the set screw at the top of th
downrod which holds the hanger ball to the
downrod.
2. Slide the hanger ball down the downrod and
remove the support pin.
4.
3. Insert the support pinin the holes at thetop of the
6" downrod and slide the hanger ball up the 6"
downrod. Make sure the support pin is properly
seated in the grooves inthe top of the hangerball.
4. Tighten theset screw firmly.
1. Remove the canopy ring from the canopy by
turning the ring until it unlocks. (Fig. 5)
2.Remove the hanger bracket from the canopy by
loosening the four screws onthe top of the canopy.
Remove the two non-slotted screws and loosen
the slotted screws. This will enable youto remove
the hanger bracket. (Figure 5)
3.Pass the 120-volt supply wires through the center
hole in the ceiling hanger bracket as shown in
Fig.6
4. Loose the two screwson the outlet box inhalf way.
5.Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws
provided with the outlet box.
6.Tighten the two screwson the outlet box securely.
7.Remove the hanger pin, lock pin and set screws
from the top of themotor assembly.
8.Route wires exiting from the top of the fan motor
through the collar cover and canopy ring. Make
sure the slot openings ofthe canopy ring are ontop.
Route the wires through the canopy and then
through the ball/downrod assembly (Figure6A).
STANDARD CEILING INSTALLATION
CAUTION
REMOVE 5 RUBBERPACKING MOUNTS
AND DISCARD BEFOREINSTALLATION.
9. Align the holes at the bottom of the
downrod with the holes in the collar on
top of the motor housing (Figure 6A).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole in locked
position, as noted in the circle inset of
Figure 6A.
WARNING
FAILURETO PROPERLY INSTALL
LOCKING PIN ASNOTED IN STEP 9
COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.
10. Tighten two set screws on top of the fan
motor firmly.(Figure 6A)
11. Place the downrod ball into the hanger
bracket socket.

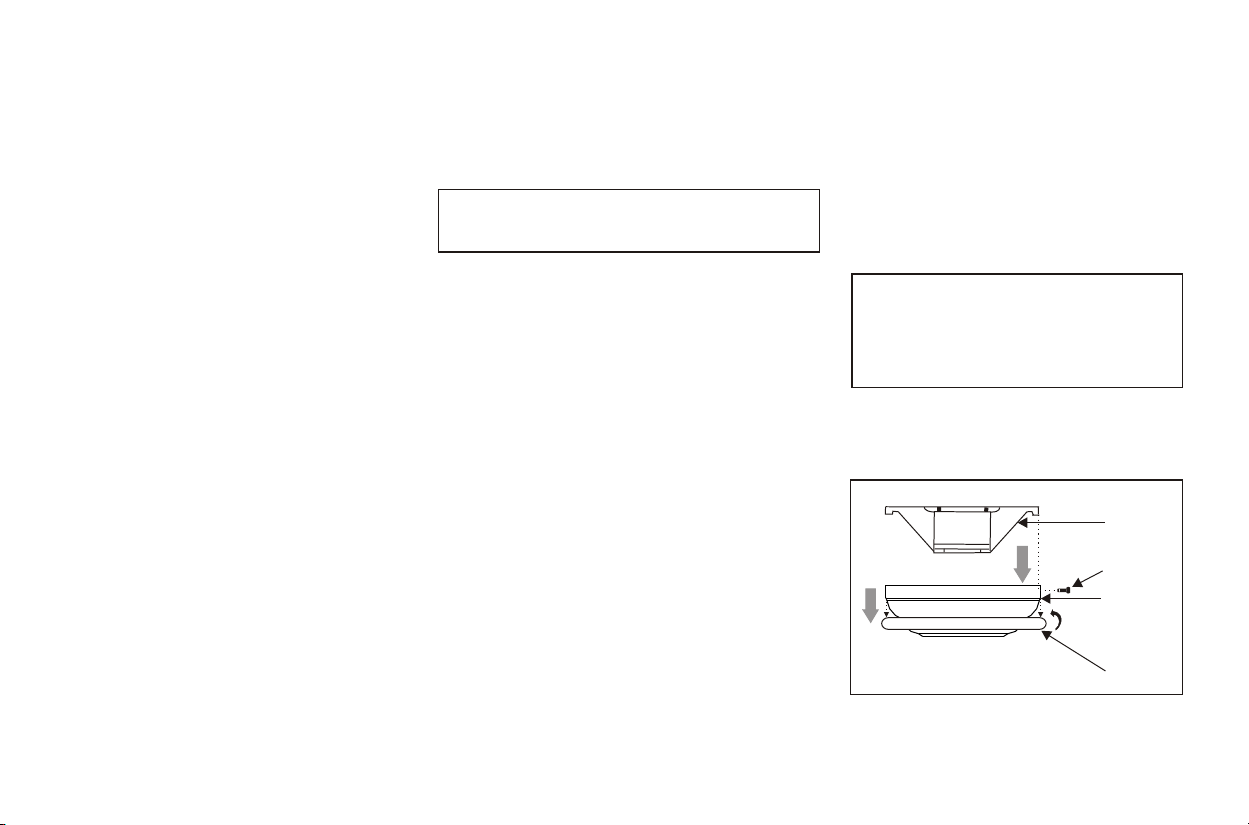

Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Screws
Canopy
ring

5.
CLOSE-TO-CEILING INSTALLATION
1. Remove the canopy ring from the canopyby turning
the ring until it unlocks. (Fig. 5)
2. Remove the hanger bracket from the canopy by
loosening the four screws on the top of the canopy.
Remove the two non-slotted screws and loosen the
slotted screws. This will enable you to remove the
hanger bracket. (Figure 5)
4. Pass the 120-volt supply wires through the center
hole in the ceiling hangerbracket as shown in Fig.6.
5. Loose the two screws on the outletbox halfway.
6. Attach thehanger bracket on the outletbox by sliding
the hanger bracket over thescrews provided with the
outlet box.
7. Tighten the two screws onthe outlet box securely.
8. Remove three of the six screws and lock washers
(every other one) from the collar of top motor
(Figure. 7)
9. Place the rubber gasket over the remaining three
screws, route the wires exiting the top of the fan
motor through the canopy ring (make sure the slot
openings of the ring are on top). then proceed to
place the ceiling canopy overthe collar at the topof
the motor. Align the mounting holes with the holes
in the motor and fasten using the screws and lock
washers provided (Fig. 7).
10.Tighten the mountingscrews securely.(Fig. 7)
3. Remove the decorative canopy bottom cover from
the canopy by depressing thethree studs (Fig. 7A)
Mounting
screws
(supplied with
electrical box)
Tab
Ceiling
hanger
bracket
UL Listed
electrial
box
Slide mounting
bracket over
screw heads
Figure 6 120V Wires
Pin in
locked
position
Canopy ring
Hanger pin
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Locking pin
Tighten
screws
firmly
Figure 6A
Collar cover
WARNING
FAILURE TOCOMPLETELYTIGHTEN
THE THREE SCREWS IN STEP9 COULD
RESULTIN FAN LOOSENING AND
POSSIBLYFALLING
11.Hang the fan on the tab of the hanger
bracket. Be certain that the canopy is fully
locked into tab as shown in Fig. 8. This
will allow you to make the electrical
connections.
Figure 8
Tab
Figure 7A
Canopy
Bottom
Cover
Screw and
Lockwasher
(3 of 6 places)
Ceiling
Canopy
Figure 7
Canopy
Ring
Collar
Rubber
gasket

Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below toconnect the fan to yourhousehold wiring.
Use the wire connecting nuts supplied with your fan. Secure the
connectors with electrical tape. Make sure there are no loose
strands or connections.
Step 1 Connect the fan supply (black) wire and light supply (blue)
wire to the black householdsupply wire as shown inFigure 9.
Step 2. Connect the netura fan (white) wire to the white netura
household wire.
Figures 10 and 11 illustrate the wiring connections for
optional wall control (available atyour Hampton Bay Retailer,
the wire color out ofwall control may vary, see wall control's
installation manual for correct wireconnections.)
NOTE
LIGHT KITS ARE AVAILABLE ATYOU
HAMPTON BAY RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THELIGHT KIT OPTION.
WARNING
TO REDUCE THE RISKOF FIRE, ELECTRIC
SHOCK, OR OTHER PERSONALINJURY.
MOUNT FANONLYON AN OUTLETBOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLEFOR FAN SUPPORT.
TO REDUCE THE RISKOF FIRE OR ELECTRIC
SHOCK. DO NOT USETHIS FANWITH ANY
SOLID-STATE SPEED CONTROLDEVICE.
Step 3 Connect the fan ground wire(green) to the household ground
wire.
Step 4 After connecting the wires, spread them apart so that the
green and white wires areon one side of the outlet box and the black
and the blue wires areon the other side.
Step 5 Turn the connectingnuts upward and push thewiring into the
outlet box.
6.
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 9
Diagram indicates optionallight kit wiring.
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 10
Diagram indicates optionallight kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE

Finishing the
Installation
STANDARD CEILINGINSTALLATION
Slide canopy up to the ceiling as shown in
Figure 12 leaving a 1/8" clearance
between the canopy and the ceiling. Make
sure you place the wires safely into outlet
box. Secure the canopy to the hanger
bracket with thefour screws withyour fan.
Slide the canopy ring over the canopy and
tighten by turningthe ring.
WARNING
MAKE SURE TAB AT BOTTOM OFHANGER
BRACKET IS HANGERPROPERLYSEATED IN
GROOVE OF HANGERBALL BEFORE
ATTACHING CANOPYTO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD
CAUSE DAMAGE TOELECTRICAL WIRING
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the tab on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Figure 13 with four
screws included with your fan. Slide the
canopy ring over the canopy and tighten
by turning thering.
7.
Remove the blade attachment screws from
the fan motor assembly. Attach and adjust
fan blades according to the instructions in
the following section.
Figure 12
Figure 13
Allow 1/8"
Clearance
Allow 1/8"
Clearance
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optionallight kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE

Attaching the Fan
Blades
Step 1 Attach the blades to the blade brackets
using the screws and rubber washers provided
as shown in Figure 14. Start a screw into the
bracket, but do not tighten. Repeat for the other
2 screws andwashers.
Step 2 Tighten each screw securely starting
with the centerscrew. Make sure the blade is
straight.
Step 3Fasten the blade assemblies to the motor
by insert the tab from the blade brackets to the
slot in the bottom motor housing, then tighten
the two screws and washers already installed in
the blade brackets(Figure 15).
Step 4 Install an optional light kit if you wish.
Follow the instructionsincluded with the kit.
8.
Rubber
washer
Blade
bracket
Figure 14
Motor
Blade Bracket
Slot
Tab
Figure 15

3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADE HOLDERS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.
Touching
ceiling
Figure 16
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade and blade bracket screws
are secure.
2. Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure this distance as
shown in Figure 16. Rotate thefan until the next
blade is positioned for measurement. Repeat for
each blade. The distance should be equal within
1/8".
9.

Installing the Light Kit 10.
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Turning power off using the fan switch is
not sufficient toprevent electric shock.
1. Make the polarized plug connections for
the wires (blue and white) out of the fan
and the wires (white and black) from the
light plate:
- White to white
- Blue toblack
2. Attachthe light plate to the switchhousing
using the screwsprovide.
3. Install one60 watt bulb(not provided).
4. Mount the glass shade to the light plate by
unscrewing partway the thumbscrews on
the light plate, inserting the glass, then
gently tightening the thumbscrews by
hand evenly to the glass. DO NOT OVER
TIGHTEN.
5. Restore power and your light kit is ready
for operation.
Fan Without Light Kit
There are extra metal plate and switch
housing cover available in your box, using
them when you intend to install your fan
without light kit:
1. Attach the metal plate to the switch
housing with screwsprovided.
2. Install the switch housing cover to the
metal plate withscrews provided.
6. If the light kit does not work, turn off the
electricity and lower either canopy or
decorative housing on your ceiling fan to
make sure theblue wire is connected to the
black household wire.
Figure 18
Figure 17
Light plate
Metal plate
Switch
housing
Switch
coverhousing
Switch
housing
Bulb
Glass shade
Screws
Screws
Screws
Screws

NOTE
WAITFOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Turn on the power and check the operation of
your fan. The pull chain controls the fan speed
as follows: 1 pulls- High, 2 pulls-Medium, 3
pulls- Low, and 4pulls-Off.
Speed settings for warm or coolweather depend
on factors such as the room size, ceiling height,
number of fans,and so on.
The slide switch controls directions: forward
(switch down) orreverse (switch up)
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown
in Figure 19. This allows you to set your
air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Figure 20. This allows
you to set your heating unit on a lower
setting without affecting your comfort.
11.Operating Your Fan
Figure19
Figure 20

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
Care of Your Fan 12.

Troubleshooting 13.
Problem
Fan will notstart.
Fan sounds noisy.
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections tothe fan and switch wire connectionsin the switchhousing.
CAUTION: Make sure main power isoff.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbing against each otheror the interiorwall of theswitch housing.
CAUTION: Make sure main power isoff.
4. Allowa 24-hour "breaking-in"period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional lightkit, make sure the screws securingthe glassware aretight. Check that light bulb is
also secure.
6.Some fan motorsare sensitive tosignals from solid-state variable speed controls.
If you have installed this typeof control, chooseand install anothertype of control.
7. Make surethe upper canopyis a short distance from theceiling. It should not touch the ceiling.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
Distributed by HomeDepot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, GA 30339
2004 Homer TLC, Inc.All Rights Reserved
Hampton Bay isa registered trademark of Homer TLC, Inc.
RPM CFM N.W. G.W.
C.F.
52"
120 xxx'Xx
kgs
Xx
kgs
Xxx Xx Xx Xxxx
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
C
14. Specifications
