HAMPTON BAY Colonial Bamboo User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
278-050
219032
792145350316

Safety Rules.....................................................................................................................................
Unpacking Your Fan .........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit......................................................................................................................
Your .............................................................................................................
Care of Your Fan .............................................................................................................................
Troubleshooting .............................................................................................................................
Specifications ................................................................................................................................
Operating Fan............
1.
2.
3.
9.
10.
13.
14.
15.
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been
turned off at the circuitbreaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by aqualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do
not use thisfan with anysolid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "Acceptable for Fan
Support of 22.7 kg (50 lbs.) Or Less" and use mounting screws
provided with the outlet box. Most outlet boxes commonly used
for the support of light fixtures are not acceptable for fan support
and may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is strongly
recommended.
7. Avoid placing objectsin the path of the blades.
8. Reverse thefan while themotor is on any speeds.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaning the fan.
10. Do notuse water or detergents when cleaning the fanor fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for
most cleaning.
11. After making electrical connections, spliced conductorsshould be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kitsand switches forproper assembly.
WARNING
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted
and capable ofreliably supporting a minimum of 50pounds. Use
only ULListed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailingedge of theblades to the floor.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE ARMS(ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!

Unpacking Your Fan 2.
Unpack your fanand check thecontents. You should havethe following items:
1
2
3
4
5
6
7 13
10
11
12
1.
2. Canopy assembly
3.
4.
5.
Set of blades(5)
Ball/downrod assembly (1)
& extra downrod(1)
Collar cover
Fan motor assembly
6. Set ofblades arms (5)
7. Mounting plate
8 Light kit assembly
Transmitter+holder+2 mountingscrews
11. 60 Watt medium base bulbs (3)
12. Extra plasticplug
Balancing kit
.
9. Glass shade(3)
10.
13.
9
8
SET
TEMP
FANAUTO
LOWLOW
FANAUTO FOR/REV
LIGHTDELAYTIMER
TIMEP./SET
HOUR
HIGH
ROOM
TEMP
F
TM
/
14. Loose partsbag containing:
a. Blade attachmenthardware
(16 screws)
b. Mounting hardware
( 3 plasticwire connectors)
ab
14
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 1-877-898-1881

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.

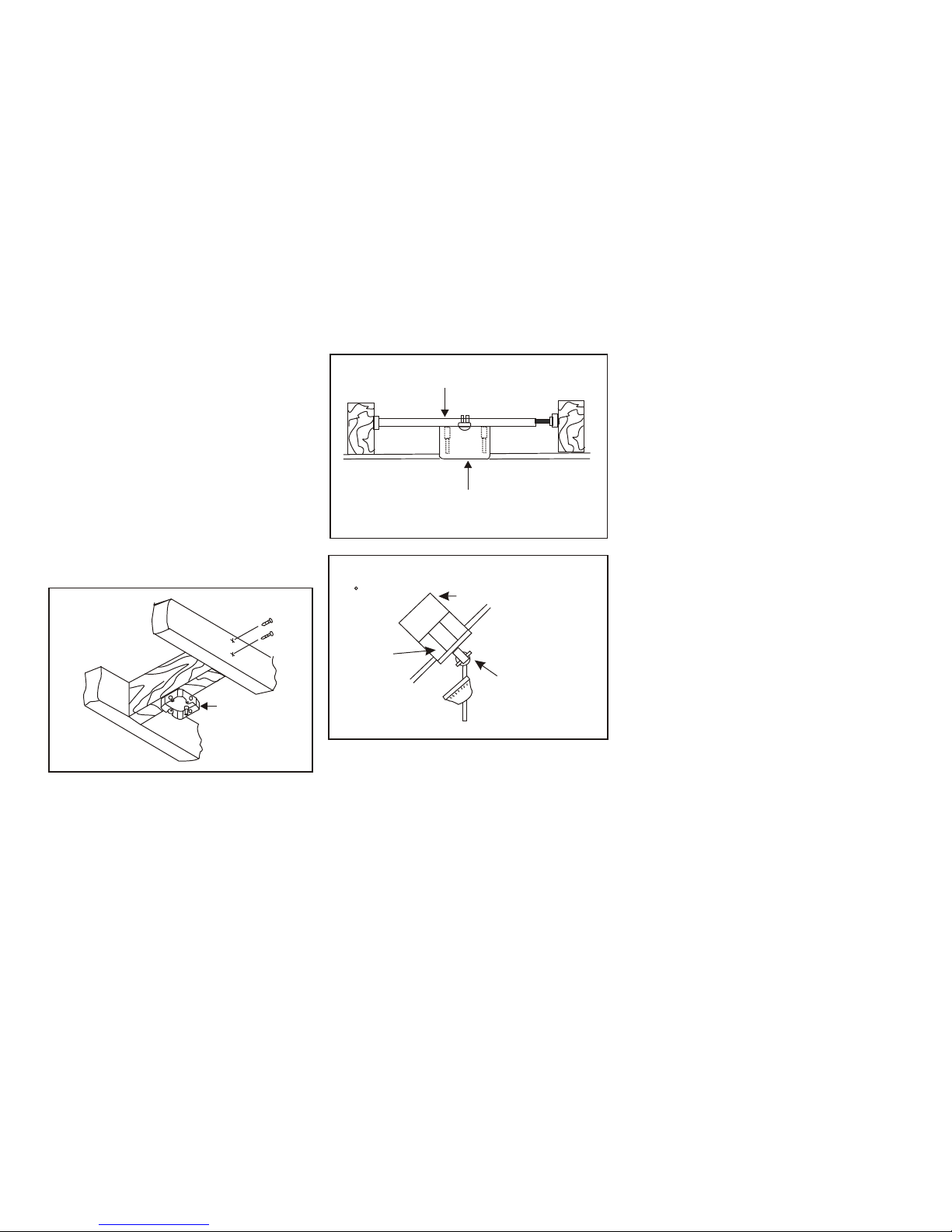

Mounting Options
Heavy duty ceiling fan rated outlet box is
required (at least 50 lbs). Donot use regular
outlet box (metalor plastic).
Figure 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
Heavy duty fan brace
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Figure 2
Heavy duty
outlet box for fan
Heavy duty
outlet box for fan
Figure 1
Angled ceiling
maximum
25 angle

4.
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover counter
clockwise. (Fig.4)
Step 2. Remove the hanger bracket from the canopy
by loosening the two screws on the bottom of the
hanging bracket a half turn from the screw head and
turning the canopy counter clockwise. (Figure 4)
Step 3. Remove the hanger pin, lock pin and set
screws from the top of the motor assembly. (Fig. 5)
Step4. Route wires exiting from the top of the fan
motor through the collar cover, canopy cover,
canopy and then through the ball / downrod. (Fig. 5)
Step5. Align the holes at the bottom of the downrod
with the holes in the collar on top of the motor
housing (Fig.5). Carefully insert the hanger pin
through the holes in the collar and downrod. Be
careful not to jam the pin against the wiring inside
the downrod. Insert the locking pin through the
hole near the end of the hanger pin until it snaps
into its locked position, as noted in the circle inset
of Fig. 5.
Step 6. Tighten two set screws on top of the
fan motor firmly (Figure 5)
Step 7. Install the hanger bracket to the
outlet box; be sure to align the holes in the
hanger bracket with the post holes in the
outlet box and secure with screws and
washers provided by the outlet box.(Figure
6)
Step 8. Hanging the assembled fan onto the
mounting bracket, place the downrod ball
into the mounting bracket. Rotate fan until
the slot of the downrod ball locks into the
tab of the mounting bracket. (Figure 7)
Step 9. Secure the safety cable to the
building structure as shown in Fig. 7
Step 10. Connecting the wires (see making
the electrical connections)
WARNING
FAILURETO PROPERLY INSTALL
LOCKING PINAS NOTED IN STEP 5 COULD
RESULTIN FANLOOSENING AND
POSSIBLYFALLING.
CHANGING THE DOWNROD (OPTIONAL)
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you
have been provided with a 6" downrod to
use if desired. If you choose to use the 6"
downrod, perform the following steps:
1. remove the hanger ball from the downrod
by loosening the set screw at the top of
the downrod which holds the hanger ball
to the downrod.
2. Slide the hanger ball down the downrod
and remove the support pin.
3. Insert the support pin in the holes at the
top of the 6" downrod and slide the hanger
ball up the 6" downrod. Make sure the
support pin is properly seated in the
grooves in the top of the hanger ball.
4. Tighten the set screws firmly.
CAUTION
Remove the 5 screws from the motor support plate,
discard the 5 screws and motor support plate.

5.
Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to your
household wiring. Use the wire connecting nuts
supplied with your fan. Secure the connectors with
electrical tape. Make sure there are no loose
strands or connections.
Step 1 Connect the fan supply (black) wire to the
black household supply wire asshown in Figure 8.
Step 2. Connect the neutral fan(white) wire to the
white neutral household wire. (Fig.8)
(Fig. 8)
Step 3 Connect the fan ground wire (green) to the
household ground wire.
Step 4 After connecting the wires, spread them
apart so that the green and white wires are on one
side of the outlet boxand the black wires areon the
other side.
Step 5 Turn the connecting nuts upward and push
the wiring into the outletbox.
Figure 7
Hanger
bracket Safety cable
Screws provided
by the outletbox
Hook
UL Listed
electrial
box
Figure 6
AC Wires
Washers
Hanger
bracket
Posts in the
outlet box
Figure 4
Ceiling
mounting
plate
Ceiling
canopy
Canopy
cover
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Tighten
screws
firmly
Figure 5
Hanger pin
Locking pin Collar cover
Canopy
cover

6.
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
GREEN
Figure 8
Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on hanger bracket. Rotate canopy
clockwise. Next, while holding the canopy with
one hand, slide the canopy cover over the
screws and rotate clockwise until tight. Note:
adjust the canopy screws as necessary until the
canopy and canopycover are snug.(Fig. 9)

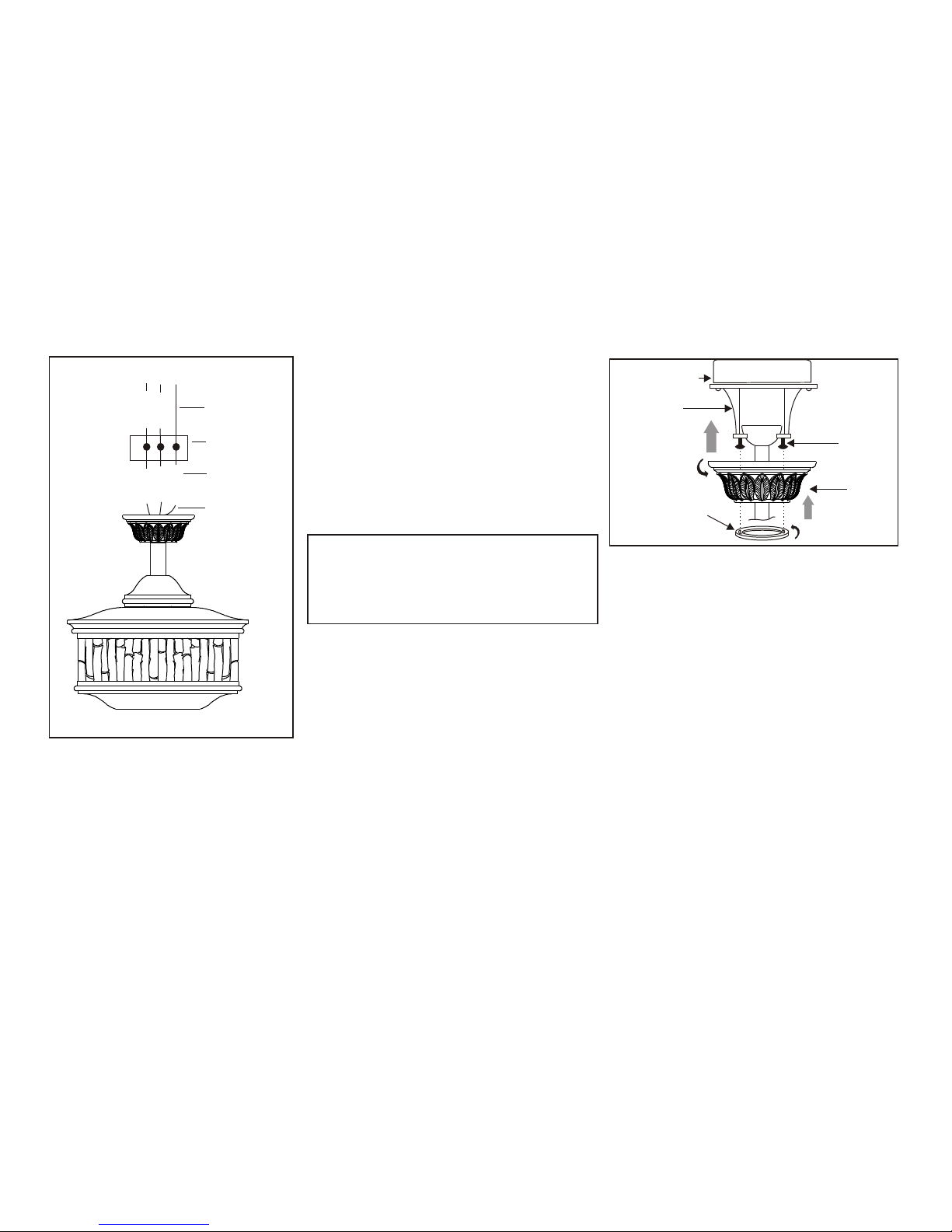

Figure 9
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
WARNING
Make sure thenotch on thehanging bracket
properly sits inthe groove inthe hanger ball
before attaching thecanopy to thebracket by
turning the housinguntil it dropsinto place.

7.
Attaching the Fan
Blades
Step 1 Attach the blades to the blade arms using
three screws and rubber washers as shown in
Figure 10. Start a screw into the arm, do not
tighten. Repeat for the 2 remaining screws and
washers.
Step 2 Tighten each screw securely starting with
the center screw. Make surethe blade isstraight.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the slot
in the bottom motor housing, then tighten the
two screws and washers already installed in the
blade arms (Figure11).
Step 4 Install an optional light kit if you wish.
Follow the instructionsincluded with the kit.
Figure 11
Motor
Blade arm
Slot
Tab
Rubber
washer
Blade
arm
Figure 10
Blade
Screws

8.
Touching
ceiling

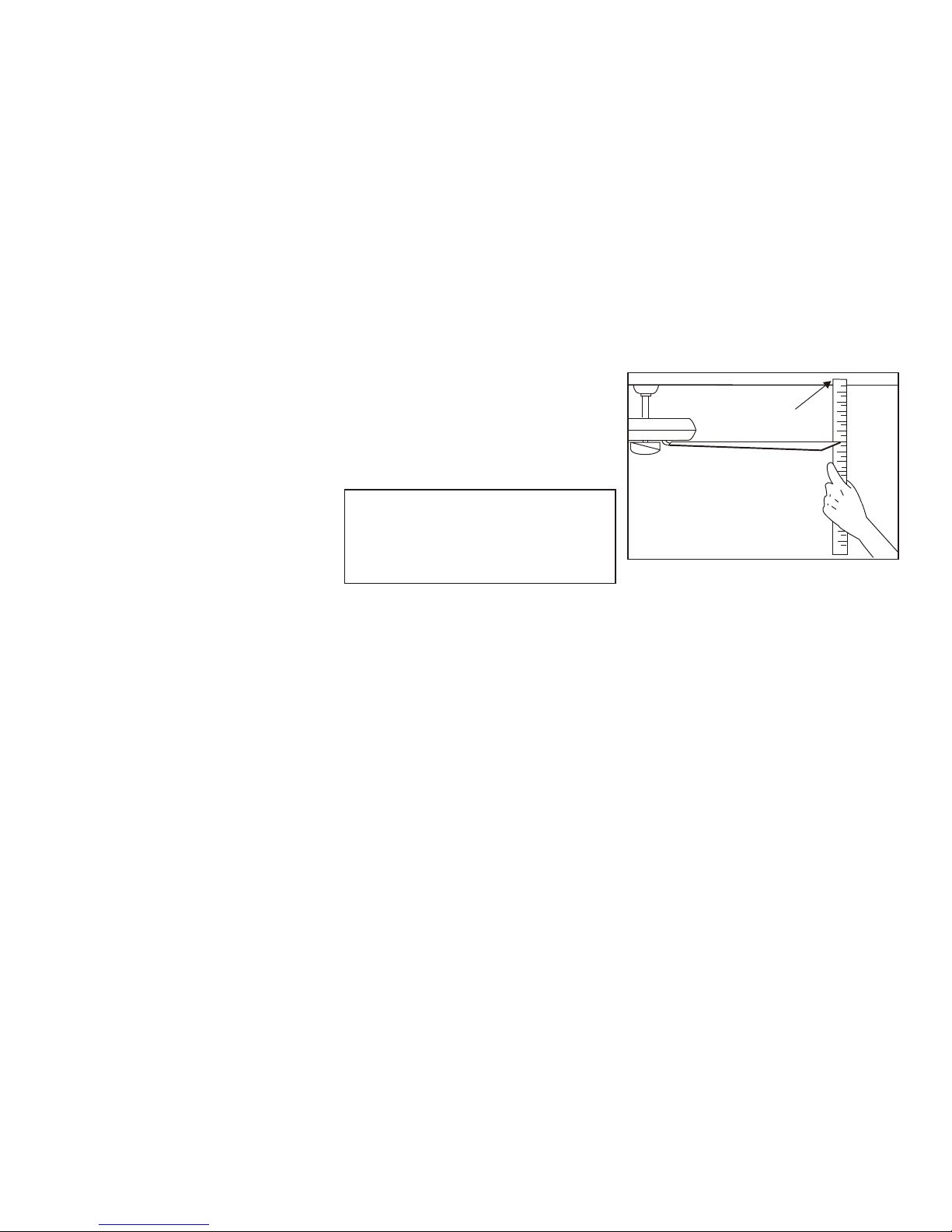

Figure 12
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADEARMS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weighed
equally.
The following procedure should correct
most fan wobbling problems. Check after
each step.
1. Check that all blade and blade arm
screws are secure.
2. Most fan wobbling problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 12. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within
1/8".
deviation
3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.

9. Installing the Light Kit
NOTE: Before starting installation,
disconnect the power by turningoff the circuit
breaker or removing the fuseat fuse box.
Turning power off using the fan switch is
not sufficient to preventelectric shock.
1. Remove the 1 of 3 screws from the
mounting ring and keep it for future use.
Loosen the other 2 screws. (Do not remove)
2. Place the key holes on the switch housing
over the 2 screws previously loosened from
the mounting ring, turn the switch housing
until it locks in place at the narrow section
of the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Figure 13)
3. Make the wire connections: Connect the 9-
pin plug from the fan to the 9-pin plug from
the light kit assembly.
4. Carefully push all wires back into the switch
housing. Attach the light kit assembly to the
mounting plate with 3 screws provided.
6. With the power off, insert the light bulbs
(included) into the light kit sockets.
Max. 60 watts.
7. Restore power and your light kit is ready for
operation.
5. Mount the glass shades to the light fixture
by unscrewing partway the thumbscrews on
the glass holders, inserting the glass, then
gently tightening the thumbscrews by hand
evenly to the glass. DO NOT OVER
TIGHTEN.
Figure 13
Screws
Mounting plate
Mounting ring
Screws
Bulbs
Light kit
assembly
Glass shade
Thumb
screws
Connector plugs
Figure 14
Switch housing Light kit
Nut
Lock washer
Fan Without Light Kit
1. Disassemble the switch box from the
light kit by loosing the two plug-in wire
connectors, you can keep the light kit
for future use.(Figure 14)
2. Attach the plastic plugto the switchbox.
3. Remove the screws from the mounting
ring under the fan motor, Raise the
switch box to the mounting ring until
the holes in switch box and mounting
ring line up. Reinsert the screws to
secure in place.

1.The receiver frequency selector is located
on the top of the motor assembly plate as
show in Fig.15.
2.The transmitter frequency selector is
located in the battery compartment as show
in Fig. 16. Each frequency selector has 4
switches, you may use any number of
possible combinations butyou must set each
switch in the transmitter to match the same
switch in thereceiver.
Operating Your Fan 10.
Figure 15
Figure 16
Code switch
Installing the battery:
Load a fresh set of 4 "AAA" 1.5V batteries
(not included) into the battery
compartment.
Figure 17
AAA
AAA AAA
AAA
AAA AAA
AAA
ONON
1 2 3 41 2 3 4
Code switch

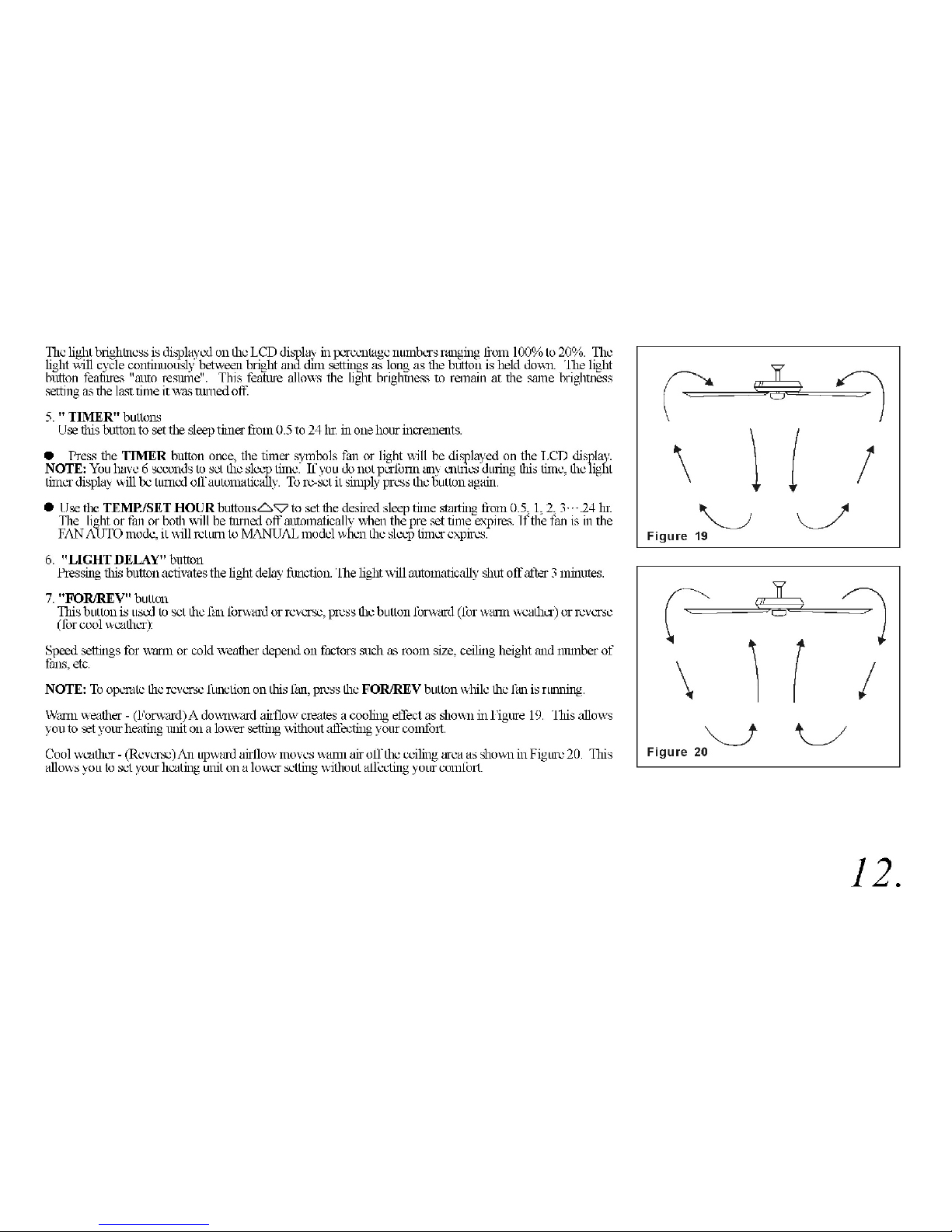

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
Care of Your Fan 13.

14.Troubleshooting
Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction:
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections tothe fan and switch wire connectionsin the switchhousing.
CAUTION: Make suremain power isoff.
3. Check tomake sure thedip switches from the transmitter andreceiver are setto the samefrequency.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbing against each otheror the interiorwall of theswitch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in"period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional lightkit, make sure the screws securingthe glassware aretight. Check that light bulb is
also secure.
6.
7. Make surethe upper canopyis a short distance from theceiling. It should not touch the ceiling.
Do not connectthe fan withwall mounted variable speed control (s)
1. Do notconnect the fanwith wall mounted variable speed control(s)
2. Make surethe dip switchesare set correctly.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120
2.52'
kgs kgs
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
15. Specifications
Distributed by HomeDepot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, Georgia 30339
2005 Homer TLC, Inc.All Rights Reserved
Hampton Bay isa registered trademark of Homer TLC, Inc.
C
