HAMPTON BAY Copperhead 184-860 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does not
cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or
peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty
invalid. There is no other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and fitness for a
particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
184-860
219032
792145353171

Safety Rules.....................................................................................................................................
Unpacking Your Fan .........................................................................................................................
Installing Your Fan ...........................................................................................................................
.....................................................................................................................
Your .............................................................................................................
Care of Your Fan ............................................................................................................................
Troubleshooting .............................................................................................................................
Specifications ................................................................................................................................

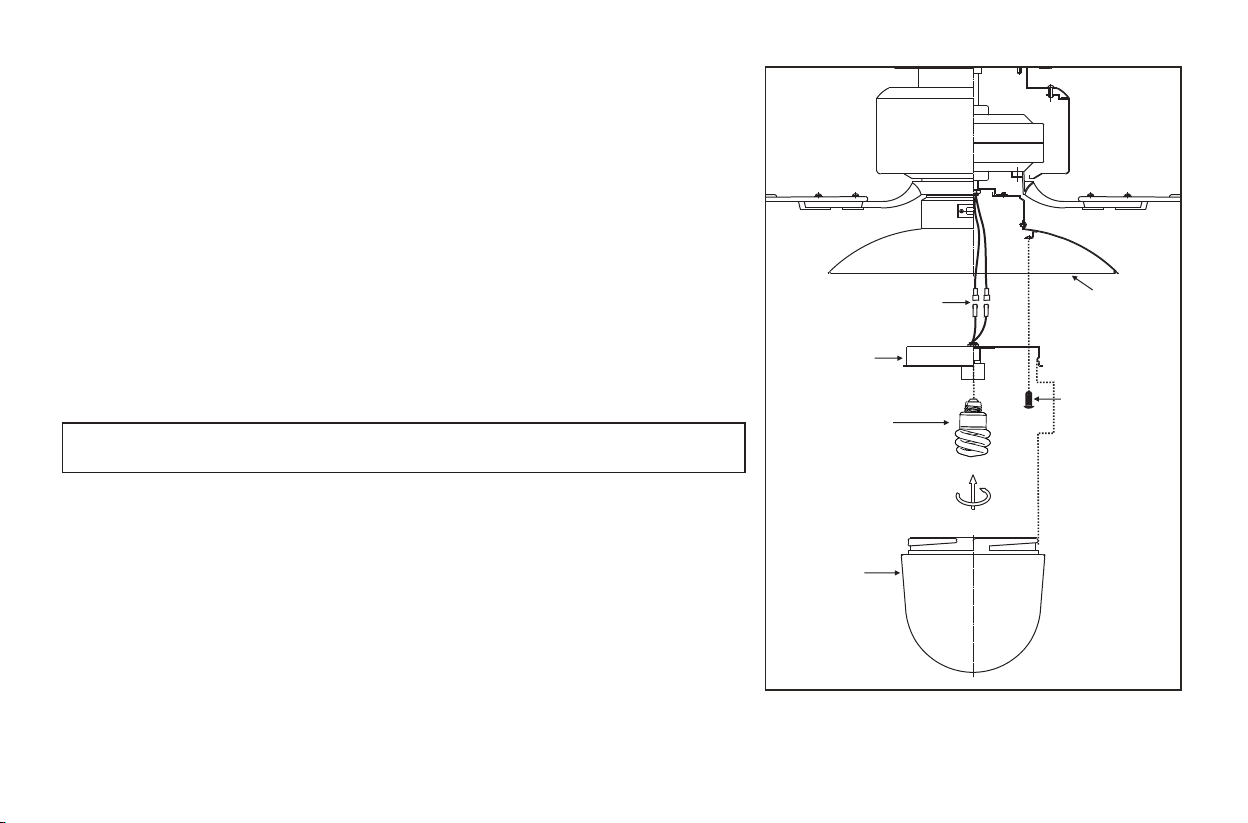

Installing the Light Kit

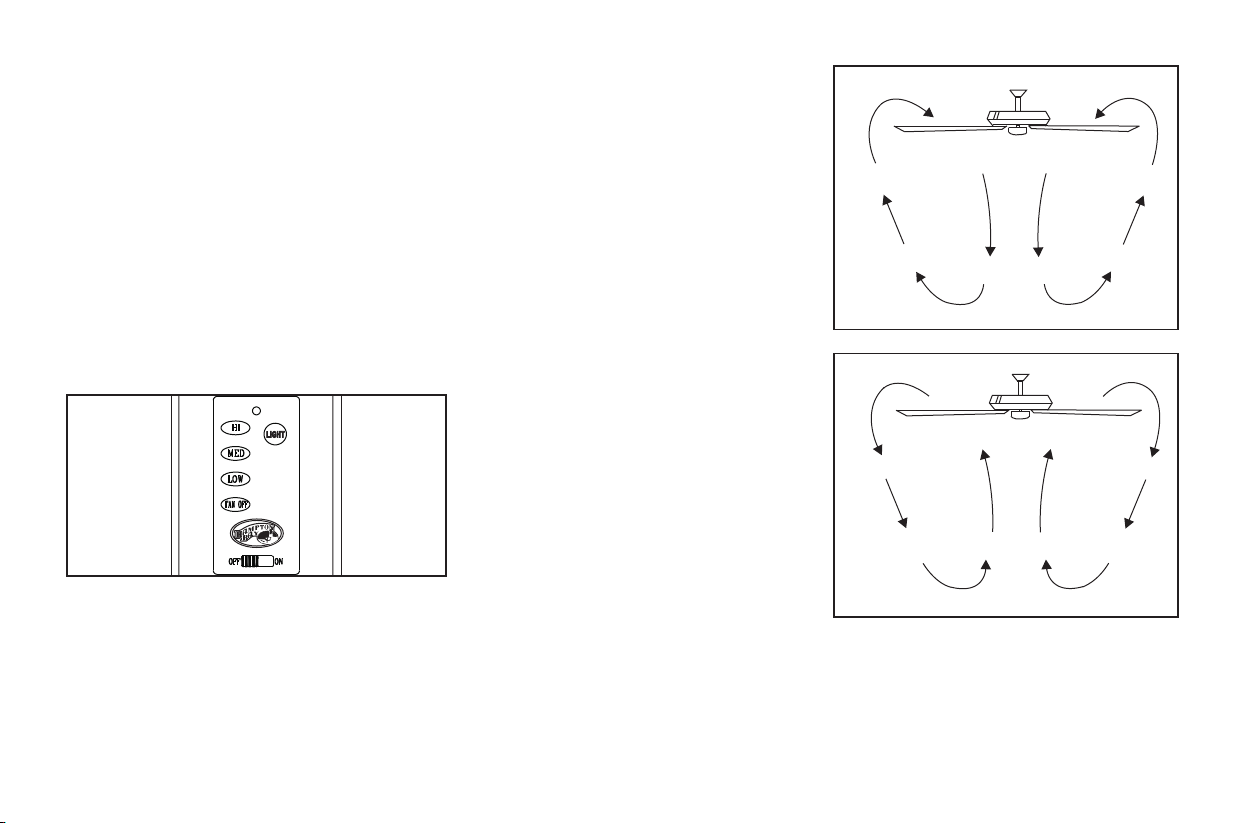

Operating Transmitter
1.
2.
3.
10.
11.
12.
13.
14.
Table of Contents

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. NOTE: Suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
9. Avoid placing objects in the path of the blades.
10. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
11. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
12. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
13. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxes marked FOR FAN SUPPORT.
6. WARNING: Use only with light kit marked "Suitable for Use in Wet
Locations"
7. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

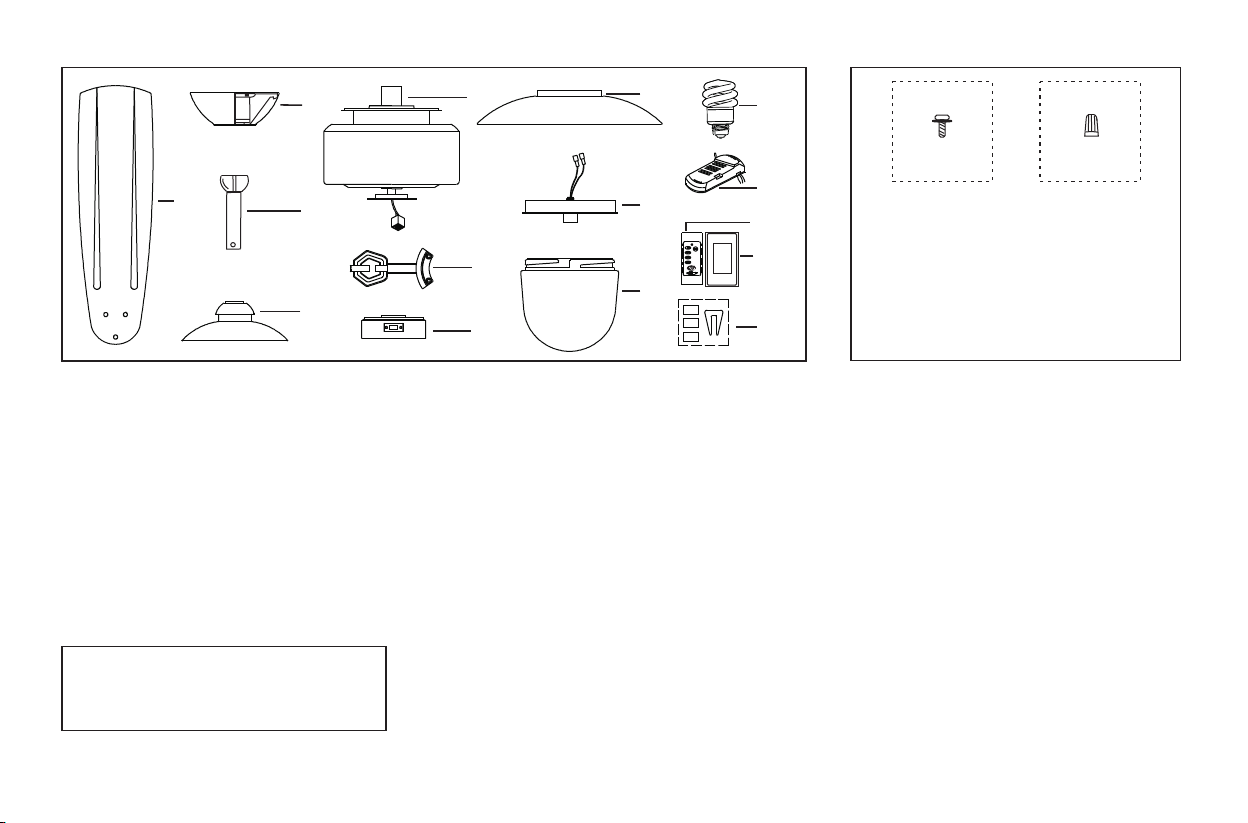

Unpack your fan and check the contents. You should have the following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Coupling cover
5. Fan motor assembly
6. Blade arms (5)
7. Switch housing
8. Mounting plate
Ball/downrod assembly
9. Light kit
10. Glass shade
11. 13 Watt compact fluorescent bulb
13a. Wall transmitter incl. 2 mounting screws
and 3
13b. Wall plate w/2 mounting screws
14. Balancing kit
12. Receiver with 6 wire nuts
wire nuts
1
2
3
5
4
7
8
9
10
13a
13b
12
11
14
6
15. Loose parts bag containing:
a. Blade attachment hardware
(16 screws with )
b. Mounting hardware
( 3 plastic wire connectors)
rubber washers
ab
15
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588. Unpacking Your Fan 2.
TM

Tools Required
P h i l l i p s s c r e w d r i v e r , s t r a i g h t s l o t
scre w d r iver, a d j u stable wre n c h , step
ladder, and wire cutters.
Mounting Options
If there isn't an existing listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
b u i l d i n g st r u c t u r e . Us e a p p r o p r i a t e
fasteners and building materials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
UL
Note: You may need a longer downrod to
maintai n proper bl ade cleara n c e when
installing on a steep, sloped ceiling.
Outlet box
Outlet box
Outlet box
Figure 1
Figure 2
Figure 4
3. Installing Your Fan
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Angled ceiling
maximum
18 angle
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar. (Fig.4) (available at
any Home Depot store).

Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:

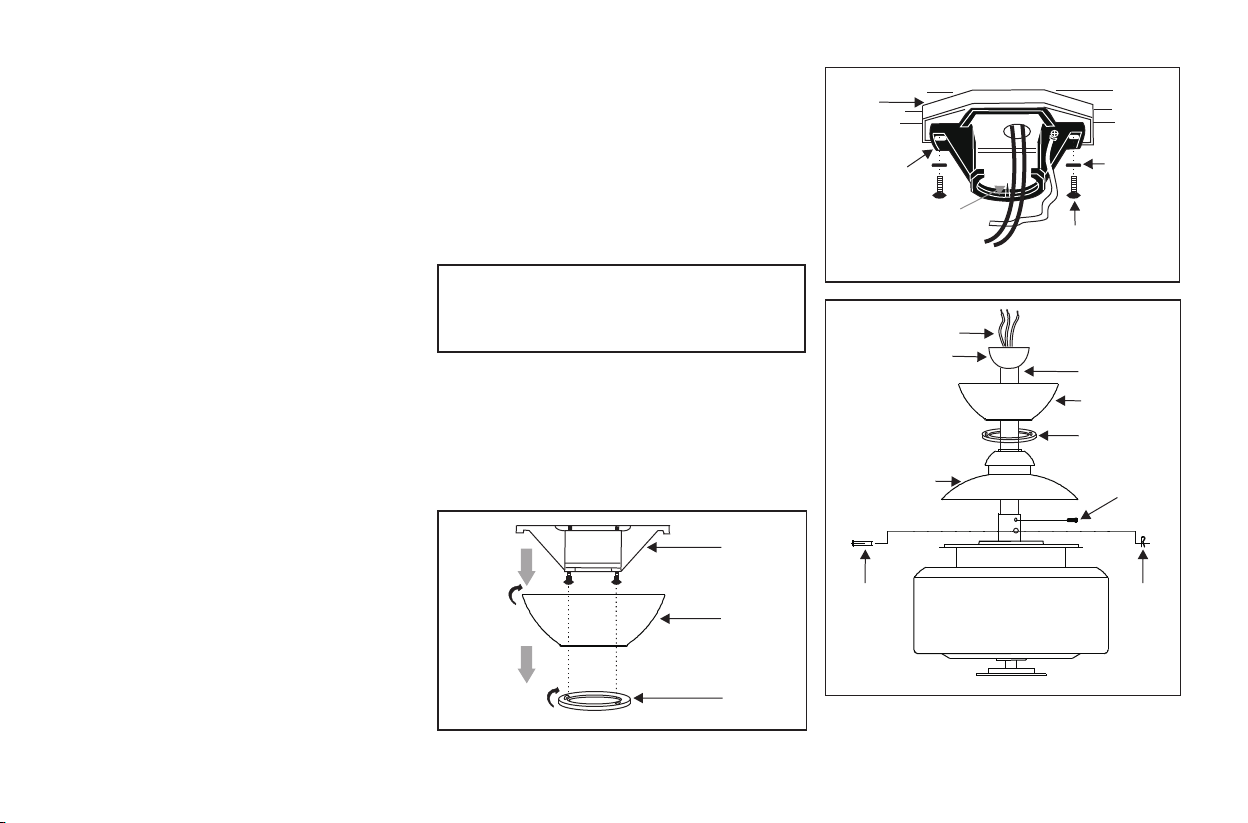

Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise.(Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket
from the screw head and turning the canopy
counter clockwise.(Fig. 5)
Step 3. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 4. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket.(Fig. 6)
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
NOTE:
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through the
a half turn
If a longer downrod is needed, take
out the screw located in the hanger ball,
lower the hanger ball and remove the pin,
remove all 3 pieces from the downrod and
assemble them onto the new longer downrod
before proceeding step 6. (The longer
downrod is available at any Home Depot
store)
4.
WARNING
FAILURE TO PROPERLY INSTALL LOCKING PIN
AS NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Step 8. Tighten two set screws on top of the fan
motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the hanger
bracket socket. Rotate the downrod ball until
the groove of the downrod ball lines up with
the hook of the hanger bracket. (This will help
balance the fan.)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top of
the motor housing (Fig.7). Carefully insert the
hanger pin through the holes in the collar and
downrod. Be careful not to jam the pin against
the wiring inside the downrod. Insert the
locking pin through the hole near the end of
the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Figure 5
Ceiling
canopy
Canopy
cover
Mounting
screws
(supplied with
electrical box)
Hook
UL Listed
electrical
box
Figure 6 120V Wires
Washers
Figure 7
Hanger
bracket
Hanger
bracket
Motor wires
Ball/downrod
assembly
Hanger pin Locking
pin
Collar cover
Downrod
Canopy
Canopy cover
Set screws

5.
Make the Electric Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
main fuse box before wiring.
NOTE: This r e mote control unit i s
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency switches
on your receiver and transmitter have been
preset at the factory. Please recheck to make
sure the switches on the transmitter and the
receiver are set to the same position, any
combination of settings will operate the fan
as long as the transmitter and receiver are
set to the same position. (Fig. 8)

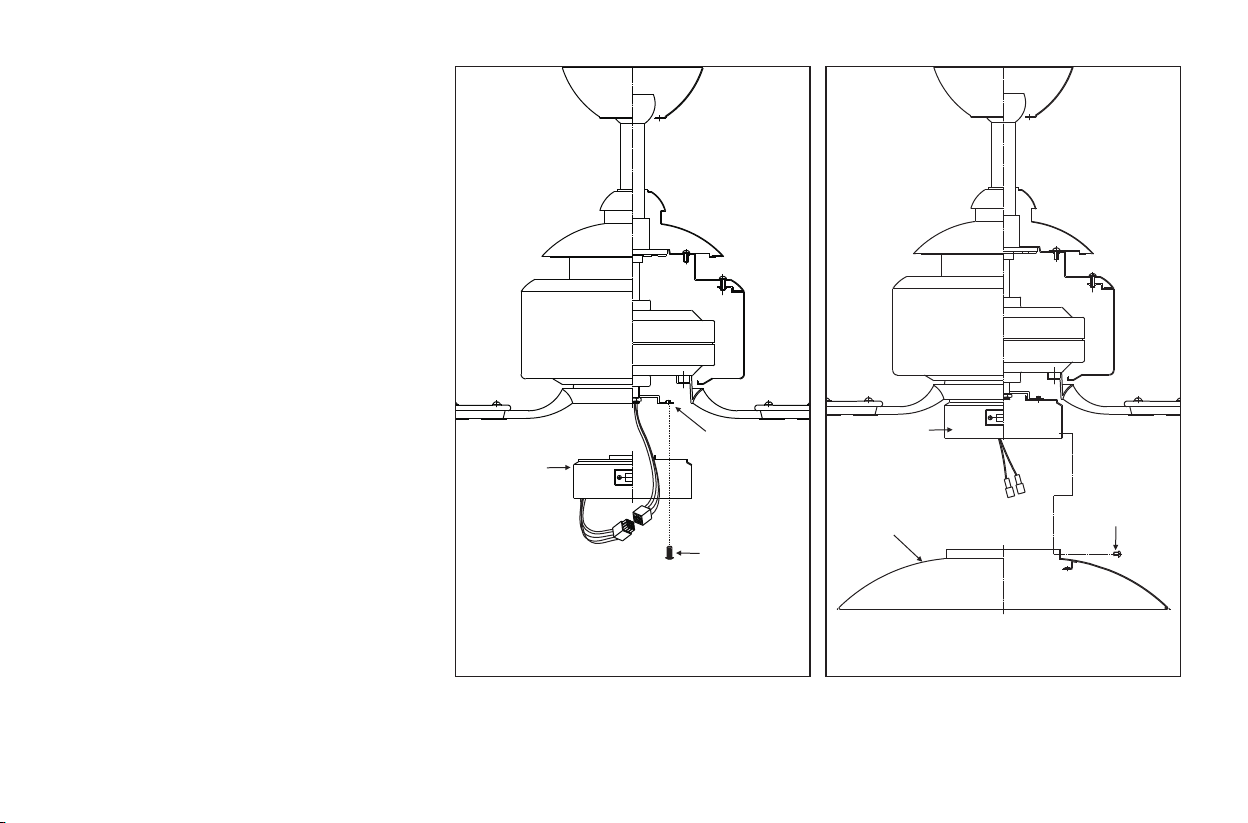

Step 1. (Fig. 9) Insert the receiver into
the mounting bracket with the flat side of
the receiver facing the ceiling.
Step 2. (Fig. 10) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan to the white wire marked "TO
MOTOR N" from the receiver. Connect the
blue wire from the fan to the blue wire
marked "For Light" from the receiver.
Secure the wire connections with the plastic
wire nuts provided.
Step 3. (Fig. 10) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N" from
the receiver. Secure the wire connections with
the plastic wire nuts provided.
Step 4. (Fig. 10) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires spread
them apart so that the green and white wires are
on one side of the outlet box and black and blue
wires are on the other side. Carefully tuck the
wire connections up into the outlet box.
CAUTION: Do not use with wall light
dimmer switch.
Figure 9
Receiver
Hanger
bracket
Figure 8
ON
Frequency
switch

6.
Figure 10
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue ("for light")
Blue (light)
Black (motor)
Fan
SUPPLY CIRCUIT
Figure 11
Wall
control
Black
Black
Black
Black
Black
Black
Black
Black
White
White
White
White
Blue
Blue
Ground
Ground
Green
Green
INPUT
AC120V
AC SUPPLY

WARNING: HOOK UP IN "SERIES ONLY" DO NOT CONNECT THE HOT AND
NEUTRAL WIRES OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL
SWITCH - DAMAGE TO THE SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall junction box.
Step 2.
Step 3. (Fig. ) Carefully tuck the wire connections inside the junction box. Secure the wall
transmitter with the two screws provided. Attach the wall plate over the wall transmitter and
secure with the two screws provided.
Make the electrical connections as shown in (Fig. 11). If your outlet box has a ground
wire (green or bare copper) connect the wall transmitter's ground wire to it; otherwise
connect the wall transmitter's ground wire directly to one of the screws from the outlet box.
12
Figure 12
REMEMBER to Shut the Power Off at the Circuit Breaker or Fuse Box.
7.
Installing the Wall Transmitter
Figure 13
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on the hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until
tight. Note: adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 13)
WARNING
Make sure the notch on the hanging bracket
properly sits in the groove in the hanger
ball before attaching the canopy to the
bracket by turning the housing until it
drops into place.

8.

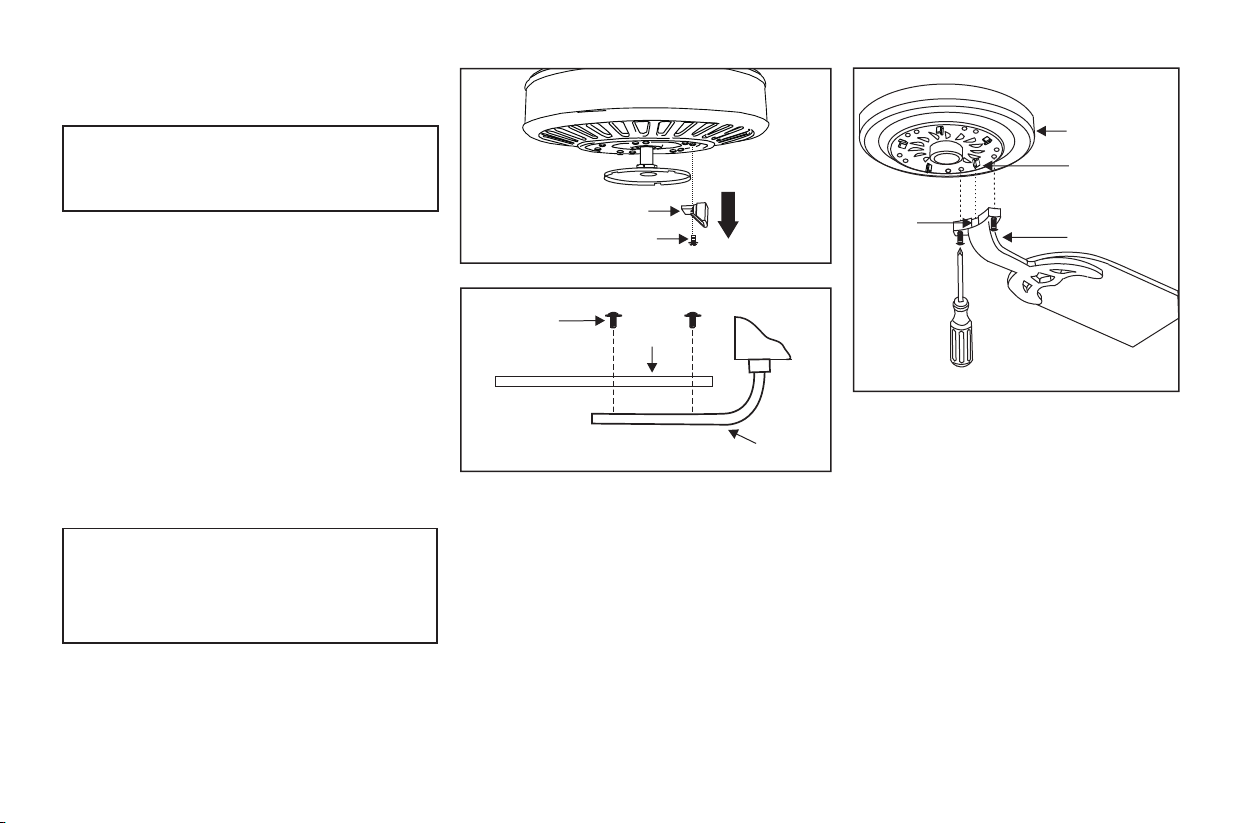

Attaching the Fan Blades
Step 1 Attach blades to blade arms using three
screws with rubber washers.(Fig. 15) Start a
screw into the blade arm, do not tighten. Repeat
for the 2 remaining screws and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight. Repeat steps for the remaining blades.
Step 3
(Fig. 16)
Fasten the blade assemblies to the motor
housing by lining up the slots of the blade arms
with the tabs on the motor housing, then tighten
the two screws and washers already installed in
the blade arms.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Rubber packing
mounts
Screws
Figure 15
Figure 14
Figure 16
CAUTION: Remove 5 rubber packing
mounts from fan motor assembly and discard
before installation. (Fig. 14)
Motor
Blade arm
Slot
Tab
Blade
arm
Blade
Screws
with rubber
washer

9.
Mounting plate Screws
Switch
housing
Mounting ring
Screws
Switch
housing
Figure 17 Figure 18
Installing the Switch
Housing and Mounting
Plate
While holding the under
your fan, snap together the wire connection
plugs .
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. switch housing
Step 3. Place the key holes on the switch
housing over the 2 screws previously loosened
from the mounting ring, turn switch housing
until it locks in place at the narrow section of the
key holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 17)
Step 4. Carefully push all wires back into the
switch housing, then install the mounting plate
onto the switch housing with 3 screws provided.
Be sure to tighten all screws. (Fig. 18)

Mounting plate
Light kit
Wire connection
plugs
Bulb
Glass shade
Screws
NOTE: Before starting installation, disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Turning power off using the fan switch is not sufficient to prevent electric shock.
1. Raise and hold the light kit close to the mounting plate and proceed to do the wire
connections. Connect the white wire connectors from the light kit and fan, follow the
same procedure with the blue and black wire connectors. (Fig. 19)
2. Carefully push all wires back into the mounting plate, then install the light kit onto
the mounting plate with 3 screws provided. Be sure to tighten all screws. (Fig. 19)
3. Install 13 Watt compact fluorescent bulb (included).
NOTE: CFL bulbs are NOT dimable.
4. Raise glass shade up against the light kit and secure it to fan by turning glass
clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 19)
5. Restore power and your light kit is ready for operation.
Figure 19
NOTE: Light bulbs have no warranty; can be purchased at any Home Depot store.
Installing the Light Kit 10.

11. Operating Your Transmitter
Restore power to ceiling fan and test for
proper operation.
1. " LOW, MED, HI" buttons:
These three buttons are used to set the fan
speed as follows:
LOW= Low speed MED= Medium speed
HI= High speed
2. "FAN OFF" button:
This button turns the fan off.
3. The "LIGHT" button turns the light ON or
OFF.
(NOTE: The light is NOT dimmable.)
4. "OFF-ON "Slide Button:
This button turns the power Off and On to
the Fan and Light(s).
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, etc.
The Reverse switch is located on the switch
housing. Slide the switch to the Left for
warm weather operation. Slide the switch to
the Right for cool weather operation.
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
War m w e a t h e r - ( C o u n t e r- C l o c k w i s e
direction) A downward air flow creates a
cooling effect as shown in Figure 21. This
allows you to set your air conditioner on a
higher s e t t i n g without a ffecting your
comfort.
Cool weather - (Clockwise direction) An
upward airflow moves warm air off the
ceiling area as shown in Figure 22. This
allows you to set your heating unit on a
lo w er s e tti n g w it h out a f f ect i ng y o ur
comfort.
Figure 21
Figure 22
Figure 20
TM

Care of Your Fan 12.
Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the
finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use
water when cleaning. This could damage the
motor, or the wood, or possibly cause an
electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF
AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS".
Figure 23
Touching
ceiling

13. Troubleshooting
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction:
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is also
secure.
6.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance.(Fig. 23) Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight
and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING
THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
the
Do not connect the fan with a wall mounted variable speed control (s)
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.

Specifications 14.
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 2.36'10.56
kgs
12.20
kgs
0.27
0.43
0.45
15
37
54
65
115
145
2076
3720
4878
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by
Your Other Warehouse, LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
