HAMPTON BAY Brookhurst 549-742 User manual

Brookhurst
Ventilador de Techo de 1,32 m
Manual del Propietario
549 742
Brookhurst
52 in Ceiling Fan
Owner’s Manual

549-742
11289
792145353409
Date Purchased
Store Purchased
Model Number
Serial No.
Vendor No.
UPC
15-Year Motor Warranty
15-Year Motor Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of 15-Year after the date of purchase
by the original purchaser. The retailer also warrants that all other fan parts, excluding any
glass or acrylic blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions this warranty does not cover any changes
in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of
this type give their longest useful life when protected from varying weather conditions. A
certain amount of wobble is normal and should not be considered a defect. Servicing
performed by unauthorized persons shall render the warranty invalid. There is no other
express warranty. The retailer hereby disclaims any and all warranties, including but not
limited to. Those of merchantability and fitness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is
limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising
out of or in connection with product use or performance except as may otherwise be
accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives
specific legal rights, and you may also have other rights which vary from state to state. This
warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.

Safety Rules.....................................................................................................................................................................
Unpacking Your Fan ........................................................................................................................................................
Installing Your Fan ..........................................................................................................................................................
Installing the Light Kit.....................................................................................................................................................
........................................................................................................................................................
Care of Your Fan ............................................................................................................................................................
Troubleshooting ............................................................................................................................................................
Specifications ...............................................................................................................................................................
Operating Your Fan
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, all wired connecting nuts
should be turned upward and pushed carefully up into the outlet
box. The wires should be spread apart so that the green and white
wires are on one side of the outlet box and the black and blue wires
are on the other side.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only
UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpack your fan and check the contents. You should have the following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Fan motor assembly
5. Blade arms (5)
Ball/downrod assembly
6. Light kit
7. Glass shades
8. 13 Watt compact fluorescent bulbs (3)
9.
10. Balancing kit
(3)
Pull chain and fobs (2)
1
2
3
46
7
810
9
5
11. Loose parts bag containing:
a. Blade attachment hardware
(16 screws with )
b. Electrical hardware
(3 plastic wire connecting nuts)
c. Blade arm hardware
(11 screws with lock washers)
d. Light kit hardware
(1 screw)
fiber washers
ab
11
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
Unpacking Your Fan 2.
c d
NOTE
FOR NON-LIGHT USE PURPOSE, THE SWITCH
BOX COVER IS AVAILABLE BY CALLING THE
TOLL FREE NUMBER 1-877-902-5588.

Tools Required
P h i l l i p s s c r e w d r i v e r, s t r a i g h t s l o t
screwdriver, step ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
b u i l d i ng st r uc t u r e. U s e a p p r o p r ia t e
fasteners and building materials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.

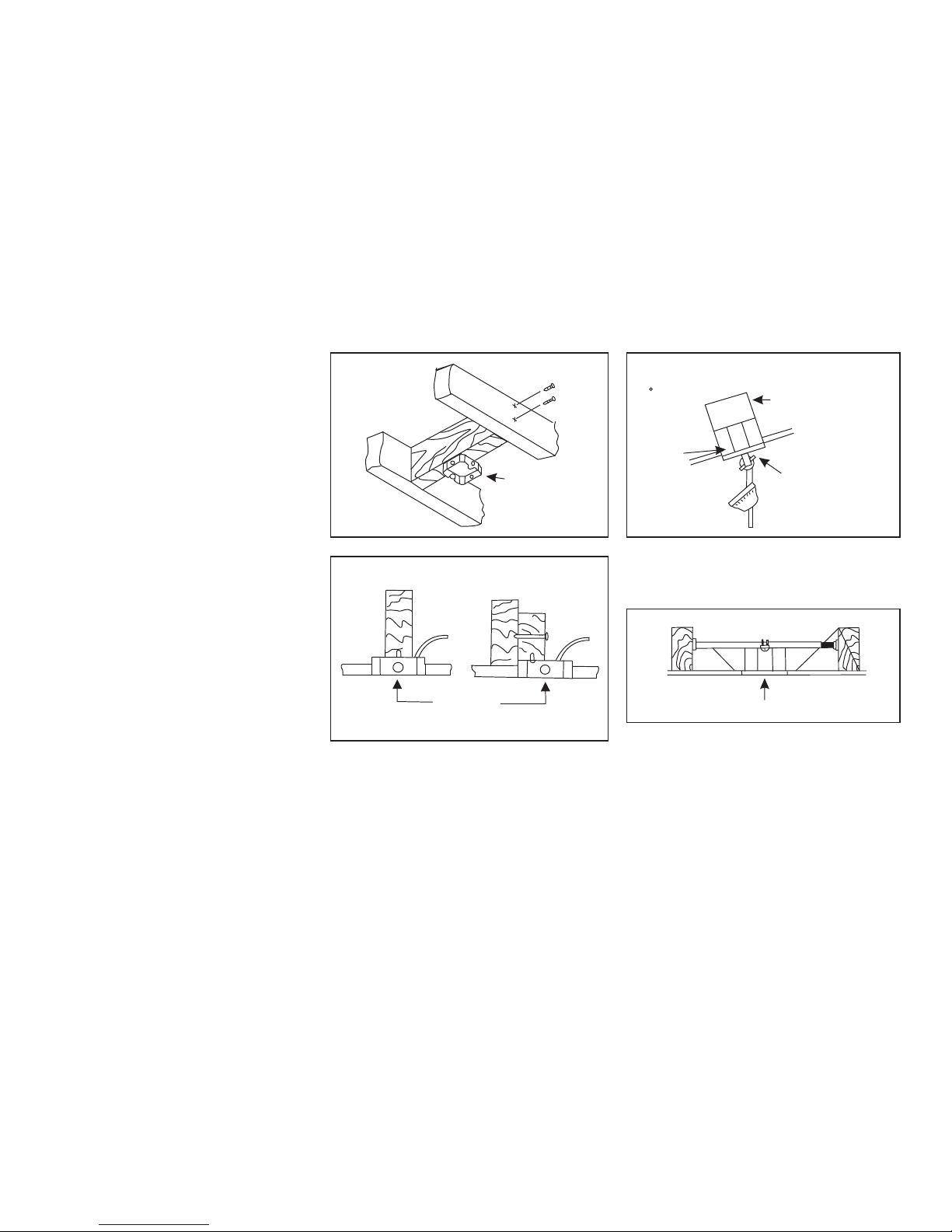

Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
mainta i n proper bla d e clearan c e when
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar.(Fig.4) (available at
any Home Depot store).
Outlet box
Outlet box
Outlet box
Figure 1
Figure 2
Figure 4
3. Installing Your Fan
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Angled ceiling
maximum
18 angle

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
b a l l a n d s o c k e t m o u n t i n g a n d t h e
"flushmount" installation. The "flushmount"
installation is recommended in rooms with
less than 8-foot ceilings or in areas where
additional space is desired from the floor to
the fan blades. When using the standard 4
1/2" downrod, the distance from the ceiling
to the bottom of the fan blades will be
approximately 12 1/2 inches. Once you have
selected which mounting system you will
use, proceed with the following instructions.
Wher e necess a ry, eac h sectio n of the
i n s t r u c t i o n s w i l l n o t e t h e d i f f e r e n t
procedures to follow for the two types of
mounting.
2.
outlet box with the screws and washers
provided with your outlet box.
3. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket
as shown in Fig. 6.
4. Remove the hanger pin, lock pin and set
sc re ws fr om th e t o p of th e mo t o r
assembly.
5. Route the wires through the canopy and then
through the ball/downrod assembly. (Fig. 6A)
6. Align the holes at the bottom of the downrod
with the holes in the collar on top of the motor
housing (Fig.6A). Carefully insert the hanger
pin through the holes In the collar and
downrod be careful not to Jam the pin against
the wiring inside the downrod. Insert the
locking pin through the hole in locked
position. (Fig. 6A)
Secure the hanger bracket to the ceiling 7.
motor collar firmly and evenly. (Fig. 6A)
8. Place the downrod ball into the hanger
bracket socket. Rotate the downrod ball
until the groove of the downrod ball lines
up with the hook of the hanger bracket.
(This will help balance the fan.)
Tighten two set screws at top of the fan
Figure 5
Ceiling
hanger
bracket
Ceiling
canopy
Screws
STANDARD CEILING
INSTALLATION
1. Remove t he hanger bracket from t he
canopy b y loos ening the four scre ws on
the top of the cano py. Remove the two
n o n - s l o t t e d s c r e w s a n d l o o s e n t h e
slotted screws. This will enable you to
remove the hanger br acket. (Fig. 5 )
WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 7
COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.

5.
Figure 6
Figure 6A
8. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is
fully locked into tab. (Fig. 8) This will
allow you to ma k e th e electric a l
connections.
Hook
Figure 7A
Screw and
Lockwasher
(3 of 6 places)
Ceiling
Canopy
Figure 7
Collar
FLUSHMOUNT INSTALLATION
1. Remove the hanger bracket from the canopy by
loosening the four screws on the top of the
canopy. Remove the two non-slotted screws and
loosen the slotted screws. This will enable you
to remove the hanger bracket. (Fig. 5)
2.
(Fig. 7A)
3. Secure the hanger bracket to the ceiling outlet
box with the screws and washers provided
with your outlet box.
4. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 6.
5. Remove three of the six screws and lock washers
(every other one) from the collar of top motor.
(Fig. 7)
6. Place the ceiling canopy over the collar at the top
of the motor. Align the mounting holes with the
holes in the motor and fasten using the screws
and lock washers provided (Fig. 7).
7. Tighten the mounting screws securely. (Fig. 7)
Remove the decorative canopy bottom cover
from the canopy by turning the canopy
bottom cover counterclockwise.
Canopy
Canopy cover
Motor wires
Ball/downrod
assembly
Hanger pin Locking
pin
Downrod
Canopy
Set screws
Figure 8
Mounting
screws
(supplied with
electrical box)
Hanger
bracket
UL Listed
electrical
box
120V wires
Hook
WARNING
FAILURE TO COMPLETELY TIGHTEN
THE THREE SCREWS IN STEP 7 COULD RESULT
IN FAN LOOSENING AND POSSIBLY FALLING

6.
Making the Electrical Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts
supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose
strands or connections.
Step 1 Connect the fan supply (black) wire and light supply (blue) wire to the black household
supply wire as shown in Figure 9.
Step 2. Connect the neutral fan (white) wire to the white neutral household wire.
Step 3 Connect the fan ground wire (green) to the household ground wire.
Step 4 After connecting the wires, spread them apart so that the green and white wires are on one
side of the outlet box and the black and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and push the wiring into the outlet box.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL INJURY. MOUNT FAN
ONLY ON AN OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE THIS FAN WITH ANY SOLID-
STATE SPEED CONTROL DEVICE.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
Figure 9

Finishing the Installation
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in Figure 10. Make sure you place the wires safely
into the outlet box. Secure the canopy to the hanger bracket with the four screws with your
fan.
FLUSHMOUNT INSTALLATION
Remove the fan from the hook on the hanger bracket. Secure the canopy to the hanger
bracket with four screws included with your fan. (Fig. 11)
7.
Figure 10
Figure 11
WARNING
Make sure the notch on the hanging bracket properly sits in the groove in the
hanger ball before attaching the canopy to the bracket by turning the housing
until it drops into place.
Outlet box
Hanger
bracket
Canopy
Screws
Outlet box
Hanger
bracket
Canopy
Screws

8.
Attaching the Fan Blades
Step 1 Attach blades to blade arms using three
screws with fiber washers.(Fig. 13) Start a screw
into the blade arm, do not tighten. Repeat for the
2 remaining screws and washers.
Step 2 Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Step 3
(Fig. 14)
Fasten the blade assemblies to the motor
housing with the screws and washers already
installed in the motor housing.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Rubber packing
mounts
Screws
Figure 13
Figure 12
Figure 14
CAUTION: Remove 5 rubber packing
mounts from fan motor assembly and
discard before installation. (Fig. 12)
Motor
Blade arm
Blade
arm
Blade
Screws
with fiber
washer

9. Installing the Light Kit
Screws
Light kit
Reverse
switch
Switch housing
Wire
connector
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
1.
ocate two single white and blue wires in the
switch housing labeled "FOR LIGHT". Make
the polarized plug connections:
- White to white
- Blue to black
2.Carefully push all wires back into the switch
housing. Attach the light kit fitter by aligning
its keyhole slots with the three screw holes
and the reverse switch on the side of the
switch housing. Tighten the three screws
securely to prevent the light kit from
vibrating loose. (Fig. 15)
3.
nsert the glass, then gently
tighten the thumbscrews by hand evenly to the
glass. DO NOT OVER TIGHTEN. (Fig. 16)
4.Install 3 x 13 Watt compact fluorescent
bulbs (included). NOTE: CFL bulbs are
NOT dimmable.
While holding the light kit under your fan,
l
Mount the glass shades to the light fixture by
unscrewing partway the thumbscrews on the
glass holders, i
Figure 15
Bulbs
Glass shade
Thumb screws
Figure 16
NOTE: Light bulbs have no warranty; can
be purchased at any Home Depot store.
NOTE
FOR NON-LIGHT USE PURPOSE, THE SWITCH
BOX COVER IS AVAILABLE BY CALLING THE TOLL
FREE NUMBER 1-877-902-5588.

Turn on the power and check the operation of
your fan. There are two pull chains available in
your fan:
1. 3-speed pull chain- it controls the fan speed
as follows: 1 pull- High, 2 pulls- Medium, 3
pulls- Low, and 4 pulls- Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
2. Light kit pull chain- it controls the light kit
in "ON" or "OFF".
The slide switch controls directions: forward
(switch down ) or reverse (switch up ).

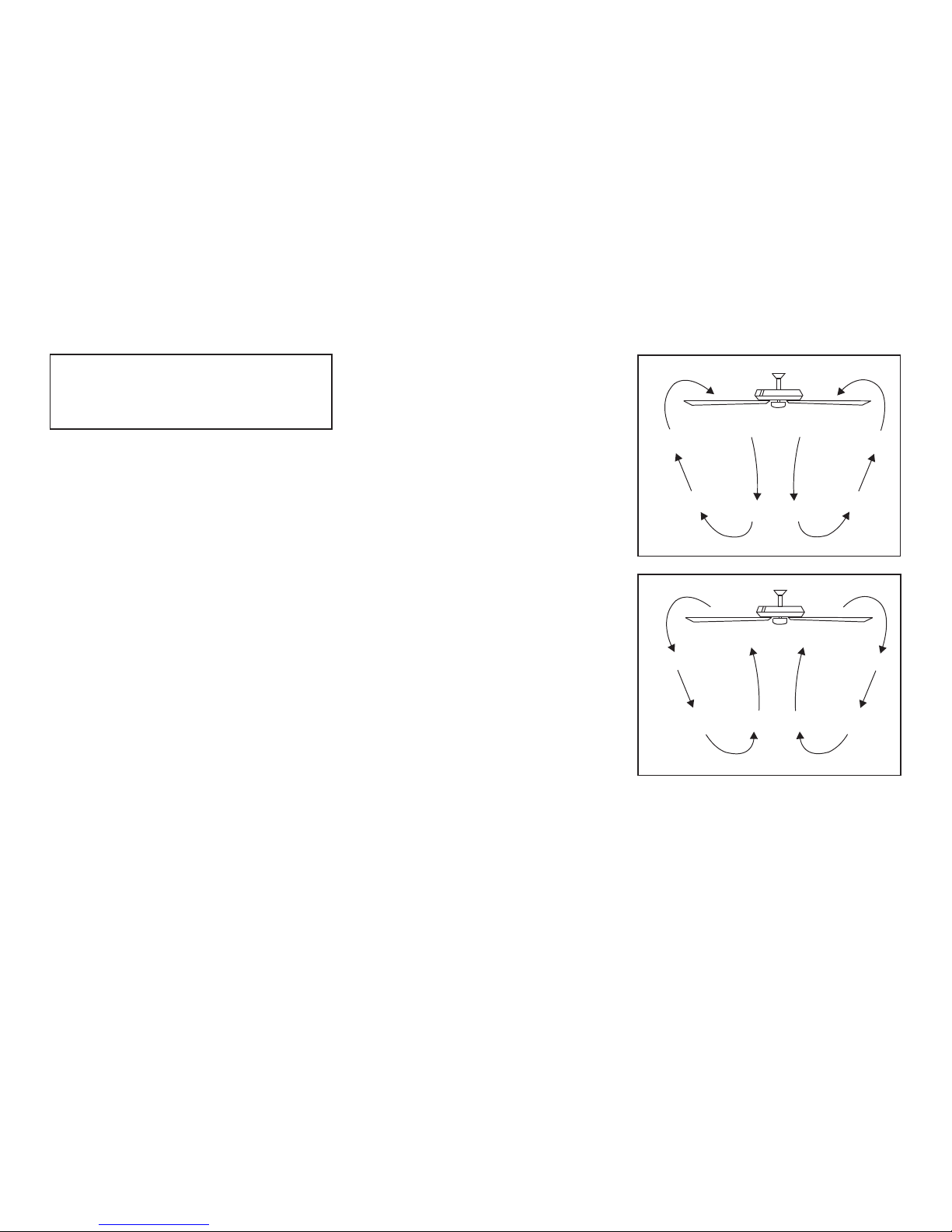

Warm weather -(Counter-Clockwise direction)
A d o wnward air flow creates a cooling
effect.(Fig. 17) This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area.
(Fig. 18) This allows you to set your heating unit
on a lower setting without affecting your
comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Operating Your Fan 10.
Figure 17
Figure 18

11. Care of Your Fan
Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the
finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use
water when cleaning. This could damage the
motor, or the wood, or possibly cause an
electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT
THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION
"MAKING ELECTRICAL
CONNECTIONS"
Figure 19
Touching
ceiling

Troubleshooting 12.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light bulb
is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this
type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance.(Fig. 19) Rotate the fan until the next
blade is positioned for measurement. Repeat for each blade. The distance deviation should be equal within
1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING,
BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN
BLADES.

13. Specifications
T h e s e a r e a p p r o x i m a t e m e a s u r e s . T h e y d o n o t i n c l u d e A m p s a n d W a t t a g e u s e d b y t h e l i g h t k i t .
RPM CFM N.W. G.W.
C.F.
52"
120 1.70'7.74 kgs
(17.07 lbs)
8.49 kgs
(18.73 lbs)
0.24
0.34
0.48
13.7
27
58
75
114
174
1802.93
2859.55
4468.79
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W.
Atlanta, Georgia 30339
