INSTRUCTION MANUAL
Exterior Wall Sconce in Desert Sands Finish
Home Depot SKU 895-997 (UPC 718212172087)
(Desert Sands fixture)
LA-1525E/S/F

Page 2
Thank you for purchasing this Hampton Bay exterior wall sconce. This
product has been manufactured with the highest standards of safety and
quality. The finish of this lantern is weather resistant but over time will
naturally weather and fade.
FEATURES:
1. Traditional 1 Light Exterior Wall Sconce in Desert Sands Finish.
2. Timeless Elegant Design.
3. Easy to assemble and install.
QUESTIONS, PROBLEMS, MISSING PARTS:
Before returning to your local Home Depot, please call our Customer
Service Team at 1-877-527-0313 or visit www.homedepot.com. Please
reference your SKU (895-997 Desert Sands fixture) or UPC
(718212172087 Desert Sands fixture).

Page 3
CAUTION:
1. Before starting installation of this fixture or removal of a previous
fixture, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.
2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY
ELECTRICAL QUESTIONS.
3. If you have any non-electrical questions about this fixture, please
contact our Customer Service Team at 1-877-527-0313 or visit
www.homedepot.com. Please reference your SKU (895-997 Desert
Sands fixture) or UPC (718212172087 Desert Sands fixture).
4. Keep your receipt and these Instructions for Proof of Purchase.
TOOLS REQUIRED FORASSEMBLY & INSTALLATION
(not included):

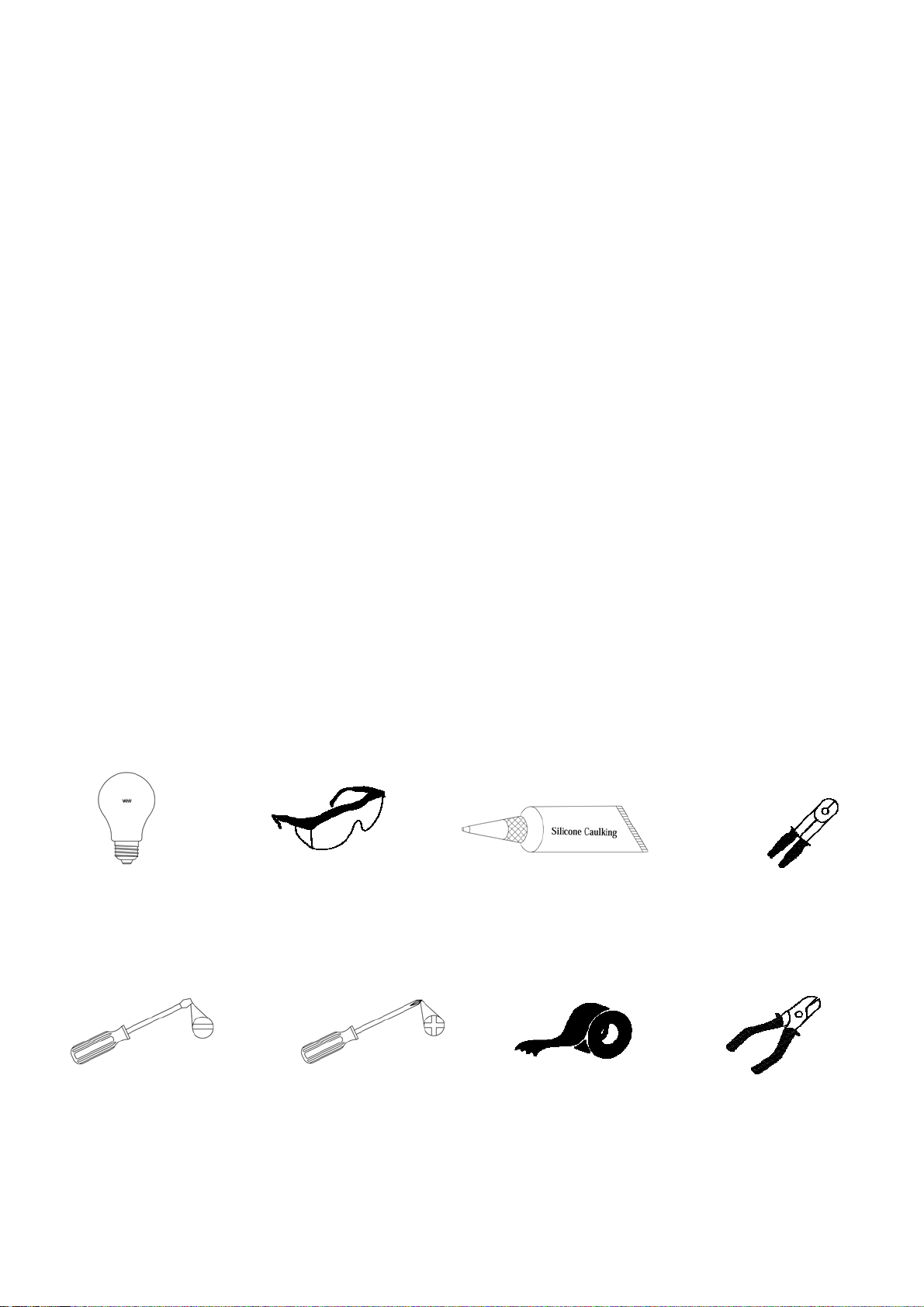

Light Bulb Safety goggles Silicon Rubber Sealant Wire strippers
(100 watt maximum) for exterior use
Flathead screwdriver Phillips screwdriver Electrical tape Wire cutters

Page 4
PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

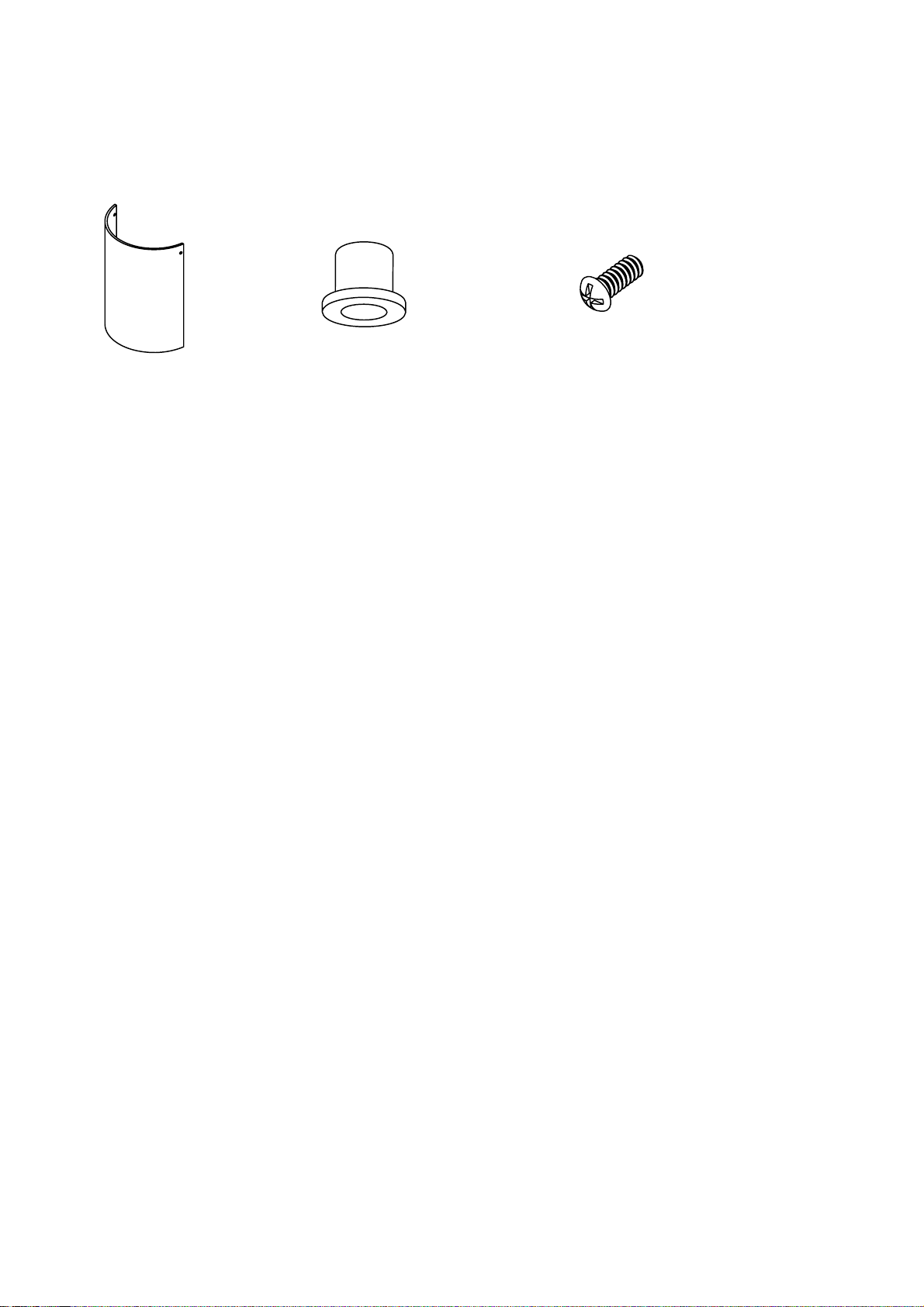

1 Glass Panel (#5) 2 Rubber Bushing (#4) 4 Screw (#3)
ASSEMBLY INSTRUCTIONS:
1. Shut off power at the fuse box or circuit breaker box, if necessary remove old
fixture and all mounting hardware from outlet box.
2. Carefully unpack your new fixture and lay out all the parts on a clear area, Take
care not to lose any small parts necessary for installation.
3. Insert Rubber Bushing (#4) to the hole of glass panel, align the hole on Glass
Panel (#5) with the tapped holes on the L shape Chip (#13) and secure them with
Screw (#3).

Page 5
ASSEMBLY:
3. Screw
3. Screw
5. Glass Panel
6. Fixture Frame
2. Knurled Knob
1. Backplate
4. Rubber Bushing
13. L shape Chip

Page 6
PARTS INCLUDED FOR INSTALLATION (parts are not to scale):

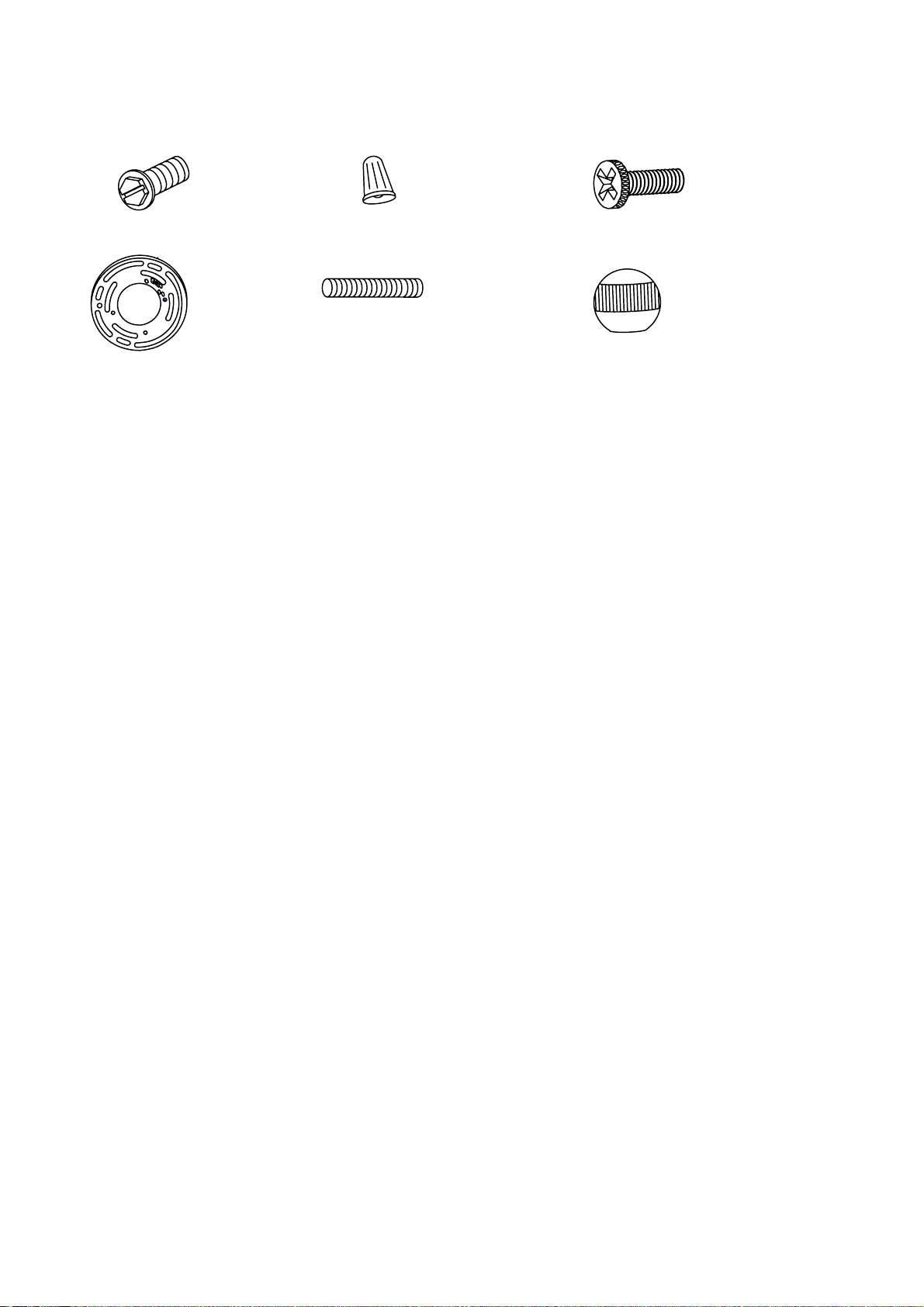

1 Ground Screw (#8) 3 Wire Connectors (#11) 2 Outlet Box Screws (#7)
1 Circular Strap (#9) 2 Mounting Screws (#10) 2 Knurled Knob (#2)
INSTALLATION INSTRUCTIONS:
1. Attach the Circular Strap (#9) to the outlet box (#12) with the two outlet box
screws (#7) as shown. The side of the Circular Strap marked “GND” must face
out.
2. Thread the Mounting Screws (#10) into the pre-drilled holes in the Circular Strap
(#9) spaced the same distance apart as the holes in the Back-plate (#1).
3. Connect the white wire from the fixture to the white wire from the Outlet Box
(#12), and the black wire from the fixture to the black wire from the Outlet Box
(#12). Cover the two wire connections using the two provided Wire Connectors
(#11). Wrap the two wire connections with electrical tape for a more secure
connection. If your outlet box has a ground wire (green or bare copper), connect
fixture’s ground wire to it using the wire connector (#11). Otherwise connect the
copper ground from the fixture to Ground screw (#8) on the Circular Strap (#9).
Note: If you have electrical questions, consult your local electrical code for
approved grounding methods.
4. Mount the body of the fixture on the wall by aligning the protruding Mounting
Screws (#10) all the way through the holes on the Backplate (#1). Be careful not
to pinch any of the wires between the fixture and the Outlet Box (#12). Tighten
the fixture to the wall by screwing the two Knurled Knobs (#2) onto the two
protruding Mounting Screws (#10).
5. To prevent moisture from entering the outlet box and causing a short, use clear
caulking (i.e. Indoor/Outdoor Silicone Sealant) to outline the outside off fixture
back-plate where it meets the wall leaving a space at bottom to allow moisture a
means to escape.
6. Install the proper light bulbs (not include) for your fixture. (DO NOT EXCEED
THE SPECIFIED WATTAGE!)
7. Place Fixture Frame (#6) over Backplate (#1) and secure with Screw (#3).
8. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn
the light switch on to activate the fixture.

Page 7
INSTALLATION:
1. Backplate
11. Wire Connecto
r
.
10. Mounting Screws
9. Circular Strap
White Wire
Black Wire
12. Outlet Box
Ground Wire
8. Ground Screw
7. Outlet Box Screws
2. Cap Nut

Page 8
TROUBLESHOOTING:
PRODUCT MAINTENANCE:
1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use
clean water, never a solvent) to wipe the glass and surface of the fixture.
2. To clean the inside of the fixture, first disconnect power to the fixture by turning off
the circuit breaker or by removing the fuse at the fuse box. Next, use a dry or
slightly dampened clean cloth (use clean water, never a solvent) to wipe the inside
glass and interior surface of the fixture.
3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry
soft cloth to dust or wipe carefully.
LIMITED WARRANTY
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for
a period of three (3) years from date of purchase. This warranty applies only to the original consumer
purchaser and only to products used in normal use and service. If this product is found to be defective,
the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the
product at the manufacturer’s discretion, provided that the product has not been damaged through misuse,
abuse, accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any
product that is found to have been improperly installed, set-up, or used in any way not in accordance
with the instructions supplied with the product. This warranty shall not apply to a failure of the product
as a result of an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure
not relating to faulty material or workmanship. This warranty shall not apply to the finish on any portion
of the product, such as surface and/or weathering, as this is considered normal wear and tear. The
manufacturer does not warrant and specially disclaims any warranty, whether express or implied,
of fitness for a particular purpose, other than the warranty contained herein. The manufacturer
specifically disclaims any liability and shall not be liable for any consequential or incidental loss or
damage, including but not limited to any labor / expense costs involved in the replacement or
repair of said product.
Possible Cause Corrective Action
1. Bulb is burned out. 1. Replace light bulb.
2. Power is off. 2. Make sure power
supply is on.
3. Faulty wire connection. 3. Check wiring.
Bulb will not light.
4. Faulty switch. 4. Test or replace switch.
Fuse blows or circuit
breaker trips when light
is turned on.
Crossed wires or power wire
is grounding out. Check wire connections.

Page 9
