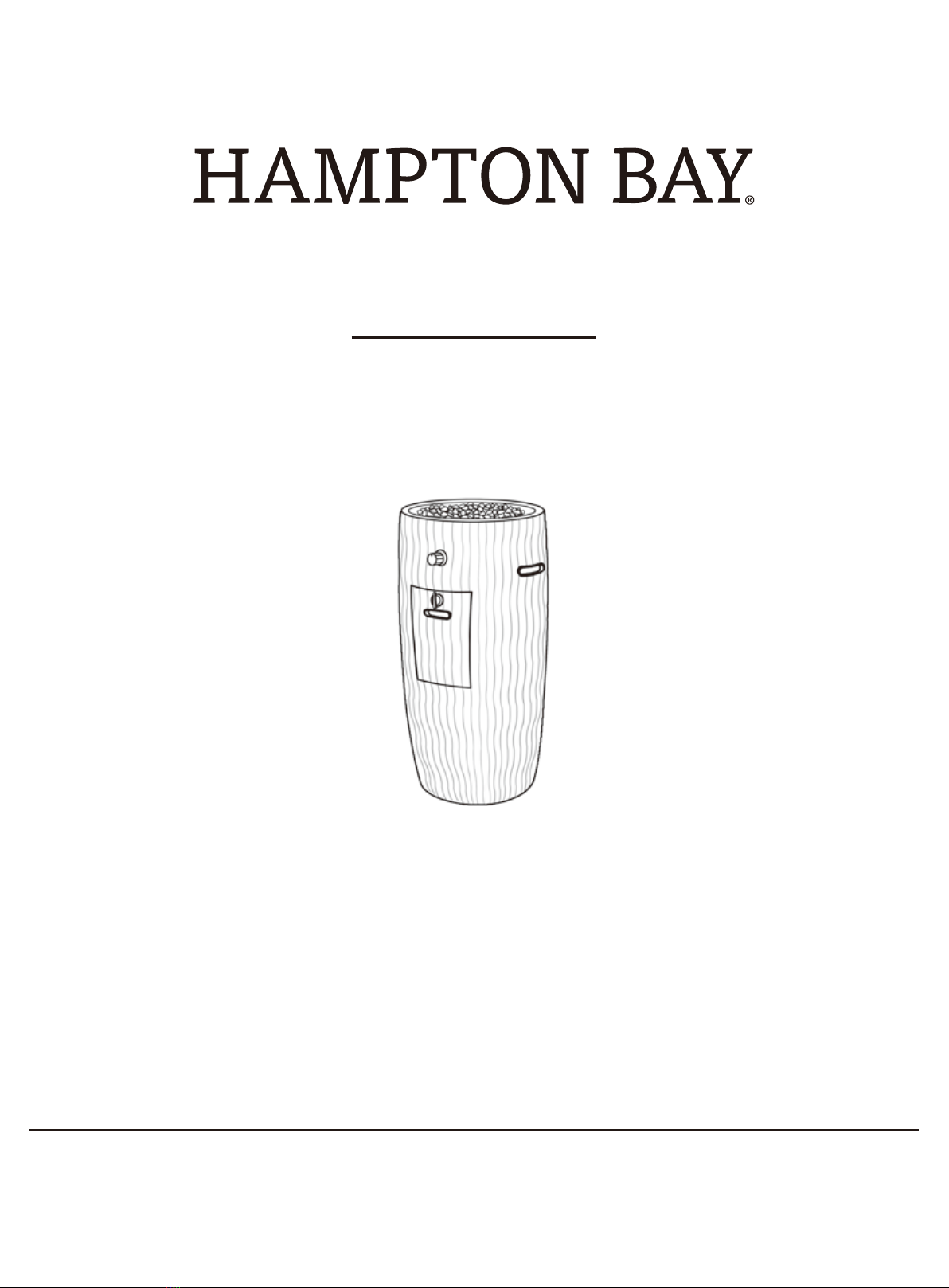

HAMPTON BAY FP12005 User manual

26.5in Round Fire Column
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item#
Model# FP12005
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fire pit. We strive to continually create

2
Safety Informaton
Table of Contents
WARNING
WARNING
DANGER
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
FOR OUTDOOR USE ONLY!
WARNING
For use with tanks marked propane only.
DO NOT connect to a remote gas supply.
Propane Tanks are sold separately.
USE PROPANE GAS ONLY.
WARNING
This Fire Pit must be attended at all times!
WARNING
When the Fire Pit is not in use
_
disconnect
the Propane Tank.
If Fire Pit is stored indoors
_
remove the
Propane Tank.
Operation ................................ . . . . .....8
Limited Warranty ................................... 8
Troubleshooting .................................. . 9
Care and Maintenance .............................. 8
Table of Contents .................................. 2
Pre-Assembly ..................................... 5
Leakage Test ...................................... 6-8
Safety Information ................................ 2-4
Assembly ....................................... 6-7
Do not store or use gasoline or other
vicinity ofthis or any other appliance.
An LP-cylinder not connected for use
shallnot be stored in the vicinity of
this or anyother appliance.
If the information in this manual is not
followed exactly, a re or explosion
mayresult causing property damage,
personal injury, or loss oflife.
FIRE OR EXPLOSION HAZARD
If you smellgas:
1. Shut off the gas to the appliance.
3. If the odor continues, leave the area
2. Extinguish any open ame.
immediately.
4. After leaving the area, call your gas
Failure to followthese instructions
could cause property damage,
could result in re or explosion, which
supplier or re departent.
personal injury, or death.
Installation andservice must be
performed by a qualied installer,
service agency, or the gas supplier.
ammable vapors and liquids, in the
DANGER
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you
Never use this appliance in an enclosed space
such as a camper,tent, car or home.

3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
●
●
●
●
WARNING
Safety Information (continued)
Prepare for use:
Keep away from combustible/flammable items
Do not put any other fireplace cover or anything flammable on or beneath the fire pit.
Combustible materials should never be within 1.83 m/6 ft of the top, or within 1.22 m/4 ft of the back or the sides of the fire pit.
For use on noncombustible floor material only.
Keep the fire pit area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
Inspect for leaks, wear and damage
Check for gas leaks before use - See the Leakage Test instructions on how to check for gas leaks.
Inspect the burner and the hose before use. Replace if there is evidence of excessive abrasion, wear, or damage.
Inspect the hose before each use. The hose assembly must be replaced prior to use if there is evidence of excessive abrasion
or wear, or if the hose is damaged. Use a manufacturer-specified replacement hose only.
Prepare the area, and ensure the proper use of the fire pit cover
Make sure the ventilation openings on the sides of the fire pit body are open and clear of debris.
Do not lay the nylon fire pit cover over the fire pit for at least 4 hours after it is turned OFF and has completely cooled down.
Do not use the fire pit if any part has been under water. Immediately call a qualified service technician to inspect the fire pit
and to replace any part of the control system and any gas control that has been under water.
Remove the nylon fire pit cover from the fire pit before operating.
When in use:
Do's
Use propane cylinders with the following required measurements only: 10.16 cm/4 in (diameter) x 20.32 cm/8 in (tall) with a
capacity of 0.45 kg/1 lb.
If the flame goes out while operating, turn the gas valve OFF. Wait five minutes before attempting to relight.
Due to high surface temperatures always keep a safe distance to avoid burning or clothes catching fire.
Keep the fuel supply hose away from any heated surfaces.
Don'ts
Never lean over the open fire pit or place your hands or fingers on the upper portion while in use.
Do not use the fire pit for cooking.
Do not burn any other materials other than what is supplied with and intended for use in the fire pit.
Solid fuels shall not be burned in this fire pit.
Do not pour water into the fire pit.
Do not move the fire pit while in operation.
The fire pit should never be operated by children. Children must be supervised when they are anywhere near the fire pit.
Do not rest your feet on the fire pit.
Do not use the fire pit on vehicles or boats. Always operate the fire pit on flat ground outdoors.
When not in use:
The cylinder must be disconnected when the fire pit is not in use.
Read and follow all the instructions and warnings in this Owner’s Manual
lmproper installation, use,maintenance, adjustment or storage can cause

4
Safety Information (continued)
Observe the flame color and the flame height in the fire pit after being lit:
1.) The flame color should be yellow.
2.) The flame height burns at 2 - 10 inches high.
When storing fire pit:
THIS PRODUCT USES PROPANE ONLY
The propane-gas supply cylinder must be disconnected when this appliance is not in use.
installed and must not be stored in a building, garage, or any other enclosed area.
outdoors in a well-ventilated area out of reach of children. Disconnected cylinders must have threaded valve plugs tightly
Storage of the fire pit indoors is permissible only if the cylinder is disconnected and removed from the fire pit. Cylinders must be stored
Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment,
burners, and circulating air passageways of the appliance are kept clean.
FOR YOUR SAFETY: Surfaces of the fire pit can remain extremely hot for a period after use. Allow 45 minutes to cool down before
touching or moving the fire pit.
Refer to the owner’s information manual provided with this appliance. For assistance or additional information, consult
a qualied installer, service agency, or the gas supplier.
Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage.
WARNING!
Do not attempt to disconnect the gas regulator or any gas fitting while the fire pit is in operation.
The gas pressure regulator provided with the fire pit must be used.
Do not use a propane cylinder with a damaged valve and any other worn out parts.
Transport and store empty propane cylinders carefully and properly.
Use propane cylinders with the following required measurements only: 10.16 cm/4 in (diameter) x 20.32 cm/8 in (tall) with a capacity of
0.45 kg/1 lb.
Max gas supply 28 cm/11 in. w.c.(2.74kpa).
Only cylinders marked “propane” may be used.
If you see, smell, or hear the hiss of escaping gas from the propane cylinder:
A dented or rusty propane cylinder may be hazardous and should be cleared by your gas supplier prior to use.
1. Turn off the gas supply and get away from the gas cylinder and the fire pit at once.
3. Call your gas supplier and / or the fire department for help.
2. Do not attempt to correct the problem yourself.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or clothes catching fire.
Propane-gas supply cylinders to be used must be:
Young children should be carefully supervised when they are in the area of the fire pit.
Clothing or other flammable materials should not be hung from the fire pit or placed on or near the fire pit.
provided with a listed overfilling prevention device.
provided with a cylinder connection device compatible with the connection for the appliance.
constructed and marked in accordance with the U.S. Department of T ransportation (DOT) Specifications for LP-Gas Cylinders, or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.

5
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Assembly
WARNING
Before beginning assembly of the fire pit, make sure all the parts are present.
Compare the parts with the package contents list. If any part is missing or damaged, do not attempt to assemble the fire pit.
NOTE: You must follow all the steps to properly assemble the fire pit. Make sure the gas valve is turned OFF before assembling.
Do not attempt to assemble without the proper tools.
PACKAGE CONTENTS AND COMPONENTS
PART QTY
DESCRIPTION
Fire Pit Body
Door
Door Knob
Control Knob
Burner
Gas Screen
Valve and Regulator Combination
Lava Rocks(1.76lbs)
Touch Up Pen
Protective Cover
J
I
H
G
F
E
D
C
B
A
1
1
1
1
1
1
1
1 box
1
1
Failure to position the parts in accordance with these
diagrams or failure to use only parts specically
approved with this appliance may result in
property damage or personal injury.
Estimated Assembly Time: 10 minutes

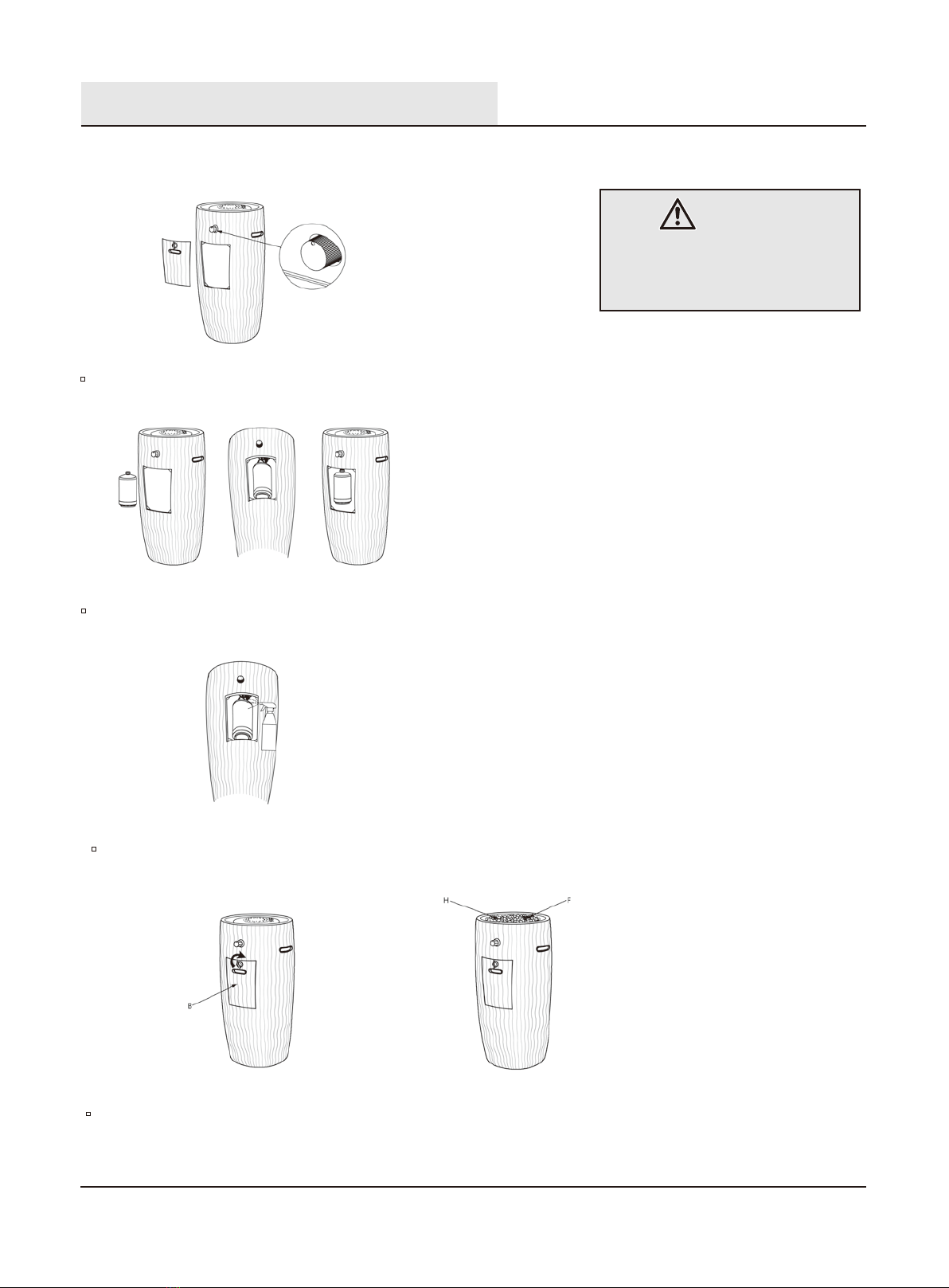

Connecting the Propane Tank
1
Assembly
Make sure the control knob (D) in the “OFF” position and turn door knob(C) to remove the door(B)
Place the 1LB propane tank (not included) ino the tank chamberand screw tightly onto the outlet of valve and regulator.
Before lighting, check the connections by spraying soap and water mixture to make sure there is no gas leaking
(See checking for leaks in operating instructions)
Replace the door (C) onto the body (B) and turn the door knob (C) to secure. Place the lava rock(H) into the pan evenly.
Do not cover the gas screen(F).
6
WARNING
This re pit requires air ow under
the unit. Do not place on an uneven
surface or on grass, turf, or carpet.

7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)
WARNING
C
b
Keep the lava rock (H) and other
objects off of the gas screen (F).
Holes in the screen must be
exposed in order to allow gas to
escape.
A blocked screen can cause gas to
ultimately cause an explosion
and risk of serious injury.

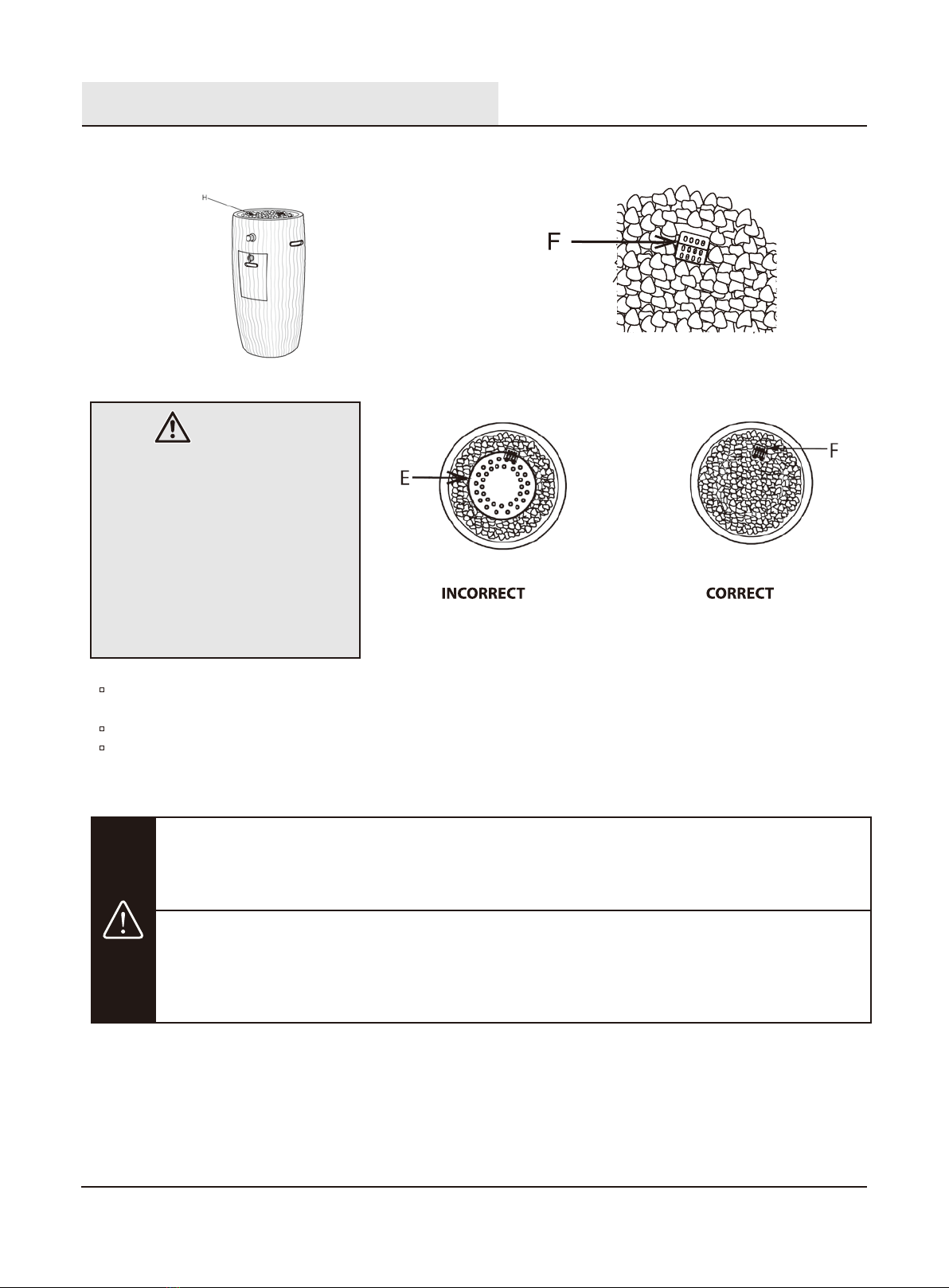

Installing the Lava Rock
2
a
Note that the burner (E) is visible. The burner (E) is completely covered
(except for the gas screen (F)).
build inside the re pit and
Do not place any lava rock (H) over the gas screen (F). See Figure b.
Completely cover the entire burner (E) with the lava rock (H). See Figure c.
Failure to completely cover the burner (E) with the lave rock (H) will cause the flame to extinguish occasionally.
Place the lava rock (H) evenly in the fire bowl.
Use caution when handling the lava rock (H) as it is sharp. See Figure a.
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. For more information go to :www.P65Warnings.ca.gov.
ADVERTENCIA:LOS COMBUSTIBLES USADOS EN EQUIPOS PARA LICUAR GAS PROPANO,ASÍCOMO
LOS PRODUCTOS DE SU COMBUSTIÓN,PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS,ENTRE ELLAS
EL BENCENO,QUE EL ESTADO DE CALIFORNIA RECONOCE COMO CAUSA DE CÁNCER Y DE
MALFORMACIONES CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información,visite www.P65Warnings.ca.gov

8
Connect the propane gas cylinder to the regulator and turn the control knob on the unit to the “OFF”
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area.
position. Spray a soap and water mixture on all connections. Turn the gas supply on. If bubbles occur on
any connection there may be a leak. If you smell gas or a leak is discovered, turn the gas valve
off. Disconnect propane gas cylinder and do not use the appliance until the leak is repaired.
1. Read instructions before lighting.
2. Control knob must be in the “OFF” position.
3. Connect propane cylinder(See Manual).
4. Push and turn control knob counter clockwise to High.
5. Use a match or a lighter to light the fire column. Once the burner is lit,Continue to
hold the control knob for another 10 seconds and release.
6. Adjust the flame to desired flame height with the control knob. CAUTION:
Disconnect Propane cylinder when this appliance is not in use.
1. Turn and push the control knob clockwise to the “OFF” position.
2. Disconnect propane cylinder.
If ignition does NOT immediately take place in seconds, push and turn the
control knob clockwise to “OFF”, wait 5 minutes, and then repeat the lighting
procedure as above.
Note:
Lava rocks could pop up and strike someone in the face during the process of lighting this unit.
Stand away from the unit for the first 20 minutes after igniting. Flame height should be a
yellow/blue color between 1-6 inches in height.
To Extinguish
Care and Maintenance
Leakage Test
Operation
The manufacturer’s warranty will be voided by, and the manufacturer disclaims any responsibility for the following actions:
Modification of the fire bowl and/or components including the gas valve assembly.
Use of any component part not manufactured or approved by the manufacturer.
Use and installation other than as instructed in this manual.
Store the fire pit in a cool dry place away from direct sunlight.
The propane tank must be disconnected and removed from the fire pit before the fire pit can be stored indoors.
Use manufacturer approved or supplied replacement parts and accessories only. Use of unauthorized replacement parts
may void the warranty.
Keep the fire pit free and clear from combustible materials.
Visually inspect the burner ring for blockages (spider webs, dirt, etc.). Keep the fire pit free and clear from debris.
After the burner ring and lava rock are completely cooled down, use a soft brush to get rid of mild stains, loose dirt and soil. Wipe
with a soft cloth.
Limited Warranty
To Light

Troubleshooting
Problem Cause Solution
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
There is no gas
or short of gas.
The flame has
blown out.
The gas cylinder
was not switched on.
There is no gas in the gas
cylinder.
There is no gas or short of gas.
There are high or gusting winds.
There is a loose connection to the
thermocouple.
The guard is covered by debris.
Too much carbon deposit is on
the inside of the gas screen.
The excess flow safety valve has
been activated.
The ignition wire does not
conduct electricity.
The ignition wire is loose or disconnected to
the igniter.
There is electricity leakage in the ignition
wire or the needle of the ignition wire cannot
aim at the hole of the burner while lighting.
The gas cylinder switch is not turned to On.
The regulator is loose or disconnected from
the gas cylinder.
Turn on the switch of the tank and at the
same time, turn on the control knob (J)
which caused the excess flow safety
valve to activate.
There was an obvious gas leakage in the gas
system caused by excess gas and the flow
safety valve was activated.
The regulator has bends or kinks that cause
the poor flow of gas inside of hose.
The flame was blown out by high or gusting
winds.
A loose connection exists between the
thermocouple and the valve.
Debris fell inside the gas screen and blocked
the flow of oxygen.
Debris fell inside the gas screen and covered
the flame in the burner hole which also
caused the low temperature during
conduction.
The gas screen was covered by debris which
caused improper burning.
Carbon deposits will occur if
gas can not sufficiently burn when using
the appliance.
There is no gas or short of gas.
Reinsert the ignition wire.
Call customer service for a replacement part.
Check and reconnect the regulator to the gas cylinder.
Check if the gas cylinder is empty, and if yes,
replace it.
Turn the control knob to "OFF". Switch off the valve
of the gas cylinder and disconnect the regulator hose
from the valve of the gas cylinder. Turn the control
knob to"LOW" and wait 30 seconds. Turn the control
to"OFF", and reconnect the regulator hose to the gas
cylinder.Light the appliance as indicated in the
"To Light" section of manual.
Check the gas system to see if there is gas leakage,
and if yes, call customer service for help.
Straighten the regulator hose to remove all bends
or kinks.
See "There is no gas or short of gas" above.
Move the appliance to a place without high or
gusting winds.
Call customer service for help.
Remove the debris from the gas screenas indicated
in the manual.
Open and clean the gas screen.
Turn on the valve of the gas cylinder.
There are bends or kinks in the
regulator hose (if used the
extension regulator hose).
There is no connection
between the regulator and the
gas cylinder.
The inside of the gas screen is
blocked by debris.
Use a pincer to open the top of the gas screenand
clean the carbon deposited in screen, thermocouple,
ignition wire, and burner. Cover the top of the gas
screen.
See "There is no gas or short of gas" above.
There is no
spark between
the ignition wire
and the burner's
holewhile
pushingthe
igniter button.

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
