HAMPTON BAY FP21557-M User manual

USE AND CARE GUIDE
JO3PVOE(BT'JSF1JU
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item#
Model#FP2.
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fire pit. We strive to continually create

2
Safety Informaton
Table of Contents
WARNING
WARNING
DANGER
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
FOR OUTDOOR USE ONLY!
WARNING
For use with tanks marked propane only.
DO NOT connect to a remote gas supply.
Propane Tanks are sold separately.
USE PROPANE GAS ONLY.
WARNING
This Fire Pit must be attended at all times!
WARNING
When the Fire Pit is not in use
_
disconnect
the Propane Tank.
If Fire Pit is stored indoors
_
remove the
Propane Tank.
Operation.........................................

Limited Warranty...................................

Troubleshooting................................

..

Care and Maintenance..............................

Table of Contents .................................. 2
Pre-Assembly.....................................

Leakage Test......................................

Safety Information................................2-

Assembly.......................................

Do not store or use gasoline or other
ammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
If the information in this manual is not
followed exactly, a re or explosion
may result causing property damage,
personal injury, or loss of life.
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open ame.
3. If the odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or re departent.
Failure to follow these instructions
could result in re or explosion, which
could cause property damage,
personal injury, or death.
Installation and service must be
performed by a qualied installer,
service agency, or the gas supplier.
DANGER
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you
Never use this appliance in an enclosed space
such as a camper,tent, car or home.

Safety Information
3
DANGER FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
Know the odor of LP-gas. If you hear, see or smell leaking
LP-gas, immediately get everyone away from the cylinder
and call the Fire Department. Do not attempt repairs.
Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior to first
filling.
Be certain not to over fill the cylinder,
Be certain cylinder requalification date is checked.
LP-gas is heavier than air and may settle in low places
while dissipating.
Contact with the liquid contents of cylinder will cause freeze
burns to the skin.
Do not allow children to tamper or play with cylinder.
When not connected for use, keep cylinder valve turned off.
Self contained appliances shall be limited to a cylinder of
30 lb capacity or less.
Do not use, store or transport cylinder where it would be exposed
to high temperatures. Relief valve may open allowing a large
amount of flammable gas to escape.
When transporting, keep cylinder secured in an upright position
with cylinder valve turned off.
WARNING:
DANGER: Do not store a spare LP cylinder under or near barbecue grill, or other heat sources.
NEVER fill an LP cylinder beyond 80% full: a fire causing death or serious injury may occur.
Use only in compliance with applicable codes.
Read and follow manufacturer’s instructions.
Consult manufacturer’s instructions concerning the cylinder
connection provided with your appliance.
Be sure regulator vent is not pointing up.
Turn off all valves no the appliance.
Do not check for gas leaks with a match or open flame. Apply soapy
water at areas marked “x”. Open cylinder valve. If bubble appears,
close valve and have LP-gas service person make needed repairs.
Also, check appliance valves and connections to make sure they
do not leak before lighting appliance.
Light appliance(s) following manufacturer’s instructions.
When appliance is not in use, keep the cylinder valve closed.
WHEN CONNECTING FOR USE:

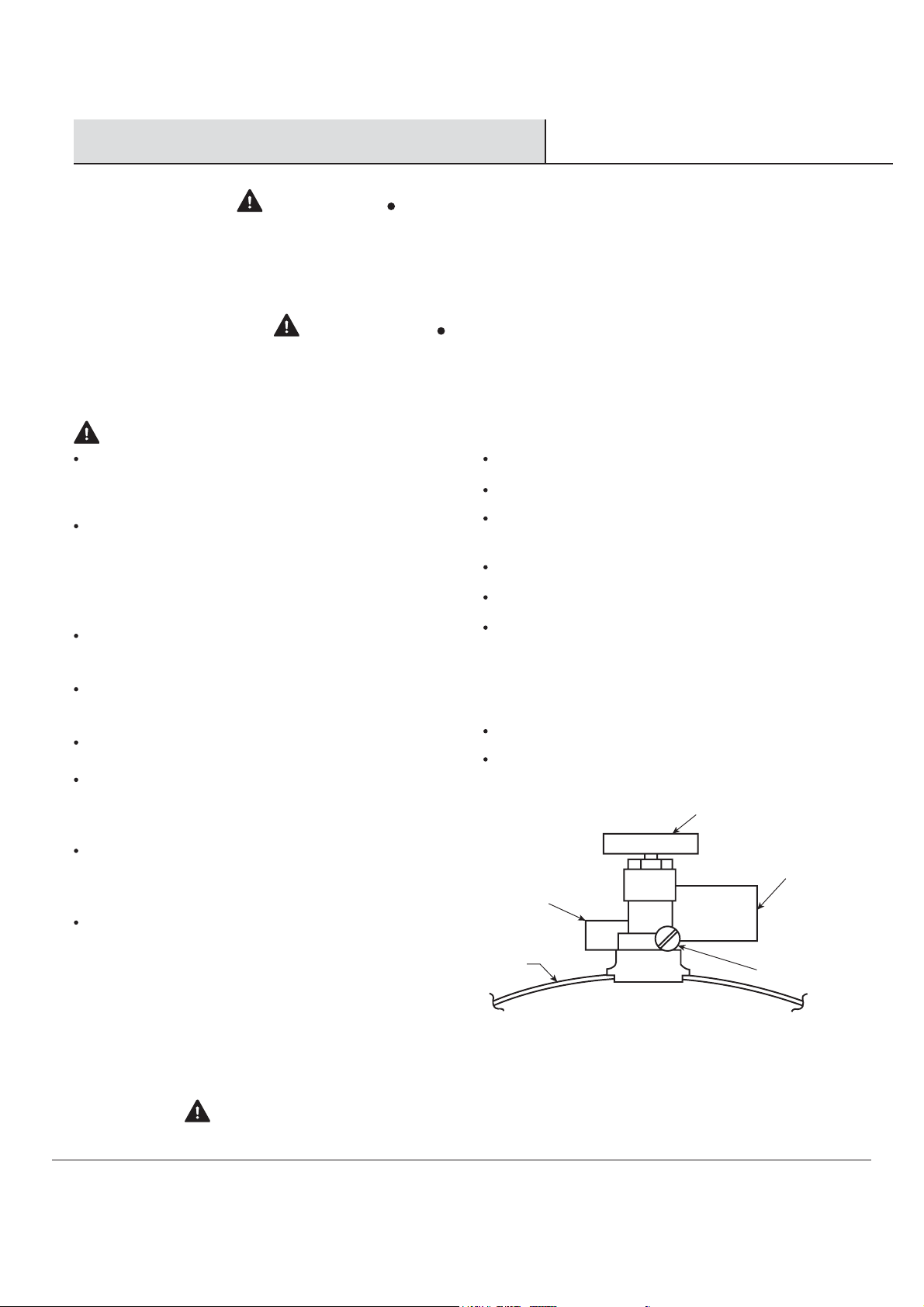

Cylinder valve hand wheel
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
x
x
x
x
Point of connection
Liquid level indicator
(optional)
Pressure relief valve
Cylinder
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.


Do's
Ɣ
Ɣ
Ɣ
Ɣ
Don'ts
WARNING
Prepare for use:
When in use:
When not in use:
Keep away from combustible/flammable items
Inspect for leaks, wear and damage
Prepare the area, and ensure the proper use of the fire pit cover
Safety Information (continued)
Do not put any other fireplace cover or anything flammable on or beneath the fire pit.
Combustible materials should never be within 1.83 m/6 ft of the top, or within 1.22 m/4 ft of the back or the sides of the fire pit.
For use on noncombustible floor material only.
Keep the fire pit area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
Make sure the ventilation openings on the sides of the fire pit body are open and clear of debris.
Do not lay the nylon fire pit cover over the fire pit for at least 4 hours after it is turned OFF and has completely cooled down.
Do not use the fire pit if any part has been under water. Immediately call a qualified service technician to inspect the fire pit
and to replace any part of the control system and any gas control that has been under water.
Remove the nylon fire pit cover from the fire pit before operating.
Use propane cylinders with the following required measurements only: 30.5 cm/12 in. (diameter) x 45.7 cm/18 in. (tall)
with capacity 9 kg/19.84 lbs.).
If the flame goes out while operating, turn the gas valve OFF. Wait five minutes before attempting to relight.
Due to high surface temperatures always keep a safe distance to avoid burning or clothes catching fire.
Keep the fuel supply hose away from any heated surfaces.
Never lean over the open fire pit or place your hands or fingers on the upper portion while in use.
Do not use the fire pit for cooking.
Do not burn any other materials other than what is supplied with and intended for use in the fire pit.
Solid fuels shall not be burned in this fire pit.
Do not pour water into the fire pit.
Do not move the fire pit while in operation.
The fire pit should never be operated by children. Children must be supervised when they are anywhere near the fire pit.
Do not rest your feet on the fire pit.
Do not use the fire pit on vehicles or boats. Always operate the fire pit on flat ground outdoors.
The cylinder must be disconnected when the fire pit is not in use.
Remove the battery from the ignitor when not using the fire pit for an extended length of time.
Clean the battery contacts and also those of the device prior to battery installation.
Check for gas leaks before use - See the Leakage Test instructions on how to check for gas leaks.
Inspect the burner and the hose before use. Replace if there is evidence of excessive abrasion, wear, or damage.
Inspect the hose before each use. The hose assembly must be replaced prior to use if there is evidence of excessive abrasion
or wear, or if the hose is damaged. Use a manufacturer-specified replacement hose only.
Read and follow all the instructions and warnings in this Owner’s Manual
thoroughly before installing, operating, or servicing this re pit.
lmproper installation, use, maintenance, adjustment or storage can cause
re or explosion, resulting in serious injury or property damage.

Safety Information (continued)
Observe the flame color and the flame height in the fire pit after being lit:
1.) The flame color should be yellow.
2.) The flame height burns at 2 - 10 inches high.
When storing fire pit:
THIS PRODUCT USES PROPANE ONLY
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or clothes catching fire.
Propane-gas supply cylinders to be used must be:
Storage of the fire pit indoors is permissible only if the cylinder is disconnected and removed from the fire pit. Cylinders must be stored
outdoors in a well-ventilated area out of reach of children. Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage, or any other enclosed area.
Turn OFF the control knob and close the propane cylinder valve. Turn the coupling nut counterclockwise by hand only do not
use tools to disconnect. Loosen the cylinder screw beneath the bottom shelf, then lift the propane cylinder up and out of the shelf.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
The propane-gas supply cylinder must be disconnected when this appliance is not in use.
Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment,
burners, and circulating air passageways of the appliance are kept clean.
FOR YOUR SAFETY: Surfaces of the fire pit can remain extremely hot for a period after use. Allow 45 minutes to cool down before
touching or moving the fire pit.

Do not attempt to disconnect the gas regulator or any gas fitting while the fire pit is in operation.
The gas pressure regulator provided with the fire pit must be used.
Do not use a propane cylinder with a damaged valve and any other worn out parts.
Transport and store empty propane cylinders carefully and properly.
Young children should be carefully supervised when they are in the area of the fire pit.
Clothing or other flammable materials should not be hung from the fire pit or placed on or near the fire pit.
provided with a listed overfilling prevention device.
provided with a cylinder connection device compatible with the connection for the appliance.
constructed and marked in accordance with the U.S. Department of T ransportation (DOT) Specifications for LP-Gas Cylinders, or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
Max gas supply 28 cm/11 in. w.c.(2.74kpa).
Only cylinders marked “propane” may be used.
Use propane cylinders with the following required measurements only: 30.5 cm/12 in (diameter) x 45.7 cm/18 in (tall) with a capacity of 9
kg/19.84 lbs.
If you see, smell, or hear the hiss of escaping gas from the propane cylinder:
A dented or rusty propane cylinder may be hazardous and should be cleared by your gas supplier prior to use.
1. Turn off the gas supply and get away from the gas cylinder and the fire pit at once.
3. Call your gas supplier and / or the fire department for help.
2. Do not attempt to correct the problem yourself.
Refer to the owner’s information manual provided with this appliance. For assistance or additional information, consult
a qualied installer, service agency, or the gas supplier.
Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage.
WARNING!
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.


Pre-Assembly
WARNING
Before beginning assembly of the fire pit, make sure all the parts are present.
Compare the parts with the package contents list. If any part is missing or damaged, do not attempt to assemble the fire pit.
NOTE: You must follow all the steps to properly assemble the fire pit. Make sure the gas valve is turned OFF before assembling.
Do not attempt to assemble without the proper tools.

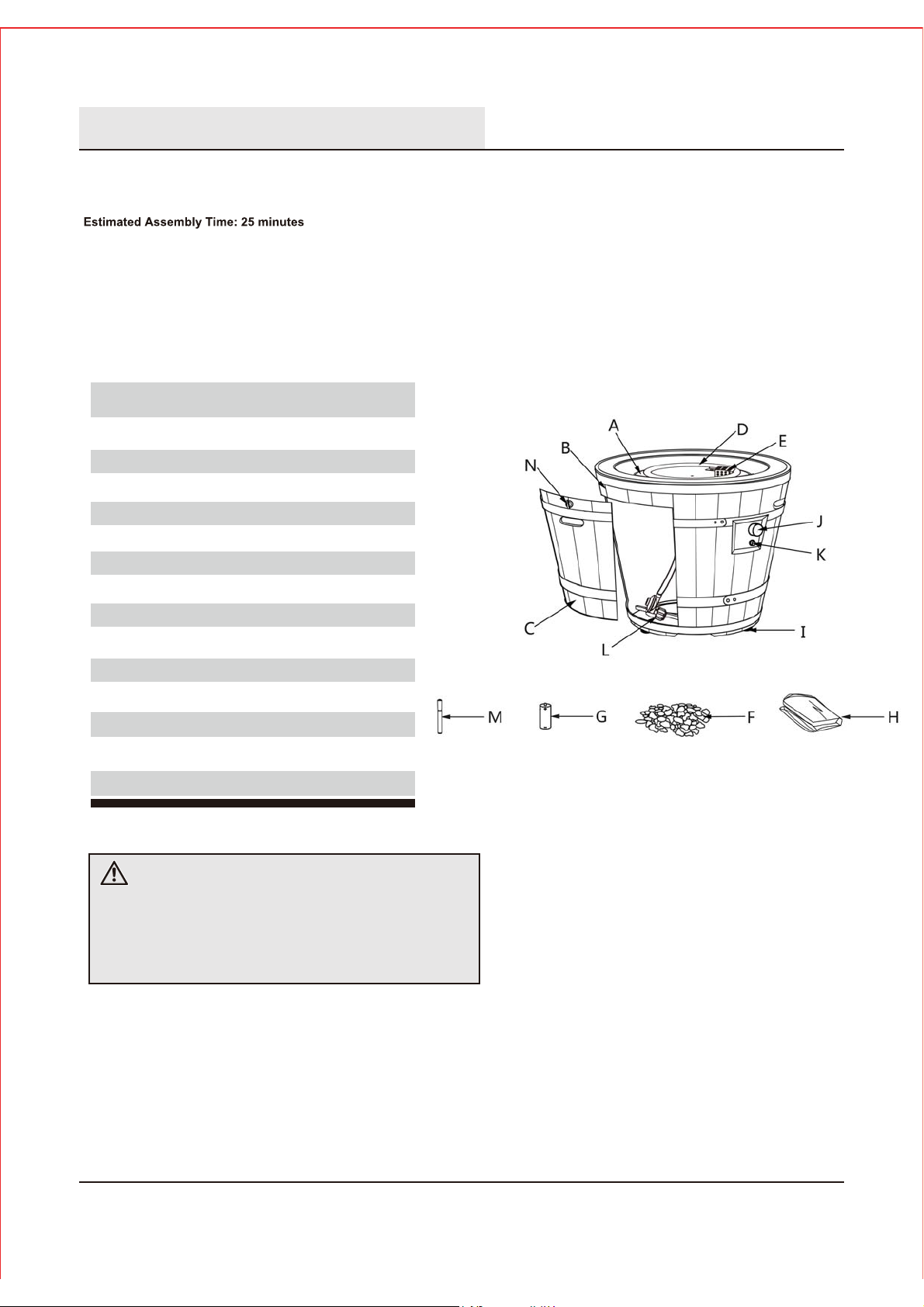

PACKAGE CONTENTS AND COMPONENTS
PART QTY
DESCRIPTION
Touch-Up Pen
Door Knob
Fire Plate
Fire Pit Body
Door
Buring Ring (preassembled)
Gas Screen (preassembled)
Lava Rock OEV
AAA Battery
Cover
Adjustable feet (preassembled)
Control Knob (preassembled)
Electric Igniter (preassembled)
Regulator (preassembled)
N
M
L
K
J
I
H
G
F
E
D
C
B
A
ER[Hs
1
1
4
1
1
1
1
1
1
1
1
1
1
Failure to position the parts in accordance with these
diagrams or failure to use only parts specically
approved with this appliance may result in
property damage or personal injury.

Connecting the Propane Tank
1

Assembly
WARNING
Turn door knob (N), and remove door (C).
Place the propane tank (not included) in the metal stand inside the body (B) and make sure the propane tank sits on the metal
stand completely. Turn the wing screw on the outer part of metal stand clockwise to secure the propane tank tightly.
Make sure the control knob (J) is turned to “OFF”.
This re pit requires air ow under
the unit. Do not place on an uneven
surface or on grass, turf, or carpet.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.



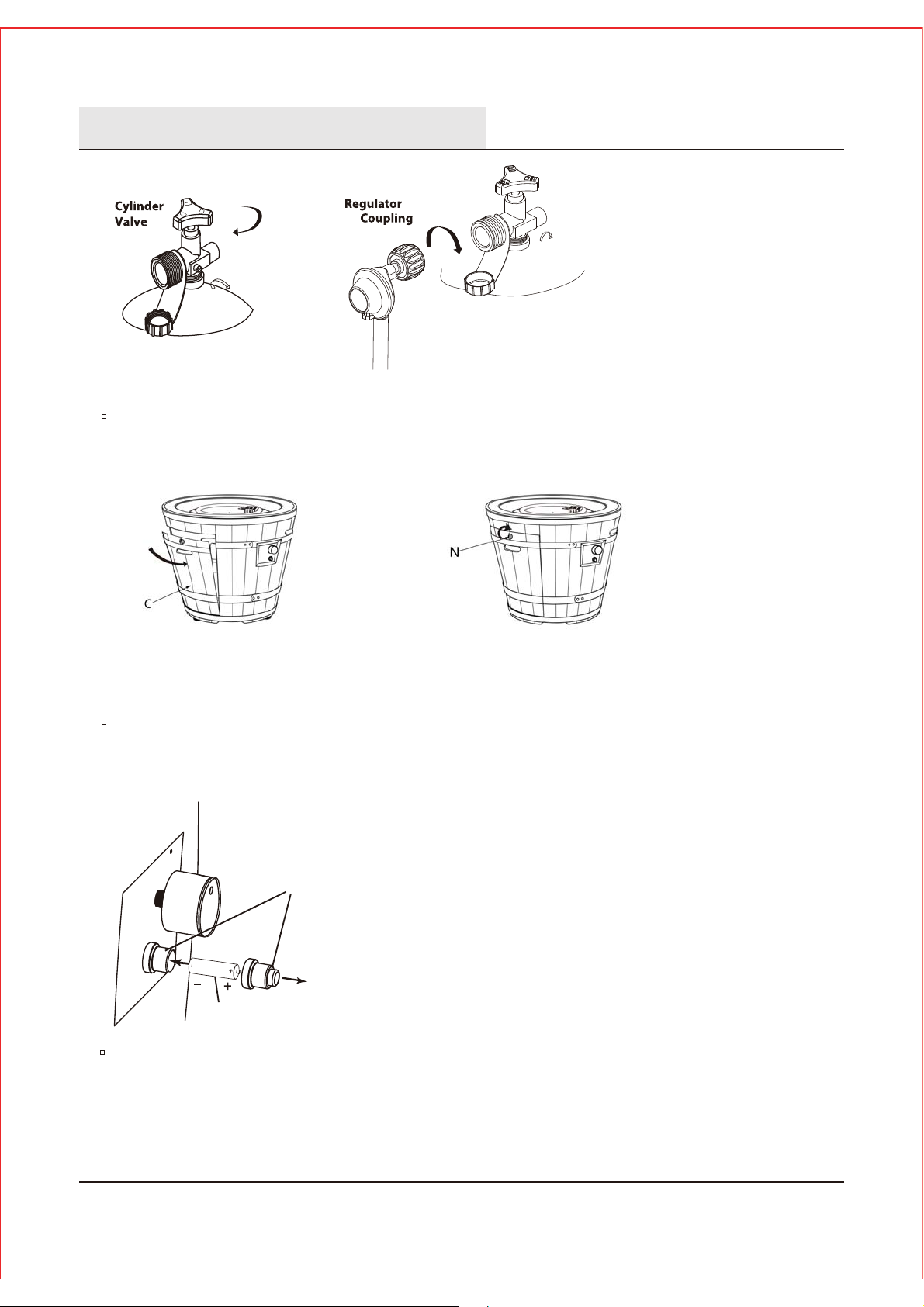

Assembly (continued)
Installing the Battery
2
K
G
Turn the cylinder valve on the top of tank clockwise to close off the gas supply. See Figure a.
Screw the regulator coupling clockwise by hand only. Make sure it is fastened. See Figure b.
ab
To install the battery (G), unscrew the rubber cap of the electric igniter (K) and place the battery (G) into the battery
case. Make sure the positive pole ("+") faces out towards the cap. Screw the cap back onto the battery case tightly.
Replace the door (C) onto the body (B) and turn the door knob (N) to secure.

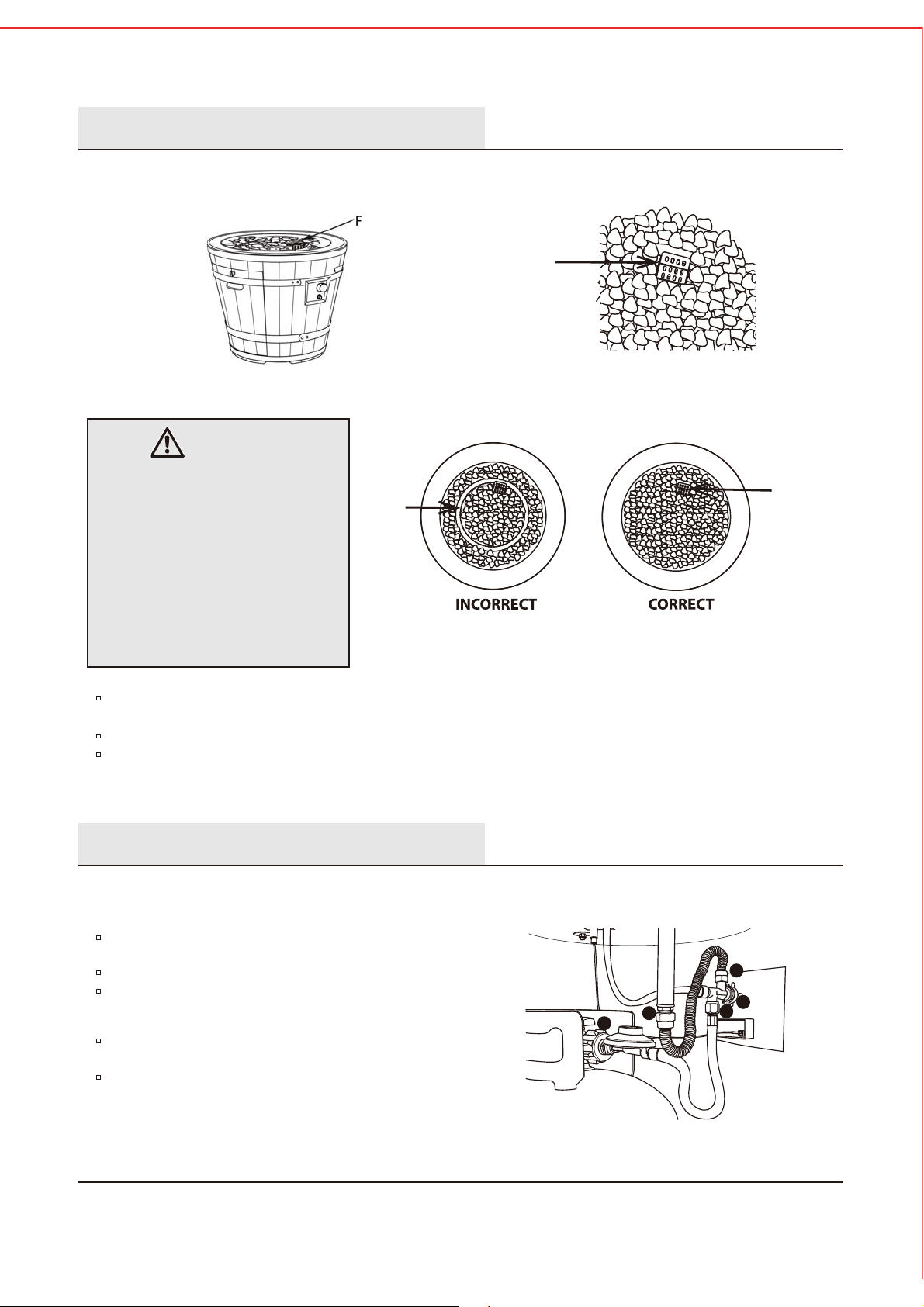

Installing the Lava Rock
3
Assembly (continued)

1234
5
Leakage Test
WARNING
Keep the lava rock (F) and other
objects off of the gas screen (E).
Holes in the screen must be
exposed in order to allow gas to
escape.
A blocked screen can cause gas to
ultimately cause an explosion
and risk of serious injury.
Do not place any lava rock (F) over the gas screen (E). See Figure b.
Completely cover the entire burner ring (D) with the lava rock (F). See Figure c.
Failure to completely cover the burner ring (D) with the lave rock (F) will cause the flame to extinguish occasionally.
Place the lava rock (F) evenly in the fire bowl.
Use caution when handling the lava rock (F) as it is sharp. See Figure a.
a
Perform a leakage test in a well-ventilated area outside and where no source of spark can occur.
After opening the door for access, open the tank valve fully
Before using the fire pit, check for gas leaks.
(counter-clockwise).
Turn the control knob (J) to the OFF position.
Apply a soapy water solution (3 drops dish detergent plus 4 oz.
water) to check all the connections for leaks before attempting to
light the fire pit.
Coat the soapy water onto all the connections (shown in the
figure at right,:1, 2 ,3, 4, 5).
If a leak is found, turn the tank valve off and do not use the fire pit
until repairs are made.
Turn the control knob (J) to the ON position. If there are any leaks,
the soapy water will bubble where the leak is occurring.
c
E
D
Note that the burner The burner ring (D) is completely
ring (D) is visible. covered (except for the gas screen (E)).
b
E
build inside the re pit and
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.


Operation
Before each use, be sure to inspect the hose. Replace the hose if there are any signs of cutting, wear or abrasion.
Care and Maintenance
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. For more information go to :www.P65Warnings.ca.gov.
1. Push and turn the control knob (J) clockwise the OFF position.
The manufacturer’s warranty will be voided by, and the manufacturer disclaims any responsibility for the following actions:
Use of any component part not manufactured or approved by the manufacturer.
Modification of the fire bowl and/or components including the gas valve assembly.
Use and installation other than as instructed in this manual.
3. After ignition, release the electric igniter button (K).
Continue to push and hold the control knob (J) for 45 seconds.
Note: The flame should be a yellow/blue color.
2. Turn the cylinder valve on the tank to close the gas supply if not in use for a long time.
1. Turn the cylinder valve on top of the propane tank counterclockwise to open the gas supply.
2. To ignite the burner ring (D):
a) Press and hold the electric igniter button (K).
b) At the same time, push in and turn the control knob (J) counterclockwise, to the LOW position.
c) Keep the the control knob (J) pushed in to light the burner ring (D).
See Figure 9
See Figure 8
Release the electric igniter button (K) and turn the control knob (J) to OFF (clockwise).
WAIT 5 MINUTES to clear out the gas!
Repeat the lighting instructions in Step 2 as above.
If ignition does NOT immediately occur
WARNING!
WARNING! Do not place the lid or nylon cover on top of the re pit for
at least 4 hours after use and until the re pit has cooled.
During the initial lighting of the re pit, stay away from the re pit for 30 minutes as the re
WARNING!
CAUTION: Only use the pressure regulator and hose assembly supplied with the re pit. The replacement
pressure regulator and hose assemblies must be specied or supplied by the manufacturer.
glass may pop and cause injury to the face or eyes.
Store the fire pit in a cool dry place away from direct sunlight.
The propane tank must be disconnected and removed from the fire pit before the fire pit can be stored indoors.
Make sure both the gas and the fire pit are turned off before changing the battery. Please refer to the process of installing the
battery (Step 2).
Use manufacturer approved or supplied replacement parts and accessories only. Use of unauthorized replacement parts
may void the warranty.
Keep the fire pit free and clear from combustible materials.
Visually inspect the burner ring for blockages (spider webs, dirt, etc.). Keep the fire pit free and clear from debris.
After the burner ring and ODYDURFNare completely cooled down, use a soft brush to get rid of mild stains, loose dirt and soil. Wipe
with a soft cloth.
Limited Warranty
K
J
K
J
ADVERTENCIA:LOS COMBUSTIBLES USADOS EN EQUIPOS PARA LICUAR GAS PROPANO,ASÍCOMO
LOS PRODUCTOS DE SU COMBUSTIÓN,PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS,ENTRE ELLAS
EL BENCENO,QUE EL ESTADO DE CALIFORNIA RECONOCE COMO CAUSA DE CÁNCER Y DE
MALFORMACIONES CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información,visite www.P65Warnings.ca.gov

1
Troubleshooting
There is no gas
or short of gas.
There is no
spark between
the ignition wire
and the burner's
hole while
pushing the
igniter button.
The flame has
blown out.
The gas cylinder
was not switched on.
There is no gas in the gas
There are bends or kinks
There is no gas or short of gas.
There are high or gusting winds.
There is a loose connection to the
thermocouple.
The guard is covered by debris.
Too much carbon deposit is on
the inside of the gas screen.
The excess flow safety valve has
been activated.
There is no power to the igniter.
The ignition wire does not
conduct electricity.
Problem Cause Solution
There is no igniter battery or the igniter
battery is short of power.
The igniter battery is incorrectly inserted.
The igniter is broken or cracked.
The ignition wire is loose or disconnected to
the igniter.
There is electricity leakage in the ignition
wire or the needle of the ignition wire cannot
aim at the hole of the burner while lighting.
The gas cylinder switch is not turned to On.
The regulator is loose or disconnected from
the gas cylinder.
Turn on the switch of the tank and at the
same time, turn on the control knob (J)
which caused the excess flow safety
valve to activate.
There was an obvious gas leakage in the gas
system caused by excess gas and the flow
The regulator has bends or kinks that cause
the poor flow of gas inside of hose.
The flame was blown out by high or gusting
winds.
A loose connection exists between the
thermocouple and the valve.
Debris fell inside the gas screen and blocked
the flow of oxygen.
Debris fell inside the gas screen and covered
the flame in the burner hole which also
caused the low temperature during
conduction.
The gas screen was covered by debris which
caused improper burning.
Carbon deposits will occur if
gas can not sufficiently burn when using
the appliance.
There is no gas or short of gas.
Replace with a new igniter battery.
Call customer service for a replacement part.
Reinsert the ignition wire.
Call customer service for a replacement part.
Check and reconnect the regulator to the gas cylinder.
Check if the gas cylinder is empty, and if yes,
Turn the control knob to "OFF". Switch off the valve
of the gas cylinder and disconnect the regulator hose
from the valve of the gas cylinder. Turn the control
knob to"LOW" and wait 30 seconds. Turn the control
to"OFF", and reconnect the regulator hose to the gas
cylinder. Light the appliance as indicated in the
"To Light" section of manual.
Check the gas system to see if there is gas leakage,
and if yes, call customer service for help.
Straighten the regulator hose to remove all bends
See "There is no gas or short of gas" above. See "There is no gas or short of gas" above.
Move the appliance to a place without high or
gusting winds.
Call customer service for help.
Remove the debris from the gas screen as indicated
in the manual.
Open and clean the gas screen.
Reinsert the battery properly.
Turn on the valve of the gas cylinder.
in the regulator hose.
safety valve was activated.
replace it.
or kinks.
There is no connection
between the regulator and the
gas cylinder.
cylinder.
The inside of the gas screen is
blocked by debris.
Use a pincer to open the top of the gas screen and
clean the carbon deposited in screen, thermocouple,
ignition wire, and burner. Cover the top of the gas
screen.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
