HAMPTON BAY 100 User manual

THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fire pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay!
Item #100
Model #G-FTB-51057B
USE AND CARE GUIDE
Cross Ridge Gas Fire Pit Table
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
9 a.m. - 6 p.m., EST, Saturday
CUS
R

2
Table of Contents
Read the instruction before use. This appliance must be installed in accordance
with such regulations as are enforced.
CAUTION: Installer: Leave the
manual with the user for future
use. Consumer: Please keep this
manual for future reference.
DANGER: IF YOU SMELL GAS,
Shut off gas to the appliance;
Extinguish any open flame. If odor
continues, keep away from the
appliance and immediately call
your gas supplier or fire
department.
DANGER: CARBON MONOXIDE
HAZARD. This appliance can
produce carbon monoxide, which
has no odor. Using it in an
enclosed space can cause injury
or death. Never use this appliance
in an enclosed space such as a
camper, tent or building.
WARNING: Do not try to light this
appliance without reading the
“LIGHTING” instructions section
of this manual. Do not store or use
gasoline or other flammable
liquids or vapors in the vicinity of
this or any other appliance. An LP
cylinder not connected for use
must not be stored in the vicinty
of this or any other appliance. If
the information in this instruction
is not followed exactly, a fire or
explosion may result, causing
property damage, personal injury,
or death.
WARNING: FOR OUTDOOR USE
ONLY!
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause property
damage, injury, or death. Read the
installation, operating, and
maintenance instructions
thoroughly before installing or
servicing this gas appliance.
WARNING: Never leave this
appliance unattended when hot or
in use. Keep out of reach of
children.
Table of Contents ................................ ..........................2
Safety Information..
.........................................................2
Warranty.........................................................................5
What is Covered.........................................................5
What is Not Covered ..................................................5
Pre-Assembly...……………………...……………………. 5
Planning Assembly
.....................................................5
Tools Required
...........................................................5
Hardware Included
..................................................... 5
Package Contents...................................................... 6
Assembly..………………………………………………….7
Operating Instructions ............................................... 12
Maintenance..................................................................15
Care and Cleaning .......................................................15
Troubleshooting .......................................................... 16
Service Parts ............................................................... 17
Safety Information

3
Safety Information (continued)
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING:
You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and
Handling of Liquefied Petroleum Gas, ANS/NFPA 58. Your local library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never
use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation
(D.O.T) Specifications for LP-Gas Cylinders, or the standard for Cylinders, Spheres and Tubes for Transportation of
Dangerous Good and Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the
appliance.
The cylinder used must include a collar to protect the cylinder valve.
The LP-gas supply cylinder must be provided with a listed overfill protection device (OPD).
Do not store a spare LP gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 791IQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
Standard 20 lbs. tank
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE
PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS
INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. For more
information go to: www.P65Warnings.ca.gov.

4
Safety Information (continued)
WARNING:
The unit is not for use with solid fuel.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural
Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
The heater, when installed, must be electrically grounded in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Prior to use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the
appliance.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should be not be hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The heater should be inspected before use and at
least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and
circulating air passageways of the heater be kept clean.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
DO NOT OBSTRUCT the combustion process or air ventilation flow.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions:
The shelter has walls on all sides, but with no overhead cover.
The shelter is within a partial enclosure which includes side walls. These side walls may be parallel, as in a breezeway,
or at right angles to each other.

5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Warranty
1 YEAR LIMITED WARRANTY
WHAT IS COVERED
We warrant the metal frame to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charge to and from our service center. This warranty
does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use. In addition, purchased parts are
not covered under this warranty. We reserve the right to make substitutions with similar merchandise, if the model in
question is no longer in production.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Pre-Assembly
PLANNING ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all parts (refer the hardware and package contents list). If
you are missing parts, please contact 1-855-HD-HAMPTON for further assistance.
NOTE: Please read and understand the entire
manual before you assemble, operate, or install
the fire pit.

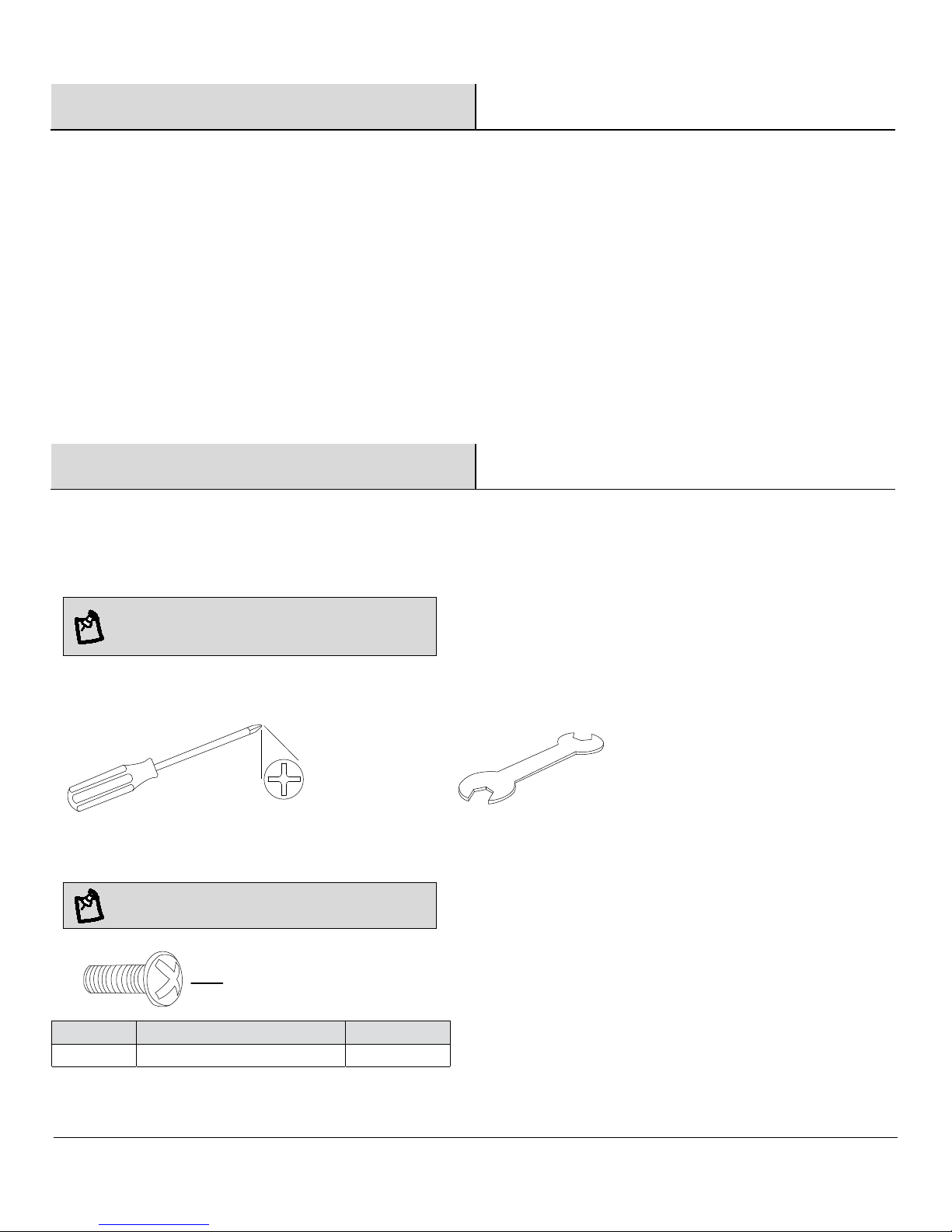

TOOLS REQUIRED
Phillips
screwdriver M6 Wrench
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part
Description
Quantity
AA
M6 x 10 mm Bolt
20
AA

6
Pre-Assembly (continued)

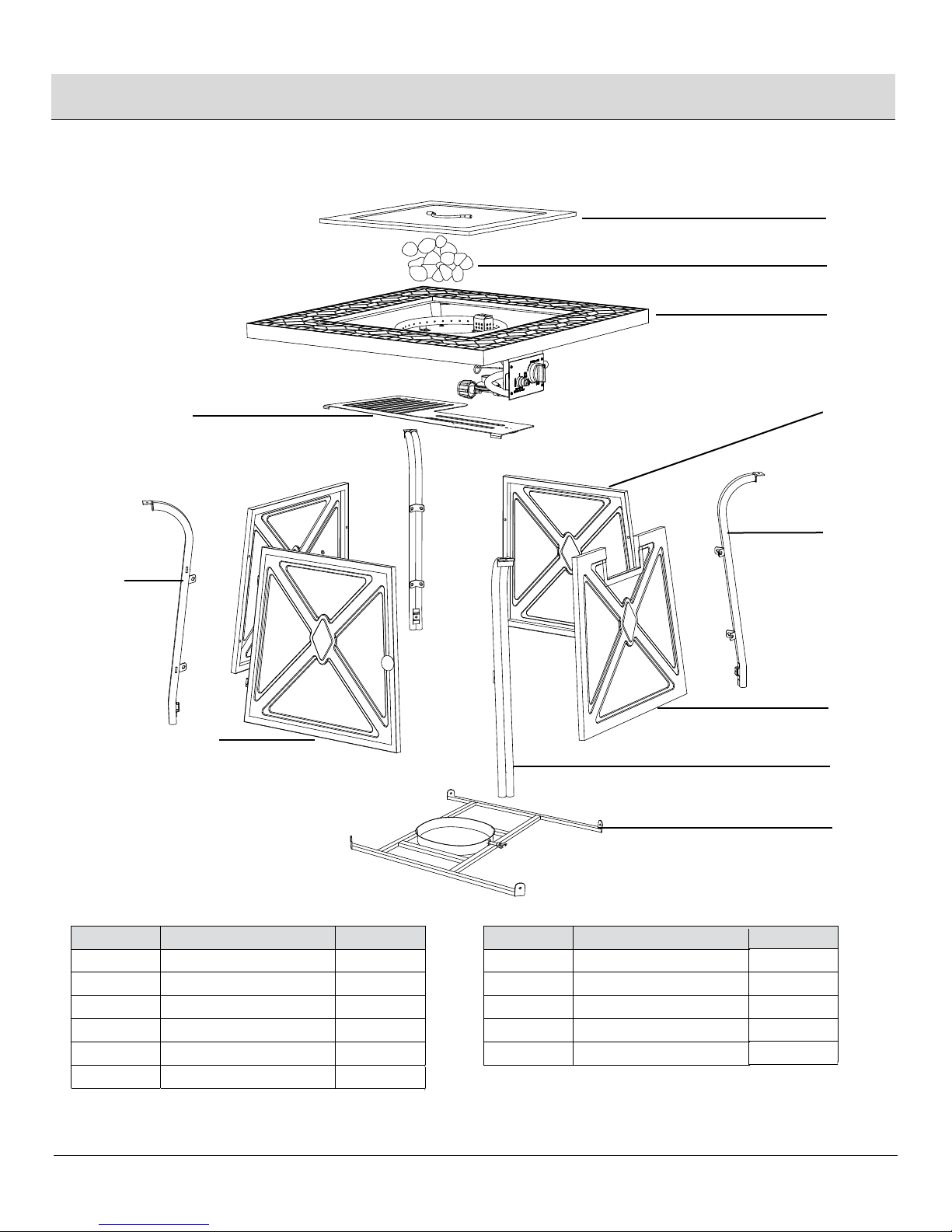

PACKAGE CONTENTS
Part
Quantity
A
1
B
1
C
1
D
2
E
2
Description
Lid
Lava Rock (13.2 lbs)
Table Top with Burner
Side Panel
Stand
Part
Quantity
G
1
H
1
I
1
J
1
K
1
Description
Left Stand
Door
Right Stand
Gas Tank Support
Heat Shield
F
1
Side Panel with Window
A
B
C
D
E
F
I
J
K
H
G

7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
1

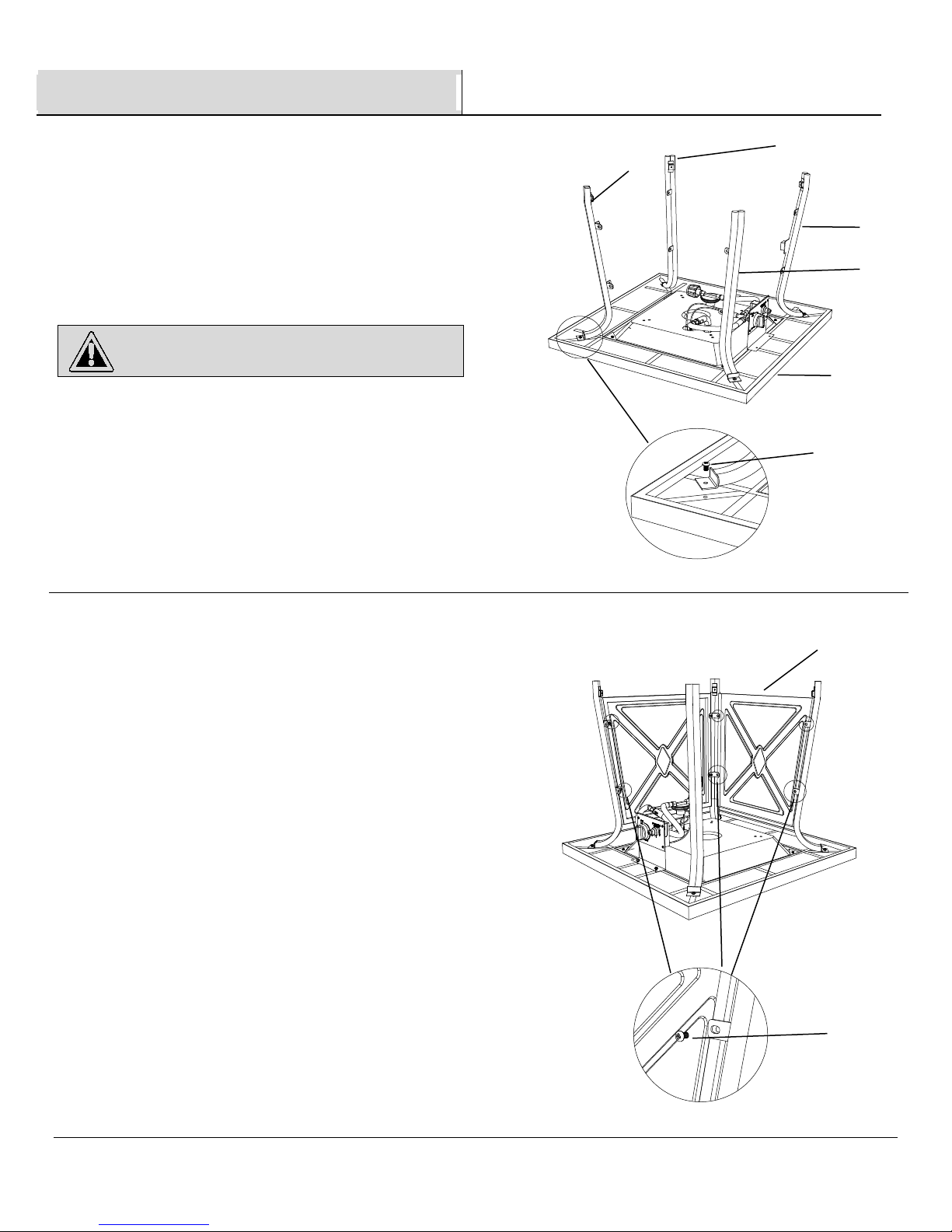

Assembling the stand
□Attach the left stand (G), the right stand (I) and the stand
(E) to the table top with burner (C) using four (4) M6 x10
mm bolts (AA).
□Do not tighten the bolts at this step.
CAUTION:
Wear gloves during assembly.
2
Assembling the side panel
□Attach the side panel (D) to the stands using four (4) M6
x 10 mm bolts (AA).
□Do not tighten the bolts at this step.
Assembly
I
AA
C
E
G
AA
D
E

8
3
Assembling the side panel with
□Attach the side panel with window (F) to the stands
using four (4) M6 x10 mm bolts (AA).
□Do not tighten the bolts at this step.
4
Assembling the gas tank support
□Attach the gas tank support (J) to the stands using four (4)
M6 x 10 mm bolts (AA).
□Tighten the bolts (AA) with a Phillips screwdriver (not
included).
Assembly (continued)
J
window
F
AA
AA

9 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
5

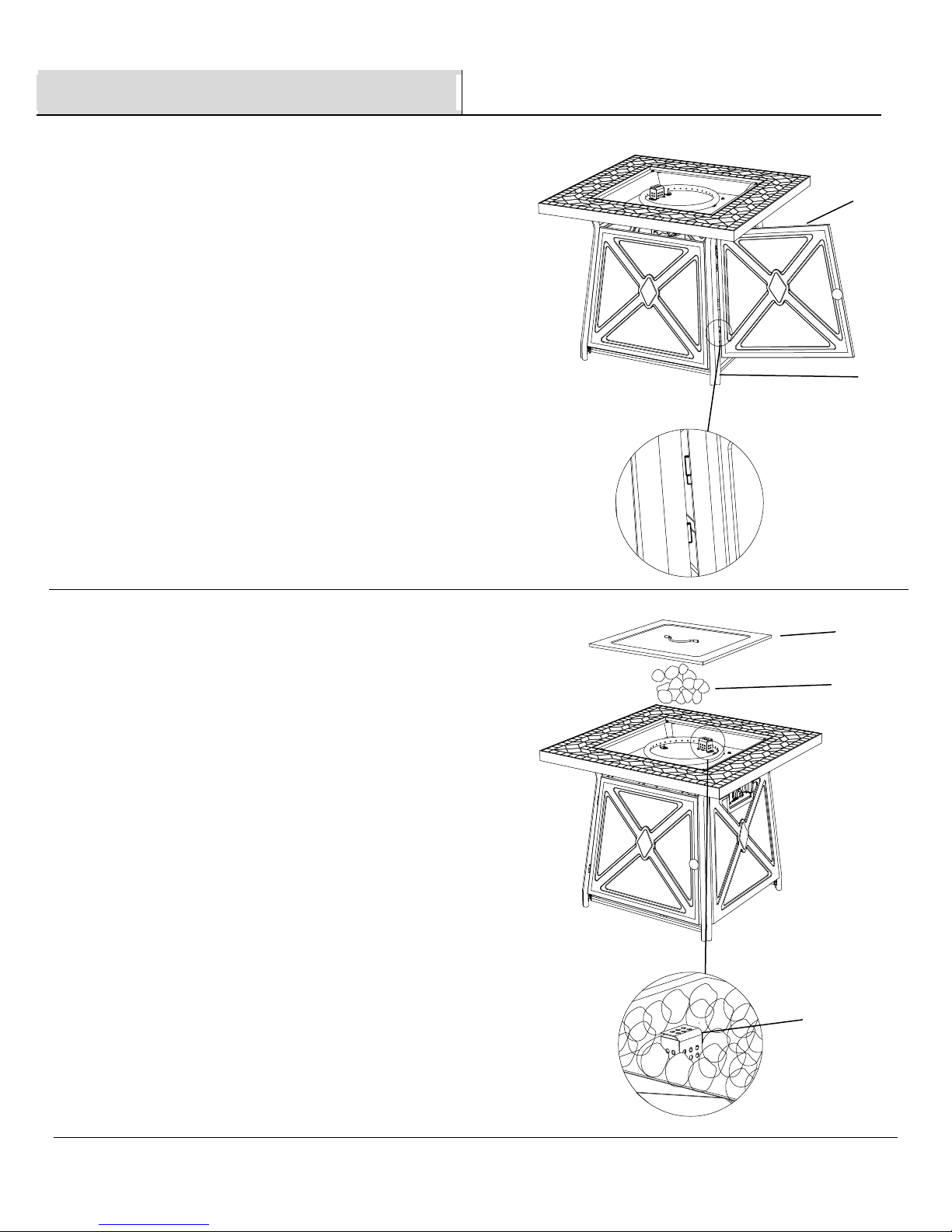

Assembling the door
□Slide the hinge of door (H) on to the left stand (G).
Tighten all bolts after this step.
6
Place the lava rock
Assembly (continued)
H
G
A
Ignition
B
□Place the lava rock (B) into the fire bowl. Ensure lava
rock is not placed on the ignition portion of the burner.
Place the lid (A) over the top.
□The lid must be removed when the burner is in
operation. Wait until the unit cools before replacing the
cover.

10
7
8
Assembling the heat shield
Assembly (continued)
J
□Insert the heat shield (K) into the space between fire pit
top and the base. Hook the small side of shield to the
side pannel, and fix the large side of shield to the side
pannel by butterfly bolt.
Assembling the cylinder
□Put the cylinder into the gas tank support (J), and secure
the cylinder by tightening the screw in the gas tank
support. Connect the hose and regulator to the cylinder.
NOTE: The propane cylinder is sold separately.
Use a standard 20 lb. propane cylinder only.
Put the hose away from the bowl base during
connect the propane cylinder.
K
NOTE: Fix the heat shield in front of bottom
panel at door side.

11
9

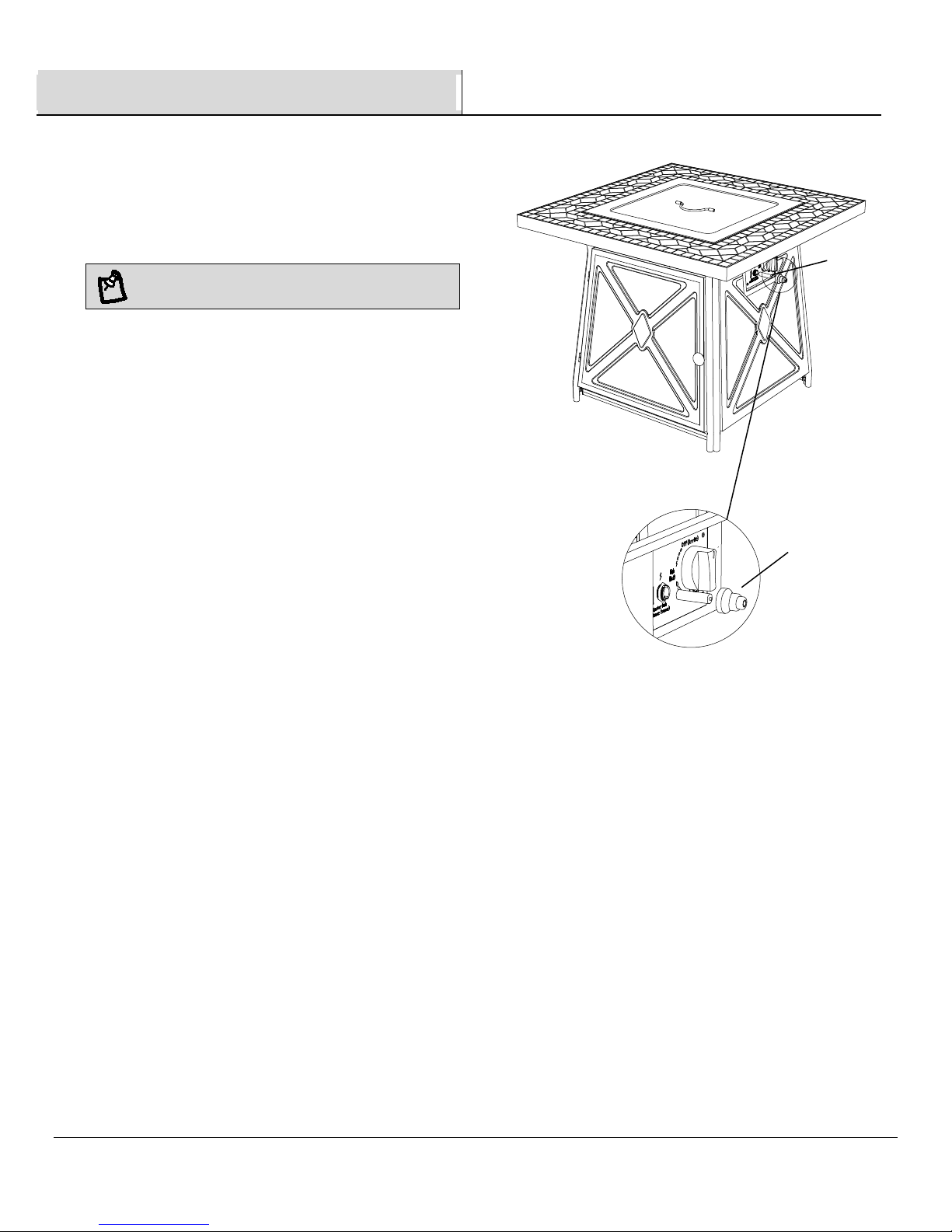

Installing the AAA battery
□Open the igniter and place the AAA battery into the
igniter. Then tighten clockwise.
Assembly (continued)
Igniter
Battery
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
NOTE: The AAA battery is sold separately.

12

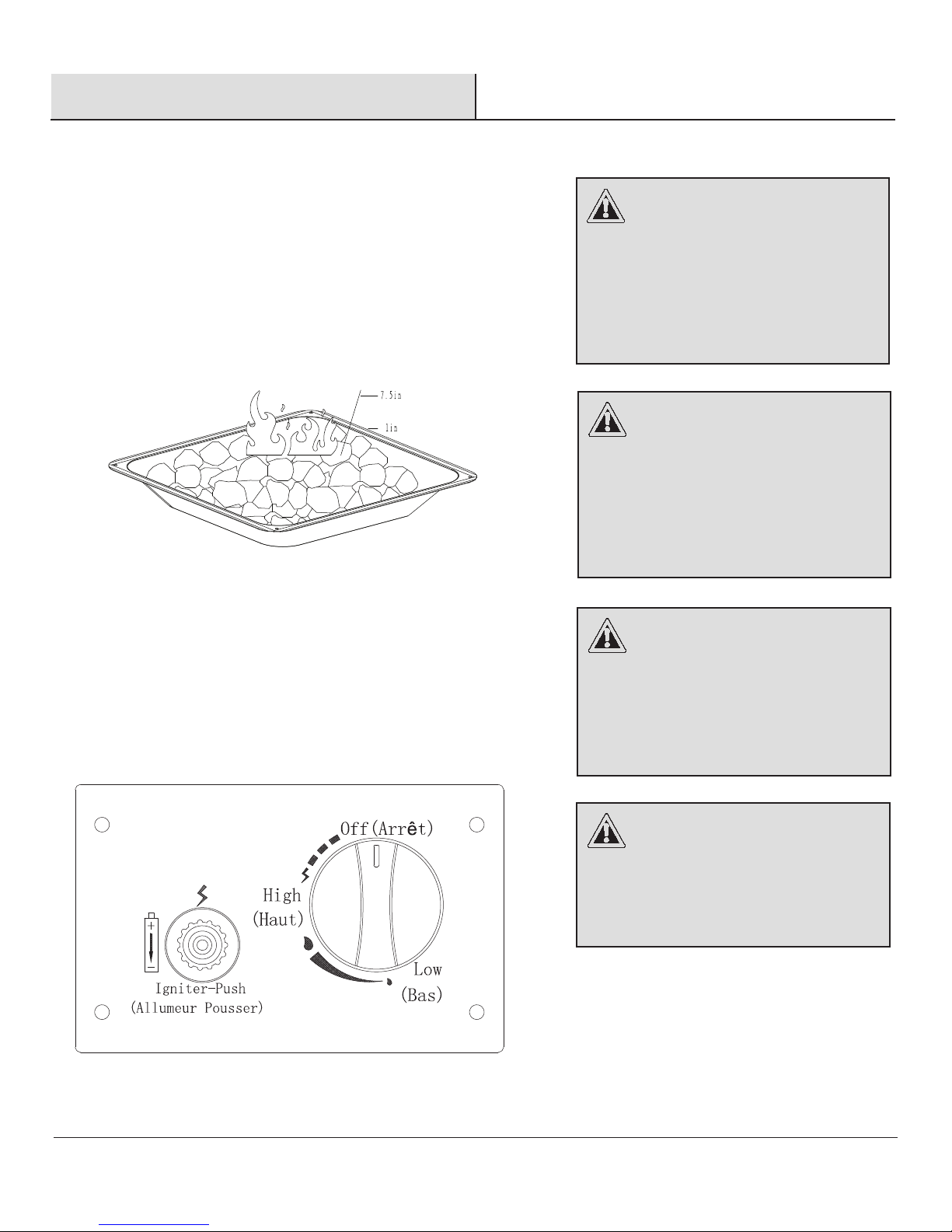

Operating
WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare
food.
WARNING:
Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is a normal temporary condition caused
by the “burn-in ” of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run
the main burner on high for approximately one-half hour.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance. The
area above the enclosure may be extremely hot. Direct contact with these surfaces should be avoided in order to
prevent burns or clothing ignition.
Any guard or protective device removed for servicing the appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person.
The appliance should be inspected before each use and at least annually by a qualified service person. More frequent
cleaning may be required necessary. It is imperative that the control compartment, burners and circulating air
passageways of the appliance be kept clean.
WARNING:
Never use the appliance while it is raining. Always turn the appliance off when raining.
Never use the appliance if the burner is damaged. Inspect the burner before each use. Ensure that no debris such as
leaves; grass or other objects have entered or are on the appliance. If the burner is damaged it must be replaced prior
to using this appliance with a replacement burner specified by your dealer.
Inspect the hose assembly before each use. If there is evidence of excessive abrasion or wear, or if the hose is
damaged it must be replaced prior to using the appliance with a replacement hose assembly specified by your dealer.
WARNING: Any modification to the appliance may compromise the safety of this appliance.
Special concern is as follows:
Do not bypass the thermocouple safety.
Do not operate the appliance if any parts have been under water. Immediately call a qualified service technician to
inspect the appliance and replace any part of the control system, and any gas control, which has been under water.

13
Operating (continued)
WARNING: A leak test must be performed annually or if a part of the gas system is replaced.
LEAK TESTING OPERATION
WARNING: Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area
while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious
bodily injury, or death.
WARNING: DO NOT USE AN OPEN FLAME.
LEAK TESTING: This must be done before initial use, annually, and whenever any gas components are replaced or
serviced. Do not smoke while performing this test, and remove all sources of ignition. See leak testing diagram for areas
to check. Turn all burner controls to the off position. Turn gas supply valve on. Brush a half-and-half solution of liquid soap
and water onto all joints and connections of the regulator, hose, manifolds and valves. Bubbles will indicate a gas leak.
Either tighten the loose joint or have the part replaced with one recommended by your dealer and have the appliance
inspected by a certified gas installer.
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the appliance inspected by a
certified gas installer or dealer. Do not use the appliance until the leaks have been corrected.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

14
Operating (continued)
WARNING
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY:
Keep face and body away from burner
area when lighting.
Ensure burner controls are in the off
position. Slowly turn on the gas supply
valve.
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped with
an excess flow device. Unless burners
are turned off prior to turning the
cylinder on, only small flames and low
heat will be achievable.
WARNING
FOR YOUR SAFETY:
If the burner does not light within 10
seconds, turn the valve off and wait 5
minutes for any gas to dissipate before
repeating the procedure.
1. Press and hold electronic igniter button.
2. Turn the burner control to the high position, press and hold.
When the burner lights, release the electronic igniter button.
3. Continue to depress the burner control knob for 30 seconds
and then release. If the flame goes out, repeat the procedure.
4. Adjust the flame to the desired height with the burner control
knob. Visually check the burner flames as pictured below.
5. If the burner will not light with the electronic igniter, hold a
lit long match or lit long butane lighter to the ignition area of
the burner and continue with step 2.
6. To shut down the burner turn the burner control knob
clockwise to the off position. Then turn the gas off at the
source (propane cylinder valve).
Normal
WARNING
FOR YOUR SAFETY:
The bowl base is extremly HOT after
use. Please wear heat-resistant gloves
when operate the propane cylinder.

15
Maintenance
Storage between uses:
□ Turn the control knob to “OFF” position.
□ Disconnect LP source.
□ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust
and debris).
□ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Storage during periods of extended inactivity or when transporting:
□ Turn the control knob to “OFF” position.
□ Disconnect LP source and move to a secure, well ventilated location outdoors. DO NOT store in a location that will
exceed 125℉.
□ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust
and debris).
□ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Care and Cleaning
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
□ Keep exterior surface clean.
□ Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
□ While washing your unit, be sure to keep the area around the burner dry at all times. If the gas control is exposed to
water, do NOT try to use it. It must be replaced.
□ Keep the appliance area free and clean from combustible materials, gasoline or other flammable vapors and liquids.
□ At least once a year, the unit should be inspected for the presence of spiders, spider webs or other insects.
□ Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heat glow is excessively uneven.
Heat makes popping noises.
□ Spider and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for
use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
□ Carbon deposits may create a fire hazard. Clean reflector, thermocouple, and emitter screen with a dry cloth if any
carbon deposits develop.
□ The burner is made from stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to
occur. This can be removed with a brass wire brush. Inspect the burner at least annually for cracks, insect nests,
excessive corrosion or any other damage. If the burner is damaged, it must be replaced with a burner specified by the
manufacturer before the appliance is put into operation.
NOTE: Wait until heater is cool before covering.
NOTE: Wait until heater is cool before covering.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

16
Troubleshooting
PROBLEM PROBLEM CAUSE SOLUTION
The flame and heat are
low when the valve is
turned to high.
The propane lighting
procedure was not followed
correctly.
Ensure lighting procedure is followed carefully. The valve
must be in the off position when the tank valve is turned on.
Turn the tank on slowly to allow pressure to equalize. See
Lighting Instructions in the Operating section.
Burners burn with yellow
flame, accompanied by
the smell of gas.
There is possibly a spider web
or other debris.
Thoroughly clean the burner venturi. See the Maintenance
section.
The burner will not light
with the igniter, but will
light with a match.
The battery is either dead or
installed incorrectly.
There is a loose electrode wire
or switch terminal wires.
Check the installation or replace with a new battery.
Check that the electrode wire is firmly pushed onto the
terminal on the back of the igniter. Check that the lead wires
from the module to the ignition switch (if equipped) are firmly
pushed onto their respective terminals.
The burner will not stay lit
when control knob is
released.
The knob is not being held in
long enough.
It is too windy outside.
Lava rock or debris are in the
ignition area of the burner
preventing the thermocouple
from being fully engulfed in
flame.
Either the thermocouple or
thermocouple connection is
dirty.
Either the thermocouple or
valve is faulty.
The thermocouple must have time to heat up. Hold the knob
in for 30 seconds after the burner lights, then release.
The unit will shut down if winds are greater than 10 mph
(16 km/h). Either locate the fire pit to a different area or use
when it is less windy.
Ensure there is no lava rock or other debris in the ignition
area, and that the small hole below the thermocouple is
unobstructed.
Clean the thermocouple and clean the connection between
the valve and thermocouple. Ensure the connection is
properly tightened.
Replace thermocouple and/or valve.
The regulator is humming. This is a normal occurrence
on hot days.
This is not a defect. It is caused by internal vibrations in the
regulator and does not affect the performance or safety of
the gas heater.
Humming regulator will not be replaced.
The valve is set to high
but there is low heat
output. There is also a
rumbling noise and a
fluttering blue flame at the
burner surface.
There is not enough gas.
The supply hose is pinched.
The burner orifice is either
dirty or clogged.
There are spider webs or other
matter in venturi tube.
The propane regulator is in a
“low flow” state.
Check the gas level in the propane cylinder.
Reposition the supply hose as necessary.
Clean the burner orifice.
Clean out the venturi tube.
Ensure the lighting procedure is followed carefully. All
valves must be in the off position when the tank valve is
turned on. Turn tank on slowly to allow pressure to
equalize. See the Lighting Instructions in the Operating
section.

17
Service Parts
Part
Quantity
A
1
B
1
C
1
D
2
E
2
Description
Lid
Lava Rock (13.2 lbs)
Table Top with Burner
Side Panel
Stand
Part
Quantity
G
1
H
1
I
1
J
1
K
1
Description
Left Stand
Door
Right Stand
Gas Tank Support
Heat Shield
F
Side Panel with Window 1AA 20
M6 x 10 mm Bolt
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
A
B
C
D
E
F
I
J
K
H
G
AA

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
9 a.m. - 6 p.m., EST, Saturday
