HAMPTON BAY TRS43GA User manual

THANK YOU
y through the purchase of this repit set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Item #:1003369084
Model #:TRS43GA
USE AND CARE GUIDE
South Grove Firepit Set
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
HAMPTONBAY.COM
1-855-HD-HAMPTON

2
Table of Contents
Warranty ........................................................................2
What is Covered ...................................................................... 2
What is Not Covered ................................................................ 2
Planning Assembly .................................................................. 5
Hardware Included .................................................................. 5
Warranty
2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY
WHAT IS COVERED
We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric.
WHAT IS NOT COVERED
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
s warranty. We
reserve theright to make substitutions with similar merchandise, if the model in question is no longer in production.
South Grove Firepit Set Package Contents................................ 6
Safety Information .......................................................2
ProductCaution .................................................................... 2
Safety Warnings .................................................................... 2
Table of Contents..........................................................2 Pre-Assembly ................................................................5
Care and Cleaning......................................................20
Assembly......................................................................7
WARRANTY PRINTED IN THE MANUAL IS VALID FOR USA.
SAVE THESE INSTRUCTIONS
WARNING: Please keep children out of the assembly
area before assembly.
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN
EXPOSE YOUTO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND
CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. For more information go to: www.P65Warnings.ca.gov.
WARNING: Do not place heavy objects on the table top.
CAUTION: When not in use, secure the product in a cool
and covered location
!
Important Safety Instructions
READ ALL INSTRUCTIONS BEFORE USE
To reduce the risk of injury to persons:
1. Close supervision is necessary when this furnishing is used by or near children, or disabled persons, if applicable.
2. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
SAFETY INSTRUCTIONS
This outdoor appliance is not intended to be installed in or on recreational vehicles and/or boats.
1. Only use the regulator with hose assembly supplied with your appliance. A replacement regulator with hose assembly must be the one specied in this manual.
2. Have your LP gas tank lled by a reputable propane gas dealer and visually inspected and requalied at each lling.
3. Never ll the gas tank beyond 80 percent full. Have your propane gas dealer check the release valve after every lling to ensure that it remains free of defects.
4. Always keep LP gas tanks in an upright position. Do not store (or use) gasoline or other ammable
vapours and liquids in the vicinity of this appliance.
5. LP gas tanks not connected for use must NOT be stored inside of the appliance or in the vicinity of this or any other gas appliance.
6. Do not subject the LP gas tank to excessive heat. Never store an LP gas tank in a garage or any other indoor location. Always disconnect the LP gas tank rst
and store it safely outside.
7. LP gas tanks must be stored outdoors in a well-ventilated area and out of children’s reach. Disconnected LP gas tanks must not be stored in a building, garage,
or any other enclosed area.
8. When your appliance is not in use, the gas must be turned off at the gas tank.
9. The regulator with hose assembly should be inspected before each use. If there is excessive wear, any abrasions, or if the hose is cut, it must be replaced prior
to use of the appliance.
10.Keep the gas regulator hose away from hot surfaces. Avoid unnecessary twisting of the hose. Visually inspect the hose for cuts, cracks, excessive wear, or
damage prior to each use of the appliance. If the hose is damaged DO NOT use the appliance. Call 1-877-539-7436 for an authorized replacement hose.
11. Never allow children to play near your appliance.
PRODUCT CAUTION
This set was made for the explicit purpose ofproviding outdoor functions and is not to be used as a toy. This productis intended fornormal
outdoor use; however, the manufacturer recommends storing and / or covering this set when any formidable/ severe weather is approaching.
hildren under
the age of 10, near the product, should be supervised by a competent adult at all times.
When an appliance is intended for connection to a fixed piping system, the installation must conform withlocal
codes or, in the absence of local codes, withthe National Fuel Gas Code, ANSI Z223.1 NFPA 54; National Fuel
Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code,
CSA B149.2, as applicable.

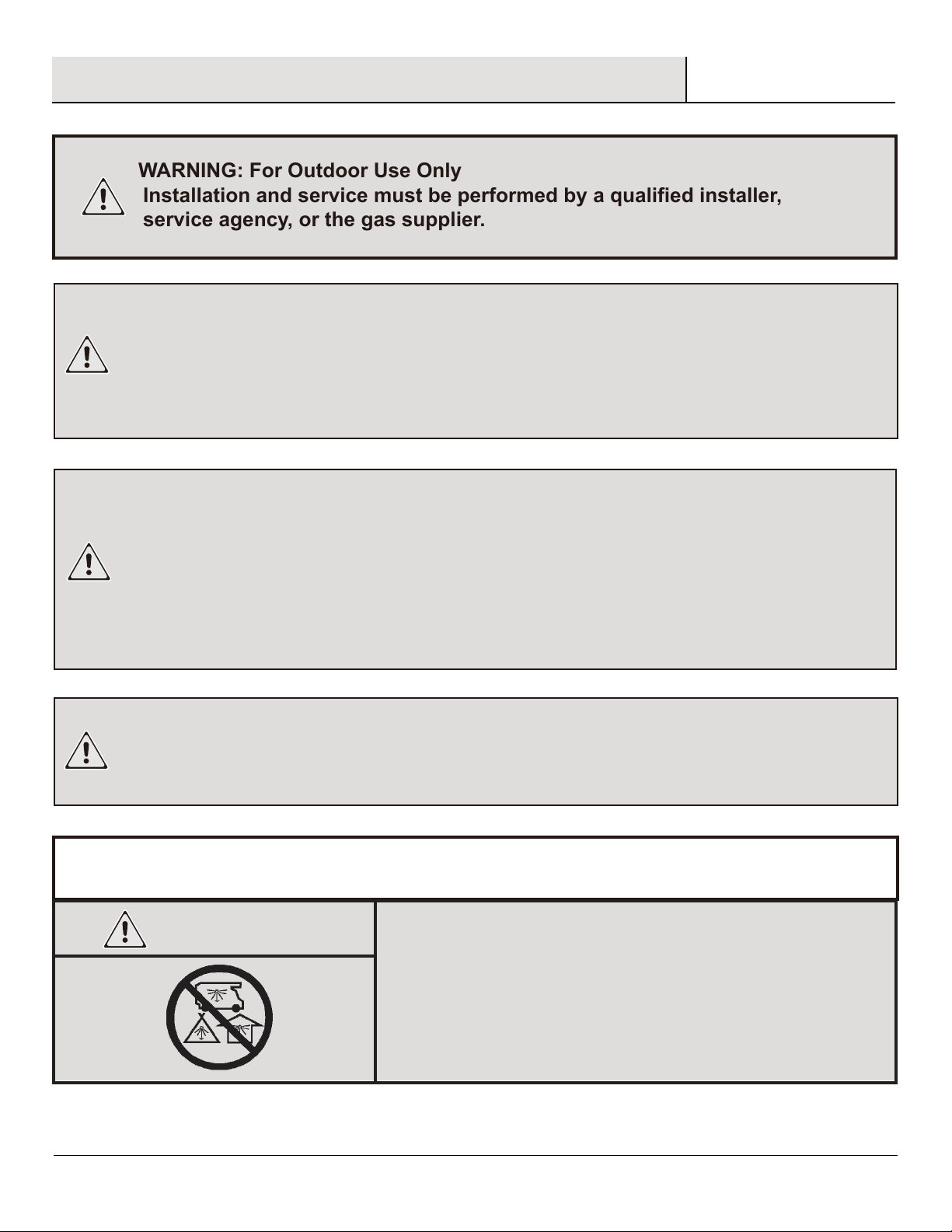

WARNING: For Outdoor Use Only
Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Important Safety Instructions (continued)
Warning: If the information in this manual is not followed exactly, afire or
explosion may result causing property damage, personal injury, or loss of life.
• Do not store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this or any other appliance.
•An LP-cylinder not connected for use shall not be stored in the vicinity of this
or any ther appliance.
DANGER: FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas tothe appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could
cause property damage, personal injury, or death.
Warning: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, personal injury or loss of life. Refer to the owner’s
information
manual provided with this appliance. Installation and service must
be performed by a qualified installer, service agency, or the gas supplier.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space; such
as a camper, tent, car, or home.

4
Keep the appliance area clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
Solid fuels should not be burned in this gas
appliance.
Inspect the hose before each use of the appliance.
The hose assembly must be replaced prior to the
appliance being put into operation if there is
evidence of excessive abrasion, wear, or if the
hose is damaged. The replacement hose assembly
is specified in this manual.
The burner must be inspected before each use.
The burner must be replaced prior to the appliance
being put into operation if it is evident that the
burner is damaged. The replacement burner is
specified in this manual.
The burner should always be cleaned:
Disconnect it from the appliance, use a cleaner to
remove blockages attached on the ports, and drain
the blockages from the gas inlet. A high pressured
stream of water may also be used.
Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas
control that has been under water.
This appliance is for outdoor use only in a
well-ventilated space and should not be used in
a building, garage, or any other enclosed area.

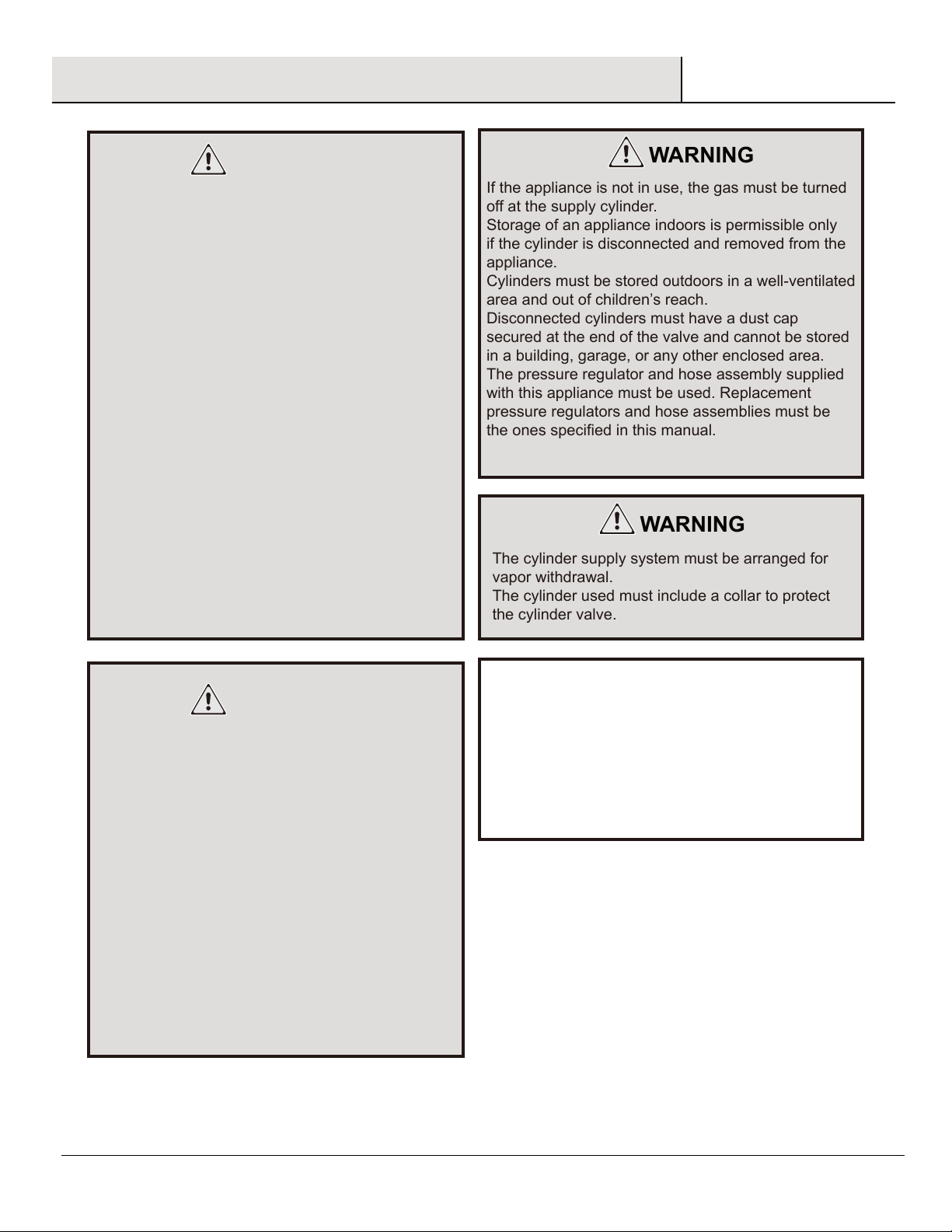

Other cylinders may be acceptable for use with the
appliance provided that they are compatible with the
appliance retention means and accompanied by
illustration(s) depicting the cylinder mounted to the
appliance utilizing the cylinder retention means and
the point of contact between the cylinder and the
retention means. The cylinder should be 12 inches
in diameter and 18 inches high. The capacity is
20lbs of propane.
If the appliance is not in use, the gas must be turned
off at the supply cylinder.
Storage of an appliance indoors is permissible only
if the cylinder is disconnected and removed from the
appliance.
Cylinders must be stored outdoors in a well-ventilated
area and out of children’s reach.
Disconnected cylinders must have a dust cap
secured at the end of the valve and cannot be stored
in a building, garage, or any other enclosed area.
The pressure regulator and hose assembly supplied
with this appliance must be used. Replacement
pressure regulators and hose assemblies must be
the ones specified in this manual.
The cylinder supply system must be arranged for
vapor withdrawal.
The cylinder used must include a collar to protect
the cylinder valve.
The Procedure for Checking for Gas Leaks:
Never test for leaks with a flame. Prior to first use, at
the beginning of each season, or every time your LP
gas tank is changed, you must check for gas leaks.
Follow these three steps:
1. Make a soap solution by mixing one part liquid
detergent and one part water.
2. Make sure that the burner is off and then turn the
gas on at source.
3. Apply the soap solution to all gas connections,
especially to the inlet/manifold pressure tap on the
gas valve after reading the pressure. Bubbles will
appear in the soap solution if the gas connections
are not properly sealed. If you have a gas leak,
tighten gas connections, turn off the gas at the
source, disconnect the fuel line from your appliance,
and call 1-877-539-7436 for repair assistance.
WARNING
WARNING
WARNING
WARNING
The LP-gas supply cylinder to be used must be:
1. Constructed and marked in accordance with the
U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the
Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission, CAN/CSA-B339 as applicable;
2. Provided with a listed overfilling prevention device;
3. Provided with a cylinder connection device
compatible with the connection for the appliance.
Locate the gas hose and make sure that it is not in any
pathways where people may trip over it or in any areas
where the hose may be subject to accidental damage.
Important Safety Instructions (continued)

HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Assembly
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
NOTE: More than one person may be required to
assemble this product.
HARDWARE INCLUDED
NOTE: Hardware notshown to actual size.
AA BB CC DD EE
JJ
AA M6x15 Bolt 12+1
BB
EE
CC
DD
FF
Part
Description Quantity
1
4+1
6+1
4+1
M6x45 Bolt
D6.5XD13X1.0 WASHER
M6XP1.0 PLASTIC NUT
FF
M6 NUT
2+1
GG HH
KK LL
GG 1
HH
I I
1
10&13MM HEX. KEY WRENCH
13MM WRENCH 1
WHEEL
4MM HEX. KEY WRENCH
JJ
KK
LL
TOUCH-UP PAINT FOR TABLE TOP
1
1
3
UPPER CONNECTOR
LOWER CONNECTOR
5
II

6
Part Description Quantity
REAR FRAME 1
1
1
1
1
1
FRAME A
FRAME B
FRONT DOOR
Pre-Assembly (continued)

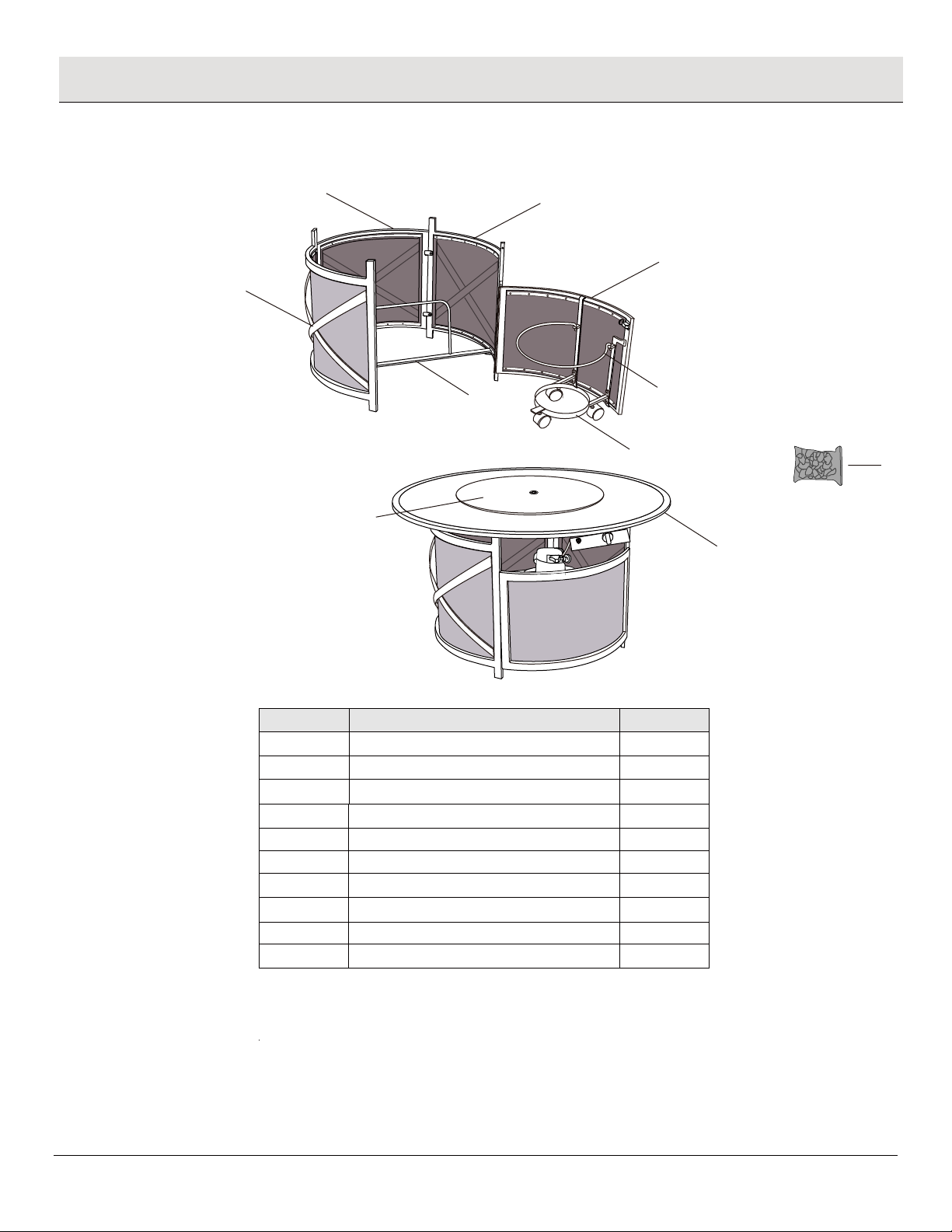

RIVER CROSSING 5PC CUSHION FIREPIT SET PACKAGE CONTENTS
1
1
1
TANK FASTENER
TABLE TOP
LAZY SUSAN
CROSS BRACE
TANK SUPPORT ASSEMBLY
1
GLASS
A
B
C
D
E
F
G
H
I
J
B
AC
D
E
F
H
I
G
J

7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly
1Connecting the frame A and the frame B to the rear frame
Fasten the frame A (B) and the frame B (C) to the rear frame (A) by using
M6x15 bolts (AA). Keep the bolts loose.
Loosely tighten all the bolts using the hex wrenches (FF and GG).NOTE:
A
C
B
AA

8

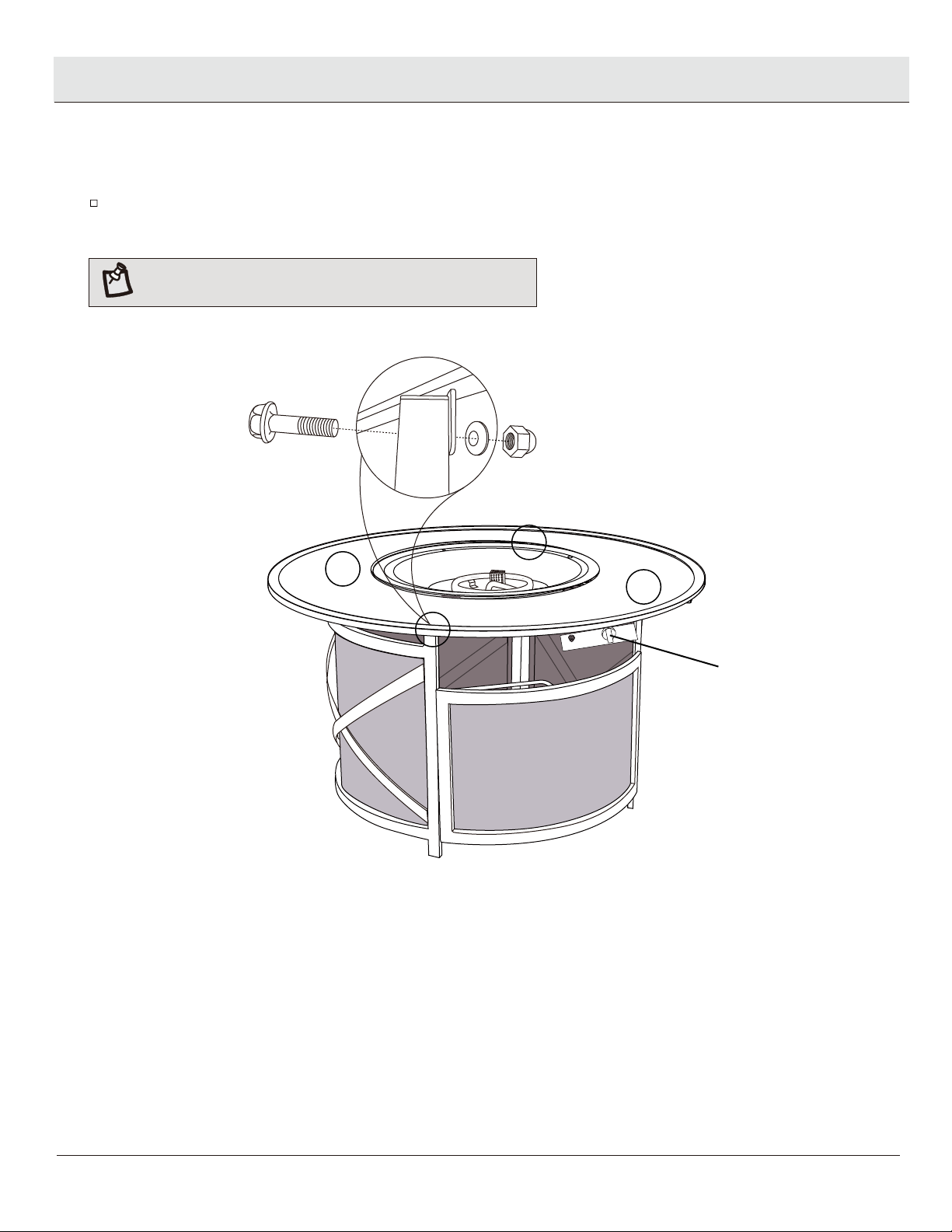

Place both ends of the cross brace (E) on top of the bottom tabs on the frames (B and C). Fasten them together by using bolts (AA).
Completely tighten all of the bolts.
l
Assembly(continued)
2Connecting the cross brace to frames
Loosely tighten all the bolts using the hex wrenches (FF and GG).NOTE:
CE
C
AA
E
B

9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
l
Assembly (continued)
3Connecting the tank support assembly to the front door
Fasten the wheels (KK) to the tank support assembly (F) by using nut wrench (HH).
Fasten the tank support assembly (F) to the front door (D) by using bolts (AA). Insert the tank fastener (G) into the tabs on the front
door (D) and fasten them together by using washers (CC) and nuts (DD).
Loosely tighten all the bolts using the hex wrenches (HH,FF and GG ).NOTE:
G
F
DD
G
AA
The tab
CC D
AA
KK HH

10
l (continued)
Assembly
4
Connecting the lower connector into the holes in the frame B
Loosely tighten all the bolts using the hex wrenches (FF and GG).NOTE:
Fasten the lower connector (II) to the corner of the bottom rim on the frame B (C) by using bolt (AA). Then, insert the front door (E)
into the connector tab on the lower connector (II).
C
D
II
AA II
C
C
D

11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
l
Assembly(continued)
5Connecting the upper connector into the front door
Insert the upper connector (JJ) into the top holes in the front door (D). Fasten the upperconnector (JJ) to the frame B(C) by using bolt (AA).
Loosely tighten all the bolts using the hex wrenches (FF and GG).NOTE:
C
D
AA
D
10
D
JJ
JJ

12
l
Assembly(continued)
6
Place the table top (H) on to the frame assembly. Fasten them together by using bolts (BB), washers (CC), and plastic nuts (EE).
Make sure that all of the bolts have been tightened completely.
Fixing the table top into the frame assembly
Igniter
Valve
B
D
C
H
BB CC EE
Loosely tighten all the bolts using the hex wrenches (FF and GG).NOTE:

13
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
l
Assembly(continued)
7Placing the tank into the tank support assembly
Open the front door (D), place the tank into the tank support assembly (F) and through the tank fastener (G).
D
G
F

14
l
Assembly(continued)
8
Attach the table top (H) to the tank by rotating clockwise to its connector.
Attaching the tank to the table top connector
Rotate
Clockwise
Caution: The Tank
must face this way.

Placing the glass
Assembly (continued)
9
Place the glass (J) into the steel cover.
15
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Fire shield
As shown in the Figure:
Please remove the glass beans
from the fire shield and make
the fire shield be exposed
completely including all the holes
on the fire shield, this is importamt
to make the air flow smoothly after
ingnition.
Note:
The glass cannot be
exposed over top of the
steel cover surface.
J

16
l
Assembly (continued)
10
Place the lazy susan (I) on to the table top (H) to cover the glass set.
Placing the lazy susan on the table top
H
I

HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
1
To remove the fuel supply hose from the tank, rotate counter-clockwise.
Removing the tank from the table top connector
17
INSTRUCTIONS FOR REMOVING THE TANK
Counter-Clockwise
FOR YOUR SAFETY: Surfaces of fire pit can remain
extremely hot for a period after use. Allow 45 minutes
to cool down before touching or moving the fire pit.
Close the valve tightly before removing the tank.NOTE:

18
INSTRUCTIONS FOR REMOVING THE TANK
2
Remove the tank from the tank-support assembly and through the tank fastener.
Removing the tank from the table top connector
To replace the tank, repeat Step 6 and Step 7 in
the assembly instructions.
NOTE:

Switch Usage Instruction
CLOSE
AAA
OPEN
The gas pressure regulator provided with this appliance must
be used. This regulator is set for an outlet pressure of 11 inches
water column.
TYPES OF GAS PROPANE GAS
Min.Gas supply for input Adj. 25 psi
Maximum Inlet Pressure 250 psi
Manifold Pressure 11 in.w.c
Gas Rating 46,000 Btu/hr
OFF/Arrêt
LOW/
Min.
HI/
Max.
ON/ Allu-
mage
OFF/ Arrêt
OFF/Arrêt
LOW/
Min.
HI/
Max.
ON/ Allu-
mage
OFF/ Arrêt
19
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
OPERATION
1
Open the igniter button and install an AAA battery
(not included), then secure the cap back on. Before
use, make sure that the control knob is in the “OFF”
position. Turn the LP cylinder gas valve to fully open
position. Press down on the control knob and turn
counter clockwise to the "LOW" position. Push in the
gas control knob all the way and hold. Continue to
press the ignition button for 15 seconds.
If the burner is not lit, press down the control knob
and turn clockwise to the "OFF" position. Repeat step
1 after 5 minutes. When the burner is lit, press down
the control knob and turn it to the desired heat output
position between “LOW” and “HIGH”. Press down
and turn the control knob clockwise to the "OFF"
position to shut down the appliance.
Turn off the cylinder gas valve.
Lighting 2Adjusting and Shutting Down
To extinguish the flame, push the control knob in and rotate clockwise.NOTE:
Care and Maintenance
Do not use aerosol polish or any other ammable material to clean the burner while it is in use.
Inspect and clean the burner regularly. Use a wire-bristle brush to clean the burner surface. A straightened paper clip is useful to remove
debris or rust from the small burner ports.
Wash frame parts with mild soap and water, rinse thoroughly, and dry completely. Do not use bleach, acid, or any other solvents on the
frame parts.
Inspect and tighten all of the bolts and fasteners on a regular basis to ensure the proper performance and safety of your appliance.
When not in use, we recommend that it be stored in a dry and secure area. Always disconnect the LP gas tank rst and store it safely outside.
The minimum clearance from the sides, rear, and top of unit to adjacent combustible construction: 2' (61 cm) from the sides, 2' (61 cm) from the rear, and 5'
(152.5 cm) from the top.
Improper lighting operations will cause serious injury and explosion.
Caution

Read the following switch usage instructions for lighting and to extinguish:
20
Yellow
Blue
Incorrect
Flame
Correct
Flame
Very hot while in operation!Never lean over the appliance while it is in use. Do not touch the stone, glass
screen or the spark guard while the appliance is in operation. Wait until the appliance has cooled down after use.
Failure to comply with these instructions may result in serious bodily injury.
WARNING
Use of your appliance causes carbon residue to build up on the lava rocks
inhibiting the airflow and leading to a more yellow flame. Stir up the lava rocks
regularly to remove these deposits and maintain a blue flame.
Step 3 Step 4
Instructions for lighting and shutting down
the appliance:
1. Read instructions before lighting.
2. Press down the control knob to " LOW ", at the same time push in the ignition button and keep
the button depressing for 15 seconds.
3. If the burner is not lit in 5 seconds, press down the control knob and turn clockwise to the
"OFF" position. Repeat from step 2 after 5 minutes.
4. Adjust flame to desired height with the control knob.
Care and Cleaning
For best results, clean the set with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt
particles that may accumulate.
Do not clean with abrasive materials, bleach, or solvents.
Store the set in a dry, sheltered place when not in use.
Keep the set away from re, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet,
snow, or wind.
You must make periodic checks to ensure that all connections are secured.
