Han-Bond H8-120 User manual

www.han-bond.com
Vertical ink jet cutting machine
User manual

www.han-bond.com
1
Preface
Thank you for choosing Han-Bond H8 Plus series vertical ink jet cutting
machine. H8 series vertical jet cutting machine unique shape design that is
exquisite, the reasonable structure save display space, can be widely used in
drawing, cutting large format clothing mark, luggage, engineering drawings,
models, graph cut drawing quality reach the international first-class effect. H8
series vertical jet cutting machine's unique control system with high precision,
high speed, stable effect, strong compatibility. Before you use this machine,
please read the user's manual carefully to ensure you can efficiently and
successfully complete all the functions of this machine. For more information,
please pay attention to my company's website www.han-bond.com.
(this manual is subject to change without notice)

www.han-bond.com
2
catalog
Preface..................................................................................................................................... 1
catalog......................................................................................................................................2
Safety instruction.....................................................................................................................5
Matters needing attention...................................................................................................... 7
Other matters.................................................................................................................. 7
Basic performance index...............................................................................................10
Computer system requirements.....................................................................................11
Chapter 1 assembly............................................................................................................... 12
1.1 Open box and check components...........................................................................12
1.2 machine installation................................................................................................ 13
1.3 machine connection................................................................................................ 14
1.3.2 connection USB data line.................................................................. 14
1.3.1 connection of power cord.................................................................. 14
1.4 install HP45 cartridge.............................................................................................. 15
1.4.1 cartridge type.......................................................................................15
1.4.2 cartridge installation.......................................................................15

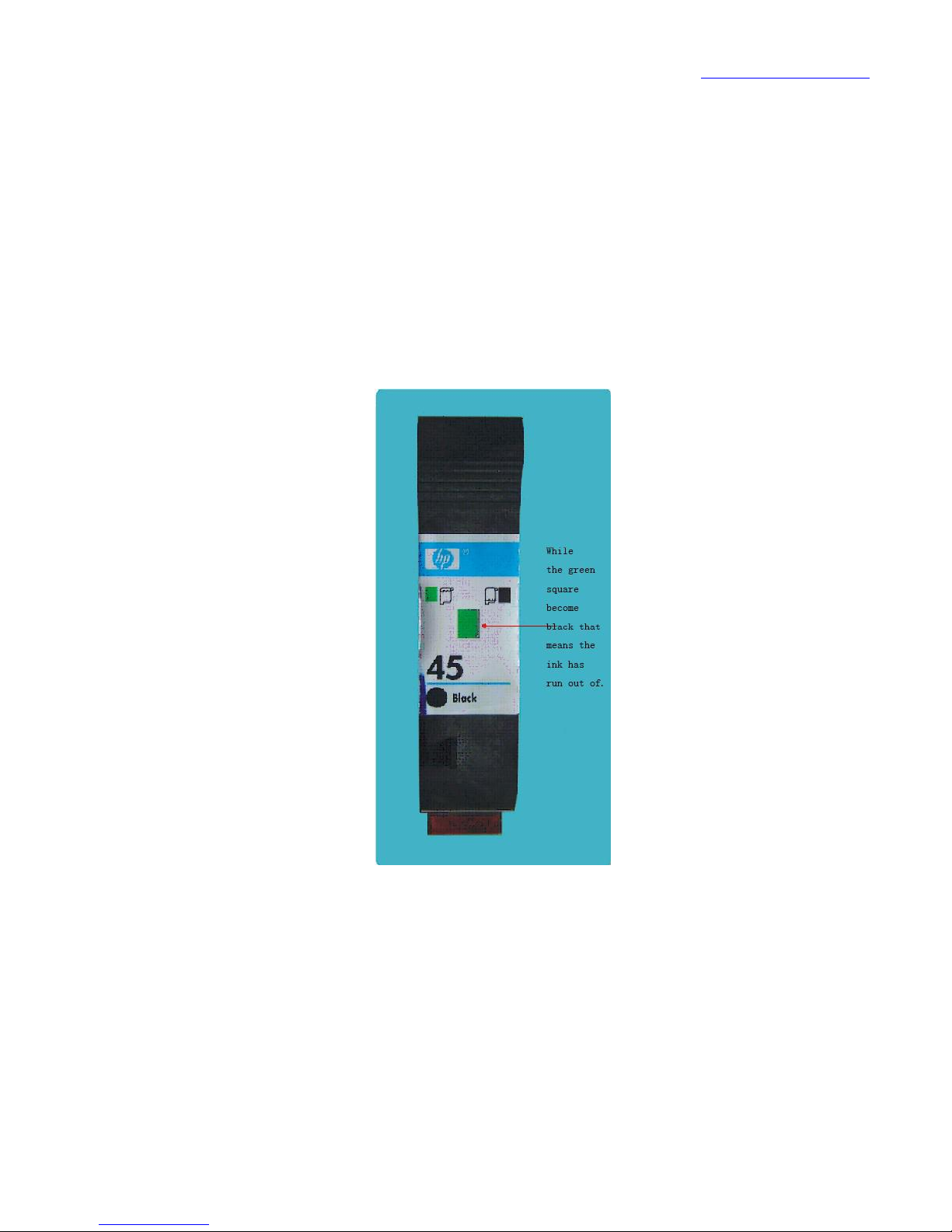

1.4.3 ink exhaustion mark.............................................................................16
1.4.4 exchange cartridge...............................................................................16

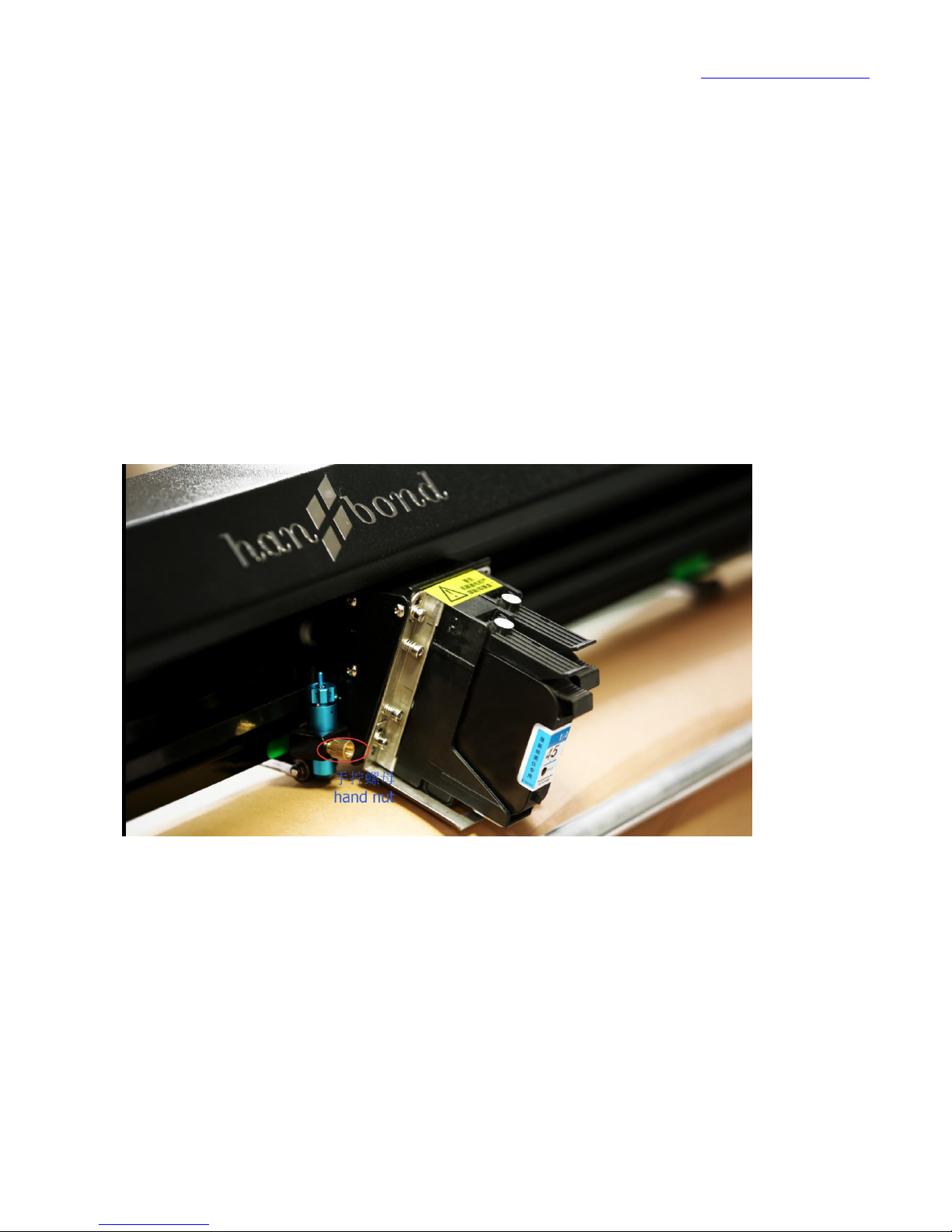

1.5 mounting tool holder.............................................................................................. 19

www.han-bond.com
3
1.5.1 assemble and disassemble knife holder........................................ 19
1.5.2 knife holder assemble diagram........................................................ 20
1.5.3 The use of knife holder.....................................................................21
1.5.4 Han-bond blade.......................................................................................21
1.6 install printing / cutting papers...............................................................................22
Chapter 2 installation drive...................................................................................................23
2.1load driver (for example : win7 64 bit computer operating system)23
Chapter 3 installation and use of the output center.........................................................28
3.1 output center installation (example: win7 64 bit or above computer operating
system)...................................................................................................................................28
3.2 the use of the output center...................................................................................33
3.2.2 page settings.........................................................................................34
3.2.3 page header and footer settings.................................................... 34
3.2.4 language selection...............................................................................34
3.2.5 print segment length settings........................................................ 35
3.2.6 Print Preview.........................................................................................36
3.2.7 print output...........................................................................................36
3.2.8 file conversion and save.................................................................. 37
Chapter 4 control panel.........................................................................................................38
4.1 control panel............................................................................................................38
4.2 key note................................................................................................................... 38
Chapter 5 calibration..........................................................................................................42

www.han-bond.com
4
5.1 offset calibration..................................................................................................... 42
5.1.1 calibration nozzle dislocation...................................................... 42
5.1.2 calibration of row spacing dislocation...................................... 43
5.1.3 calibration cartridge tilt misalignment.................................... 44
5.2 precision calibration................................................................................................44
Chapter 6 failure analysis...................................................................................................... 53
6.1 control panel error and solution.............................................................................53
6.1.1 X encoder error.....................................................................................53
6.1.2 display "AAAAAA"...................................................................................54
6.2 other issues analysis................................................................................................54
Chapter 7 contact way...........................................................................................................55

www.han-bond.com
5
Safety instruction
Please carefully read all the following instructions before using the
vertical jet cutting machine:
Place the machine on the level ground, avoid putting it on an unstable surface
caused unnecessary fault.
It is forbidden to connect the machine to the attachment with non rated
voltage. The power supply is not stable, which leads to the decline of the
performance. Even burn the power of the machine.
Power plug should be inserted in the power socket with ground wire (do not
remove the top of the plug pin), to ensure the device to be well electrical
grounding . If the machine is not grounded, may be due to excessive
accumulation of electric charge and discharge, harm to the human body, it
may cause the machine components burned.
Avoid connecting machine and high power devices to the same power
socket(such as shadow printing machine, air conditioning, air compressor,
CNC machines and other equipment); if in parallel with one power supply
socket, please make sure the device power shall not exceed the power supply
socket wire can bear the maximum current.
And the prohibition of pulling power line, do not use damaged or worn power
line, otherwise it may cause electric shock, short circuit or fire.

www.han-bond.com
6
When you do not use the machine for a long time, pull the plug from the
power outlet
Unplug the power plug before cleaning the machine.
Do not drop the liquid into a vertical jet cutting machine, otherwise it will
cause the circuit board of the machine to short circuit and destroy the
component.
Do not block up or place goods inside of the machine
During the machine working, prohibit reaching your hand into the vertical ink
jet cutting machine, touching the head(dolly group) or inside of machine
parts.
Unless the product "Manual and warranty guidelines" are described.
Otherwise, please do not to self repair or disassemble the machine

www.han-bond.com
7
Matters needing attention
Although you may be familiar with the H8 series vertical ink jet cutting
machine, please read the following carefully before you operating the machine:
Machine usage environment
The machine works and storage temperature: 10-35 degrees Celsius, do not
store or use it in a strong light irradiation, radiation or heat. place.
Working humidity of the machine at room temperature range: 20%-80%, do
not use it in wet and dusty place. Because once the water vapor condense
inside the machine, dust go into the inside of the machine, will cause short
circuit or poor contact and seriously affect the performance of the vertical ink
jet cutting machine.
To avoid strong electromagnetic interference or put things with magnetic
near the machine.
Other matters
Do not use the hand to move the car fast, otherwise the current will damage
the machine’s main board.
In addition to there are instruction in this manual, please don't try to
lubrication the machine, otherwise that may lead to machine not work
properly.

www.han-bond.com
8
Before you connect or disconnect the power supply, make sure the machine is
in a shutdown state.
When you end the use of machine, please keep the machine with dust cover
well to prevent dust from entering.
To avoid unnecessary frequent opening and closing machine, so as not to
affect the performance of electronic components

www.han-bond.com
9
Introduction
Thank you for choosing Han-bond H8 series vertical ink jet cutting machine.
H8 series vertical ink jet cutting all in one machine adopts double feeding paper
system (white paper and kraft paper can be loaded at the same time), and can be
used to drawing, cutting large format of clothing mark, luggage break the
pattern, engineering drawings, model etc., graph cut drawing quality reached the
international first-class results. H8 series vertical jet cutting machine’s servo
system is with high accuracy, fast speed, stable effect, can be compatible with
domestic and foreign clothing CAD software.

www.han-bond.com
10
Basic performance index
Ink jet printing and cutting all in one machine series
Model No.
H8-120
H8-170
H8-190
H8-220
Max drawing area
1250mm*limitless
1750mm*limitless
1950mm*limitless
2250mm*limitless
Max feeding paper
width
1300mm
1800mm
2000mm
2300mm
Loading paper mode
Wheel feeding paper , automatic feeding paper (double feeding paper system)
Transmission mode
Han-Bond printing system+USB2.0
Original coordinate
setting
Can self set base point
Knife standard
diameter
2mm
Cutting material
Suitable for a variety of clothing special paper (60-350g)
Drawing material
Applicable to all kinds of clothing tail paper (40-200g), computer paper, kraft paper
(40-400g) etc.
Mas speed
Inkjet 100m
2
/h(highest), cutting 120cm/s (highest)
Nozzle No.
2PCS
Compatible cartridge
HP45
Resolution ratio
600dpi/300dpi
Compatible format
Any format (domestic and foreign clothing CAD software)
Mechanical
Resolution
0.025mm/step
Software resolution
0.05mm/step
Absolute accuracy
0.15% or 0.1mm
Repeatability
precision
0.2mm below
Concidence deviation
<0.5mm
Knife pressure
10g-300g
Drive mode
Servo. step
Power supply
AC input: 110V + 220V, 10%/60HZ + 10%/50HZ，220W

www.han-bond.com
11
Computer system requirements
System Microsoft Windows XP
CPU Intel Core i5
Memory 2G
hard disk 500G
CD-ROM 4 times above CD-ROM
USB USB2.0 port

www.han-bond.com
12
Chapter 1 assembly
1.1 Open box and check components
List of components: main machine x1, tripod beam x1, left foot rack x1, right
foot rack x1, universal casters x4, paper collection roller X1 article, send paper
drum X2, clutch paper cone x4, paper pressing rod X2, hp45 ink cartridge X2,
knife seat x1, vertical ink jet cutting machine lettering knife X3, assembly screws
X1 set, 5mm inner hexagon spanner x1, 3mm inner hexagon spanner x1,
adjustable fixing seat X2, power line x1, USB data lines x1, installation CD x1.

www.han-bond.com
13
1.2 machine installation
Figure 1 machine parts drawing
Name of all parts of the machine
1 the right side board 2 left and right foot plate
3 right tripod 4 left tripod
7 ink frame connecting plate 8 H8 slide
9 H8 tray 10 grinding wheel brace plate
13 ink cartridge mounting seat 14 press paper plate

www.han-bond.com
14
15 Sensor holder 19 idler wheel group
21 collect and press paper bar group 22 paper collection roller group
35 paper feeding motor 36 roller base
44 universal caster
1.3 machine connection
1.3.2 connection USB data line
First to turn off the machine power, and the USB data line and machine
connection point need to use "can stick type fixed seat" stick firmly, prevent
because of external pull to damage the machine.
1.3.1 connection of power cord
When the power switch is in the state of '0' disconnect state, one end of the
power supply line is connected with the machine, and the other end is inserted in
the power supply board which is provided with a reliable ground wire protection.
If machine power supply is abnormal, please don't try to hold on to turn on
the power switch, should immediately unplug the power line, stop related
operations and contact with the dealer, feedback about the situation, identify
and eliminate all problems then can use.

www.han-bond.com
15
1.4 install HP45 cartridge
1.4.1 cartridge type
H8 series of vertical jet cutting machine use HP51645 model cartridge, in
order to ensure the quality of printing, it is recommended to select the authentic
cartridge, HP supplies store sales.
1.4.2 cartridge installation

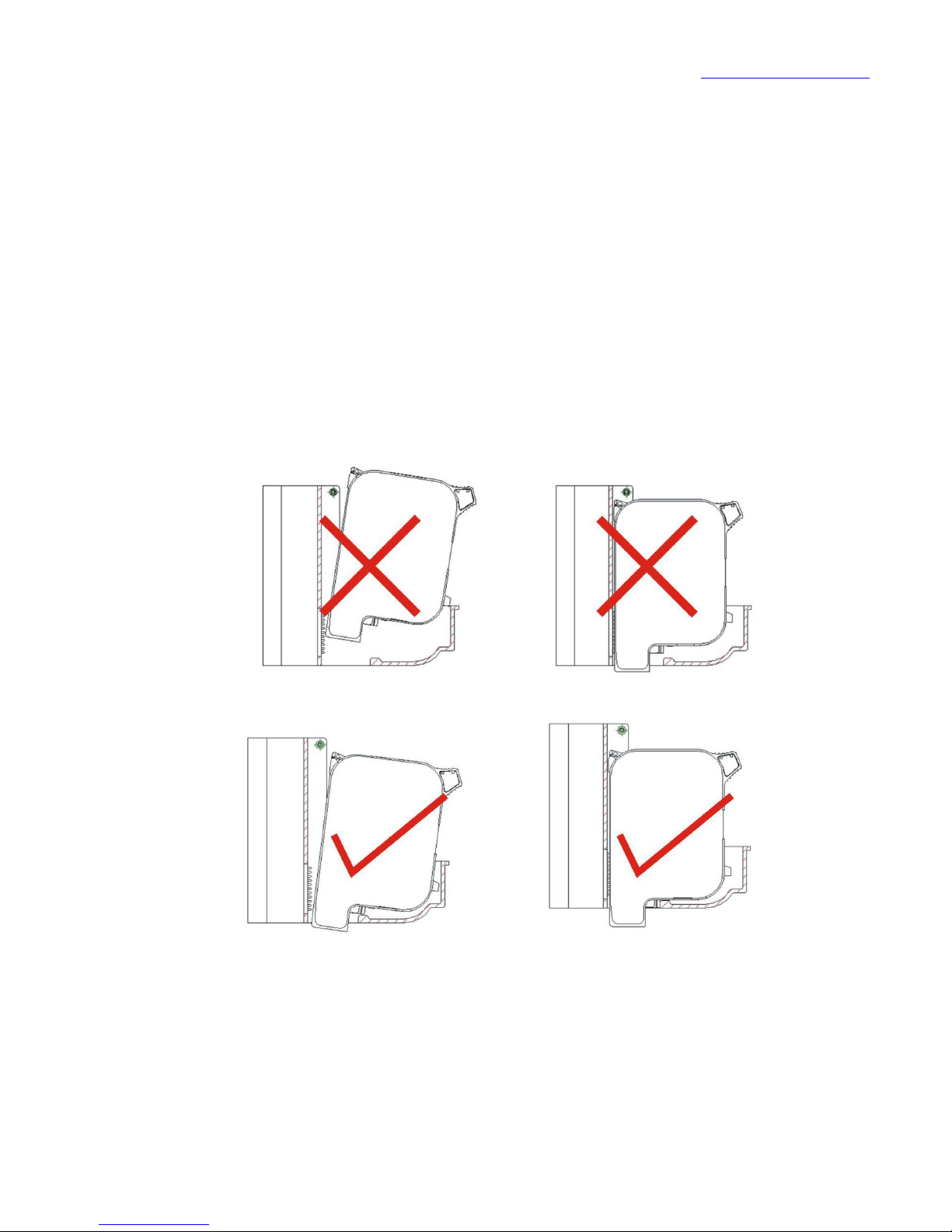

Cartridge installation example (see Figure 3):
Figure 3 cartridge installation example

www.han-bond.com
16
1.4.3 ink exhaustion mark
The ink of the cartridge during drawing process, the constant consumption;
ink exhaust mark will gradually change from green to black; if the mark is
changed to black completely, indicating that the cartridge has run out of ink,
need to replace the cartridge (see Figure 4).
Figure 4 ink exhaustion mark
1.4.4 exchange cartridge
When you need to replace the cartridge, please turn off the power of the
machine, plug in/off the cartridge should be cautious. Before printing a long file,

www.han-bond.com
17
it is best to check the amount of ink cartridges, try to avoid in the middle of the
print to change cartridge.
1.4.5 cleaning cartridge

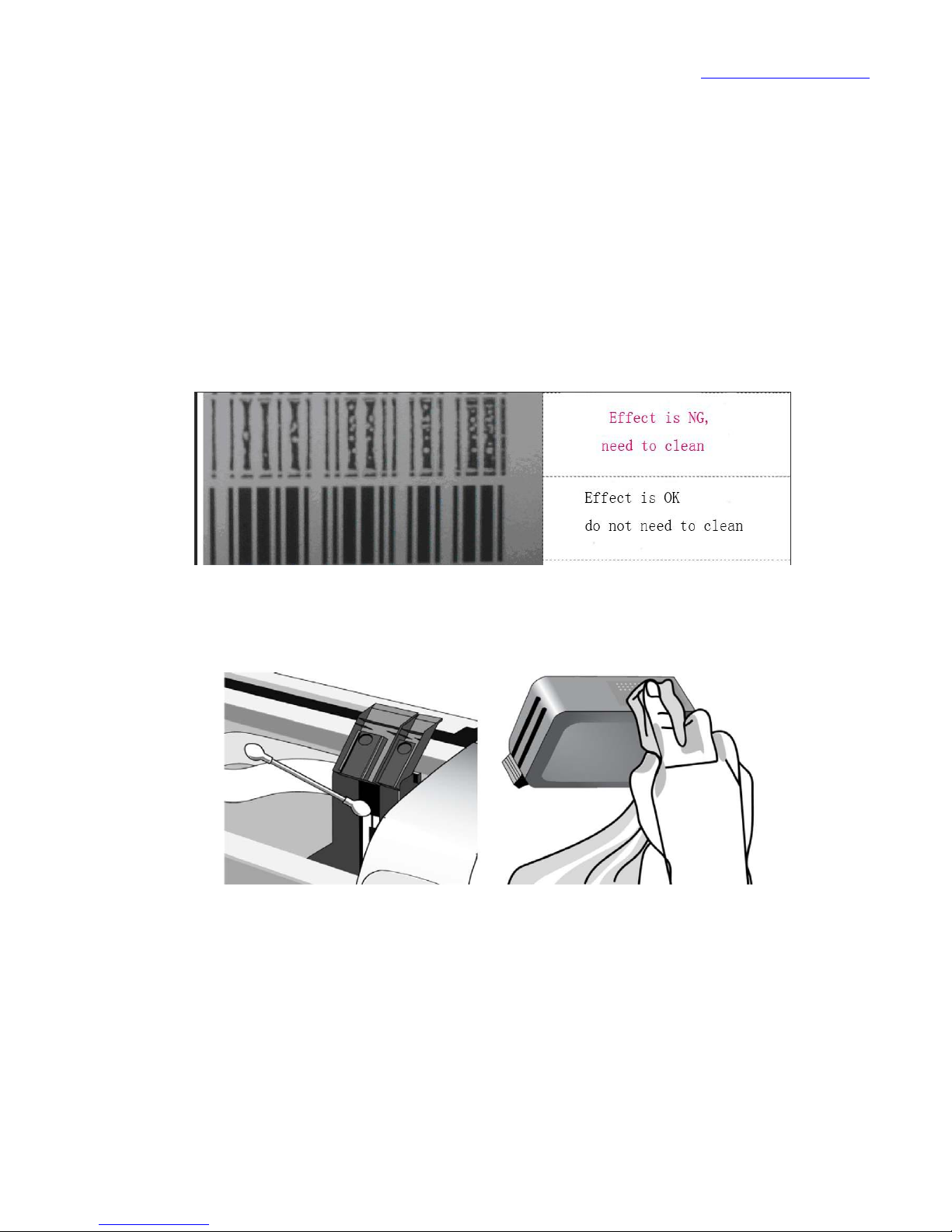

If the printing graphics have some points or lines not printed (see Figure 5),
you need cleaning cartridge.
Fig. 5 Comparison of printing effect
Figure 6 clean electronic contact 7 clean electronic cartridge PCB
Manual cleaning
A Clean the electronic contacts in the cartridge with a dry cotton swab (see
Figure 6).

www.han-bond.com
18
B use dry cotton cloth to wipe the ink cartridge side PCB (see Figure 7) to
avoid damage to the PCB, should only be wiped once.

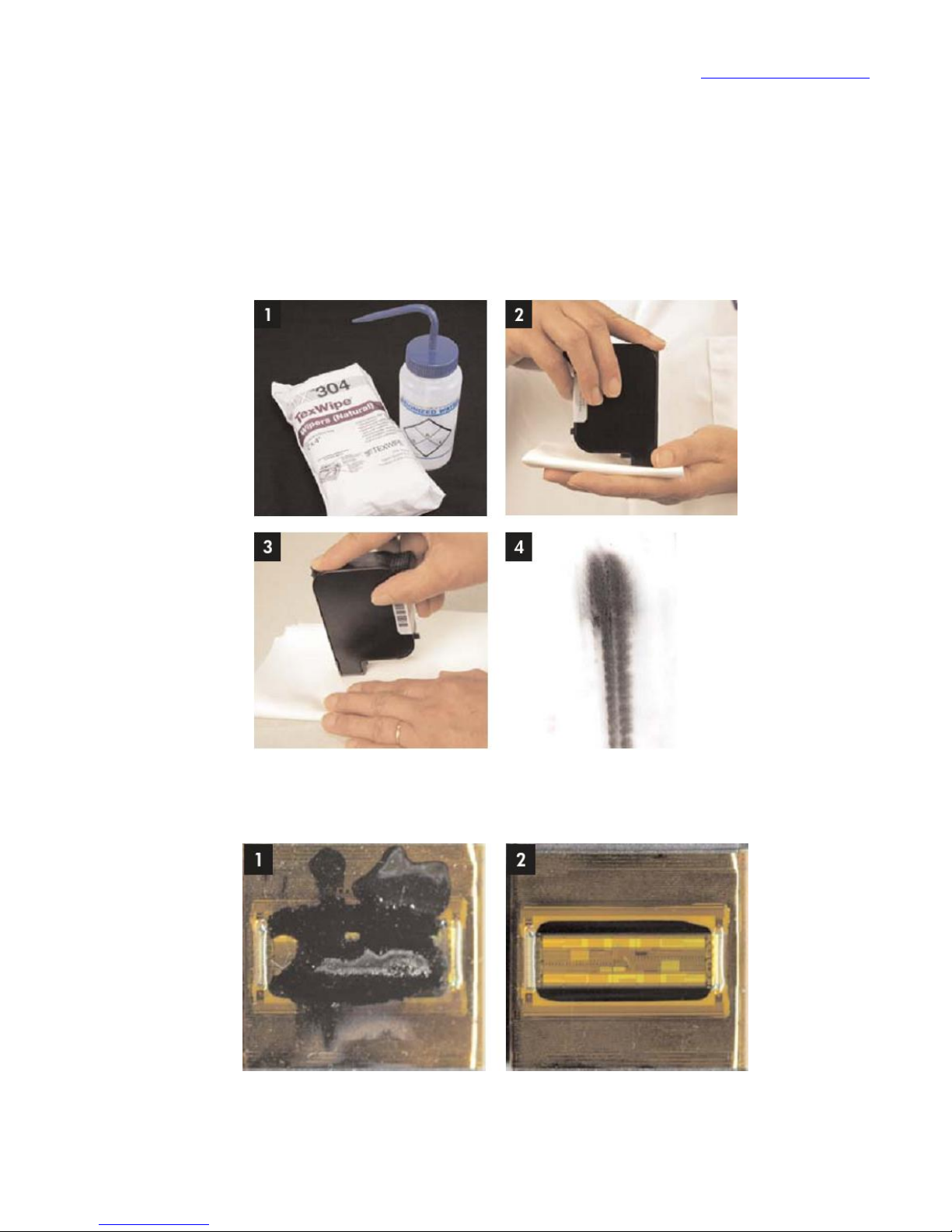

C To clean nozzle by non-dust cloth or cotton with alcohol(see picture
8,9,10).
Figure 8 cleaning cartridge nozzle
Figure 9 before cleaning figure 10 after cleaning

www.han-bond.com
19
Auto clean
Press the "CLEAN" key in the standby mode, the nozzle can be cleaned
automatically.
1.5 mounting tool holder
1.5.1 assemble and disassemble knife holder
Unscrew the hand nut , then you can pull up.
