Инструкция для
Hangar 9 B25J Mitchell ARF
Перейти в карточку товара
8 800 775 98 98

Wingspan.....................................80.7 in (2050mm)
Overall Length..............................63.0 in (1600mm)
Wing Area ............................851 sq in (54.9 sq dm)
Flying Weight............. 13.5–15.5 lb (6.1 kg–7.0 kg)
.........................................(glow 2-stroke or electric)
ASSEMBLY MANUAL
B-25 Mitchell ARF
Engine Size .................32–.40 2-stroke glow engine
Motor Size ................ Power 46 BL outrunner motor
Radio..........................................6 channels or more
Servos.... 10 servos (11 for glow version w/retracts)
...............(8 servos, 9 for electric version w/retracts)
Specifications

2
Table of Contents
Using the Manual ............................ 3
Required Tools and Adhesives .................. 3
UltraCote Covering Colors ..................... 3
Before Starting Assembly ...................... 3
Radio and Power Systems Requirements .......... 4
Required Servo Extensions ..................... 4
Recommended JR, JR SPORT and
Spektrum Systems ........................... 5
Recommended Setup–Glow .................... 5
Recommended Setup–Electric .................. 5
FS One
(Precision Flight Simulator) w/Mode 2 Controller ... 6
Field Equipment ............................. 6
Optional Retracts............................. 6
Contents of Kit and Replacement Parts............ 7
Warranty Period ............................. 8
Limited Warranty............................. 8
Damage Limits .............................. 8
Safety Precautions ........................... 8
Questions, Assistance, and Repairs .............. 9
Inspection or Repairs ......................... 9
Warranty Inspection and Repairs................. 9
Non-Warranty Repairs......................... 9
Safety, Precautions, and Warnings .............. 10

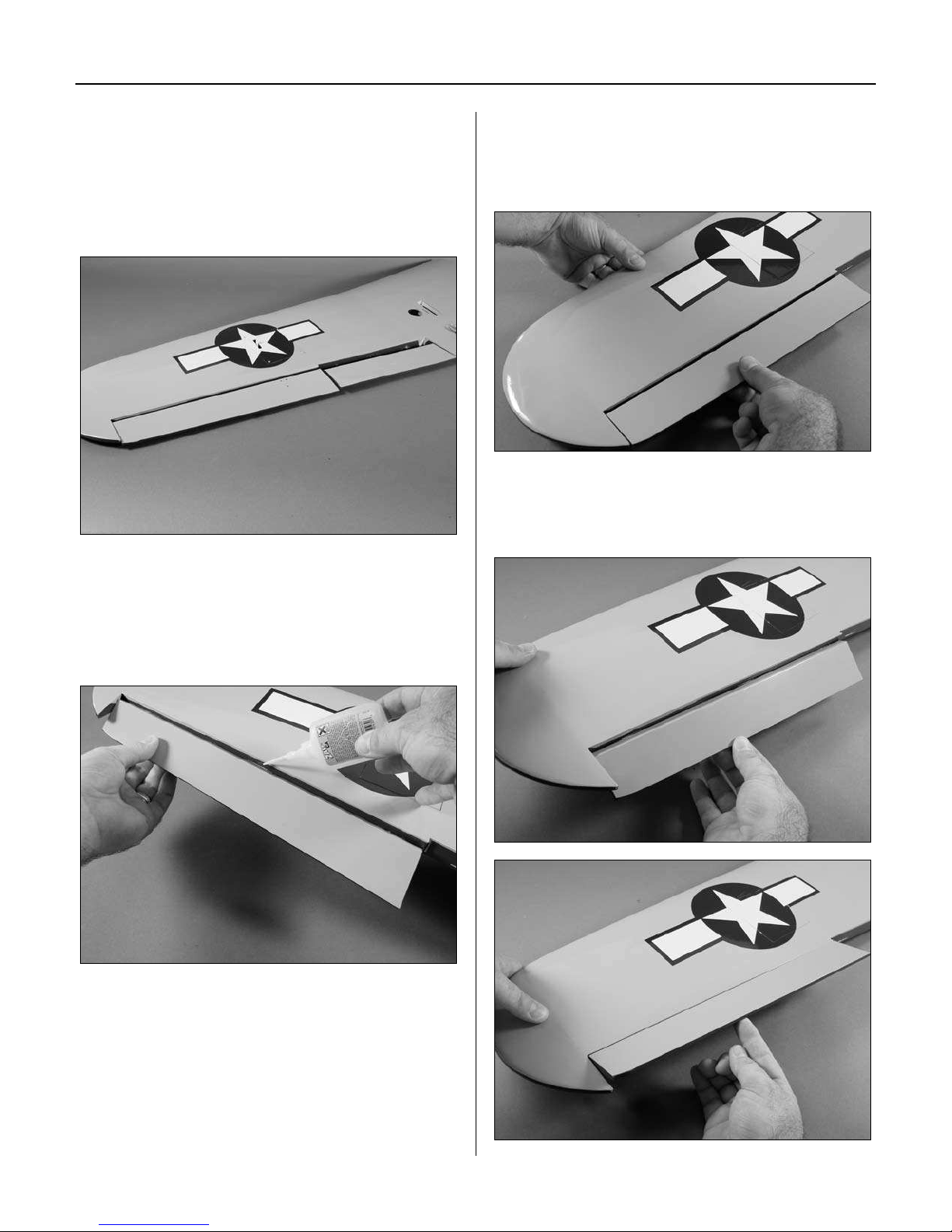

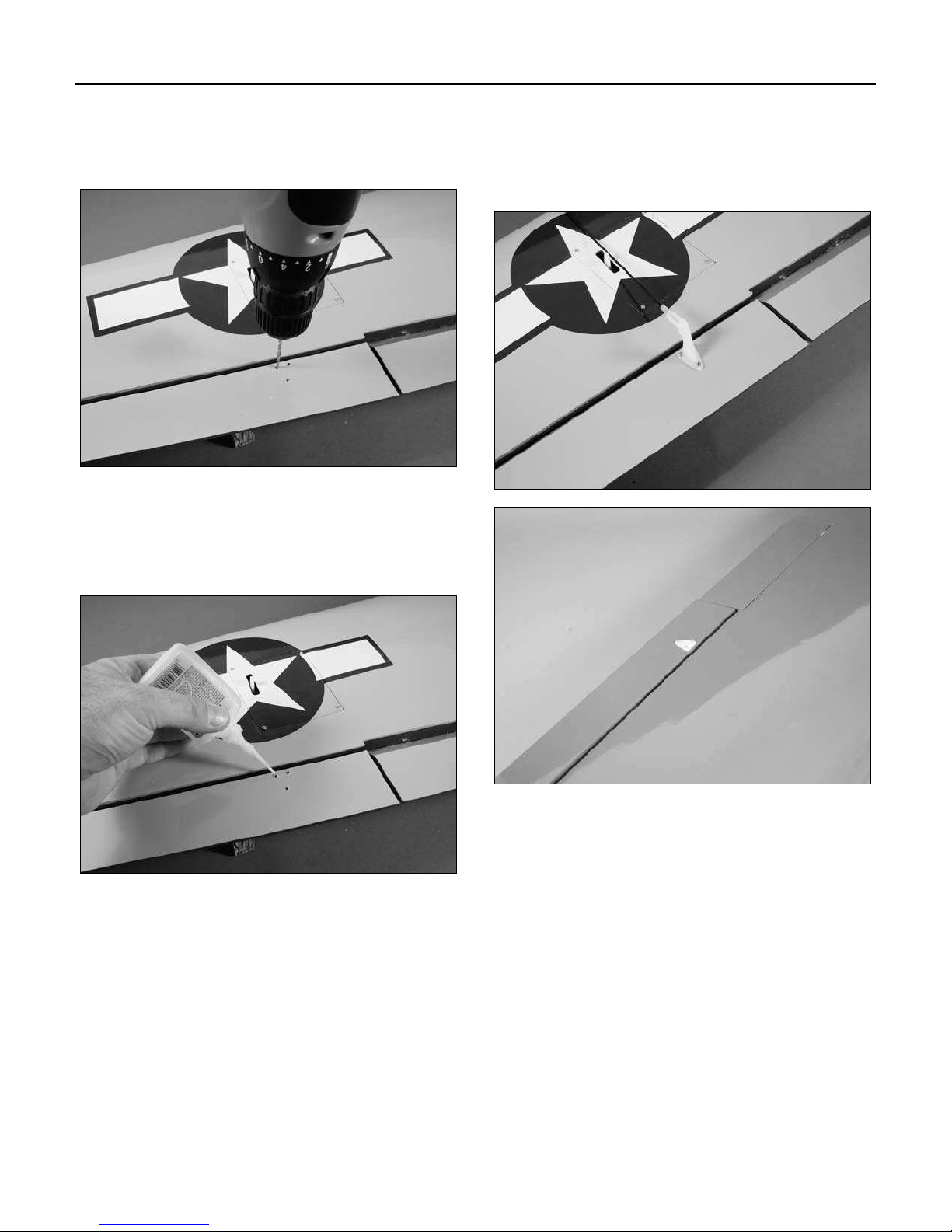

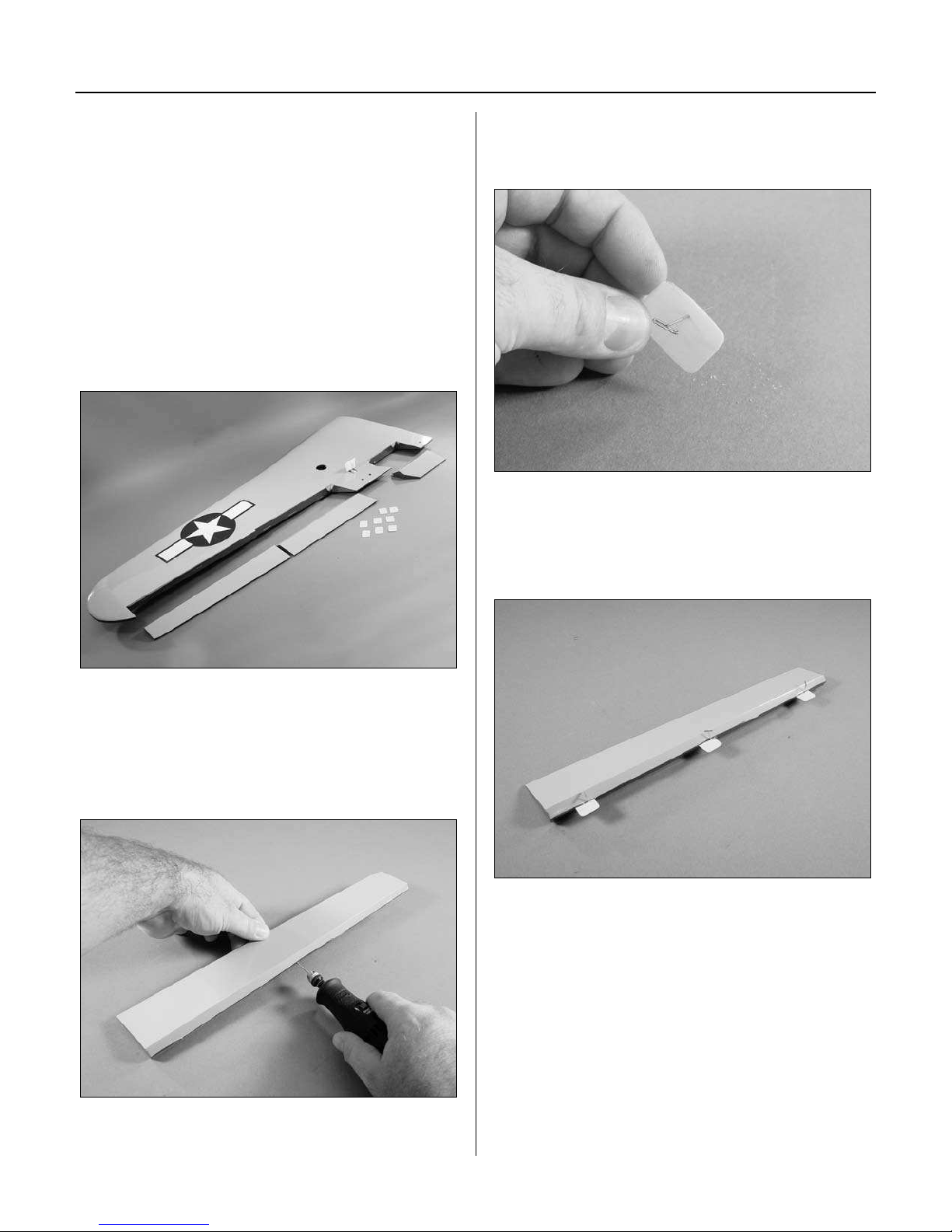

Section 1: Hinging the Flaps and Ailerons ........ 11

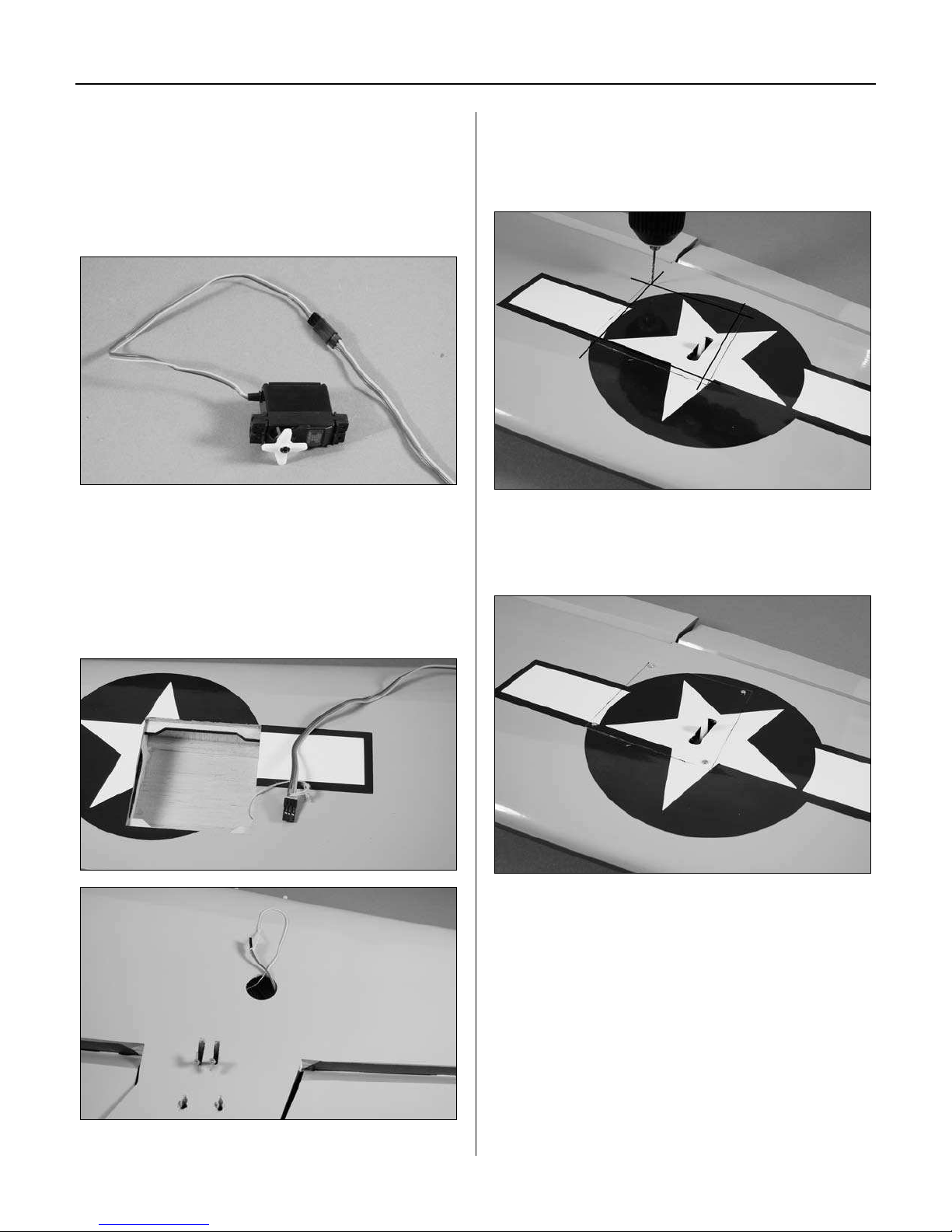

Section 2: Aileron Servo Installation............. 14
Section 3: Fixed Flap Linkage Installation......... 20
Section 4: Operation Flap Linkage Installation ..... 22
Section 5: Electric Motor Installation ............ 26
Section 6: Glow Engine Installation ............. 30
Section 7: Fixed Landing Gear Installation . . . . . . . . 39
Section 8: Retractable Landing Gear Installation.... 44
Section 9: Retract Valve and Hardware ........... 52
Section 10: Engine Nacelle Installation........... 54
Section 11: Wing Installation .................. 57
Section 12: Rudder and Servo Installation ........ 59
Section 13: Tail Section Installation ............. 64
Section 14: Receiver, Battery
and Scale Accessories .............. 68
Recommended Center of Gravity (CG) ........... 72
Control Throws ............................. 73
Range Test Your Radio ....................... 73
Retract Air line Routing Diagram................ 74
Pre-Flight ................................. 75
Engine Run-In Instructions .................... 75
Takeoff.................................... 76
Landing................................... 76
Engine Out ................................ 77
2007 Official AMA
National Model Aircraft Safety Code ............. 78

3
Using the Manual
This manual is divided into sections to help make assembly easier to understand, and to provide breaks between each
major section. In addition, check boxes have been placed next to each step to keep track of each step completed. Steps
with a single box () are performed once, while steps with two boxes () indicate that the step will require
repeating, such as for a right or left wing panel, two servos, etc. Remember to take your time and follow the directions.
Required Tools and Adhesives
Tools
• Felt-tipped pen or pencil • Flat screwdriver• Adjustable wrench • Drill• Hobby knife • Masking tape• Phillips screwdriver (large) • Phillips screwdriver (small)• Ruler • Sandpaper• Soldering iron • Solder• Hex wrench: 3/32-inch, 2mm, 9/64, 3/16, (1.5mm included with kit)• Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm), 7/64-inch (3mm), 9/64-inch (3.5mm),
5/32-inch (4mm), 7/32-inch (5.5mm), 1/4-inch (6mm)
Adhesives
• Formula 560 Canopy Glue (PAAPT56) • Pacer Z-42 Threadlock (PAAPT42)• Thin CA (cyanoacrylate) Glue (PAAPT07) • CA Remover/Debonder (PAAPT16)• 30-minute epoxy (HAN8002)UltraCote Covering Colors
• Olive Drab HANU904 • Light Gray HANU882• White HANU870 • Sky Blue HANU875• Dark Yellow HANU889Before Starting Assembly
Before beginning the assembly of the B-25 Mitchell, remove each part from its bag for inspection. Closely inspect
the fuselage, wing panels, rudders, and stabilizer for damage. If you find any damaged or missing parts, contact the
place of purchase.
If you find any wrinkles in the covering, use a heat gun or sealing iron to remove them. Use caution while working
around areas where the colors overlap to prevent separating the colors.

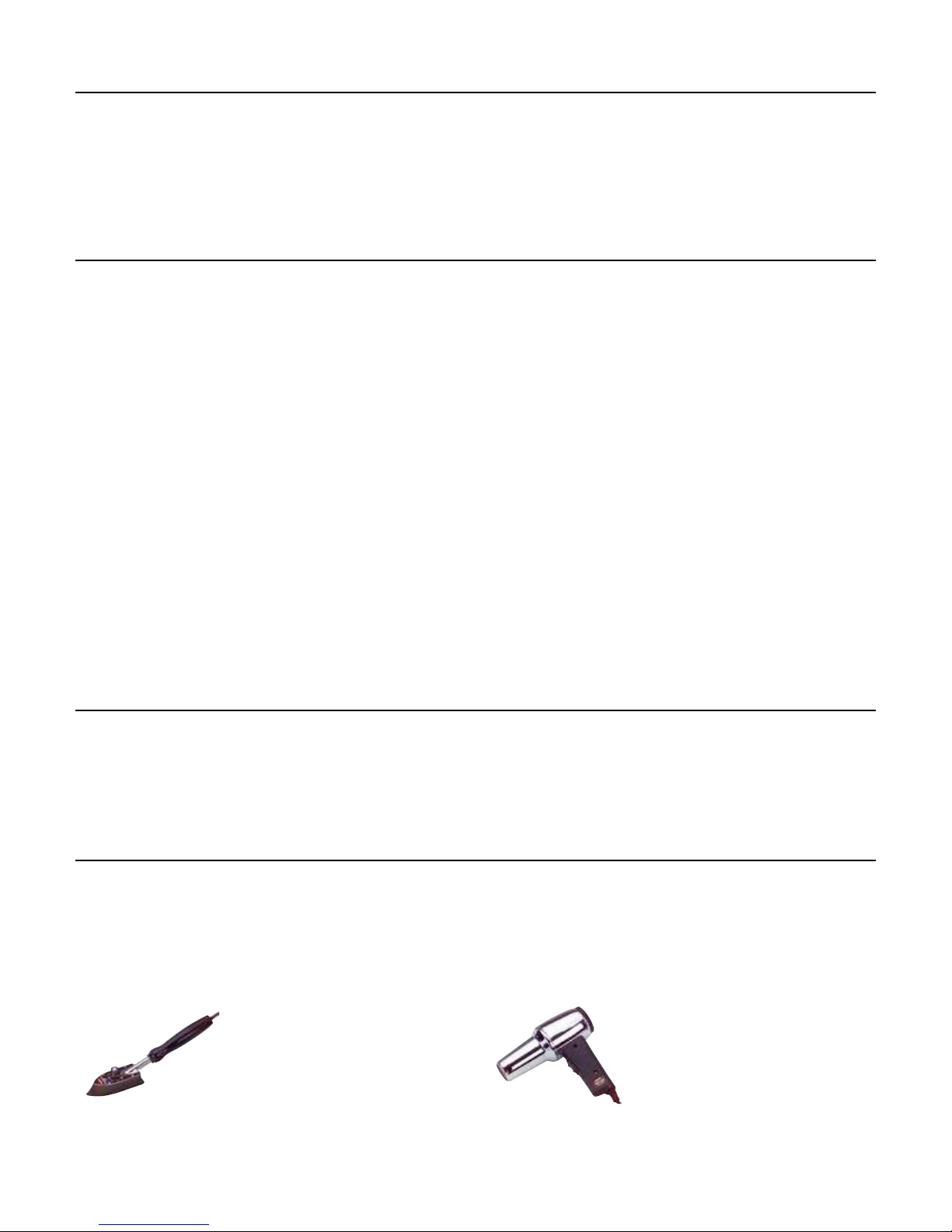

HAN100 – Heat Gun
HAN150 – Covering Glove
HAN101 – Sealing Iron
HAN141 – Sealing Iron
Sock

4

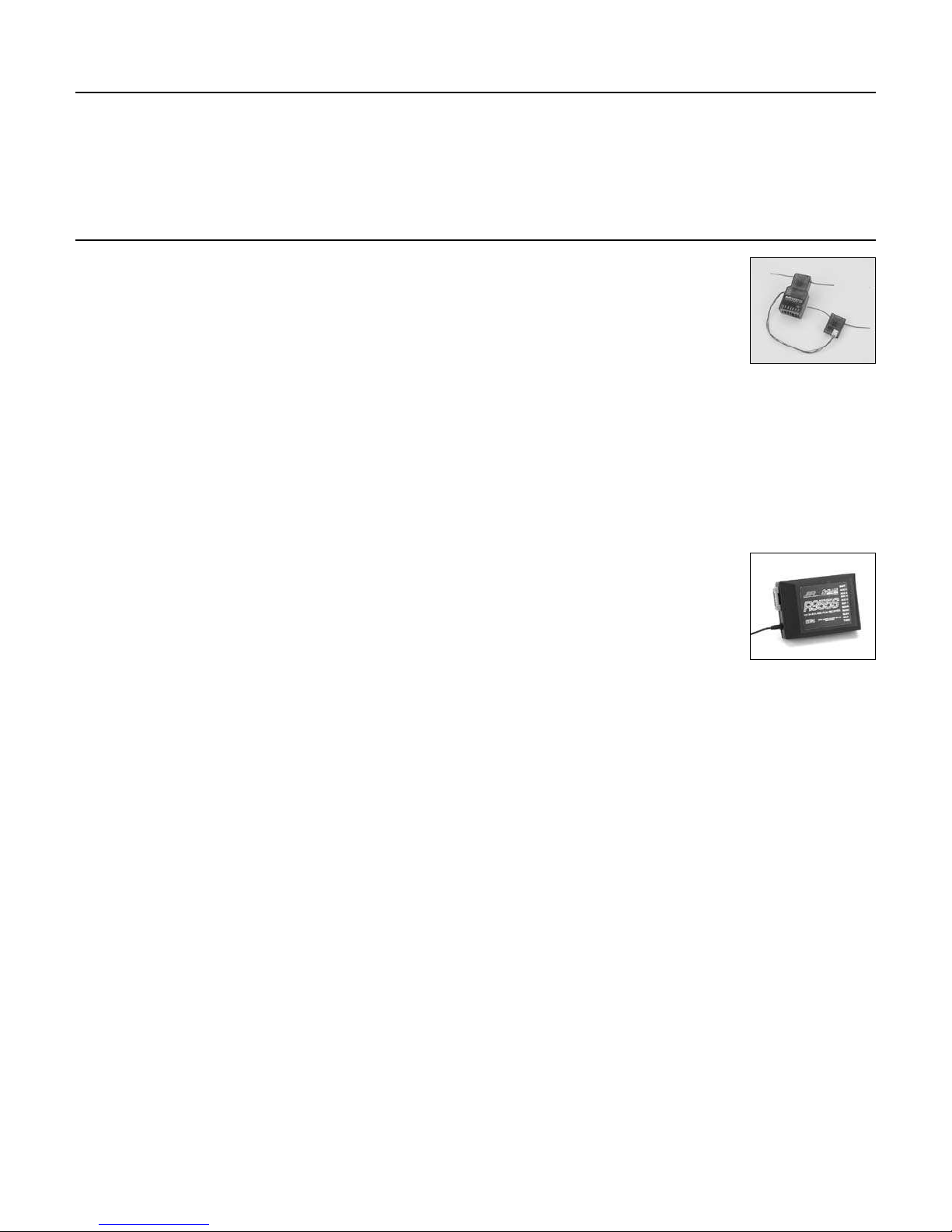

Radio and Power Systems Requirements
• JR Charge Switch (JRPA004)• 2400mAh Ni-Cd 5 cell (JRPB4470)*
*The additional weight of this Sub C battery pack will help in achieving the correct CG balance of the B-25 modelRequired Servo Extensions
7-Channel Radio Setup:
Channel Function Extension Notes
1 and 7 Throttle 18-inch (JSP98120) (2), 6-inch (JSP98110) (2)
2 Aileron 18-inch (JSP98120) (2), “Y” harness (JSP98020)
3 Elevator None
4 Rudder/Nose wheel “Y” harness (JSP98020) (2), 24-inch (JSP98040) Reverse servo required for
nose wheel
5 Retracts None
6 Flaps “Y” harness (JSP98020), 12-inch (JSP98030) One reverse servo required
9-Channel Radio Setup:
Channel Function Extension Notes
1 Throttle (right) 18-inch (JSP98120), 6-inch (JSP98110)
2 Aileron 18-inch (JSP98120) (2), “Y” harness (JSP98020)
3 Elevator None
4 Rudder “Y” harness (JSP98020), 24-inch (JSP98040)
5 Retracts None
6 Flap (right) 12-inch(JSP98030), 6-inch(JSP98110)
7 Flap (left) 12-inch(JSP98030), 6-inch(JSP98110)
8 Throttle (left) 18-inch (JSP98120), 6-inch (JSP98110)
9 Nose wheel 6-inch (JSP98110)

5

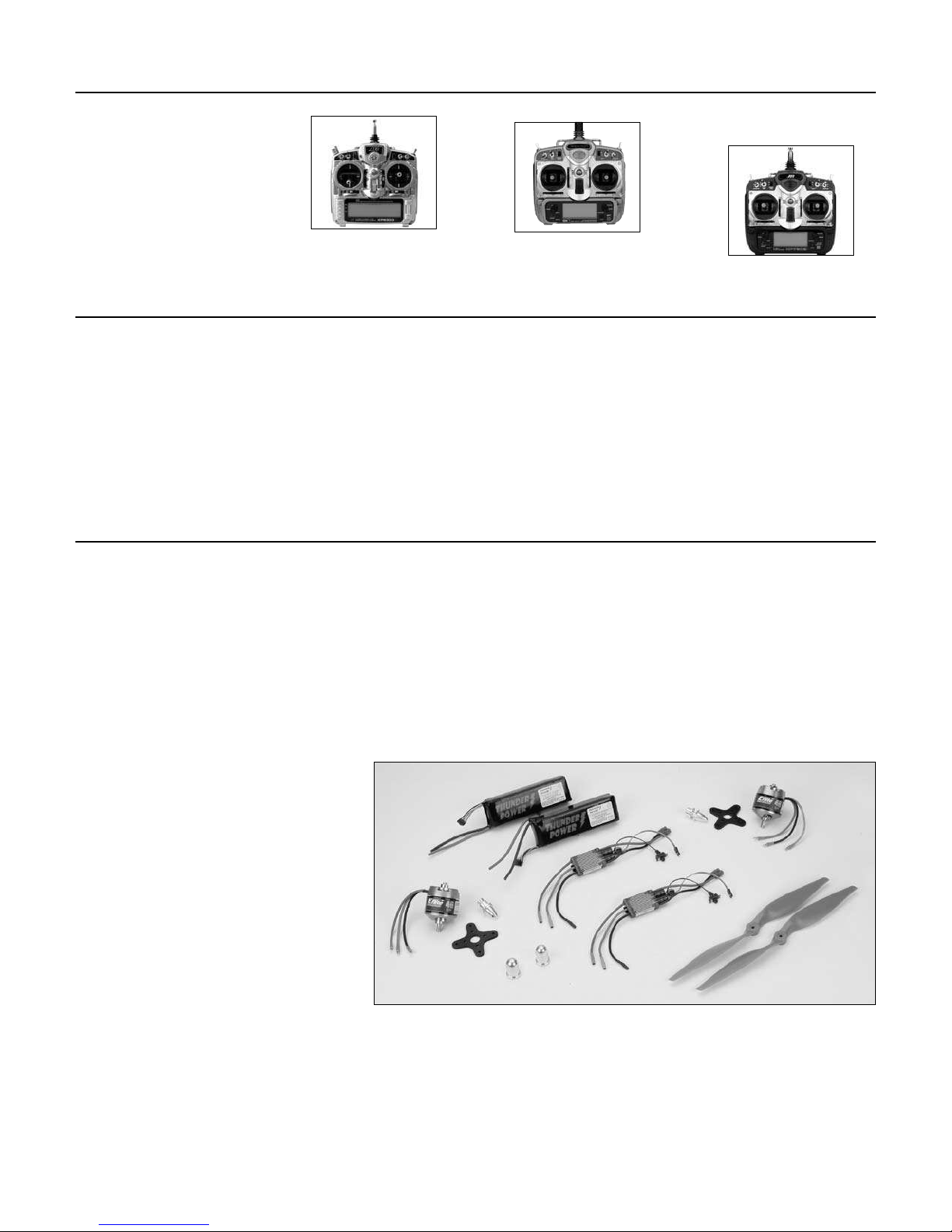

Recommended JR, JR SPORT and Spektrum Systems
• 10X• XP9303• XP7202• DX7• XP6102• XS600Recommended Setup–Glow
• Evolution .36NT 2-Stroke Glow Engine with Muffler (EVOE0360) (2)• 6-channel or more radio system• 8 JR Digital Sport Hi-Torque DS821 Servos or JR SPORT High-Torque ST126MG Servos• 2 JR 331 Micro Servos (JRPS331) (3 if adding optional retracts)• 3/4" Spinner Nut (TRU7A140 1/4-28 Threads) (2)• 10.5x4 3-Blade Propeller (EVOE100P) to 11 x 4 2-Blade Propeller (APC11040) (2)Recommended Setup–Electric
• Power 46 BL outrunner motor (EFLM4046A) (2)• 60 amp ESC (EFLM1060) (2)• Thunder Power 4S 14.8V 3850mAh to 4200mAh Li-Po (2 required)• 6-channel or more radio system• 6 JR Digital Sport Hi-Torque DS821 Servos or JR SPORT High-Torque ST126MG Servos• 2 JR 331 Micro Servos (JRPS331) (3 if adding optional retracts)• 3/4" Spinner Nut (TRU7C516 5/16-24 Threads) (2)• 13x8E Propeller (APC13080E) (2)JR XP9303
JR XP7202
Spektrum DX7
Spektrum is used with permission of
Bachmann Industries, Inc.

6

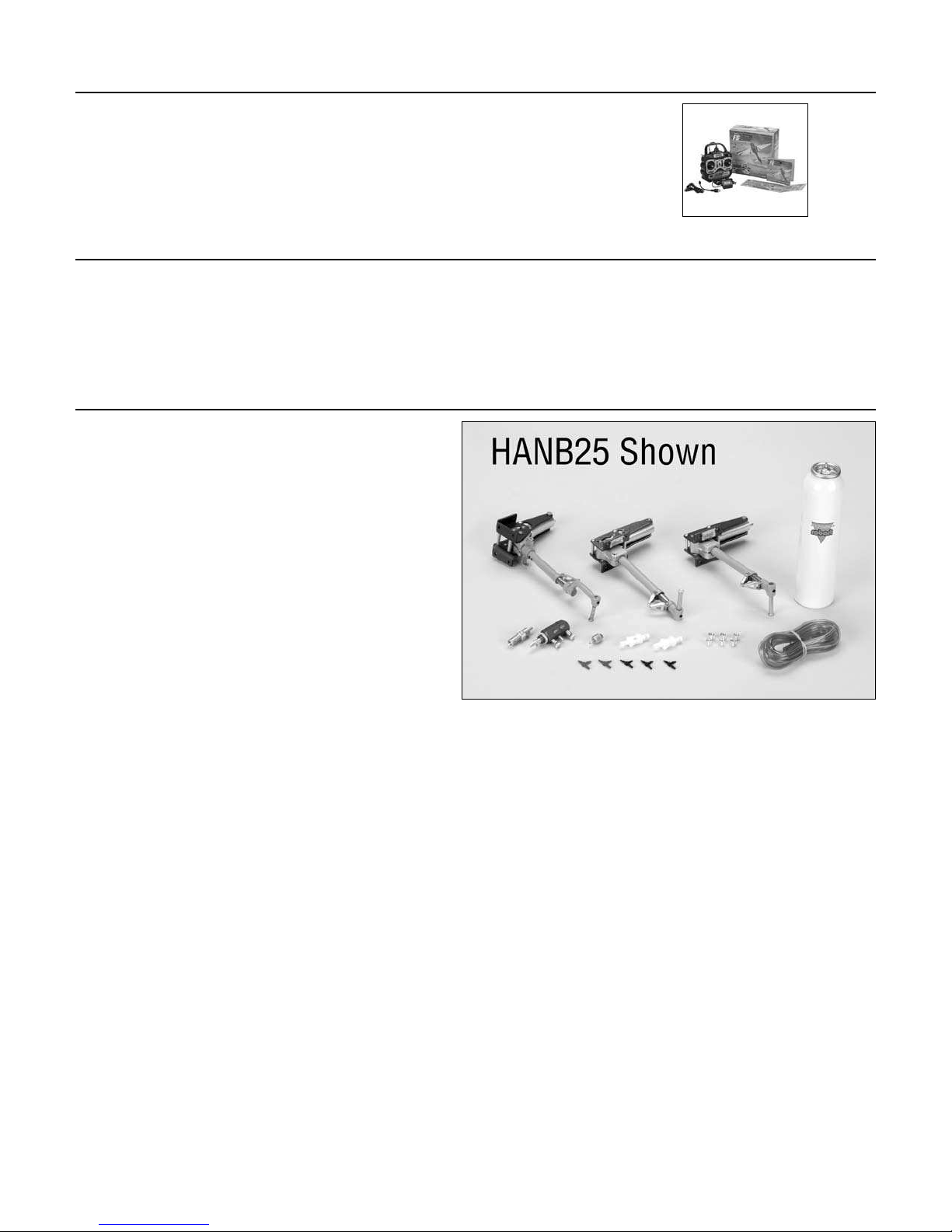

FS One (Precision Flight Simulator) w/Mode 2 Controller
With FS One®you get more than photorealistic fields, gorgeous
skies and realistic-looking aircraft. You get incredibly advanced
aerodynamic modeling that simulates every possible aspect
of real-world flight.
Field Equipment
• Propeller • Fuel• Glow Plug Wrench (HAN2510) • Glow Plug Igniter w/Charger(HAN7101)• Glow Plug (EVOGP1) • Manual Fuel Pump (HAN118)Optional Retracts
Hangar 9 offers two versions of Robart retractable landing
gear for the B-25 Mitchell:
HANB25 (Includes the following parts)
• Robart tricycle retracts • Robostruts*• Retract valve • Air Tubing• Filler valve • “T” fittings• Quick disconnects • Air Tank*The Robostruts are factory cut to the correct length.HANB25S (Includes the following parts)
• Robart tricycle retracts • Robostruts**The Robostruts are factory cut to the correct length.In addition, you are required to supply:
• ROB164G Robart air pump to fill the air tank Hardware needed to complete optional installation of Robart retracts
• 4-40 x 1-inch socket head bolts (12)• 4-40 blind nuts (12)• #4 washers (12)• #10 washers for axle spacers (6)• 2mm x 2-56 Ball Link (HAN3618) (2)• Material to fabricate the mount for the retract valve.HANS2000

7

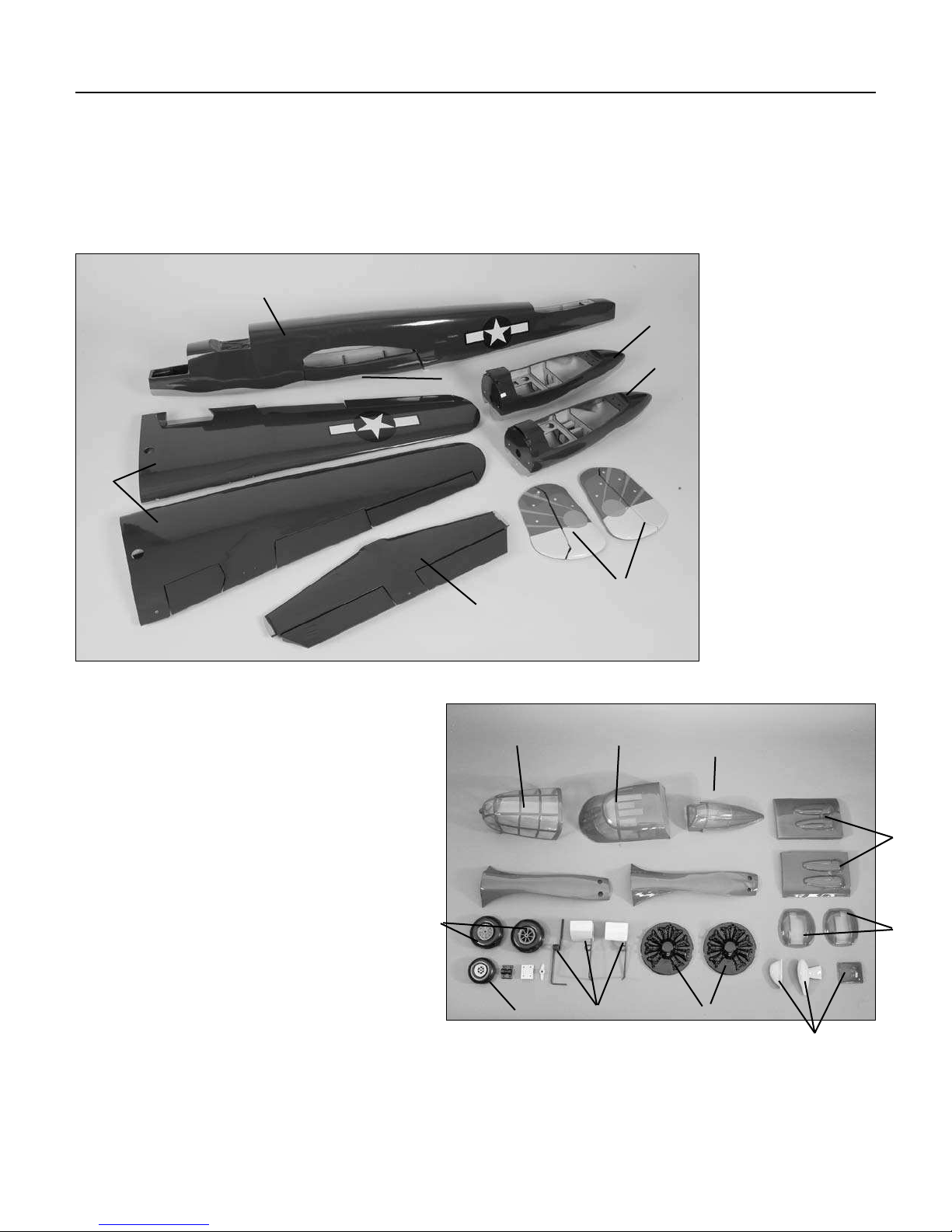

Contents of Kit and Replacement Parts
Replacement Large Parts
A. HAN4452 Wings w/ Flaps & Ailerons B. HAN4451 Fuselage
C. HAN4453 Rudders (pr.) D. HAN4455 Left Nacelle
E. HAN4456 Right Nacelle F. HAN4454 Stabilizer & Elevator
G. HAN4461 Fuselage Bottom Hatch
Replacement Small Parts
1. HAN4463 Front Greenhouse Canopy
2. HAN4464 Main Cockpit Canopy
3. HAN4468 Dummy Radial Engine (ea)
4. HAN4458 Fixed Landing Gear w/o Wheels
5. HAN4466 Right Nacelle Top Cover
6. HAN4465 Left Nacelle Top Cover
7. HAN4459 Canopy Set and Gun Turrets
8. HAN4460 Guns & Radiators
Items not shown
HAN4462 Push Rod Set
HAN4467 Decal Sheet (Nose Art)
HAN4457 Cowl (ea.)
The following Hangar 9 Pro-Lite™wheels can
be used as replacements for the B-25:
8. HAN304 Nose wheel 2 1/2-inch (63mm)
9. HAN307 Main wheel 3 1/4-inch (83mm)
A
B
C
1 2 7
7
5 6
34
8
9
D
E
F
G
8
8

8
Warranty Period
Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the "Product") will be free from defects in materials and workmanship at the date of purchase by the Purchaser.
Limited Warranty
(a) This warranty is limited to the original Purchaser ("Purchaser") and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This warranty covers only those Products purchased from an authorized Horizon dealer. Third party transactions are not covered by this warranty.
Proof of purchase is required for warranty claims. Further, Horizon reserves the right to change or modify this warranty
without notice and disclaims all other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET
THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon's sole obligation hereunder shall be that Horizon will, at its option, (i) repair or (ii)
replace, any Product determined by Horizon to be defective. In the event of a defect, these are the Purchaser's exclusive
remedies. Horizon reserves the right to inspect any and all equipment involved in a warranty claim. Repair or replacement
decisions are at the sole discretion of Horizon. This warranty does not cover cosmetic damage or damage due to acts of
God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product. This warranty
does not cover damage due to improper installation, operation, maintenance, or attempted repair by anyone other than
Horizon. Return of any goods by Purchaser must be approved in writing by Horizon before shipment.
Damage Limits
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM
IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use,
setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or
injury. By the act of use, setup or assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are
advised to return this Product immediately in new and unused condition to the place of purchase.
Law: These Terms are governed by Illinois law (without regard to conflict of law principals).
Safety Precautions
This is a sophisticated hobby Product and not a toy. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury
or damage to the Product or other property. This Product is not intended for use by children without direct adult
supervision. The Product manual contains instructions for safety, operation and maintenance. It is essential to read
and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly
and avoid damage or injury.

9
Questions, Assistance, and Repairs
Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assembly, setup or
use of the Product has been started, you must contact Horizon directly. This will enable Horizon to better answer your
questions and service you in the event that you may need any assistance. For questions or assistance, please direct your
email to [e-mail], or call 877.504.0233 toll free to speak to a service technician.
Inspection or Repairs
If this Product needs to be inspected or repaired, please call for a Return Merchandise Authorization (RMA). Pack
the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed
to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance
for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted
at our facility. A Service Repair Request is available at www.horizonhobby.com on the “Support” tab. If you do not
have internet access, please include a letter with your complete name, street address, email address and phone number
where you can be reached during business days, your RMA number, a list of the included items, method of payment
for any non-warranty expenses and a brief summary of the problem. Your original sales receipt must also be included
for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the
shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your original sales receipt verifying the proof-of-purchase
date. Provided warranty conditions have been met, your Product will be repaired or replaced free of charge. Repair or
replacement decisions are at the sole discretion of Horizon Hobby.
Non-Warranty Repairs
Should your repair not be covered by warranty the repair will be completed and payment will be
required without notification or estimate of the expense unless the expense exceeds 50% of the retail
purchase cost. By submitting the item for repair you are agreeing to payment of the repair without notification. Repair
estimates are available upon request. You must include this request with your repair. Non-warranty repair estimates will
be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Please advise us of your preferred
method of payment. Horizon accepts money orders and cashiers checks, as well as Visa, MasterCard, American Express,
and Discover cards. If you choose to pay by credit card, please include your credit card number and expiration date. Any
repair left unpaid or unclaimed after 90 days will be considered abandoned and will be disposed of accordingly. Please
note: non-warranty repair is only available on electronics and model engines.
Electronics and engines requiring inspection or repair should be shipped to the following address:
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other Products requiring warranty inspection or repair should be shipped to the following address:
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
Please call 877-504-0233 with any questions or concerns regarding this product or warranty.

10
Safety, Precautions, and Warnings
This model is controlled by a radio signal that is subject to interference from many sources outside your control. This
interference can cause momentary loss of control so it is advisable to always keep a safe distance in all directions around
your model, as this margin will help to avoid collisions or injury.
• Always operate your model in an open area away from cars, traffic, or people.• Avoid operating your model in the street where injury or damage can occur.• Never operate the model into the street or populated areas for any reason.• Never operate your model with low transmitter batteries.• Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) that you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.• Moisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed and protected for this purpose.

11
Required Parts
• Wing panel w/ailerons & flaps (right and left)Required Tools and Adhesives
• Rotary tool • T-pins• Drill bit: 1/16-inch (1.5mm) • Thin CA• 30-minute epoxy • Mixing stick• Mixing cupStep 1
Remove the flaps and aileron from the wing panel and set
aside the CA hinges.
Step 2
Use a rotary tool and 1/16-inch (1.5mm) drill bit to drill
a 1/2-inch (12mm) deep hole in the center of each hinge
slot. This provides a tunnel allowing the glue used to
secure the hinges to fully penetrate the hinge.
Step 3
Place a T-pin in the center of each of the eight hinges
removed in Step 1.
Step 4
Slide the hinges back into the aileron. The T-pin will keep
the hinge centered evenly in the aileron and wing when
the aileron is installed.
Section 1: Hinging the Flaps and Ailerons

12
Step 5
Slide the aileron and outer flap into position on the wing.
Make sure the inboard edge of the flap near the center of
the wing, and the outer tip of the aileron near the wing tip
do not bind against the wing. Also make sure the flap and
aileron do not bind against each other.
Step 6
Remove the T-pins from the hinge and push the aileron
tight against the wing. Flex the aileron and apply enough
thin CA to fully penetrate the hinge. Apply CA to both the
top and bottom of the hinge.
Important: Do not use accelerator when
hinging. The CA must be allowed to soak
into the hinge for the best possible bond
between the hinge and surrounding wood.
Step 7
After the CA has fully cured, gently pull on the wing
and aileron to make sure the hinges are secure. If not,
re-glue the hinges.
Step 8
To break in the hinges, you will need to flex the aileron up
and down a number of times.
Section 1: Hinging the Flaps and Ailerons

13
Step 9
Use medium grit sandpaper to sand the flap
torque rods. Use rubbing alcohol and a paper towel
to remove any debris from the torque rod. This will
aid in strengthening the bond between the flap torque
rod and flap.
Step 10
Hinging the flaps follows the same procedure as the
ailerons, except you will need to apply 30-minute epoxy to
the torque rods that enter the flaps.
Step 11
Use medium grit sandpaper to sand the flap
torque rods. Use rubbing alcohol and a paper towel
to remove any debris from the torque rod. This will
aid in strengthening the bond between the flap torque
rod and flap.
Step 12
Hinging the flaps follows the same procedure as the
ailerons, except you will need to apply 30-minute epoxy to
the torque rods that enter the flaps.
Step 13
Repeat Steps 1 though 12 for the remaining wing panel.
Section 1: Hinging the Flaps and Ailerons

14
Required Parts
• Assembled wing panel (right and left)• Servo w/hardware (2) • Control horn (2)• Pushrod connector (2) • Nylon clevis (2)• Servo mounting block (4)• 6-inch (152mm) pushrod wire (2)• 2-56 x 7/8-inch machine screw (6)• #2 x 3/8-inch sheet metal screw (8)• 1/4-inch (6mm) heat shrink tubing• 18-inch (457mm) servo extension (2)• 11/8x 1/4-inch (28mm x 6mm) dowel
• 11/8x 5/16-inch (28mm x 8mm) dowel (2)
Required Tools and Adhesives
• Drill • Thin CA• Phillips screwdriver • Long servo arm• 30-minute epoxy • Hobby knife• Pencil • Felt-tipped pen• Drill bit: 1/16-inch (1.5mm), 5/32-inch (2mm)Step 1
Remove the servo cover from the wing. Use a sharp hobby
knife to remove the covering from the opening in the cover
so the servo arm can extend outside the cover.
Step 2
Position the aileron servo on the cover with the servo arm
centered in the opening. Use a pencil to mark the cover
where the flap servo is positioned.
Step 3
Use 30-minute epoxy to glue the servo mounting
blocks to the servo cover. Allow the epoxy to fully
cure before proceeding.
Section 2: Aileron Servo Installation

15
Step 4
Position the servo between the servo mounting
blocks. Make sure the servo is not resting on the
servo cover, which will transfer vibrations to the servo.
Use a felt-tipped pen to mark the locations for the servo
mounting screws.
Step 5
Use a drill and 1/16-inch (1.5mm) drill bit to drill the four
holes for the servo mounting screws.
Step 6
Apply a few drops of thin CA into each of the holes to
harden the surrounding wood to provide a stronger
surface for the screws to bite into.
Step 7
Mount the servo to the blocks using the hardware
provided with the servo.
Section 2: Aileron Servo Installation

16
Step 8
Secure an 18-inch (457mm) servo extension to the servo
lead for the aileron. Make sure to secure the servo lead
to the extension using string or a commercially available
connector to prevent them from becoming disconnected
inside the wing.
Step 9
Tie the string that has been installed inside the wing
to the servo extension. Use the string to pull the servo
leads through the wing and to the opening of the wing
panel near the flap servo. You will pull the flap servo leads
and the throttle servo leads with this same pull string.
Step 10
Use a drill and 1/16-inch (1.5mm) drill bit to drill four
holes, approximately 1/8-inch (3mm) from the corners of
the servo cover.
Step 11
Use four #2 x 3/8-inch sheet metal screws to secure the servo cover to the wing.
Section 2: Aileron Servo Installation

17
Step 12
Cut two 1/4-inch (4mm) long pieces from the heat
shrink tubing and slide it onto each of the clevises.
Thread a nylon clevis onto the 6-inch (152mm) aileron
pushrod wire.
Step 13
Remove the backplate from a control horn. Connect the
clevis to the horn and position the horn so the pushrod
is parallel to the servo horn. Align the holes in the horn
with the hinge line. Use a felt-tipped pen to transfer the
locations for the mounting screws on the aileron.
Align holes
with hinge line
Section 2: Aileron Servo Installation

18
Step 14
Use a drill and 5/32-inch (2mm) drill bit to drill the three
mounting holes through the aileron.
Step 15
Apply a few drops of thin CA into each hole to harden the
surrounding wood. You may need to run the drill bit back
through the holes after applying the CA.
Step 16
Attach the control horn to the aileron using three
2-56 x 7/8-inch machine screws and the control
horn backplate.
Section 2: Aileron Servo Installation

19
Step 17

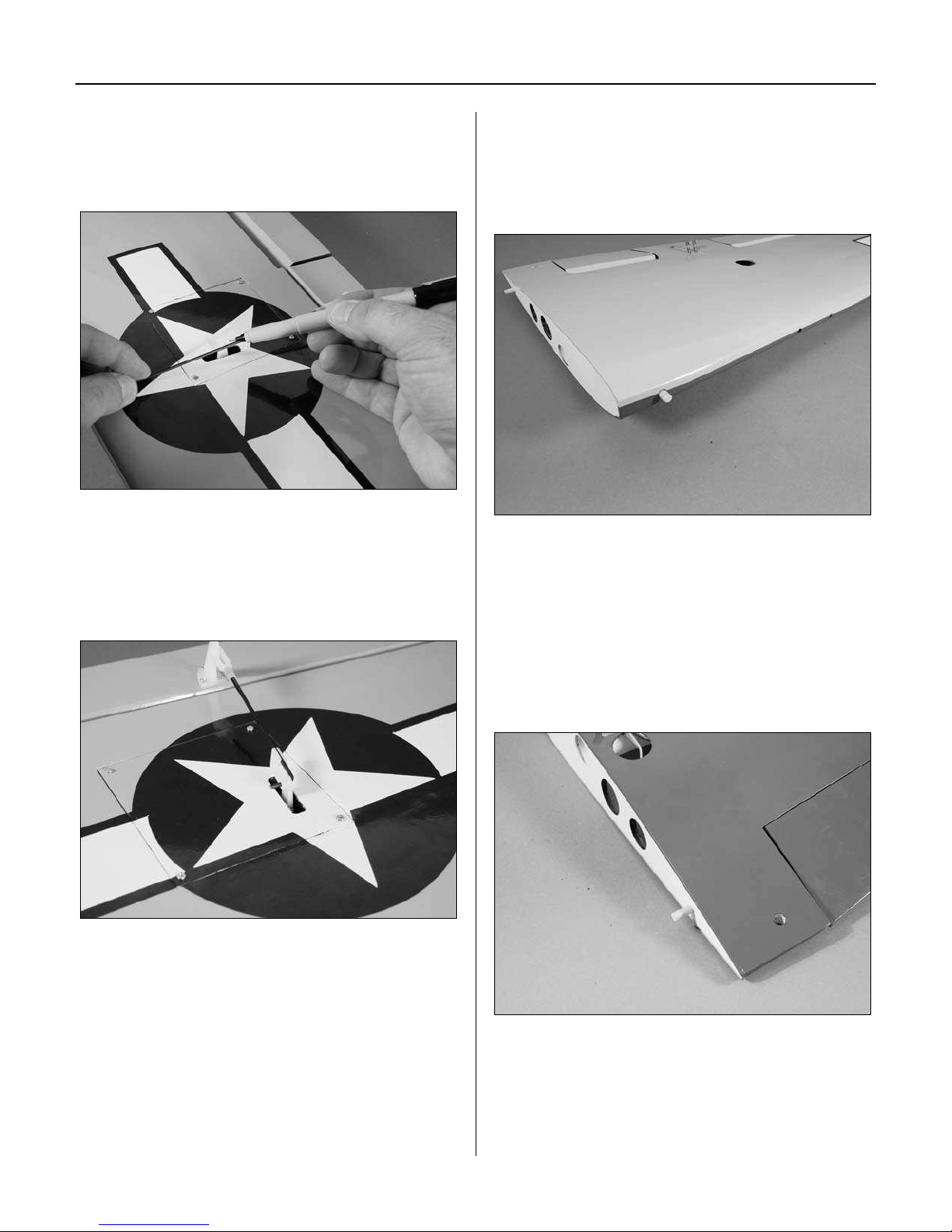

Hold the aileron so it is aligned in the centered position.
With the servo centered, use a felt-tipped pen to mark
where the pushrod crosses the servo arm.
Step 18
Bend the pushrod wire 90 degrees at the mark made in
the previous step. Use a pushrod connector to secure the
pushrod to the servo arm. Use side cutters to remove any
excess wire extending beyond the connector.
Step 19
Use 30-minute epoxy to glue the 1 1/8x 5/16-inch
(28mm x 8mm) wing dowel in the wing. Press the
dowel into the wing and clean any excess epoxy from
the dowel and wing.
Step 20
Repeat Steps 1 though 19 for the remaining wing panel.
Step 21
Use 30-minute epoxy to glue the 1 1/8x 1/4-inch
(28mm x 6mm) wing dowel in the wing. Press the
dowel into the wing and clean any excess epoxy from
the dowel and wing.
Section 2: Aileron Servo Installation
