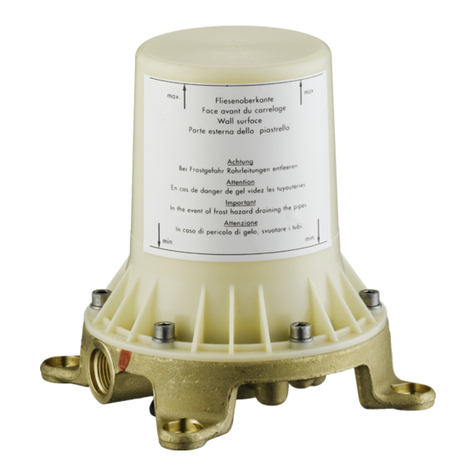

Hans Grohe AXOR ShowerSelect Soft Cube 36707 7 Series User manual

INSTALLATION
ZH ⁄ 用户手册 ⁄ 组装说明 02
EN ⁄ Instructions for use ⁄ Assembly instructions 04
Lesezeichen
中文 02
English 04
°C
40
°C
40
AXOR ShowerSelect Square
36715X X7
AXOR ShowerSelect Soft Cube
36707XX7

02
ZH
安全技巧
装配时为避免挤压和切割受伤，必须戴上手套。
本产品只允许作为洗浴、卫生和洁身之用。
不得让儿童和肢体、精神和⁄或意识有障碍的成人
在不受监管的情况下使用淋浴系统。受酒精或毒
品影响的人员不得使用淋浴系统。
冷热水管间过大的压力差必须予以平衡。
安装提示
⁄ 安装前必须检查产品是否受到运输损害。 安装后
将不认可运输损害或表面损伤。
⁄ 管道和阀门必须根据通用标准进行安装、冲洗和
检查。
⁄ 请遵守当地国家现行的安装规定。
⁄ 如果将恒温器或冷热水混合器调最大温度，闭锁
阀液压开口处可能造成烫伤。Hansgrohe 建议您设
置到“安全模式”。
技术参数
工作压强： 最大 1 MPa
推荐工作压强： 0,1 - 0,5 MPa
测试压强： 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
热水温度： 最大 60°C
热力消毒: 70°C ⁄ 4 分钟
⁄ 自动防止回流
⁄ 该产品专为饮用水设计！
符号说明
请勿使用含有乙酸的硅胶！
安全功能(参见第页 12 )
恒温阀芯的安全功能可以预先设定所希望的
最高出水温度，例如最高温度为42℃
调节(参见第页 12 )
安装完成后必须检查调温器的出水温度。如
在取水处测量所得的温度与调温器上设定的
温度有偏差，那么必须进行调整。
保养(参见第页 14)
⁄ 单向阀必须在符合国家或当地的法律的情
况下按照EN 806-5定期检查 (至少一年一
次) 。
⁄ 为了保证恒温器的稳定运转，请务必定期
从最热到最冷转动调温器。
大小(参见第页 17)
流量示意图(参见第页 17 )
时的流速
 出水口 1
 出水口 2
备用零件(参见第页 18 )
XX = 颜色代码
00 = 镀铬
34 = Brushed Black Chrome
67 = Matt Black
99 = Polished Gold-Optic
选装附件(参见第页 18 )
不在供货范围内
⁄ 加长 25 mm #13595000
⁄ 加长件22mm (墙壁不够深时) 97407XX0,
#98860XX0
⁄ 调平装置 1° #95521000
⁄ 螺母 + 法兰 #92696000
清洗(参见第页 20)
操作(参见第页 16)
+

03 ZH
安装(参见第页 06)
问题 原因 补救
⁄龙头出水量小 ⁄ 水压不足 ⁄ 检查总水压
⁄ 调压器过滤网脏污 ⁄ 清洁龙头前面和恒温阀芯的过滤
网。
⁄ 花洒滤网有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤网
⁄串水，在龙头关闭的状态下，热水
被强迫流入冷水管路，或者相反。 ⁄ 单向阀有垃圾堵塞或漏水 ⁄ 清洗单向阀，如有必要则更换新的
⁄龙头出水温度和温度设定的不符 ⁄ 恒温阀芯未被调节 ⁄ 调节恒温器
⁄ 热水温度过低 ⁄ 将热水温度从42ºC升高到60ºC
⁄水温无法调节 ⁄ 恒温阀芯表面结垢 ⁄ 更换-恒温阀芯
⁄ 对于新的安装：基体连接不正确 (
可能是：右冷，左热) 或者安装时
旋转180º
⁄ 安装功能块时，旋转180º
⁄安全停止按钮不工作 ⁄ 弹簧损坏
⁄ 按钮僵化
⁄ 清洁弹簧和⁄或按钮，并视需要更换
⁄阀门不灵活 ⁄ Select 停止阀 DN9 件损坏 ⁄ 更换 Select 停止阀 DN9
⁄花洒或龙头出水嘴滴水 ⁄ Select 停止阀 DN9 件损坏 ⁄ 更换 Select 停止阀 DN9
⁄无法按下按键或按键不起作用 ⁄ 锁止阀保险装置未移除 ⁄ 移除锁止阀保险装置
⁄按键卡住，难以正常使用 ⁄ 不再润滑密封件 ⁄ 润滑密封件
⁄确保按键未处于按下状态 ⁄ 正确截短调节转接器 ⁄ 按照图 7 截短并安装调节转接器
(参见第页 07 + 10 )
⁄ 将按键完全卡入装饰花，然后装上
装饰花

04
EN
SAFETY NOTES
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
Children as well as adults with physical, mental and⁄or
sensoric impairments must not use this product without
proper supervision. Persons under the influence of
alcohol or drugs are prohibited from using this product.
The hot and cold supplies must be of equal pressures.
INSTALLATION INSTRUCTIONS
⁄ Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
⁄ The pipes and the fixture must be installed, flushed and
tested as per the applicable standards.
⁄ The plumbing codes applicable in the respective
countries must be observed.
⁄ If the thermostat or mixer is set to maximum water
temperature, there is a risk of scalding at hydraulical
opening of the check valve. For this reason, Hansgrohe
recommends that you set up the "Safety Function".
TECHNICAL DATA
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: 70°C ⁄ 4 min
⁄ Safety against backflow
⁄ The product is exclusively designed for drinking water!
SYMBOL DESCRIPTION
Do not use silicone containing acetic acid!
SAFETY FUNCTION (see page 12 )
The desired maximum temperature for example
max. 42º C can be pre-set thanks to the safety
function.
ADJUSTMENT (see page 12 )
After the installation, the output temperature of
the thermostat must be checked. A correction is
necessary if the temperature measured at the
output differs from the temperature set on the
thermostat.
MAINTENANCE (see page 14 )
⁄ The check valves must be checked regularly
according to EN 806-5 in accordance with
national or regional regulations (at least once
a year).
⁄ To guarantee the smooth running of the
thermostat, it is necessary from time to time to
turn the thermostat from total hot to total cold.
DIMENSIONS (see page 17)
FLOW DIAGRAM (see page 17 )
free flow
 Outlet 1
 Outlet 2
SPARE PARTS (see page 18 )
XX = Colors
00 = Chrome Plated
34 = Brushed Black Chrome
67 = Matt Black
99 = Polished Gold-Optic
SPECIAL ACCESSORIES
(see page 18 )
order as an extra
⁄ extension 25 mm #13595000
⁄ Extension Set 22 mm (when wall is not deep
enough) 97407XX0, #98860XX0
⁄ levelling set 1° #95521000
⁄ nut + flange #92696000
CLEANING (see page 20)
OPERATION (see page 16 )
+

05 EN
ASSEMBLY (see page 06 )
FAULT CAUSE REMEDY
⁄ Insufficient water ⁄ Supply pressure inadequate ⁄ Check water pressure (If a pump has
been installed check to see if the pump
is working).
⁄ Regulator filter dirty ⁄ Clean filter in front of the mixer and on
the MTC-thermo cartridge
⁄ Shower filter seal dirty ⁄ Clean filter seal between shower and
hose
⁄ Crossflow, hot water being forced into
cold water pipe, or vice versa, when
mixer is closed
⁄ Backflow preventers dirty or leaking ⁄ Clean backflow preventers, exchange
if necessary
⁄ Spout temperature does not
correspond with temperature set
⁄ Thermostat has not been adjusted ⁄ Adjust thermostat
⁄ Hot water temperature too low ⁄ Increase hot water temperature to
42 ºC to 60 ºC
⁄ Temperature regulation not possible ⁄ thermo cartridge calcified ⁄ Exchange thermo cartridge
⁄ For new installations: basic body incor-
rectly connected (should be: cold right,
hot left) or installed with 180º rotation
⁄ Install function block turned through
180º
⁄ Safety stop button not operating ⁄ Spring defective
⁄ Button calcified
⁄ Clean spring and ⁄or button, exchange
if necessary
⁄ Valve stiff ⁄ Select stop valve DN9 damaged ⁄ Exchange Select stop valve DN9
⁄ Shower or spout dripping ⁄ Select stop valve DN9 damaged ⁄ Exchange Select stop valve DN9
⁄ Pushbutton cannot be actuated or is
without function
⁄ Safety guard of isolating valve has not
been removed
⁄ Remove safety guard from isolating
valve
⁄ Pushbutton is jammed or stiff ⁄ Seal needs greasing ⁄ Grease the seal
⁄ Pushbutton does not snap in ⁄ Select Adapter incorrectly trimmed ⁄ Trim and mount Select Adapter accord-
ing to Fig. 7 (see page 07 + 10 )
⁄ First, fully press the pushbutton down
into the rosette; then, mount the rosette

06
SW 4 mm
SW 4 mm
(5 Nm)
Armaturenfett
Grease
䀵滑油
3.
1.
2.
2.
1.
1.
2.
01700187
1.
2.
1 2
3 4
5 6
SW 5 mm
1 - 2 mm
Montage

07
SW 4 mm
1.
2.
0 mm
> 0 mm
7
8
910
Montage Sicherung

08
X + 11
X
1 - 2 mm
(0,1 Nm)
SW 10 mm
2 Nm
11 12
13 14
15 16
Montage

09
°C
40
1.
2.
40
°C
1.
2.
°C
40
1.
2.
2.
1.
1.
2.
17 18
19 20
21 22
Montage

10
0 mm
A
< 0 mm
°C
40
1.
2.
CLICK
23 24
40
°C
40
°C
A B
C
3.
2.
2.
1.
1.
SW 3 mm
SW 3 mm
(1 Nm)
°C
40
40
°C
D E
CLICK
Montage Select-Adapter kürzen 2

11
40
°C
max. 5°
25
0°
SW 4 mm
(5 Nm)
SW 4 mm Ø 7 mm
1.
2.
A B
C D
MontageMutter + KappeSelect-Adapter kürzen 2

12
例如 42° C
for example 42° C
2.
1.
1.
2.
SW 3 mm
1.
2.
40
°C
40
°C
40
°C
40
°C
1.
CLICK
2.
1 2
3 4
123
Justierung Safety Function

13
2.
1.
°C
40
1.
2.
40
°C
1.
2.
CLICK
1. 2.
SW 3 mm
(1 Nm)
5 6
7 8
9
Justierung ⁄ Safety Function

14
SW 27 mm
°C
40
2.
3.
1.
SW 4 mm
1
3
5
2
4
6
Wartung

15
红色 ⁄ red
SW 4 mm
(5 Nm)
SW 27 mm
(8 Nm)
40
°C
40
°C
CLICK 2.
1.
3.
(0,1 Nm)
7
9
11
8
10
12
Wartung

16
>40°
C
1.
2.
40
°C
40
°C
40
°C
40
°C
Bedienung

17
°C
40
2
1
54 116
44Ø
170 / 170
22
54-82
44Ø
170
170
2
1
AXOR ShowerSelect Soft Cube
36707XX7
AXOR ShowerSelect Soft Cube
36707XX7
AXOR ShowerSelect Square
36715X X7
22
54-82
44Ø
54 116
170/170
44Ø
170
170
AXOR ShowerSelect Square
36715X X7
bar
0612 18 24 30 36 42 48
MPa
0 0,2 0,4 0,6 0,8
Q = l/min
Q = l/sec
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
1
2
Maße Durchflussdiagramm

18
+
97980000
98133000
(16x2)
96525000
(M5x20)
98156000
(36x2)
94073000
95758000
98368000
(M28x1
92219000
96454000
(M5x55)
98793000
(Ø145 mm)
98197000
(20x1,5)
98282007
98146000
(25x1,5)
92146000
(25x2,5)
98913000
(M34x1, 5)
95843000
92840XX0
92216X X0
92594000
93029XX0
(170 ⁄ 170 mm)
92696000
92544610
95508000
(48x3)
AXOR ShowerSelect Soft Cube
36707XX7
92540000
93571610
93573610
98860XX0
(22 mm)
95521000
(1°)
92696000 9357 7610
13595000
(25 mm)
Serviceteile Sonderzubehör

19
+
97980000
98133000
(16x2)
96525000
(M5x20)
98156000
(36x2)
94073000
95758000
98368000
(M28x1
92219000
96454000
(M5x55)
98793000
(Ø145 mm)
98197000
(20x1,5)
98282007
98146000
(25x1,5)
92146000
(25x2,5)
98913000
(M34x1, 5) 93571610
93573610
95843000
92840XX0
92216X X0
92594000
92544610
95508000
(48x3)
92642XX0
(170 ⁄ 170 mm)
92696000
AXOR ShowerSelect Square
36715X X7
92540000
974 07 X X 0
(22 mm)
95521000
(1°)
92696000 9357 7610
13595000
(25 mm)
Serviceteile⁄Sonderzubehör

20
, , , , ,
,
.
,
.
, :
⁄ .
⁄ , , ,
.
⁄ .
⁄ .
⁄ ,
, .
⁄ .
⁄ ,
.
⁄ .
⁄ ,
. ,
.
⁄ ,
.
⁄ , .
, , , , , ,
.
: .
,
.
.

.
AXOR , .
,AXOR .
www.hansgrohe-int.com/guarantee.
.
QUICKCLEAN
QuickClean, , ,
.
Reinigung
