Hans Grohe Raindance Select E120 User manual

Raindance Select E 120
04528xx0
Raindance Select S 120
04529xx0
EN Installation / User Instructions / Warranty
FR Instructions de montage / Mode d'emploi / Garantie
ES Instrucciones de montaje / Manejo / Garantía

2
Technical Information
Flow rate 2.0 GPM
Installation Considerations
• For best results, Hansgrohe recommends that
this unit be installed by a licensed, profes-
sional plumber.
• Please read over these instructions thoroughly
before beginning installation. Make sure that
you have all tools and supplies needed to
complete the installation.
• Model 04528xx0: This handshower is for
use with automatic compensating valves rated
at 1.9 GPM (7.2 L/min.) or less.
• Model 04529xx0: This handshower is for
use with automatic compensating valves rated
at 1.7 GPM (6.4 L/min.) or less.
• To prevent scald injury, the maximum output
temperature of the shower valve must be
no higher than 120°F. In Massachusetts,
the maximum output temperature can be no
higher than 112° F.
• Keep this booklet and the receipt (or other
proof of date and place of purchase) for
this product in a safe place. The receipt is
required should it be necessary to request
warranty parts.
04528xx0
04529xx0
This unit meets or exceeds the
following:
• ASME A112.18.1
• CSA B125.1
• WaterSense certified
• Listed by IAPMO for use in the US and
Canada
G
½
6¼"
72°
4⅞"
7⅛"
4¾"
72°
G½
English

3
Données techniques
Capacité nominale 2.0 GPM
Datos tecnicos
Caudal máximo 2.0 GPM
À prendre en considération
pour l’installation
• Pour de meilleurs résultats, Hansgrohe recom-
mande que ce produit soit installé par un
plombier professionnel licencié.
• Veuillez lire attentivement ces instructions
avant de procéder à l’installation. Assurez-
vous de disposer de tous les outils et du
matériel nécessaires pour l’installation.
• Modèle 04528xx0: Cette pomme de
douche doit être utilisée avec une soupape
qui compense automatiquement, et est évalué
à 1,9 GPM (7,2 L/min.) ou moins.
• Modèle 04529xx0: Cette pomme de
douche doit être utilisée avec une soupape
qui compense automatiquement, et est évalué
à 1,7 GPM (6,4 L/min.) ou moins.
• Pour empêcher des blessures par ébouil-
lantement, la température de sortie maximale
du robinet de douche ne doit pas excéder
120°F. Au Massachusetts, la température de
sortie maximale du robinet de douche ne doit
pas excéder 112°F.
• Conservez ce livret et le reçu (ou une autre
preuve sur laquelle figurent la date et l’endroit
de l’achat) pour ce produit dans un endroit
sûr. Le reçu est requis si vous commandez des
pièces sous garantie.
Consideraciones para la
instalación
• Para obtener mejores resultados, la insta-
lación debe estar a cargo de un plomero
profesional matriculado.
• Antes de comenzar la instalación, lea estas
instrucciones detenidamente. Asegúrese de
tener las herramientas y los insumos necesa-
rios para completar la instalación.
• Modelo № 04528xx0: Esta ducha
cabezal es debe ser utilizada con una válvula
que compensa automáticamente, y es valo-
rado en 1,9 GPM (7,2 L/min) o menos.
• Modelo № 04529xx0: Esta ducha
cabezal es debe ser utilizada con una válvula
que compensa automáticamente, y es valo-
rado en 1,7 GPM (6,4 L/min) o menos.
• Para evitar escaldaduras, la máxima tempera-
tura de salida de la válvula de la ducha no
debe exceder los 120°F. En Massachusetts,
la máxima temperatura de salida de la vál-
vula de la ducha no debe exceder los 112°F.
• Mantenga este folleto y el recibo (u otro
comprobante del lugar y fecha de compra)
de este producto en lugar seguro. El recibo
se requiere en caso de ser necesario solicitar
piezas bajo garantía.
Français Español

4

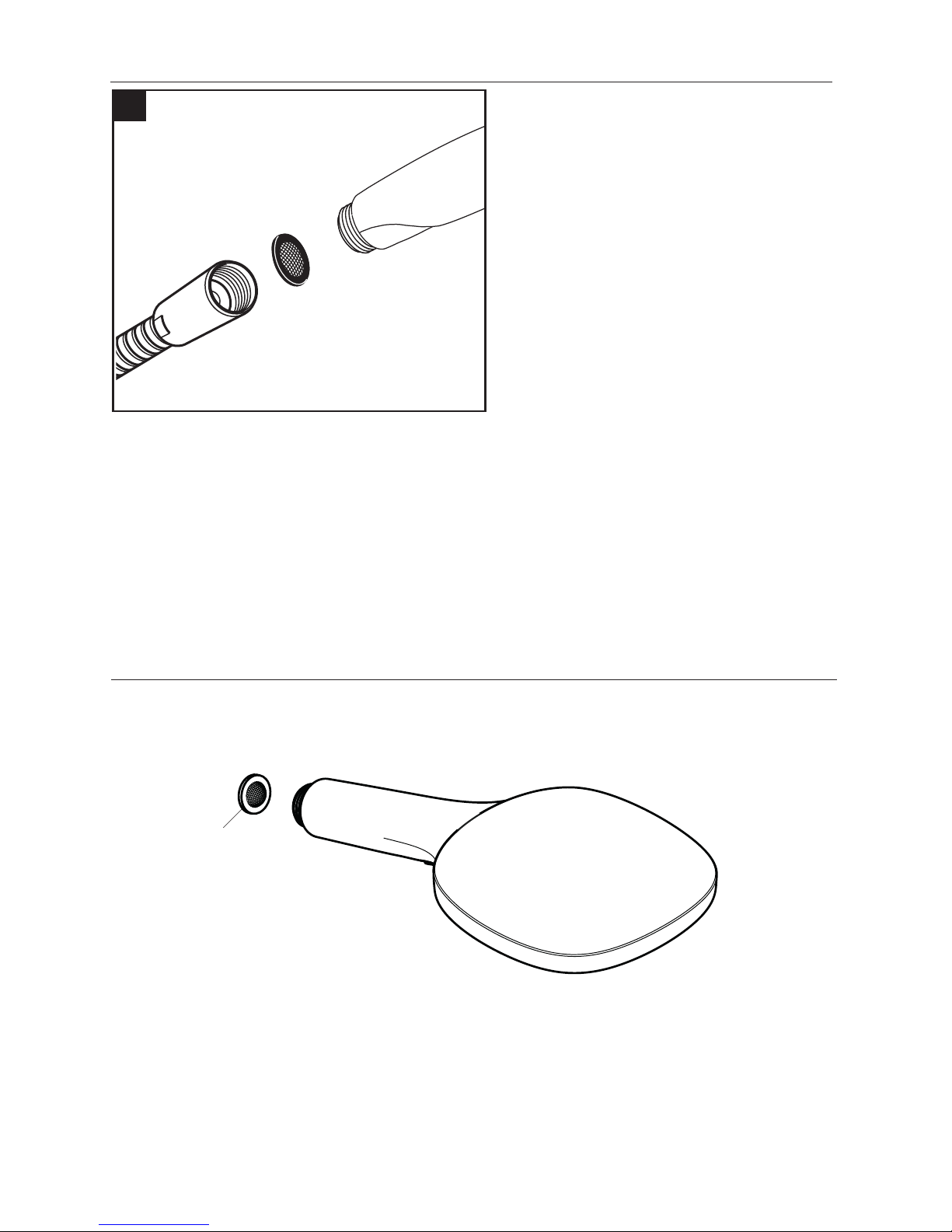

Installation / Installation / Instalación
Replacement Parts / Pièces détachées / Repuestos
94246000
1

5

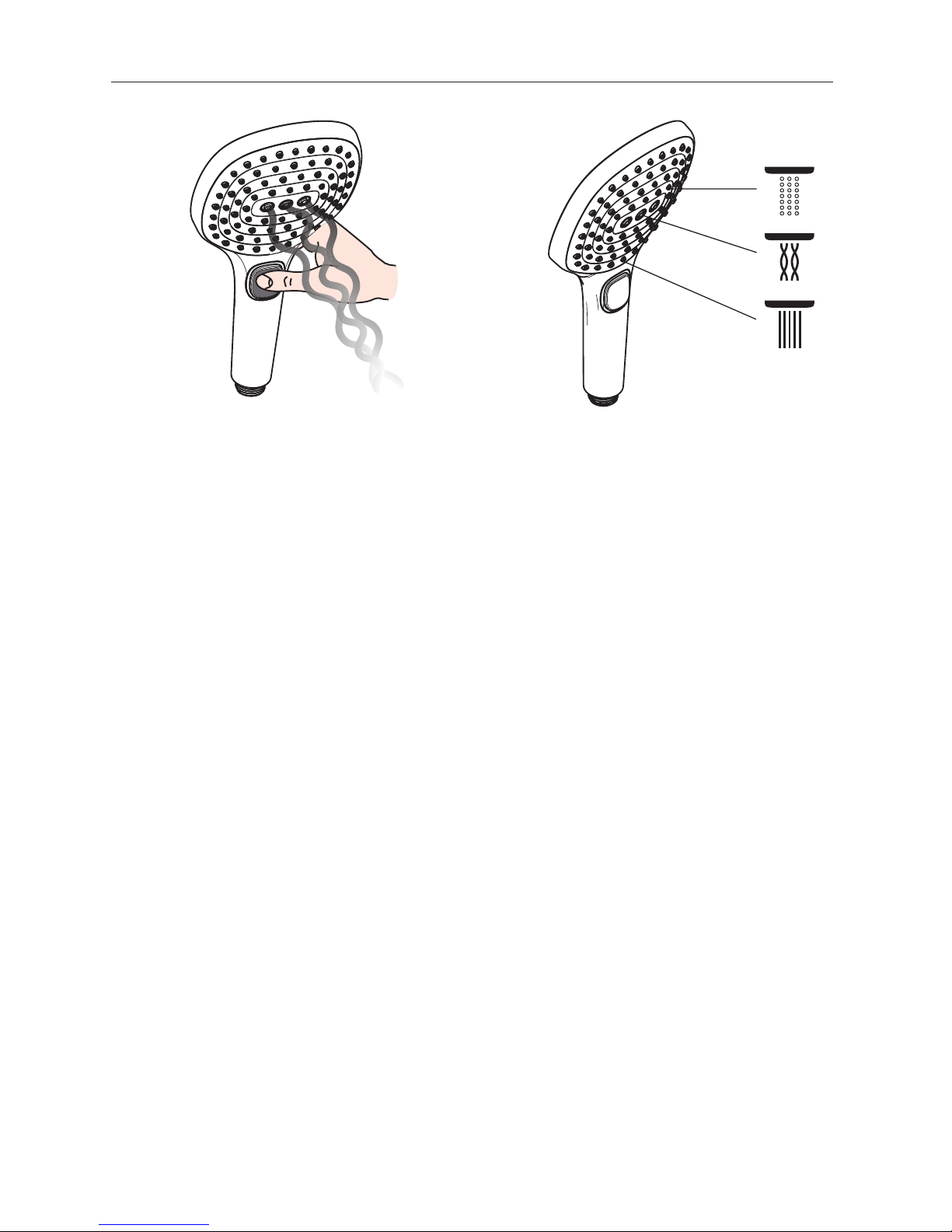

User Instructions / Instructions de service / Manejo

6

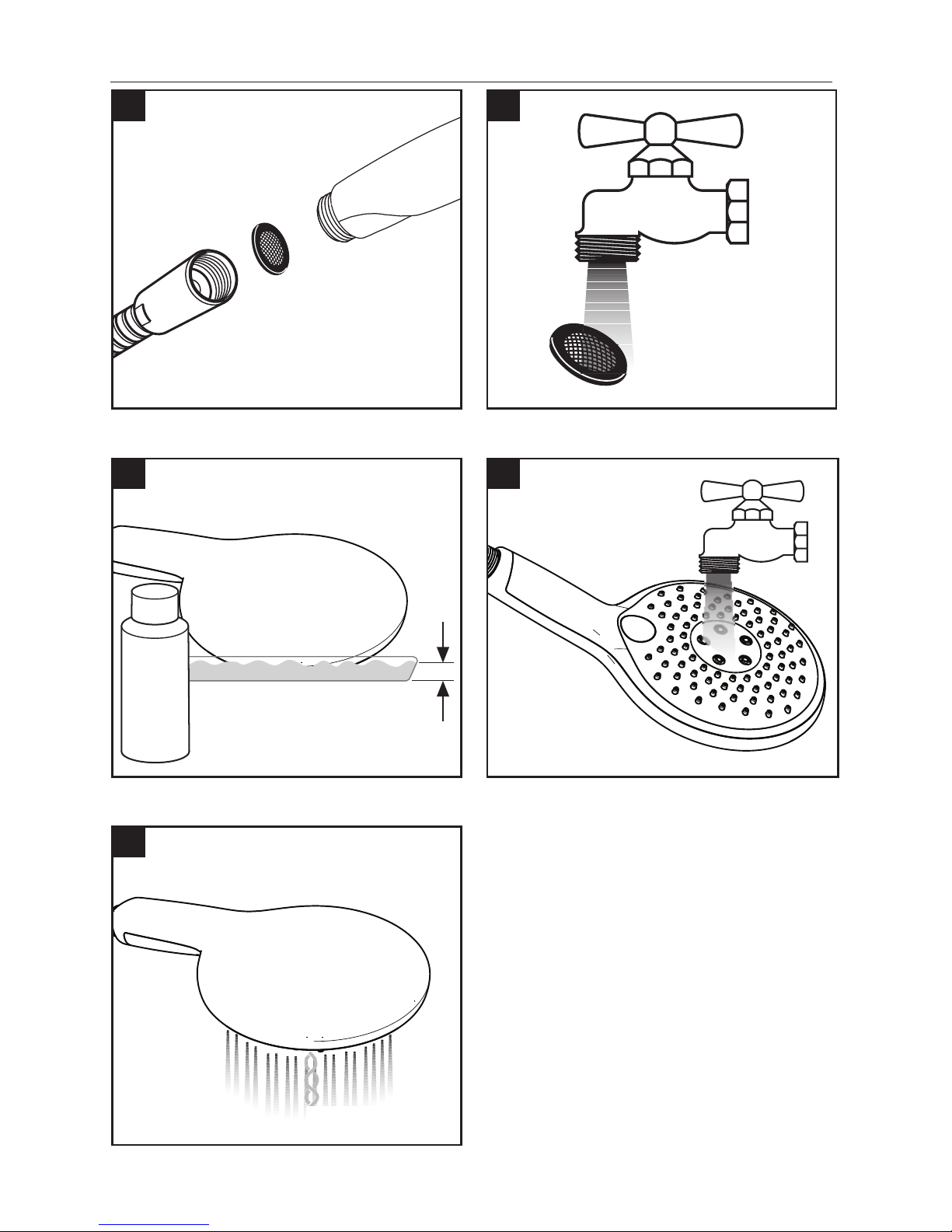

Cleaning / Nettoyage / Limpieza
¾"
3 4
1 2
5
> 1 min.
scale remover
détartrant commercial
desincustante comercial
S
c
a
l
e
R
e
m
o
v
e
r

7
Cleaning Recommendation for Hansgrohe Products
Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the
needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take
proper care of it.
For best results:
• Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when
needed.
• Select a cleaning agent specifically intended for the type of product.
• Do not use these types of cleaners as they will cause damage to your Hansgrohe product:
 Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid.
 Abrasive cleaning powders, pads, or brushes.
 Steam cleaners.
 “No rinse” cleaning agents.
• Always follow the instructions provided by the manufacturer of the cleaning agent.
• Do not mix cleaning agents, unless directed by the manufacturer.
• Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage.
When using spray cleaners, spray the cleaner onto a soft cloth or sponge.
• Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after
cleaning.
Important
• Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use.
• Residue from basin/tub/tile cleaner can cause damage to faucets and fittings. Immediately rinse any
overspray from the Hansgrohe product.
• Damage to the product caused by improper care or the use of improper cleaning agents is
not covered by the warranty.
• If a component of the product is damaged, replace it, as there is risk of injury.

Conseil de nettoyage pour les produits Hansgrohe
Les robinets pour les salles de bains et les cuisines modernes ainsi que les produits récents pour les douches
se composent de matériaux différents afin de satisfaire aux besoins du marché en termes de conception et de
fonctionnalité. Afin d'éviter d'endommager le produit, il est nécessaire d'en prendre soin.
Pour de meilleurs résultats :
• Empêchez l'accumulation de tarte et/ou de résidu de savon en nettoyant votre produit Hansgrohe lorsque c'est
nécessaire.
• Sélectionnez un produit de nettoyage spécifiquement prévu pour ce type de produit.
• N'utilisez pas ces types de nettoyants car ils peuvent endommager votre produit Hansgrohe :
 Tout produit de nettoyage contenant de l’acide chlorhydrique, de l’acide formique, de la potasse ou de
l’acide acétique.
 Les poudres de nettoyage, les tampons ou les brosses abrasives.
 Les nettoyeurs à vapeur.
 Les produits de nettoyage « sans rinçage ».

8
Recomendación de limpieza para los productos de Hansgrohe
Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos
para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños y reclamaciones
hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza.
Para obtener mejores resultados:
• Evite la acumulación de restos de jabón o sarro limpiando el producto Hansgrohe cuando sea necesario.
• Seleccione un agente de limpieza diseñado específicamente para el tipo de producto.
• No use estos tipos de limpiadores, ya que causarán daño a su producto Hansgrohe:
 Agentes limpiadores que contengan ácido clorhídrico, fórmico, acético o lejía.
 Polvos, paños o cepillos de limpieza abrasivos.
 Limpiadores a vapor
 Agentes de limpieza "sin enjuague”.
• Siempre siga las instrucciones provistas por el fabricante del agente de limpieza.
• No mezcle los agentes de limpieza, a menos que esté indicado por el fabricante.
• No rocíe limpiadores directamente sobre el producto, ya que podrían caer gotas sobre las aberturas y espa-
cios y causar daños. Cuando use limpiadores en spray, rocíe el limpiador sobre un paño suave o esponja.
• Siempre enjuague su producto Hansgrohe con agua limpia y séquelo y lústrelo con un paño suave después
de la limpieza.
Importante
• Los residuos de jabón y champú pueden causar daños. Enjuague el producto con agua limpia después de cada
uso.
• Los residuos de limpiadores para lavatorios, bañeras o azulejos pueden causar daño a los grifos y accesorios.
Enjuague inmediatamente cualquier derrame que haya sobre el producto de Hansgrohe.
• Los daños que resulten de un cuidado inadecuado o uso de agentes de limpieza inadecua-
dos no están cubiertos por la garantía
• Si se daña un componente del producto, reemplácelo, ya que existe riesgo de lesión.
• Ne mélangez pas les produits de nettoyage, à moins que cela soit indiqué par le fabricant.
• Ne pulvérisez pas les nettoyants directement sur le produit car des gouttes pourraient entrer dans les
ouvertures et les fentes et causer des dommages. Lorsque vous utilisez des nettoyants par pulvérisation,
pulvérisez le nettoyant sur un chiffon ou une éponge douce.
Important
• Le résidu provenant des savons et des shampoings peut causer des dommages. Rincez le produit avec de l'eau
propre après chaque utilisation.
• Le résidu provenant des nettoyants pour cuvette/baignoire/carrelage peut endommager les robinets et les
raccords de tuyauterie. Rincez immédiatement toute surpulvérisation sur le produit Hansgrohe.
• Les dommages au produit causés par un mauvais entretien ou par l'utilisation de produits de
nettoyage inadéquats ne sont pas couverts par la garantie.
• Si un composant du produit est endommagé, remplacez-le, car il existe un risque de
blessure.
