Hantek HDG 2000 Series User manual

USER’S MANUAL
Arbitrary Waveform Generator
HDG 2000 Series
V1.0.3

HDG2000 Series Arbitrary Waveform Generator i
Content
Copyright Declaration.......................................................................................................................iii
General Safety Summary.................................................................................................................iv
Chapter 1 Quick Start....................................................................................................................... 5
1.1 Introduction to Instrument................................................................................................... 6
1.2 Front Panel.......................................................................................................................... 7
1.3 Rear Panel........................................................................................................................ 10
1.4 Prepare Instrument for Use................................................................................................11
Chapter 2 Basic Operation............................................................................................................. 12
2.1 Front-Panel Menu Reference ........................................................................................... 13
2.2 Utility.................................................................................................................................. 16
2.2.1 System Settings...................................................................................................... 16
2.2.2 System Infomation.................................................................................................. 19
2.2.3 System State........................................................................................................... 19
2.2.4 Update .................................................................................................................... 19
2.2.5 Counter................................................................................................................... 20
2.2.6 Self Test.................................................................................................................. 21
2.2.7 Calibration............................................................................................................... 22
2.3 Save and Recall................................................................................................................ 23
2.4 Remote Control................................................................................................................. 24
Chapter 3 Features and Function .................................................................................................. 25
3.1 Output Configuration......................................................................................................... 26
3.2 Pulse Waveforms.............................................................................................................. 30
3.3 Amplitude Modulation (AM) and Frequency Modulation (FM).......................................... 32
3.4 Phase Modulation (PM) .................................................................................................... 36
3.5 Frequency-Shift Keying (FSK) Modulation....................................................................... 38
3.6 Pulse Width Modulation (PWM)........................................................................................ 40
3.7 Frequency Sweep............................................................................................................. 42
3.8 Burst Mode........................................................................................................................ 45
3.9 Trigger System.................................................................................................................. 47
Chapter4 Waveform Generation Tutorial ....................................................................................... 49
4.1 Generation of A Sine Wave Function............................................................................... 51
4.2 Generation of A Square Wave Function........................................................................... 52
4.3 Generation of A Ramp Wave Function............................................................................. 52
4.4 Generation of A Pulse Wave Function.............................................................................. 53
4.5 Generation of A Noise Wave Function............................................................................. 53
4.6 Generation of An Arb. Wave Function.............................................................................. 54
4.7 Generation of A Harmonic Wave Function....................................................................... 54
4.8 Method of input params.................................................................................................... 55

HDG2000 Series Arbitrary Waveform Generator ii
4.9 Mode Waveform................................................................................................................ 55
4.10 Digital Generator............................................................................................................. 57
Chapter5 SCPI Programming Reference....................................................................................... 61
5.1 Introduction to the SCPI Language................................................................................... 62
5.2 Alphabetical List of SCPI Commands and Queries.......................................................... 65
5.2.1 AM Subsystem........................................................................................................ 66
5.2.2 ASK Subsystem...................................................................................................... 68
5.2.3 BPSK Subsystem ................................................................................................... 69
5.2.4 BURSt Subsystem.................................................................................................. 69
5.2.5 CALibration Subsystem.......................................................................................... 71
5.2.6 COUNter Subsystem.............................................................................................. 72
5.2.7 DATA Subsystem ................................................................................................... 73
5.2.8 DISPlay Subsystem................................................................................................ 74
5.2.9 FM Subsystem........................................................................................................ 74
5.2.10 FREQuency Subsystem....................................................................................... 75
5.2.11 FSKey Subsystem................................................................................................ 76
5.2.12 FUNCtion Subsystem........................................................................................... 77
5.2.13 HARMonicSubsystem........................................................................................... 80
5.2.14 IEEE-488 Common Commands........................................................................... 81
5.2.15 MARKer Subsytem............................................................................................... 82
5.2.16 MEMory Subsystem.............................................................................................. 82
5.2.17 MMEMory Subsystem .......................................................................................... 82
5.2.18 OUTPut Subsystem.............................................................................................. 84
5.2.19 PHASeSubsystem................................................................................................ 85
5.2.20 PM Subsystem...................................................................................................... 85
5.2.21 PSK Subsystem.................................................................................................... 86
5.2.22 PWM Subsystem.................................................................................................. 87
5.2.23 ROSCillatorSubsystem......................................................................................... 88
5.2.24 SOURce Subsystem............................................................................................. 89
5.2.25 SWEepSubsystem................................................................................................ 89
5.2.26 SYSTem Subsystem............................................................................................. 90
5.2.27 VOLTage Subsystem ........................................................................................... 92
5.3 Programming Examples.................................................................................................... 93
5.3.1 Configure a Sine Wave........................................................................................... 93
5.3.2 Configure a Square Wave...................................................................................... 94
5.3.3 Configure a Ramp Wave........................................................................................ 94
5.3.4 Configure a Pulse Wave......................................................................................... 95
Appendix A ..................................................................................................................................... 96
Appendix B................................................................................................................................... 103

Copyright Declaration
HDG2000 Series Arbitrary Waveform Generator iii
Copyright Declaration
All rights reserved; no part of this document may be reproduced or transmitted in any form or by
any means, electronic or mechanical, without prior written permission from Hantek Technologies
Co., Ltd (hereinafter referred to as ‘Hantek’).
Hantek reserves all rights to modify this document without prior notice. Please contact Hantek for
the latest version of this document before placing an order.
Hantek has made every effort to ensure the accuracy of this document but does not guarantee the
absence of errors. Moreover, Hantek assumes no responsibility in obtaining permission and
authorization of any third party patent, copyright or product involved in relation to the use of this
document.

General Safety Summary
HDG2000 Series Arbitrary Waveform Generator iv
General Safety Summary
Read the following safety precautions to avoid injury and prevent damage to this product or any
products connected to it. To evade potential hazards, use this product only as specified.
Only qualified personnel should perform maintenance.
Avoid fire or personal injury.
Use suitable power cord. Use only the power cord specified for this product and certified for the
country of use.
Ground the product. This product is provided with protective earth terminals. To minimize shock
hazard, the instrument must be connected to the AC power mains through a grounded power
cable, with the ground wire firmly connected to an electrical ground (safety ground) at the power
outlet. Any interruption of the protective (grounding) conductor or disconnection of the protective
earth terminal will cause a potential shock hazard that could result in personal injury.
Check all terminal ratings. To avoid fire or shock hazard, check all ratings and markings on the
product. Refer to the product manual for detailed information about ratings before making
connections to the product.
Do not operate without covers. Do not operate this product with covers or panels removed.
Avoid exposed circuitry. Do not touch exposed connections and components when power is
present.
Do not operate with suspected failures. If you suspect there is damage to this product, have it
inspected by qualified service personnel.
Assure good ventilation.
Do not operate in wet/damp environments.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry.

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 5
Chapter 1 Quick Start
Introduction to Instrument
Front-Panel Introduction
Rear-Panel Introduction
Prepare Instrument for Use

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 6
1.1 Introduction to Instrument
The Hantek HDG2000 Series is a series of synthesized waveform generators with built-in arbitrary
waveform and pulse capabilities.
Features:
16 bits resolution, 250MSa/s Sample rate
64 Mpts Max. arbitrary waveform Memory Depth
2 Channels output
100 MHz, 80 MHz, 70 MHz, 60 MHz, 50MHz, 30 MHz, 20MHz, 10MHz or 5MHz maximum sine
output frequency
7 inch, 16K true color TFT display, WVGA(800X480)
16 channels digital output, together with the analog channel can rebuild the more mixed signals
in daily practice
TCXO timebase standard, OCXO optional for ultra-high stability
Plenty of interfaces: USB Host, USB Device. LAN optional
Support AM, FM, PM, ASK, FSK, PSK, BPSK and PWM modulations
LXI Class C Compliant
SCPI (Standard Commands for Programmable Instruments) compatibility
Online Help
SD card
Models
This section describes the models about the HDG2000 Series of instruments.
Instrument Models
Model
Description
HDG2002B
5MHz 16bits resolution
Arbitrary waveforms
64M Memory Depth
HDG2012B
10MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
HDG2022B
20MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
HDG2032B
30MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
HDG2062B
60MHz 16 bits resolution
Arbitrary waveforms

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 7
64M Memory Depth
HDG2082B
80MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
HDG2102B
100MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
HDG2032C
30MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
2GB SD card
HDG2052C
50MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
2GB SD card
HDG2072C
70MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
2GB SD card
HDG2102C
100MHz 16 bits resolution
Arbitrary waveforms
64M Memory Depth
2GB SD card
1.2 Front Panel
Front Panel can be divided into "F0 to F6 softkeys menu area", "digital keypad area", "Function
keypad area", "Hot keypad area", "Mode keypad area", "Trigger keypad area", "Waveform Output
area", "knob and cursor arrows keypad area", and “interface of the signal and peripheral devices
area”. You can press keys and buttons on the front panel to input or output signals.

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 8
1. Menu softkeys F0-F6
2. Function waveform button
3. Channel 1 and Channel 2 Switch Button
4. Function menu
5. Knob and cursor arrows
6. Numeric Keypad
7. Channel 1 and Channel 2 output buttons
8. Trigger button
9. Channel 1 and Channel 2 output Connector
10. Sync Connector
11. Modulation signal Input Connector (for all kinds of External Modulation Signal Source)
12. High frequency Connector(24MHz to 2.7GHz) HDG2000C
13. Low frequency (24MHz or lower)/External trigger Connector
14. Digital channel
15. USB port
16. SD card port
17. On/Off Switch
Note: Press and hold any front-panel key or softkey to get context-sensitive help.
Front-Panel Number Entry
You can enter numbers from the front panel in two ways:
Use the knob and cursor keys to modify the number. Rotate the knob to change a digit (clockwise
increases). The arrows below the knob move the cursor.
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
8

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 9
Use the keypad to enter numbers and the softkeys to select units. The +/- key changes the
number's sign.
CE: Delete Key
BASP: Backspace, backspace and remove the last digit
ENT: Enter Key
Warning: For protection from electrical shock, the power cord ground must not be defeated. If
only a two-contact electrical outlet is available, connect the instrument’s chassis ground screw to a
good earth ground.
Online Help
Signal generator online help provides two kinds of view. One is content view and the other is index
view.
1. The index view is the subject of the online help content according to the ascending order of the
view. Choose index by knob, enter to go into the subject.
2. Content view shows a view of specific topic content.go into the content linked by the "link
words".
3. Press ‘Exit’menu softkey to exit.

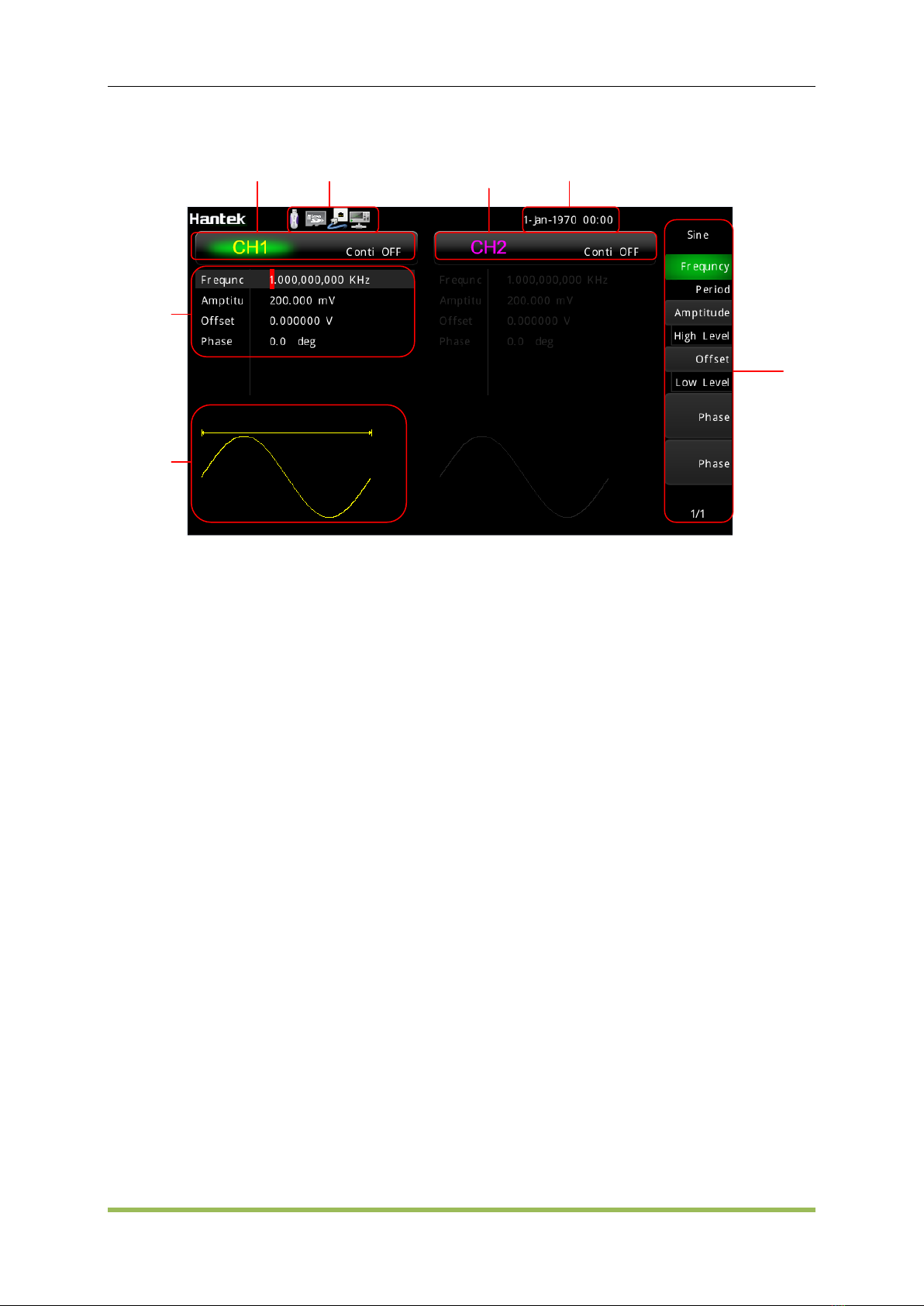

Screen Area
The signal generator can be divided into three regions: the status panel at the top of the screen,
the menu panel at the right of the screen, the window area at the left corner of the screen.

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 10
Status panel indicates whether external usb device is connected with this device, whether usb
device in the rear panel is connected with PC, whether the Internet is connected and the current
time.
The menu panel and window area are corresponding. The content of the window area can be
modified by controlling the menu panel. There are three main ways of style menu panel item.
One way is operation directly. As is shown, press it, then the operation will be modified, or enter
submenu to select, or page to next page to select.
One way is for choosing. It provides a topic and some params. Topic is showed at the top of the
menu item and params showed below. Press the Softkeys F0~F6 corresponded to the item to
choose different params.
The other way is altering. It appears like choosing. But it don’t have topic item, current params is
showed on the front of the menu item and the optional item is at below.
Use F6 button to page down or page up. Press F0 to return the parent menu.
1.3 Rear Panel
1. External 10 MHz Reference Input
2. Internal 10 MHz Reference Output
3. USB Interface Connector, communication to PC software
4. LAN Interface Connector, communication to PC software (optional)
Waveform
parameters
Softkey
labels
CH1
Information
States Panel
CH2
Information
System Time
Waveform
display
5 Sweep or
burst
parameter
s

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 11
1.4 Prepare Instrument for Use
This section describes basic procedures to help you get started quickly with the instrument.
Prepare Instrument for Use
Connect the power cord as desired. Turn the instrument on by pressing the power switch in the
lower left corner of front panel.
The instrument's default function is a 1 kHz, 200 mVpp sine wave. At power-on, the channel
output connectors are disabled. To enable output on a channel connector, press the key above the
channel connector and then press the Output button.
If the instrument does not turn on, verify that the power cord is firmly connected (power-line
voltage is automatically sensed at power-on). Also make sure that the instrument is connected to
an energized power source.
Power Switch:
To turn off the instrument, please press power switch.
Attention: After turning on, the process of system initialization will take 1~2 minutes; if you turn it
off before the initialization is done, the next time you turn it on, it will prompt that the system is not
properly shut-down. This is necessary to have the system restorable when it collapses, like the
"safe mode" of Windows.
First, press F1, the device will be restart.
If not, press F2 to recover the system, the system will be recovered to the factory default setting.
If not, contact the customer service to get new recover partition program, and press F3 to update
the recover partition.

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 12
Chapter 2 Basic Operation
Front-Panel Menu Reference
Utility Function
Save and Recall
Remote Control

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 13
2.1 Front-Panel Menu Reference
Overview of the front-panel menus. The remainder of this chapter contains examples of using the
front-panel menus.
Configures waveform-specific parameters
Period/Frequency
Amplitude or High and Low Voltage
Offset
Phase
Duty Cycle
Symmetry
Pulse Width
Edge Time
Arbitrary Waveform
Bandwidth
Sine
Square
Ramp
Pulse
Noise
Arb
Harmonic
CH1and CH2 switch button
Frequency/Time hot key
Amplitude hot key
Offset hot key

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 14
Specifies unit and parameter preferences
Frequency or Period
Voltage as Amplitude/Offset or High/Low
Voltage units
Pulse Width or Duty Cycle
Frequency sweep as Center/Span or Start/Stop
Mode：
Configures modulation parameters
Modulation on or off
Modulation type: AM, FM, PM, 2ASK, 2FSK, 2PSK, BPSK and PWM
Modulation source
Modulation parameters
Sweep：
Configures frequency sweep parameters
Sweep on or off
Linear
Sweep time
Start/stop frequencies or center/span frequencies
Hold and return times
Burst：
Configures burst parameters
Burst on or off
Burst mode: triggered or externally-gated
Cycles per burst
Burst period
Save/Recall：
Stores and recalls instrument states
Help：

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 15
Shows list of Help topics
Display help topic list
Display help index list
Get help on any key
Utility：
1. System setting
Configures system-related parameters
Language setting: Select local language for front-panel messages and help text
Display setting: Enable or disable screen saver; Adjust display brightness
Sound setting: Enable or disable beeper
Network setting: Set network
Time and Date setting: Set date and time
Clock source setting: Select clock source internal or external.
2. System Information
Device Information
Hardware information
Software information
Law information
3. SysStatus
Check system status
Save and recall system status
4. Update
Update firmware
5. Counter
Turn on/off counter or frequency meter

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 16
6. Self Test
Perform self test
7. Calibration
Perform calibration
8. Digital Generator
Digital Generator
Trigger：
Configures trigger settings
Perform a manual trigger, when illuminated.
Specify the trigger source for sweep, burst or arbitrary waveform advance.
Specify the trigger count and delay.
Specify the slope (rising or falling edge) for an external trigger source.
Specify the slope (rising or falling edge) of the trigger output signal.
Enable / disable the signal output from the "Sync" connector.
Default setting：
Default Settings
Press the Default button in the front panel, and the factory status will be recalled.
2.2 Utility
There are some features to be selected in Utility menu, such as: <System Settings>, <System
Information>, <System State >, <Counter>, <Self Test>, <Calibration>.
To choose these features, use the knob and left/right direct button, then push ENT button to
confirm.Also you can push F1 and F2 button to choose function, then press ENT button or F4
button to confirm. Press F5 button to exit.
2.2.1 System Settings
The followings are settings:
Language Settings
Display Settings

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 17
Sound Settings
Network Settings
Time Settings
Reference Source Settings
Please follow the steps below to enter each setting:
1. Press <Utility> button, select “System Setting”, then press ENT button to do System Settings;
2. In the main menu of System Settings, push F1 to F5 button to go into desired settings
3. Also, user can choose these settings by the konb key.
Language Settings
English and Chinese Language are supported; Please follow the steps below to change current
language:
1. Press<Utility> button, select “System Setting”, then press ENT button to go into System
Settings;
2. Choose “Language Settings”, press ENT button to open Language Settings interface;
3. Push F1 button to choose different language;
4. Push F2 button to exit.
Display Settings
Adjust display brightness.
1. Press<Utility> button, and press ENT button to go into System Settings, then choose <Display>;
2. To adjust brightness, please press F1 button, then the menu is highlighted, then rotate the knob
on front panel to adjust the parameter values.
Disable or enable saver:
1. Press<Utility> button, and press ENT button to go into System Settings, then choose <Display>;
3. Push F2 button to enable or disable the saver;
4. When the saver is enable, push F3 button to determine after what time, the saver will be started;
5. Push F4 button to exit;
Screenshot function:
1. Press<Utility>button, and press ENT button to go into System Settings, then choose <Display>;
2. Press F4 button to set <Default> key to <Print>.
3. Then press <Default> to save the screenshot to external USB device.
Sound Settings
If turn on keypad tone, we can hear sound when press a button.

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 18
Please follow the steps below to enable or disable sound:
1. Press<Utility> button, and press ENT button to go into System Settings, then choose “Sound
Settings”;
2. Push F1 to enable or disable beep.
3. Press F2 to exit.
Network Settings
The system can communicate with PC by Ethernet interface.
1. Press<Utility> button, and press ENT button to go into System Settings, then choose “Network
Settings”, press ENT button to open “Network Settings” interface;
2. Press F1 to change IP address, input right format IP values by using digital keypad in the front
panel.
4. Press F2 to change subnet mask, input right format subnet mask values by using digital keypad
in the front panel.
5. Press F3 to change gateway, enter right format gateway values by using digital keypad in the
front panel.
6. Press F4 to change MAC, enter right format MAC values using digital keypad in the front panel.
7. Press F5 to exit.
Note: Not all mode of the machine has Ethernet interface.
Time Date Setting
Please follow the steps to change time and date:
1. Press<Utility> button, and press ENT button to go into System Settings, then choose “Time and
date Settings”, press ENT button to open “Time and date Settings” interface;
3. Press F1 to change year.
4. Press F2 to change month.
5. Press F3 to change day.
6. Press F4 to change hour.
7. Press F5 to change minute.
8. Press F6 to enter page 2 of main menu, and press F1 to change second value.
9. Press F6 to enter page 2 of main menu, and press F2 to exit.
Reference Source Settings
The default is 10MHz internal source. For the synchronization among different devices, please
choose external 10MHz crystals as clock source.
Please follow the steps to change reference clock source:
1. Press<Utility> button, and press ENT button to go into System Settings, then choose “Clock

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 19
Source”, press ENT button to open “Clock Source” interface.
2. Press F1 to select internal source.
3. Press F1 twice to select external source.
4. Press F2 to exit.
2.2.2 System Infomation
It contains information about the device, hardware, software and law information.
2.2.3 System State
Please follow the steps to view the system's main state:
1. Press<Utility> button, and press F2-> F2->ENT button to go into Systatus interface.
2. Press F5 to exit.
Please follow the steps bellow to save the system state file:
1. Press<Utility> button, and press F2-> F2->ENT button to go into Systatus interface.
2. Press F1 to go into <File Brower>, then select dir (File Win or Disk Win) of the file to be saved.
3. Press F3 in the <File Brower>main menu, and then name the file.
4. Press F3 again to actually save the file.
5. Then it returns to the system state window.
6. Press F5 to exit.
Please follow the steps bellow to recall the system state file:
1. Press<Utility> button, and press F2-> F2->ENT button to go into Systatus interface.
2. Press F1 to go into <File Brower>, then select dir of the saved file.
3. Press F4 to recall the file selected to recall the state.
4. Then it returns to the system state window.
5. Press F5 to exit.
Please press <Utility> button, select <SysStatus>, and press F3 to select <last> to save last time
setting. When start up next time, the system is set by last time setting.
2.2.4 Update
Please follow the steps to update the system:
1. Copy .upk file to U disk.And insert U disk into device’s USB port.
2. Press “Save/Recall”button, then press F1 to switch to “Disk Win”window, rotate the knob to
“USB”and press “Enter”button to confirm.
