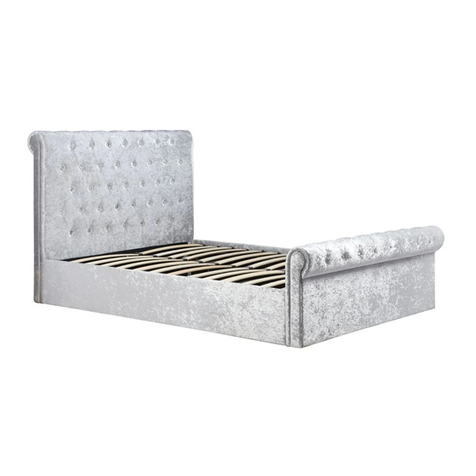

Happy Beds Sherlock Ottoman User manual

@ h a p p y b e d s
www. h a p py be ds .c o . u k @ happybeds

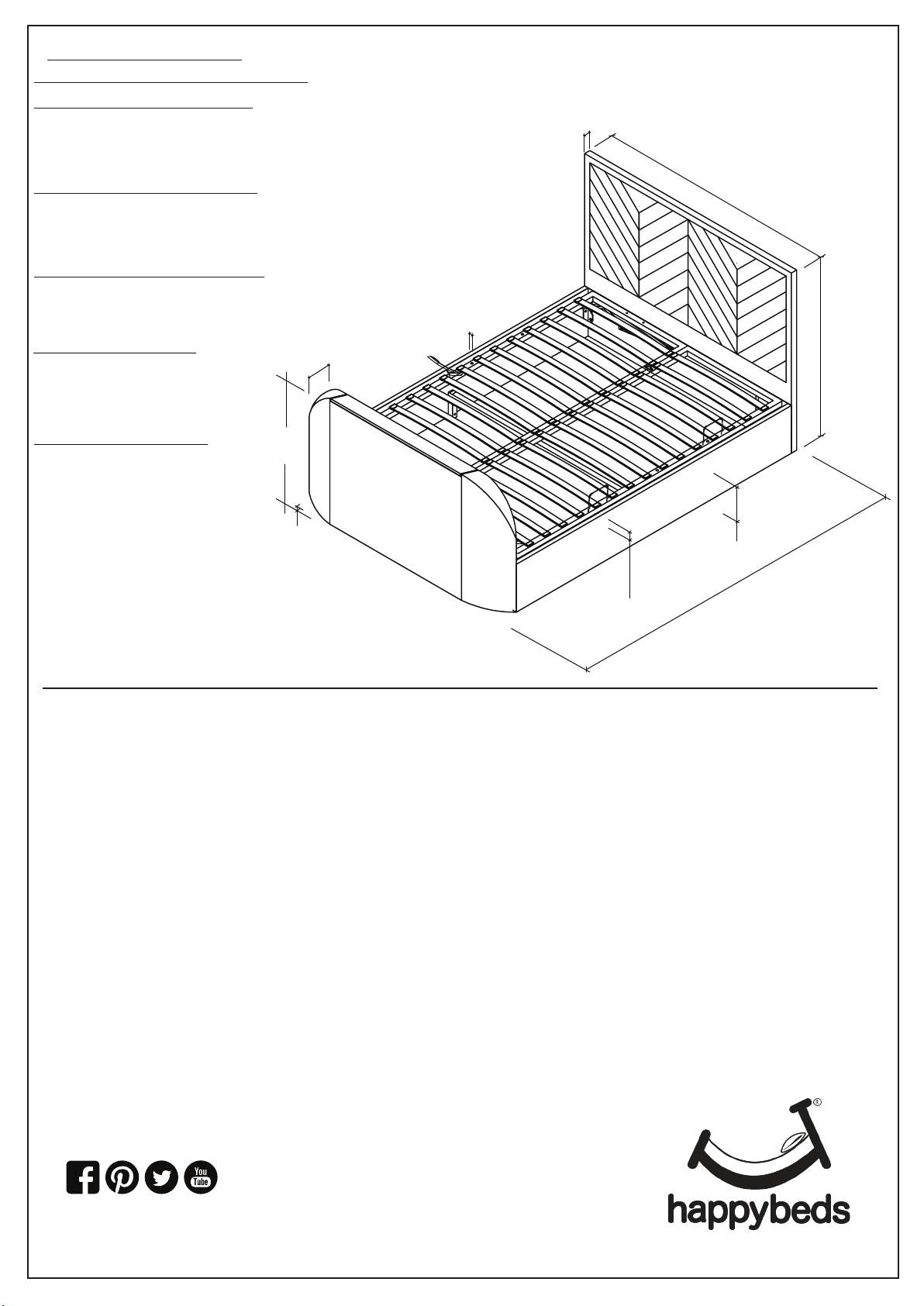

Assembly Instructions
deVT BnamottOkcolrehS
Super King Size
Double or King Size

Yes: We would love to hear more from you! Please share
your experience on TrustPilot or our social media
channels.
Thank you for purchasing with Happy Beds!
Important before assembly:
Please read these instructions carefully before assembling or using
the product.
Please check the contents of each box before attempting to
assemble this product. The instructions will have a checklist of parts
and fittings.
Try to assemble the product as close to its intended final location /
room as possible.
Happy with your purchase?
No: We're so sorry to here this! Please
contact us by scanning the QR code or
visit us at
www.happybeds.co.uk/customer-service
and someone will be happy to help.
@happybeds
w w w . h a p p y b e d s . c o . u k

Don't miss out! Sign up to our newsletter so you don't miss out on
our amazing sales and giveaways! Head to our website,
www.happybeds.co.uk to sign up and save £10 off your next order.
Your chance to WIN some luxury sleep products
when featured in our blog!
Simply use #MyHappyBed to tag your new product, and if you are
chosen to be featured in our monthly interior blog: Your Happy
Beds This Month, we'll send over some luxury sleep products!
Join our Happy VIP list!
Stay up to date with the latest interior trends
or find out about your sleeping habits by
reading our Happy Beds blog! Scan the QR
code for styling tips.
Want some styling inspo?
@ happybeds
w w w . h a p p y b e d s . c o . u k

@happybeds
w w w . h a p p y b e d s . c o . u k

@happybeds
w w w . h a p p y b e d s . c o . u k
Important for Ottoman and other gas lift beds
Note:
The gas lifts are fully extended during shipment for safety. After assembly a firm
downward push will be required to overcome any resistance in the gas lifts as these
may initially stick. We suggest placing a mattress on top of the bed base to aid this and
also test the operation of your new lift-up bed by lifting and pushing down the bed base
a few times to free off the system.
Do NOT operate the lift-up mechanism without the mattress placed on the base.
The lift mechanism provides assistance with the lift of the mattress fitted to the base. It
does not lift the mattress for you. The system has been designed to effectively lift the
base system fitted with a variety of mattress weights and combinations of depths.
The gas cylinders fitted to the system may be stiff when first used or if the system has
not been operated for a period of time.
If provided, use the strap handle to lift up the mattress base using two hands. Pull the
mattress base down using two hands equally spaced from the centre of the mattress
base. DO NOT pull down on one side of the base only as this is likely to damage the base
system with potential failure of the mattress base system and lift mechanism.
Caution:
Do NOT allow children to operate the lift mechanism.
Do NOT allow children near the lift base when operating the mechanism.
Do NOT allow children in the area of the internal storage base.
Keep hands clear of the mechanism when operating the base system.
Do NOT stand inside the bed or the internal storage base.
Do NOT overload the internal storage base.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when
lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.

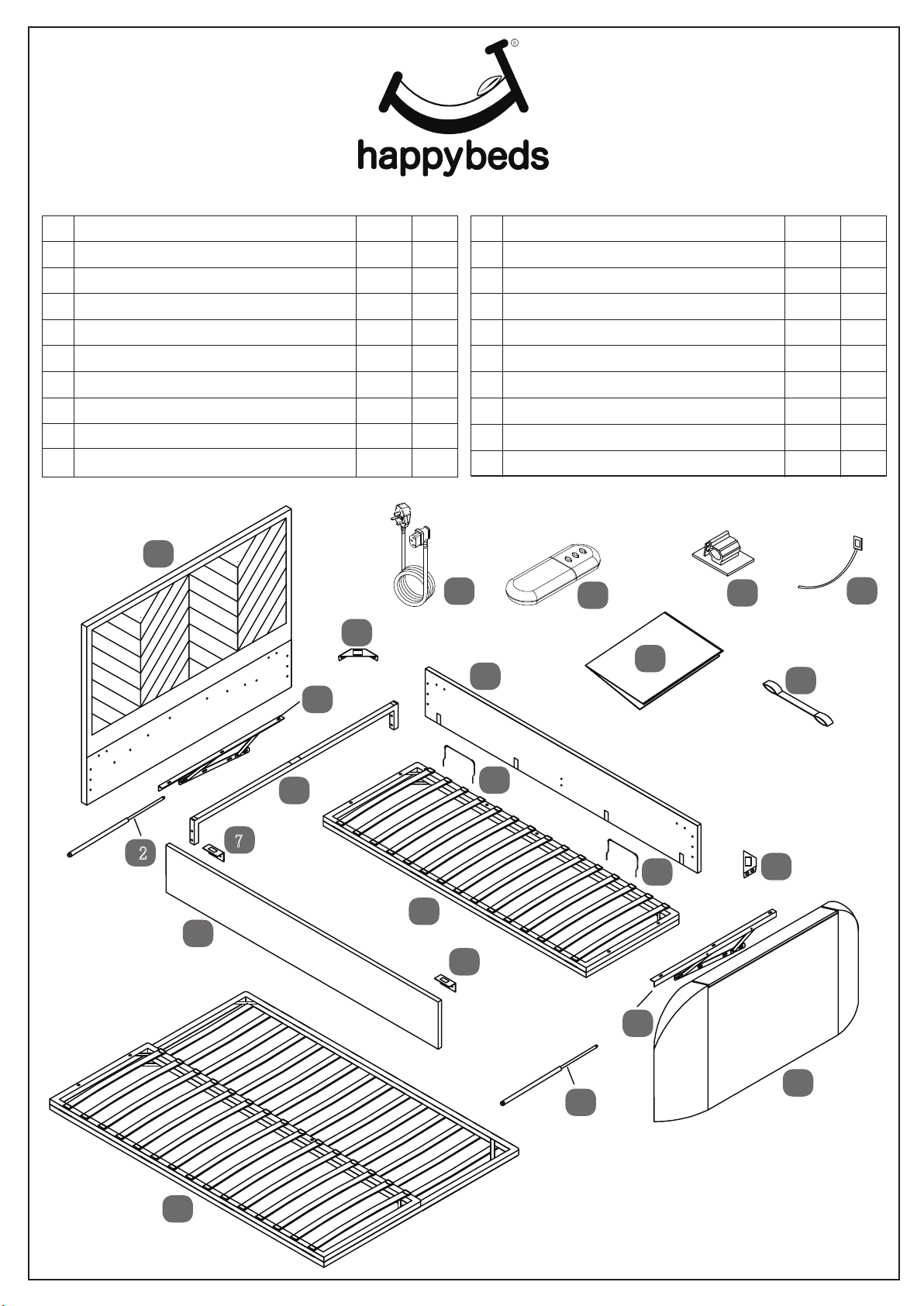

No Part List Qty Box
1 1 pc
2 1 pc
3 2 pc
4
5 1 pc
6 2pcs
7
Side rails
1 pc
8
1 pc
12
Page 6 of 18
No Part List Qty Box
10 1 pc
11 2 pcs
Fabric hand strap
Remote control for TV Lift
Cable clips
1 pc
1 pc
1 pc
14
Mainspower lead
16
17
18 Cable ties
1
Headboard
Footboard
Metal slat frame for double or king size
“U” shaped cross bar
1
9
2 pcsGas lift pistons
4
4
4
4
“L” shape frame support brackets 2 pcs
13
4
2
Metal slat frame for super king size 1 pc
15
2
2
3 pcs 2
3 pcs 2
2
3
4
4
4
4
Angled corner brackets
Mattress stoppers
Lift mechanism
Lift mechanism
2
9
10
14
11
11
33
5
8
3
6
6
15
517
718
8
16
6
7
44
13
3
220601
12
Fabric base cover 1 pc 4
77
122

Page 7 of 18
Flat washer for
M6 bolts
No Qty Box
24 pcs
24 pcs
16 pcs
12 pcs 2

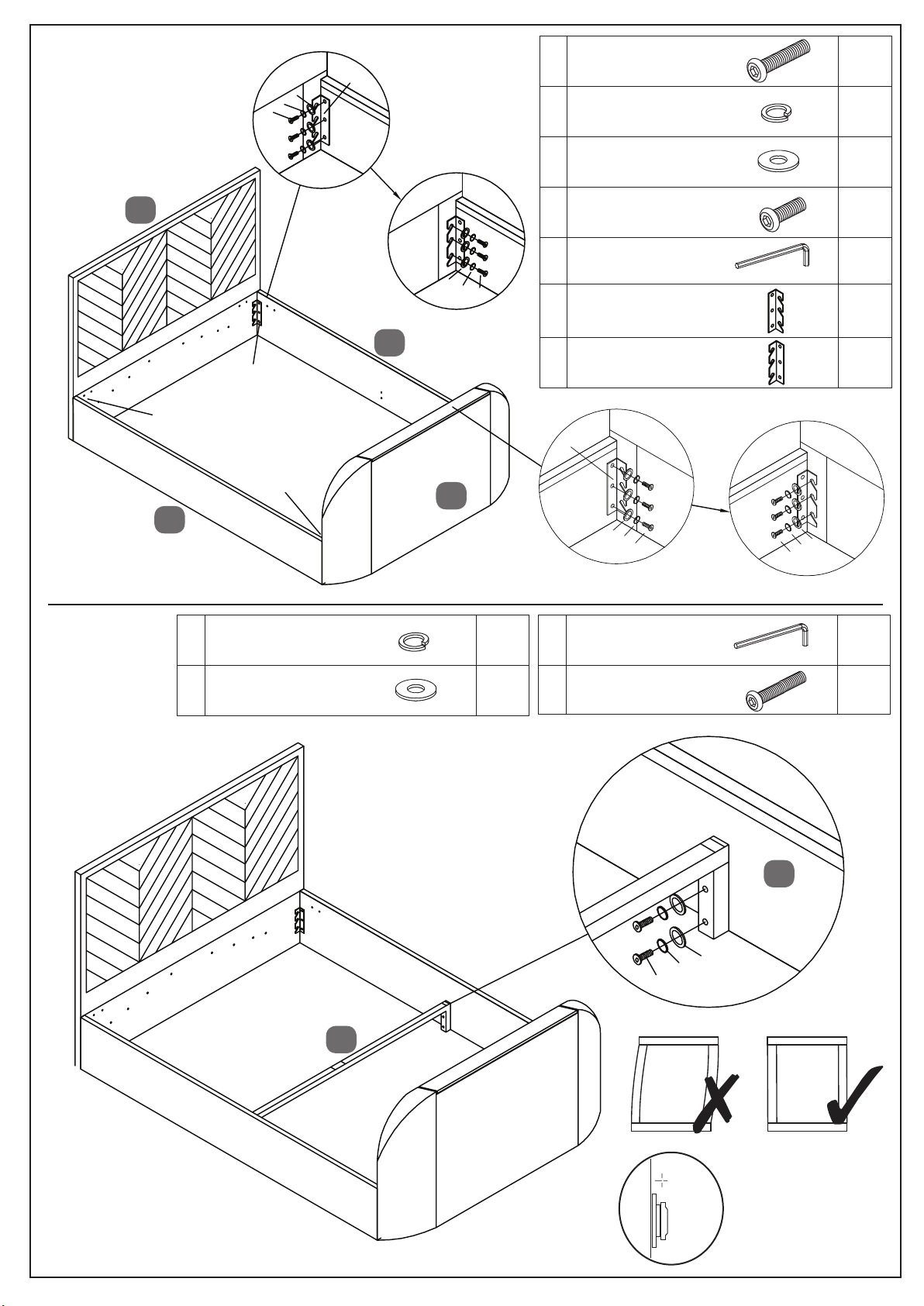

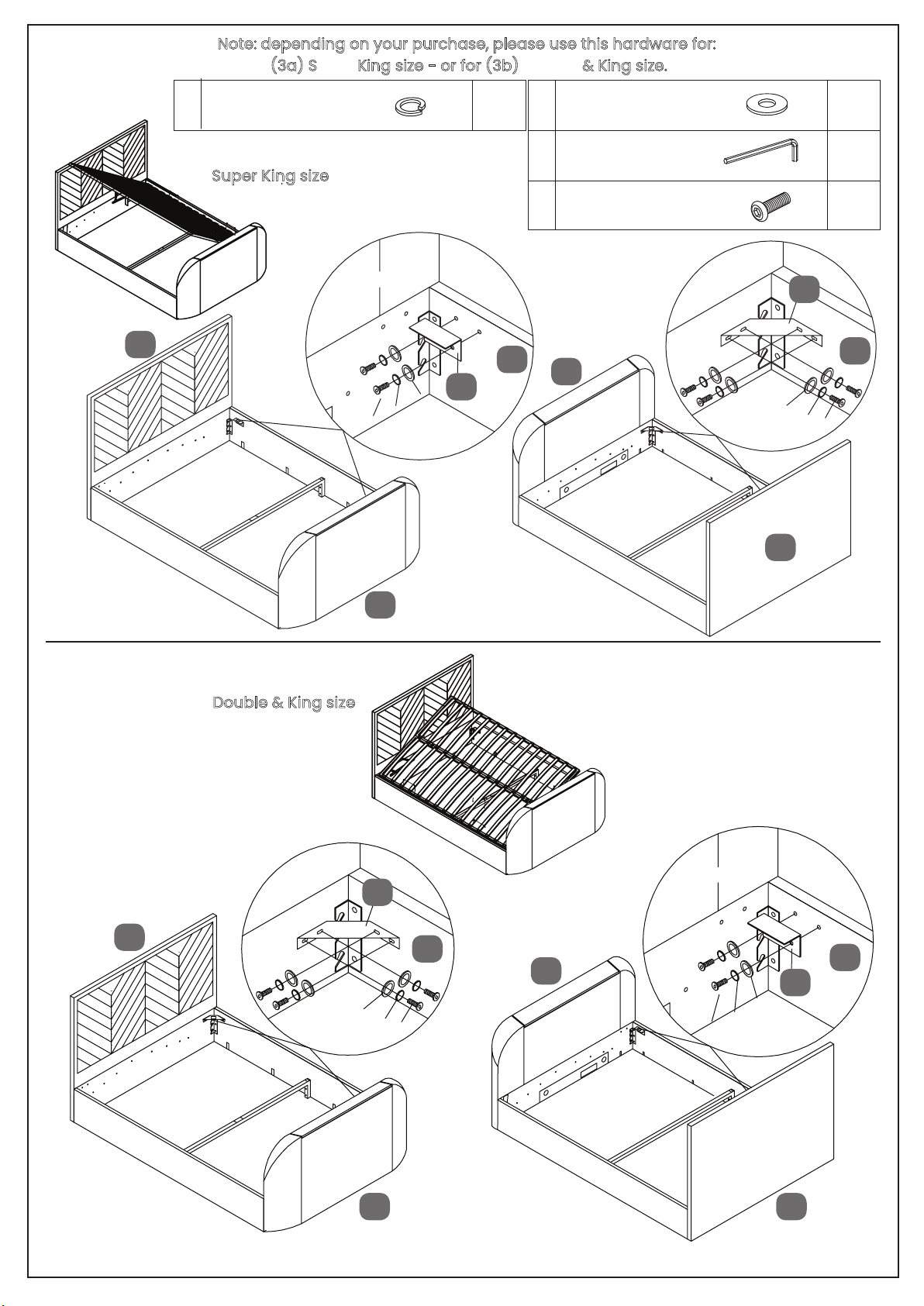

Hardware List
HARDWARE NEEDED FOR BED ASSEMBLY (PACK A)
E
D
Spring washer for
M6 bolts
F16 pcs
G 1 pc
2
2
Allen key for
M8 bolts
B
A
C
Spring washer for
M8 bolts
Flat washer for
M8 bolts
No Qty Box
Hardware List
H
1 pc 2
12 pcs 2
J 12 pcs
K 4 pcs
L
M
2 pcs
2
2
2
2 pcs 2
Allen key for
M6 bolts
Bolt (M6x45mm) for
fitting “U” shape cross
bar to side rails(3)
Hook bracket - RH
No Qty Box
18 pcs
24 pcs
4 pcs
Hardware List

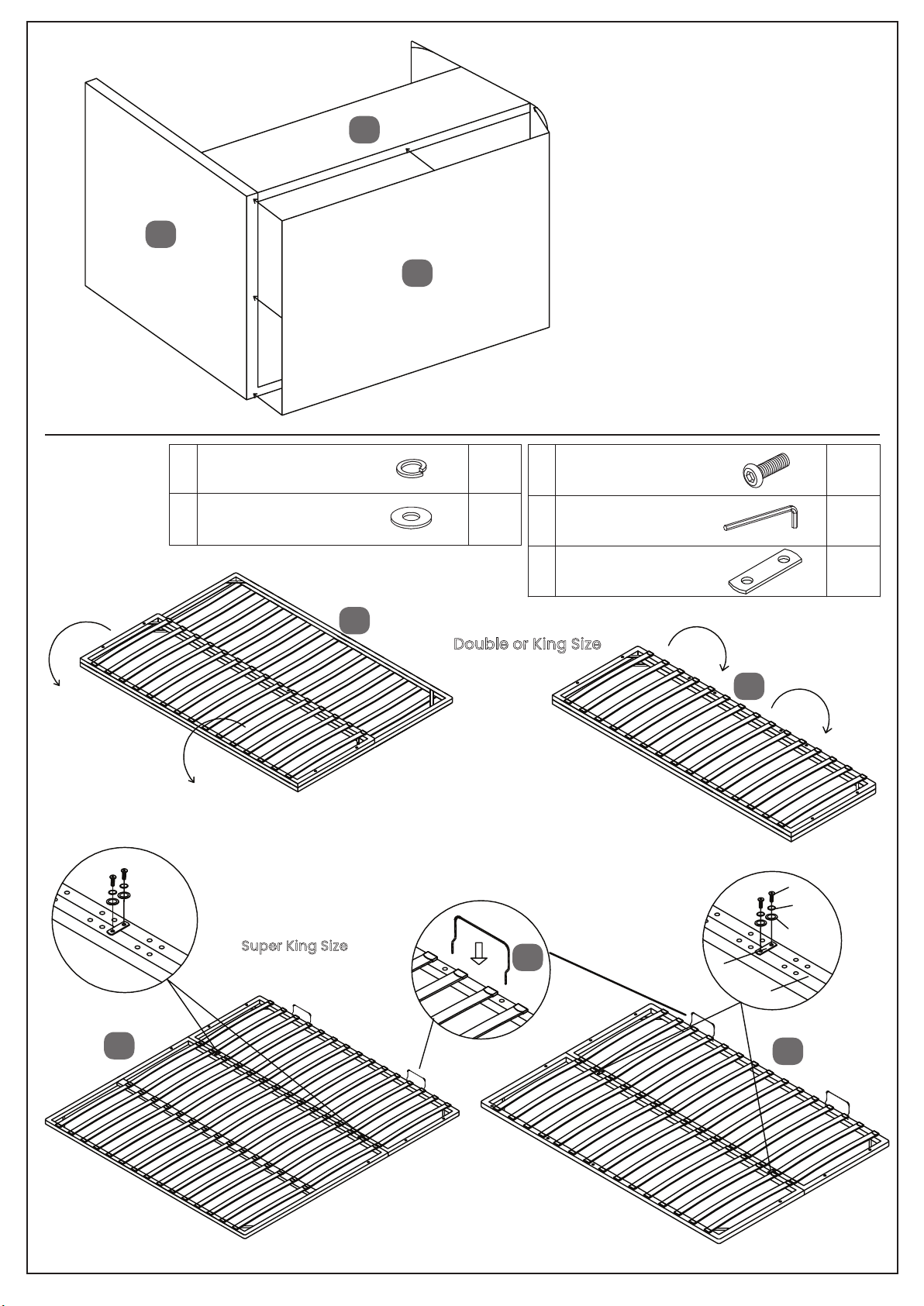

HARDWARE NEEDED FOR METAL SLAT FRAME ASSEMBLY (PACK B)
D
N 8 pcs
B
C
Spring washer for
M8 bolts
Flat washer for
M8 bolts
No Qty Box
Hardware List
P 2 pcs
Q8 pcs
R
S
T
1 pc
6 pcs 2
4 pcs 2
Flanged M8 lock-nut
Plastic spacer for lift
mechanisms (8 & 9)
Metal connection plate
A4 pcs 2
No Qty Box
2 pcs
2 pcs
2
2
Hardware List
HARDWARE NEEDED FOR TV INSTALLATION (PACK C)
U
No Qty Box
Hardware List
1 pc
V
W
1 pc
2 pcs
2
2
2
2 pcs 2
TV Support Slide
X2 pcs 2
M8 x 25mm
Bolt set
Counter-sunk screw
set (M6x12mm)
Counter-sunk screw
set (M4x12mm)
Allen key (2.5mm)
Allen key (4mm)
Hook bracket - LH
Bolts (M8x50mm) for fitting
metal slat frame (10 or 14)
to lift mechanism (8 & 9)
Bolt (M8x35mm) for fitting
side rail hook brackets to
headboard & footboard
Bolt (M6x20mm) for fitting
"L" shaped brackets (7) to
side rails (3)
Bolts (M8x20mm) for
fitting metal connection
Bolt (M8x20mm) for fitting
hook brackets (L & M) to
side rails (3)
Bolts (M8x35mm) for
fitting lift mechanism
(8 or 9) to footboard (2)
Bolts (M8x65mm) for
fitting lift mechanism
(8 or 9) to headboard (1)
Spanner for flanged
M8 Lock-nuts
2
2
2
2
2
2
2
2
2
2
plate to metal frame
Plastic spacer for
fitting TV (Step 11)
