Harbor Freight Tools 91280 User manual

PROPANE TORCH
2-WAY
MODEL 91280
ASSEMBLY AND OPERATING INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion
of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List (page 8) are
included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
GENERAL SAFETY WARNINGS AND PRECAUTIONS
1. Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding work space. Always keep the area free of obstruc-
tions, grease, oil, trash, and other debris. Do not use the Propane Torch in areas
near flammable chemicals, dusts, and vapors. Be aware of wind blown sparks.
Do not use the Propane Torch around or near buildings and structures.
2. Keep children away from work area. Do not allow children to handle this
product.
3. Store idle equipment. When not in use, tools and equipment should be stored
in a dry location to inhibit rust. Always lock up tools and equipment, and keep out
of reach of children.
Item Description
Product Compatibility Designed for use with standard L.P. (propane) tanks
Number of Burners 2
Hose Pressure Rating 350 Working PSI
Hose Length 6’ 8-1/2”
Hose Diameter .315” ID / .551” OD
Hose Fitting Thread 7/8”-14 TPI (LH Male)
Wand Length 20” Wand / 28” Wand w/Handle
Bell Length 4-7/8” Bell / 5-3/4” Bell w/Fittings
Jet Nozzle Diameter .046”
Additional Features Turbo Lever / In-Handle Shut Off Valve / Manifold;
Cast Brass Shank / Brass Trigger
Overall Weight 4.55 Pounds

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 3
4. Do not use this product if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgement or reflexes are
impaired while taking drugs. If there is any doubt, do not attempt to use this
product.
5. Do not overreach. Keep proper footing and balance at all times to prevent
tripping, falling, back injury, etc.
6. Industrial applications must follow OSHA requirements.
7. Stay alert. Watch what you are doing at all times. Use common sense. Do not
use this product when you are tired or distracted from the job at hand.
8. Check for damaged parts. Before using this product, carefully check that it will
operate properly and perform its intended function. Check for damaged parts
and any other conditions that may affect the operation of this product. Replace or
repair damaged or worn parts immediately. Do not use product if it appears
damaged or if there is any condition that may affect it use.
9. Replacement parts and accessories: When servicing, use only identical re-
placement parts. Only use accessories intended for use with this product. Ap-
proved accessories are available from Harbor Freight Tools.
10. Maintain this product with care. Keep this product clean and dry for better and
safer performance. For your safety, service and maintenance should be per-
formed regularly by a qualified technician.
11. Use the right tool for the job. Do not attempt to force a small tool to do the
work of a larger industrial tool. There are certain applications for which this tool
was designed. It will do the job better and more safely at the capacity for which it
was intended. Do not modify this tool, and do not use this tool for a purpose for
which it was not intended.
12. Use protective equipment and dress safely. Use ANSI approved safety impact
goggles to protect your eyes and flame retardant gloves to avoid burns. Do not
wear loose clothing such as hanging shirt tails and coats. Wear a protective hair
covering to keep long hair away from heat and flames. Heavy duty leather work
boots and long pants are recommended.
13. WARNING! The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations that may occur. The
operator must understand that common sense and caution are factors, which
cannot be built into this product, but must be supplied by the operator.

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 4
SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS
1. The Propane Torch is for outdoor use only. Use the Propane Torch only in
well-ventilated areas. Keep Propane Torch away from structures and
flammable materials. Inhalation of propane fumes may result in CARBON
MONOXIDE POISONING, INJURY and/or DEATH.
2. Risk of EXPLOSION.
Propane fuel is EXTREMELY FLAMMABLE and under PRESSURE.
a. Contact local solid waste authorities for instructions on correct disposal
or recycling of a propane cylinder. Never puncture or set fire to an empty
propane cylinder.
b. Keep valve protective caps in place when cylinders are not in use.
c. Never use a propane tank if it shows signs of: Dents, corrosion, gouges,
bulges, fire damage, leakage, excessive rust, or any other form of visual
external damage.
d. Store propane cylinders properly:
• Store the cylinder in a well-ventilated area marked for cylinder storage only.
• Store propane cylinders away from oxiding or corrosive gas cylinders.
• Store empty cylinders away from full cylinders and label empty cylinders clearly.
• Do not store propane fuel in temperatures exceeding 120° F.
• Keep the propane cylinder upright when using and storing.
3. Risk of FIRE.
a. Before each use, always check all propane connections and joints to
make sure no leaks are present. Also check hoses for cracks or excessive
wear. Always replace a damaged hose.
b. If, while using the Propane Torch, you notice the odor of propane, im-
mediately shut off the propane fueling the Torch. Extinguish all open
flames, and carefully check for leaks by using soapy water. Never use a
flame to check for leaks. If the odor continues, do not use the Torch and
move the propane tank outside, if it is not already outside. Call your local
propane supplier for assistance.
c. Make sure the Hand Wheel (17) is turned to its “OFF” position and the
propane tank (not included) is removed when the Propane Torch is not
in use.
d. Never use gasoline, kerosene, or other highly volatile fluids as a starter
as they can explode.
e. Never leave the Propane Torch unattended once it is lit.
f. Keep a fire extinguisher handy. Always keep a commercial fire extinguisher
nearby the Propane Torch in case of accidental fire.

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 5
g. Do not clean the Propane Torch with cleaners that are combustible or
corrosive.
h. Do not paint any part of the Propane Torch.
i. Never smoke while using the Propane Torch. Make sure all surrounding
flames are extinguished.
j. Do not use this product with any fuels other than propane.
4. TheTorch Bells (37) get VERY HOT during use.
a. Do not aim the PropaneTorch’s Bells (37) at yourself, others, or animals.
Keep spectators clear of the work area.
b. Always allow sufficient time for the Propane Torch to completely cool
down before storing.
5. Do not use the Propane Torch in the rain.
6. Do not store flammable liquids or materials in the area surrounding the Pro-
pane Torch.
7. Maintain a firm grip with both hands on the Propane Torch while in use.
8. Never reach across the Propane Torch while in use. Be aware that parts of the
Propane Torch become extremely hot during operation.
9. Maintain labels and nameplates on the Propane Torch. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a replace-
ment.
10. WARNING! The brass components of this product contain lead, a chemical known
to the State of California to cause birth defects (or other reproductive harm).
(Cali-
fornia Health & Safety Code 25249.5, et seq.)
11. WARNING! This product, when used with propane fuel, produces chemicals known
to the State of California to cause cancer and birth defects (or other reproductive
harm).
(California Health & Safety Code 25249.5, et seq.)
PRODUCT FEATURES
The Propane Torch is ideal for melting ice or burning weeds on side-
walks and driveways. The Torch easily attaches to standard L.P. (liquid pro-
pane) tanks.
The Side Handle (39) on the side of the shaft can be moved into place
and then tightened in place using the knob on its side. This handle provides
extra support and control.
REV 08/04

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 6

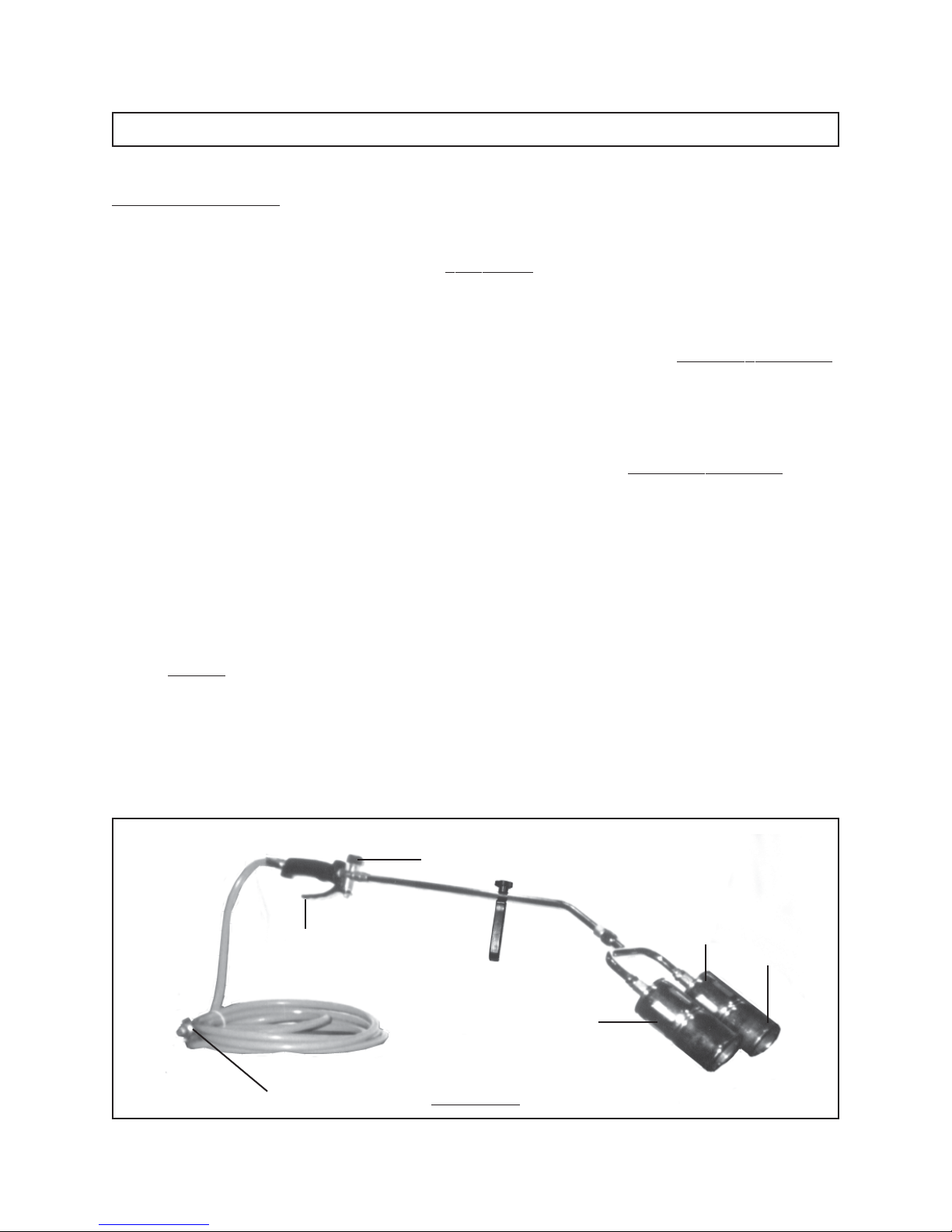

ASSEMBLY INSTRUCTIONS
NOTE: For additional references to the parts listed on the following pages, refer to the
Assembly Diagram (page 9).
1. The Hand Wheel (17) on the Propane Torch controls the Torch’s gas flow. Turn
the Propane Torch’s Hand Wheel clockwise all the way to its “OFF” position.
(See Figure A.)
2. Wrap about 4” of pipe thread sealer tape around the Torch’s Cylinder Connector
(1). Then, screw the Propane Torch’s Cylinder Connector (1) counterclockwise
firmly into the propane cylinder’s outlet valve.
(See Figure A.)
3. Open the outlet valve on the propane cylinder first. Check for any propane leaks.
Then, slowly turn the Propane Torch’s Hand Wheel (17) counterclockwise to its
“ON” position. (See Figure A.)
4. To light the Propane Torch, insert the lit end of a commercial, long handled,
fireplace/barbecue grill
lighter (not included) through the slots located on
the two Nozzle Bases (36) of the Torch.
(See Figure A.)
5. Adjust the flame to the desired level by turning the Hand Wheel (17).
NOTE: The lit Nozzles (35) should operate with a blue flame with a small yellow
tip. If necessary, adjust the flame if there is sputtering or popping.
(See Figure A.)
6. To intensify the size of the flame, squeeze the Lever (28). Releasing the
Lever will bring the flame back to its previous size. (See Figure A.)
LEVER
(28)
CYLINDER CONNECTOR (1)
HAND WHEEL (17)
NOZZLE
BASE
(36)
NOZZLE
(35)
BELL (37)
FIGURE A

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 7
7. To extinguish the flame, turn the Hand Wheel (17) clockwise until closed. Also,
make sure to close the outlet valve on the propane tank.
8. When finished using the Propane Torch, allow it to cool before storing.
Dis-connect the Propane Torch from propane tank. Store the Propane Torch and
propane cylinder in a safe location and out of reach of children -see page 4
Specific Product Precaution 2 for further details.
INSPECTION, MAINTENANCE, AND CLEANING
1. Before each use, inspect the general condition of the Propane Torch. Check for
loose Bolts and Nuts, misalignment or binding of moving parts, loose connections
and joints, cracked, bent, or broken parts, excessively worn Hose (3), and any
other condition that may affect its safe operation. If a problem occurs, have the
problem corrected before further use.
Do not use damaged equipment.
2. When cleaning, use only water and a mild detergent. Do not use cleaners that
are combustible or corrosive.
3. When storing, always allow sufficient time for the Propane Torch to completely
cool down before storing. Do not store flammable liquids or materials in the area
surrounding the Propane Torch. Make sure the Hand Wheel (17) is in its “OFF”
position and that the Torch is disconnected from the propane tank. (Refer to
Step #3, page 4.)
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR
HER INSTALLATION OF REPLACEMENT PARTS THERETO.

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 8
PARTS LIST
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
traPnoitpircseDtraPnoitpircseD
1rotcennoCrednilyC12tnioJnoitcennoC
2pilC22teksaGevlaV
3esoH32gniR-OevlaV
4rotcennoCeld
naH42yeK/tuNpotSevlaV
5troppuS52gniR-O
6tloB62gniR-O
7)5M(tuN72gnirpSreveL
8rennapS82reveL
9rennapS92raBnoisnetxE
01noitcenno
CtelnI03noitcennoCteltuO
11rehsaW13tuN
21ebuTnorI23noitcennoCteltuO
31eldnaH33noitcennoCteltuO
41ydoBevlaV43tuN
51yeK/tuN
potSeldeeN53elzzoN
61tuN63esaBelzzoN
71leehWdnaH73lleB
81eldeeN83eceiP"Y"
91gniR-O93eldnaHediS
02tuNrotcennoCraB
REV 08/04

SKU 91280 For technical questions, please call 1-800-444-3353. PAGE 9
ASSEMBLY DIAGRAM
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
37
37
36
36
35
35
34
34
33
33
26
26
32
32
31
26 30
29
4
2
3
2
1
9
8
7
7
6
6
5
21
26
25
24
23
22
20
19
18
17
16
27
28
15
14
12
13
11
10
38
NOTE: Part 39 - Side Handle - not shown.
REV 08/04
