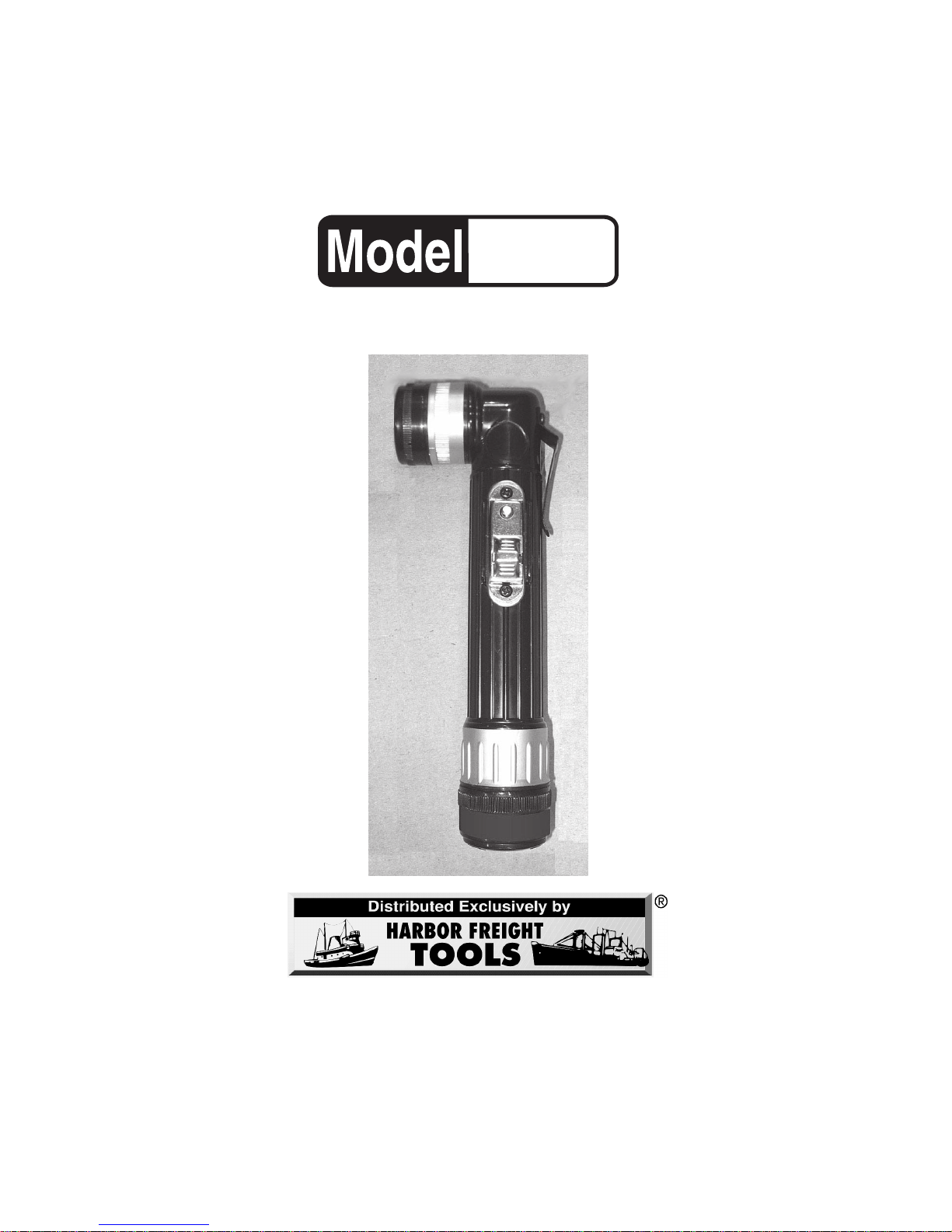

Camping Flashlight
ASSEMBLY AND OPERATING INSTRUCTIONS
3491MissionOaksBlvd.,Camarillo,CA93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2004 by Harbor Freight Flashlights®. All rights reserved. No portion of
thismanualoranyartworkcontainedherein may bereproducedinany shape orform
withouttheexpresswritten consent of Harbor Freight Flashlights.
For technical questions and replacement parts, please call 1-800-444-3353
92061

SKU92061 Page 2Fortechnical questions, pleasecall 1-800-444-3353
Specifications
This flashlight is ideal for camping and outdoor use.The 90 degree head angle
makes it easy to shine the light ahead while holding the flashlight at a natural
angle.Thefourinterchangeablecolored lenses allow you to suit the flashlight to
yourparticular lighting needs. There isa blinking function for signaling,or to alert
rescuepersonnelintheeventof an emergency.Krypton bulbsprovide70%brighter
light than standard bulbs. A spare Krypton bulb is stored in the flashlight.
Save This Manual
You will need the manual for the safety warnings and precautions, assembly
instructions, operating and maintenance procedures, parts list and diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep the manual and invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING:When using this flashlight,basic safety precautions should always
be followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this flashlight!
1. Keep work area clean. Cluttered areas invite injuries.
2. Keep children away. Children must never be allowed in the work area. Do
not let them use flashlights, or extension cords without adult supervision.
3. Store idle equipment. When not in use, flashlights must be stored in a dry
location to inhibit rust. Always lock up flashlights and keep out of reach of
children.
4. Use the right flashlight for the job. There are certain applications for which
this flashlight was designed. It will do the job better and more safely at the
rate for which it was intended. Do not modify this flashlight and do not use
this flashlight for a purpose for which it was not intended.
5. Do not overreach. Keep proper footing and balance at all times.Do not reach
overoracrossrunningmachines.
:serutaeF ssapmocnitliuB sesnelelbaegnahcretni)4( :ecruoSrewoP seirettab"AA"CDV4.2)2( )dedulcniton(
:elgnAdaeHseerged09:thgieWteN.sbl2.0
:tnatsiseRretaWslaesrebburhtiwdetaocrebbuR:deriuqeRbluB.pma57.7CDV4.2notpyrK

SKU92061 Page 3Fortechnical questions, pleasecall 1-800-444-3353
6. Maintain flashlights with care. Keep flashlights maintained and clean for
betterand safer performance. Followinstructionsformaintenanceand
changing accessories.The handles must be kept clean, dry, and free from oil
and grease at all times.
7. Disconnect power.Turn off flashlight when not in use. Remove batteries if
flashlight is not going to be used for a long period of time.
8. Avoid unintentional starting. Be sure the switch is in the Off position when
notinuseandbeforereplacingbatteries.
9. Stay alert. Watch what you are doing, use common sense. Do not operate
anyflashlightwhenyouare tired.
10. Check for damaged parts. Before using any flashlight, any part that appears
damagedshould be carefully checked todetermine that it willoperateproperly
and perform its intended function. Check for any condition that may affect
properoperation.Anypart that is damaged should be properlyrepairedor
replaced by a qualified technician. Do not use the flashlight if the switch does
not turn On and Off properly.
11. Guard against electric shock. Preventbodycontactwithgroundedsurfaces
suchaspipes,radiators,ranges,andrefrigeratorenclosures.
12. Do not use camping equipment if under the influence of alcohol or
drugs. Readwarninglabelson prescriptions to determine if your judgment or
reflexes are impaired while taking drugs. If there is any doubt, do not use this
productorother camping appliances.
13. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualified technician.To maintain water resistance, be sure that
allrubbersealsarenotdamagedandproperlyinstalled.
14. The compass contains mineral oil, which can be harmful if ingested.
Discard the flashlight if leaking or otherwise damaged, and rinse any areas
that come into contact with the oil thoroughly.
NOTE:This flashlight is water resistant, but not water proof.When properly as-
sembled and maintained, you may use it with confidence in rain or damp condi-
tions.However, if it is totally immersed in water if is likely to be damaged.
Warning: The warnings, cautions, and instructions discussed in this instruc-
tion manual cannot cover all possible conditions and situations that may oc-

SKU92061 Page 4Fortechnical questions, pleasecall 1-800-444-3353
cur.It must be understood by the operator that common sense and caution are
factors which cannot be built into this product, but must be supplied by the
operator.
Unpacking
When unpacking, check to make sure the following parts are included.
Flashlight
4 filters stored in the filter compartment
Spare Krypton bulb, stored in the spare bulb compartment
If any parts are missing or broken, please call Harbor Freight Flashlights at the
numberonthecoverofthis manual.
NOTE: Warranty replacement parts or accessories specific to this flashlight are not
available from Harbor FreightToolsforthis item.Replacementbatteries and light
bulbs may be available at your local Harbor Freight Tools retail outlet, or are
commonlyavailable fromhardwareanddepartment stores.
Operation
First install two (2) “AA” batteries (not included).
1. Remove the battery compartment cap, located at the bottom of the flashlight,
by turning it counterclockwise.

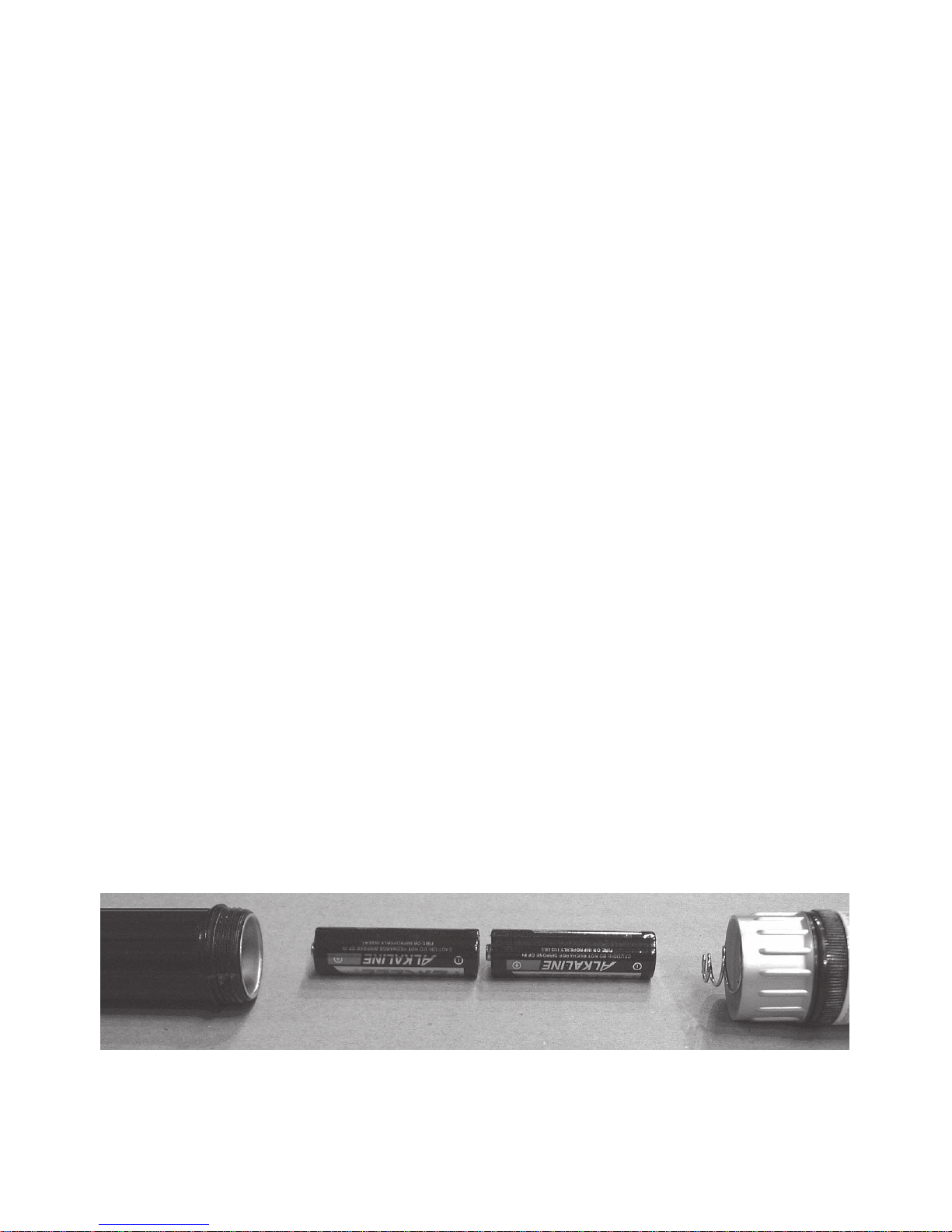

2. Insert two “AA” batteries (not included) into the battery compartment,
observing the polarity markings on the flashlight case. Please see picture.
3. Replace the battery compartment cap, and secure it by turning clockwise until
handtight.

SKU92061 Page 5Fortechnical questions, pleasecall 1-800-444-3353
Select and install the desired lense.
1. The lenses are stored in a compartment at the bottom of the flashlight, under
the compass. Open this compartment by turning the cap counterclockwise.
2. Select the desired lense.NOTE:Your preference may vary, but suggested
lens application is: RED for very low light output, GREEN for low light output,
YELLOWforcontrastinhazeorfog, FROSTED for diffused light.
3. To change or install the lense, remove the
lensecoverbyturning counterclockwise.
Replace the existing lense with the desired
lense.Replace the lense cover, and tighten by
turning clockwise until finger tight.
To operate the flashlight:
1. To turn on the flashlight, press the upper
part of the ON /OFF switch down.
2. To turn off the flash light, press the lower
part of the ON / OFF switch down.
3. To manually blink the flashlight, press the round“blink”button and release.
Maintenance
1. When not in use, turn OFF the flashlight to save the
batteries.
2. Ifthe flashlightwillnotbeusedforseveral months,
removethe batteriesbeforestorage toprevent
possibledamagecaused by leaking batteries.
“blink” button
ON / OFF switch

SKU92061 Page 6Fortechnical questions, pleasecall 1-800-444-3353
3. In case the bulb burns out, a
spare battery is stored in a container at
thebottomoftheflashlight.Removethe
batterybyturningthestorage container
counterclockwise.
4. RemovetheLantern Head by
turningitcounterclockwise.Pleaserefer
to the photo at left. Remove the Bulb
Holderfromthe Lantern Head by turning
it counterclockwise.
6. Remove the old bulb from the Bulb
Holder by pulling it straight out.
Place the new bulb in the Bulb
Holder, and replace theBulbHolder
inthe Lantern Head. Secure by
turningtheBulbHolderclockwise
untilfingertight.
7. ReplacetheLanternHead in the
Flashlight.Turnclockwiseuntilfinger
tight. Do not overtighten, as this
mightdamagetherubberseal.
Usingthe compass.
1. Inverttheflashlight,holding the compass
upright. Wait a moment while the compass stops
moving.
2. The compass will orient itself to the
magneticdirections. N toward theNorth, S toward
the South, etc.
3. There are many uses for a compass. For
exampleby taking bearings as youmoveaway
from a starting point, you may be able to find your
way back by reversing those directions on the
return trip. Or you can find landmarks on a map
by orienting yourself with the compass.
