Hardi KS Series User manual

KS/TR/PU
Instruction book
674295
GB - 06.1999
www.hardi-international.com

We congratulate you for choosing a HARDI plant protection
product. The reliability and efficiency of this product depend
upon your care. The first step is to carefully read and pay atten-
tion to this instruction book. It contains essential information
for the efficient use and long life of this quality product.
llustrations, technical information and data in this book are to the best of our belief
correct at the time of printing. As it is HARDI INTERNATIONAL A/S policy permanently to
improve our products, we reserve the right to make changes in design, features,
accessories, specifications and maintenance instructions at any time and without notice.
HARDI INTERNATIONAL A/S is without any obligation in relation to implements
purchased before or after such changes.
HARDI INTERNATIONAL A/S cannot undertake any responsibility for possible omissions
or inaccuracies in this publication, although everything possible has been done to make
it complete and correct.
.As this instruction book covers more models and features or equipment, which are
available in certain countries only, please pay attention to paragraphs dealing with
precisely your model.
Published and printed by HARDI INTERNATIONAL A/S

1
KS/TR/PU/UN/
SR/GN/CT
Instruction book
674295-GB-99/6
HARDI INTERNATIONAL A/S reserve the right to make changes in design or to add new
features without any obligation in relation to implements purchased before or after such changes.
Contents
EC Declaration of Conformity.....................................2
Operator safety ..........................................................3
Description .................................................................4
Identification plates ...............................................4
Function diagram .......................................................5
Before operation.........................................................5
Electric motor ........................................................5
Petrol engine.........................................................5
Pump.....................................................................6
Adjustment of the M600/N 2 controls....................6
Adjustment of the BK controls...............................7
Choice of nozzle size ............................................8
Maintenance...............................................................8
Cleaning the sprayer.............................................8
Filters ....................................................................9
Lubrication ............................................................9
Off-season storage...................................................10
Operational problems...............................................11
Technical specifications............................................13
Filters and nozzles ..............................................13
Measure and weight............................................13
Assembly..................................................................15
Spare parts ..............................................................22

2
EC Declaration of Conformity
Manufacturer,
HARDI INTERNATIONAL A/S
Helgeshøj Allé 38
DK 2630 Taastrup
DENMARK
Importer,
declare that the following product;
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Adhere extra shipping package labels to inside cover.
A. was manufactured in conformity with the provisions in the COUNCIL
DIRECTIVE of 14 June 1989 on mutual approximation of the laws of the
Member States on the safety of machines (89/392/EEC as amended by
directives 91/368/EEC and 93/368/EEC) with special reference to Annex
1 of the Directive on essential safety and health requirements in relation
to the construction and manufacture of machines.
B. was manufactured in conformity with the standards current at that
time that implements a harmonised standard in accordance with Article 5
(2) and other relevant standards.
Taastrup 15.3.98
Erik Holst
Managing Director
HARDI INTERNATIONAL A/S

3
Operator safety
Watch for this symbol . It means WARNING, CAUTION, NOTE.
Your safety is involved so be alert!
Note the following recommended precautions and safe operating
practices.
Read and understand the instruction book before using the equip-
ment. It is equally important that other operators of this equipment
read and understand the book.
Local law may demand that the operator be certified to use spray
equipment. Adhere to the law.
Pressure test with clean water prior to filling with chemicals.
Wear protective clothing.
Rinse and wash equipment after use and before servicing.
Depressurize equipment after use and before servicing.
Never service or repair the equipment whilst it is operating.
Disconnect electrical power before servicing.
Always replace all safety devices or shields immediately after
servicing.
If an arc welder is used on the equipment or anything connected
to the equipment, disconnect power leads before welding. Re-
move all inflammable or explosive material from the area.
Do not eat, drink or smoke whilst spraying or working with con-
taminated equipment.
Wash and change clothes after spraying.
Wash tools if they have become contaminated.
In case of poisoning, seek doctor or ambulance. Remember to
identify chemicals used.
Keep children away from the equipment.
Do not attempt to enter the tank.
If any portion of the instruction book remains unclear after reading
it, contact your HARDI dealer for further explanation before using
the equipment.

4
We congratulate you for choosing a HARDI plant protection product.
The reliability and efficiency of this product depend on your care. The
first step is to carefully read and pay attention to this instruction
book. It contains essential information for the efficient use and long life
of this quality product.
As the instruction book covers all KS, TR, PU, UN, SAFARI (SR),
GEMINI (GN) and COLT (CT) models, please pay attention to the
paragraphs dealing with precisely your model. This book is to be read
in conjunction with the “Spray Technique” book.
Description
HARDI sprayers are for the application of plant protection chemicals.
They consist of electric or petrol driven pump, operating unit, frame
with fixed track width (KS/TR/SR/GN) or frame (PU/CT) with or without
adjusting brackets and polyethylene tank.
The design of the diaphragm pump is simple, with easily accessible
diaphragms and valves that ensures liquid does not contact the vital
parts of the pump.
If a pressure up to 40 bar is required, the P3L piston pump is the fitted.
The tank, made of impact-proof and chemical resistant polyethylene,
has a purposeful design with no sharp corners, for easy cleaning.
The M-600/600HT, N-2 or BK operating unit consists of; main ON/OFF
valve, pressure gauge, distribution valves and pressure control valve.
Identification plates
An identification plate fitted on the frame and pump is to indicate
model, year of production with serial number and country of origin. If
ordering spare parts, inform your dealer of these so the right model
and version are described.

5

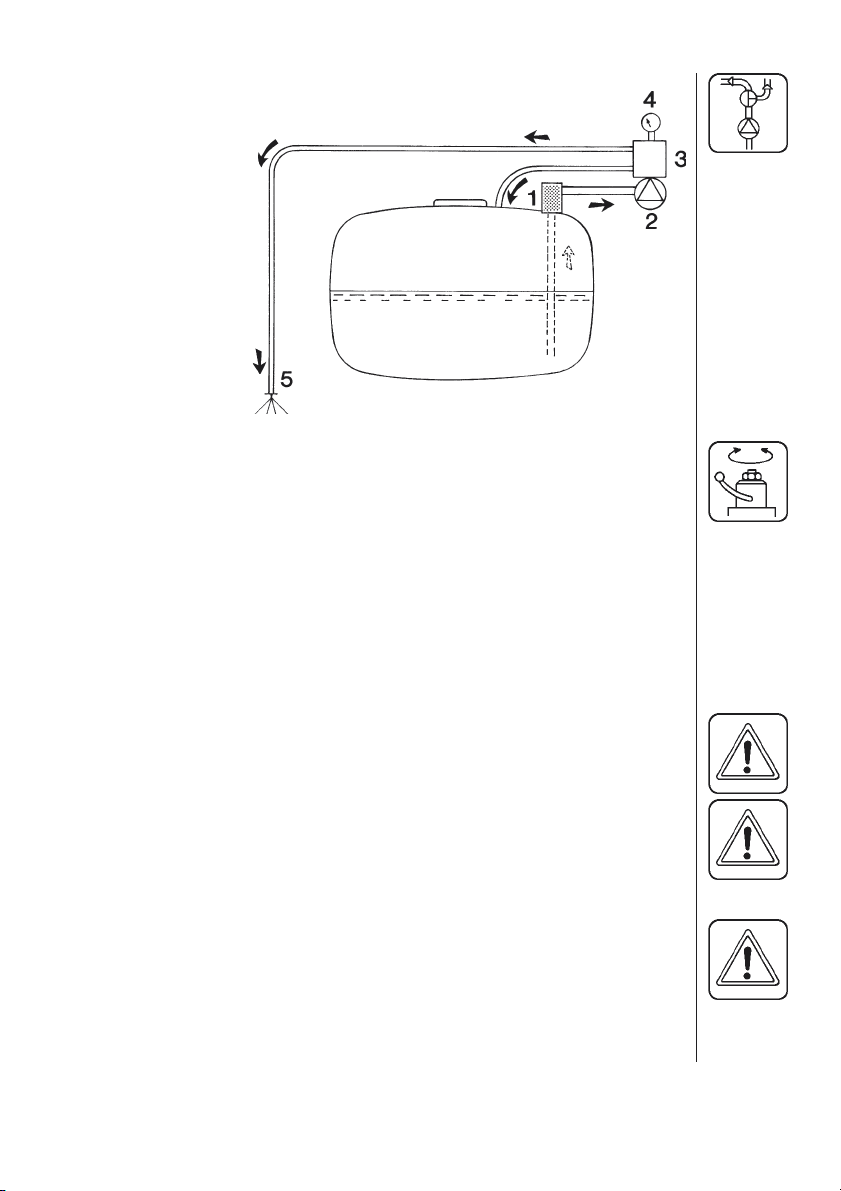

Function diagram
1. Suction filter
2. Pump
3. Operating unit
4. Pressure gauge
5. Spray lance/boom
Before operation
Electric motor
If the sprayer is equipped with an electric motor it must be connected
by the authorized electrician according to the local law. Adhere to the
law.
Petrol engine
If the sprayer is equipped with a petrol engine, see enclosed instruction
manual on the engine regarding petrol, oil change and maintenance. If
any doubt, contact Briggs & Stratton service personnel.
WARNING: To prevent accidents remove the high tension lead from
the engine before servicing the engine or other parts of the sprayer.
WARNING: REMEMBER SUFFICIENT VENTILATION - NEVER
WORK IN CLOSED ROOMS.
Exhaust gas containing carbon monoxide has no odour but is very
dangerous.
WARNING: NEVER FILL ON PETROL WHEN THE ENGINE IS
WORKING.
Do not spill petrol on a hot engine. This may cause an explosion and
serious injury.

6
Pump
Check the pump belts are tight and the protection screen is in good
condition according to local law.

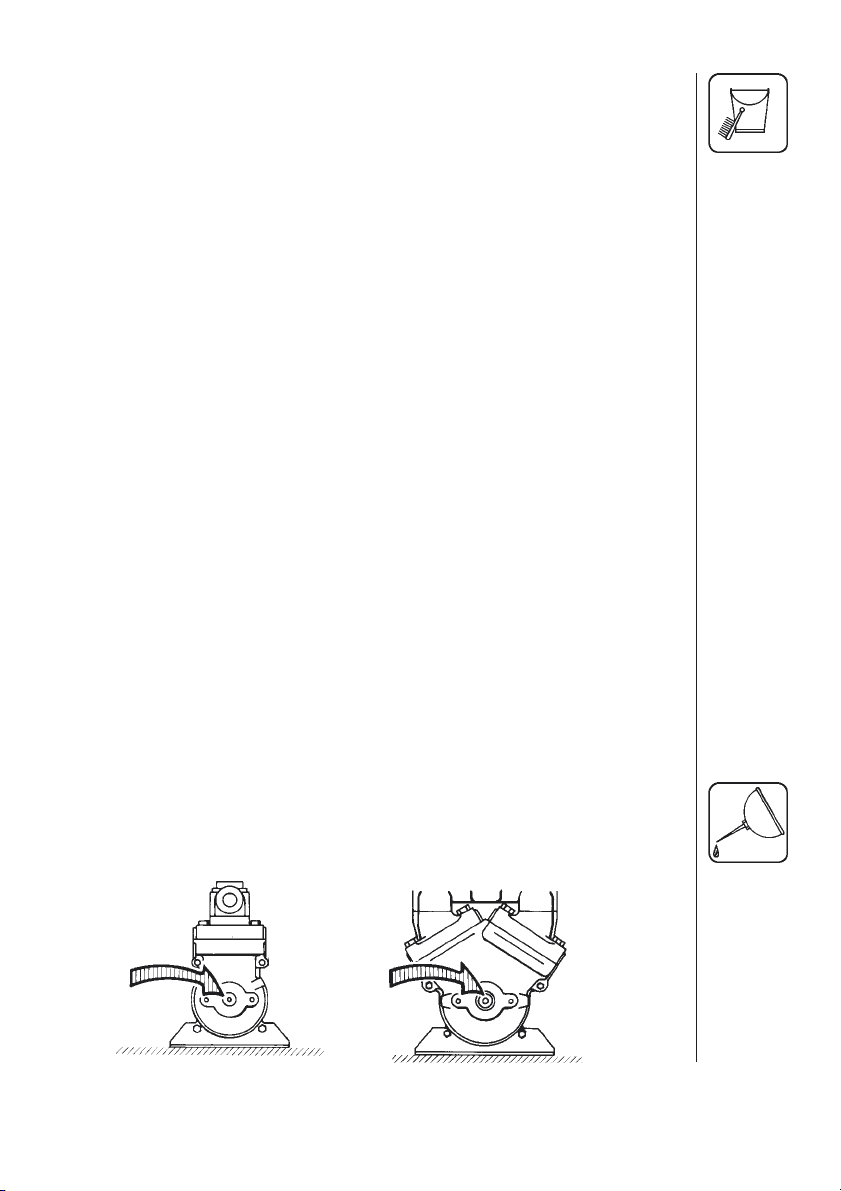

Is the pump the piston type
check oil level and fill on SAE
20/40 HD if necessary.
The oil level must be between
min. and max. mark on the dip
stick (2). Furthermore, the P3L
has an outside sight glass (2).
Adjustment of the M600/N 2 controls
P3X
1
2
1
1. Fill the sprayer tank with clean water.
2. Start the engine.
3. Turn main ON/OFF handle to spraying position 1A.

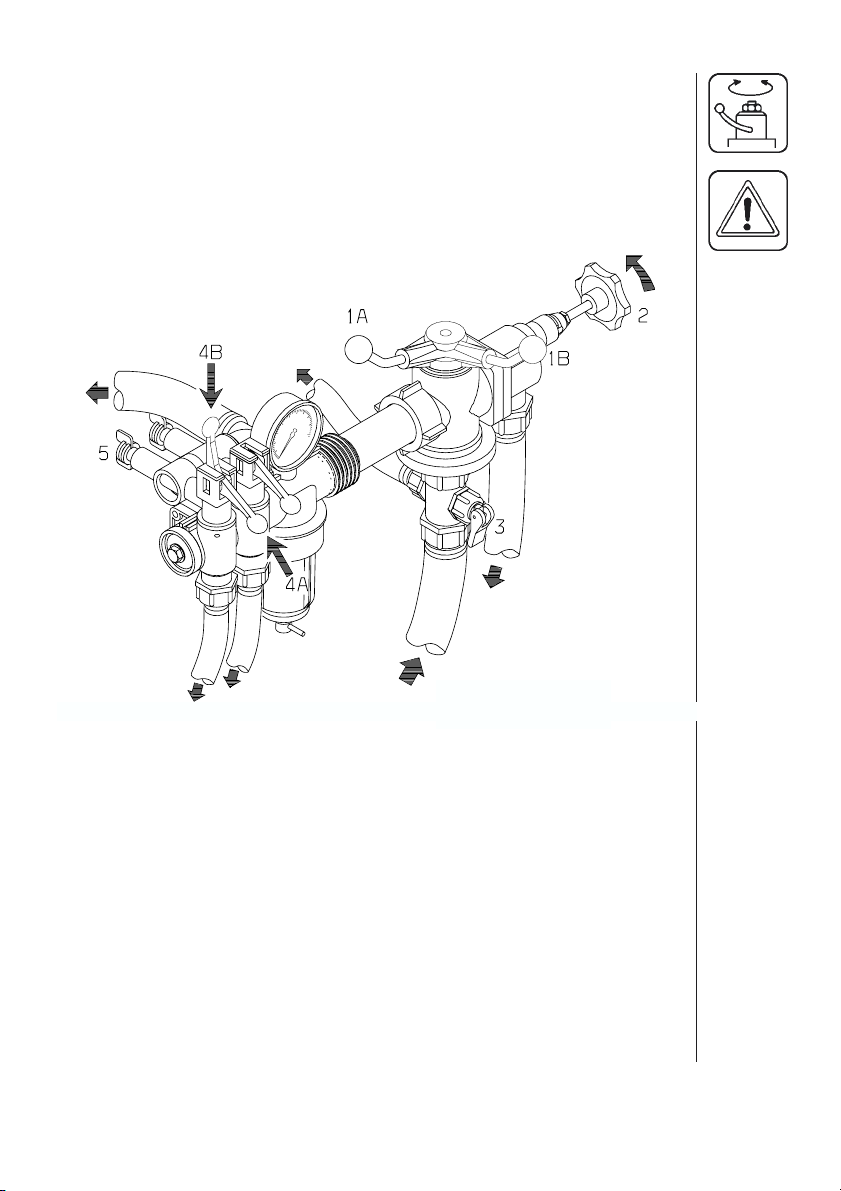

4. The pressure regulating valve 2is set at the wanted pressure and
shown on the pressure gauge.
5. Open for the spray lance and set the pressure at 3 bar more than
normal working pressure to check possible leaks. Reduce the
pressure to normal working pressure.
1B
1A
1B
1A
22

7
6. To stop liquid flow to the spray lance turn main ON/OFF to pos. 1B,
then there will be no pressure in the sprayer and the capacity of the
whole pump is led through the by-pass to the tank.
NOTE: Higher working pressure means smaller drops = better
coverage, but increased risk of wind drift.
Adjustment of the BK controls
1. Fill the sprayer tank with clean water.
2. Start the engine.
3. Turn main ON/OFF handle to spraying position 1A.
4. Open the pressure agitation valve 3, if supplied (tight spring ten-
sion).
5. Open the distribution valves 4A.
6. Set the pressure control valve 2at 3 bar more than normal working
pressure to check possible leaks. Reduce the pressure to normal
working pressure.
7. Close the distribution valves 4B one by one. Adjust on pressure
equalization valves 5if the pressure increases/drops.
8. Turn main ON/OFF and the capacity of the whole pump is led
through the by-pass to the tank.

8
NOTE: Higher working pressure means smaller drops = better cover-
age, but increased risk of wind drift.
Choice of nozzle size
If you want to change the standard nozzles of the spray lance by other
nozzles, it is very important that the pump is capable to feed the
nozzles wanted.
Spray Technique - see separate book.
Maintenance
In order to derive full benefit from the sprayer for many years the
following few but important rules should be kept.
Cleaning the sprayer
Guidelines
Read the whole label of the chemical. Take note of any particular
instructions regarding recommended protective clothing, deactivating
agent, etc. Read the detergent and deactivating agent labels. If clean-
ing procedures are given follow them closely.
Be familiar with local legislation regarding disposal of pesticide wash-
ings, mandatory decontamination methods, etc. Contact the appropri-
ate body, eg. Dept. of Agriculture.
Pesticide washings can usually be sprayed out on a soakaway. This is
an area of ground that is not used for cropping. You must avoid seep-
age or run-off of residues into streams, water courses, ditches, wells,
springs, etc. The washings from the cleaning area must not enter
sewers. Drainage must lead to a soakaway.
Cleaning starts with the calibration, as a well calibrated sprayer will
ensure the minimal amount of remaining spray liquid.
It is good practice to clean the sprayer immediately after use thereby
rendering the sprayer safe and ready for the next pesticide application.
This also prolongs the life of the components.
It is sometimes necessary to leave spray liquid in the tank for short
periods, eg. overnight, or until the weather becomes suitable for

9
spraying again. Unauthorized persons and animals must not have
access to the sprayer under these circumstances.
If the product applied is corrosive, it is recommended to coat all metal
parts of the sprayer before and after use with a suitable rust inhibitor.
Remember: Clean sprayers are safe sprayers.
Clean sprayers are ready for action.
Clean sprayers cannot be damaged by pesticides
and their solvents.
Filters
Clean filters ensure :
• Sprayer components such as valves, diaphragms and operating unit
are not hindered or damaged during operation.
• Nozzle blockages do not occur whilst spraying.
• Long life of pump. A blocked suction filter will result in pump
cavitation.
Suction filter
The main filter protecting sprayer components is the suction filter.
Check it regularly.
The sprayer has a suction filter placed in the top of the tank.
BK Pressure filter
The BK operating unit has an built-in pressure filter. Unscrew the filter
bowl to inspect and clean the filter.
Alternative filters are available.
See section on Technical specifications - Filters and nozzles.
Lubrication
After 40 hours’ operation the diaphragm pump is lubricated with ball
bearing grease Lithium No. 2.

10
Check the pump belts daily - if tightening is necessary, loosen engine
mounts, move the engine and re-tighten.
If the engine is equipped with reducing gear please see enclosed
Briggs & Stratton instruction manual “Oil check, oil change/intervals
and oil qualities”.
Lubricate frequently the movable parts of the operating unit with
corrosion protective oil.
Change the oil of the piston pump for the first time after 50 hours’
operation and then every 150 hours or at least once a year. Fill 20/40
HD oil until it shows in the sight glass.
Be sure there is no play in the wheel bearings - use ball bearing
grease twice a year.
Check oil level of the petrol engine each day. Please see “Oil change”
Briggs & Stratton instruction book.
Off-season storage
When the spraying season is over you should devote some extra time
to the sprayer before it is stored.
Tyres
It is important frequently to check tyre pressure. The tyres should not
run under-inflated. This only promotes instability and rapid wear. See
section on Technical Specifications.
Hoses
Check that none of the hoses are caught or have sharp bends.
A leaky hose can cause annoying delay in the middle of the spraying
job. Therefore check all the hoses and change if there is any doubt
about the durability.
Paint
Some chemicals are very rough on paints. It is therefore well advised
to remove rust, if any, and then touch up the paint.
Tank
Check that no chemical residues are left from the last spraying.
Chemical residues must not be left in the tank for a long time. It will
reduce the life of the tank. See section on Cleaning the Sprayer.

11
Anti-freeze precaution
If the sprayer is not stored in a frost free place you should take the
following precautions: Put at least 10 litres of 33% anti-freeze mixture
in the tank and let the pump run a few minutes so that the entire
system including spray hose are filled. The anti-freeze solution also
hinders the O-rings and gaskets from drying out.
Remove the glycerine filled pressure gauge and store it frost free in
vertical position. The anti-freeze solution also hinders the O-rings and
gaskets from drying out.
Relieve the pressure regulating spring.
Operational problems
In cases where breakdowns have occurred the same factors always
seem to come into play:
• Minor leaks on the suction side of the pump will reduce the pump
capacity or stop the suction completely.
• A clogged suction filter will hinder or prevent suction so that the
pump does not operate satisfactorily.
• Clogged up pressure filters will result in increasing pressure at the
pressure gauge but lower pressure at the nozzles.
• Foreign bodies stuck in the pump valves with the result that these
cannot close tightly against the valve seat. This reduces pump
efficiency.
• Poorly reassembled pumps, especially diaphragm covers will allow
the pump to suck air resulting in reduced or no capacity.
• Unclean electric components causes poor connections.
Therefore ALWAYS check:
1. Suction, pressure and nozzle filters are clean.
2. Hoses for leaks and cracks, paying particular attention to suction
hoses.
3. Gaskets and O-rings are present and in good condition.
4. Pressure gauge is in good working order. Correct dosage depends
on it.
5. Operating unit functions properly. Use clean water to check.
6. Keep the electric components clean.

12
Fault Probable cause Control / remedy
Liquid system
No spray from Air leak on suction. Check if red suction lid/O-ring are
boom when sealing.
turned on. Check suction tube and fittings.
Check tightness of pump diaphragm
and valve covers.
Air in system. Fill suction hose with water for initial
prime.
Suction/pressure Clean filters.
filters clogged. Check yellow suction pipe is not
obstructed or placed too near the
tank bottom.
Lack of Incorrect assembly. Agitation nozzles not fitted.
pressure. Too little distance between yellow
suction pipe and tank bottom.
Pump valves blocked Check for obstructions and wear.
or worn.
Defect pressure Check for dirt at inlet of gauge.
gauge.
Pressure Filters clogging. Clean all filters. Fill with cleaner
dropping. water.
If using powders, make sure
agitation is on.
Nozzles worn. Check flow rate and replace
nozzles if it exceeds 10%.
Tank is airtight. Check vent is clear.
Sucking air towards Exessive agitation, turn off.
end of tank load. Returns inside tank need relocation.
Pressure filters Clean all filters.
increasing. beginging to clog.
Agitation nozzles Check by turning agitation off/on.
clogged.
Formation Air is being sucked Check tightness / gaskets / O-rings
of foam into system. of all fittings on suction side.
Excessive liquid Turn agitation off.
agitation. Reduce pump r/min.
Ensure returns inside tank are
present.
Use foam damping addative.
Liquid leaks Damaged diaphragm. Replace. See Changing of valves
from bottom and diaghragms.
of pump.

13
Technical specifications
Filters and nozzles
30 mesh suction filter with exchangeable filter screen.
Measure and weight
Tyres
No. Size Ply rating Inflation Pressure bar
1 4.80/4.00-8 2 PR max. 2.0 bar
2 4.00/3.50-12 4 PR max. 3.8 bar
3 18 x 9.50 4 PR max. 3.8 bar

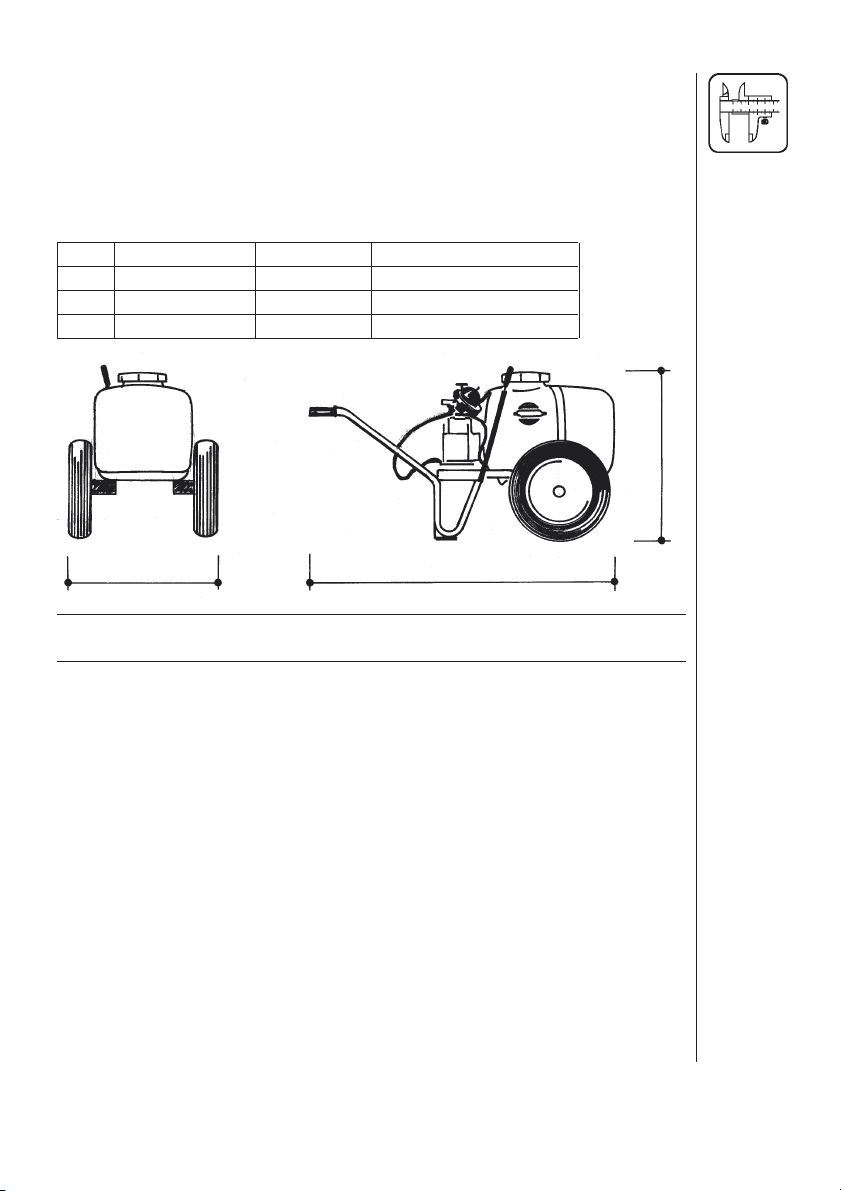

Model Tank size Wheel Measure Weight
l a x b x c cm kg
KS-100 100 1 153 x 53 x 79 59
KS-120 120 1 153 x 71 x 81 75
TR-2-200 200 2 184 x 80 x 118 93
TR-2-300 300 2 234 x 80 x 118 98
TR-3-200 200 2 116 x 80 x 118 91
TR-3-300 300 2 166 x 80 x 118 96
PU-200/CT-200 200 - 126 x 58 x 86 59
PU-300/CT-300 300 - 145 x 58 x 86 66
PU-800 800 - 195 x 120 x 98 135
PU-800 800 - 265 x 110 x 120 110
PU-1000 1000 - 265 x 127 x 148 135
PU-1500 1500 - 265 x 127 x 149 150
SR-100 100 3 153 x 102 x 79 60
GN-2-200 200 3 190 x 110 x 92 94
GN-2-300 300 3 240 x 110 x 92 99
GN-3-200 200 3 170 x 110 x 119 92
GN-3-300 300 3 220 x 110 x 119 97
a
b
c

14
Materials
Tank HDPE
Hoses PVC
Fittings PA
Disposal of the sprayer
When the equipment has completed its working life, it must be thoroughly
cleaned. The tank, hose and synthetic fittings can be incinerated at an
authorized disposal plant. The metallic parts can be scrapped. Always
follow local legislation regarding disposal.
Pictorial symbols
Description
Function
Warning
Operating
Service/adjustment
Pressure
Cleaning
Lubrication
Winter storage
Operational problems
Technical specifications

15
Assembly
Preassembly information
The sprayer is supplied ex works in shipping packages.
NOTE: Removal of the plastic bag covering the tank is easiest done
before assembly.
Some components are shipped within the tank. Check inside.
To verify connection of hoses, a function diagram is included on the
last page.
Packaging information
Materials used for packaging are environmentally compatible. They
can be safely deposited or they can be burnt in an incinerator.
Recycling
Cardboard: Can recycle up to 99% and therefore should be put into
the waste collection system.
Polystyrene foam: Can be recycled. Fluorocarbons (CFC) not used in
foam production.
Polyethylene: Can be recycled.
NOTE: Use O-rings where indicated. Lubricate them with non-mineral
lubricant (silicon oil) before assembly. Where O-rings are not indicated,
use sealing tape.
1. Check that all shipping packages are present.

16

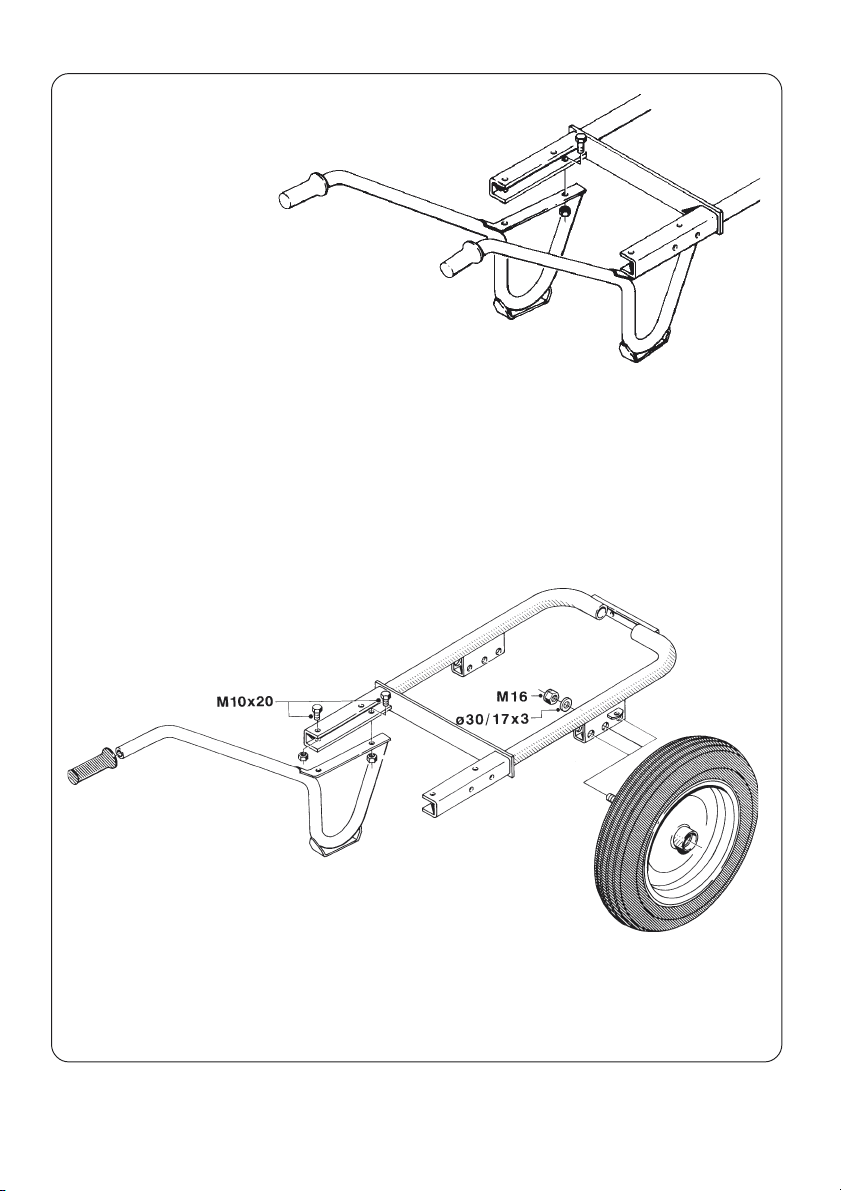

2. Note: On KS 100 right and left
handle are not identical. They are
fitted in widest position. Fit all bolts
in pump unit/tank frame/handle
before tightening the bolts.
On KS 120 there are 3 assembly
possibilities of wheels depending
on how much weight is wanted
transferred to the carrying handle.

17
3. On TR3 use upper hole in tank frame - fit
nose wheel.
On TR2 use lower hole in the tank frame.
Fit the drawbar on tank frame so that the
position of the sprayer is horizontal when
attached to the tractor. Parking foot must
point downward.

18

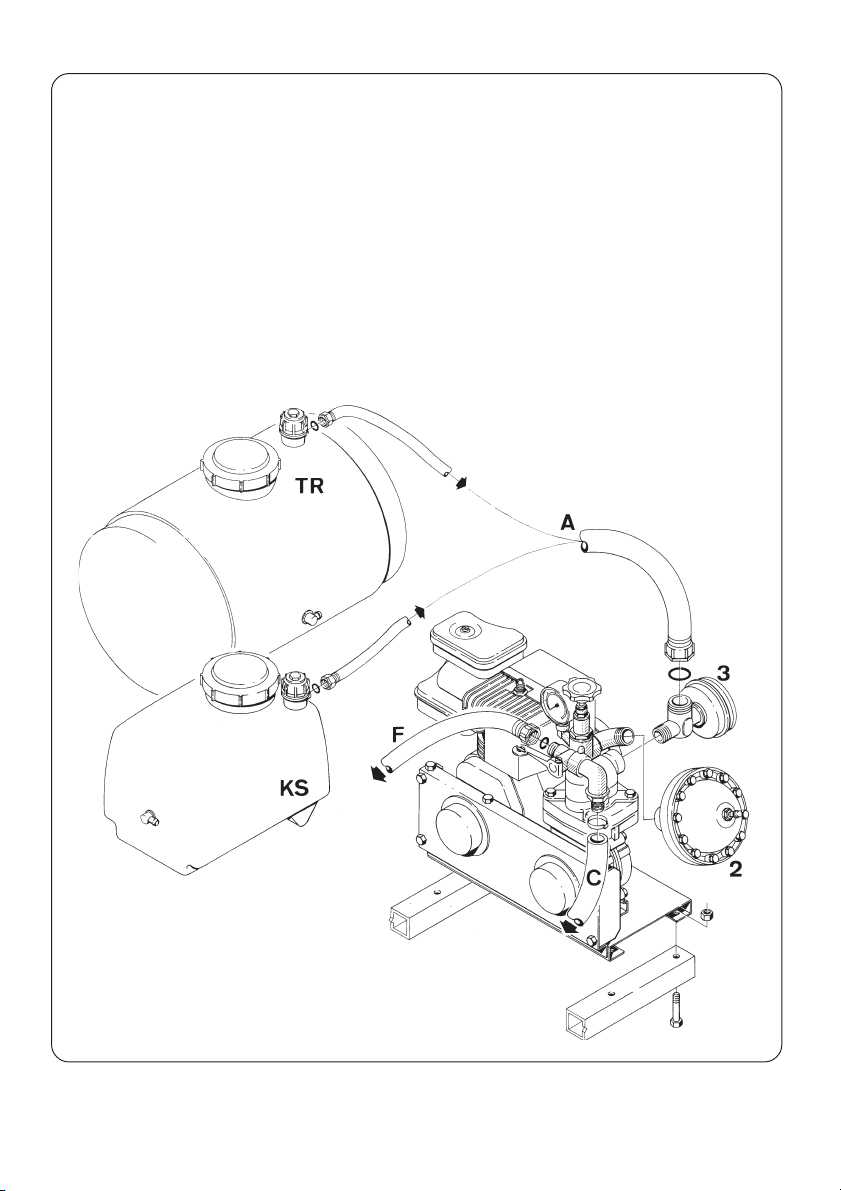

4. Bolt unit on frame (only PU).
Use sealing tape on T-piece, O-ring and suction pulsation damper.
Mount pressure pulsation damper.
Fit suction hose A - remember O-ring.
Fit return hose C - remember clamps.
Fit feed hose B (lance/boom) - remember O-ring.
See back of gauge. Remember to pierce casing after installation.
Screw home, but do not overtighten.
