Harman Kardon DVD 37 User manual

harman kardon
Model DVD 37
DVD/CD/CD-R/CD-RW/VCD MP3 Player
Service Manual
CONTENTS
ESD WARNING............................ 2 ELECTRICAL PARTS LIST.......14
SERVICING PRECAUTIONS....... 3 PCB DRAWINGS....................... 32
BASIC SPECIFICATIONS............ 5 SEMICONDUCTOR PINOUT.... 36
TROUBLESHOOTING GUIDE..... 10 BLOCK DIAGRAM................. 112
PACKAGE AND PACKAGE PARTS 11 WIRING DIAGRAM................ 113
DISASSEMBLY 12 SCHEMATIC DIAGRAMS....... 114
UNIT EXPLODED VIEW AND PARTS 13
harman/kardon, Inc.
250 Crossways Park Dr.
Woodbury, New York, 11797
Released 2007
Discontinued XXXX Rev 0, 8/2007
harman/kardon
Service manual DVD37EU
Page 1 of 117

3
ESD PRECAUTIONS
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components com-
monly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated cir-
cuits and some field-effect transistors and semiconductor chip components. The following techniques should
be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off
any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device, which should be removed for potential shock reasons
prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive sur-
face such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ESD devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static"
can generate electrical charges sufficient to damage ESD devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD
devices.
6. Do not remove a replacement ESD device from its protective package until immediately before you are
ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive materials).
7. Immediately before removing the protective material from the leads of a replacement ESD device, touch the
protective material to the chassis or circuit assembly into which the device will by installed.
CAUTION : BE SURE NO POWER IS APPLIED TO THE CHASSIS OR CIRCUIT, AND OBSERVE ALL
OTHER SAFETY PRECAUTIONS.
8. Minimize bodily motions when handing unpackaged replacement ESD devices. (Otherwise harmless motion
such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can gen-
erate static electricity sufficient to damage an ESD device).
harman/kardon
Service manual DVD37EU
Page 2 of 117

1
SERVICING PRECAUTIONS

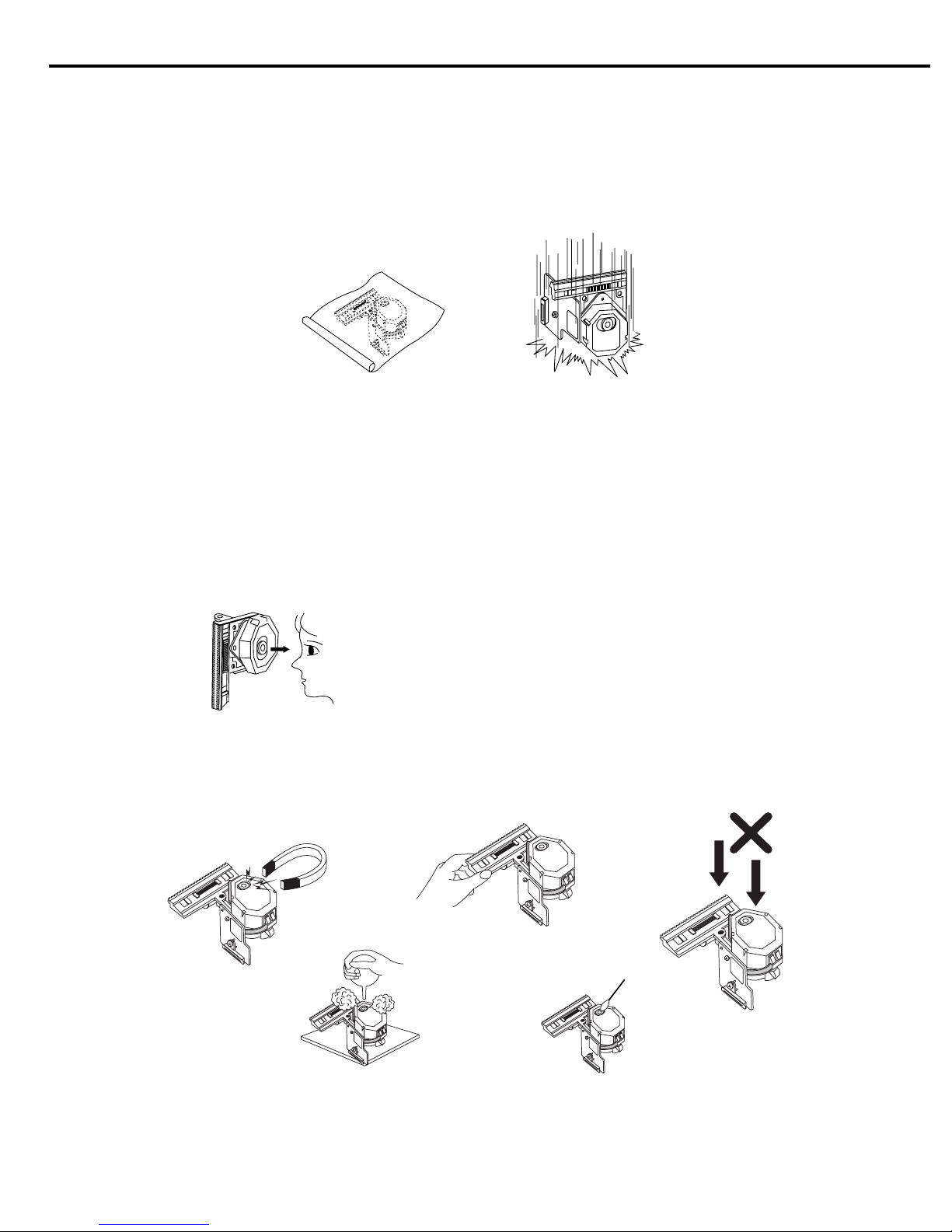

NOTES REGARDING HANDLING OF THE PICK-UP
1. Notes for transport and storage
1) The pick-up should always be left in its conductive bag until immediately prior to use.
2) The pick-up should never be subjected to external pressure or impact.
2. Repair notes
1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials.
2) The pick-up should always be handled correctly and carefully, taking care to avoid external pressure and
impact. If it is subjected to strong pressure or impact, the result may be an operational malfunction
and/or damage to the printed-circuit board.
3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason
the adjustment point and installation
screws should absolutely never be touched.
4) Laser beams may damage the eyes!
Absolutely never permit laser beams to enter the eyes!
Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged.
5) Cleaning the lens surface
If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used
for camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cot-
ton swab should be used, taking care not to distort this.
6) Never attempt to disassemble the pick-up.
Spring by excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab. (Do
not use any other liquid cleaners, because they will damage the lens.) Take care not to use too much of
this alcohol on the swab, and do not allow the alcohol to get inside the pick-up.
Storage in conductive bag
NEVER look directly at the laser beam, and don’t let contact
fingers or other exposed skin.
Magnet
How to hold the pick-up
Conductive Sheet
Cotton swab
Pressure
Pressure
Drop impact
harman/kardon
Service manual DVD37EU
Page 3 of 117

2

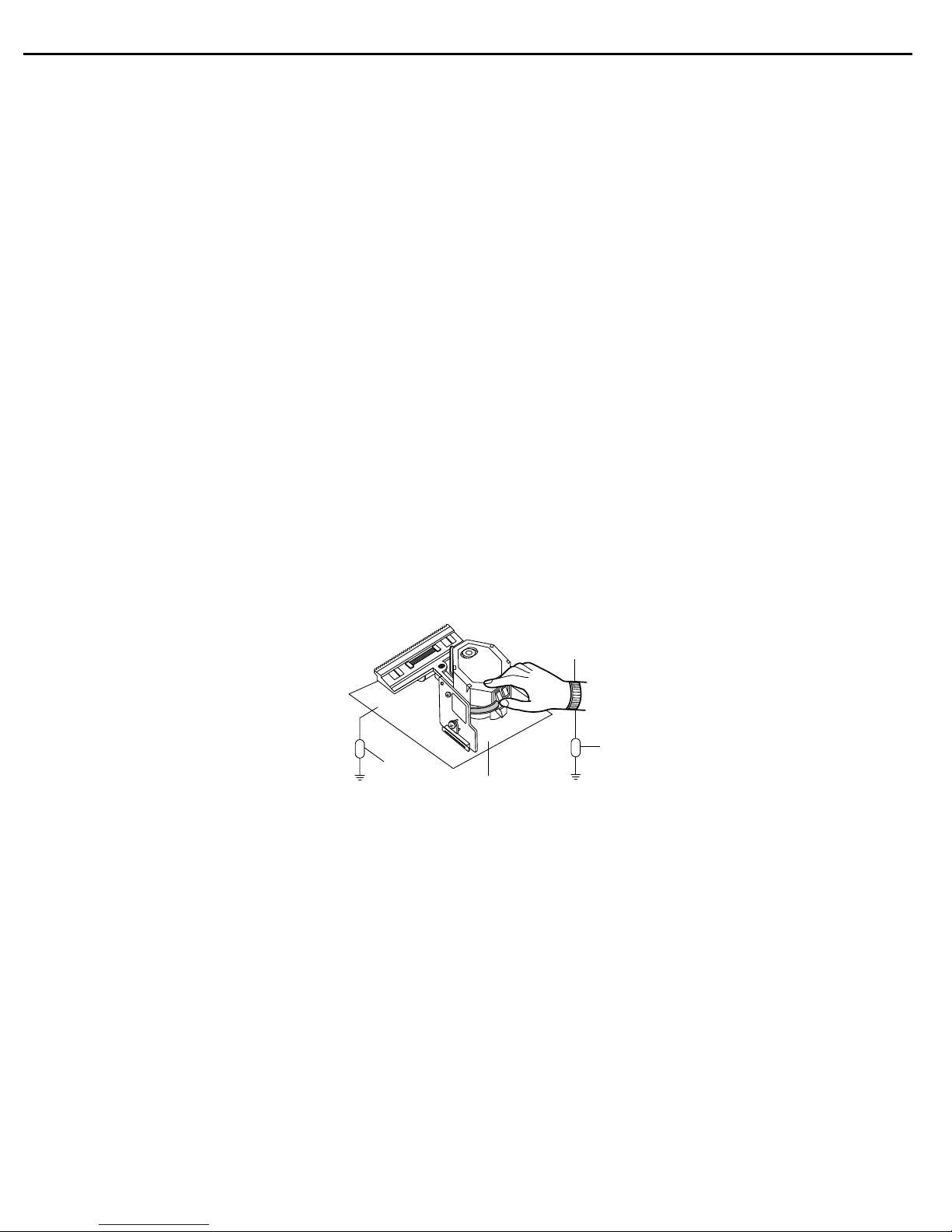

NOTES REGARDING COMPACT DISC PLAYER REPAIRS
1. Preparations
1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These compo-
nents are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage,
components can be damaged, and for that reason components should be handled with care.
2) The pick-up is composed of many optical components and other high-precision components. Care must
be taken, therefore, to avoid repair or storage where the temperature of humidity is high, where strong
magnetism is present, or where there is excessive dust.
2. Notes for repair
1) Before replacing a component part, first disconnect the power supply lead wire from the unit
2) All equipment, measuring instruments and tools must be grounded.
3) The workbench should be covered with a conductive sheet and grounded.
When removing the laser pick-up from its conductive bag, do not place the pick-up on the bag. (This is
because there is the possibility of damage by static electricity.)
4) To prevent AC leakage, the metal part of the soldering iron should be grounded.
5) Workers should be grounded by an armband (1MΩ)
6) Care should be taken not to permit the laser pick-up to come in contact with clothing, in order to prevent
static electricity changes in the clothing to escape from the armband.
7) The laser beam from the pick-up should NEVER be directly facing the eyes or bare skin.
Resistor
(1 Mohm) Conductive
Sheet
Resistor
(1 Mohm)
Armband
harman/kardon
Service manual DVD37EU
Page 4 of 117

DVD 37 TECHNICAL SPECIFICATIONS
Applicable Disc: Disc formats: 5-inch (12cm) or 3-inch (8cm) DVD-Video, DVD-Audio, standard-conforming DVD-R, DVD+R, DVD-RW, DVD+RW,
VCD, CD, CD-R, CD-RW or MP3 discs
Region code: DVD video disc with Code 1 or 0 only
DVD layers: Single side/single layer, single side/dual layer, dual side/dual layer
Audio formats: DVD Audio MLP lossless, linear PCM, MPEG, Windows Media®9, Dolby®Digital or DTS®audio discs
Still-image format: JPEG
Video Signal System: NTSC
HDMI™Output: Video: 480p, 720p, 1080i
HDMI Version 1.0-compliant
HDCP Version 1.1-compliant
Composite Video Output: 1V p-p/75 ohms, sync negative polarity
S-Video Output: Y/luminance: 1V p-p/75 ohms, sync negative polarity
C/chrominance: 0.286V p-p
Component Video Output: Y: 1V p-p/75 ohms, sync negative polarity
Pr: 0.7V p-p/75 ohms
Pb: 0.7V p-p/75 ohms
Analog Audio Output: 2V RMS (1kHz, 0dB)
Frequency Response: DVD (linear PCM): 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
2Hz – 44kHz +0/–1.5dB (96kHz sampling)
2Hz – 88kHz +0/–0.5dB (192kHz sampling)
CD: 2Hz – 20kHz +0/–0.5dB
Signal/Noise Ratio (SNR): 105dB (A-weighted)
Dynamic Range: DVD: 100dB (18-bit)/105dB (20-bit)
CD/DVD: 96dB (16-bit)
THD/1kHz: DVD/CD: 0.0025%
Wow & Flutter: Below measurable limits
AC Power: 110–240V AC/50–60Hz
Power Consumption: 1Watt (on/standby)/13 watts (max)
Dimensions (H x W x D): 2" x 17-3/10" x 11-1/4" (50mm x 440mm x 285mm)
Weight: 6lb (2.7kg)
Shipping Dimensions (H x W x D): 5" x 14-3/8" x 20" (127mm x 365mmx 508mm)
Shipping Weight: 8.8 lb (4kg)
Depth measurement includes knobs and connectors.
Height measurement includes feet and chassis.
All specifications subject to change without notice.
Harman Kardon and Harman International are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
Dolby, Pro Logic and the double-D symbol are registered trademarks of Dolby Laboratories. Confidential Unpublished Works.
1992-1997 Dolby Laboratories, Inc. All rights reserved. Manufactured under license from Dolby Laboratories.
DTS and DTS-ES are registered trademarks of DTS, Inc.
Kodak and Photo CD are trademarks of Eastman Kodak Company.
Microsoft, Windows Media, HDCD and High Definition Compatible Digital are registered trademarks of Microsoft Corporation in the United States and/or other countries.
Blu-ray Disc is a trademark of the Blu-ray Disc Association.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HD-DVD is a trademark of the DVD Format/Logo Licensing Corporation (DVD FLLC).
SACD is a trademark of Sony Corporation.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
38 TECHNICAL SPECIFICATIONS
DVD 37 (120V) OM 8/7/06 4:10 PM Page 38
harman/kardon
Service manual DVD37EU
Page 5 of 117

MODEL NAME : DVD 37 & DVD 37/230
D
escr
ip
t
i
on :
Ch
aracter
i
st
i
cs
Sp
ec
ifi
cat
i
on o
f
A
u
di
o
Test Disc : YEDS7 (SONY), TDV-540A (ABEX)
Test Conditions : 10kΩ Load Terminated, AC100V 50/60Hz
Test Measuerment : VP-7722A (Audio Analyzer) ,CASCADE SYS-2522(AP)
1.ANALOG AUDIO OUTPUT
Limit Result TEST DISC
Output Level[Vrms] L
R
Level difference [Vrms] ＜ 0.2
F/ response [dB] L
R
Ref.1kHz 0dB L
R
L
R
L
R
L
R
Emphasis L
Characteristic[dB] R
Ref.1kHz 0dB L
R
S/N [dB] L
R
Channel Separation [dB] Ｌ→Ｒ
Ｒ→Ｌ
Linearity [dB] L
-90dB playback R
T.H.D [%] L
R
Dynamic Range [dB] L
-60dB playback R
全高調波歪率 [%] L
ＤＶＤ ９６ｋ R
Dynamic Range [dB] L
ＤＶＤ ９６ｋ R
全高調波歪率 [%] L
ＤＶＤ 48ｋ R
Dynamic Range [dB] L
ＤＶＤ 48ｋ R
2. DIGITAL OUTPUT
1) OPTICAL OUT
JITTER 44.1kHz Normal 44.1kHz
(mUI) CD Playback
JITTER 96kHz Normal 96kHz
(mUI) DVD Playback
2) COAXIAL OUT
OUTPUT Level [mV] Normal CD or DVD
Peak to Peak Level at 75ohm L
o
Playback
Measurement Item
＞９5
-9.04 ± 1.0
４4 KHz
５ KHz
１６ KHz
2 0 Hz
100 Hz
10 KHz
２０ KHz
＜ 0.01
＞９5
＜ 0.01
＞９3
＜ 0.01
89.5±3
2.0 ± 0.2
０± 1.0
０± 1.0
＞105
> 95
０± 1.0
０± 1.5
０± 1.5
-4.53±1.0
YEDS7 (SONY)
TRACK 1
YEDS7 (SONY)
TRACK 2
YEDS7 (SONY)
TRACK 4
TDV
-
540A
(ABEX)
TITLE 2, CHAPTER 1
AUDIO STREAM 2
YEDS7 (SONY)
TRACK 10
YEDS7 (SONY)
TRACK 13
TDV-540A (ABEX)
TITLE 4,CHAPTER
16
AUDIO STREAM 3
YEDS7 (SONY)
TRACK 40
YEDS7 (SONY)
TRACK 41
YEDS7 (SONY)
TRACK 23
YEDS7 (SONY)
TRACK 30
,
34
YEDS7 (SONY)
TRACK 22
TDV
-
540A
(ABEX)
TITLE 2, CHAPTER 2
AUDIO STREAM 2
YEDS7 (SONY)
TRACK 1
YEDS7 (SONY)
TRACK 20
TDV-540A (ABEX)
TITLE 3, CHAPTER 1
TDV-540A (ABEX)
TITLE 3, CHAPTER 2
500±50 (mV)
< 50mUI
< 50mUI
harman/kardon
Service manual DVD37EU
Page 6 of 117

MODEL NAME : DVD 37& DVD 37/230
Description : Characteristics Specification of Video
Test Disc : TDV-540A (ABEX) , MDVD-111 (TEAC) Serial NO.:
Test Conditions : 75Ω Load Terminated
AC Input : For USA (120V/60Hz) , For Europe (230V/50Hz)
Test Measuerment : VM-700T
MP用
4. Video Frequency Respoens (75Ω Terminated)
Limit
0.5MHz 0dB Ref. 0
1MHz 0dB ± 2dB
2MHz 0dB ± 2dB
3MHz 0dB ± 2dB
4MHz 0dB ± 2dB
5.8MHz -3dB ± 2dB
Limit
0.5MHz 0dB Ref. 0
1MHz 0dB ± 2dB
2MHz 0dB ± 2dB
3MHz 0dB ± 2dB
4MHz 0dB ± 2dB
5.8MHz -3dB ± 2dB
Limit
0.5MHz 0dB Ref. 0
1MHz 0dB ± 2dB
2MHz 0dB ± 2dB
3MHz 0dB ± 2dB
4MHz 0dB ± 2dB
5.8MHz -3dB ± 2dB
S-Video Y [dB]
MDVD-111
TITLE2,CHAPTER9
100% Multi Brust
Measurement Item Result Test Disc
Component Y
[dB]
Interace Mode
MDVD-111
TITLE2,CHAPTER9
100% Multi Brust
Measurement Item Result Test Disc
Measurement Item Result Test Disc
Composite [dB]
MDVD-111
TITLE2,CHAPTER9
100% Multi Brust
harman/kardon
Service manual DVD37EU
Page 7 of 117

MODEL NAME : DVD 37& DVD 37/230
Description : Characteristics Specification of Video
Test Disc : TDV-540A (ABEX) , MDVD-111 (TEAC) Serial NO.:
Test Conditions : 75Ω Load Terminated
AC Input : For USA (120V/60Hz) , For Europe (230V/50Hz)
Test Measuerment : VM-700T
MP用
1. Video Level Test (75Ω Terminated)
Limit
Composite 1.0V ± 0.1V
S-Video Y 1.0V ± 0.1V
S-Video C 286mV ± 30mV
Component Y 1.0V ± 0.1V
Component Pb 700mV ± 100mV
Component Pr 700mV ± 100mV
Scart CVBS 1.0V ± 0.15V
Scart Red 700mV ± 100mV
Scart Green 700mV ± 100mV
Scart Blue 700mV ± 100mV
** Pb/Pr & RGB Video Level check before please setting the Black Level off in the set-up menu **
2. Video S/N Raito Test (75Ω Terminated)
Limit
Composite ≥ 65.0 dB
S-Video Y ≥ 65.0 dB
Component Y ≥ 65.0 dB
Component Pb ≥ 65.0 dB
Component Pr ≥ 65.0 dB
3. Chroma Signal AM.PM Test (75Ω Terminated)
Limit
Composite Chroma ≥ 65.0 dB
S-Video Chroma ≥ 65.0 dB
Composite Chroma ≥ 60.0 dB
S-Video Chroma ≥ 60.0 dB
Video output [V]
MDVD-111
TITLE2,CHAPTER1
100% COLOR BAR
Measurement Item Result Test Disc
Measurement Item Result Test Disc
Video SNR [dB]
100KHz~4.2MHz
Use SC Trap
MDVD-111
TITLE2,CHAPTER 4
50% Gray Color
Chroma PM [dB]
10KHz~500KHz
TDV-540A
TITLE2,CHAPTER17
100% Magenta
Color
Measurement Item Result Test Disc
Chroma AM [dB]
10KHz~500KHz
harman/kardon
Service manual DVD37EU
Page 8 of 117

MP
用
2. DVD-Audio Part (Test Disc V-612 , JVC)
LT RT FL FR SL SR C
Tr.38 1KHz 0dB 2.1±0.2Vrms
Tr.38 1KHz 0dB ↓0.01%
Tr.59 17Hz 0±1.0dB
Tr.54 10KHz 0±1.0dB
Tr.53 20KHz 0±2.0dB
Tr.49 17Hz 0±1.0dB
Tr.45 10KHz 0±1.0dB
Tr.44 20KHz 0±2.0dB
Tr.22 17Hz 0±1.0dB
Tr.18 10KHz 0±1.0dB
Tr.17 20KHz 0±2.0dB
Tr.40 Infinity Zero ↑90dB
Tr.39 -60dB ↑85dB
★ SW Level & THD --> Track 38 (30Hz) Play.
★ SW Frequency Respones -> Track 55(31Hz , 0dB) Reference
★ Track 54 (61Hz) , Track 53 (81Hz) , Track 51(127Hz) Play
SW
192 / 24
Output Level (V)
T.H.D (%) 20KHz LPF
Frequency
Respones (dB)
Ref. : Tr. 38
Downmix 2CH Muiti 5 CH
48 / 24
96 / 20
Dynamic Range (dB)
20KHz LPF
LimitTrack Inform.
S/N (dB) "A" Filter
harman/kardon
Service manual DVD37EU
Page 9 of 117

TROUBLESHOOTING GUIDE 37
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SOLUTION
Unit does not turn on • No AC power • Check AC power plug and make certain any switched
outlet is turned on.
Disc does not play • Disc loaded improperly • Load disc label-side up; align the disc with the guides and place
it in its proper position.
• Incorrect disc type • Check to see that disc is SACD, CD, CD-R, CD-RW, VCD, MP3, WMA, JPEG,
DVD-R, DVD-RW, DVD+R, DVD+RW (standard-conforming), DVD-Audio or
DVD-Video; other types will not play.
• Invalid Region Code • Use Region 1 or Open Region (0) disc only.
• Rating is above parental preset • Enter password to override or change rating settings (see page 20).
No picture • Intermittent connections • Check all video connections.
• Wrong input • Check input selection of TV or receiver.
• Progressive Scan output selected • Use Progressive Scan mode only with compatible TV. Press Progressive Scan/
Interlaced Button Ito toggle to the correct mode (see page 23).
• Video Off feature active • Press Video Off Button
F to reactivate video circuitry.
• HDMI Output 2is connected to a • The HDMI Output 2may not be used with video displays that are not
video display that is not HDCP-compliant. HDCP-compliant. Unplug the cable and select another audio and video
connection (see pages 14 through 16).
No sound • Intermittent connections • Check all audio connections.
• Incorrect digital audio selection • Check digital audio settings on DVD 47 and on receiver.
• DVD disc is in fast or slow mode • There is no audio playback on DVD discs during fast or slow modes.
• Surround receiver not compatible • Use analog audio outputs.
with 96kHz PCM audio
• DVD Audio or SACD disc is loaded • Use 6-Channel Audio Outputs 9or Analog Audio Outputs 8.
without using analog audio connection
Picture is distorted or jumps during • MPEG-2 decoding • It is a normal artifact of DVD playback for pictures to jump or show
fast forward or reverse play some distortion during rapid play.
Some remote buttons do not operate • Function not permitted at this time • With most discs, some functions are not permitted at certain
during DVD play; prohibited symbol times (e.g., Track Skip) or at all (e.g., direct audio track selection).
appears (see below)
The OSD menu is in a foreign language • Incorrect OSD language • Change the display language selection (see page 23).
The symbol appears • Requested function not available at • Certain functions may be disabled by the DVD itself during
this time passages of a disc.
Picture is displayed in the • Incorrect match of aspect ratio settings • Change aspect ratio settings (see page 23).
wrong aspect ratio to disc
Remote control inoperative • Weak batteries • Change both batteries.
• Sensor is blocked • Clear path to sensor or use optional outboard remote sensor.
Disc will not copy to VCR • Copy protection • Many DVDs are encoded with copy protection to prevent
copying to VCR.
Password not accepted. • Incorrect password being used or • Stop play of disc. Press and hold Clear Button 3until the display blinks.
password has been forgotten. This resets the password and all settings to their defaults.
DVD 47 (120V) OM 3/30/06 10:41 AM Page 37
harman/kardon
Service manual DVD37EU
Page 10 of 117

MANUAL ASS'Y
BOX,OUT CARTON
4
5
1
2
DESCRIPTIONNO
CPS1A714
ＣＱＸＤＶＤ３７Ａ／２３０
ＣＰＧ１Ａ７９８Ｖ
2
1
1
Q,tyPARTS NO.
CPS1A715SNOW,PAD
3
1
SNOW,PAD
SET DVD３7/230 1
6
7
POLY BAG
NO DESCRIPTION PARTS NO. Q,ty
1
2
4
5
1
1
CPB1061YPOLY BAG
1. Instruction manual ass'y - Accessories 2. Package Drawing
STAPLE CPL0905 3
1
HQE1A273ZHARMAN IMAGE BROCHURES 1
DVD３7/230
SAFETY MANUAL ＣＱＸ１Ａ１０４９Ｚ
1
HARMAN IMAGE BROCHURES
3
2
MANUAL SAFETY
STAPLE
4
MANUAL ASS'Y
1
SNOW PAD
3
BOX ,OUT CARTON
5
SNOW PAD
3
SET
2
SNOW PAD
4
REMOCON ASS'Y
6
REMOCON ASS'Y ＣＡＲＴＤＶＤ３７Ａ １
CABLE ASS'Y
7
CABLE ASS'Y CQXDVD47 1
NO DESCRIPTION PARTS NO. Q,ty
1
2
3
4
5
6
7
1CPB1061YPOLY BAG
CABLE,S-VHS(1.5M)
STAPLE8 KPL0905
CJS0I006Z
3
1
CJS4S004Z
CABR03P
CORD,PIN(3P,W/R/Y)
BATTERY
1
2
CORD,JACK(MONO)1200MM CJS9D002Z 1
CABLE,S-VHS(1.5M)
BATTERY ASS'Y
4
3
2
CORD PIN(3P, W/R/Y)
STAPLE
5
8
CORF ,JACK(MONO)1200MM
POLY BAG
1. Cable ass'y - Accessories
1
CABLE, HDMI(2M)
7
6
AC CORD
AC CORD CJA2B020Z 1
CABLE,HDMI(2M) CJS8T001Z 1
4
MANUAL INSTRUCTION
3
INSTRUCTION MANUAL CQX1A1053Z
1
harman/kardon
Service manual DVD37EU
Page 11 of 117

harman/kardon
Service manual DVD37EU
Page 12 of 117

harman/kardon
Service manual DVD37EU
Page 13 of 117

Ref# Component Description Drawing No
COP11842F DVD37/230 MAIN PCB ASS'Y DVD37A/230 (EUR)
COP11842F-1 FRONT PCB DISPLAY ASS'Y DVD37A/230 (EUR)
COP11842F-2 FRONT PCB CONTROL ASS'Y DVD37A/230 (EUR)
CN11 CJP24GA195ZM SMT FFC/FPC WAFER(0.5MM PITC
H
52559-2472 (PB FREE)
C100 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C101 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C102 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C103 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C104 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C106 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C107 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C110 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C112 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C113 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C115 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C117 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C120 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C122 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C124 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C126 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C127 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C129 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C131 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C132 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C133 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C138 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C140 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C141 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C143 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C144 CCUS1H103KC CAP , CHIP 0.01UF ZF 1608
C146 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C148 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C149 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C151 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C152 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C153 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C154 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C156 CCUS1H180JA CHIP, CAP 18PF/50V/1608 18PF/50V/1608
C156 CCUS1H180JA CHIP, CAP 18PF/50V/1608 18PF/50V/1608
C157 CCUS1H330JA CAP , CHIP 33PF JA 1608
C158 CCUS1H330JA CAP , CHIP 33PF JA 1608
C159 CCUS1H562KC CHIP CERAMIC CAP. 1608 (5600p) 5600PF KC 1608
C160 CCUS1H562KC CHIP CERAMIC CAP. 1608 (5600p) 5600PF KC 1608
C161 CCUS1H562KC CHIP CERAMIC CAP. 1608 (5600p) 5600PF KC 1608
C163 CCUS1H471JA CAP , CHIP 470PF JA 1608
C164 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C165 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C166 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C167 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C168 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C169 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C170 CCUS1H102KC CAP , CHIP 1000PF KC 1608
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 14 of 117

Ref# Component Description Drawing No
C172 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C173 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C174 CCUS1H333KC CAP , CHIP 0.033PF KC 1608 SIZE
C175 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C176 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C178 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C179 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C180 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C181 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C183 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C185 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C186 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C187 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C188 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C189 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C190 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C191 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C192 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C193 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C194 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C195 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C196 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C197 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C199 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C200 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C201 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C204 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C205 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C207 CCUS1H272KC CAP , CHIP 2700PF KC 1608
C208 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C209 CCUS1H273KC CAP , CHIP 27000P KC 1608
C210 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C214 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C215 CCUS1H561JA CAP , CHIP 560PF JA 1608
C217 CCUS1H273KC CAP , CHIP 0.027UF KC 1608
C218 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C220 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C222 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C225 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C227 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C228 CCUS1H222KC CAP , CHIP 2200PF KC 1608
C229 CCUS1H222KC CAP , CHIP 2200PF KC 1608
C230 CCUS1H222KC CAP , CHIP 2200PF KC 1608
C231 CCUS1H222KC CAP , CHIP 2200PF KC 1608
C232 CCUS1H330JA CAP , CHIP 33PF JA 1608
C234 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C235 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C237 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C240 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C242 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C244 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C245 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 15 of 117

Ref# Component Description Drawing No
C247 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C249 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C250 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C252 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C253 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C254 CCUS1H272KC CAP , CHIP 2700PF KC 1608
C255 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C256 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C257 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C260 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C261 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C262 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C263 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C266 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C267 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C276 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C277 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C279 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C280 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C281 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C282 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C283 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C284 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C285 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C286 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C287 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C295 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C304 HCSHB21A220B CAP , TANTAL B2 SIZE 22UF/50V
C306 HCSHB21A220B CAP , TANTAL B2 SIZE 22UF/50V
C307 HCSHB21A220B CAP , TANTAL B2 SIZE 22UF/50V
C308 HCSHB21A220B CAP , TANTAL B2 SIZE 22UF/50V
C310 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C311 CCUS1H560JA CAP , CHIP 56PF JA 1608
C312 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C313 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C336 CCUS1H682KC CAP , CHIP 6800PF KB 1608
C337 CCUS1H223KC CAP , CHIP 0.022UF KC 1608
C338 CCUS1H221JA CAP , CHIP 220PF JA 1608
C339 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C346 CCUS1H070DA CAP , CHIP 7PF D 1608
C380 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C401 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C402 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C403 CCUS1H102KC CAP , CHIP 1000PF KC 1608
C405 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C406 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C408 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C429 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C430 CRJ10DJ0R0T RES , CHIP 0 ohm 1608
C431 CCUS1H221JA CAP , CHIP 220PF JA 1608
C432 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C511 CCUS1H151JA CAP , CHIP 150PF JA 1608
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 16 of 117

Ref# Component Description Drawing No
C531 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C533 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C552 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C553 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C555 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C556 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C578 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C580 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C581 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C584 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C585 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C593 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C594 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C615 CCUS1H391JA CAP , CHIP 390PF JA 1608
C617 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C620 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C630 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C631 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C636 CCUS1H391JA CAP , CHIP 390PF JA 1608
C638 CCUS1H391JA CAP , CHIP 390PF JA 1608
C639 CCUS1H391JA CAP , CHIP 390PF JA 1608
C641 CCUS1H391JA CAP , CHIP 390PF JA 1608
C644 CCUS1H391JA CAP , CHIP 390PF JA 1608
C646 CCUS1H391JA CAP , CHIP 390PF JA 1608
C650 CCUS1H391JA CAP , CHIP 390PF JA 1608
C657 CCUS1H391JA CAP , CHIP 390PF JA 1608
C659 CCUS1H391JA CAP , CHIP 390PF JA 1608
C660 CCUS1H391JA CAP , CHIP 390PF JA 1608
C662 CCUS1H391JA CAP , CHIP 390PF JA 1608
C664 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C665 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C668 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C671 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C672 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C674 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C677 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C678 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C679 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C809 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C810 CCUS1H560JA CAP , CHIP 56PF JA 1608
C812 CCUS1H101JA CAP , CHIP 100PF JA 1608
C817 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C819 CCUS1H101JA CAP , CHIP 100PF JA 1608
C820 CCUS1H101JA CAP , CHIP 100PF JA 1608
C822 CCUS1H560JA CAP , CHIP 56PF JA 1608
C823 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
C828 CCUS1H220JA CAP , CHIP 22PF JA 1608
C830 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C831 CCUS1H150JA CHIP, CAP 15PF/50V/1608 15PF JA 1608
C834 CCUS1H104KC CAP , CHIP 0.1UF ZF 1608
D101 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D102 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 17 of 117

Ref# Component Description Drawing No
D501 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D502 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D511 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D601 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D602 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D603 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
IC10 HVIZR36778 IC,MPEG (ZORAN) ZR36778
IC11 HVILM1117S-3V3 I.C , REGULATOR (3.3V) 1117S-3.3V
IC12 HVILM1117S-1V8 I.C , REGULATOR (1.8V) LM1117-1V8
IC13 HVILM1117S-3V3 I.C , REGULATOR (3.3V) 1117S-3.3V
IC14 HVILM1117S-1V8 I.C , REGULATOR (1.8V) LM1117-1V8
IC15 HVIAT24C08N10SC I.C AT24C08N10SC2.7
IC16 HVISAA7893HLC2 IC,DSD DECODER (Philips) SAA7893HL/C2 (PB FR
E
IC17 HVI74VHC04MX I.C , INVERTER 74VHC04M
IC18 HVIM12L64164A7T IC, 64M SDRAM (4X16) M12L64164A7T
IC19 HVIZR36721 IC,HDMI TRANSMITTER(ZORAN) ZR36721
IC20 HVITL3472IDR IC,OP AMP 8-SOIC (TI) TL3472
IC21 HVIM29W160ET70N IC,16M FLASH (ST) M29W160ET-70N6
IC22 HVIM12L64164A7T IC, 64M SDRAM (4X16) M12L64164A7T
IC23 HVIAM5888SLF I. C , Motor Driver(AMtek,Pb f AM5888S L/F
IC24 HVIZR36707 IC,RF (ZORAN) ZR36707
IC40 HVICS4382-KQ I.C , DAC CS4382-KQ
IC41 BVIBH7862FS IC , 6CH VIDEO DRIVER ROHM (BH7862FS)
IC42 HVIBA7660FS IC , R.G.B DRIVER BA7660FS
IC43 HVI74LVC157ADBR I.C , MULTIPLEXER SN74LVC157A
IC44 HVI74LVC157ADBR I.C , MULTIPLEXER SN74LVC157A
IC45 HVIST72F324K2 IC,FLASH (ST) ST72F324K2
IC47 HVITC74HCT7007F I.C TC74HC7007AFEL
IC51 HVILM1117S-5.0 IC REGULATOR/SOT-223 LM1117-1V8 (1.8V)
IC52 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC53 HVILM1117S-3V3 I.C , REGULATOR (3.3V) 1117S-3.3V
IC54 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC55 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC56 HVILM1117S-5.0 IC REGULATOR/SOT-223 LM1117-5V0 (5V)
IC57 HVTHN1K05FU MOS FET HN1K05FU
JK07 HJJ9H003Z JACK,HDMI (JALCO) YKF45-7009
L101 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L102 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L103 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L104 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L105 HLQ06E100KRZ INDUCTOR , CHIP 10UH 3225 SIZE
L106 HLQ06E100KRZ INDUCTOR , CHIP 10UH 3225 SIZE
L107 HLQ06E100KRZ INDUCTOR , CHIP 10UH 3225 SIZE
L109 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L110 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L111 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L112 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L113 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L114 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L115 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L116 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L117 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 18 of 117

Ref# Component Description Drawing No
L118 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L119 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L120 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L121 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L122 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L123 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L124 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L125 HLZ9R006Z BEAD , CHIP
L126 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L127 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L128 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L217 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L518 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L519 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L520 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L521 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L522 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L601 BLZ9R004Z BEAD CHIP 90 OHM (2012 SIZE) ACM2012H-900
L602 BLZ9R004Z BEAD CHIP 90 OHM (2012 SIZE) ACM2012H-900
L603 BLZ9R004Z BEAD CHIP 90 OHM (2012 SIZE) ACM2012H-900
L604 BLZ9R004Z BEAD CHIP 90 OHM (2012 SIZE) ACM2012H-900
L610 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L611 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L612 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L613 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L614 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L615 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L616 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L617 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L696 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L801 HLQ08ER68KRZ CHIP FERRITE INDUCTOR 2012-R68UH
L802 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 1.8UH 2012 SIZE
L803 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 1.8UH 2012 SIZE
L804 HLQ09E8R2KRZ CHIP , COIL 8.2UH 2012 SIZE
L805 HLQ08ER68KRZ CHIP FERRITE INDUCTOR 2012-R68UH
L806 HLQ08ER39KRZ CHIP FERRITE INDUCTOR 2012-R39UH
L807 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L808 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L809 HLQ09E8R2KRZ CHIP , COIL 8.2UH
L884 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 1.8UH 2012 SIZE
Q105 HVTKTA1664YP tr KTA1664
Q106 HVTKTA1664YP tr KTA1664
Q108 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q109 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q110 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q307 HVT2SA1955B T.R, TE85L,F, SSM Type, hFE=B TE85L,F SSM TYPE HF
E
Q308 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q315 HVTKRC107S TR , CHIP KRC107S
Q316 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q404 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q407 HVTKRC107S TR , CHIP KRC107S
Q408 HVTKRA107ST T.R , CHIP KRA107S
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 19 of 117

Ref# Component Description Drawing No
Q501 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q502 HVTKTC3875SYRTK T.R , CHIP KTC3875S Y RTK
Q604 HVTKRA107ST T.R , CHIP KRA107S
Q606 HVTKRA107ST T.R , CHIP KRA107S
Q607 HVTKRA107ST T.R , CHIP KRA107S
Q608 HVTKRC107S TR , CHIP KRC107S
Q609 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q610 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q611 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q612 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q613 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q614 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q615 HVTKRA107ST T.R , CHIP KRA107S
Q616 HVTKRC107S TR , CHIP KRC107S
Q617 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q618 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q619 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q620 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q621 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q622 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q801 HVTKRC107S TR , CHIP KRC107S
Q802 HVTKRC107S TR , CHIP KRC107S
Q803 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q804 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q805 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q806 HVTKRA107ST T.R , CHIP KRA107S
Q821 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
R100 CRJ10DJ472T RES , CHIP 4.7K OHM 1608 SIZE
R101 CRJ10DF4700T RES, CHIP 470 OHM/1608/1% 470 OHM(1%) 1608 SIZ
R102 CRJ10DJ0R0T RES , CHIP 0 OHM 1608 SIZE
R103 CRJ10DF4300T RES 430 OHM(1%) 1608 SIZ
R104 CRJ10DF3920T RES. CHIP (392R 1%) 3.9K OHM 1608 SIZE
R105 CRJ10DJ0R0T RES , CHIP 0 OHM 1608 SIZE
R106 CRJ104DJ101T RES, ARRAY, 100R (1608) 100 OHM 1608 SIZE
R107 CRJ10DJ330T RES , CHIP 33 OHM 1608 SIZE
R108 CRJ10DJ101T RES , CHIP 100 OHM 1608 SIZE
R109 CRJ10DJ472T RES , CHIP 100 OHM 1608 SIZE
R110 CRJ10DJ332T RES , CHIP 3.3K OHM 1608 SIZE
R111 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
R112 CRJ10DJ202T RES , CHIP 2K OHM 1608 SIZE
R113 CRJ10DJ202T RES , CHIP 2K OHM 1608 SIZE
R114 CRJ10DJ121T RES , CHIP 120 OHM 1608 SIZE
R115 CRJ10DJ0R0T RES , CHIP 0 OHM 1608 SIZE
R116 CRJ10DJ121T RES , CHIP 120 OHM 1608 SIZE
R117 CRJ10DJ121T RES , CHIP 120 OHM 1608 SIZE
R118 CRJ10DJ103T RES , CHIP 10K OHM1608 SIZE
R119 CRJ10DJ330T RES , CHIP 33 OHM 1608 SIZE
R120 CRJ10DJ123T RES , CHIP 12K OHM 1608 SIZE
R121 CRJ10DJ221T RES , CHIP 220 OHM 1608 SIZE
R122 CRJ10DJ221T RES , CHIP 220 OHM 1608 SIZE
R123 CRJ10DJ0R0T RES , CHIP 0 OHM 1608 SIZE
R124 CRJ10DJ0R0T RES , CHIP 0 OHM 1608 SIZE
FRONT AND MAIN PCB
harman/kardon
Service manual DVD37EU
Page 20 of 117
