Harman Infinity 3004A User manual

Reference 3004A and
Reference 7005A Amplifiers
EN
DE
ES
FI
FR
IT
NL
PL
PT
SV
TR
ZH-CN
ZH-TW
ID
JP
KO
DA
Owner's Manual
Betjeningsvejledning
Bedienungsanleitung
Manual de propietario
Käyttöopas
Mode d'emploi
Manuale d'istruzioni
Gebruikershandleiding
Instrukcja obsługi
Manual do utilizador
Bruksanvisning
Kullanıcı Kılavuzu
欽䨪䩛ⱃ
⢪欽罏䩛ⱁ
Panduan Pengguna
《䪔铡僇剅
칺푷핞 컲졓컪
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-ON
MODE
v505a
FRONT
REAR
SUB
FRONT
L
R
REAR PRE OUT FRONT
+ BRIDGED -
+-L+-R
REAR
+ BRIDGED -
+-L+-R+12V REM GND
FUSE
30A 30A
PWR/PROT

Торговая марка: JBL
Назначение товара: Усилитель мощности
Изготовитель: Харман Интернешнл Индастриз Инкорпорейтед, США, 06901 Коннектикут, г.Стэмфорд, Атлантик Стрит
400, офис 1500
Страна происхождения: Китай
Импортер в Россию: OOO «ХАРМАН РУС СиАйЭс», Россия, 127018, г.Москва, ул. Двинцев, д.12, к 1
Гарантийный период: 1 год
Информация о сервисных центрах: www.harman.com/ru тел. [phone]
Срок службы: 3 года
Товар сертифицирован
Дата производства: Дата изготовления устройства определяется по двум буквенным обозначениям из второй группы
символов серийного номера изделия, следующих после разделительного знака «-». Кодировка
соответствует порядку букв латинского алфавита, начиная с января 2010 года: 000000-MY0000000, где
«M» - месяц производства (А - январь, B - февраль, C - март и т.д.) и «Y» - год производства (A - 2010, B -
2011, C - 2012 и т.д.).
Используйте устройство только по прямому назначению в соответствии с предоставленной инструкцией. Не пытайтесь самостоятельно
вскрывать корпус товара и осуществлять ремонт. В случае обнаружения недостатков или дефектов, обращайтесь за гарантийным обслуживанием
в соответствии с информацией из гарантийного талона. Особые условия хранения, реализации и (или) транспортировки не предусмотрены.
Избегайте воздействия экстремальных температур, долговременного воздействия влаги, сильных магнитных полей. Устройство предназначено
для работы в жилых зонах. Срок годности не ограничен при соблюдении условий хранения.

EN
Reference 3004A and
Reference 7005A Amplifiers
2. Remove panel cover
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-O N
MODE
v505a
FRONT
REAR
SUB
MOUNTING THE AMP
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-ON
MODE
FRONT
REAR
SUB
7005A
Note: It is recommended that you make all wire connections
before mounting the amplifier.
IMPORTANT: Disconnect the vehicle's negative (–) battery
terminal before beginning the installation.
• Always wear protective eyewear when using tools.
• Choose a safe mounting location, away from moisture. Check
clearances on both sides of a planned mounting surface. Be
sure that screws or wires will not puncture brake lines, fuel
lines, or wiring harnesses and that wire routing will not interfere
with the safe vehicle operation. Use caution when drilling or
cutting in the mounting area.
• Choose a location that provides enough air circulation.
• Do not mount the amplifier with the heat sink facing downward,
as this interferes with cooling.
• Mount the amplifier so that it will not be damaged by the feet of
backseat passengers or shifting cargo in the trunk.
WHAT'S IN THE BOX
ACCESSING CONNECTORS/ CONTROL
PANEL
1. Slide the panel cover down
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-O N
MODE
v505a
FRONT
REAR
SUB

EN
WIRING FOR POWER AND GROUND
At amplifier:
+12V REM GND
Fuse holder, fuse
Chassis ground (–)
Remote turn-on to
aftermarket stereo REM out
(used only with low-level signal inputs)
Battery
18’’ (46cm)
At ground location:
Ring Connector
Ground Wire
Star Washer
Factory Bolt
Note: Remove any paint
below ring connector
WIRING FOR INPUT SIGNAL
Reference 3004A low-level signals
L
FRONT REAR PRE OUT
R
From stereo front
low-level outputs
From stereo rear
low-level outputs
To optional
VHFRQGDPSOLŰHU
low-level inputs
DC
REM
TURN-ON
MODE
HI2
HI1
LO
INPUT
LEVEL
Note: when using low-level signals and remote turn-on lead, set
the " " switch to " " and the " "
switch to " ".
Reference 7005A low-level signals
L
FRONT REAR SUB
R
From stereo front
low-level outputs
From stereo rear
low-level outputs
From stereo subwoofer
low-level outputs
DC
REM
TURN-ON
MODE
EXT
INT
INPUT
HI2
HI1
LO
INPUT
LEVEL
Note: when using low-level signals and remote turn-on lead with
the Reference 7005A, set the " " switch to "
"
and the SUB " " switch to " " and the " "
switch to " ".
Reference 3004A high-level signals
L
FRONT REAR PRE OUT
R
Stereo front
speaker wires
Stereo rear
speaker wires
To optional
VHFRQGDPSOLŰHU
low-level inputs
DC
REM
TURN-ON
MODE
HI2
HI1
LO
INPUT
LEVEL
Loosen
Screws
Insert
Wires
Tignten
Screws
Note: when using high-level signals, set the " "
switch to " " and the " " switch to "HI1". If no
sound plays, change the " " switch to " ".
Reference 7005A high-level input signals
L
FRONT REARSUB
R
Stereo front
speaker wires
Stereo rear
speaker wires












Note: when using high-level signals with the Reference 7005A, set
the " " switch to " ", the SUB " " switch
to " ", and the " " switch to " ". If no sound
plays, change the " " switch to " ".

EN
Reference 3004A and
Reference 7005A Amplifiers
WIRING FOR OUTPUT
Reference 3004A 4-channel output (4ohm/2ohm)
Front left speaker Rear right speaker
+- + -
FRONT

LR
REAR
LR

Front right speaker Rear left speaker
+- + -
Reference 3004A 3-channel output (Font: 4ohm/2ohm;
Rear:4ohm)
Front left speaker
Subwoofer
+-
+ -
FRONT
BRIDGED
LR
REAR
LR
BRIDGED
Front right speaker
+-
Reference 3004A 2-channel output (4ohm)
Subwoofer
Subwoofer
+ -
+ -
FRONT
BRIDGED
LR
REAR
LR
BRIDGED
Reference 7005A 5-channel output (4ohm/2ohm)
Front left speaker Rear right speaker
+ - + -
Front right speaker Rear left speaker
+ - + -
Subwoofer
+ -
FRONT
BRIDGED
SUB
LR
REAR
LR
BRIDGED
CONNECTING THE REMOTE BASS
CONTROLLER (REFERENCE 7005A ONLY)
REMOTE
CONTROL
SETTING GAIN, CROSSOVERS, AND BASS
BOOST
MAX
MIN
GAIN
Setting the gain
1. Start with control set to minimum,
and the crossover control rotated midway.
2. For the front and rear channels, choose
music you're familiar with. For the
subwoofer channel on the Reference
7005A, choose music with substantial bass
content.
3. Turn the volume control on your receiver to
¾ of its total output.
4. Adjust the control clockwise,
listening carefully to the bass output. If
you hear distortion, turn the control
counterclockwise to decrease the gain.
X-OVER
HPF
LPF
FUL
L
Selecting the crossover mode
On the front and rear channels, you can select
your preferred crossover mode.
Choose to allow only frequencies
above a certain point to reach your speakers.
Recommended if you're using a subwoofer in
your system, as it keeps low base from your
full-range speakers.
Choose to allow only frequencies below
a certain point to reach your speakers.
Recommended if you're bridging the front or
rear channels to power a subwoofer.
Choose to allow all frequencies to reach
your speakers. Recommended if you're not
using a subwoofer in your system.
Note: The crossover mode for the subwoofer
channel of the Reference 7005A is low-pass
only.
FREQ
320Hz
32Hz
Selecting the crossover frequency
Choose the crossover point to suit listening
preferences. Turn the dials to the left to lower
the crossover point and to the right to raise
the crossover point. Exact crossover settings
for coaxial speakers and subwoofers depend
on your listening preferences.

EN
PHASE
0°
180°
Selecting the subwoofer phase
(Reference 7005A only)
Switch the back and forth to
determine which setting provides the most
clean bass output.
BASS
BOOST
0dB
12dB
Selecting the bass boost
(Reference 7005A only)
Adjust the control clockwise or
counterclockwise to suit your taste.
SPECIFICATIONS
Reference 3004A Reference 7005A
Power output @ 4
ohms 75 watts RMS x 4 50 watts RMS x 4, 320 watts x 1
Power output @ 2
ohms 100 watts RMS x 4 75 watts RMS x 4, 500 watts x 1
Power output in
bridged mode
200 watts RMS x
2 at 4 ohms
150 watts RMS x
2 at 4 ohms
Frequency response 10-40 K Hz 10-40 K Hz /
10-320 Hz
Crossover
frequencies
32-320 Hz variable,
12 dB/ octave
32-320 Hz variable
high- and low-pass
(front and rear);
32-320 Hz low-pass
(subwoofer); 12 dB/
octave
Line-level input
sensitivity
200 mVrms –
2.0 Vrms
200 mVrms –
2.0 Vrms
High-level input
sensitivity 2.0 Vrms – 20 Vrms 2.0 Vrms – 20 Vrms
Signal-to-noise ratio >80 dB >80 dB
THD+N @ rated
power <1% <1%
Fuse rating 30 x 2 30 x 3
Operating voltage 9~16 V 9~16 V
Dimensions
(W x H x D)
12-5/8" x 2-3/16" x
7-1/8" (320 mm x
55.5 mm x 180 mm)
14-3/16" x 2-3/16" x
7-1/8" (360 mm x 56
mm x 180 mm)
Weight 3.15 kg 4.02 kg
Recommended wire
gauge 84
HARMAN International Industries,
Incorporated 8500 Balboa Boulevard,
Northridge, CA 91329 USA
www.infinityspeakers.com
© 2019 HARMAN International Industries, Incorporated. All rights reserved.
Infinity is a trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries. Features, specifications
and appearance are subject to change without notice.
TROUBLESHOOTING
No audio and POWER INDICATOR is off.
• No voltage at BATT+ and/or REM terminals, or bad or no
ground connection. Check voltages at amplifier terminals with
VOM.
No audio and PROTECT INDICATOR flashes every 4
seconds.
• DC voltage on amplifier output. Amplifier may need service; see
enclosed warranty card for service information.
No audio and PROTECT and POWER INDICATORS flash.
• Voltage less than 9V on BATT+ connection. Check vehicle
charging system.
No audio and PROTECT INDICATOR is on.
• Amplifier is overheated. Make sure amplifier cooling is not
blocked at mounting location. Or, there may be voltage greater
than 16V (or less than 8.5V) on BATT+ connection. Check
vehicle charging system.
Amplifier fuse keeps blowing.
• The wiring is connected incorrectly or there is a short circuit.
Check wiring connections.
Distorted audio.
• Gain is not set properly. Check setting. Check wires for shorts
or grounds. Amplifier or source unit may be defective.
Distorted audio and PROTECT INDICATOR flashes.
• Short circuit in speaker or wire. Remove speaker leads one at
a time to locate shorted speaker or wire, and repair.
Music lacks dynamics or "punch".
• Speakers are not connected properly. Check speaker
connections for proper polarity.
Engine noise—whining or clicking—in system when the
engine is on.
• Amplifier is picking up alternator noise. First, check ground
connection on the amplifier – a loose or improper ground is
one of the main causes for noise. Turn down gain. Move RCA
audio cables away from power wires. Installing an alternator
noise filter on power line between battery and alternator might
also be necessary.

Infinity Reference 7005A and 3004A_QSG_CR_V10

Features
Compact size
High and low level input
Variable crossover and bass boost
Low noise and distortion
Input Level Control
Full on-board protection
Phase Switch
RBC wired remote
Class AB+D amp technology
Turn-on mode
Series of high-performance mono, 4 and 5 channel car
amplifiers.
Infinity's Reference 7005A 5-channel amplifier provides a full system solutions without
breaking a sweat, and it'll look good doing it. It delivers 50-Watts RMS to each of the
front and rear speakers, and a ground pounding 500-Watts RMS to the subwoofer
channel — a much better balance of "speaker-to-sub" power than most of conventional
5-channel amplifiers on the market. For higher output, you can bridge the amp to
3-channel mode and power your front speakers with 140-Watts per channel, while still
delivering 500-Watts to the subwoofer channel. Speaker-level inputs allow the Reference
7005A to work in almost any system, even if you're keeping your factory radio. Separate
high-pass and low-pass crossovers on the front and rear channels and dedicated low-
pass crossover, bass boost, and phase switch for the subwoofer channel provides an
incredible amount of control and tuning capability. The Reference 7005A is truly a total
system solution in one easy to install chassis.

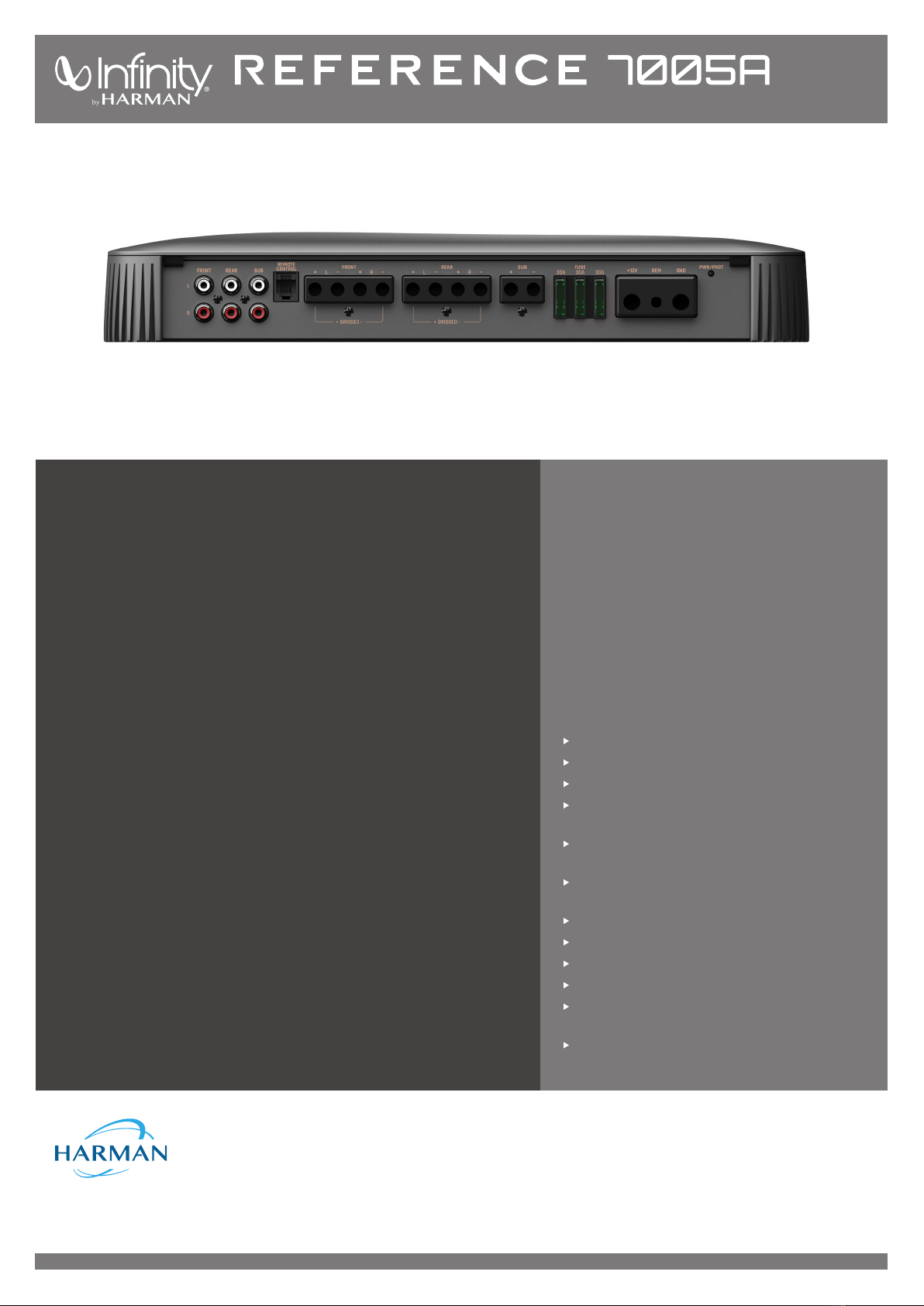

High performance 5 channel car amplifier

© 2019 HARMAN International Industries, Incorporated. All rights reserved. Infinity is a trademark of HARMAN
International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications
and appearance are subject to change without notice.
HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
www.infinityspeakers.com
Compact size
The Infinity Reference 7005A amplifier feature a low-profile chassis and a small overall
footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Reference 7005A to integrate with both
aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, Infinity Reference amps feature variable
electronic crossovers and bass boost circuit to allow for fine-tuning.
Low noise and distortion
Produces tight bass with low distortion at high SPL. Balanced Differential Inputs are used
to ensure low noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between
200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input
sensitivity between 2Vrms and 20Vrms.
Full on-board protection
The on-board circuitry to protect them from shorts, temperature, overvoltage and
undervoltage. An LED indicator is included on all four models to let you know when one of
these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful
with the subwoofer channel.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume
adjustment from driver's seat.
Class AB+D amp technology
The Infinity Reference 7005A 5 channels subwoofer amplifier delivers 780-Watts RMS
using a Class AB+D amplifier design to ensure high output and minimum current draw.
Turn-on mode
This switch changes DC to REM to adapt with low-level signals or high-level signals,
this is especially helpful as part of remote turn-on lead of your installation more choice.
A selectable "Turn-on mode" can protect battery to avoid current drain, when you don't
expect turn on your amplifier.
What’s in the Box:
One Reference 7005A five channel amplifier
4 Bare wire-to-RCA adapters
Six 30A ATO fuses (3 installed, 3 spare)
Remote bass control module
16.5' Remote control cable (RJ-25 plugs on both ends)
2 Self-tapping screws for remote (M3 x 15mm)
4 Mounting screws (M4 x 53mm)
Owner's Manual
2 Infinity decals
1 logo badage
Specifications:
5 channel car amplifier
50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
140 watts RMS x 2 bridged at 4 ohms + 500 watts
RMS x 1 at 2 ohms
Variable high- and low-pass filters (32–320Hz,
12dB/octave) on front and rear channels
Low-pass filter (32–320Hz, 12dB/octave) on subwoofer
channel
Bass boost on subwoofer channel (0-12dB at 45Hz)
Phase switch on subwoofer channel (0, 180 degrees)
Preamp and speaker-level inputs
Fuse rating: 30A x 3
4-gauge power and ground leads recommended —
wiring and hardware not included with amplifier
W x H x D = 360mm x 55.5mm x 180mm
W x H x D = 14-3/16" x 2-3/16" x 7-1/8"
High performance 5 channel car amplifier
