Harmar Mobility HELIX Supplement

Helix Curved Stair Lift - Install and Service Manual 2016 1
TEC0067 P/N: 630-00063-01 Rev B
Curved Stair Lift
Installation &
Service Manual
This image is for illustrative purposes only.

| www.harmar.com | 800-833-0478
2© 2018 Harmar Mobility, LLC • All Rights Reserved
This manual provides instructions for proper
installation of this Curved Stair Lift. Please
refer to the Owner’s Manual for operating
instructions. Be sure to provide the Owner’s Manual
to the owner of the lift before it is put into service.
Any alterations to the equipment without written
authorization by the manufacturer may void the
warranty.
Our lifts are designed to install with as little
assembly as possible. If you have questions,
concerns or comments, please contact Harmar’s
Technical Service Department at 1-866-378-6848 or
email [e-mail].
Device Name: Harmar Helix Curved Stair Lift
Indications for Use: The intended use of the Helix
Stair Lift is to assist transfers of patients or mobility
impaired persons up and down ights of stairs.
SYMBOLS USED IN THIS MANUAL
READ MANUAL - Pay close attention to
the instructions in the manual.
CAUTION - Hazardous situation. If not
avoided, could result in serious damage
to property.
WARNING - Hazardous situation. If not
avoided, could result in serious injury
to installer or user.
HEAVY - Be sure to have help available
to avoid back injury.
TIP - Helpful tips that will facilitate ease
of installation.
CHECK - Reminder to check certain
portions of installation before
continuing.
Lifts shall be installed so that means of egress is
maintained as required by the authority having
jurisdiction. 7.1.1
The structure which equipment is installed shall be
capable of supporting the loads imposed. 7.1.2
The installation of electrical equipment and wiring
shall conform to the requirements of NFPA70 7.6.4
Foot Rest Clearance. At no point in its travel shall
the edge of the footrest facing the upper landing
be more than 24 inches (610 mm) above the step or
landing as measured vertically.
ASME A18.1-2014 "SAFETY STANDARD FOR
PLATFORM LIFTS AND STAIRWAY CHAIR LIFTS"
CONTENTS
TABLE OF CONTENTS 2
WHATS IN THE BOX 3
REQUIRED TOOLS 4
INSTALLATION 5-13
FINAL CHECKS 14
TECHNIAL SPECIFICATIONS 15

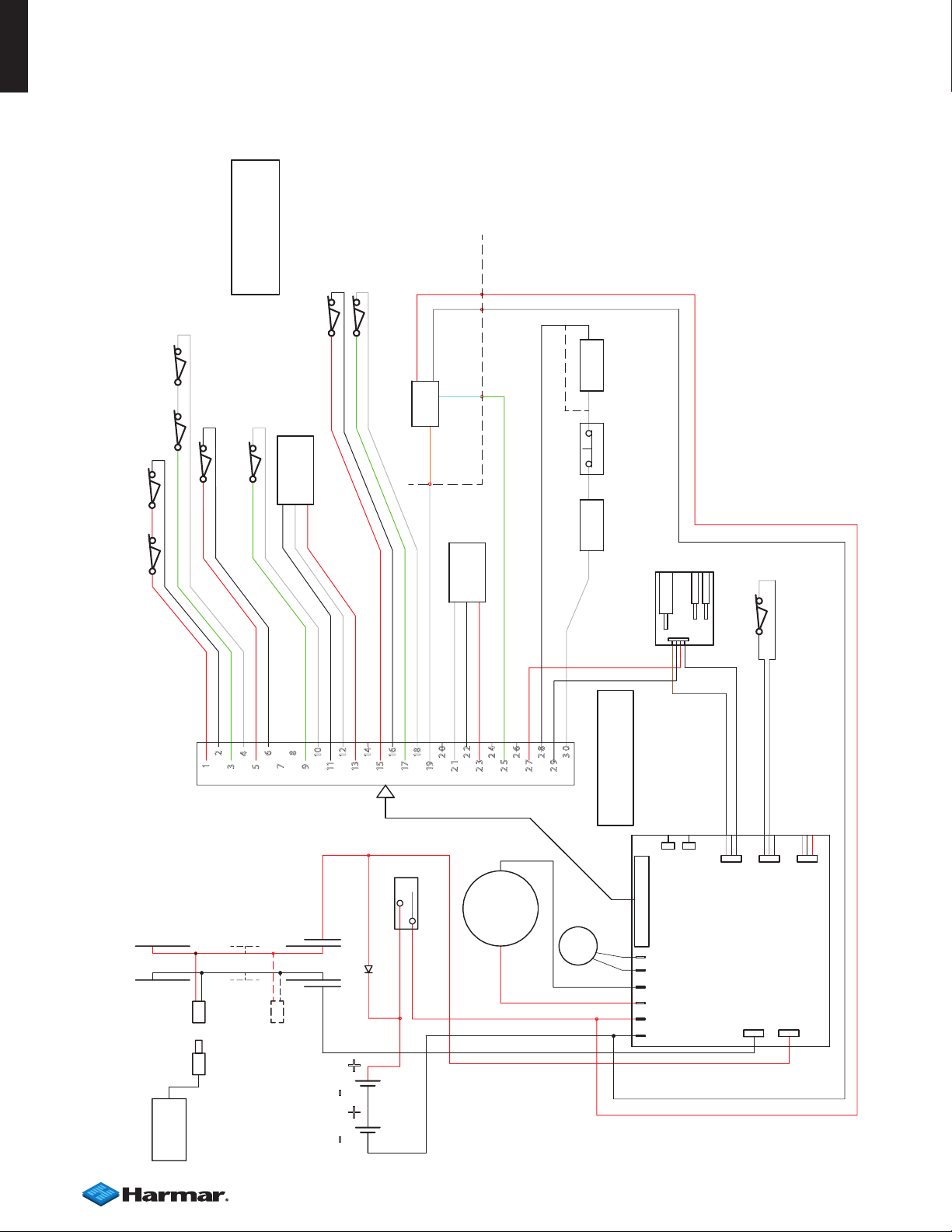

WIRING 16
MAINTENANCE 17-18

Helix Curved Stair Lift - Install and Service Manual 2016 3
TEC0067 P/N: 630-00063-01 Rev B

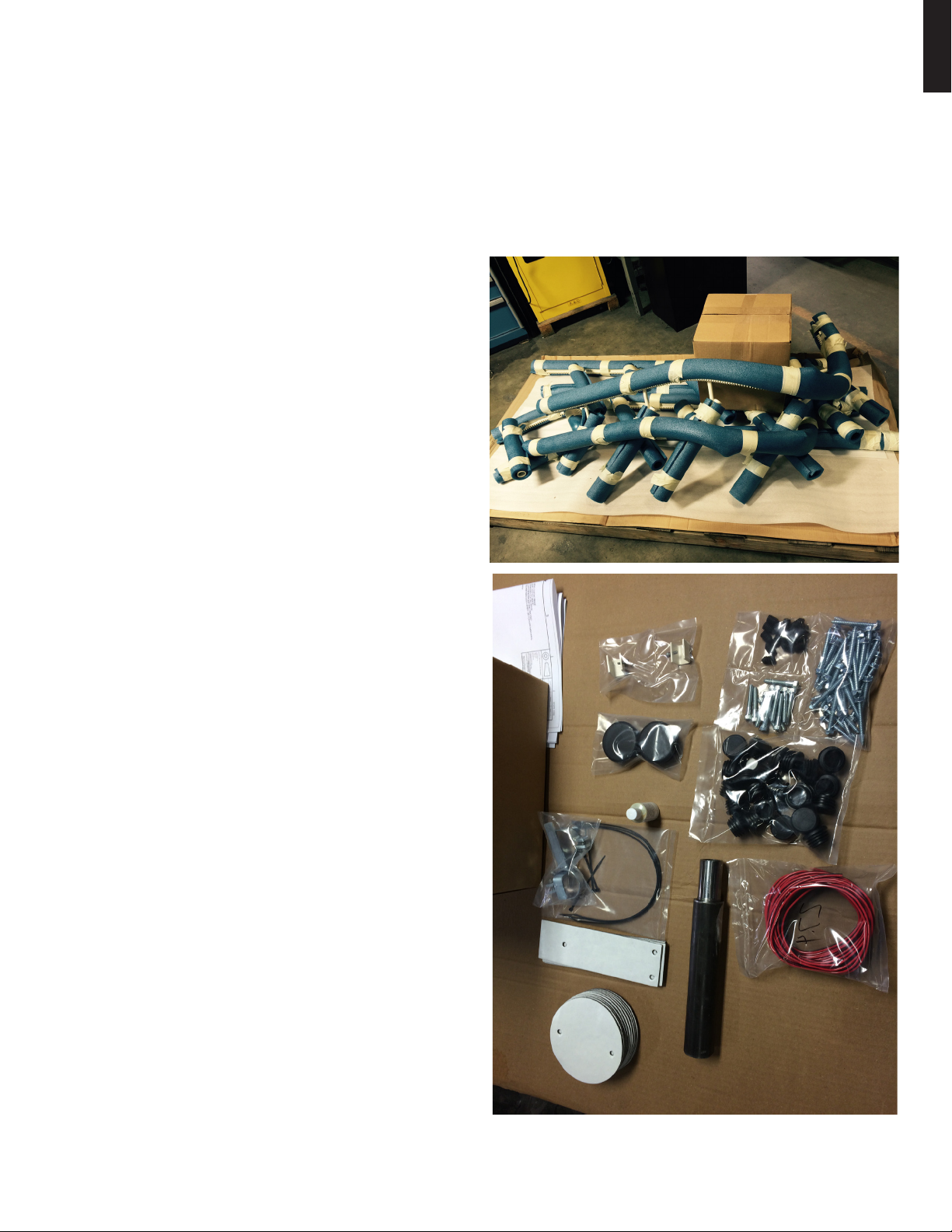

Box Contents
Before beginning installation, please check the Curved Stair Lift contents and ensure that all components
are complete and undamaged. Also check the enclosed illustration to verify specic parts since each lift
is customized to the application. Report missing parts or shipping damage to your dealer or the shipping
company.
Contents
• Legs
• Rails
• Complete Seat Assembly and chassis
• Power Supply
• Wires
• Bag of Screws
• Pipe and Support Caps
• Charge Station
WHAT'S IN THE BOX

| www.harmar.com | 800-833-0478
4© 2018 Harmar Mobility, LLC • All Rights Reserved
Drill
Assorted Drill Bits
Allen Wrenches
Emery/Sandpaper
Towels (for cleaning)
Lightweight grease (white lithium)
Tape Measure
Angle Meter
The tools required for installation of the lift will
be referenced throughout the manual. Each
page will have a tool icon area at the top to help
determine which tools will be needed during
that part of the installation.
REQUIRED TOOLS
Mirror for checking charger
Wire Stripper/Crimper
Fish Tape
Drill Extention Bit
Shims
Recommended: Volt OHM Meter
Optional: Pull Strap/Ratcheting Strap
Mounting Screws could be needed,
based on ooring (not shown)

Helix Curved Stair Lift - Install and Service Manual 2016 5
TEC0067 P/N: 630-00063-01 Rev B
Harmar’s Curved Stair Lift is easy to install. The standard installation
will normally take two installers approximately three hours. The time
will vary depending on the complexity of the lift ordered and custom
designs.
1. Review Installation Drawing The dimensions on the drawing
show numbers on the stairs. These numbers indicate the position
of the supports.
2. Carry chair/chassis to the location of the installation. Usually
top of stairs. It's best to be a at section of rail.
3. Position Stair Supports Place on the stair based on the
installation drawing but do not bolt anything down at this point.
[Figure 5-1]
4. Assemble the Rail Place the rail in the correct position beginning
with the rst section downstairs. Unwrap the rail, checking the
label for order of placement on stairs. [Figures 5-2, 5-3]
Follow the drawing included with the rail system.
Run a wire through the lower rail. There is a hole at the charger
location for it to come out. [Figure 5-4]
5. Check both ends of the rail and wipe clean. You may need to
clean the ends with Emery paper and add a small amount of
grease to help slide the pipes together. [Figure 5-5]
Figure 5-1
WIRING NOTE: You may complete the wiring while putting
the rail together or use a sh tape on the completed unit
to run the wire.
IMPORTANT - Do NOT lay chair on its back.
REQUIRED TOOLS INSTALLATION
Figure 5-2
Figure 5-3
Figure 5-4
Figure 5-5

| www.harmar.com | 800-833-0478
6© 2018 Harmar Mobility, LLC • All Rights Reserved
6. Slide the pipes together one at a time starting at the bottom in the order indicated on the label. Install
on the stair supports. [Figures 6-1, 6-2, 6-3]
A ratcheting strap can be used to help pull the rails together.
7. Connect parts at the joint with the supplied bolts. Carefully tighten as you assemble the rail
[Figures 6-4, 6-5]
When you arrive upstairs, adjust the position of the rail and supports while you compare with the
drawing.
8. Rail Leveling/Alignment: Using the angle meter, set the rail to the correct angles and check the
drawing to verify that all clearances are correct.
DO NOT tighten all the leg set screws yet, only set enough to support the rail. Leave the others oating.
INSTALLATION
NOTE: When installing to stair,
ensure the hardware is long
enough. If the carpet is very
thick, it might require longer
hardware.
NOTE: Watch for tack strips.
Avoid mounting on them. If
you can't avoid them, shims
will be required.
CHECK
TEST RUN - Prior to bolting down the supports, install the chassis and run it on the rail to
check all clearances. It may be necessary to bolt down one or two legs to hold the rail in place.
If necessary, move the rail position to provide the best t

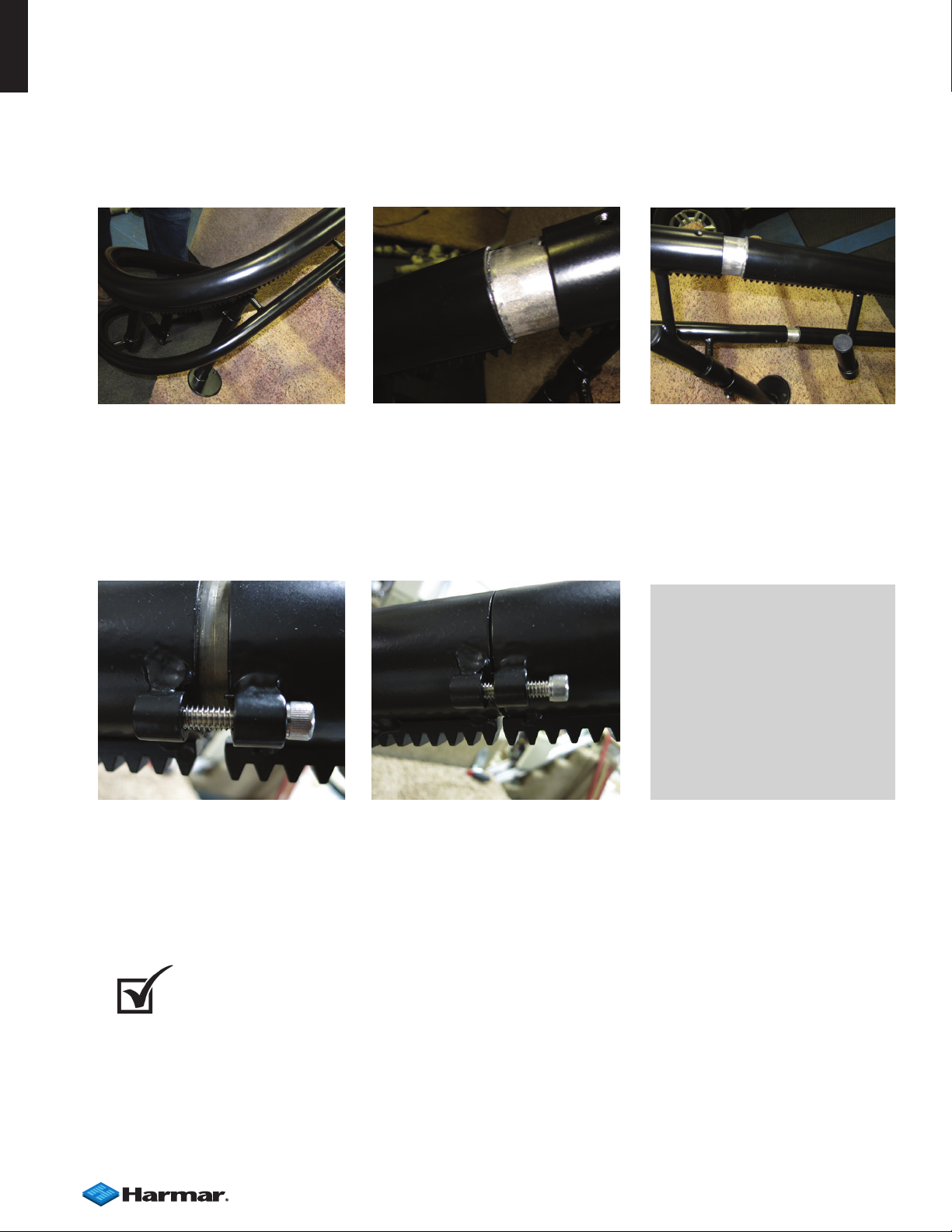

Figure 6-1 Figure 6-2 Figure 6-3
Figure 6-4 Figure 6-5

Helix Curved Stair Lift - Install and Service Manual 2016 7
TEC0067 P/N: 630-00063-01 Rev B

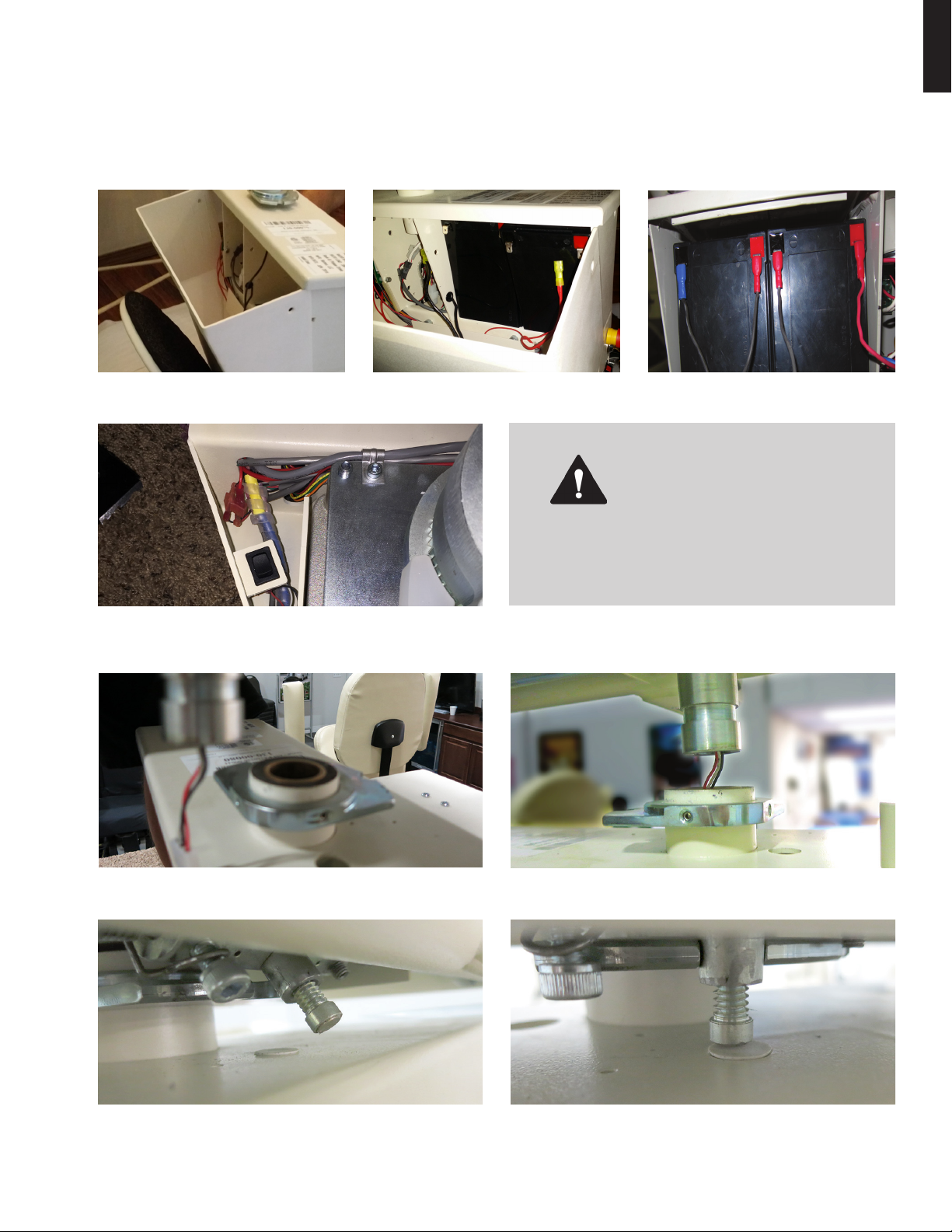

9. Install Battery
Open front of chassis, by removing screws on shroud. [Figure 7-1].
Install batteries. Connect wire. [Figures 7-2, 7-2].
Remove rear cover to expose loading switch. [Figure 7-4]
Route wire of seat thru seat mounting hole. Install seat [Figures 7-5, 7-6].
Observe magnet switch for seat safety. [Figures 7-7, 7-8]
INSTALLATION
CAUTION
Use Caution when handling
the battery.
Figure 7-1 Figure 7-2 Figure 7-3
Figure 7-4
Figure 7-5 Figure 7-6
Figure 7-7 Figure 7-8

| www.harmar.com | 800-833-0478
8© 2018 Harmar Mobility, LLC • All Rights Reserved

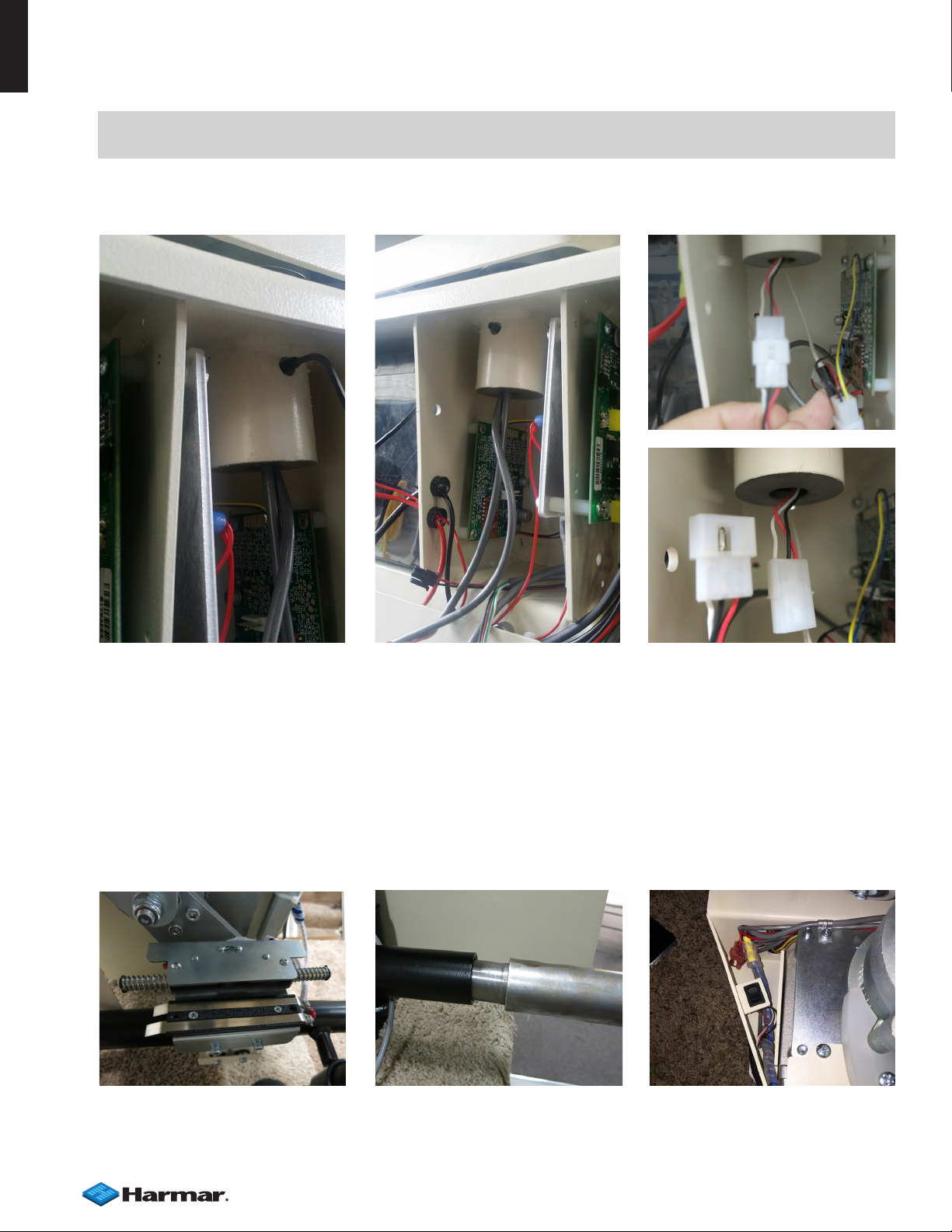

Install set screw, that holds seat from coming up, in collar where the wires for the hand control comes
through. [Figures 8-1, 8-2]. Connect seat rocker switch wires. [Figures 8-3, 8-4]
10. Chassis Load
Roller position-Ensure charging point [Figure 8-5] is on the top.
Using the loading bar, [Figure 8-6] slide on until drive hits the gear rack.
Activate the rocker [Figure 8-7] to drive onto rack, watching the wheels to ensure they go on smoothly.
Ensure the unit goes down the gear rack about 6".
INSTALLATION
NOTE: Lubricate seat post before installing using a white lithium grease.
Figure 8-1 Figure 8-2 Figure 8-3
Figure 8-4
Figure 8-5 Figure 8-6 Figure 8-7

Helix Curved Stair Lift - Install and Service Manual 2016 9
TEC0067 P/N: 630-00063-01 Rev B
11. Replace Shroud and install load switch cover on back.
Test run chassis to ensure all the clearances are ok. Move rail as needed to make the best t. If
installing mid-charging location locate it now.
Installing Mid-Charge Locations
1) Locate Chassis to where the midstation park should be on the rail. [Figures 9-1, 9-2]
2) Mount to the rail using self taping screws provided [Figures 9-3, 9-4]
3) Align charge feet to chassis, ensure the charge feet are compressing about 1/4". [Figures 9-5, 9-6, 9-7]
4) Drill the hole in the rack to pull
wire out. [Figure 9-8]
5) Connect wire to charge station,
ensure the red wire matches the
location of the red wire on the
chassis. [Figure 9-9]
6) Install Cover
INSTALLATION
Figure 9-1 Figure 9-2
Figure 9-3 Figure 9-4
Figure 9-5 Figure 9-6 Figure 9-7
Figure 9-8 Figure 9-9
The unit will stop on this when driven with the wireless remote. It will stop for 5 to 6 seconds then continue.

| www.harmar.com | 800-833-0478
10 © 2018 Harmar Mobility, LLC • All Rights Reserved

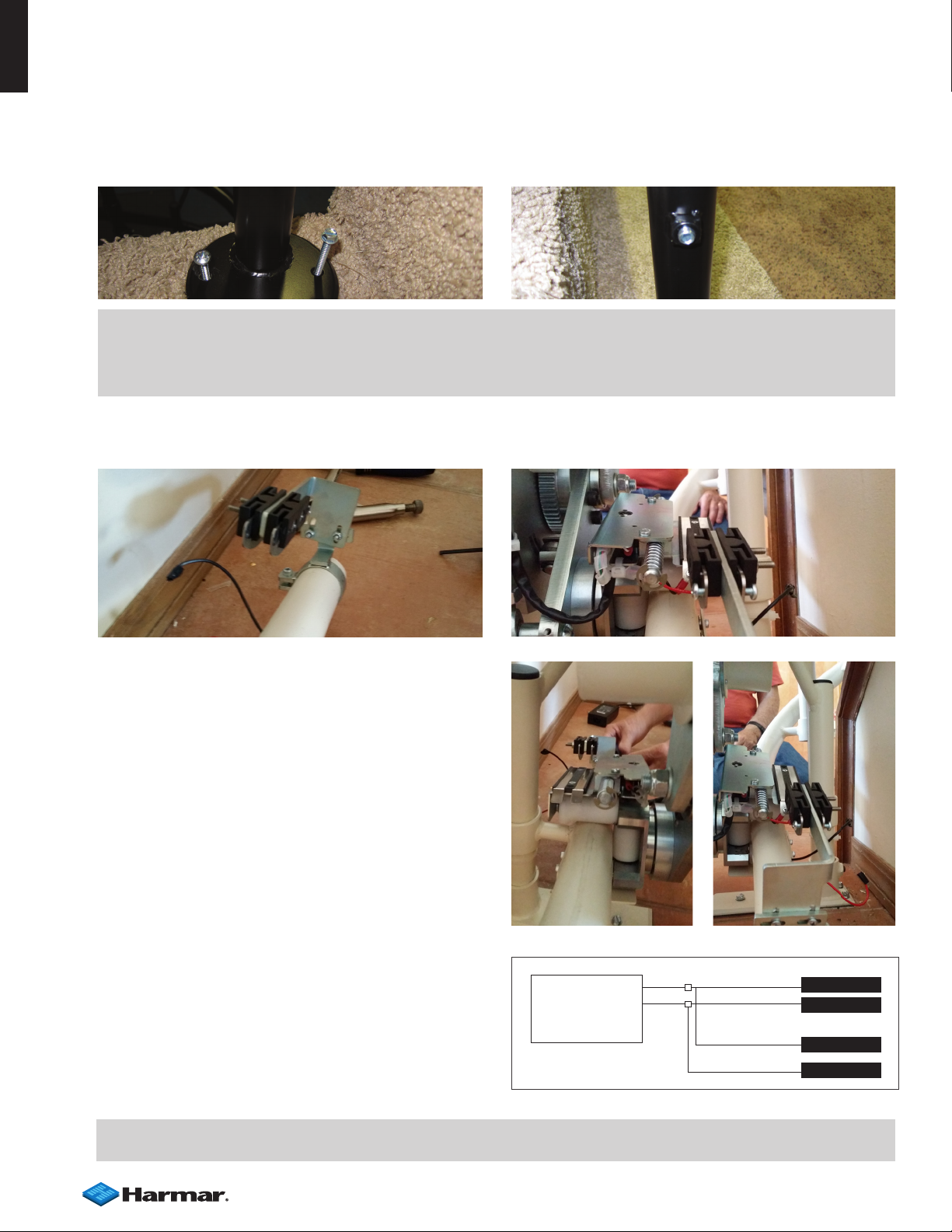

12. Supports: Re-check angles, then, using the appropriate hardware, attach the supports to the stairs,
starting at a corner. Firmly set the supports to the rail with set screw. Repeat the process at the other
corners; re-check angles. Complete all other legs. [Figures 10-1, 10-2]
13. Charging Station
Install charging station on rail. [Figure 10-3] Top and bottom. Align with chassis [Figure 10-4]
Alignment
Align charging stations. Pay attention to the
charging contacts where the drive unit meets
the station. They should apply pressure to the
charging strips on the chassis. Adjust as needed.
The spring loaded contacts should compress
about 1/4 of an inch. [Figures 10-5, 10-6]
Route red and black wires through hole provided
in rail by charging station. Use provided gromnet
to protect wire.
Determine which end has the AC power for the
power supply. Connect the power supply with
the provided connector which has a red and
black wire, to the red and black wires. Using the
provided terminals attach the charge wire to the
wires in the rail. [Figure 10-7]
NOTE: The power supply charger needs to be placed out of the weather elements to be protected.
INSTALLATION
NOTE: When on carpet tighten down the oating legs rst, then tighten the set screw on them.
Loosen the set screws on the legs you were using for support and tighten them to the oor. Tighten
the set screw.
Figure 10-1 Figure 10-2
Figure 10-3 Figure 10-4
Battery
Charger
White +Red +
BlackBlack -
+
-
+
-
Red
Figure 10-5 Figure 10-6
Figure 10-7

Helix Curved Stair Lift - Install and Service Manual 2016 11
TEC0067 P/N: 630-00063-01 Rev B
14. Then attach to the charge station.
[Fig ures 11-1, 11-2, 11-3]
Install cover on charging station.[Figure 11- 4].

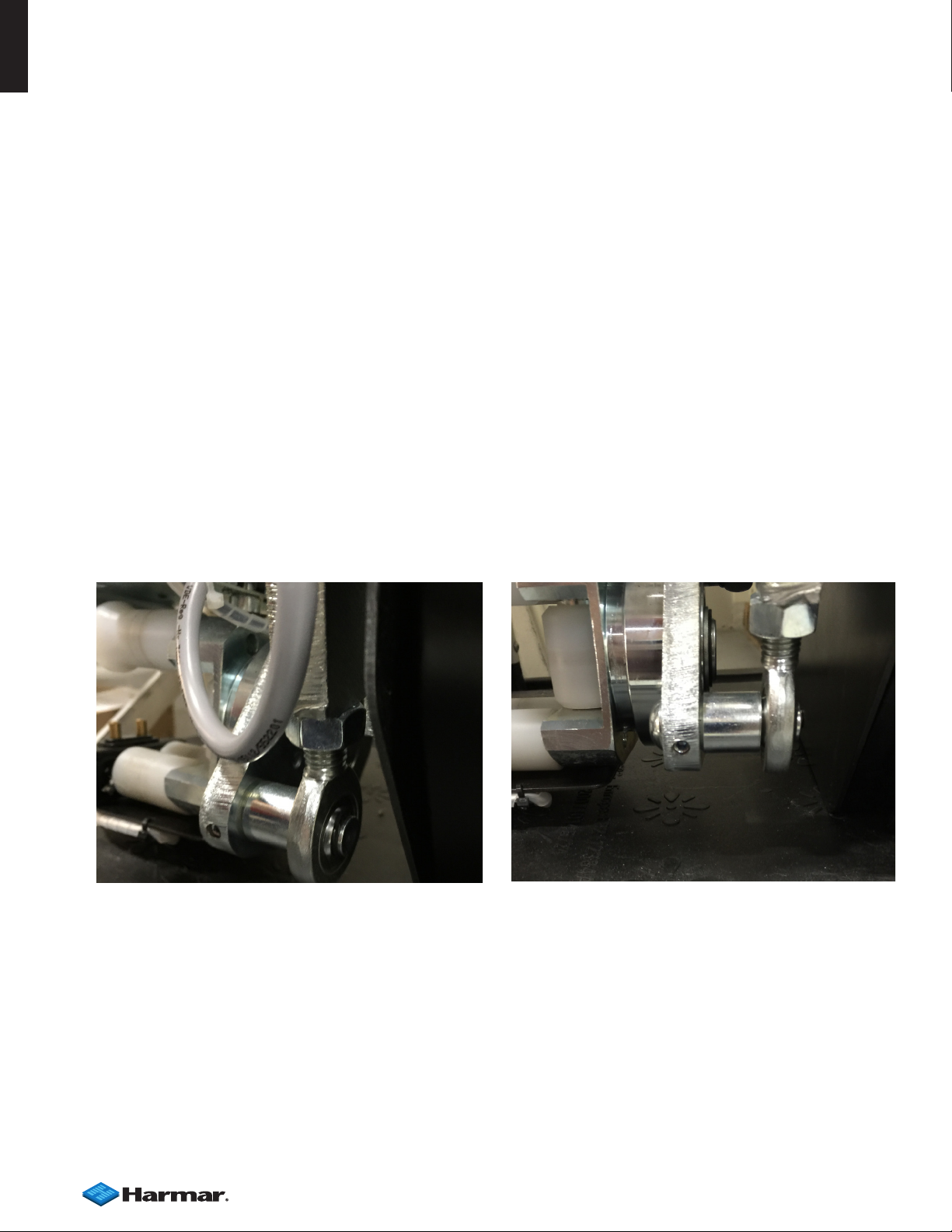

15. Final Limit
Install hard nal limit on gear rack at both ends of rail. [Fig ures 11-5, 11- 6]
Rail end caps and support caps need to be installed
INSTALLATION
Figure 11-1 Figure 11-2
Figure 11-3 Figure 11-4
Figure 11-5 Figure 11-6

| www.harmar.com | 800-833-0478
12 © 2018 Harmar Mobility, LLC • All Rights Reserved
Tones .......................................Beeps
Runaway .........................................1
12V Supply .......................................2
Conicting Switches Footrest .....................3
UP & Footrest DOWN
Conicting Switches Obstruction .................4
UP & Obstruction Down ..........................5
Conicting Switches Footrest .....................6
UP & Obstruction DOWN
Conicting Switches STOP UP & STOP .............7
DOWN switches both Detected
Conicting Switches STOP UP & STOP .............8
DOWN switches both not Detected
Helix Only LIMIT Switch Dectected ................9
INSTALLATION

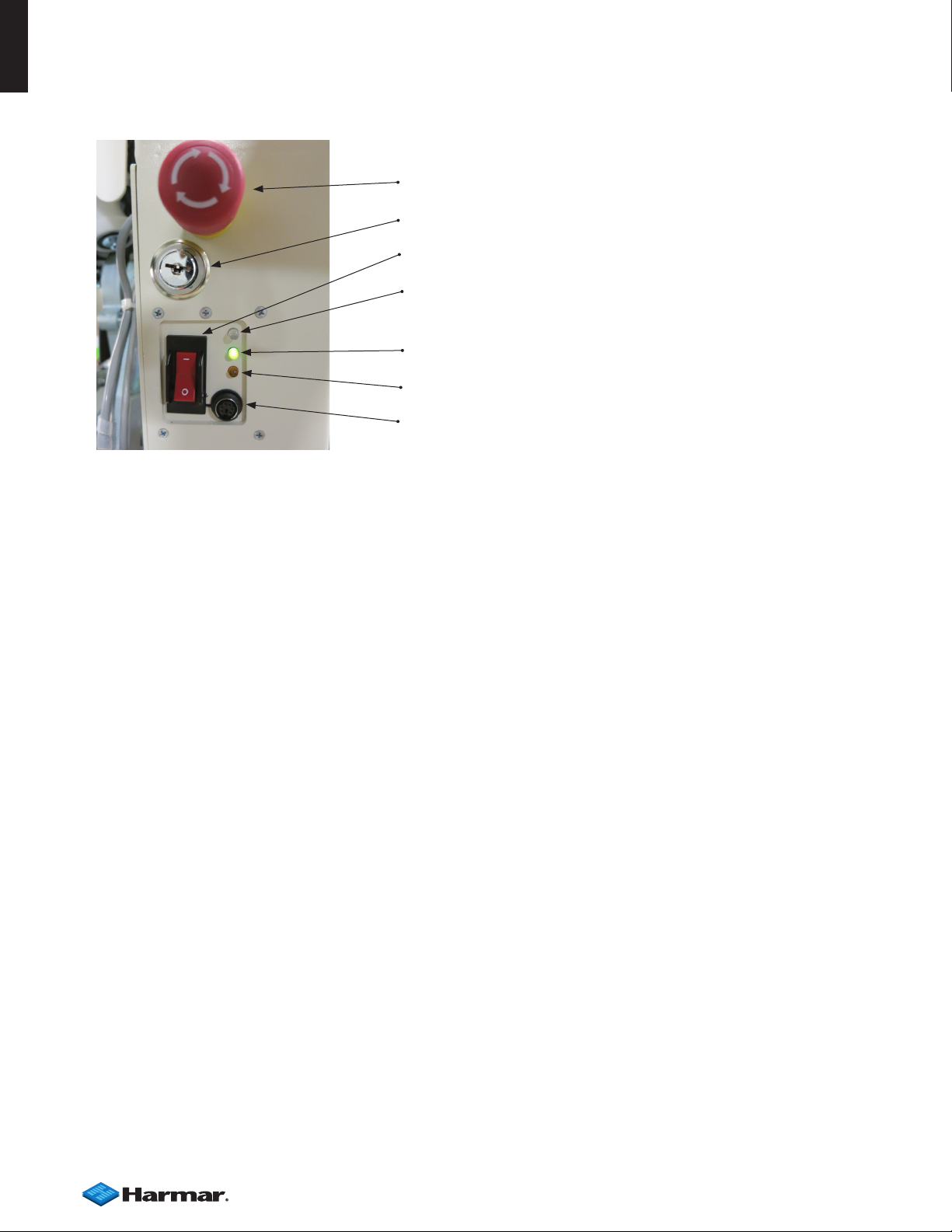

Controls
Emergency Safety
Key Lock (Optional)
Power Switch
Status Light
(Red = Major Fault, Yellow = Obstruction, Green = Ready)
Power On Light
Charging Light
Test/Diagnostic Port
This port enables you to connect a PC to the unit to check
several functions on the unit.
16. Controls
17. Tones with red status light on
INSTALLATION

Helix Curved Stair Lift - Install and Service Manual 2016 13
TEC0067 P/N: 630-00063-01 Rev B
Wireless Remote Reprogramming
The wireless controllers are shipped pre-programmed for the seat.
If the unit needs to be reprogrammed or you replace a remote.
On the wireless control board press and hold the little button on the board then hold the up button on the
remote for 3 to 4 seconds and it should learn the remote. Hit other remote at same time.
INSTALLATIONINSTALLATION

| www.harmar.com | 800-833-0478
14 © 2018 Harmar Mobility, LLC • All Rights Reserved
Final Checks
Before putting the lift into operation for the user verify the following:
• Check all stops (top, middle & bottom)
• Foot rest (Both direction of travel)
• Rail obstruction-both directions
• Rail (all hardware and mounting hardware are tight)
• Final limit (both ends of travel)
• Seat swivel (lift won't run if seat is swiveled)
• Check all clearances to ensure there are no pinch points
• Provide the Owner’s Manual and review the lift’s operation and stops with the customer.
• Charge for 12 hours after testing is complete.
• Test wireless remote (in both direction of travel)
• Seat postion, level at top and bottom. If it is not level or customer would like the chair to have a slight
uphill tilt, adjust with the leveling joint.
- Loosen set screw (2.5 mm)
- Remove screw (6mm)
- Adjust joint in or out depending on which direction you want the chair to go
- Retighten all
The lift is now ready to use. Remember to leave the Owner’s Manual with the end-user and answer any
questions they may have on the use of the Curved Stair Lift.
FINAL CHECKS

Helix Curved Stair Lift - Install and Service Manual 2016 15
TEC0067 P/N: 630-00063-01 Rev B
TECHNICAL SPECIFICATIONS
Technical Specications
Weight capacity: .............................................................350 lbs.
Track (rail) Type:................................................Steel, Powder Coated
Travel: .................................................. 20’ Standard; 164’ Maximum
Average Number of Return Trips per Charge
(varies with load, length):..........................................................10
Symmetrical Lift
(Ships and installs non-handed):..................................................No
Control in Armrest:
(left or right hand operation) .....................................................Yes
Lift Mounts to Steps or Wall: ....................................................Steps
Minimum Folded Width:.............................................14.37” (365 mm)
Minimum Footrest Height: ............................................5 ½” (140 mm)
Clear Distance
Between Armrests: ...................................... 20.47”- 23.6” (520 - 600 mm)
Floor to Seat Height: ...................................................24” (610 mm)
Minimum Wall to Stair Side of Rail:..................................... 4.7” (120 mm)
Seat Depth: .........................................................14.96” (380 mm)
Backrest Height From Top of Seat: ...................................20.47” (520 mm)
Electrical Requirements:..............................120VAC 15A (240 VAC optional)
Operation Power: ....................................................24V DC Battery
Speed:.......................................................................20 fpm
Incline Range: (max. 450 by code): ................................................60˚
Drive System: .................................................... Rack & Pinion Gear
Safety Features: .............................................Direction Limit Switches
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Final Limit Switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Footrest Obstruction Switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Seat Swivel/Cut-o Switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Constant Pressure Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Seat Belt
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Safety Edges Overspeed Governor
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Emergency Stop
Safety Design Standards: .................................Complies with ASME A18.1,
CAN/CSA B44.1, ASME A17.5
Warranty: .................................................... 2-Year on Components
*Note: Average incline must not exceed 45° per ASME A18.1.
*

| www.harmar.com | 800-833-0478
16 © 2018 Harmar Mobility, LLC • All Rights Reserved
CARRIAGE
15
OBSTRUCTION
LEFT
UPPER
ROLLER
MID STOP
PIN 3
OPTION
19
SW3
NOTE:
LOWER ROLLER
SW4
STOP LEFT - SW7
SW2SW1
2 0
2 1
10
11
12
2 8
5
13
2 2
4
30 AMP Breaker
PIN 4
2 3
16
17
OPTION
KEY SWITCHEMERGENCY
BRAKE
12V-12AH
CENTRIFUGAL
7
2
6
8
9
18
LEFT
2 4
STOP
PARACHUTE
FOOTREST
LEFT - SW9
FOOTREST
RIGHT - SW8
2 5
2 6
2 7
ON
X2
DOWN
SWIVEL
SEAT
RF DOWN RF UP RF XCVR
ARMREST
RIGHT
LEFT
LEFT/RIGHT
SWITCH
IN THE CHAIR.
ARE WHEN SITTING
PIN 2
LOWER ROLLER
PIN 1
LEFT AND RIGHT DIRECTIONS
CARRIAGE
OBSTRUCTION
4 PIN CONNECTOR MATING
RIGHT
UPPER
1
14
2 9
3 0
ROLLER
"RIGHT IS UP" OR "LEFT IS UP"
TO BE PROGRAMMED IN
FACTORY VIA GUI PROG.
ALT PS
LOCATION UP
INSTALLATION
STOP RIGHT - SW5
SWITCH
3
RIGHT
Yellow BLACK
RED
BLUE
IN ONE PACKAGE
White
J19
1 GND
3 VCC
1 GND
J16
Green
Black
Green
White
Red
Red
24VDC
J17
Motor2(J5)
Motor1(J6)
24V(Bat+)(J9)
GND(Bat-)(J10)
C- (J8)
Black
Red
BRAKE
C+ (J7)
Brake1(J3)
30 Pin Connector
SUPPL
Y
P0WER
33
VDC 1 AMP
Green
Red
Black
White
White
Black
Red
Red
White
White
Green
Black
Red
Black
White
Black
Brake2(J4)
J12-1
J12-2
2 INPUT
3 VCC
2 INPUT
RED/GREEN LED
RESISTOR
POWER LED
RESISTOR
CHARGE LED
RESISTOR
LED BOARD
Black
+
-+-
WIRING DIAGRAM

Helix Curved Stair Lift - Install and Service Manual 2016 17
TEC0067 P/N: 630-00063-01 Rev B
6 Month Maintenance Checklist (3 Months for Outdoor):
CHASSIS & RAIL
qClean rail with mild soap & water
qLubricate rail with white lithium grease , lightly
qClean out sprocket cover
qTouch up any scratches with paint
qCheck upper rollers
qCheck lower roller
SAFETY SWITCHES – ensure switches are working by activating each condition
qSeat
qFootrest Up
qFootrest Down
qRail Guard Up
qRail Guard Down
qStep Guard Up
qStep Guard Down
qEmergency Switch On
qEmergency Switch O
qChassis Lights On
qChassis Lights O
MAINTENANCE

| www.harmar.com | 800-833-0478
18 © 2018 Harmar Mobility, LLC • All Rights Reserved
CHASSIS STOP
qUp Primary
qUp Final
qDown Primary
qDown Final
CHARGING STATION CONTACTS
qTop
qBottom
qCharger functionality & voltage
GEAR RACK SAFETY STOP
qTop
qBottom
MOUNTING BOLTS
qCheck all rail bolts for tightness
qCheck all leg bolts for tightness
ANNUAL CHECKLIST
qSame as above
qReplace Batteries
MAINTENANCE

Helix Curved Stair Lift - Install and Service Manual 2016 19
TEC0067 P/N: 630-00063-01 Rev B
NOTES

| www.harmar.com | 800-833-0478
20 © 2018 Harmar Mobility, LLC • All Rights Reserved
2075 47th Street
Sarasota, FL 34234
800.833.0478
harmar.com
Helix Curved Stair Lifts
Installation Manual
TEC0067 P/N: 630-00063-01 Rev B
