HARVEY Eagle E-305S User manual

- 1 -
Contents
1
Foreword
2
2
Warranty
Information
2
3
Machine
Description
3
3.1
Feature
Identification
3
3.2
Intended
Use
3
3.3
Dimensions
and
weights
3
3.4
Electrical
Power
Requirements
4
3.5
oise
4
3.6
Technical
Parameters
5
4
Safety
Regulations
7
4.1
General
Safety
Instructions
7
4.2
Specific
Safety
Instructions
for
Shaper
8
4.3
Residual
Risks
9
4.4
Safety
Equipment
9

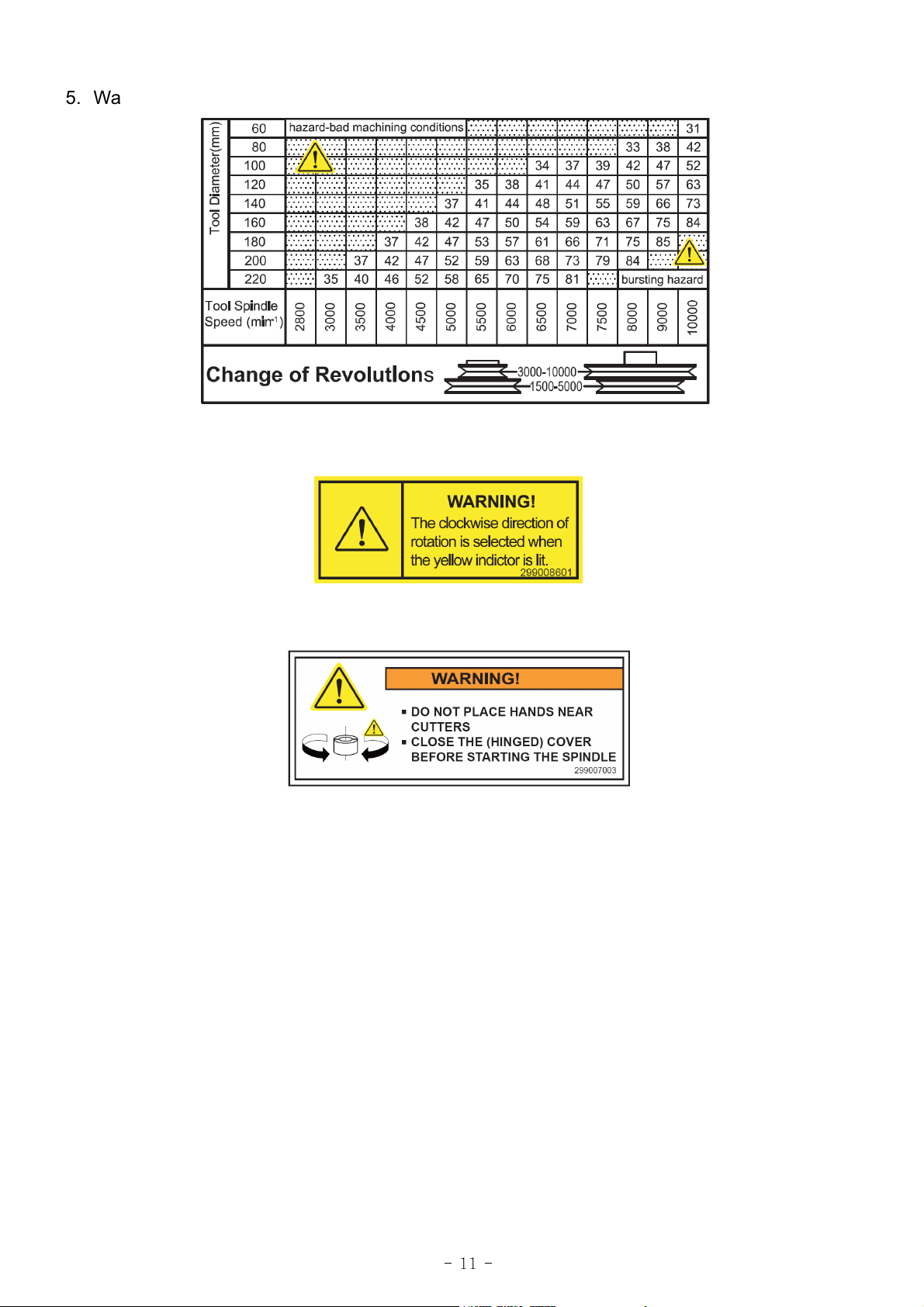

4.5
Safety
Labels
o
n
t
he
Machine
10
4.6
Safety
Devices
1
2
Installation
of
the
machine
1
3
5.1
Transportation
o
f
the
Machine
1
3
5.2
Unpacking
1
4
5.3
Safety
Measures
b
efore
Use/Installation
1
4
5.4
Installation
1
5
5.4.1
Positioning
the
Base
Unit
1
5
5.4.2
Fence
Assembly
Installation
1
5
5.4.3
Cross-Cut
Table
Installation
1
6
5.4.4
Position
ing
t
he
Touch
Screen
Bracket
1
7
5.4.5
Back
Cover
Installation
1
7
5.4.6
Connecting
t
he
Extraction
System
1
7
5.4.7
Electrical
Installation
1
8
6
Adjustment
2
0
6.1
Sliding
Table
2
0
6.2
Main
Table
&
Table
Insert
2
0
6.3
Cross-Cut
Fence
2
1
7
Operations
2
2
7.1
Electrical
Operations
2
2
7.1.1
Switch
&
Button
2
2
7.1.2
Display
Control
Unit
(Touch
Screen)
2
3
7.2
Cutter
Installation/Changing
28
7.3
Replace
the
Spindle
29
7.4
Change
t
he
Speed
Range
29
7.5
Correct
Use
3
1
7.6
Digital
Readout
of
the
Fence
Angle
Operation
3
1
8
Maintenance
3
2
8.1
Cleaning
3
2
8.2
Lubrication
3
2
8.3
Replacing
the
Belt
3
2
9
Parts
list
3
3

- 2 -
1. Foreword
This manual was conceived at the manufacturer and is an indivisible part of the delivery
enclosed with the machine. It contains basic information for qualified operating staff and
describes the surroundings and using ways of the machine for those it is indented. It contains
also all necessary information for a correct and safe operating. The machine is equipped with
various safety equipment protecting operator and machines well at usual technological using.
These regulations, however, cannot sheet all other safety aspects. That is why operator must
peruse and make sense of this manual before starting of machine use. Installation and operation
mistakes will be foreclosed here with.
Do not try to start the machine before having read all instructions manual delivered with the
machine and understood every function and technique.
2. Warranty Information
Limited Warranty
One year
Proof of Purchase
Please keep your dated proof of purchase for warranty and servicing purposes.
Limited Tool Warranty
We make every effort to ensure that this product meets high quality and durability standards, we
warrants to the original retail consumer a 1-year limited warranty as of the date the product was
purchased at retail and that each product is free from defects in materials. Warranty does not
apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence or
accidents, repairs done by an unauthorized service center, alterations and lack of maintenance,
we shall in no event be liable for death, injuries to persons or property or for incidental, special or
consequential damages arising from the use of our products.
To take advantage of this limited warranty, return the product at your expense together with your
dated proof of purchase to us, we will either repair or replace the product if any part or parts
covered under this warranty which examination proves to be defective in workmanship or
material during the warranty period.

- 3 -
3. Machine Description
3.1 Feature Identification
ACabinet
BArm
CCrosscut table
DCrosscut Fence
ESliding table
FGuard
GControl panel
HTable
IElectrical box
Fig.1
3.2 Intended Use
1. Purpose of the Machine
The machine enables semi-finished products made of wood or materials based on wood to be
milled with a spindle
The machine is designed for operation performed by one worker only.
The machine must not be handled by children and youngsters in any manner.
2. Worker Qualifications
Only expert skilled in the field of wood-machining or a worker instructed and trained by such
expert may operate the machine, regardless of the sex. While working on the machine, the
operator must get familiar with these instructions and comply with any safety rules, regulations
and provisions in force in the respective country.
3. Working Environment
The machine must be operated in a workshop environment, complying the environment
classification danger of inflammable dust fire (BE2 2), the temperature of which does not
exceed +40°C and does not drop below +5°C, the relative humidity of air is from 30% to 95%
non-condensing, the height above the sea level is up to 1000m,
4. Machine Operator Positions
The shaper is intended to be operated from the following position:
On the left of the sliding table at the front of the machine, seen in the feed
direction
The machine is prohibited to be used in a potentially explosive
atmosphere!
Fig.2
3.3 Dimensions and Weights
Machine Box Type
Net Weight
(Kg)
Gross Weight
(Kg)
Box Dimension
(DxWxH mm)
E-305S Machine box 485 515 1650x1150x1092
Crosscut fence box 15 25 2000x320x170

- 4 -
3.4 Electrical Power Requirements
Since the power source differs in different areas, the requirements of the Label Specification
pasted on the machine shall be strictly complied with.
Position of Label Specification: on the side of the main base unit.
List of the motor usage & Pre-wired voltage
Power Source: 380-415V / 3PH / 50(60)Hz
Power Source: 220V / 3PH /60Hz
Power Source: 440V / 3PH /60Hz
3. Noise
3.4.1 Reference Standards
The measurements of noise emission were conducted according to the E ISO 11202 for the
determination of sound pressure level at the operation positions. When the measured sound
pressure levels at the operation positions exceed 85dB(A), the measurements of sound power
levels were conducted according to E ISO 3746.
3.4.2 Operating Conditions
The operating conditions for the noise measurement comply with the Annex A of ISO 7960:1995.
3.4.3 Testing Results
Measured made in accordance with E ISO 3746:1995 and E ISO 11202:1995.
Note: Background noise of measurement surrounding is 6 .0dB (A).
The figures quoted are emission levels and are not necessarily safe working levels. Whilst there
is a correlation between the emission and exposure levels, this cannot be used reliably to
determine whether or not further precautions are required. Factors that influence the actual level
of exposure of the workforce include the characteristics of the work room and the other sources
of noise, etc., i.e. the number of machines and other adjacent processes. Also, the permissible
exposure level can vary from country to country. This information, however, will enable the user
of the machine to make a better evaluation of the hazard and risk.
Motor(kW) Voltage(V) Freq.(Hz) Nominal current (A) Pre-wired Cords
4 380-415V 50/60 10 380-415V/3PH 5
Motor(kW) Voltage(V) Freq.(Hz) Nominal current (A) Pre-wired Cords
5.5HP 220V 60 15 220V/3PH 4
Motor(kW) Voltage(V) Freq.(Hz) Nominal current (A) Pre-wired Cords
5.5HP 440V 60 10 440V/3PH 4
NO LOAD LOAD
Lw83.3 dB(A) 94.7 dB(A)
LP68.2 dB(A) 79.7 dB(A)
Associated Uncertainty 4 dB(A)

- 5 -
3.6 Technical Parameters
For Imperial Cutter Arbor:
Remark:
1. Maximum work-piece sizes: 3000mm(L) x 1250mm(W) x 140mm(H).
Minimum work-piece sizes: o specific requirement, always use a push stick when shaping
small or narrow work pieces.
2. Every machine we produce is fitted with a name plate with its serial number. The number is
also punched on the machine.
3. An exact description of the machine model and serial number will facilitate rapid and effective
replies from our after-sales service.
4. Since the power source differs in different areas, the requirements of the Label Specification
pasted on the machine shall be strictly complied with.
5. Position of Label Specification: on the side of the main base unit.
Models E-30 S
Electrical
Power Source 220V / 3HP / 60Hz 440V / 3HP / 60Hz
Motor 4kW(5.5HP)
Rated Current 13.9A 8A
Circuit Break 20A 16A
Performance
Table Height 35”
Main Table Size 19-3/4" x 39-1/2"
Sliding Table Size 12-1/5” x 49-1/2"
Cutter Arbor Size 5/4"
Insert Opening 2-1/2", 4-1/4", 5-3/4", 8-3/4"
Max. Tool Height 5-1/2"
Spindle Stroke 6-7/8"
Spindle Tilting -5°-45°
Max. Tool Size above the Table 8-5/8”
Max. Tool Size under the Table 6-7/8”
Max. Tool Size at 45° 5"
Spindle Speed 1500-5000rpm, 3000-10000rpm
Cutter Tilt Right
Max. Length of Cross Cut Fence 118"
Dimensions &
Weights
Overall Size (DxWxH)mm 115.5” x 143.7” x 55.5”
Machine Foot Print 37.2" x 49.2”
Machine et Weight Approx. 1100pounds
Construction
Sliding Table T-6 Super Heavy Duty Extrusion
Machine Frame High Strength 4mm/6mm Steel Welding
Control & Read-Out Control with 17"touch screen SIEME S
Trunnions High Grade Cast Iron, Precisely Machined
Power Transfer Belt Drive
Features Electronic Angle Adjustment
Electronic Height Adjustment

- 6 -
For Metric Cutter Arbor:
Remark:
1. Maximum work-piece sizes: 3000mm(L) x 1250mm(W) x 140mm(H).
Minimum work-piece sizes: o specific requirement, always use a push stick when shaping
small or narrow workpieces.
2. Every machine we produce is fitted with a name plate with its serial number. The number is
also punched on the machine.
3. An exact description of the machine model and serial number will facilitate rapid and effective
replies from our after-sales service.
4. Since the power source differs in different areas, the requirements of the Label Specification
pasted on the machine shall be strictly complied with.
5. Position of Label Specification: on the side of the main base unit.
Models E-30 S
Electrical
Power Supply 380-415V / 3HP / 50(60)Hz
Motor 4kW(5.5HP)
Rated Current 10 A
Circuit Break 16 A
Performance
Table Height 890mm
Main Table Size 1000 x 500mm
Sliding Table Size 310 x1250mm
Cutter Arbor Size 35mm
Insert Opening 65mm / 110mm / 146mm / 225mm
Max. Tool Height 140mm
Spindle Stroke 175mm
Spindle Tilting -5°-45°
Max. Tool Size above the Table 220mm
Max. Tool Size under the Table 175mm
Max. Tool Size at 45° 125mm
Spindle Speed 1500-5000rpm, 3000-10000rpm
Cutter Tilt Right
Max. Length of Cross Cut Fence 3000mm
Dimensions &
Weights
Overall Size (D x W x H) 2960x3650x1410mm
Machine Foot Print 944 x 1250mm
Machine et Weight Approx. 500Kg
Construction
Sliding Table T-6 Super Heavy Duty Extrusion
Machine Frame High Strength 4mm/6mm Steel Welding
Control & Read-Out Control with 7" touch screen SIEME S
Trunnions High Grade Cast Iron, Precisely Machined
Power Transfer Belt Drive
Features Electronic Angle Adjustment
Electronic Height Adjustment

- 7 -
4. Safety Regulations
4.1 General Safety Instructions
1. KNOW YOUR MACHINE.
Read and understand the owner manual and labels affixed to the machine. Learn its application
and limitations as well as its specific potential hazards;
2. GROUND THE MACHINE.
In the event of the electrical short, grounding reduces the risk of electrical short;
3. KEEP GUARDS IN PLACE.
Keep in good working order, properly adjusted and aligned;
4. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting wrenches are removed from machine
before turning it on;
. KEEP WORK AREA CLEAN.
The working floor area around the machine should be leveled and kept well-maintained,
unobstructed and free from loose material, e.g. chips and off-cuts;
6. AVOID DANGEROUS ENVIRONMENT.
Don’t use machines in damp or wet locations or expose them to rain. Keep work area well lit and
provide adequate surrounding work space;
7. KEEPCHILDREN AWAY.
All visitors should be kept a safe distance from work area;
8. MAKE WORKSHOP CHILD-PROOF.
With padlocks, master switches or by removing starter keys;
9. USE PROPER SPEED.
A machine will do a better and safer job when operated at the proper speed;
10. USE RIGHT MACHINE.
Don’t force the machine or the attachment to do a job for which it was not designed;
11. WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties or jewelry (rings, watch) because they could get
caught in moving parts. on-slip footwear is recommended. Wear protective hair covering to
contain long hair. Roll up long sleeves above the elbows;
12. DON’T OVER REACH.
Keep proper footing and balance at all times;
13. MAINTAIN MACHINE WITH CARE.
Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating
and changing accessories;
14. DISCONNECT MACHINES.
Before servicing, when changing accessories or attachments;
1 . AVOID ACCIDENTAL STARTING.
Make sure the switch is in the ‘’OFF’ ’position before plugging in;
16. USE RECOMMENDED ACCESSORIES.
Consult the manual for recommended accessories. Follow the instructions that accompany the
accessories. The use of improper accessories may cause hazards;
17. NEVER STAND ON MACHINE.
Serious injury could occur if the machine tips over.
18. CHECK DAMAGED PARTS.
Before further use of the machine, a guard or other parts that are damaged should be carefully
checked to ensure that they will operate properly and perform their intended function.
19. NEVER LEAVE MACHINE RUNNING UNATTENDED.
Turn power off. Don’t leave any machine running until it comes to a complete stop;
20. LIGHTING SHALL BE PROVIDED.
Adequate general or localized lighting shall be provided.

- 8 -
4.2 Specific Safety Instructions for Shaper
1. Serious personal injury may occur if normal safety precautions are overlooked or ignored.
Accidents are frequently caused by lack of familiarity or failure to pay attention. Obtain advice
from supervisor, instructor, or another qualified individual who is familiar with this machine and
its operations.
2. All electrical connections and wiring should be made by qualified personnel only.
3. To reduce the risk of electrical shock. Do not use this machine outdoors. Do not expose to rain
or moisture, store indoors in a dry area.
4. Stop using this machine, if at any time you experience difficulties in performing any operation.
Contact your supervisor, instructor or machine service center immediately. Reporting of faults or
defects in the machine, including guards or tools, as soon as they are discovered.
. Do not leave the unit plugged into the electrical outlet. Unplug the unit from the outlet when not
in use and before servicing, performing maintenance tasks, or cleaning.
6. Always turn the power switch “OFF” before unplugging the shaper.
7. Do not use the shaper as a toy. Do not use near or around children.
8. Keep hands away from cutting tool.
9. ever run stock between the fence and the cutter.
10. Always use a miter gauge and clamp attachment when shaping small pieces. The fence
should be removed during this operation.
11. Always feed against the rotation of the cutter.
12. Work-piece to be adequately supported during machining/feeding using, where necessary,
additional support, e.g. for long work-pieces.
13. Keep cutters sharp and free from rust and pitch, following tool manufacturers’ instructions for
use, adjustment and repair of tools.
14. Only use flat workpieces in the shaper, never use warped or twisted lumber.
1 . ever take off too much material in one pass. Make several lighter passes.
16. Set up operations whenever possible to have the cutters under the workpiece, always use
proper speed setting for the cutter being used.
17. ot removing any splinters or other part of the work-piece from the cutting area while the
machine is running.
18. Ensure the maximum rotational speed marked on the tools is not exceeded.
19. Make sure cutters are properly secured before starting shaper.
20. Use guards, guides, and hold-down wherever possible, not using the machine unless the
guards and other safety devices necessary for machining are in position, in good working order
and properly maintained.
21. Do not perform any operation freehand. Use the fence for straight shaping.
22. Push blocks or push sticks shall be used in circumstances where it is necessary to push the
workpiece against the fence.
23. Avoid awkward operations and hand positions where a sudden slip could cause your hand to
move into the spinning blade.
24. The machine shall be connected to an external chip and dust extraction system; the dust
extraction equipment is to be switched on before commencing machining.
2 . Period check the brake function to make sure the stop time of the saw blade is less than 10s.
26. Only tools suitable for hand feed machines, conforming to E 847-1 and E 847-2:2013 and
marked MA shall be used in order to reduce severity of injuries and kickback speed.
27. When using milling tools with diameter ≥16 mm and circular saw-blades, they shall conform
to E 847-1:2013 and E 847-2:2013; tool holders shall conform to E 847-3:2013; Shank
milling tools with cutting circle diameter lower than 16 mm can be used without restriction.
28. Use table rings or table insert to close the gap between the table and the spindle to a
minimum.

- 9 -
29. Fit the tooling to the machine to operate in the correct direction of rotation. Avoid injury when
on use of tool carriers and handling tools.
30. Don't misuse, foreseeable misuse includes, e.g. feeding small work-pieces without safety
appliance, mounting of a saw blade on the arbor instead of milling tools and feeding work-pieces
in the same direction as of the running tool (climb cutting).
4.3 Residual Risks
1. Take precautions to reduce the hazard of inhalation of harmful dusts (e.g. wearing a dust
mask).
Information on factors that influence exposure to dust, including:
1) The level of tool and machine maintenance
2) The material being machined
3) The importance of local extraction (capture at source),
4) The proper adjustment of hoods/baffles/chutes
5) The external chips and dust extraction system connected t the machine need to comply with
the parameters stated in this instruction for use.
2. Wear ear protection to prevent hearing loss.
Instructions on factors that influence exposure to noise, including:
1) The correct choice of tools
2) The correct speed selection
3) The tools and machine maintenance
4) The type of material being machined
5) The use of any accessories provided
6) The use of ear protection
3. Always wear safety glasses, also use a face or dust mask if cutting operation is dusty.
4. Protect against the hazard of being cut when handling cutters into the machine or doing
maintenance.
5. Do not try to remove chips while the cutter is running and the shaper unit is not in the rest
position.
6. Do not try to use the machine unless all of the guards and other safety devices necessary for
the particular operation are in good working order.
7. In case of power supply failure, the tool may rotate for more than maximum run-down time.
4.4 Safety Equipment
A push block (Fig.3) and A push stick (Fig.4) must be used
Fig.3 Fig.4

- 10 -
4. Safety Labels on the Machine
Here below you will find the warning labels that are attached to the machine and illustrated in the
instruction.(see Fig.5)
Fig.5
1. Warning for residual risks (Fig.5 1)
Fig.5 1 Fig.5 2
2. Specific Safety Instructions for Shaper. (Fig.5 2)
3. Caution!
All electrical operation and maintenance shall be done by qualified electricians!
All electrical operation must be carried out in according to electrical instruction!
Fig.5 3 Fig.5 4
4. Warning for the motor cover opening. (Fig.5 4)

- 11 -
5. Warning for the choice of tools & speed. (Fig.5 5)
Fig.5 5
6. Warning for the cutter rotation direction. (Fig.5 6)
Fig.5 6
7. Warning for the fence using. (Fig.5 7)
Fig.5 7

- 12 -
4.6 Safety Devices
Every time, before you operate the machine, you must check if the Disconnect switch,
Emergent stop buttons, Interlocking switches is in order.
When you set up, operate or service the machine , you must pay high attention to avoid the
potential dangers.
Encountering the event of accident or breakdown, you must press the Emergent stop buttons,
and turn the disconnect switch to cut the power.
Fig.6
Disconnect switch:
Interval：8 hours
Position：As Fig.6
Operation: Turn the switch;
Emergent stop buttons:
Interval：8 hours
Position：2 emergency stop buttons are separately located, as Fig.6.
Operation：Press the emergent stop buttons when emergency.
Interlocking switch
Interval：8 hours
Position：As Fig.6
Operation：When open the cover, the motor power will be off.
Emergent stop buttons are prohibited to act as normal stop function.

- 13 -
. Installation of the Machine
.1 Transportation of Machines
.1.1 Transportation and storage
This machine has been well packaged and rust preventive measures have been taken at the
factory. Care should still be taken to insure that no damage comes from rough handling while
moving. Ambient temperatures of -25 to 55℃can be endured by this machine.
Be careful not to expose this machine to rain or other severe weather.
●
While transporting or handling the machine, be careful and let the activity be done by
qualified personnel especially trained for this kind of activity!
●
While the machine is being loaded or unloaded, make sure that no person or subject
gets pressed by the machine!
●
Select proper transportation device according to the weight of the machine.
●
Make sure the lifting capacity of transportation device is competent for the weight of
the machine.
.1.2 Transportation before unpacking
This machine is packed in a robust wooden crate. Fig. 7 shows the device which can be used to
transport the packed crate.
Fig.7
.1.3 Confirmation after unpacking
When open the packing box, please pay attention to the following items. If you have any
questions, please contact us..
1) Has the machine been damaged in transportation?
2) All accessories and documents are included with the machine.
3) The product is consistent with the contract.
2) The specifications on the machine label are consistent with the contract.
.1.4 Transportation after unpacking
When transport the machine with a folk lift, firstly find the center of gravity of the machine,
insert the fork below the machine and then lift carefully.

- 14 -
.2 Unpacking
Your machine was carefully packaged for safe transportation. Remove the packaging materials
from around your machine and inspect it. If you discover that the machine is damaged, please
immediately call Customer Service for advice. Save the containers and all packing materials for
possible inspection by the carrier or its agent. Otherwise, filing a freight claim can be difficult.
5.2.1 Machine box contents
Fig.8
5.2.2 Crosscut fence box contents
Fig.9
.3 Safety Measure before Installation
Foundation plan
（
Fig.10
）
Space Requirements
（
Fig.11
）
Fig.10 Fig.11
Machine
Box
Contents:
Qty
A.
Main
unit
1
B.
Crosscut
table
1
C.
Fence
Assembly
1
D.
Cover
1
E.
Control
Panel
1
F. Bracket for control panel 1
Crosscut
Fence
Box
Contents:
Qty
A1.Stop
Plate
2
B1.
Cross-cutting
Fence
1
C1.
Support
Bar
1
D1. Handle 1

- 15 -
.4 Installation
.4.1 Positioning the base unit
This unit is very heavy, serious personal injury may happen if safe moving methods are
no followed! To be safe, you need assistance and power equipment when moving the
shipping crate and the machine!
Do not connect machine to electricity before installation is completed!
Main base is mounted at the wooden pallet with three bolts, take out these bolts, separate the
main base from the wooden pallet and move the main base to suitable place.
Floor required：(See Fig.10)
The floor must have enough loading strength for the machine weight and should be flat and level.
If necessary, fix the machine to the floor with three bolts according the foundation plan (Fig.10).
Space required：(see Fig.11)
The machine should be placed at least 800 mm away from the wall.
When the main base is placed, screw the bolts A to touch the ground, then lock it. (See Fig.12)
Fig.12 Fig.13
.4.2. Fence assembly installation
1) Mount the guide block to the table. (Fig.13)
2) Install the fence by placing the main fence (A) on the table surface. (See Fig.14)
3) Lock the fence to the table by threading the two locking handles(B) into the holes in the table
located behind the spindle. (See Fig.14)
4) Attach the Guard Mounting Bracket (E) to the red top cover(C), then mount the bar and side
guard(F). (See Fig.15)
5) Use the two locking handles (D) to lock the red top cover(C).(See Fig.15)
Fig.14 Fig.15

- 16 -
.4.3 Cross-cut table installation
a. Slide the crosscut table into the T-slot on the side of the sliding table.
b. Align the screw shaft (B) on the swing arm to the hole on the bottom of crosscut table support,
and adjust the screws (C) and (D) to keep the surface of the crosscut table parallel to the surface
of the sliding table, then tighten the screws (C) and (D). Lock the crosscut table with handle A,
(see Fig.16).
c. Install the crosscut fence into two positioning holes on the crosscut table (Fig.16). Lock the
fence to the crosscut table by turning the knobs (E) and (F). As shown in Fig.17,
connect the miter angle sensor with the display by the provided network cable.
Release the knob (E), you can swing the fence and lock it in any angle (±45 degree).
d. The knob (G) can be used to quick lock the fence to 90 degree, see Fig.17.
There is a limited block at the bottom of the fence, you can lock or release the block by turning
the knob (G), turn right to release, turn left to lock it by lock block(J).
e. You can adjust the fence stop position by releasing the nut (I) and turning the screw (H) in or
out, see Fig.17.
Fig.16 Fig.17

- 17 -
.4.4 Install the touch screen bracket
1. Install the bracket (A) to the main cabinet with four M10X25 cap screws(B), as Fig.18.
Fig.18 Fig.19
2. Install and lock the touch screen by turning the locking knob, as shown in Fig.19,
3. Plug the ports "A", "B", "C" and "D" into the corresponding sockets, as Fig.20
Fig.20 Fig.21
.4. . Back cover installation
Slide the back cover onto the hinges which are pointed in Fig.21, then lock the door with the
screws on the other side.
.4.6 Connecting the extraction system
The dust collection equipment needs to be switched on before start the machine;
Dust collection device should be prepared by customer.
The outlet diameter of port Ais 100mm, see Fig.22
The outlet diameter of port Bis 100mm, see Fig.22
The required air speed is 20m/s for vacuum dust collector. The
air
speed of dust collector device (in accordance with E
12779:2004)
should not lower than 20m/s to ensure that the dust from the
machine
can be exhausted. User must wear dust-proof mask.
Required air flow:1500 m³/h;
Fig.22

- 18 -
.4.7 Electrical installation
Since the power source differs in different areas, the requirements of the Label Specification
pasted on the machine shall be strictly complied with.
Position of Label Specification: on the side of the main base unit.
Wiring should only be done by professional electricians.
All wirings in the cabinets should be protected against the direct contact and at least
meet the standard of IP2X when finishing electrical installation.
All the exposed conductive parts should be connected to the protective bonding circuit.
Close and lock the door of cabinet, take off the keys and keep them well stored after
finishing installation.
There should be enough space around the machine and the cabinets for convenient
maintenance.
The machine should be installed in a workshop with good illumination and ventilation.
Over voltage protection device should be provided by end user on spot.
Entrust this operation to qualified personnel. Always make sure the machine is properly
grounded.
Check that if the voltage and frequency which are shown on the machine’s name plate is
corresponded to the electric power supply voltage and frequency you will use for the machine.
The circuit breaker shall be installed for supplying electric power to this machine, in order to
protect operator against electrical shock caused by indirect shock
For Power Supply 440V / 3HP / 60Hz: the circuit breaker will be 16A.
For Power Supply 220V / 3HP / 60Hz: the circuit breaker will be 20A.
For Power Supply 380-41 V / 3HP / 0(60)Hz: the circuit breaker will be 16A.
Wiring:
Complete the electrical connection according to the electrical drawings.
Checking:
After finishing wiring on the spot, check the following items at least:
Check the wiring of machine.
Check the direction of motors and change wiring if necessary.
Check the components for defects, such as loosening or damages.
Check the functions of safety devices (such as interlocked guards and emergent stop buttons).
Check the direction of motors and change the phases if necessary.
Check the functions of all limited switches.

- 19 -
ELECTRICAL CONNECTIONS
