GLO-RITE®
Display Light
HL Series
Installation &
Operating Manual
I&W #07.05.077.00

i
INTRODUCTION
Hatco Glo-Rite®Display Lights are durable and effec-
tive light strips ideal for use in food preparation, holding
and display areas.
The lights are made of extruded aluminum housings
with bright annealed reflectors for maximum brightness
and feature shatter-resistant incandescent lights. Each
unit comes equipped for mounting and electrical hook-
up along with an on/off switch for operator control.
This manual provides the installation, safety and operat-
ing instructions for the Hatco Display Lights. We rec-
ommend all installation, operating and safety instruc-
tions appearing in this manual be read prior to installa-
tion or operation of your Hatco Display Light. Safety
instructions that appear in this manual after a warning
symbol and the words WARNING or CAUTION
printed in bold face are important. Warning means there
is the possibility of personal injury to yourself or others.
Caution means there is the possibility of damage to the
unit.
Your Hatco Display Light is a product of extensive
research and field testing. The materials used were
selected for maximum durability, attractive appearance
and optimum performance. Every unit is thoroughly
inspected and tested prior to shipment.
CONTENTS
Important Owner Information..................................i
Introduction.................................................................i
Important Safety Instructions..................................1
Model Description......................................................1
Specifications..............................................................2
Electrical Ratings ....................................................2
Dimensions..............................................................2
Installation..................................................................3
Mounting.................................................................3
Electrical Wiring Hook-Up .....................................3
Operation.................................................................3
Maintenance...............................................................4
Cleaning ..................................................................4
Display Light Bulb Replacement............................4
Hatco Limited Warranty...........................................5
Authorized Parts Distributors.................Back Cover
Record the model number, serial number (located on the
front of the unit), voltage and purchase date of your
Display Light in the spaces below. Please have this
information available when calling Hatco for service
assistance.
Model No.
Serial No.
Voltage
Date of Purchase
IMPORTANT OWNER INFORMATION
Business Hours: 8:00 a.m. to 5:00 p.m.
Central Standard Time
(Summer Hours: June to September -
8:00 a.m. to 5:00 p.m. C.D.T.
Monday through Thursday
8:00 a.m. to 3:30 p.m. C.D.T. Friday)
Telephone: [phone]
Parts & Service Fax: [phone]
[phone] (International)
!
Printed February 1999 Form No. HLM-0299

1
IMPORTANT SAFETY INSTRUCTIONS
Read the following important safety instructions to
avoid personal injury and/or damage to the equip-
ment.
1. To avoid any injury, turn the power switch off,
unplug the unit from the power source and allow
to cool before performing any maintenance.
2. The Display Light is not waterproof. DO NOT
submerge in water. Do not operate if it has been
submerged in water.
3. Abrasive cleaners could scratch the finish of your
Hatco Display Light.
4. When using chains for unit installation, chains
must be sufficient strength and securely fastened
or the lamp could come loose, possibly causing
personal injury or damage to the unit.
5. Use only non-abrasive cleaners. Abrasive cleaners
could scratch the finish of your Glo-Rite Display
Light, marring its appearance and making sus-
ceptible to dirt accumulation.
6. Only light bulbs which meet or exceed N.S.F.
standards, specifically designed for food holding
areas must be used. Breakage of light bulbs not
specially coated could result in personal injury
and/or food contamination.
HL MODELS
HL Display Lights are specially designed to give long
lasting, trouble-free service. The lights are made of
extruded aluminum housings and feature bright
annealed reflectors for maximum brightness. Each unit
comes equipped for mounting and electrical hook-up
along with an on/off switch for operator control.
Models are available in lengths from 18" (46 cm) to 72"
(183 cm) and are available with additional lamp assem-
blies for greater illumination. An adjustable angle
mounting bracket is also available.
The display lights come standard with shatter-resistant
60 watt bulbs to enhance product display while safe-
guarding food products from bulb breakage.
WARNINGS/CAUTIONS
!
MODEL DESCRIPTION

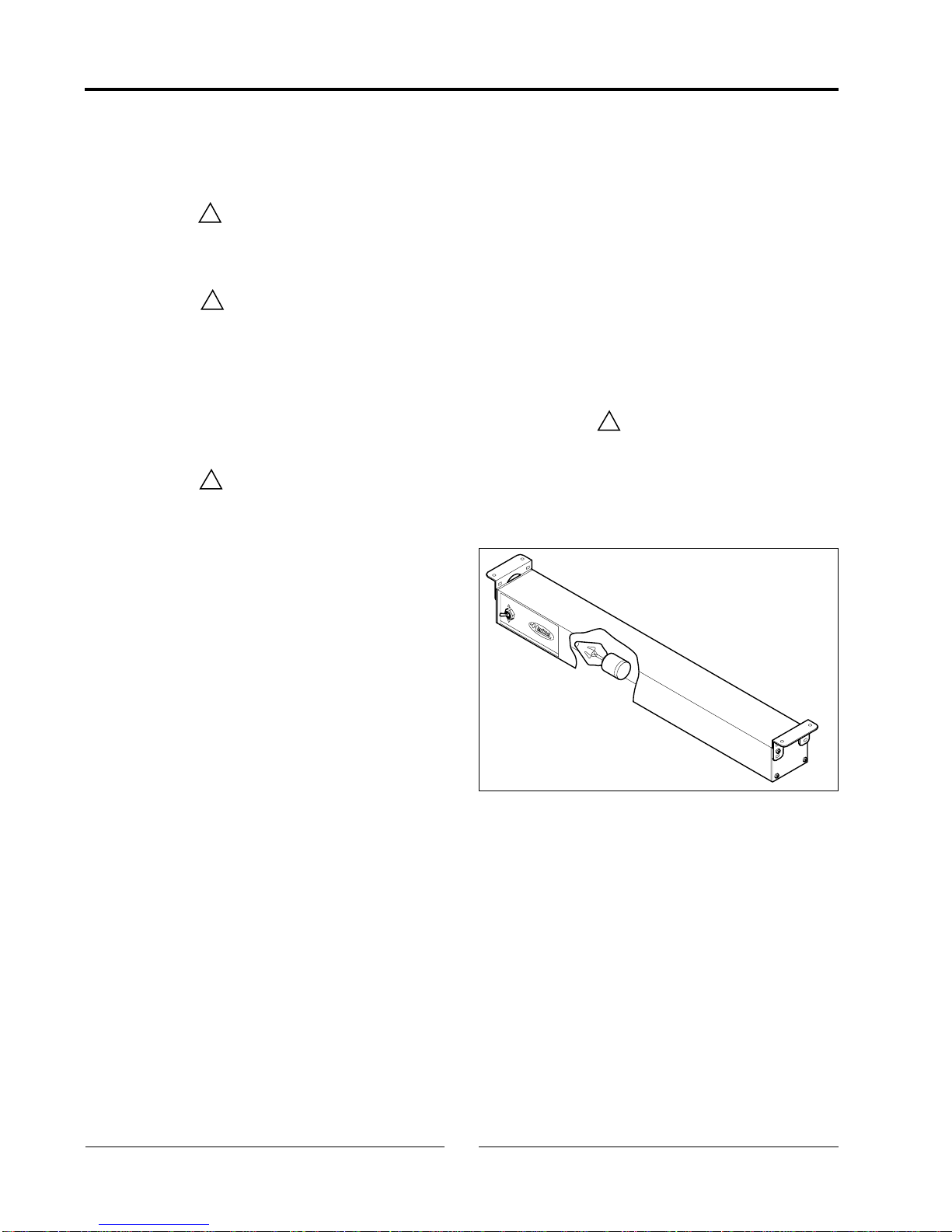

Figure 1. Model HL-24
Printed February 1999 Form No. HLM-0299

Printed February 1999 Form No. HLM-0299
2
SPECIFICATIONS
Figure 3. Dimensions
Model Length Width Height Height
(A) (B) (C) (D)
HL-18 18" 3" 3" 2-1/2"
(45 cm) (8 cm) (8 cm) (6 cm)
HL-24 24" 3" 3" 2-1/2"
(61 cm) (8 cm) (8 cm) (6 cm)
HL-30 30" 3" 3" 2-1/2"
(76 cm) (8 cm) (8 cm) (6 cm)
HL-36 36" 3" 3" 2-1/2"
(91 cm) (8 cm) (8 cm) (6 cm)
HL-42 42" 3" 3" 2-1/2"
(106 cm) (8 cm) (8 cm) (6 cm)
DIMENSIONS
A
D
C
B
ELECTRICAL RATING CHART
Model Total Total Total Shipping
Lamps Watts Amps Weight
HL-18 2 120 1.0 6 lbs. (3 kg)
HL-24 2 120 1.0 7 lbs. (3 kg)
HL-24-2* 3 180 1.5 7 lbs. (3 kg)
HL-30 2 120 1.0 8 lbs. (4.5 kg)
HL-30-2* 4 240 2.0 8 lbs. (4.5 kg)
HL-36 3 180 1.5 9 lbs. (4 kg)
HL-36-2* 5 300 2.5 9 lbs. (4 kg)
HL-42 3 180 1.5 11 lbs. (5kg)
HL-42-2* 6 360 3.0 11 lbs. (5 kg)
Model Total Total Total Shipping
Lamps Watts Amps Weight
HL-48 4 240 2.0 12 lbs. (5.5 kg)
HL-48-2* 7 420 3.5 13 lbs. (6 kg)
HL-54 4 240 2.0 14 lbs. (6.5 kg)
HL-54-2* 8 480 4.0 15 lbs. (7 kg)
HL-60 5 300 2.5 17 lbs. (8 kg)
HL-60-2* 9 540 4.5 17 lbs. (8 kg)
HL-66 5 300 2.5 18 lbs. (8 kg)
HL-66-2* 10 600 5.0 18 lbs. (8 kg)
HL-72 6 360 3.0 18 lbs. (8 kg)
HL-72-2* 10 600 5.0 21 lbs. (10 kg)
* Extra lamp models.
Note: All units rated for 120 Volt, single phase.
Model Length Width Height Height
(A) (B) (C) (D)
HL-48 48" 3" 3" 2-1/2"
(122 cm) (8 cm) (8 cm) (6 cm)
HL-54 54" 3" 3" 2-1/2"
(137 cm) (8 cm) (8 cm) (6 cm)
HL-60 60" 3" 3" 2-1/2"
(152 cm) (8 cm) (8 cm) (6 cm)
HL-66 66" 3" 3" 2-1/2"
(168 cm) (8 cm) (8 cm) (6 cm)
HL-72 72" 3" 3" 2-1/2"
(183 cm) (8 cm) (8 cm) (6 cm)

3
Printed February 1999 Form No. HLM-0299
MOUNTING
1. Remove the unit from the carton and remove all
packing materials.
2. Remove information packet. To prevent delay in
obtaining warranty coverage, fill out and mail in
warranty card.
3. The unit is equipped with mounting brackets as
shown in Figure 3 for chain mounting or mounting
under a shelf or pass-through station.
WARNING
Chain must be sufficient strength and securely fas-
tened or the lamp could come loose, possibly causing
personal injury or damage to the unit.
Adjustable brackets are available for mounting the
units. Assemble the brackets to the lamp as shown in
Figure 4.
ELECTRICAL WIRING HOOK-UP
Hatco provides a 1/2" (12 mm) trade size knockout
opposite the on/off switch, 6" (15 cm) long pigtail wire
leads and a separate grounding terminal in the wiring
compartment.
For correct installation, provide supply wires rated for at
least 90° C (194° F) from a properly sized fused discon-
nect or circuit breaker conforming to local electrical
codes. Use UL recognized wire nuts rated for at least
90° C (194° F) and properly sized for connection.
Consult a local licensed electrical contractor if you have
any questions on proper installation.
Refer to the Electrical Rating Chart for specific infor-
mation.

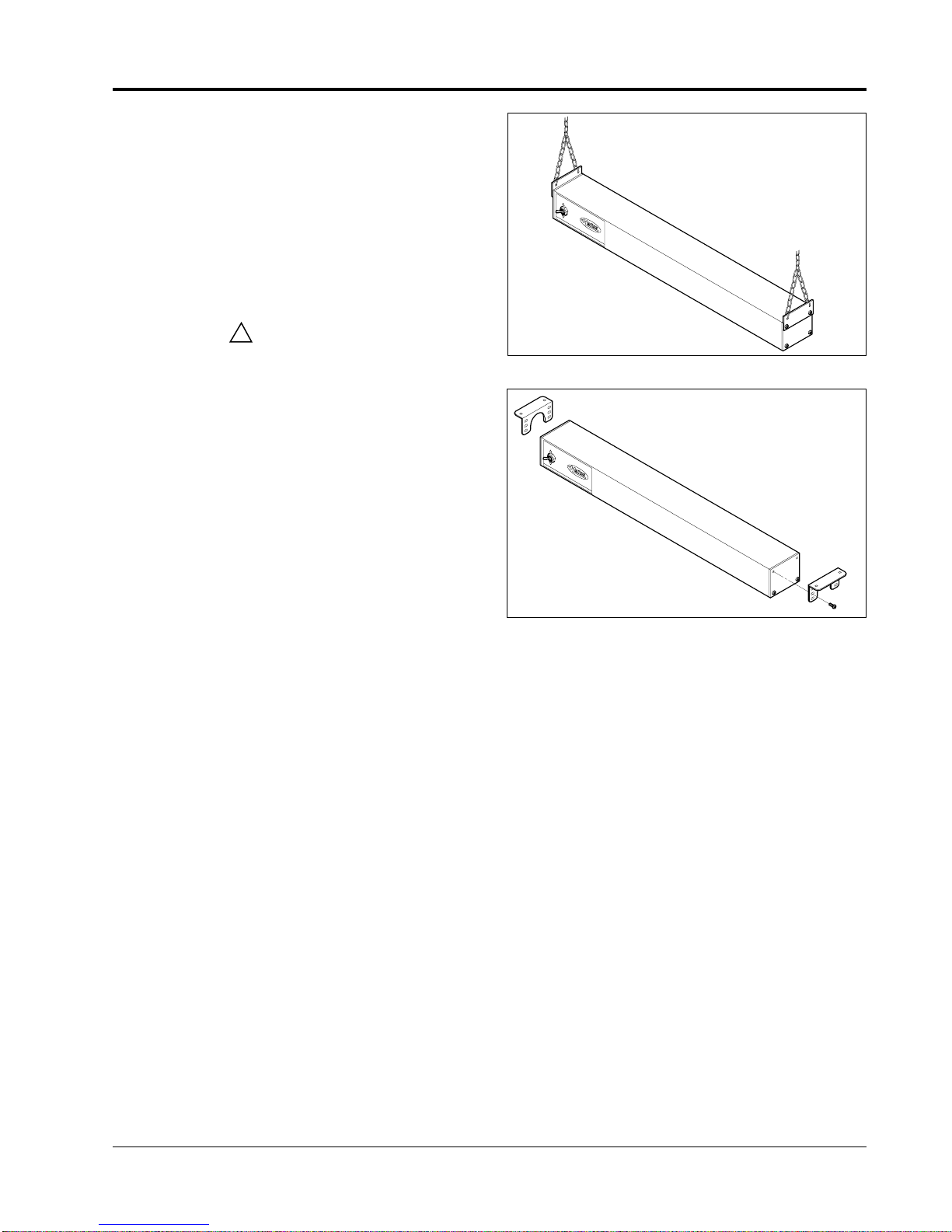

Figure 3. Standard Bracket Mounting with Chains
Figure 4. Adjustable Bracket Mounting
!
INSTALLATION
OPERATION
Turn the toggle switch to the ON position.

Printed February 1999 Form No. HLM-0299
4
CLEANING
The Hatco Display Light is designed for maximum
durability and performance, with minimum mainte-
nance.
WARNING
To avoid any injury, turn the power switch off,
unplug the unit from the power source and allow to
cool before performing any maintenance.
CAUTION
The Display Light is not waterproof. DO NOT sub-
merge in water. Do not operate if it has been sub-
merged in water.
To preserve the finish of the Hatco Display Light, it is
recommended that the surfaces be wiped daily with a
damp cloth. Stubborn stains may be removed with a
good non-abrasive cleaner.
CAUTION
Use only non-abrasive cleaners. Abrasive cleaners
could scratch the finish of your Glo-Rite Display
Light, marring its appearance and making suscepti-
ble to dirt accumulation.
Figure 5. Light Bulb
MAINTENANCE
DISPLAY LIGHT BULB REPLACEMENT
The display light is a shatter-resistant, incandescent light
bulb which illuminates the area. The bulb has a special
coating to guard against injury and food contamination
in the event of breakage.
1. To replace a light bulb, disconnect the power supply
and wait until the unit has cooled.
2. Bulbs have a threaded base. Unscrew the light bulb
from the unit and replace it with a new specially
coated incandescent bulb.
NOTE: Hatco shatter-resistant light bulbs meet N.S.F.
standards for food holding and display areas. For 120
Volt applications, use Hatco part #02.30.043.00.
WARNING
Only light bulbs which meet or exceed N.S.F. stan-
dards, specifically designed for food holding areas
must be used. Breakage of light bulbs not specially
coated could result in personal injury and/or food
contamination.
!
!
!
!

Printed February 1999 Form No. HLM-0299
5
1. PRODUCT WARRANTY
Hatco warrants the products that it manufactures (the
“Products”) to be free from defects in materials and
workmanship, under normal use and service, for a
period of one (1) year from the date of purchase
when installed and maintained in accordance with
Hatco’s written instructions. Buyer must establish the
product’s purchase date by returning Hatco’s
Warranty Registration Card or by other means satis-
factory to Hatco in its sole discretion.
Hatco warrants the following Product components to
be free from defects in materials and workmanship
from the date of purchase (subject to the foregoing
conditions) for the period(s) of time and on the condi-
tions listed below:
a) One (1) Year Parts and Labor PLUS One (1)
Additional Year Parts-Only Warranty:
Toaster Elements (metal sheathed)
Drawer Warmer Elements (metal sheathed)
Drawer Warmer Drawer Rollers and Slides
Food Warmer Elements (metal sheathed)
Display Warmer Elements (metal sheathed air
heating)
Holding Cabinet Elements (metal sheathed air
heating)
Cook and Hold Oven Elements (metal sheathed)
b) One (1) Year Parts and Labor PLUS Four (4)
Additional Years Parts-Only Warranty on
pro-rated terms that Hatco will explain at
Buyer’s Request:
Powermite Gas Booster Heater Tanks
Mini Compact Tanks (stainless steel)
3CS and FR Tanks
c) One (1) Year Parts and Labor PLUS Four (4)
Additional Years Parts-Only Warranty PLUS
Five (5) Year Parts-Only Warranty on pro-
rated terms that Hatco will explain at Buyer’s
Request:
Booster Heater Tanks (Castone)
d) One (1) Year Parts-Only Warranty for
components not installed by Hatco:
Accessory Components (including but not
limited to valves, gauges and remote switches)
THE FOREGOING WARRANTIES ARE
EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE OR
PATENT OR OTHER INTELLECTUAL
PROPERTY RIGHT INFRINGEMENT. Without lim-
iting the generality of the foregoing, SUCH
WARRANTIES DO NOT COVER: Coated incandes-
cent light bulbs, fluorescent lights, lamp warmer heat
bulbs, glass components or Product failure caused by
liming or sediment buildup in tanks, Product misuse,
tampering or misapplication, improper installation,
application of improper voltage, or recalibration of
thermostats or high limit switches.
2. LIMITATION OF REMEDIES AND
DAMAGES
Hatco’s liability and Buyer’s exclusive remedy
hereunder will be limited solely, at Hatco’s option,
to repair or replacement by a Hatco-authorized
service agency (other than where Buyer is located
outside of the United States or Canada, in which case
Hatco’s liability and Buyer’s exclusive remedy here-
under will be limited solely to replacement of part
under warranty) with respect to any claim made with-
in the applicable warranty period referred to above.
Without limiting the generality of the foregoing, all
portable Products (as defined in N.S.F. 4-4.28.4) shall
be delivered by Buyer, at its sole expense, to the
nearest Hatco-authorized service agency for replace-
ment or repair. Hatco reserves the right to accept or
reject any such claim in whole or in part. Hatco will
not accept the return of any Product without prior
written approval from Hatco, and all such approved
returns shall be made at Buyer’s sole expense.
HATCO WILL NOT BE LIABLE, UNDER ANY
CIRCUMSTANCES, FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, INCLUDING BUT
NOT LIMITED TO LABOR COSTS OR LOST
PROFITS RESULTING FROM THE USE OF OR
INABILITY TO USE THE PRODUCTS OR FROM
THE PRODUCTS BEING INCORPORATED IN OR
BECOMING A COMPONENT OF ANY OTHER
PRODUCT OR GOODS.
HATCO LIMITED WARRANTY

Printed April 2000 P/N 07.04.295.00 Form No. HLM-0299
HATCO CORPORATION
P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.
[phone] [phone]
Parts & Service Fax [phone] Int’l. Fax [phone]
Web Site: www.hatcocorp.com
ALABAMA
Jones McLeod Appl. Svc.
Birmingham 205-251-0159
ARIZONA
Auth. Comm. Food Equip.
Phoenix 602-234-2443
Byassee Equipment Co.
Phoenix 602-252-0402
CALIFORNIA
Industrial Electric
Huntington Beach 714-379-7100
Chapman Appl. Service
San Diego 619-298-7106
P & D Appliance
S. San Francisco 650-635-1900
COLORADO
All City Service
Denver 303-454-9500
Hawkins Commercial Appliance
Englewood 303-781-5548
DELAWARE
Food Equipment Service
Wilmington 302-996-9363
FLORIDA
Whaley Foodservice Repair
Jacksonville 904-725-7800
Nass Service Co., Inc.
Orlando 407-425-2681
B.G.S.I.
Pompano Beach 954-971-0456
Comm. Appliance Service
Tampa 813-663-0313
GEORGIA
Southeastern Rest. Svc.
Norcross 770-446-6177
HAWAII
Burney’s Comm. Service, Inc.
Honolulu 808-848-1466
Food Equip Parts & Service
Honolulu 808-847-4871
ILLINOIS
Parts Town
Broadview 708-865-7278
Eichenauer Elec. Service
Decatur 217-429-4229
Midwest Elec. Appl. Service
Elmhurst 630-279-8000
Cone’s Repair Service
Moline 309-797-5323
INDIANA
Comm. Parts & Service, Inc.
Indianapolis 317-545-9655
IOWA
Electric Motor Service Co.
Davenport 319-323-1823
KENTUCKY
Comm. Parts & Service, Inc.
Louisville 502-367-1788
LOUISIANA
Chandlers Parts & Service
Baton Rouge 225-272-6620
LOUISIANA (Continued)
Bana Comm. Parts, Inc.
Shreveport 318-631-6550
MARYLAND
Electric Motor Service
Baltimore 410-467-8080
GCS Service, Inc.
Silver Spring 301-585-7550
MASSACHUSETTS
Ace Service Co., Inc.
Needham 781-449-4220
MICHIGAN
Commercial Kitchen Service
Bay City 517-893-4561
Bildons Appliance Service
Detroit 248-478-3320
Midwest Food Equip. Service
Grandville 616-261-2000
MINNESOTA
GCS Service
Minneapolis 612-546-4221
MISSOURI
GCS Service, Inc.
Kansas City 816-920-5999
Commercial Kitchen Services
St. Louis 314-890-0700
Kaemmerlen Parts & Service
St. Louis 314-535-2222
NEBRASKA
Anderson Electric
Omaha 402-341-1414
NEVADA
Burney’s Commercial
Las Vegas 702-736-0006
Hi. Tech Commercial Service
N. Las Vegas 702-649-4616
NEW JERSEY
Jay Hill Repair
Fairfield 973-575-9145
Service Plus
Flanders 973-691-6300
NEW YORK
Acme American Repairs, Inc.
Brooklyn 718-456-6544
Alpro Service Co.
Brooklyn 718-386-2515
Appliance Installation
Buffalo 716-884-7425
Northern Parts Dist.
Plattsburgh 518-563-3200
J. B. Brady, Inc.
Syracuse 315-422-9271
NORTH CAROLINA
Authorized Appliance
Charlotte 704-377-4501
OHIO
Akron/Canton Comm. Svc. Inc.
Akron 330-753-6635
Certified Service Center
Cincinnati 513-772-6600
GCS Service
Columbus 614-476-3225
OHIO (Continued)
Electrical Appl. Repair Service
Independence 216-459-8700
E. A. Wichman Co.
Toledo 419-385-9121
OKLAHOMA
Hagar Rest. Service, Inc.
Oklahoma City 405-235-2184
Krueger, Inc.
Oklahoma City 405-528-8883
OREGON
Bressie Electric Co.
Portland 503-231-7171
Ron’s Service, Inc.
Portland 503-624-0890
PENNSYLVANIA
Authorized Factory Service
Coraopolis 412-262-2330
FAST Comm. Appl. Service
Philadelphia 215-288-4800
GCS Service, Inc.
Pittsburgh 412-787-1970
K & D Service Co.
Harrisburg 717-236-9039
Elmer Schultz Services
Philadelphia 215-627-5401
Electric Repair Co.
Reading 610-376-5444
RHODE ISLAND
Marshall Electric Co.
Providence 401-331-1163
SOUTH CAROLINA
Whaley Foodservice Repair
W. Columbia 803-791-4420
TENNESSEE
Camp Electric
Memphis 901-527-7543
TEXAS
City Kitchen Service Co.
Austin 512-719-4445
Stove Parts Supply
Fort Worth 817-831-0381
Armstrong Repair Service
Houston 713-666-7100
Commercial Kitchen Repair Co.
San Antonio 210-735-2811
San Antonio Rest. Equip.
San Antonio 210-824-3271
UTAH
Peterson’s Commercial Parts & Svc.
Salt Lake City 801-487-3653
VIRGINIA
Daubers
Norfolk 757-855-4097
Daubers
Springfield 703-866-3600
WASHINGTON
Restaurant Appl. Service
Seattle 206-524-8200
WISCONSIN
A.S.C., Inc.
Madison 608-246-3160
A.S.C., Inc.
Milwaukee 414-543-6460
HATCO AUTHORIZED PARTS DISTRIBUTORS
