EXCALIBUR 6-FT. AIR HOCKEY
TABLE WITH TABLE TENNIS TABLE
ASSEMBLY INSTRUCTIONS
Designed for Fun, Built to Last™
®

2
THANK YOU!
Thank you for purchasing this product. We work around the clock and around the globe to ensure
that our products maintain the highest possible quality. However, in the rare case of issues during
assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate
assistance before contacting your retailer. Please read the warranty information at the back of these
assembly instructions for further details.
CARE AND USE
1. This product is intended for INDOOR use only.
2. Do NOT drag the table when moving it, as this will damage the legs.
ASSEMBLY TIPS
1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults
work together to assemble this game. You may want to carefully cut or tear the four corners of the box
so that the bottom of the box can be used as your work surface.
2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts
List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.
3. Some figures or drawings may not look exactly like product.
4. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts
in place before final tightening with screwdriver or wrench.
5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use
extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the
electric screwdriver’s torque is set too high.
WARNINGS!
READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETYINSTRUCTIONS CAREFULLY.
CHOKE HAZARD - THIS ITEM MAY CONTAIN SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

3

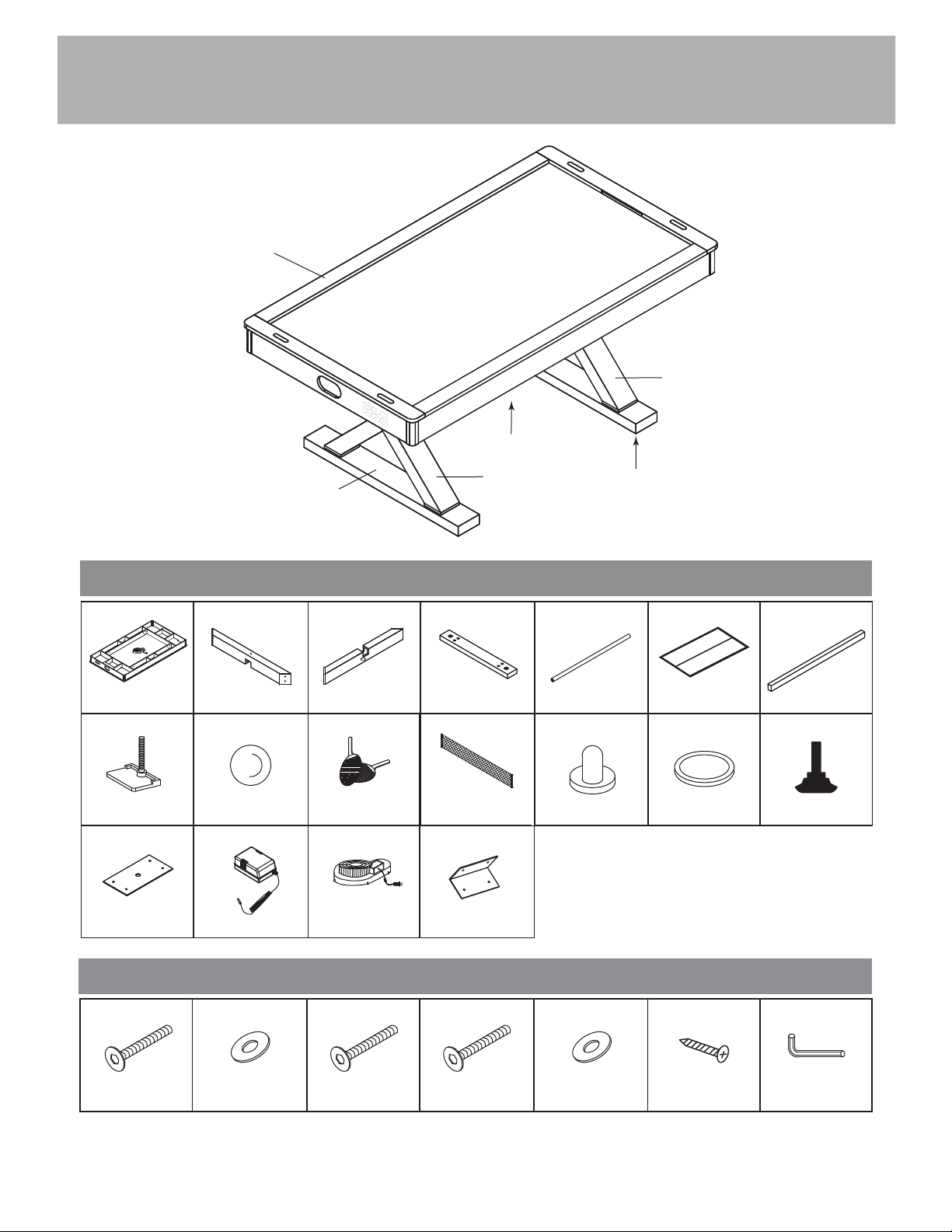

EXCALIBUR 6-FT. AIR HOCKEY TABLE WITH
TABLE TENNIS TABLE - BG50337 Parts List
8/19 For replacement parts please call 800-759-0977.
Illustrations Not to Scale
SUPPORT BOARD
TABLE TENNIS
NET
X2
X1
X2 X2 X1
TABLE TENNIS
NET POST
TABLE TENNIS
BALL
1NGP7539 2NGP7540 3NGP7541 456NGP7544 7NGP7545
18 X2 19 X2 20 X20 21 X8
22 X28 23 X24 24 X1
ALLEN WRENCH
NGP5029
LEFT LEG
5/16” x 1-1/2”
BOLT 5/16” WASHER
T3.5 x 12mm
SCREW
X2
RIGHT LEG
X1
TABLE BODY
8NGP7326 9 10
X1
TABLE TENNIS
TOP
NGP7543
NGP7542
X2
LEG BOARD
X2 X1
CROSS BAR
11NGP5944
1/4” x 1-1/8”
BOLT
1/4” x 2”
BOLT
LEG LEVELER
X4
12 13 NGP5774 14 NGP7498
X2
PUCK
NGP5773
X2
STRIKER
ADAPTER BLOWER MOTOR
X1
X2 X1
NGP7548
15 NGP7547 16 17 NGP7549
CONNECTION
PLATE
TABLE TENNIS
RACKET
Pre-installed
1/4” WASHER
NGP7327
PARTS
HARDWARE PACK - NGP7550
5,6,16,17
214
1
4
3
Pre-installed
JOINT ANGLE
X4
25 NGP7657

4
#25
#25

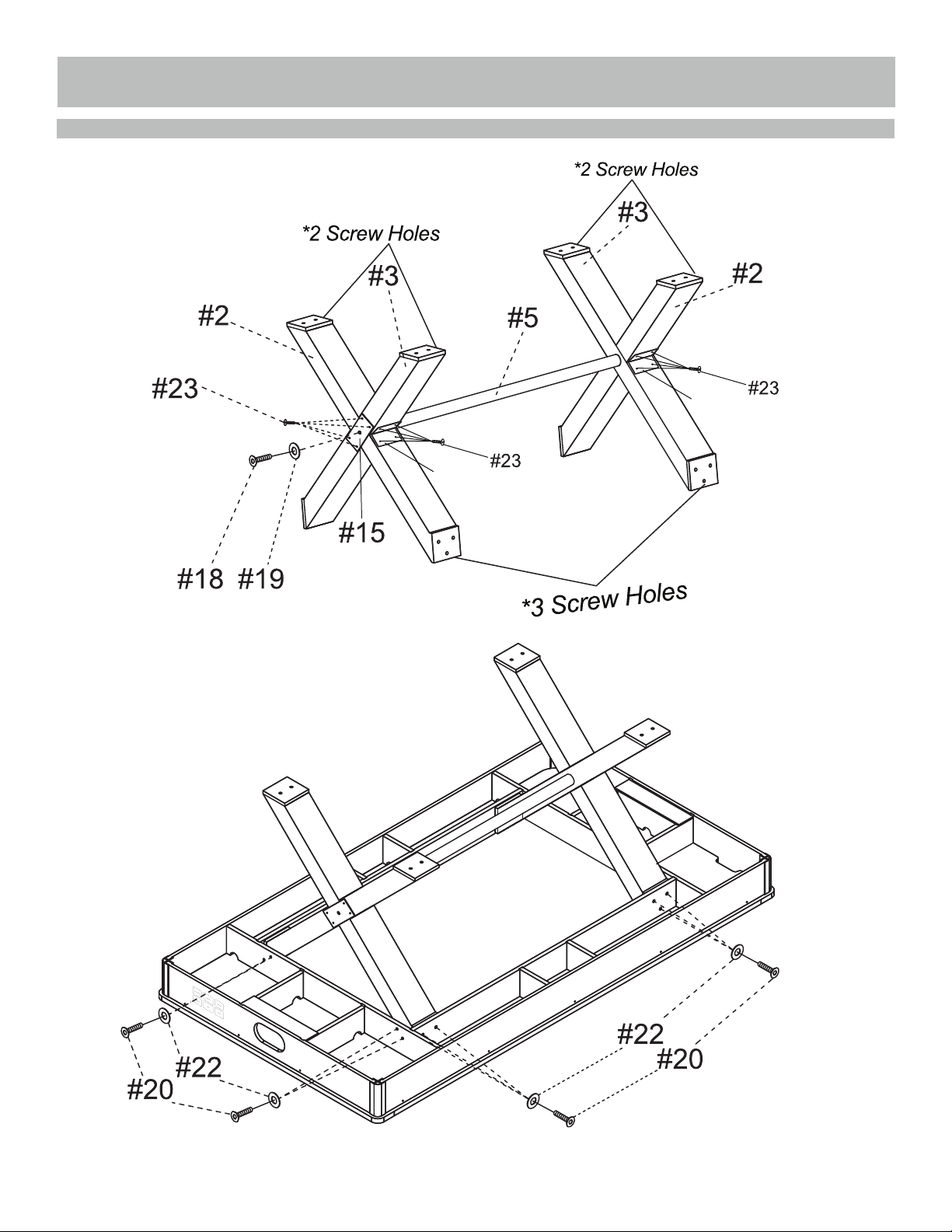

ASSEMBLY INSTRUCTIONS
1.
2.
*Note location of screw hole positions on leg ends when assembling legs

5

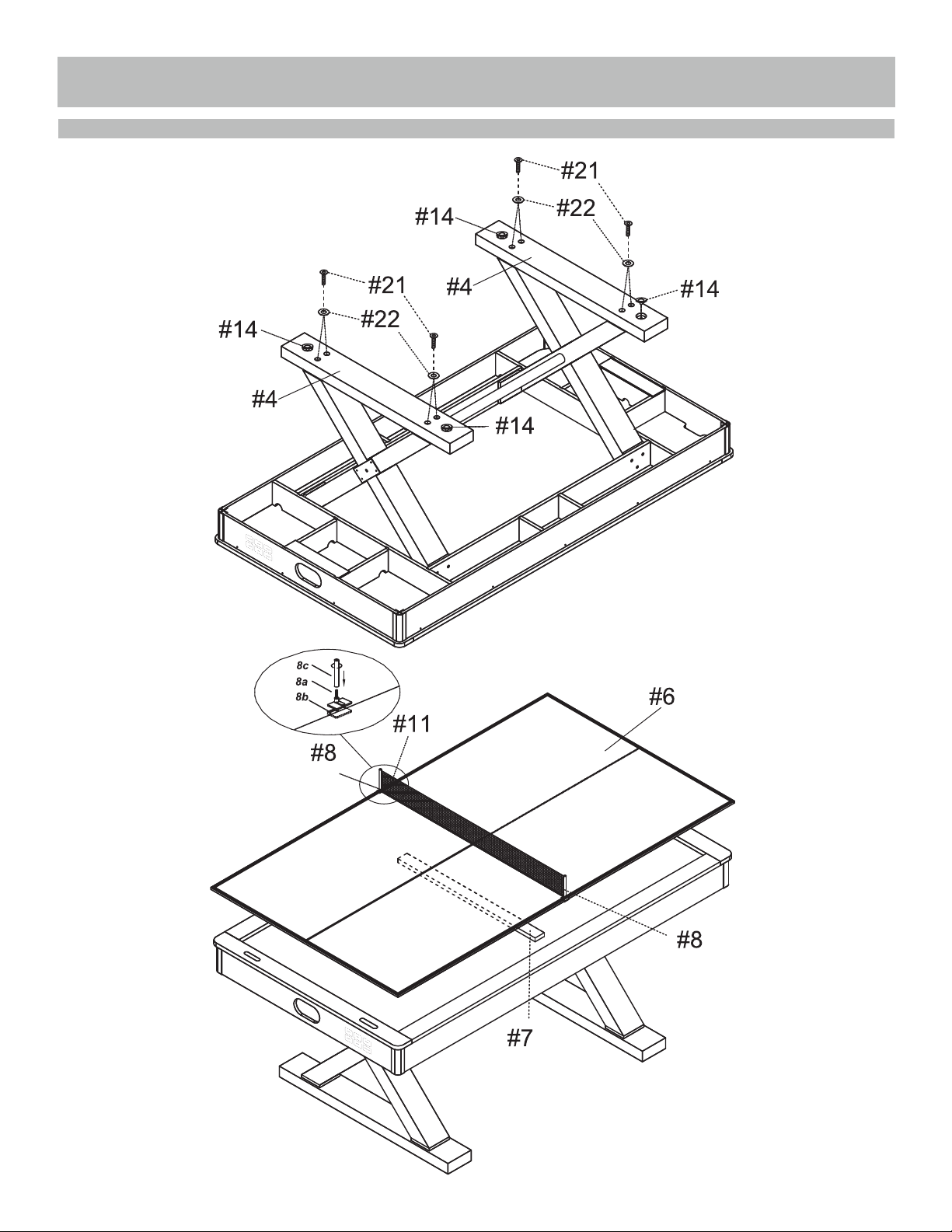

ASSEMBLY INSTRUCTIONS (CONT.)
4.
3.
NOTE: Two adults are required to turn table upright.
Turn over using main table body only, NOT legs,
and place on all four feet on ground at same time.
NOTE: Once table is completely assembled and placed
in desired location, use level (not included) to adjust leg
levelers so table is level in both directions.

6

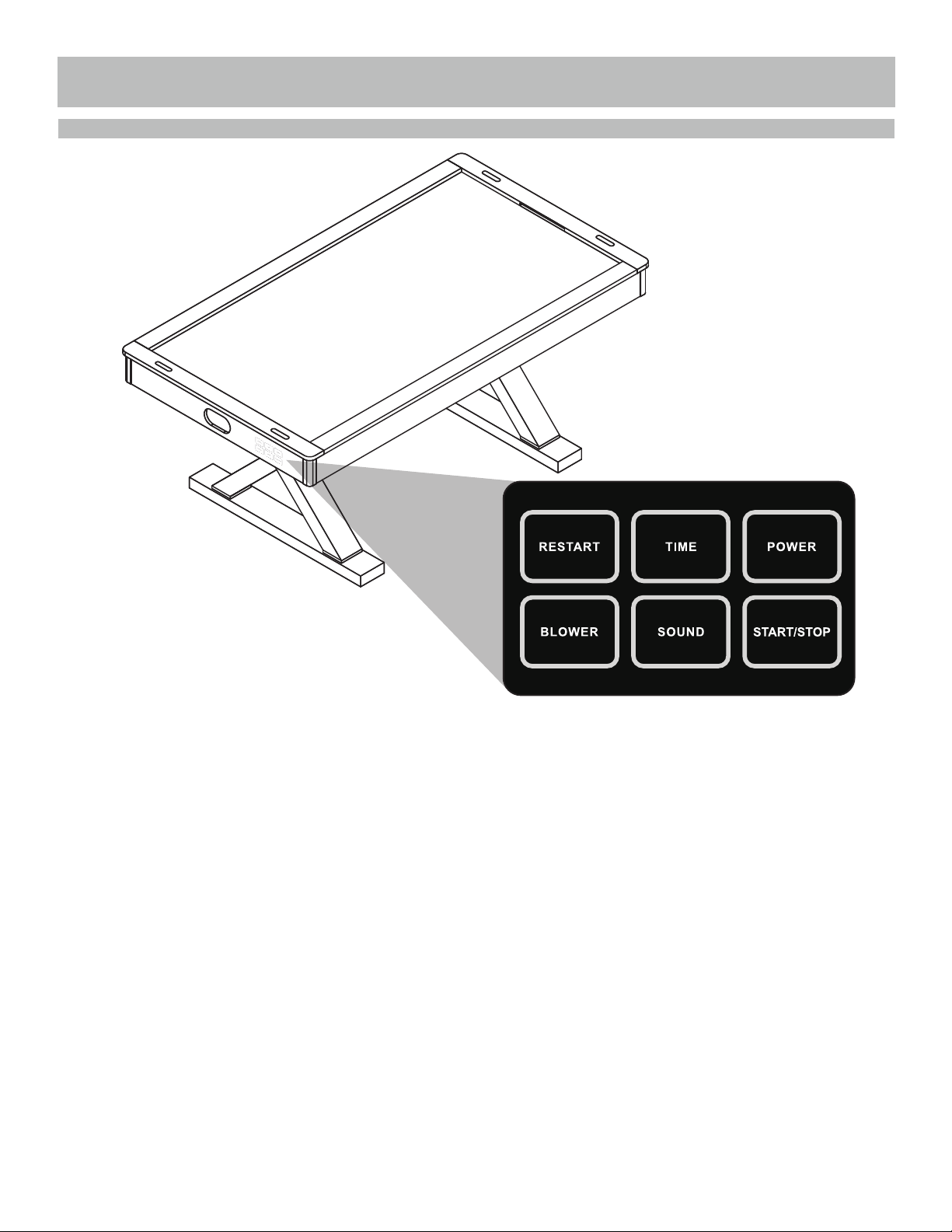

ELECTRONIC SCORING INSTRUCTIONS
1) Plug in the power card.
2) The system starts with the default sound mode. Turn on the power, by pushing the POWER button.
Note: Before pushing the POWER button, you can choose to use sound mode or mute mode,
by pushing the SOUND button to turn sound off/on.
3) Push the BLOWER button to start the fan.
4) The system starts with the default “15” minutes. Push the TIME button to select “15”, “10”, “5” minutes
or “0” minute of playing time. “0” minute means there is no time limit (continuous play). When selecting
no time limit mode, no time will display, which means the first team to score 10 goals is the winner.
5) Push the SOUND button to turn game sound off/on.
6) Push the RESTART button to start the game. The game starts with music on unless muted.
7) When the puck successfully goes into the hole, you will hear "SCORE" (unless muted).
8) The sound of fans cheering during the game will be heard (unless muted).
9) Push the START/ STOP button, and the game can be paused, if you want to compare the scores of
both sides or break in the middle. Push the START/STOP button to continue the game.
10) When time is up, the monitor will return to the original selected playing time. The game score will
continue to be displayed. The one with the higher score will flash. Highest score wins.
11) The display will go into sleep mode when inactivate for more than 15 minutes. Push the POWER
button to restart the game.
12) Press the POWER button when not in use to shut off the game.

7

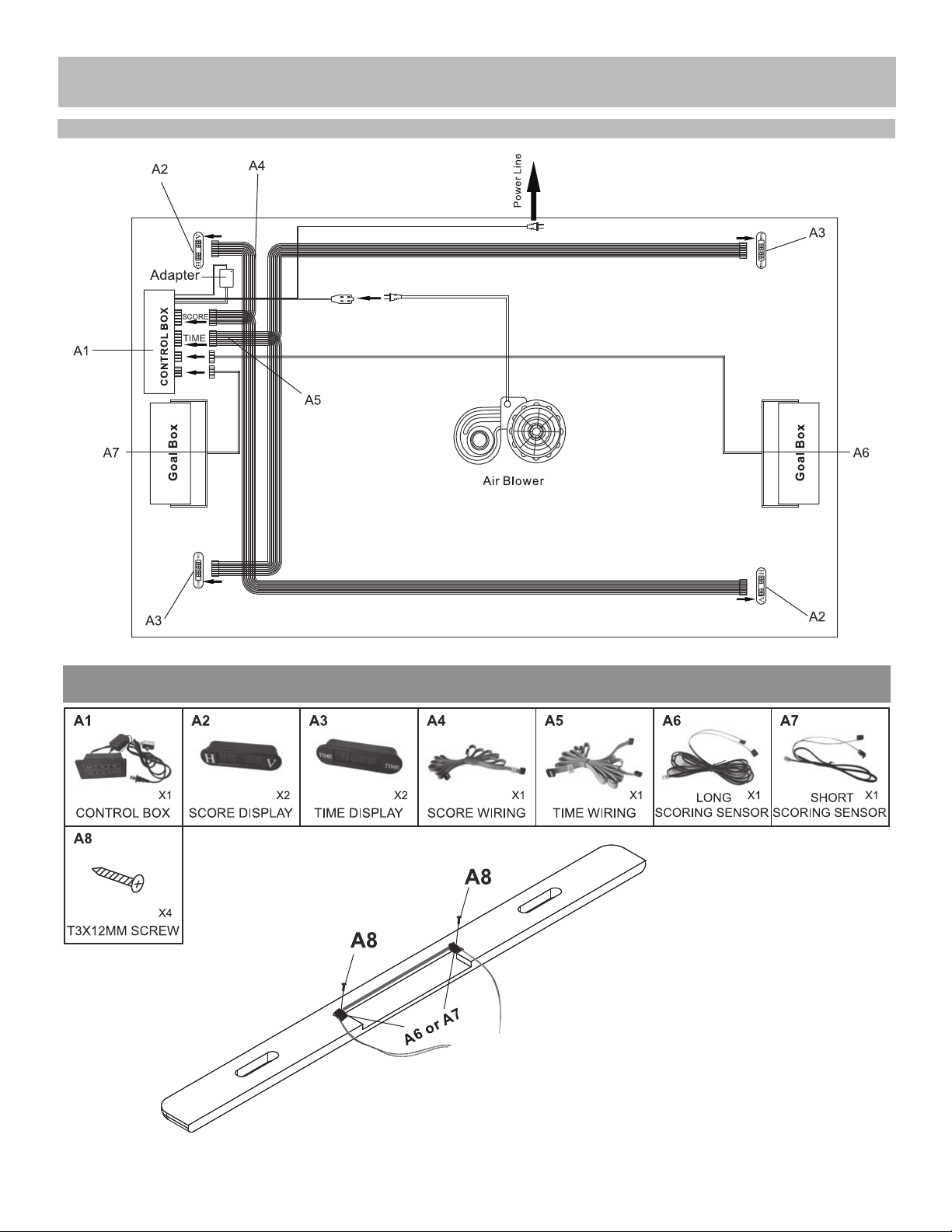

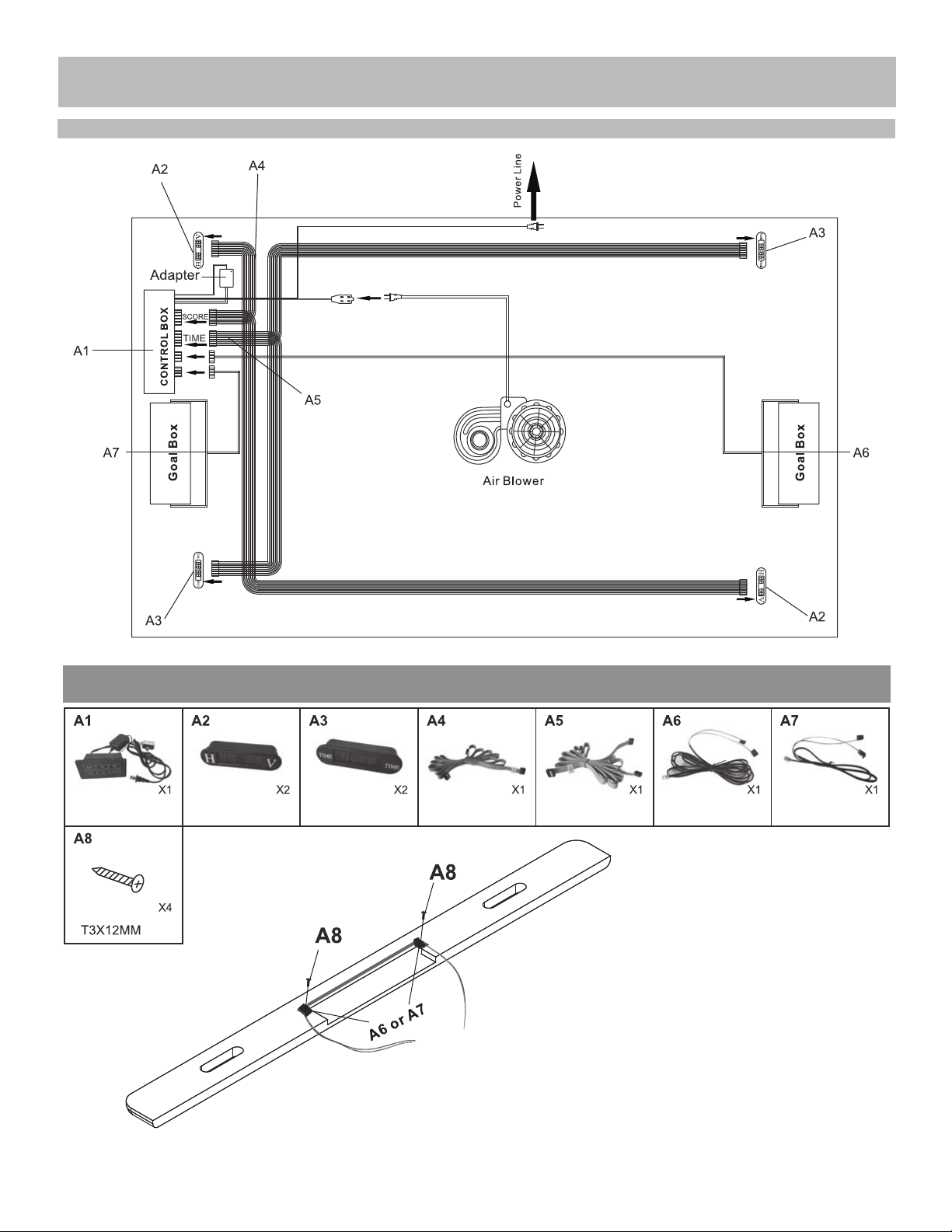

ELECTRONIC SCORING SYSTEM LAYOUT AND PARTS
PRE-ASSEMBLED PARTS
NOTE: If the goal sensors are not working properly,
turn the table over and adjust sensors so they are directly
in line with each other. If this doesn’t help, replace scoring
sensor wire (A6 or A7) as shown in above diagram.
NGP7659 NGP7660 NGP7661 NGP7664 NGP7665
NGP7666
NGP7663
NGP7662

8
180-DAY LIMITED WARRANTY
This product is warranted to the original purchaser to be free from defects in material or workmanship
for a period of 180 days from the date of the original retail purchase.
This warranty does not cover defects or damage due to improper installation, alteration, accident or
any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,
abuse or negligence will void this warranty. This warranty does not cover scratching or damage that
may result from normal usage.
This product is not intended for institutional or commercial use; the manufacturer does not assume
any liability for such use. Institutional or commercial use will void this warranty.
This warranty is nontransferable and is expressly limited to the repair or replacement of the defective
product. During the warranty period, the manufacturer shall repair or replace defective parts at no
cost tothe purchaser. Shipping charges and insurance are not covered and are the responsibility of
the purchaser. Labor charges and related expenses for removal, installation or replacement of the
product or components are not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable
or obsolete.
The manufacturer shall not be liable for loss of use of the product or other consequential or incidental
costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of
injury resulting from the use of this product.
This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of
. Neither the manufac-
turer nor any of its representatives assumes any other liability in connection with this product.
All warranty claims must be made through the retailer where the product was originally
purchased. A purchase receipt or other proof of date of purchase will be required to process
all warranty claims. The model number and part numbers found within the assembly
instructions will be required when submitting any parts requests or warranty claims.
For further warranty information or inquiries, please call 800-759-0977

BG50337
Ver. 0819
