Hathaway PLAYOFF BG1031F User manual

BG1031F
Please Do Not Hesitate to
Contact Our Consumer Hotline
at 800-759-0977
with Any Questions That May
Arise During Assembly or
Use of This Product!
Ver. 0420
PLAYOFF 48-IN. FOOSBALL TABLE
ASSEMBLY INSTRUCTIONS

THANK YOU!
Thank you for purchasing this product. We work around the clock and around the globe to ensure
that our products maintain the highest possible quality. However, in the rare case of issues during
assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate
assistance before contacting your retailer. Please read the warranty information at the back of these
assembly instructions for further details.
2
CARE AND USE
1. This product is intended for INDOOR use only.
2. Do NOT drag the table when moving it, as this will damage the legs.
ASSEMBLY TIPS
1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults
work together to assemble this game. You may want to carefully cut or tear the four corners of the box
so that the bottom of the box can be used as your work surface.
2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts
List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.
3. Some figures or drawings may not look exactly like product.
4. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts
in place before final tightening with screwdriver or wrench.
5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use
extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the
electric screwdriver’s torque is set too high.
WARNINGS!
READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETYINSTRUCTIONS CAREFULLY.
CHOKE HAZARD - THIS ITEM MAY CONTAIN SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

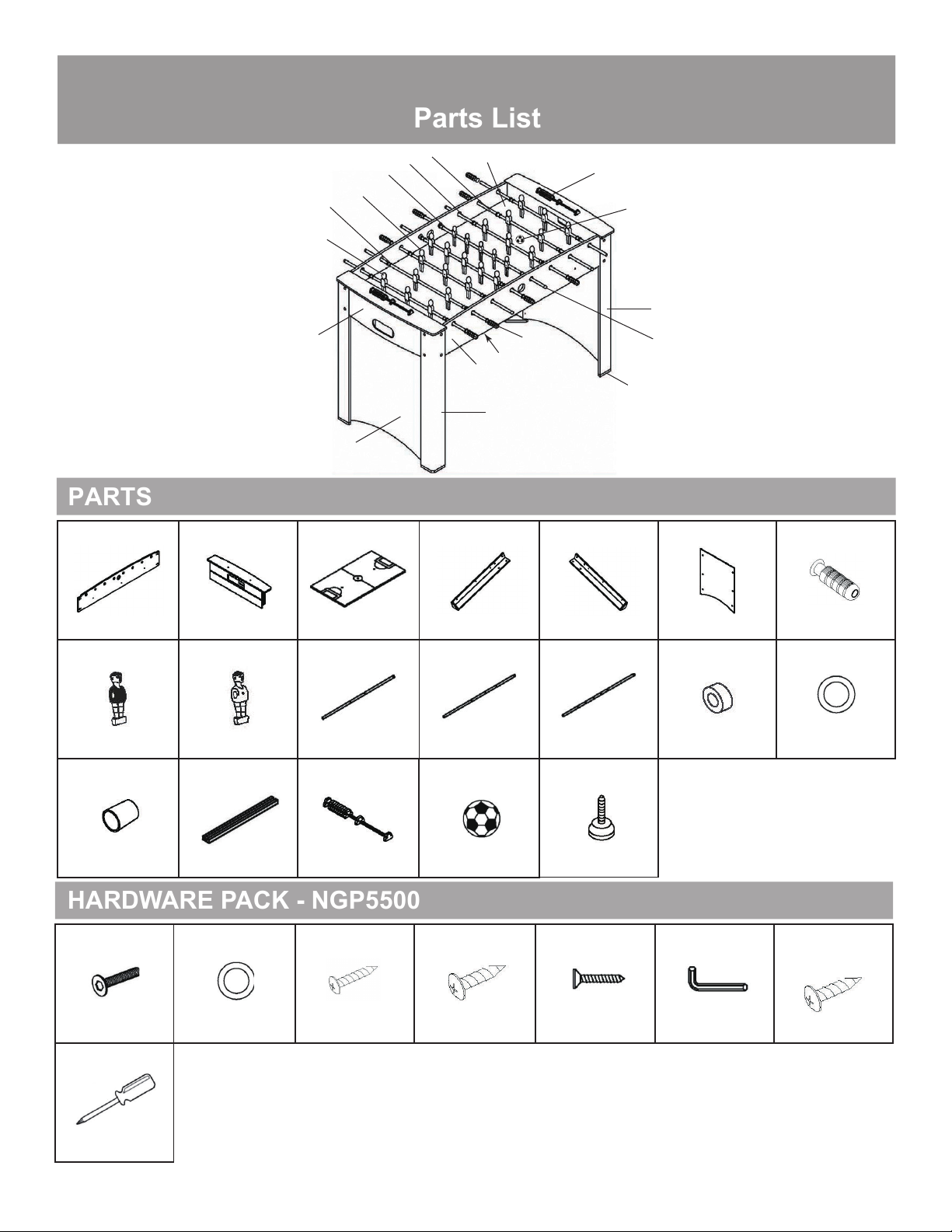

Parts ListParts List
PLAYOFF 48-IN. FOOSBALL TABLE - BG1031F
Illustrations Not to Scale
PARTS
HARDWARE PACK - NGP5500
#1 #2 #3#4#5#6
FLAT WASHER
#19
10
1-1/2” SCREW 1/2” SCREW 1-1/2” FLAT
SCREW HEX WRENCH
BOLT
ADDITIONAL EQUIPMENT
REQUIRED:
PHILLIPS HEAD
SCREWDRIVER
PLASTIC ROD
WASHER*
#21
3/4” SCREW*
11
7
13
12
8
14
15
16
17
18
22
24
25
#7NGP5501 #8NGP5502 #9NGP5503 #10 NGP5504 #11 NGP5505
PLAYFIELD LEFT LEG
#12 NGP5506
SIDE PANEL END PANEL RIGHT LEG LEG PANEL
#13 NGP5507
HAND GRIP
#14 NGP5508 #15 NGP5509 #16 NGP5510 #17 NGP5511 # NGP5512 #20 NGP5513
FOAM BUMPER*
BLUE PLAYER* GREEN PLAYER* 2 PLAYER ROD* 3 PLAYER ROD* 5 PLAYER ROD*
#22 NGP5514
ROD END CAP
#23 NGP5515 #24 NGP5516 #25 NGP5102
MANUAL SCORER
SUPPORT BRACE SOCCER BALL
* Note: Items #14 - #21 & #19 are
PRE-ASSEMBLED when received.
Individual pieces may be available
by part number or complete sets,
if needed, are part # NGP5943
#26 NGP50785
LEG LEVELER
26
9
23
8/18 For replacement parts please call 800-759-0977.
NGP5513118
X8 X3 X2 X2
X16 X6 X12
X16
X13 X13 X2 X4 X2 X16 X16
X12
X2 X2 X1 X2 X2 X2 X8
X1 X26
X4
Pre-assembled
on Players
20,21
3

4
.

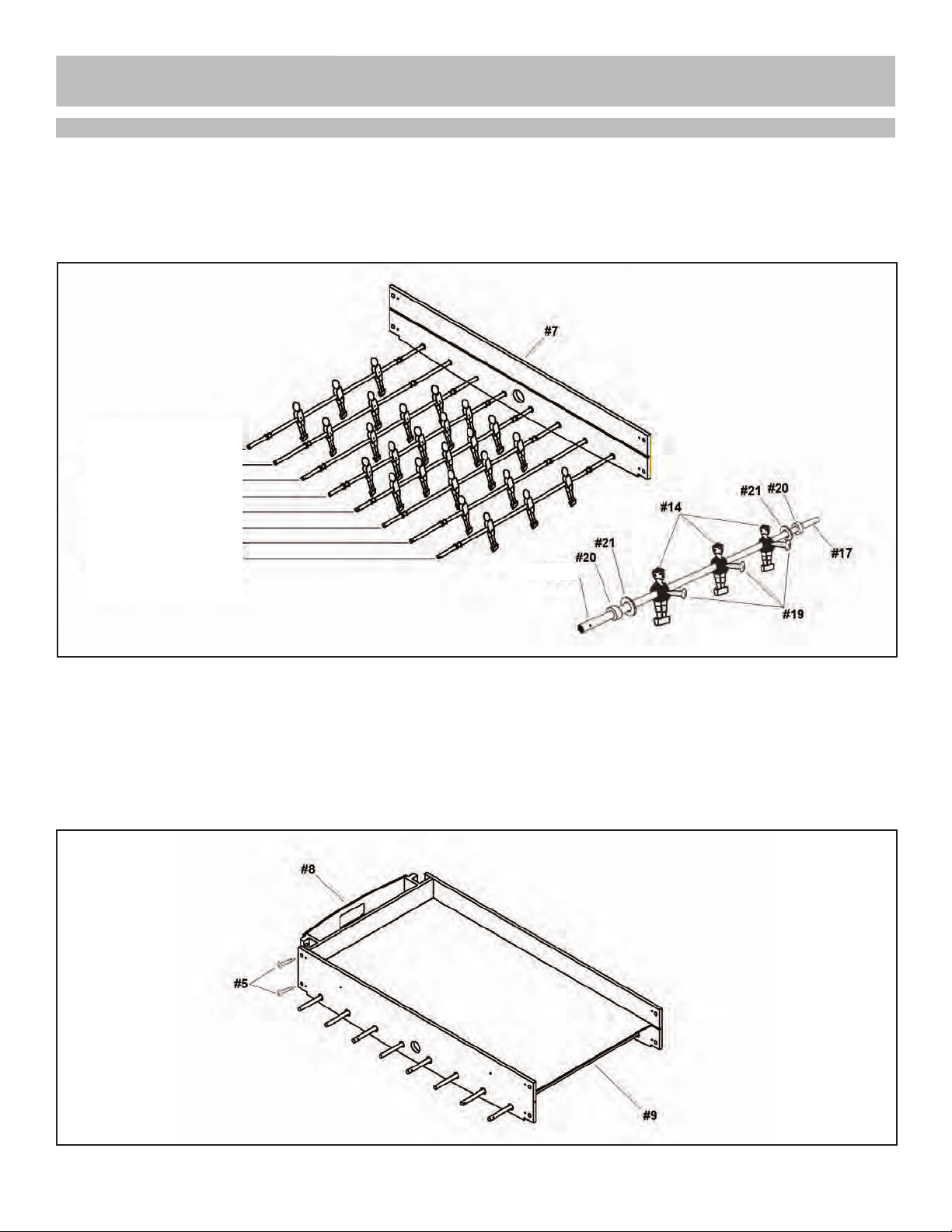

1. Insert pre-assembled BLUE PLAYER RODS and GREEN PLAYER RODS into one SIDE PANEL
#7 as shown below. Note: Although this table is assembled upside down, players are shown up-
right for clarity. Each team should face the opposite goal when table is turned over. Ensure that
FOAM BUMPERS and PLASTIC ROD WASHERS are in place before inserting rods.
2. Insert PLAYER RODS into remaining SIDE PANEL #7.
3. Attach one END PANEL #8 to one end of the table with 1-1/2" FLAT SCREW #5 using pre-
EXAMPLE OF BLUE
3 PLAYER ROD ASSEMBLY:
ASSEMBLY INSTRUCTIONS
Note: Players should face
opposing goal when upright.
Do NOT overtightenscrews.

5
ASSEMBLY INSTRUCTIONS (CONT.)

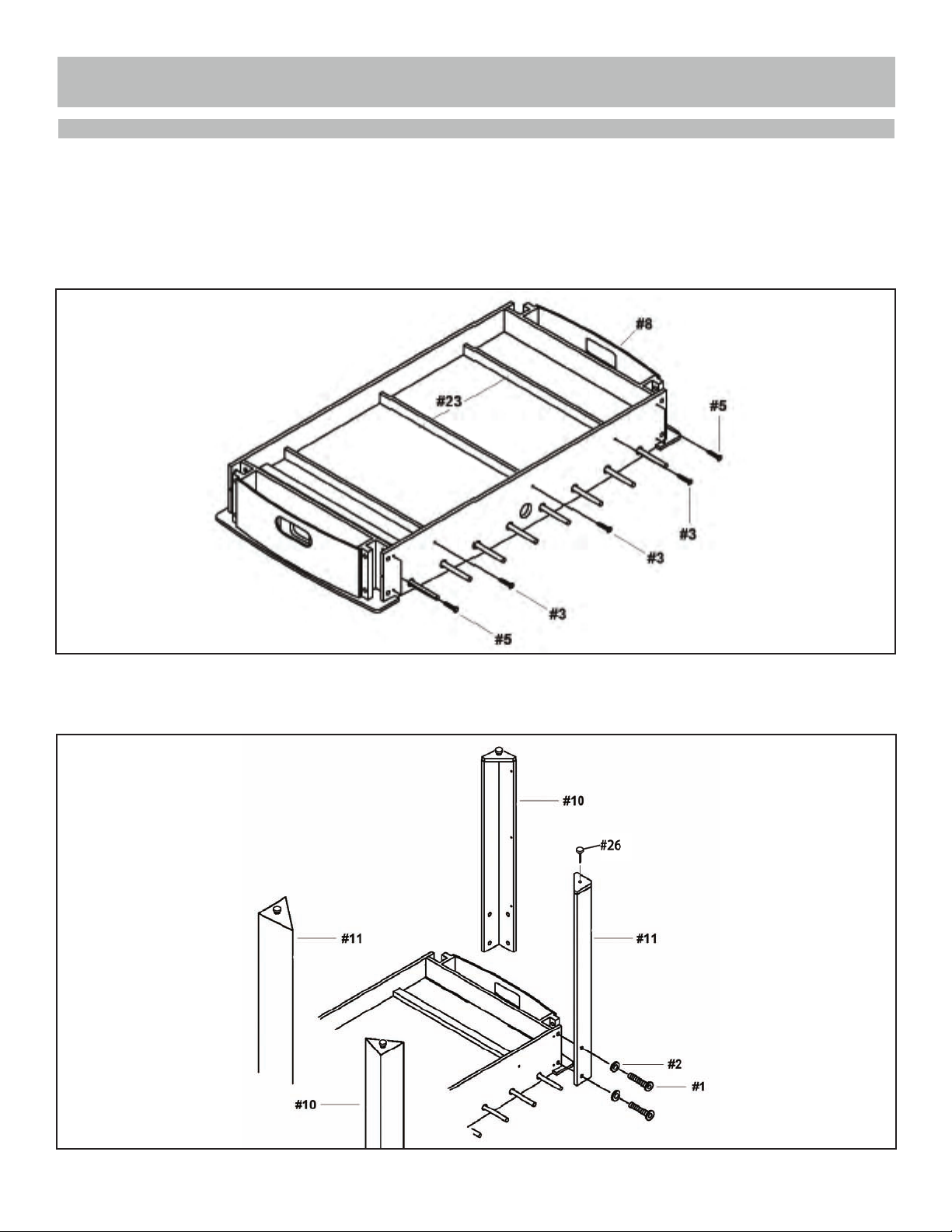

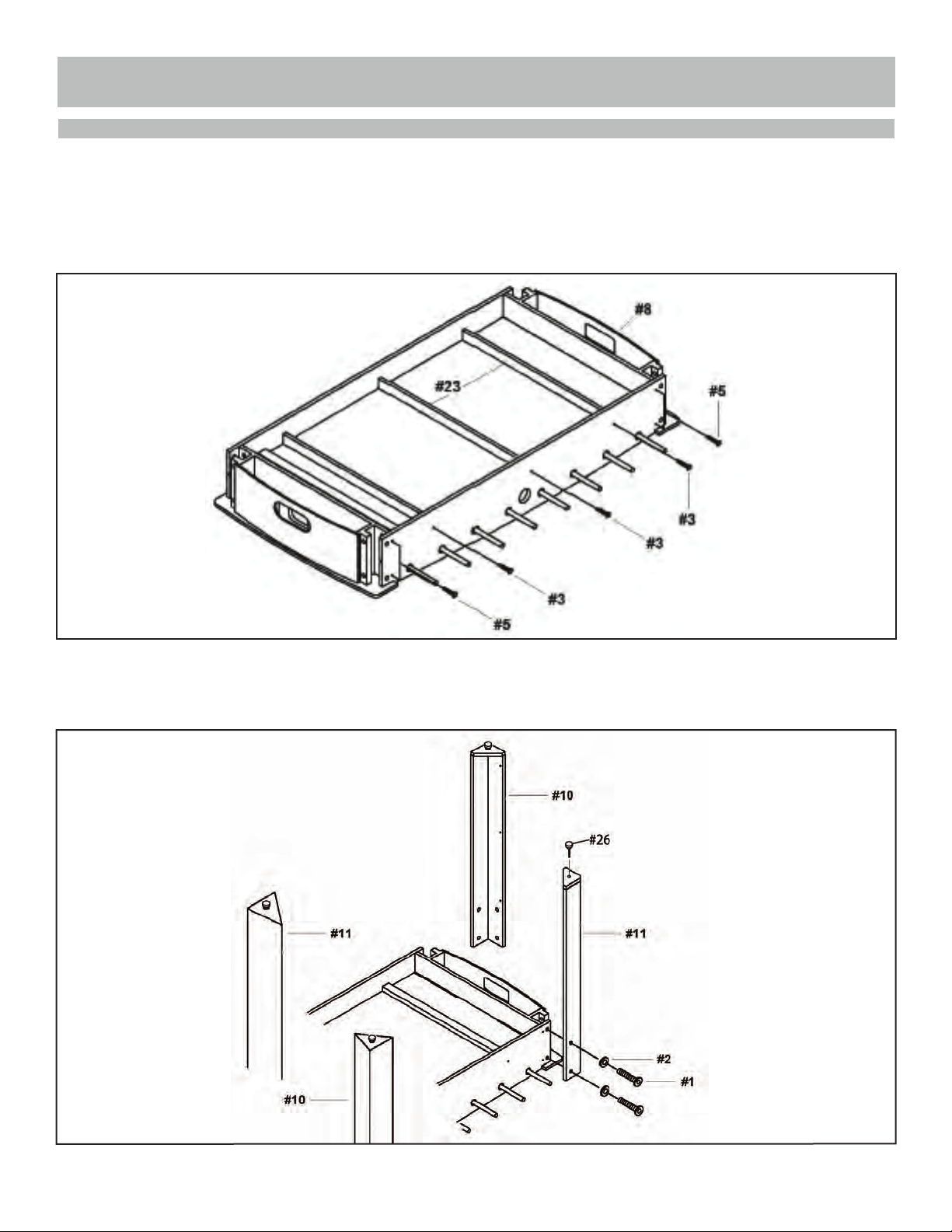

5. Attach remaining END PANEL #8 to the opposite end of the table with 1-1/2" FLAT SCREW
#5. Make sure PLAYFIELD slides into grooves on both END PANELS as well.
6. Attach each PLAYFIELD SUPPORT BRACE #23 across the underside of the PLAYFIELD by
fastening to the SIDE PANELS with 1-1/2" SCREW #3 using pre-drilled holes.
7. Attach LEFT LEGS #10 and RIGHT LEGS #11 to the corners of the table as shown below
using BOLT #1 and FLAT WASHER #2. Thread one LEG LEVELER #26 onto each LEG.

6
ASSEMBLY INSTRUCTIONS (CONT.)

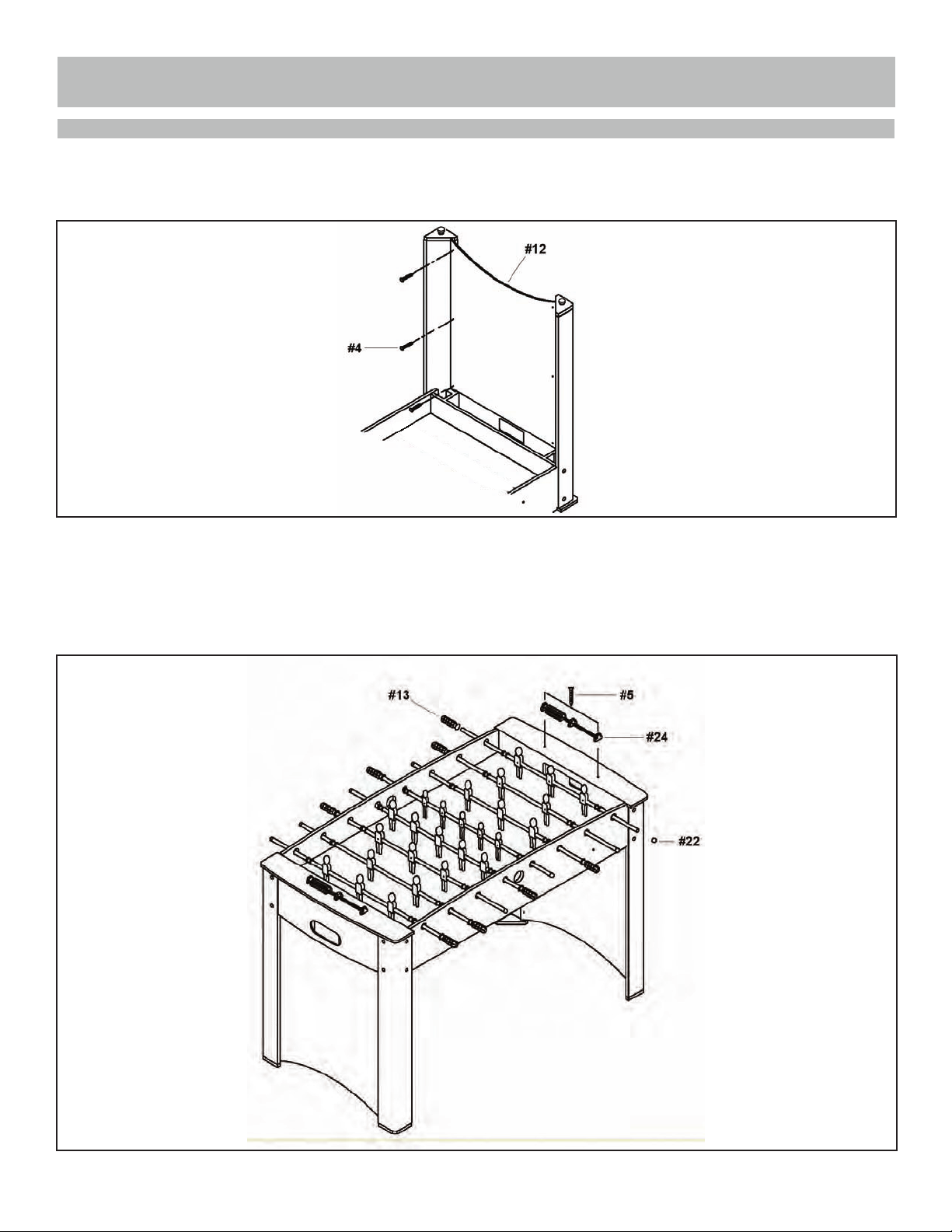

8. Attach each LEG PANEL #12 to LEGS with 1/2" SCREW #4. Note: Graphics should face
outward. Carefully turn table over.
9. Attach HAND GRIP #13 to the marked end of each PLAYER ROD. Attach ROD END CAP #22
to the opposite end of PLAYER RODS.
10. Attach one MANUAL SCORER #24 to each end of the table with 1-1/2" FLAT SCREW #5. Cut
and remove rubber bands holding parts together, if present. Be careful not to overtighten screws.

7
180-DAY LIMITED WARRANTY
This product is warranted to the original purchaser to be free from defects in material or workmanship
for a period of 180 days from the date of the original retail purchase.
This warranty does not cover defects or damage due to improper installation, alteration, accident or
any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,
abuse or negligence will void this warranty. This warranty does not cover scratching or damage that
may result from normal usage.
This product is not intended for institutional or commercial use; the manufacturer does not assume
any liability for such use. Institutional or commercial use will void this warranty.
This warranty is nontransferable and is expressly limited to the repair or replacement of the defective
product. During the warranty period, the manufacturer shall repair or replace defective parts at no
cost tothe purchaser. Shipping charges and insurance are not covered and are the responsibility of
the purchaser. Labor charges and related expenses for removal, installation or replacement of the
product or components are not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable
or obsolete.
The manufacturer shall not be liable for loss of use of the product or other consequential or incidental
costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of
injury resulting from the use of this product.
This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of
. Neither the manufac-
turer nor any of its representatives assumes any other liability in connection with this product.
All warranty claims must be made through the retailer where the product was originally
purchased. A purchase receipt or other proof of date of purchase will be required to process
all warranty claims. The model number and part numbers found within the assembly
instructions will be required when submitting any parts requests or warranty claims.
For further warranty information or inquiries, please call 800-759-0977

Ver. 0420
TABLE DE FOOSBALL
PLAYOFF 1,21 m
INSTRUCTIONS D’ASSEMBLAGE
BG1031F
Contactez notre
service à la clientèle au
800-759-0977
avec des questions sur le montage
ou l'utilisation de ce produit.

2
MERCI!
Merci d’avoir acheté notre produit. Nous travaillons 24 heures sur 24, partout dans le monde, à garantir
que nos produits sont de la meilleure qualité possible. Toutefois, dans les rares cas de problèmes lors
du montage ou de l'utilisation de ce produit, se il vous plaît communiquer avec notre service à la clientèle
au 800-759-0977 pour une aide immédiate avant de contacter votre revendeur. Pour obtenir de plus amples
renseignements, veuillez lire l'information relative à la garantie au verso de ce guide d’instructions.
ENTRETIEN ET USAGE
1. Ce produit doit être utilisé À L’INTÉRIEUR seulement.
2. NE JAMAIS déplacer la chaise en la traînant, cela pourrait endommager les pieds.
INSTRUCTIONS D’ASSEMBLAGE
1. Trouver une surface propre et plane, pour commencer le montage de votre table de jeu. La table
s’assemble à l’envers pour être ensuite retournée sur ses pieds, une fois l’assemblage complété.
Cette table est lourde et nécessite au moins deux adultes forts pour la soulever et la retourner.
2. Retirez le contenu de la boîte, avant de commencer l’assemblage, assurez-vous d’avoir toutes
les pièces telles que listées et illustrées au tableau d’identification. Avis : certaines pièces sont
préassemblées ou préinstallées.
3. Certaines illustrations ou dessins peuvent ne pas ressembler au produit que vous avez acheté.
4. Quand vous fixez en place une pièce avec plus d’une vis ou écrou, veuillez, en premier, les
visser à la main et terminer la fixation avec un tournevis ou une clé.
5. Un tournevis électrique peut être utile lors de l’assemblage, mais veuillez le régler à basse torque
et l’utiliser avec prudence; si la torque est trop élevée, la vis peut se défaire ou être trop serrée.
AVERTISSEMENTS!
LIRE TOUTES LES INSTRUCTIONS D’ASSEMBLAGE ET LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT.
RISQUE D’ÉTOUFFEMENT – CERTAINS ÉLÉMENTS DU PRODUIT CONTIENNENT
DE PETITES PIÈCES - NE CONVIENT PAS À UN ENFANT DE MOINS DE TROIS ANS.
IMPORTANT! VEUILLEZ LIRE, EN ENTIER, TOUTES LES
INSTRUCTIONS AVANT D’ASSEMBLER VOTRE PRODUIT.

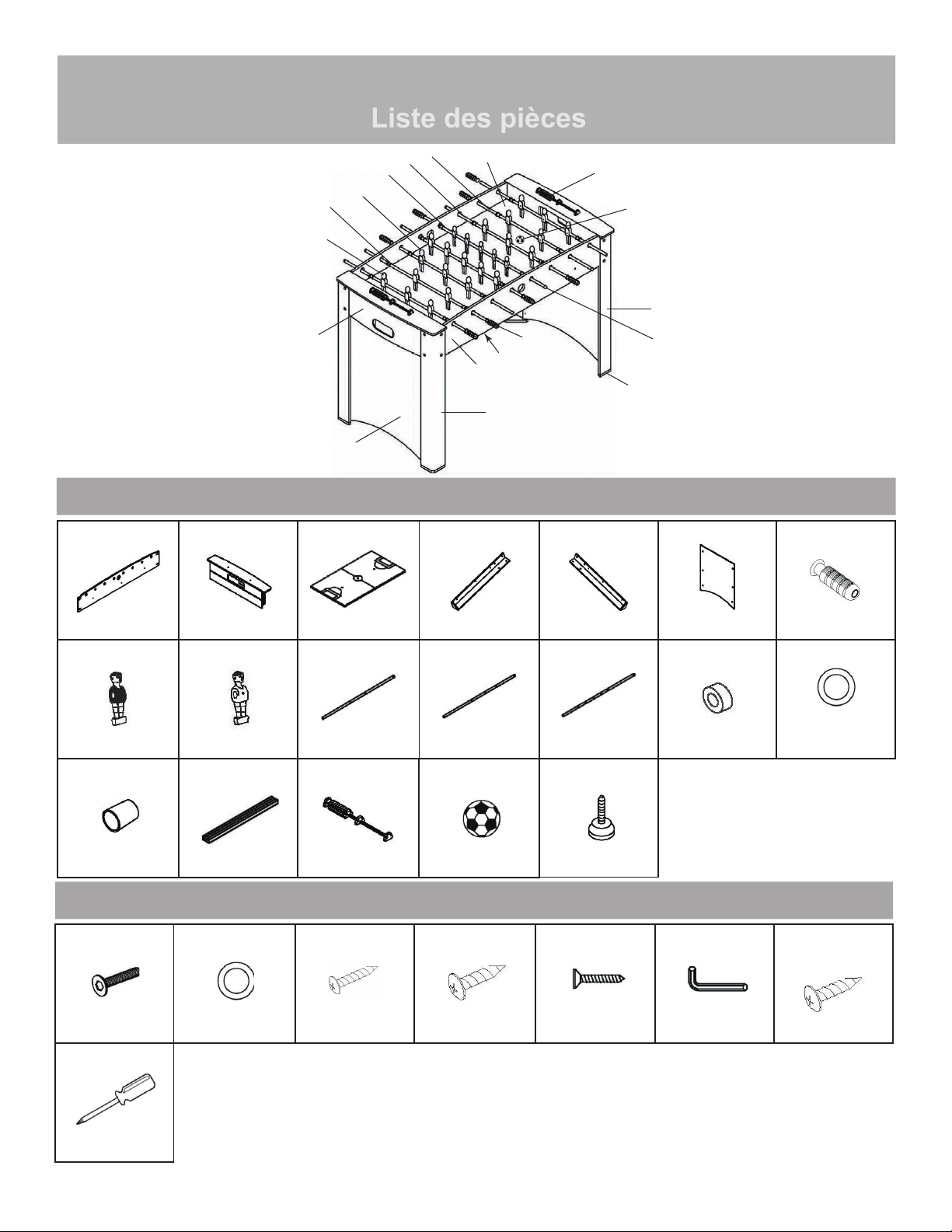

Liste des pièces
TABLE DE FOOSBALL PLAYOFF 1,21 m - BG1031F
illustrations non à l'échelle
#1 #2 #3#4#5#6 #19
10
#21
11
7
13
12
8
14
15
16
17
18
22
24
25
#7NGP5501 #8NGP5502 #9NGP5503 #10 NGP5504 #11 NGP5505 #12 NGP5506 #13 NGP5507
#14 NGP5508 #15 NGP5509 #16 NGP5510 #17 NGP5511 # NGP5512 #20 NGP5513
#22 NGP5514 #23 NGP5515 #24 NGP5516 #25 NGP5102 *Remarque: Les articles 14 à 21 et 19
sont préassemblés à leur réception.
Des pièces individuelles peuvent être
disponibles par numéro de pièce ou
ensembles complets, si nécessaire,
sont la partie # NGP5943
#26 NGP50785
26
9
23
8/18 Pour commander les pièces de remplacement, veuillez téléphoner au 1 800 759-0977
NGP5513118
X8 X3 X2 X2
X16 X6 X12
X16
X13 X13 X2 X4 X2 X16 X16
X12
X2 X2 X1 X2 X2 X2 X8
X1 X26
X4
Pré assemblé
sur les joueurs
PIÈCES
SAC DE QUINCAILLERIE - NGP5500
RONDELLE DE
PLASTIQUE
POUR TIGE*
SURFACE DE JEU PIED GAUCHE
PANNEAU LATÉRAL PANNEAU DE BOUT PIED DROIT PANNEAU
D’EXTRÉMITÉ POIGNÉE DE TIGE
BUTOIR EN MOUSSE*
JOUEUR BLEU* JOUEUR VERT* TIGE À DEUX
JOUEURS*
TIGE À TROIS
JOUEURS* TIGE À CINQ
JOUEURS*
EMBOUT DE TIGE COMPTEUR DE
POINTS MANUEL
TRAVERSE
DE SOUTIEN BALLON DE SOCCER
PATIN DE
NIVELLEMENT
RONDELLE VIS 3,8 cm VIS 1,3 cm VIS À TÊTE
PLATE 3,8 cm CLÉ HEXAGONALE
BOULON
ÉQUIPEMENT
ADDITIONNEL REQUIS:
TOURNEVIS
CRUCIFORME
VIS À TÊTE
RONDE 1,9 cm*
20,21
3
