Battery powered cab ecutter
„AS-52ACSR“
Art. 216436
INSTRUCTION MANUAL
Battery cutting tool
Video 216436

1. Technica data
Area of application: Separating copper and aluminium cables
Suitab e ACSR a uminum stee cab es.
Safety: Working Safely with safety lever.
The model Art. 216436 does not protect the operator when
working on cables that carry power.
Garantie: 2 year guarantee if used for the purpose it is intended.
2. Area of work
Cutting range: Ø up to 52 mm Cu/Al - ACSR 19 mm
Battery charging time in minutes: 120 min.
Battery type: 18 V, 4 Ah

Germany: HAUPA GmbH & Co. KG, Königstraße 165-169, D -42853 Remscheid.
Phone: [phone], Fax: [phone], [email protected] • Errors and technical changes reserved.
...convincing solutions
eng ish
3. Short description
Preparation:
Before starting up the tool, always read the operating instructions.
All current-carrying elements in the area you are working in should be disconnected.
therwise the protective procedures for working in the vicinity of components under current
must be implemented. (DIN EN 50110)
Do not use the tool if you are tired or under the influence of medication, drugs or alcohol.
Take into account the valid accident prevention and safety regulations and use the tool exclu-
sively for the purpose for which it is intended.
nly electro-technically trained persons over 16 years of age may process connecting materi-
als using the tool.
The operating instructions must always be carried with the tool.
The instructions must have been read and understood by the user.
The operator must ensure that this is the case.
Handling:
• The device has a manual return that brings the piston back to the starting point when
the maximum cutting force (separation of the cable) has been achieved.
• Particularly excellent circular cut
• Use under the harshest conditions possible - robust construction.

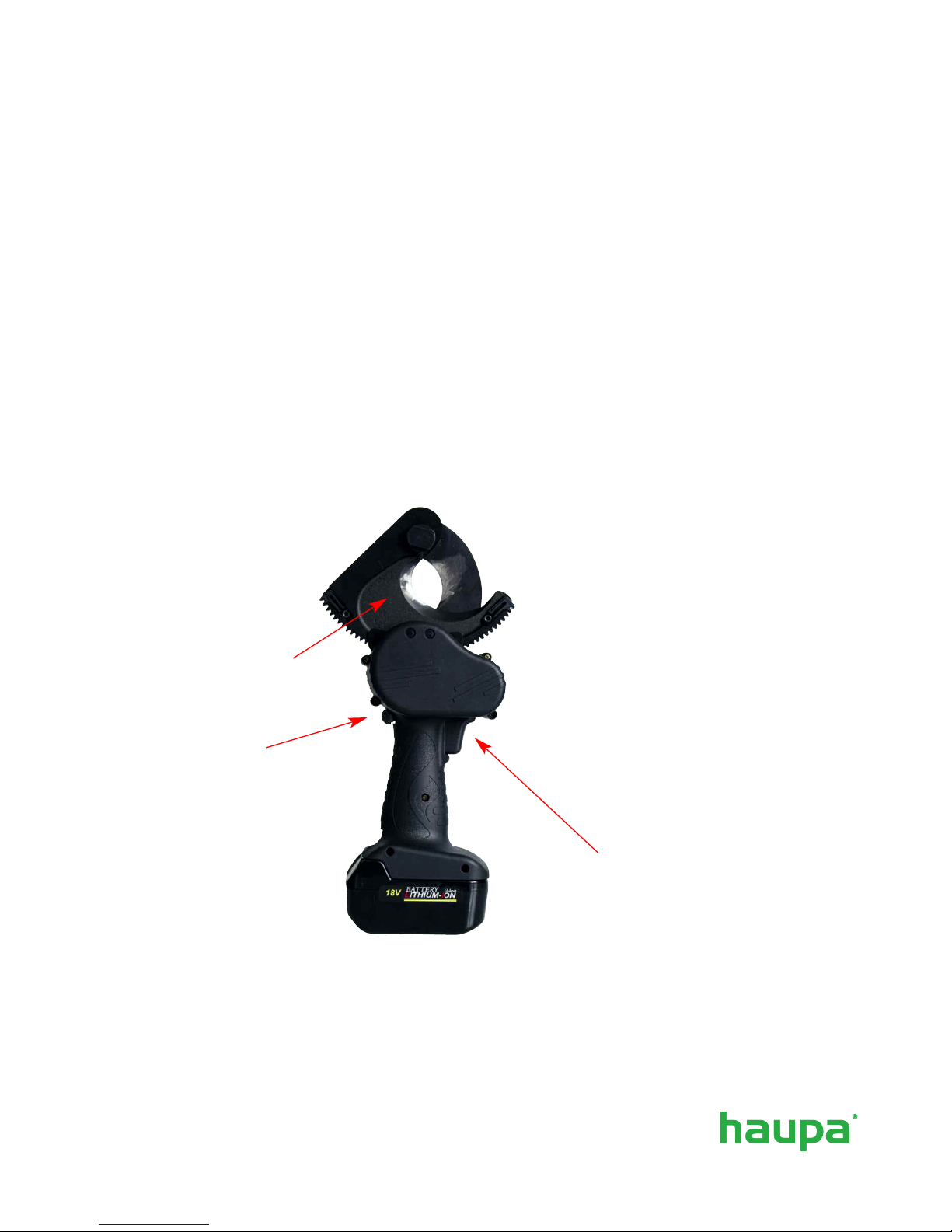

Rotary knife
Pushbutton
Safety lever

4. Notes regarding correct use
Before you start work, all active, thus current-carrying elements in the area around the
assembler must be switched to without power. If this is not possible, protective procedures for
working in the vicinity of components under current must be implemented. The charge status
of the battery should be checked before you start work.

Germany: HAUPA GmbH & Co. KG, Königstraße 165-169, D -42853 Remscheid.
Phone: [phone], Fax: [phone], [email protected] • Errors and technical changes reserved.
...convincing solutions
eng ish
5. Re oving and inserting the battery
Hold the tool firmly and press the battery release button to remove the battery.
ATTENTION:
Never short-circuit the battery.
Inserting the battery
Insert the battery until it clicks into place. Make sure the poles are facing the right way.
Charging
Before using the tool, charge the battery as follows: Connect the cable of the charger to a
socket (AC).

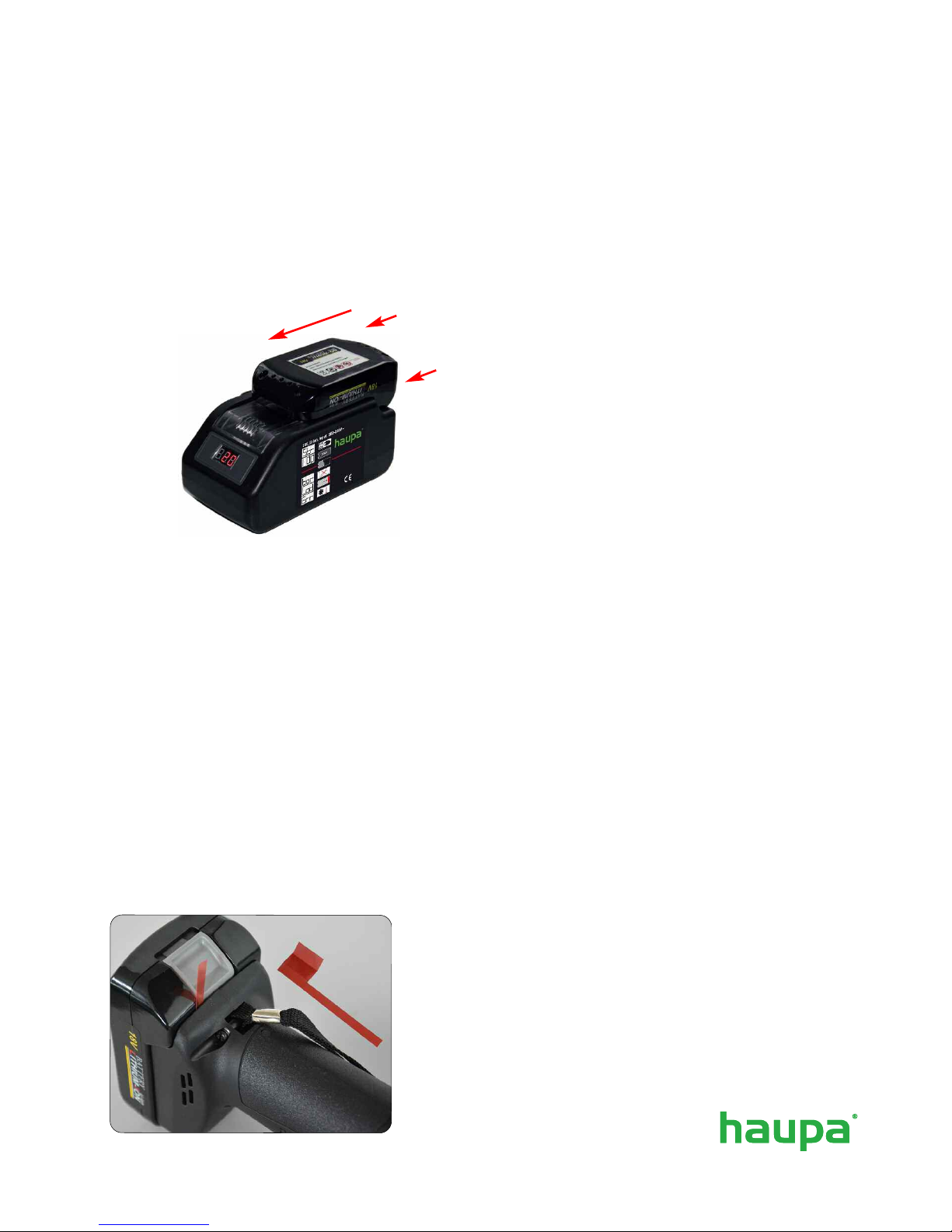

Inserting the battery into the charger
Insert the battery firmly, as shown in here until it touches the bottom of the charging
compartment.
ATTENTION:
If the battery is inserted incorrectly, it will not only not be charged, it may also damage the
charger (e.g. by bending the terminals/short-circuiting).
Charging
When you insert a battery into the charger, the battery is charged
and the charging light.
When the battery is fully charged, the charging indicator shows 100% and a beep.
Remove the battery immediately and disconnect the charger from the mains.
Attention!
Please re ove the battery during transport and after
usage – because of avoiding deep discharge!

Per itted only on stabilized power sources! Charging only for HAUPA batteries!
Li-ion Battery & Charger Instruction
Li-ion Batterie
Voltage 18 V
Weight 0,380 kg
Length 120 mm
Width 70 mm
Height 80 mm
Capacity(Ah)
4Ah
Charge time
120min.
Charge(for Li-ion)
Voltage 110V / 220V
Weight 0,430 kg
Length 175 mm
Witdh 90 mm
Height 80 mm
Feature Digitaler Monitor
Auto-Inductions laden

Germany: HAUPA GmbH & Co. KG, Königstraße 165-169, D -42853 Remscheid.
Phone: [phone], Fax: [phone], [email protected] • Errors and technical changes reserved.
...convincing solutions
eng ish
Li-Ion Battery Manual Instruction
Panel Description:
1㸬Connect power shows , comes a beeping, and the fan rotates 2 seconds.
2㸬Fully charged, it shows and comes beeping every 3 seconds.
3㸬Unusual working == Too low voltage shows and comes a beeping every second.
4㸬Unusual working == Unusual temperature shows ᧨and comes a beeping every second.
5㸬The voltage is not rising after 10 minus charged. The battery is charged incompletely. The battery is faulty,
showing and coming beeping every 2 seconds by a second.
Specification:
1. The input power is external power DC24V 3Aᇭ
2. The charge voltage is 24V 2.5Aᇭ
3. When plug in the power, the panel shows and comes a beeping.
4. Uninstall the battery, the panel shows and twinkles every second.
5. Detect the battery voltage first and shows battery capacity rate when install battery.
6. When battery charged completed, the panel shows and comes beeping every 3 seconds.
7. When the voltage is too low, the panel shows and coms a beeping every second.
8. When the temperature is too high, the panel shows and comes a beeping every second.
9. The maximum charge time is 120 minutes. After 120minutes, the charger will stop charging regardless the battery
is charged completed.
10. The full charged voltage for 18V Li-Ion battery is (5*4.3=21.5v); the voltage for 14.4V Li-Ion
is (4*4.3=v17.2v) (reference valve). The battery is coming with a protective plate which will stop charging
automatically when charged completely.
11. The lowest battery voltage for 18V Li-Ion battery is (2.9*5=14.5v); and the 14.4v is (2.9*4=11.6v).
12. It will stop charge when the battery temperature is higher than 65 degree centigrade.
13. The usual temperature for battery is between -20° to 65° centigrade when a fan is applied. The fan working voltage is 12V.
14. Under 90% battery capacity will carry in adding per 5%. Over 90% battery capacity will carry in adding per 1%.

6. Care and aintenance
Cleaning
• Careful cleaning of the tool, in particular, the moving parts contributes towards a longer
useful life. Remember that dust, sand, environmental influences, in particular a high salt
index, and dirt in general are extremely damaging to hydraulic tools.
• articular care should be taken when cleaning the pump drive piston and the piston.
The tiniest of contaminations may scratch the walls of the cylinder and damage the
leak-proof seals. For the correct cleaning of the piston, we recommend extending the
piston and then cleaning it with a high-quality, non-corrosive solution.
Power switch
Check to see whether the switch on the machine automatically pops out again when you
release it.
Storage
To prevent damage to the tool as a result of bumps, dust etc. you should if possible store the
tools in the original packaging.
Guarantee:
2 year guarantee when used for the purpose it is intended when the annual maintenance inter-
vals are maintained by an authorised HAU A service centre. We reserve the right to rework the
product.
Faults:
Loss of oil:
Send to the HAU A service centre. Do not open!
Disposal:
…in accordance with the scope of validity of the European WEEE (2002/96/EU) and RoHS
directives (2002/95/EU). Batteries must be disposed off separating according to the battery
directive.
WITH EVERY RE LACEMENT ART ORDER, INCLUDE THE FOLLOWING INFORMATION:
1) Article number.
2) Article description.
3) Reference to the operating instructions and/or date.
4) Tool type.
5) Serial number of the tool.
The guarantee is voided if you use parts that are not original replacement parts from HAU A.
