Hawking HA12W User manual

Hi-GainTM 12dBi Directional
Window Antenna
HA12WHA12W
Extend the Distance of your Wireless Devices up to 2 miles
The Hawking 12 dBi Hi-Gain Wi-Fi Directional Window Antenna boosts your wireless signal from a standard 2dBi to 12dBi. It is
an easy to install solution that plugs directly into an antenna port of your wireless device (router or adapter).* The HA12W is
built with high grade material ensuring maximum quality and performance.The power rating of WiFi antennas is measured in
terms of decibels (dBi). The HA12W boosts the antenna power of standard antennas from a minimal 2dBi to a staggering
12dBi. This results in extended wireless distances of up to 2 miles.* Whether extending the wireless network from one
corporate building to another, or simply from the front house to the back house, the Directional Window Antenna provides
wireless users with a high powered solution to extend their wireless network.
Installation of the HA12W is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers,
Bridges and Network Adapters) on the market with removable external antennas. The Hawking Antenna comes equipped with
RP-SMA, RP-TNC connectors to support a wide range of wireless devices. For those devices that use adapters not included in
the packaging, please visit the Hawking Technologies website for a selection of specific connectors for your device.
Features
2.4 GHz Frequency - Works with popular Wireless Standards
Reverse SMA Plug - Compatible with most Access Points/Adapters
TNC Adapter is included for Cisco & Linksys Routers
A 12dBi Directional Antenna - Ensures optimal coverage
Supports all network operation systems
Setup is quick and simple
System Requirements:
One Wireless 2.4GHz 802.11b/g Device with a Removable External Antenna
Connector Type: Reverse SMA or Reverse TNC
*Results may vary due to different operating environments.
HA12W
2.4GHz Hi-Gain 12dBi Directional
Window Antenna
PACKAGE CONTENTS:
One 12dBi Directional Window Antenna
50cm Extension Cable (N-Plug to Rev. SMA Plug)
TNC Adapter
Window/Wall Mounting Kit
One User’s Manual

HA12W
Step 1 - Unscrew your Wireless
Device’s Antenna
Unscrew the current antenna on the device
you plan to attach your Hi-Gain antenna to.
Step 2 - Screw in your Hi-Gain Hawking
Antenna
Connect your new Hi-Gain Wireless Antenna
to your device by screwing on the SMA
connector attached to the end of the
Antenna Cable
Step 3 - Position your Antenna
Choose the optimal position for your antenna (on the window, or your
wall...) and power on your wireless LAN.
Hi-Gain 12dBi Directional
Window Antenna
Network Specifications:
IEEE 802.11b/g
Electrical Properties
Frequency: 2.4~2.4835 Ghz
Impedence: 50 Ohms Nominal
Gain: 12dBi
Radiation: Directional
Polorization: Linear, Vertical
H-Plan:84º
E-Plan: 23º
Mechanical Properties
Connector: RP-SMA
Material Properties
Color:Ivory
Dimensions: 327mm x 80mm x 22mm
Weight: 0.5 lbs (excluding cables and mounts)
Warranty
1 year
Hi-Gain 12dBi Directional Window Antenna
Specifications are subjet to change without notice. ©2007 Hawking Technologies, Inc. All Rights Reserved.
HAWKING TECHNOLOGIES, INC
USA: Irvine, California
Sales: 888.662.8828 or 949.790.0800 Fax: [phone]
Email: [email protected] Email: [email protected]
EUROPE: Rotterdam, The Netherlands
Sales: 31-10-245-1600 Fax: [phone]
Email: [email protected] Email: [email protected]
RELATED PRODUCTS
Outdoor
HAC30N 30 ft. Outdoor N-Plug Hi-Gain
Antenna Cable
HAO9SIP Hi-Gain 9dBi Outdoor
Omni-Directional Antenna Kit
HAO9SDP Hi-Gain 9dBi Outdoor
Directional Antenna Kit
HAO14SDP Hi-Gain 14dBi Outdoor
Omni-Directional Antenna Kit
Indoor
HA12W Hi-Gain 12dBi Indoor Window
Antenna
HAO15SC Hi-Gain 15dBi Indoor Corner
Antenna
HAI7SIP Hi-Gain 7dBi Indoor
Omni-Directional Antenna
HAI7MD Hi-Gain 7dBi Compact Indoor
Directional Antenna
H
W

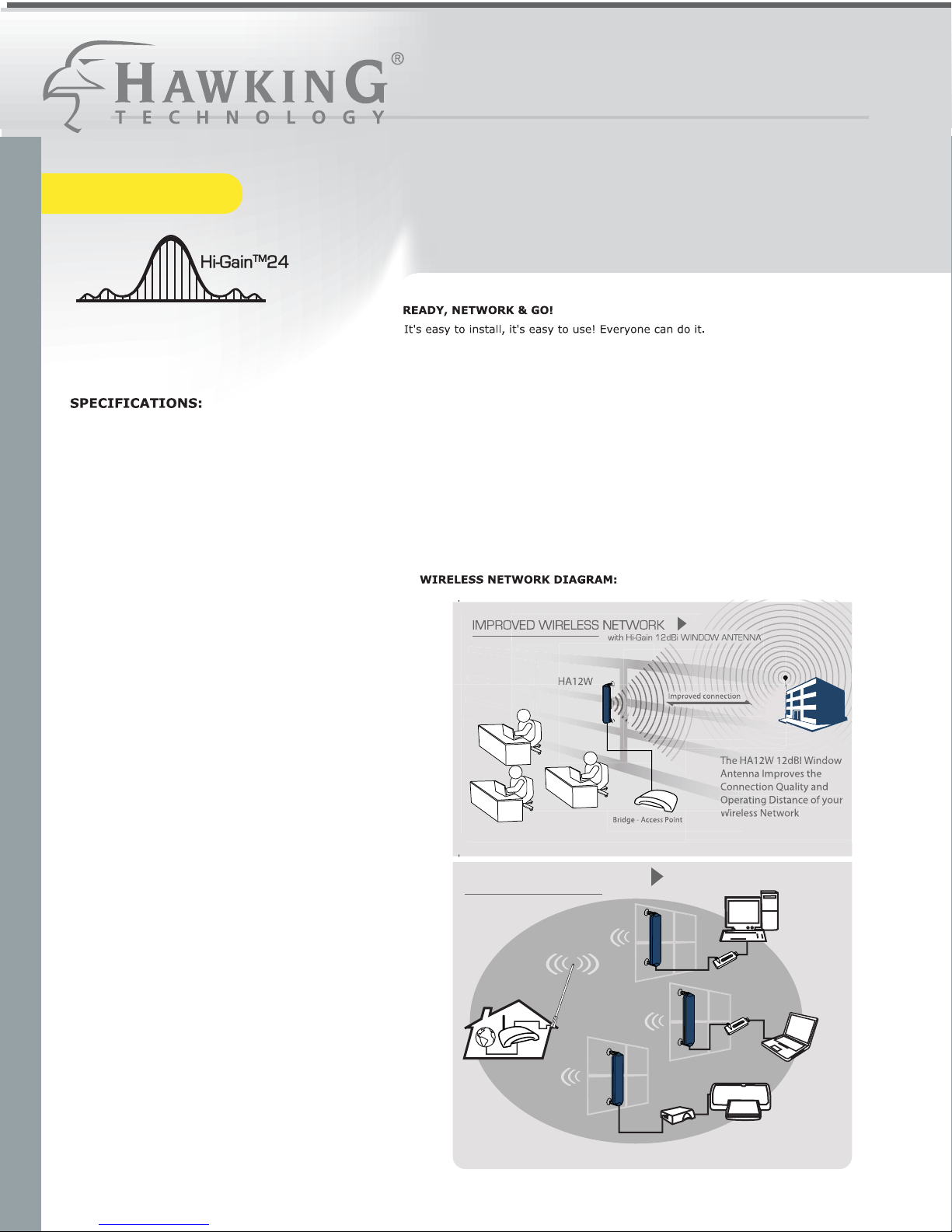

NETWORK DIAGRAM
Printer
Laptop with
HA12W antenna
and the HWUG1
USB Wireless
Adapter
Desktop
Desktop with
HA12W antenna
and the HWUG1
USB Wireless
Adapter
HA12W Window Antenna with a
Hawking Wireless Print Server
Wireless Router/AP
and/or
Internet Modem
with the
Hawking Hi-Gain
HAO9SIP
