Model 8904
Hose Spray
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
No. 2080198(15)
LIMITED WARRANTY
HAWS warrants that this specific product is guaranteed against defective material or poor
workmanship for a period of one year from date of shipment. HAWS liability under this
warranty shall be discharged by furnishing without charge F.O.B. HAWS Factory any goods,
or part thereof, which shall appear to the Company upon inspection to be of defective
material or not of first class workmanship, provided that claim is made in writing to Haws
within a reasonable period after receipt of the product. Where claims for defects are made,
the defective part or parts shall be delivered to the Company, prepaid, for inspection. HAWS
will not be liable for the cost of repairs, alterations or replacements, or for any expense
connected therewith made by the owner or his agents, except upon written authority from
HAWS, Sparks, Nevada. HAWS will not be liable for any damages caused by defective
materials or poor workmanship, except for replacements, as provided above. Buyer agrees
that Haws has made no other warranties either expressed or implied in addition to those
above stated, except that of title with respect to any of the products or equipment sold
hereunder and that HAWS shall not be liable for general, special, or consequential damages
claimed to arise under the contract of sale.
The emergency equipment manufactured by HAWS is warranted to function if installation
and maintenance instructions provided are adhered to. The units also must be used for the
purpose for which they were intended. This product is intended to supplement first-aid
treatment. Due to widely varying conditions, Haws cannot guarantee that the use of this
emergency equipment will prevent serious injury or the aggravation of existing or prior
injuries.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED, PROVIDED
OR GIVEN BY HAWS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

08/18 Model 8904 Page 2 of 4
LOCATION OF UNIT: The Model 8904 Hose Spray should be installed in close
proximity to potential accident areas. It should be clearly identified free from
obstructions and easy to access. In order to comply with state codes, the use of a
vacuum breaker is required with all hand held eye/face wash and body spray units
(Haws offers Model SP212).
SUPPLY LINE: The minimum recommended line size is 1/2" IPS with 30-90 psi (2-6
ATM) flowing pressure. Where sediment or mineral content is a problem, an inlet
filter is recommended.
PLUMBING CONNECTIONS: Inlet supply is female 1/2” NPT.
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1.
No flow.
1.
a.
Check the main shut-off valve.
2.
Insufficient water flow.
2.
a.
Verify minimum 30 psi (2 ATM)
flowing supply line pressure.
b.
Probable clogging of flow control
due to inadequate line flushing.
Unscrew eye/face wash head and
remove the four screws to
disassemble the head. Clean flow
control and reassemble head. See
SP65 Installation Drawing for
details.
INSTALLATION INSTRUCTIONS
Refer to installation drawing to clarify installation procedure.
STEP 1: Assemble eye/face wash assembly to hose, orient tab on assembly away from user.
For more information about Haws products, see our website: www.hawsco.com
© 2018 Haws®Corporation – All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

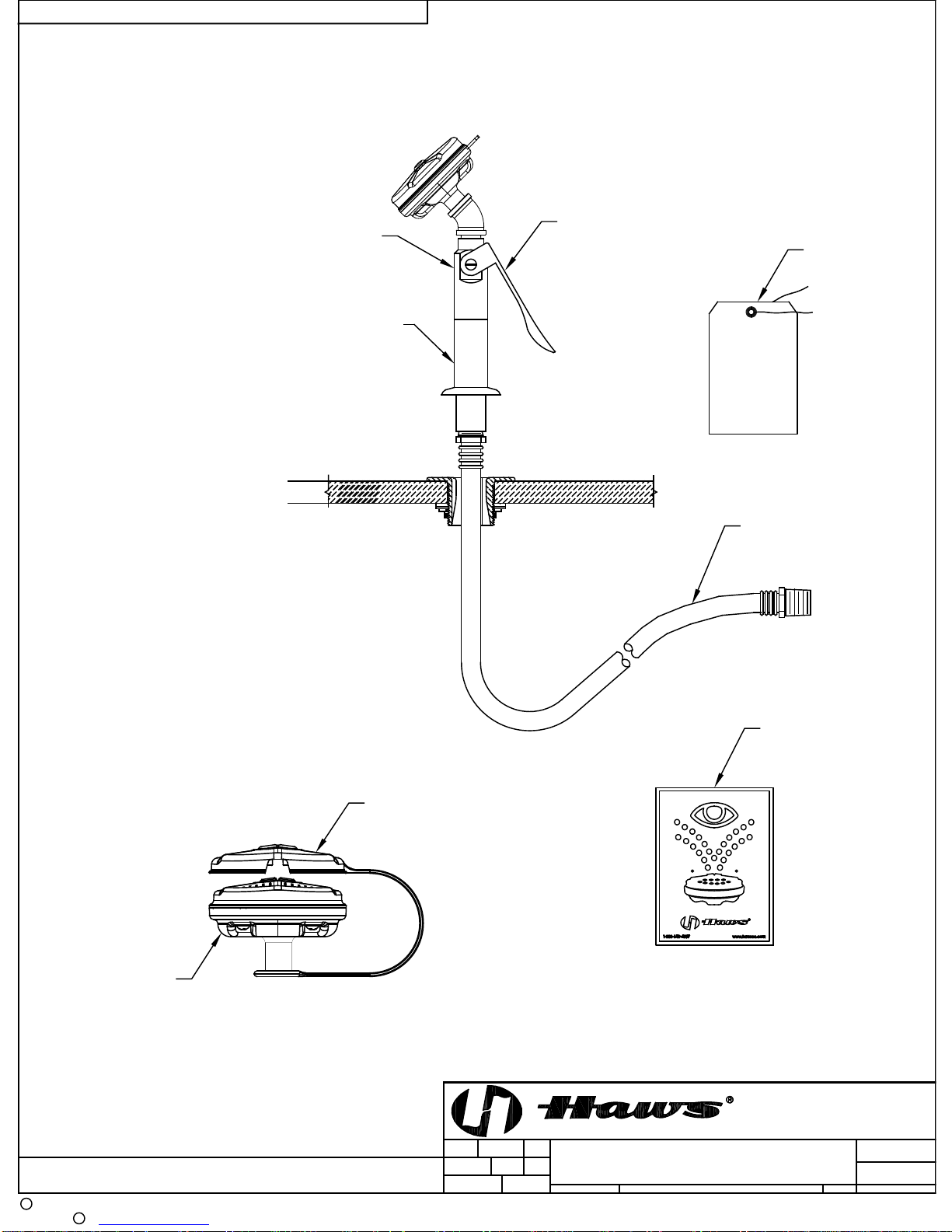

PARTS BREAKDOWN
TEST THIS UNIT EACH WEEK
SP248
VALVE ASSEMBLY
SP140
HOSE ASSEMBLY
SP175
EYEWASH SIGN
SP170
TEST TAG
VRKSP248
VALVE REPAIR KIT
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
CH
8/28/93
15
0002080198
8904
EYE/FACE WASHBODY SPRAY
NA
11
MJ 09/12/18
.
FV
3 OF 4
PARTS BREAKDOWN
5342
2018
JP
SP42
FLOW CONTROL
6.25 GPM
0001968800
DUST COVER
0002953160
HEAD ASSEMBLY

FLANGE DETAIL
3" DIA
76mm
SWIVEL FITTING
1/2" IPS SUPPLY
8' HOSE
DRILL HOLE
DECK FLANGE
(SUPPLIED)
1 1/4"
32mm MAX. DECK
THICKNESS
1 3/4"
45mm DIA
241mm
9 1/2"*
FIBER WASHER
RUBBER
WASHER
3"
76mm
4
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
CH
08/25/93
15
0002080198.D
8904
EYE/FACE WASH BODY SPRAY
NA
11
MJ 09/12/18
.
FV
4 OF 4
INSTALLATION
5342
2018
JP
NOTES:
1. WHEN INSTALLING THIS UNIT, LOCAL , STATE, OR FEDERAL CODES SHOULD BE ADHERED TO FOR
INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN.
2. TO COMPLY WITH ANSI Z358.1-2014 FOR EMERGENCY EYEWASH OR EYE/FACE WASH:
EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED SUCH THAT FLUSHING FLUID PATTERN IS NOT
LESS THAN 33" (838mm), NO GREATER THAN 53" (1346mm) FROM SURFACE ON WHICH USER STANDS,
AND 6.0" (153mm) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.
3 IN ORDER TO COMPLY WITH STATE CODES, THE USE OF A VACUUM BREAKER IS REQUIRED
WITH ALL HAND HELD EYE/FACE WASH AND BODY SPRAY UNITS (HAWS OFFERS MODEL SP212).
4 ASSEMBLE EYE/FACE WASH ASSEMBLY AND DUST COVER TO HOSE; ORIENT TAB ON ASSEMBLY,
AWAY FROM USER.
5. *DIMENSIONS MAY VARY ±1/2" (12.7mm).
SEE FLANGE DETAIL
33"-53"
838mm-1346mm
FLOW PATTERN
FLOOR
DUST COVER
OMITTED FOR
CLARITY
IN DECK
