HBX 2098B User manual

Please completely read and understand the entire manual before using, assembling and/or
disassembling your remote controlled car.
INSTRUCTION MANUAL
1/24TH SCALE 4WD/4WS ELECTRIC POWERED ROCK CRAWLER
This product is not a toy. It is not intended for persons under 14 years of age, unless closely
supervised by an adult.
This manual is subject to change without prior notice.
1/24TH SCALE ROCK CRAWLER
ITEM NO.: 2098B
Indoors or out, this 1/24th scale rock crawler is a fun in the palm of your hand.
4-Wheel drive and 4-Wheel steering makes this 1/24th scale rock crawler agile and enjoyable.
Complete ready to run, just add three AA batteries to the radio controller, this 1/24th scale rock crawler includes
a 2.4GHz remote control and is fully assembled.
Note: This date is subject to change without the prior notice.
Four Wheel Drive
Four Wheel Steering
Anodized Aluminum TVP Chassis
4-link Suspension
Technical Data:
Main Features:
Ready To Run
Integrated receiver/ESC
2.4GHz radio system
1/24TH
SCALE
SCALE LENGTH WIDTH HEIGHT WHEELBASE WHEEL DIA. WHEEL WIDTH BATTERY
190mm 125mm 105mm 135mm 55mm 27mm 6.4V,500mAH
High-precision steering servos
Rechargeable battery pack
Animated off road body
V-tread off road tires

This user's manual is designed for use with your vehicles and contains the instructions you will
need to assemble, operate and maintain your vehicles.
We know you are anxious to start driving, but it is very important that you take time to read
the manual even if you are an experienced R/C driver.
Carefully read and follow all instructions in the manual. Failure to follow the instructions will
be considered abuse and/or neglect and may void the warranty.
Your vehicle is designed to run on uneven or rough terrain. However dust, sand, water and
carpet fibres can lodge in the working parts of your cars and can damage your vehicle if not
removed promptly. We do not warranty your vehicle from damage due to outside elements
including sand, dirt or water. The users are responsible for the maintenance and safe operation
of this vehicle.
This product is not a toy. It is not suitable for users under 14 years old unless they are supervised
by adults.
Never attempt to re-assemble any electronic components. These have been carefully calibrated
at the factory.
Only use manufactured parts to upgrade your car. If you perform a drive train upgrade, replace
the entire system (Such as motor, ESC/receiver unit and the like) so that all components are properly
matched. Any malfunction incurred by custom modification will void your warranty.
Before driving your vehicle, please read this manual completely and examine your vehicle and
radio control for any defects.
For better performance, some adjustment may be necessary.
This vehicle requires one battery pack ( included in the car or in the packaging). Make sure the vehicle's
batteries have a sufficient charge before driving or possible loss of control may result. The radio
controller requires three AA size batteries (not include in the packaging).
Always remove batteries from the vehicle and the radio controller when not in use.
Please operate your vehicle in a spacious area. Never operate your vehicle in crowded street.
This product is fully assembled at factory. We do not take any responsibility for damage and/or
accidents that occur as the result of custom modifications and/or incorrect operation.
GENERAL INFORMATION
1

GETTING FAMILIARIZED WITH YOUR 2.4GHz RADIO SYSTEM
2
BATTERY INSTALLATION
1) Slide the battery cover as shown , and according to the
illustrations of polarities, install 3pcs of AA size batteries.
2) Replace the battery cover after batteries are installed.
-Use batteries of same type.
-Remove batteries from the case if not in use.
-Always check the battery power.
-Dispose of exhausted batteries properly.
NOTES:
Your 1/24th scale rock crawler is equipped with the 2.4GHz radio system .Please read and
understand all instructions below before operating.
,
A: Steering Wheel
B: Trigger
C: Battery Case
1: Steering Trim
2: Steering Reverse
3: Red Indicator
4: Power Switch
5: Steering Dual Rate
6: Throttle Trim
7: Throttle Reverse
8: Green Indicator
9: Bind/Mode
Steering Wheel: It proportionally operates the model s right and left steering control.
Battery Case: It requires 3pcs of AA size batteries.
Power Switch: It is used to turns the radio controller ON/OFF
Steering Dual Rate Dial: It allows you to change the amount of steering servo travel compared to the amount
of physical movement of the steering wheel.
Throttle /Steering Trims: They are used to adjust the center trim of the throttle/steering channel.
Steering Reverse: It allows you to electronically switch the direction of steering servo travel. For example,
if you move the steering wheel to the right and the steering servo moves to the left,flip the Steering Reverse
Switch to make the steering servo move to the left.
Throttle Reverse : It allows you to electronically switch the direction that the motor operates in relation to the
throttle trigger. For example, if you pull the throttle trigger to accelerate forward, but the model goes in reverse,
flip the Throttle Reverse Switch to make the model accelerate forward.
button: It is used to change steering modes of your car.
Trigger: Pull it to accelerate, release it to decelerate,and release it to Centre to stop the car. Release it to
Centre and then push it to allow the car to go backwards.
Indicators: It shows battery power level.Green indicator flashing means battery power is not enough.
As long as bothred and green indicator goes flashing indicating that the radio controller runs out of battery
power, you must replace with fresh batteries immediately.
Bind/Mode

GETTING FAMILIARIZED WITH 1/24TH SCALE ROCK CRAWLER
3
ESC/RECEIVER CASE
(Built-in battery pack
6.4V, 500mAH)
V-tread off-road
tires
9g Front Steering Servo
(Torque: 1.1kg)
Performance
motor
9g Rear Steering Servo
(Torque: 1.1kg)
Anodized aluminum
TVP frame
Anodized aluminum
wheel beadlock
4-Link
Suspension
RUNNING YOUR ROCK CRAWLER
Switching on the radio controller,and then the power switch on the rock crawler.
(Note: The rock crawler is automatically bound with the radio controller when switched on.)
Switching on the
radio controller
Switching on the
power switchon
the rock crawler

4

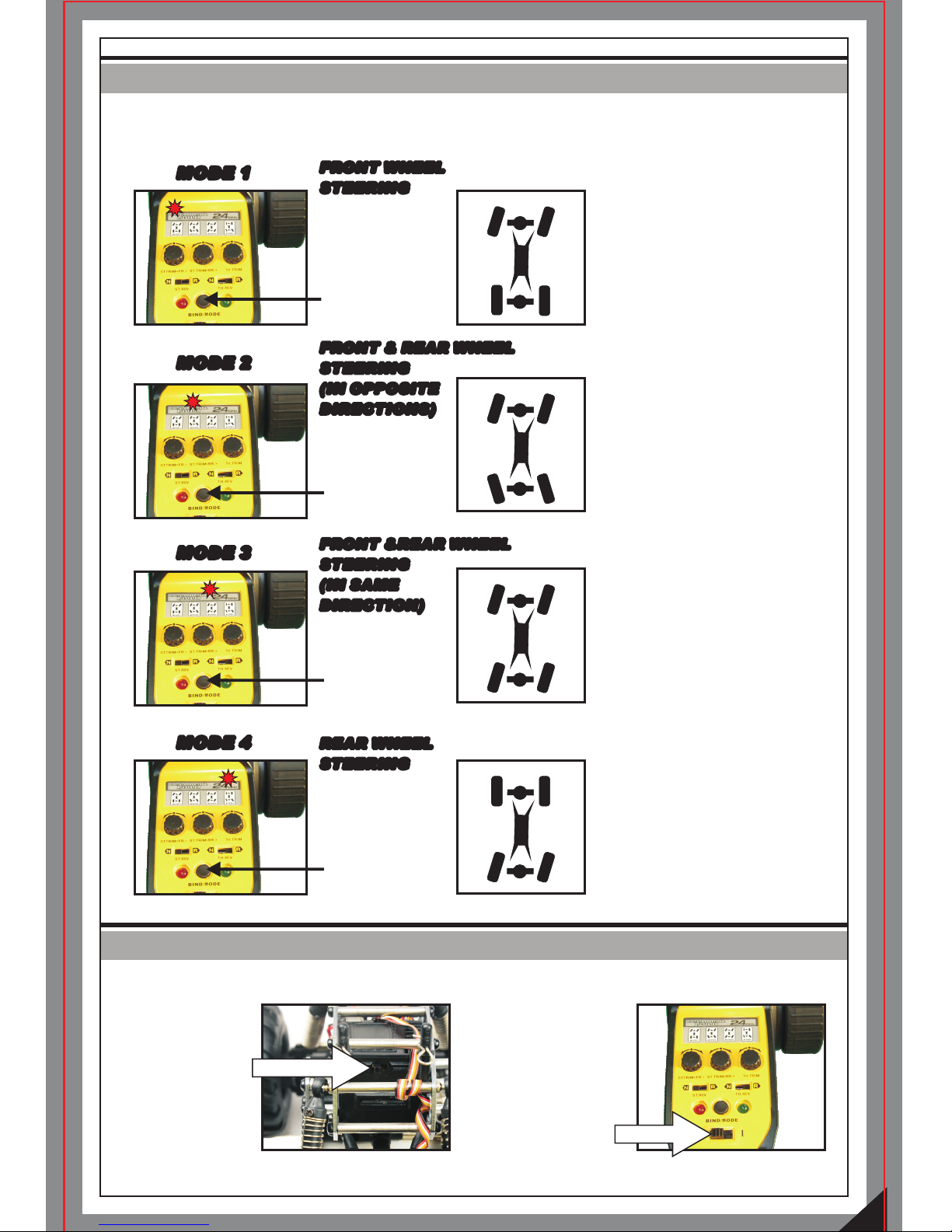

FOUR WHEEL STEERING
This 1/24th scale rock crawler features four steering modes which can be easily switchable by
pressing BIND/MODE on the radio controller.
MODE 1 FRONT WHEEL
STEERING
When the Mode 1st indicator
lights up, this 1/24th scale rock
crawler features front wheel
steering,coming without rear
wheel steering.
MODE 2
MODE 3
MODE 4
FRONT &REAR WHEEL
STEERING
(IN SAME
DIRECTION)
FRONT & REAR WHEEL
STEERING
(IN OPPOSITE
DIRECTIONS)
REAR WHEEL
STEERING
Mode 1st indicator
lights up.
Mode 2nd indicator
lights up.
Mode 3rd indicator
lights up.
Mode 4th indicator
lights up.
Change steering
modes by pressing
this button.
Change steering
modes by pressing
this button.
Change steering
modes by pressing
this button.
Change steering
modes by pressing
this button.
When the Mode 3rd indicator
lights up, this 1/24th scale rock
crawler features both front and
rear wheel steering,which are
performed in same direction.
When the Mode 2nd indicator
lights up, this 1/24th scale rock
crawler features both front and
rear wheel steering,which are
performed in opposite directions.
When the Mode 4th indicator
lights up, this 1/24th scale rock
crawler features rear wheel
steering,coming without front
wheel steering.
STOPPING RUNNING YOUR ROCK CRAWLER
Switching off the the power switch on the rock crawler,and then the radio controller.
Switching off the
radio controller
Switching off the
power switchon
the rock crawler

5
TO CHARGE THE BATTERY PACK
Inspect your car for any obvious damage.
Check the gears for wear, debris or broken/slipping teeth.
Check the wheels and tighten the wheel screws properly.
Check for loose screws in the chassis.
Check the wiring for frayed or damaged wires or connectors.
Check the steering servos which would wear out over time and require replacement.
Check all batteries.
Keep the chassis clean and free of sand, dust and moisture.
Remove and clean the motor if necessary. (Never attempt to re-assemble the motor, you
will damage it and void the warranty).
Clean the car body with a soft lint-free cloth.
Switch off the car and the radio controller when not in use.
After running your car, the following procedures should be performed regularly and will help to
maintain your car's performance.
MAINTAINING YOUR CAR
The battery pack ( 6.4V, 500mAH) is provided to 1/24th scale rock crawler which is a built-in
part inside the ESC/Receiver case. The charging socket is located on the ESC/Receiver case.
(See the photo below.)
Charging Socket
1)Plug the charger connector into the charging socket as shown
in the photo.
2) Charging time is around 2 hours.
3) Do not charge the battery unattended.
4) Do not overcharge the battery. Failure to do so will shorten
lifetime of battery.
Charger Connector
The battery pack is built in the ESC/Receiver case. There is no
need removing battery out when charging the battery pack.

Please completely read and understand the entire manual before using, assembling and/or
disassembling your remote controlled car.
This small rock crawler is only 1/24th scale one, which never fails to provide you
enjoyment in crawling on any indoor or outdoor track ( even on a small table, over the
keyboard)...
-Please read and understand all instructions in the manual before running and
assembling or disassembling this product.
A novice user should seek help from experienced hobby operators or local
hobby shop staff.
-Always disconnect your battery pack before tempting to re-install your radio
system.
-Keep away from children when you are assembling or disassembling the vehicle
as it contains many small parts that might be dangerous to children.
-Always turn off your radio when it is not in use for a long period of time.
-In order to prevent battery leakage please remove all battery from your radio if
not in use.
-Do not share the same frequency with somebody else when they are using RC
products. If it is the case, keep
away from them. Otherwise, it will cause signal confusion and do damage to your
models and/or your body.
-For better radio performance fully extend the antenna on your radio controller.
-Never charge your rechargeable battery pack unattended.
-Always dispose of damaged parts into the recycle center.
14+ 14+
