HDTV Supply HDTVSXSMX99 User manual

1
HDTV Supplys Full-HD 9x9 Seamless HDMI Matrix with
3x3 Multi-View
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
FEATURES
Any one of the 9 sources to any one of the 9 displays
Seamless switching ensures no switching delay and pictures loss during transitions
Create a 3x3 multi-view on the 9th output port
Support high difinition resolutions up to Full HD 1080p
With audio extraction for each output (optical audio output)
With Panel Button, Remote Control, RS232 Control, IP Control to select the source
Support Saving and Reading modes
1U rack design, easy installment
DC 12V 3A power supply
Unit size: L438xW220xH44mm
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating

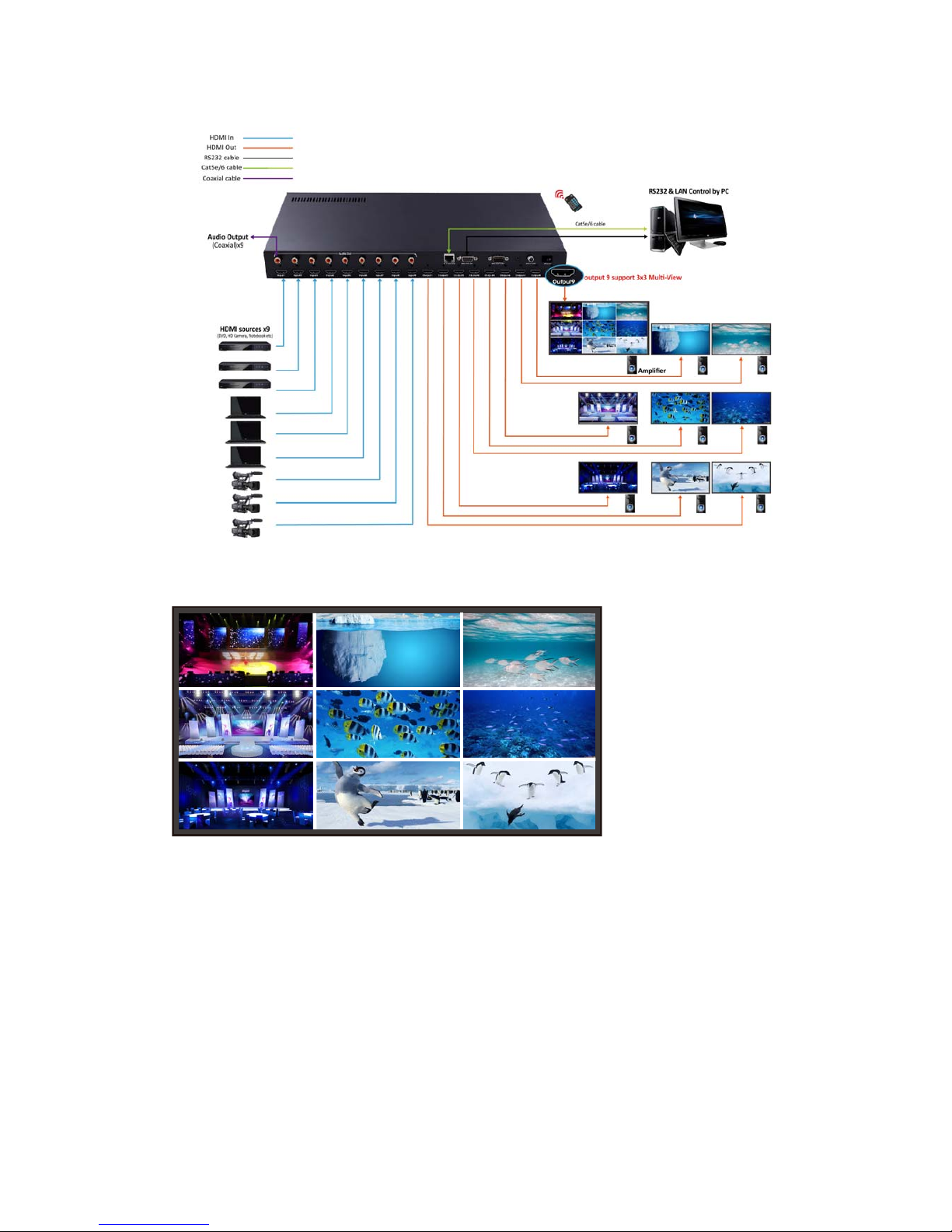

Typical Application
Maintenance
Product Service
Warranty

2
SPECIFICATIONS
PACKING CONTENTS
1. 9x9 Matrix
(HDTVSXSMX99) x1
2. Remote Controller x1
3. CD ROM (user manual) x1
4. Power Adapter 12V3A x1
5. Mountain Ears x1
6. IR Cable x1
PANEL DESCRIPTIONS

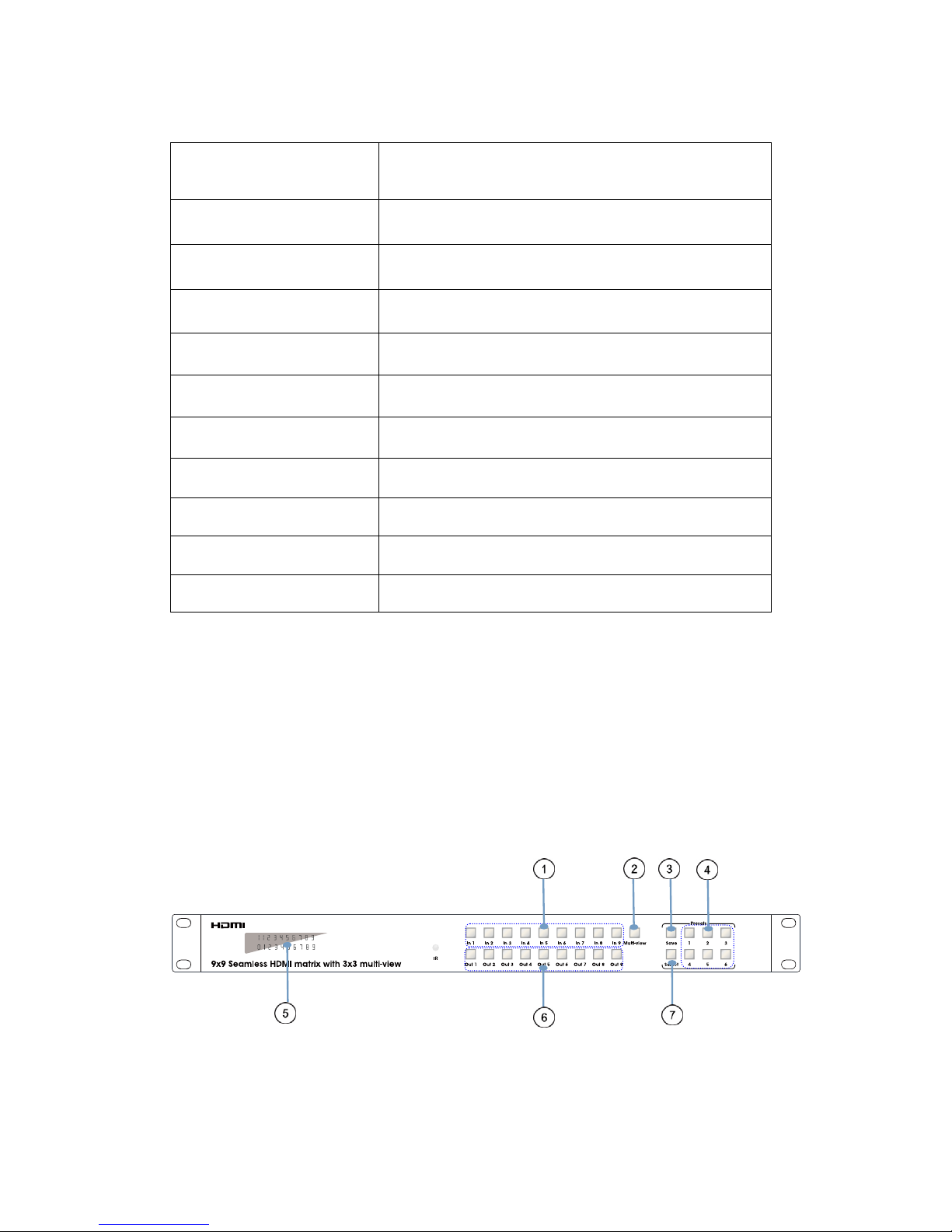

1. Input 2. 3x3 Multi-View 3. Source Save
4. Recall/Fast Key 5. Dispalys : Input /Output 6. Output
7. Source Selection
Product Seamless 9x9 matrix with multiview function as the
preview for all the inputs
HDMI Version HDMI1.3/DVI
HDCP Yes
Video Input Port 9xHDMI
Video Output Port 9xHDMI
Audio Output 9xAudio
Control Button, IR, RS232 or TCP/IP
Power Consumption (max.) 25 Watts
Housing Metal
Dimension (mm) L440 x W256 x H42 mm/ L17.3”xW10”xH1.65”
Weight 3.38Kg / 7.45(lb)

3
1.AudioOut 2.IPcontrolport 3.RS232In
4. RS232 out 5. IR Extension Port 6.DC/12V
7. HDMI Input 8. HDMI Output
CONNECTING AND OPERATING
1. Connect source devices to input ports of HDTVSXSMX99.
2. Connect HDMI output port to TV or other HDMI sink devices.
3. Optional: Connect the IR Cable to the IR Port.
4. Optional: Connect RS232 cable from PC RS232 port
(or USB-RS232 converter) to HDTVSXSMX99.
5. Optional: Connect Audio (Coaxial) cable to the Audio output port.
6. Optional:Connect an Ethernet cable from the TCP/IP port on the matrix to a local
Area Network.
7. Connect 12V/3A power supply to DC power socket.
8. Power on the HDTVSXSMX99, TV and other devices.
9. Control HDTVSXSMX99 by using buttons on the front panel.
a). Select input for output port:
Press output button (out1~out9) and then press the input button (in1~in9 ). The output
port will change it’s source to the selected source.
b). Save the setting to reserve mode:
Press ‘Save’ button first and then press ‘mode1’,’mode2’, ‘mode3’ , ‘mode4’ , ‘mode5’
or ‘mode6’ will save the current setting.
c). Recall the saved mode:
Press ‘Select’ button first and then press ‘mode1’,’mode2’, ‘mode3’ , ‘mode4’ , ‘mode5’
or ‘mode6’ will recall the saved set.
Dispalys:Input/Output Input Output Recall/Fast KeySourceSave

4
d).Press button “Multiview” the 9th output port will show Multi-view
10. Control via remote control. Discrete IR code is supported for the IR signal from control
system such as Control 4 etc.
11. Control via TCP/IP.
TCP/IP command list:
Description Frame header Length Group
Address
Devide
Address Keyword Parameter Check Sum
OUT1-->IN1 AA 06 00 07 00 00 00 01 10 01 01 36
OUT1-->IN2 AA 06 00 07 00 00 00 01 10 01 02 35
OUT1-->IN3 AA 06 00 07 00 00 00 01 10 01 03 34
OUT1-->IN4 AA 06 00 07 00 00 00 01 10 01 04 33
OUT1-->IN5 AA 06 00 07 00 00 00 01 10 01 05 32
OUT1-->IN6 AA 06 00 07 00 00 00 01 10 01 06 31
OUT1-->IN7 AA 06 00 07 00 00 00 01 10 01 07 30
OUT1-->IN8 AA 06 00 07 00 00 00 01 10 01 08 2F

5
OUT1-->IN9 AA 06 00 07 00 00 00 01 10 01 09 2E
OUT2-->IN1 AA 06 00 07 00 00 00 01 10 02 01 35
OUT2-->IN2 AA 06 00 07 00 00 00 01 10 02 02 34
OUT2-->IN3 AA 06 00 07 00 00 00 01 10 02 03 33
OUT2-->IN4 AA 06 00 07 00 00 00 01 10 02 04 32
OUT2-->IN5 AA 06 00 07 00 00 00 01 10 02 05 31
OUT2-->IN6 AA 06 00 07 00 00 00 01 10 02 06 30
OUT2-->IN7 AA 06 00 07 00 00 00 01 10 02 07 2F
OUT2-->IN8 AA 06 00 07 00 00 00 01 10 02 08 2E
OUT2-->IN9 AA 06 00 07 00 00 00 01 10 02 09 2D
OUT3-->IN1 AA 06 00 07 00 00 00 01 10 03 01 34
OUT3-->IN2 AA 06 00 07 00 00 00 01 10 03 02 33
OUT3-->IN3 AA 06 00 07 00 00 00 01 10 03 03 32
OUT3-->IN4 AA 06 00 07 00 00 00 01 10 03 04 31
OUT3-->IN5 AA 06 00 07 00 00 00 01 10 03 05 30
OUT3-->IN6 AA 06 00 07 00 00 00 01 10 03 06 2F
OUT3-->IN7 AA 06 00 07 00 00 00 01 10 03 07 2E
OUT3-->IN8 AA 06 00 07 00 00 00 01 10 03 08 2D
OUT3-->IN9 AA 06 00 07 00 00 00 01 10 03 09 2C
OUT4-->IN1 AA 06 00 07 00 00 00 01 10 04 01 33
OUT4-->IN2 AA 06 00 07 00 00 00 01 10 04 02 32
OUT4-->IN3 AA 06 00 07 00 00 00 01 10 04 03 31
OUT4-->IN4 AA 06 00 07 00 00 00 01 10 04 04 30
OUT4-->IN5 AA 06 00 07 00 00 00 01 10 04 05 2F
OUT4-->IN6 AA 06 00 07 00 00 00 01 10 04 06 2E
OUT4-->IN7 AA 06 00 07 00 00 00 01 10 04 07 2D
OUT4-->IN8 AA 06 00 07 00 00 00 01 10 04 08 2C
OUT4-->IN9 AA 06 00 07 00 00 00 01 10 04 09 2B
OUT5-->IN1 AA 06 00 07 00 00 00 01 10 05 01 32
OUT5-->IN2 AA 06 00 07 00 00 00 01 10 05 02 31
OUT5-->IN3 AA 06 00 07 00 00 00 01 10 05 03 30
OUT5-->IN4 AA 06 00 07 00 00 00 01 10 05 04 2F
OUT5-->IN5 AA 06 00 07 00 00 00 01 10 05 05 2E
OUT5-->IN6 AA 06 00 07 00 00 00 01 10 05 06 2D
OUT5-->IN7 AA 06 00 07 00 00 00 01 10 05 07 2C
OUT5-->IN8 AA 06 00 07 00 00 00 01 10 05 08 2B
OUT5-->IN9 AA 06 00 07 00 00 00 01 10 05 09 2A
OUT6-->IN1 AA 06 00 07 00 00 00 01 10 06 01 31
OUT6-->IN2 AA 06 00 07 00 00 00 01 10 06 02 30
OUT6-->IN3 AA 06 00 07 00 00 00 01 10 06 03 2F
OUT6-->IN4 AA 06 00 07 00 00 00 01 10 06 04 2E
OUT6-->IN5 AA 06 00 07 00 00 00 01 10 06 05 2D
OUT6-->IN6 AA 06 00 07 00 00 00 01 10 06 06 2C
OUT6-->IN7 AA 06 00 07 00 00 00 01 10 06 07 2B
OUT6-->IN8 AA 06 00 07 00 00 00 01 10 06 08 2A
OUT6-->IN9 AA 06 00 07 00 00 00 01 10 06 09 29
OUT7-->IN1 AA 06 00 07 00 00 00 01 10 07 01 30
OUT7-->IN2 AA 06 00 07 00 00 00 01 10 07 02 2F
OUT7-->IN3 AA 06 00 07 00 00 00 01 10 07 03 2E
OUT7-->IN4 AA 06 00 07 00 00 00 01 10 07 04 2D
OUT7-->IN5 AA 06 00 07 00 00 00 01 10 07 05 2C
OUT7-->IN6 AA 06 00 07 00 00 00 01 10 07 06 2B
OUT7-->IN7 AA 06 00 07 00 00 00 01 10 07 07 2A
OUT7-->IN8 AA 06 00 07 00 00 00 01 10 07 08 29
OUT7-->IN9 AA 06 00 07 00 00 00 01 10 07 09 28
OUT8-->IN1 AA 06 00 07 00 00 00 01 10 08 01 2F
OUT8-->IN2 AA 06 00 07 00 00 00 01 10 08 02 2E
OUT8-->IN3 AA 06 00 07 00 00 00 01 10 08 03 2D
OUT8-->IN4 AA 06 00 07 00 00 00 01 10 08 04 2C
OUT8-->IN5 AA 06 00 07 00 00 00 01 10 08 05 2B
OUT8-->IN6 AA 06 00 07 00 00 00 01 10 08 06 2A
OUT8-->IN7 AA 06 00 07 00 00 00 01 10 08 07 29
OUT8-->IN8 AA 06 00 07 00 00 00 01 10 08 08 28
OUT8-->IN9 AA 06 00 07 00 00 00 01 10 08 09 27
ALL-->IN1 AA 06 00 07 00 00 00 01 10 00 01 37
ALL-->IN2 AA 06 00 07 00 00 00 01 10 00 02 36
ALL-->IN3 AA 06 00 07 00 00 00 01 10 00 03 35
ALL-->IN4 AA 06 00 07 00 00 00 01 10 00 04 34
ALL-->IN5 AA 06 00 07 00 00 00 01 10 00 05 33
ALL-->IN6 AA 06 00 07 00 00 00 01 10 00 06 32
ALL-->IN7 AA 06 00 07 00 00 00 01 10 00 07 31
ALL-->IN8 AA 06 00 07 00 00 00 01 10 00 08 30
ALL-->IN9 AA 06 00 07 00 00 00 01 10 00 09 2F
OUT9-->
Multiview AA 06 00 07 00 00 00 01 10 09 0A 25
