HDX E3590137OBH4THD User manual

HOMEDEPOT.COM
Please contact 1-800-514-6729 for further assistance.
Use and Care Guide
4-Tier Shelving Unit
Item # 564184
1001078103
1001298072
Model # E3590137OBH4THD
E3590137OBK4THD
E3590137OBW4THD

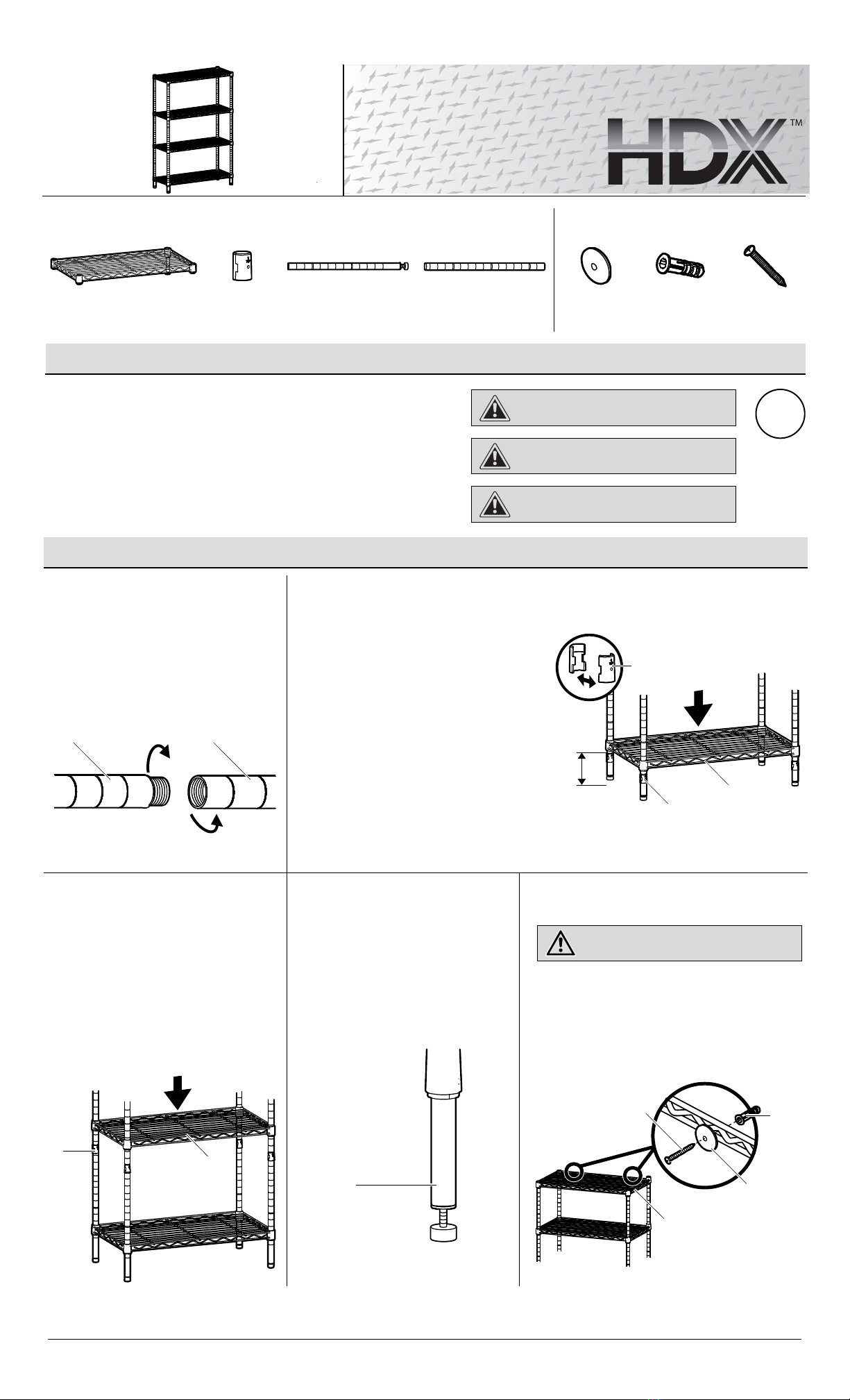

PACKAGE CONTENTS HARDWARE INCLUDED
A – Shelf x 4 B – Tapered
sleeve x 32
+ 2 extra
C – Bottom pole with
pre-installed leveler x 4
D – Top pole x 4 AA –
Washer x 2
BB –
Anchor x 2
CC –
Screw x2
Safety Information
Read and understand this manual before assembly.
Before you begin, inspect each part and compare to the Package Contents list.
If any part appears missing or damaged, do not assemble and use this product.
Contact Customer Service at 1-800-514-6729.
1. Two adults are recommended for ease of assembly. Use care when handling.
2. Assemble on a soft surface, such as carpet, to avoid scratching the finish.
CAUTION: Do not allow children to play or
climb on the product.
CAUTION: Place the unit on a level surface to
avoid a tipping hazard.
CAUTION: Each shelf holds up to 350 lbs,
evenly distributed. Do not overload.
Assembl
y
1 Assembling the posts 2 Installing the bottom shelf
□Before you begin, discard the black
circular pieces found when unpacking this
product. They are for shipping purposes
only.
□Screw the bottom pole (C) to the top pole
(D). Repeat for the remaining poles.
□Determine the desired position of the shelf (A).
Ensure that it is no more than 6 in. from the
floor.
□Place two tapered sleeves (B) into the
appropriate groove on each pole assembly.
Ensure the “UP” arrow faces up. Ensure each
sleeve is the same height to ensure the shelf
is level when installed.
□Place the shelf (A) on its side and slide each
pole assembly through the bottom of the shelf
(A) until snug. After all pole assemblies are in
place, position the unit in the upright position.
□Push down on each corner of the shelf (A),
ensuring the corners of the shelf (A) slip fully
in the locked position over the sleeves (B).
3 Adding shelves 4 Adjusting the levelers 5 Mounting to the wall
□Determine the position of the second
shelf. Place the tapered sleeves (B) onto
the pole assemblies and ensure that the
sleeves are level with each other.
□Slide the shelf (A) down from the top of
the pole assemblies and onto the tapered
sleeves (B).
□Push each corner of the shelf (A) down
until it locks into position over the sleeves
(B). Repeat for the remaining shelves (A).
□Move the assembly to the desired
location.
□If needed, adjust the levelers on the
bottom of the poles (C) to ensure the
shelving unit is level. Rotate the levelers
counterclockwise to raise the poles, and
clockwise to lower the poles.
WARNING: This step is required to ensure the
stability of the shelves.
□Mark the locations of the mounting holes with a
pencil using the top shelf (A) as a guide. Drill pilot
holes at the marked locations using a 1/4 in. bit,
and insert the wall anchors (BB) into the holes.
□Secure the top of the shelf (A) to the wall by
inserting screws (CC) with washers (AA) through the
shelf (A) and into the wall anchors (BB).
D
C
6 in.
B
A
B
B
A
C
A
CC BB
AA
NSF ®

HOMEDEPOT.COM
Please contact 1-800-514-6729 for further assistance.
Optional Caster Assembly
HDX offers optional rolling casters that you can purchase either online or at
your local The Home Depot if you wish to convert this shelving unit into a
rolling shelving unit. Unscrew and remove the leveling feet on the bottom of
the shelving unit and replace with casters. Ensure the casters you purchase
are 3 in. or 4 in. in size and have a 3/8 in. thread diameter.
CAUTION: Tipping Hazard: Failure to follow these caster
guidelines can result in damage or personal injury.
□Push mobile units in a long direction.
□Use caution when moving heavily loaded carts as they are
more difficult to control.
□Place heavy objects on the lowest shelf.
□Inspect casters before use and replace those that are worn
immediately.
CAUTION: Total load capacity for 3 in. casters is 330 lbs and
400 lbs for 4 in. casters, evenly distributed.
3/8"
