Tennsco 1872 Instruction Manual

PK-1830918
ASSEMBLY INSTRUCTIONS & PARTS MANUAL
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
Deluxe Combination Cabinet
Unassembled Models 1872 & 2472
GENERAL SAFETY INFORMATION
Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury.
For safety, wear a pair of work gloves when assembling or performing any maintenance on products.
LIMITED WARRANTY
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply
in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modication or repair by persons not authorized by Seller, where goods are damaged during
shipment, or where the date stamps on the goods have been defaced, modied or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT SELLER’S OPTION, AND SHALL IN NO
EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the
goods to Seller for inspection on Seller’s premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty
and are returned within the warranty period stated above.
Tennsco LLC., Dickson, TN 37056-1888 • [phone]
LOAD CAPACITIES PER SHELF LEVEL
36w x 18d
36w x 24d
18w x 18d
18w x 24d
200 lbs.
200 lbs.
75 lbs.
75 lbs.
UNIT SIZE WEIGHT CAPACITY
EVENLY DISTRIBUTED

ASSEMBLY OF 1872 OR 2472 CABINET
Tools Needed: A free 11/32” nut driver is included with each Tennsco cabinet.
Two people are recommended for assembly. Approximate assembly time: 20-30 minutes.

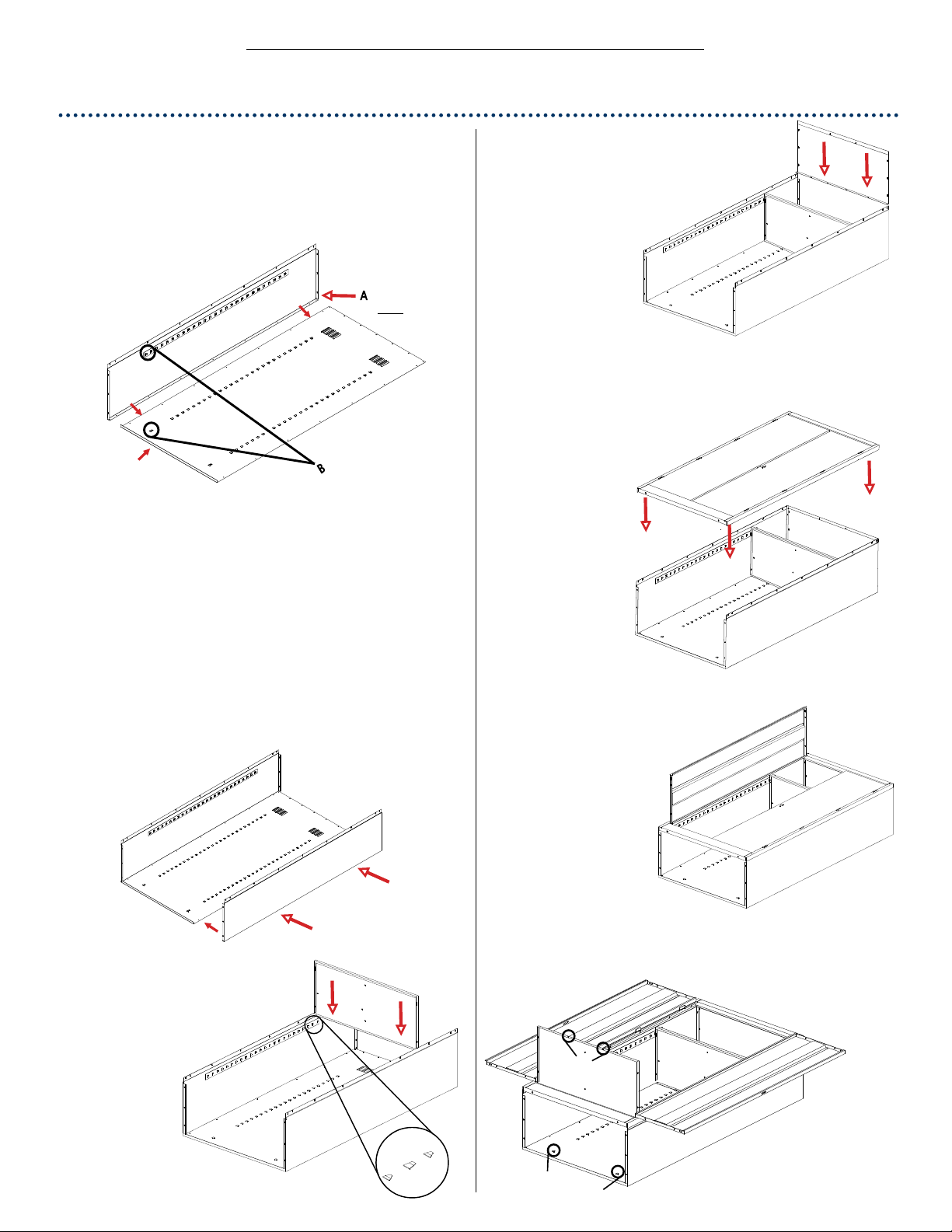

2. Place the cabinet back (Ref. No. 1) on a protected surface
to prevent scratching the paint. The ange on the bottom of
the back should be
facing upward.
1. The reference numbers used throughout this sheet refer to
the illustration on the back cover. This is to help you to
identify the various parts as they are mentioned.
Attach the left side (Ref. No. 2) to the back by placing ange
(A) around the back and bolting together with seven bolts
and nuts (Ref. Nos. 19 & 20). Be sure that the lances on all
shelf adjustment strips (B) point in the same direction.
5. Place the top (Ref. No. 5) onto
the unit. Be sure that the
anges tuck inside the cabinet
sides and back. Secure with
eleven nuts and bolts. The
front part of the top
will bolt into place
in step 8.
3. Attach the right side (Ref. No. 3) to the back in the same
manner as in step 3, again making sure that the ange
is around the back and that the lances on the shelf adjust
ment strips are pointed in the same direction as those on the
back and left side.
6. With both doors in the closed position, lift the door and
frame assembly (Ref. No. 6) and place it over the cabinet
body. Be aware that the door latches have not yet been
7. With the door and frame assembly in place, attach it
securely to the unit by opening each
door, one at a time, and securing
the frame assembly using
two bolts and twenty
nuts. This will require
attaching nuts to the
nine pre-welded studs
along each side, plus
two bolts and nuts
along the top.


attached so the
doors could
potentially swing
open if the door
frame is held in
an upsidedown
position. The door
frame should
cover the outside
edges of the
entire storage
cabinet front.



4. Place the shelf (Ref. No. 4) into one
of the upper positions on the unit
by inserting the shelf edges into
the lances on all four shelf
adjustment strips. Be
sure that the
channeled
edge of the
shelf is
toward the
cabinet front.


Two holes
must be in front.
8. Place the the bottom (Ref. No. 7) in the lowest notch of the
shelf adjusting strips on the back. Make sure the ange with
two holes faces the front, and that it is over the ange of the
frame sill. If necessary, you may
push out on the side
walls to
enable
the bottom
to more
easily slide
into position. Attach
the shelf securely by bolting
the bottom to the frame sill
with two bolts and nuts.
Insert shelf
into bottom lances.
NOTE: When bolting the unit together, leave
the bolts slightly loose until Step 10, unless
otherwise specified.
All lances point UP on
the back and side.
Flanges
face upward
B

Flange goes
under back.
A







Using two people, set the unit upright and tighten all nuts
10.
around the entire unit.
Attach the coat rod bracket
(Ref. No. 10) to the
underside of the shelf,
inserting one bolt and nut
through the hole provided
on the far right and far left
side. The open side of the
side brackets should face
into the unit. Insert the coat
rod (Ref. No. 11) into rst
one bracket, and then into
the other by exing the
second bracket.


Levelers
Access Holes
12. The cabinet must be level
in order for the doors to
close properly. Leveler
may be adjusted by placing
the nut driver through the
hole in each end of the
sill and adjusting the
leveling screw.
9. Insert the partition (Ref. No. 8) into the cabinet, aligning the
four holes in the partition with the two holes in the cabinet
bottom and the two holes in the cabinet shelf. Attach with
four bolts and nuts, making sure that the bolts are inserted
from the top downward to prevent items stored on the shelves
from being snagged.
11. Insert the four partition shelves (Ref. No. 9) at the desired
levels. The shelves should be inserted using the same method
shown in step 4.


1. Place the locking handle
(Ref. No. 13) on the right
hand door and fasten with
two #8-32 X 1/4hex-head
bolts and lock washers,
provided with the handle.
2. Turn the handle to the
open position and
place the locking cam
(Ref. No. 14) over the
square shank of the
door handle. The latch
must be facing downward
as shown. Then place the
locking cotter pin (Ref. No.
16) through the hole of the
square shank.
3. With the handle still in the open position, hook the
locking bars (Ref. No. 12) to the locking cam (see
“A” at left). Once in position, slowly rotate the door
handle to the closed position so the lock bars
prot rude from the holes at the top and bottom
of the door (shown at right, below).
4. Slide the nylon lock bar
guide inserts (Ref. No.
15) over the lock bar
ends and through the
door slots (see “B” at
right). Push down rmly
until the guides snap
into place.
5. Attach the “dummy” handle
(Ref. No. 17) using two
#8-32 X 1/4hex-head bolts
and lock washers.
Handle/Locking System Installation
A
B
B









REPLACEMENT PARTS











Tennsco Nut Driver
(Ref No. 18)
Coat Rod
(Ref No. 11)
Bottom
(Ref No. 7)
Coat Rod
Bracket
(Ref No. 10)
Dummy Handle
(Ref No. 17)
Left Side
(Ref No. 2)
Top
(Ref No. 5)
Shelf
(Ref No. 4)
Right Side
(Ref No. 3)
Cotter Pin
(Ref No. 16)
Locking Bar Guide
Nylon Insert
(Ref No. 15)
Locking Bar Set
(Ref No. 12)
Locking Cam
(Ref No. 14)
Locking Handle
with Keys
(Ref No. 13)
Back Panel
(Ref No. 1)
REF. NO. DESCRIPTION
1 Back Panel 1 043BA 1 043BA
2 Left Side 1 043LS 1 044LS
3 Right Side 1 043RS 1 044RS
4 Shelf 1 301 1 302
5 Top 1 043TO 1 044TO
6 Door & Frame Assembly 1 043DA 1 043DF
7 Bottom 1 043BO 1 044BO
8 Partition 1 045PA 1 046PA
9 Partition Shelf 4 304 4 305
10 Coat Rod Bracket 2 045RB 2 045RB
11 Coat Rod 1 046CR 1 046CR
12 Locking Bar Set 1 043LB 1 043LB
13 Locking Handle w/keys & hardware 1 043LH 1 043LH
14 Locking Cam* 1 944LC 1 944LC
15 Locking Bar Guide Insert (Nylon)* 2 944GI 2 944GI
16 Cotter Pin* 1 CTRPN 1 CTRPN
17 Dummy Handle* 1 043DH 1 043DH
18 Tennsco Nut Driver 1 TOOL-2 1 TOOL-2
19 #8-32 x 3/8” bolts (not shown above) 35 ** 35 **
20 #8-32 nuts (not shown above) 53 ** 53 **
*Included in Ref. No. 13, locking handle with keys and hardware (Part No. 043LH). **Available Locally
QTY. PART NO.

Door & Frame
Assembly
(Ref No. 6)
NOTE: Additional hardware may be included for replacement purposes.
QTY. PART NO.
1872 (18”d Cabinet) 2472 (24”d Cabinet)

Partition
(Ref No. 8)


Partition Shelf
(Ref No. 9)

Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged.
However, should your unit contain missing or damaged parts, please contact your purchase location.
49B183
