Health O Meter 2500KL User manual

MODEL 2500KL / MODEL 2600KL
DIGITAL WHEELCHAIR PATIENT SCALES
2500KL 2600KL
USER INSTRUCTIONS
P/N UM2500KL / 2600KL Revision 1
1

2500KL / 2600KL
Thank you for your purchase of this Health o meter® Professional product. Please read this
manual carefully, and keep it for easy reference or training.
TABLE OF CONTENTS
CAUTION AND WARNING................................................................................................. 3
SPECIFICATIONS FOR THESE SCALES.......................................................................... 4
CERTIFICATIONS / CONNECTIVITY / DISPOSAL ............................................................ 5
ASSEMBLY INSTRUCTIONS 2500KL SCALE................................................................... 6
ASSEMBLY INSTRUCTIONS 2600KL SCALE................................................................... 12
SET UP / BATTERIES........................................................................................................ 16
QUICK START INSTRUCTIONS ........................................................................................ 18
MAINTENANCE.................................................................................................................. 22
CALIBRATION.................................................................................................................... 23
TROUBLESHOOTING........................................................................................................ 24
WARRANTY ....................................................................................................................... 25
Note: These scales have been factory calibrated, and do not
require calibration prior to use.
PLEASE REGISTER YOUR SCALE FOR WARRANTY COVERAGE AT:
http://www.homscales.com/customers/registration.aspx
FOR USER INSTRUCTIONS UPDATES AND REVISIONS, PLEASE GO TO :
http://www.homscales.com
2

CAUTION AND WARNING
•To prevent injury and damage to your scale, please follow these instructions very
carefully.
•Assemble and operate the scale per the enclosed User Instructions.
•Prior to using the scale, inspect the AC adapter cord for cracking/fraying,
or for broken/bent plug prongs.
•Prior to using the scale, ensure that the AC adapter is plugged into an
outlet with the rated voltage appropriate for operation.
•Ensure that the AC adapter outlet is wired to a circuit breaker or other
protected power source.
•Unplug the AC adapter, and store both the adapter and adapter cord on
the adapter holder before moving the scale.
•Ensure that the AC adapter and scale do not come in contact with
liquids, excessive temperature, or excessive humidity.
•Operating these scales at voltages and frequencies other than specified
can damage the equipment and will void the warranty.
•Do not transport the scale with any weight on the platform.
•For accurate weighing, the scale must be placed on a flat, stable
surface.
•For accurate weighing, verify before each use the proper operation
according to the procedure described in this manual.
•Do not use in the presence of flammable or explosive materials.
•For accurate weighing, if the “Lo bAtt” indicator activates, replace the
batteries or switch to the AC adapter as soon as possible.
3

SPECIFICATIONS FOR THESE SCALES
General
The Model 2500KL and 2600KL Digital Wheelchair Patient Scales use highly sophisticated
microprocessor technology. Each precision scale is designed to provide accurate, reliable, and
repeatable weight measurements. In addition, each scale is designed to provide the user with
features that make the weighing process simple, fast, and convenient.
These scales are set up to use motion-sensing weighing technology in order to determine the
actual weight of a moving patient.
Weight can be displayed in pounds or in kilograms. The scale features a 180°swivel display
head for privacy and for easy operator reading from either side of the scale. For easy mobility,
the 2500KL Scale has 2 built-in wheels, along with the 2600KL Scale with 4 built-in wheels.
Both scales can be powered using an AC Adapter (included), or by 6-AA batteries (not
included).
2500KL / 2600KL Specifications
Capacity and
Resolution 2500KL / 2600KL: 1000 lb x 0.2 lb (454 kg x 0.1 kg)
Power Requirements 120V-240V AC, 50-60Hz - 9V DC adapter or 6- AA batteries
Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)
Storage temperatures: 30°F to 125°F (0°C to 50°C)
Maximum Humidity: 85% rH, non-condensing
Physical Dimensions
2500KL
Platform - 2500 Series
Length: 29-¼” (74.3 cm)
Width: 28-¼” (71.8 cm)
Height: 2¼” (5.7 cm)
Assembled Size and Weight
Length: 36-¾” (93.3 cm)
Width: 40-¼” (102 cm)
Height: 49-7/16” (125.5 cm)
Weight: 79 lb (36 kg)
Physical Dimensions
2600KL
Platform - 2600 Series
Length: 36-¼” (92 cm)
Width: 32-3/8” (82.2 cm)
Height: 2¼” (5.7 cm)
Assembled with Handrail and Ramp
Length: 42-¾ ” (108.5 cm)
Width: 46-7/16” (118 cm)
Height: 49-7/16” (125.5 cm)
Weight: 110 lb (50 kg)
4

CERTIFICATIONS / CONNECTIVITY / DISPOSAL
Certification Descriptions
2500KL / 2600KL Scale Connectivity Information
To enable reliable transmission of weight, height, and BMI data, these scales are designed to
connect to a computer, monitor, or other electronic device via a built-in USB port. This
connectivity helps minimize a source of potential medical errors caused by incorrectly
copying and then recording patient data.
These scales are EMR-EHR compatible. For more information regarding how to connect
these scales to other electronic devices, please contact Health o meter® Professional Scale
Technical Support, available during normal business hours at ([phone] or (+1) 708-
377-0600.
2500KL / 2600KL Scale Disposal
These Health o meter® Professional Scales must be disposed of properly as electronic
waste. Follow the national, regional or local regulations which apply to you for disposal of
electronic waste or batteries. Do not dispose of this device in the domestic waste stream.
5
Pelstar, LLC has been officially certified as the manufacture of
Health o meter® Professional medical devices. The Pelstar, LLC
quality assurance system covers the development, production,
sales and service of medical scales and measuring systems.
This product is tested to and meets the requirements of:
1. UL60601-1 First Edition: Safety for Medical Electrical Equipment
2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment

2500KL ASSEMBLY INSTRUCTIONS
Before Assembly (2500KL Scale)
The 2500KL Wheelchair Patient Digital Scale is shipped disassembled in one carton. Carefully
inspect the carton for shipping damage before unpacking. If damage is found, contact your
shipper or Health o meter® Professional representative immediately. Claims must be filed with
the shipper as soon as possible after receipt of the package. The following information details
what you will find inside the main carton as you unpack the parts for assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open
the protective inner packaging.
Parts List
(1) Base (Platform) Assembly The Small, Long Box Contains:
(1) Handrail (1) Box Containing the AC Adapter
(1) User Instructions (4) Feet
(1) Box Containing: (1) Adapter Holder
(1) Display Assembly (1) 5mm Allen Wrench
(1) Small, Long Box (1) Plastic Bag Containing:
(2) Covers for Display Support (Front & Back)
(2) Pivot Bracket Screw Covers (Left & Right)

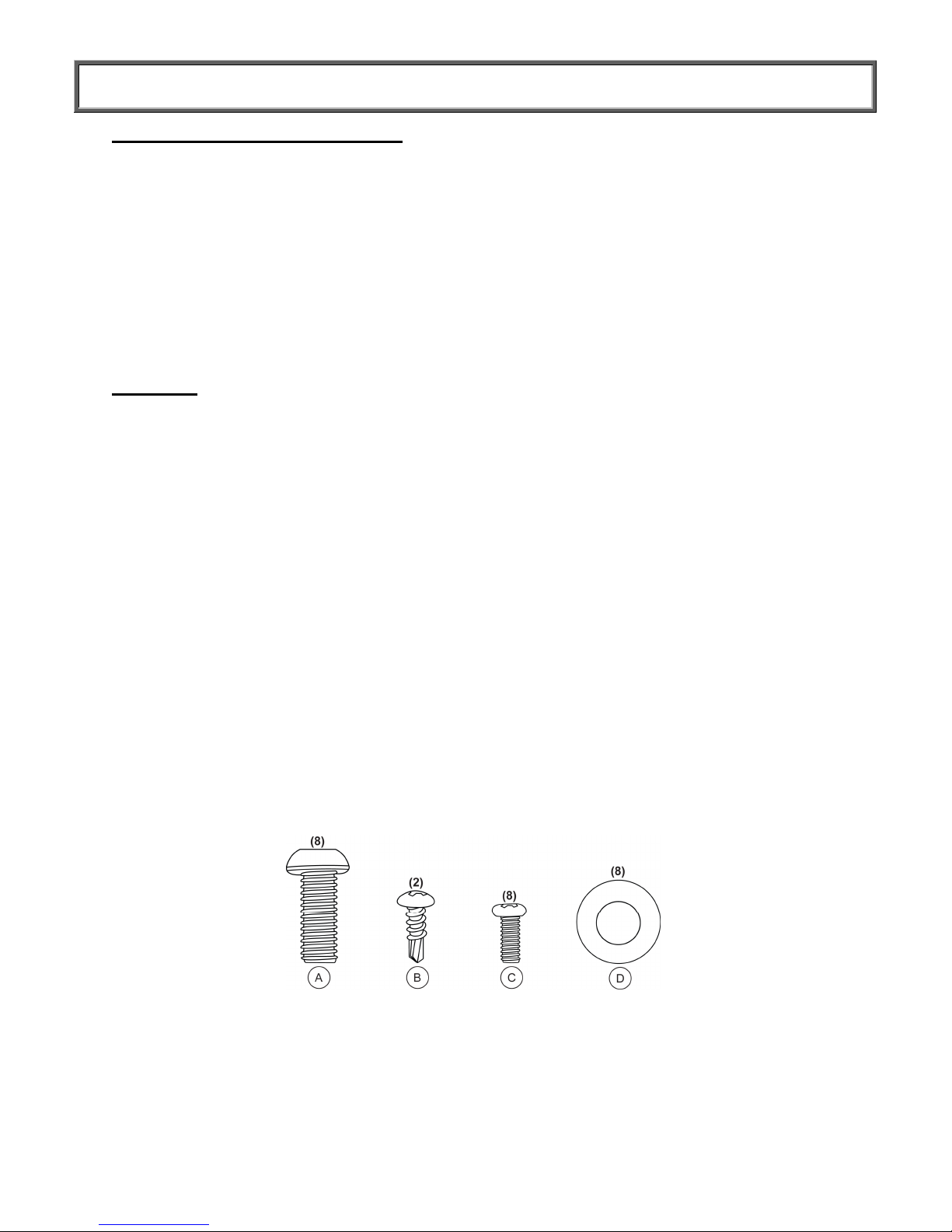

Hardware for Assembly (see Figure 1)
Tools required: Phillips head screwdrivers (not included), Allen wrench (included).
Figure 1
6

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Assembling the 2500KL Scale (see Figures 2-5)
Caution: It is recommended that the assembly be performed by two persons.
1. Place scale base assembly on a flat, level, and dry floor.
2. Locate and pick up the handrail, and then find the load cell cable tucked inside.
3. Untie the load cell cable, and carefully pull the load cell cable end out the handrail bottom.
4. Position the handrail over the handrail mounting holes, located at the edge of the scale
base assembly (see Figure 2).
5. Feed the cable through the large center hole of the handrail mounting holes (located on the
right side of the “Health o meter” logo). Be sure not to pinch the cable.
6. Fasten the handrail to the base assembly using the eight (8) M8 1.25 x ¾ screws (Screw
“A” from Figure 1), eight (8) M8 washers (D), and the included 5mm Allen wrench.
Caution: Do not over-tighten the screws.
7. Pull forward on the handrail to tip the scale over, and gently place it face down on the floor.
Caution: Take care to hold the ramp down when moving the scale-the ramp can flip
open when the scale is tipped forward.
8. Grasp the load cell cable protruding from the bottom of the base assembly and feed it
through the protective metal shield. Plug the cable end into the load cell port (see Figure 3).
9. Pull the excess cable through the top of the handrail.
10. Thread the 4 feet into the underside of the base assembly. Each foot should initially be
completely hand tightened, and then backed out 1-½ full turns. This will allow for proper load
cell operation and scale accuracy (see Figure 4).
11. Carefully tilt the scale back to an upright position on the floor.
Caution: Take care to hold the ramp down when moving the scale-the ramp can flip
open when the scale is tipped back.
Warning: Do not drop the scale on its feet. This can result in permanent load cell
damage.
12. Adjust the feet to level the scale. Be certain that the feet are not completely tightened
into the base assembly (refer to the scale base-feet assembly instruction above).
13. Rotate the display support so that it is perpendicular to the handrail (see Figure 5). Then
position the display assembly close to the display support. Plug the load cell cable connector
into the load cell port on the rear of the display assembly. The port is labeled “LOAD CELL”.
7

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Note: Do not attach the AC adapter power cord into the back of the display assembly at this
point.
14. Align the four mounting holes on the back of the display assembly with the four mounting
holes in the display support, and fasten the display assembly onto the metal display support.
Use the (4) Phillips pan head M4 screws (Screw “C” in Figure 1).
15. Place the pivot bracket screw covers over the pivot screws, and fasten the covers to the
back of the display assembly using the (4) Phillips pan head M4 screws (Screw “C”, Fig. 1).
16. Attach the adapter holder to the left side of the handrail using the two (2) #8 x ½ sheet
metal screws (Screw “B” in Figure 1).
17. Connect the AC adapter to the power port, located on the back of the display assembly.
Caution: Do not plug the scale into a power source until the scale is fully assembled.
18. Rotate the display to align it parallel to the handrail. Attach the front and rear display
support covers by applying light pressure while snapping the covers into place.
19. The scale is now assembled. Plug the AC adapter into a power source and/or insert the
batteries.
8

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Ramp Assembly Instructions
1. Follow these instructions for moving the ramp to the opposite side of the scale, or for
adding a second ramp to the scale (B2500RAMP option):
2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the
end of the platform by unscrewing and then removing the 4 guardrail assembly screws.
3. Fold the ramp onto the platform surface.
4. Remove the screws attaching the 2 rubber bumpers, located on the side of the platform
(see Ramp Assembly Figure below).
5. Remove the bumpers, and re-install them on the opposite side of the platform. Use the
appropriate mounting holes (see Ramp Assembly Figure below).
6. Loosen the screws holding each ramp holder to the platform.
7. Remove the ramp from the ramp holders, and then remove the ramp holders by pulling
out on them slightly.
8. Install the ramp holders at the opposite side of the platform, but do not tighten the
screws.
9. Insert the ramp between the ramp holders, and tighten the assembly screws.
10. Install the guardrail on the opposite side of the platform.
Note: It is necessary to make small clearance holes in the mat in order to re-install the
guardrail assembly screws (the mounting holes are located beneath the mat). Use an awl
or small Phillips screwdriver to make the holes. Use the guardrail as a guide to locate the
two holes beneath the mat.
Note: A second ramp is available separately as B2500RAMP.

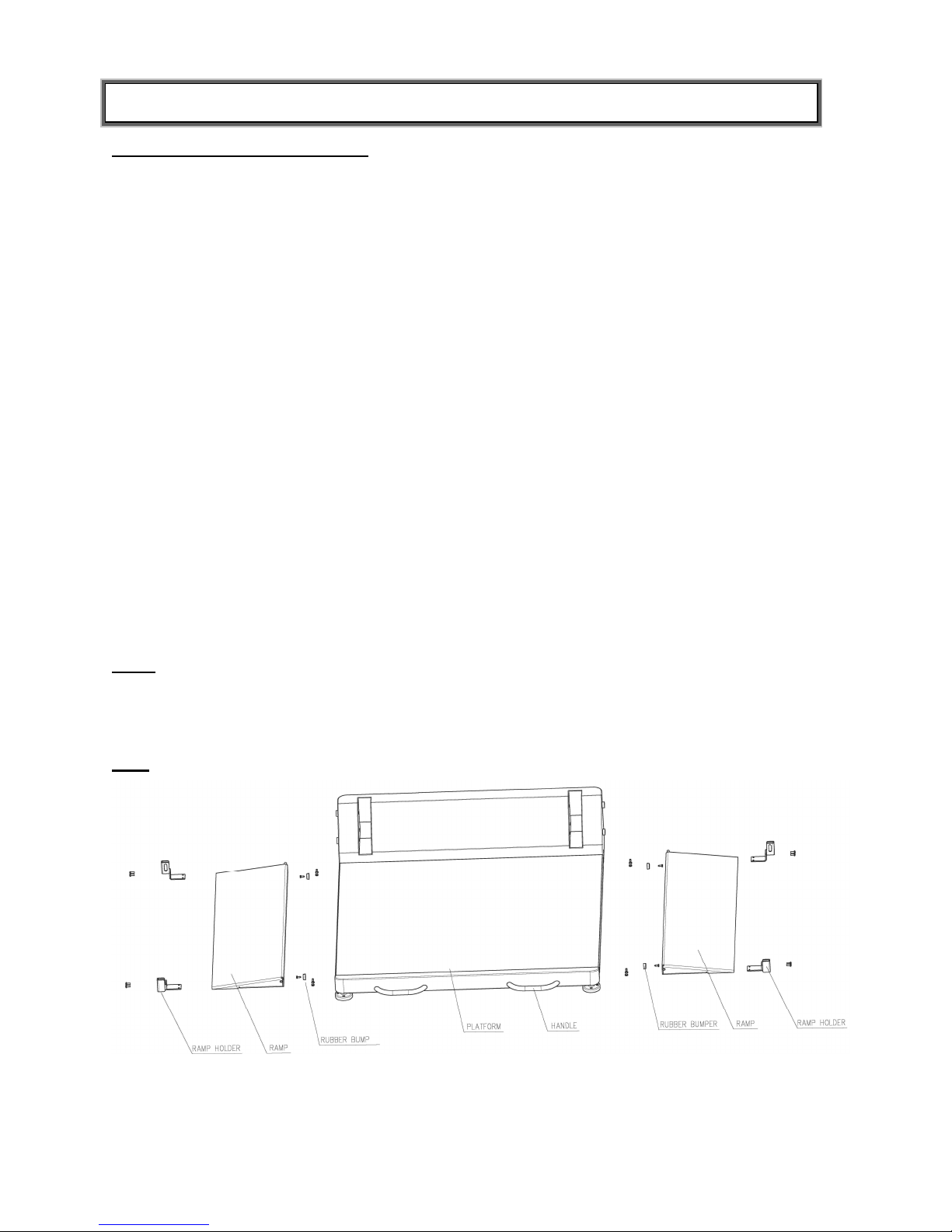

Ramp Assembly Figure
9

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)

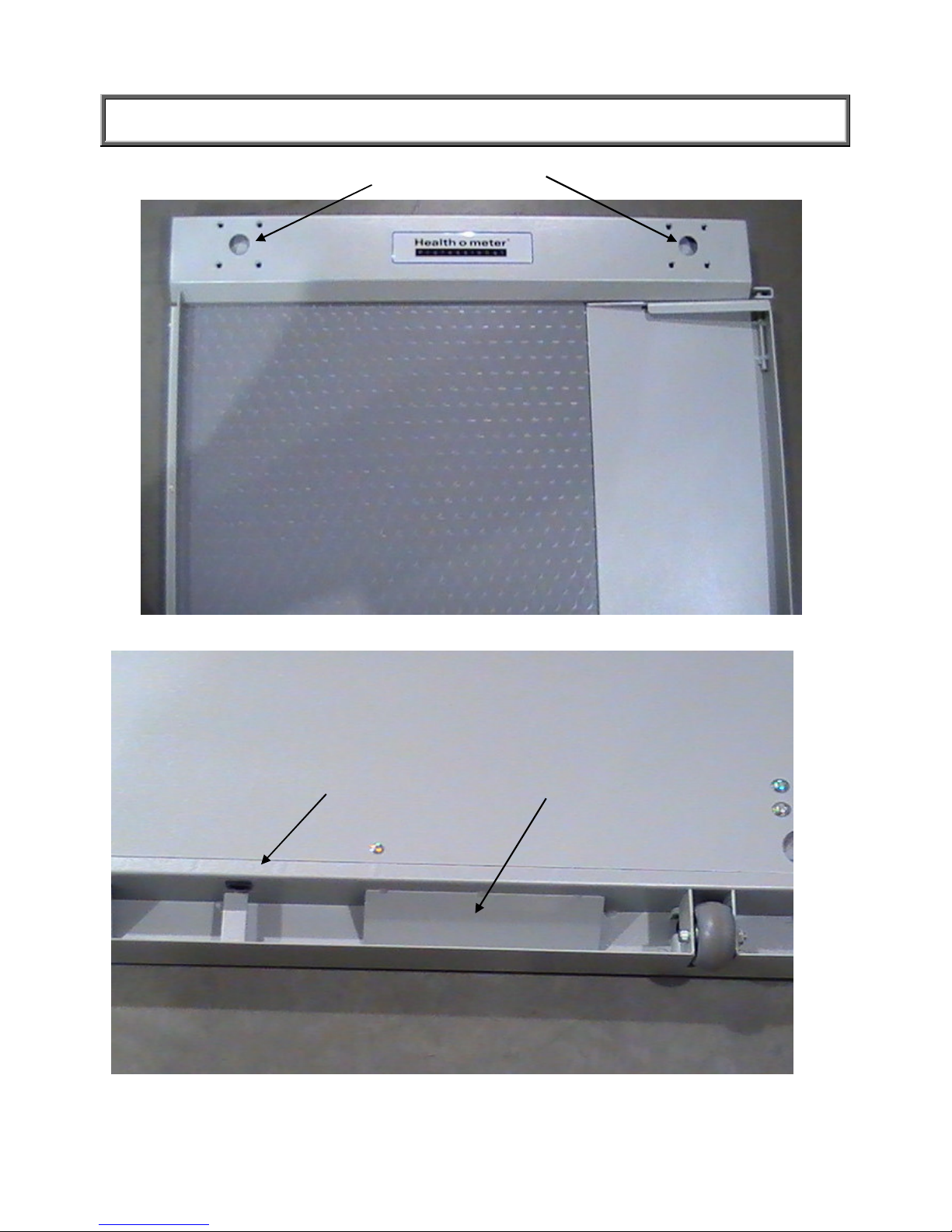

Figure 2
Figure 3
10
Handrail Mounting Holes
Left
Right
d cell port
a
o
L
Shield

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 4
.
Figure 5
11

2600KL ASSEMBLY INSTRUCTIONS
Before Assembly (2600KL Scale)
The 2600KL Wheelchair Patient Folding Digital Scale is shipped disassembled in one carton.
Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact
your shipper or Health o meter® Professional representative immediately. Claims must be filed
with the shipper as soon as possible after receipt of the package. The following information
details what you will find inside the main carton as you unpack the parts for assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to
open the protective inner packaging.
Parts List
(1) Scale Assembly The Small, Long Box Contains:
(1) User Instructions (1) Box Containing the AC Adapter
(1) Box Containing: (4) Feet
(1) Display Assembly (1) Plastic Bag Containing:
(1) Small, Long Box (2) Covers for Display Support (Front & Rear)
(2) Pivot Bracket Screw Covers (Left & Right)
Assembly Hardware (8-M4 Phillips Pan Head Screws)
Tools required: Phillips screwdriver (not included).
Assembling the 2600KL Scale (see Figure 6 & 7)
Caution: It is recommended that the assembly be performed by two persons.
1. Remove the scale assembly from the carton by first removing the inserts, then tucking
the bag down around the end of the box, and finally tilting the carton up on its end.
Carefully roll the scale out of the carton.
2. Remove the bag from around the scale, and safely store or discard the bag.
3. Thread the 4 feet into the underside of the scale platform (see Figure 6). Each foot
should initially be completely hand tightened, and then backed out 1-½ full turns. This will
allow for proper load cell operation and scale accuracy.
12

2600KL ASSEMBLY INSTRUCTIONS (CONTINUED)
4. Open the scale to its operational position.
Warning: Do not drop the scale on its feet. This can result in permanent load cell
damage.
5. Rotate the display support so that it is perpendicular to the handrail.
6. Position the display assembly close to the display support on the handrail. Connect the
load cell cable connector to the load cell port, located on the back of the display assembly.
The port is labeled “LOAD CELL”.
Note: Do not attach the AC adapter power cord into the back of the display assembly at this
point.
7. Align the four mounting holes on the back of the display assembly with the four
mounting holes in the display support, and fasten the display assembly onto the metal
display support using the (4) Phillips pan head M4 screws (see Figure 7).
8. Place the pivot bracket screw covers over the pivot screws, and fasten the covers to the
back of the display assembly using the (4) Phillips pan head M4 screws.
9. Connect the AC adapter to the power port, located on the back of the display assembly.
Caution: Do not plug the scale into a power source until the scale is fully assembled.
10. Rotate the display assembly to align it parallel to the handrail, and then attach the front
and rear display support covers by applying light pressure while snapping the covers into
place.
11. Make any necessary adjustments to level the scale by turning the feet in or out.
12. The scale is now assembled. Plug the AC adapter into a power source and/or insert the
batteries.
13

2600KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 6
Figure 7
14

2600KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Ramp Assembly Instructions
1. Follow these instructions for moving the ramp to the opposite side of the scale, or for
adding a second ramp to the scale (B2600RAMP option):
2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the
end of the platform by unscrewing and then removing the 4 guardrail assembly screws.
3. Fold the ramp onto the platform surface.
4. Remove the screws attaching the 2 rubber bumpers, located on the side of the platform
(see Figure 8).
5. Remove the bumpers, and re-install them on the opposite side of the platform. Use the
appropriate mounting holes (see Figure 8).
6. Loosen the screws holding each ramp holder to the platform.
7. Remove the ramp from the ramp holders, and then remove the ramp holders by pulling
out on them slightly.
8. Install the ramp holders at the opposite side of the platform, but do not tighten the
screws.
9. Insert the ramp between the ramp holders, and tighten the assembly screws.
10. Install the guardrail on the opposite side of the platform.
Note: It is necessary to make small clearance holes in the mat in order to re-install the
guardrail assembly screws (the mounting holes are located beneath the mat). Use an awl
or small Phillips screwdriver to make the holes. Use the guardrail as a guide to locate the
two holes beneath the mat.
Note: A second ramp is available separately as B2600RAMP.
Figure 8
15

SET UP / BATTERIES
Opening the 2600KL Scale
1. From its upright folded position, gently lower the scale onto its feet. Use the scale
handles, located on the front of the platform (see Figure 8).
2. Loosen all four of the handrail locking pin assemblies by turning the locking pins
counterclockwise (see Figure 6).
Note: The assemblies are spring loaded, and will pop out when completely loosened.
3. Grasp the center handrail near the display assembly, and lift the handrail to an upright
position.
4. Lock the center handrail in the upright position by tightening the two upper handrail
locking pin assemblies. In addition, to avoid damage to the pin assemblies, tighten the two
lower locking pin assemblies as well.
Preparing the 2500KL & 2600KL Scale for Use
1. Remove the protective plastic film covering the display (the film says “FACTORY
CALIBRATED”).
2. Place batteries into the display head. (See “Batteries” information in Figure 9, below).
3. Plug the scale’s AC adapter into the power source.
4. Ensure all objects are removed from the scale’s platform, and then press the ON/OFF
button to turn the scale on. The display will show “Start”, then “0.0LB” or “0.0KG”.
5. Press the UNITS button to select the weight mode (pounds or kilos).
6. When you disconnect the scale’s AC adapter from the power source, the scale will
switch to battery power if batteries are installed.
Note: If the setup procedure failed, refer to the troubleshooting instructions. If the problem
is not corrected, refer to qualified service personnel.
Note: The scale will always default to the settings and units last used (LB or KG).
16

SET UP / BATTERIES CONTINUED
Figure 9
Replacing / Inserting Batteries (2500KL & 2600KL)
1. Unplug the scale.
2. Remove the battery cover on the side of the display head by unscrewing the (2) battery cover
screws (see Figure 9).
3. Replace or install the batteries with new units. Health o meter recommends using an alkaline or
lithium battery, rated for 130°F (54°C) operation. Do not use Zinc-Carbon batteries.
4. Re-attach the battery cover to the display assembly.
Warning: If the scale will not be used for some time, remove the batteries to avoid a safety
hazard. Disposal of batteries must be performed in accordance with the prevailing
national, regional or local regulations which apply to you.
17

QUICK START / OPERATING INSTRUCTIONS

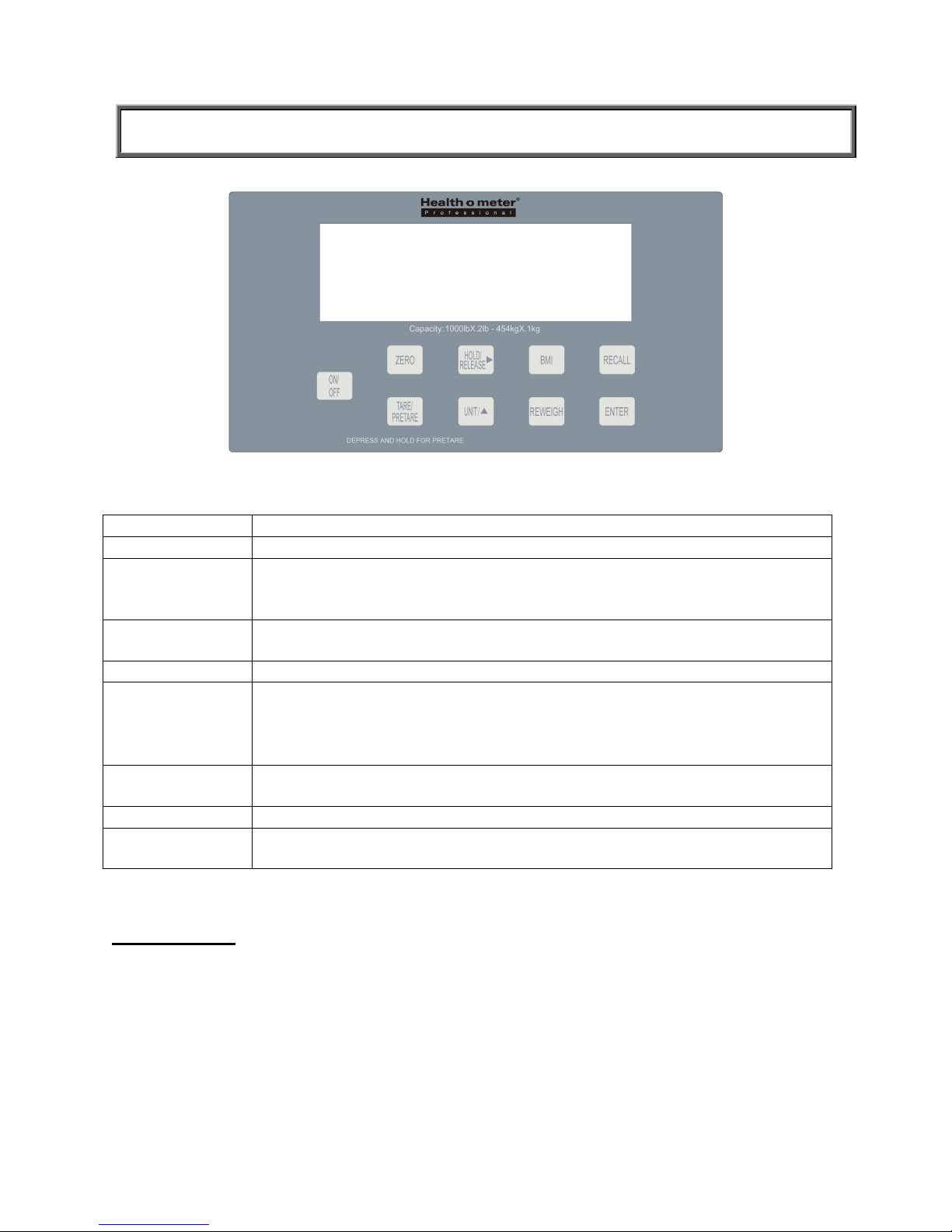

Keypad
Function Description
ON/OFF Turns scale on and off.
ZERO Zeros the scale prior to a weighing.
HOLD /
RELEASE ►
Holds the weight value of the patient on the display until the button is
pressed again to clear the value. Also moves the cursor from left to right
on the display for entering height and pretare value.
BMI Prompts entry of height data to calculate patients Body Mass Index
(BMI).
RECALL Recalls the previous weight.
TARE /
PRETARE
TARE-Tares out weight of an object on the platform.
PRETARE-Prompts entry of a tare value that will be deducted from the
weight on the platform. Also releases tare weight (returns display to
zero).
UNIT / ▲Toggles between pounds and kilograms. Also used to increment height
value and pretare value.
REWEIGH Allows repeated weighing of the patient without stepping off the scale.
ENTER Used to accept height value in BMI mode, and tare value in PRETARE
mode. Also releases the recall value and BMI value.
Tare Function
1. When using the scale, the weight of an object, such as a wheelchair, can be subtracted
from the total weight to determine the patient’s weight alone.
2. The Tare Function automatically performs this subtraction. The 2500KL / 2600KL scales
allow the tare weight to be entered either manually through the keypad, or automatically as
outlined in this section.
18

QUICK START/OPERATING INSTRUCTIONS (CONT)
Automatic (Push Button Tare)
1. With all weight off the scale, press the ON/OFF button to turn on the scale.
2. Wait until the ”0.0LB“ or “0.0KG” and “ZERO” appear on the display.
3. Place the wheelchair on the scale. The display will show a value for the wheelchair’s weight.
4. Press the TARE button. The scale will zero out, and the word “TARE” will appear at the bottom
center of the display, indicating that there is a tare value for this patient’s wheelchair.
5. Remove the wheelchair from the scale. The display will show a negative weight, equal to the
weight of the wheelchair once it is removed from the scale.
6. Place the patient in the wheelchair, and roll the wheelchair onto the scale. The scale will
automatically deduct the tared weight of the wheelchair from the gross weight of the patient and
wheelchair together.
7. The weight of the patient will then appear on the scale.
8. With no weight on the scale, the tared value will remain on the display until changed, cleared, or
until the scale is turned off.
9. To remove the tare value, press the TARE button again. The word “TARE” will disappear from
the bottom of the display, and the tare value will be cleared from the display. The scale will then
resume normal operation.
Manual (Keypad Entry Tare)
1. Make sure that there is no object on the weighing platform.
2. Press the ON / OFF button to turn on the scale.
3. Wait until the ”0.0LB” or “0.0KG” and “ZERO” appear on the display.
4. Hold depressed the TARE button for 3 to 5 seconds. The word “TARE” will appear at the bottom
center of the display, and the user will be prompted to enter the tare value.
5. Use the keypad ►and ▲buttons to enter the weight of the wheelchair or other object, and then
press ENTER.
6. The value entered will show as a negative value on the display.
7. Place the patient in the wheelchair, and roll the wheelchair onto the scale. The scale will
automatically deduct the tared weight, as entered, from the gross weight of the patient and the
wheelchair.
8. The weight of the patient will then appear on the scale.
19

QUICK START/OPERATING INSTRUCTIONS (CONT)
9. With no weight on the scale, the tared value will remain on the display until changed, cleared, or
until the scale is turned off.
10. To remove the tare value, press the TARE button again. The word “TARE” will disappear from
the display, and the tare value will be cleared from the display. The scale will then resume normal
operation.
Weighing a Patient
Note: These scales will always default to the settings and units last used (lb or kg), when it
is turned on.
1. Make sure that there is no object on the weighing platform.
2. Press the ON/OFF button to turn the scale on.
3. Wait until the ”0.0LB” or “0.0KG” and “ZERO” appears on the display.
4. Tare out the weight of the wheelchair, and roll the patient onto the scale. The scale will
begin to display weight information, and will lock on the patient’s weight when the stable
weight of the patient is determined. Depending on the movement of the patient on the
scale, it may require several seconds for the scale to lock onto the weight.
5. Once a weight has been displayed, while the patient is still on the scale, Health o meter
recommends performing a second weighing by pressing the REWEIGH button.
6. The weight may be held on the display by pressing the HOLD/RELEASE button. To
release, press the HOLD/RELEASE button again.
7. After the weight measurement has been taken and is recorded, roll the patient off the
scale.
8. Press the ON/OFF button to turn the scale off.
Weight Recall
1. The last weight reading on the scale can be recalled by pressing the RECALL button.
To clear the display of the recalled weight, press the ENTER button.
Note: Clearing the recalled weight from the display will not clear the recalled weight from
memory. The recalled weight will remain in memory until another weight is obtained.
20
