Model 2650KL / 2700KL
Patient Wheelchair Scales
User Instructions
P/N UM2650KL / 2700KL Rev 1-031512

2
Model 2650KL / 2700KL
Thank you for your purchase of this Health o meter® Professional product. Please read this
manual carefully, and keep it for easy reference or training.
TABLE OF CONTENTS
Caution and Warning.................................................................................................3
Specifications for These Scales ................................................................................4
Certifications / Connectivity / Disposal ......................................................................6
Assembly Instructions 2650KL Scale .......................................................................7
Assembly Instructions 2700KL Scale .......................................................................11
Display Assembly Wall Mounting Instructions ..........................................................15
Setup / Batteries / Transport .....................................................................................16
Quick Start Instructions.............................................................................................18
Maintenance..............................................................................................................22
Calibration.................................................................................................................23
Troubleshooting ........................................................................................................24
Warranty....................................................................................................................25
Note: These scales have been factory calibrated, and does
not require calibration prior to use.
Please register your scale for warranty coverage at:
http://www.homscales.com/customer/registration.aspx
For User Instructions updates and revisions, please go to:
http://www.homscales.com

3
CAUTION AND WARNING
To prevent injury and damage to your scale, please follow these instructions very
carefully.
Assemble and operate the scale per the enclosed user instructions.
Operate these scales exclusively with the AC adapter provided by Health
o meter. Use of an unspecified adapter will void the warranty, and can
pose a serious safety hazard.
Prior to using these scales, inspect theAC adapter cord for
cracking/fraying, or for broken/bent plug prongs.
Prior to using these scales, ensure that theAC adapter is plugged into an
outlet with the rated voltage appropriate for operation.
Ensure that the AC adapter outlet is wired to a circuit breaker or other
protected power source.
Unplug the AC adapter, and carefully store both the adapter and adapter
cord before moving the scale.
Ensure that the AC adapter and scale do not come in contact with liquids,
excessive temperature, or excessive humidity.
Operating these scales at voltages and frequencies other than specified
can damage the equipment and will void the warranty.
Do not transport the scale with any weight on the platform.
Do not exceed recommended weight limit of 1000 lb / 454 kg for these
scales.
For accurate weighing, these scales must be placed on a flat, stable
surface. Also verify before each use the proper operation according to
the procedure described in this manual.
Do not use in the presence of flammable or explosive materials.

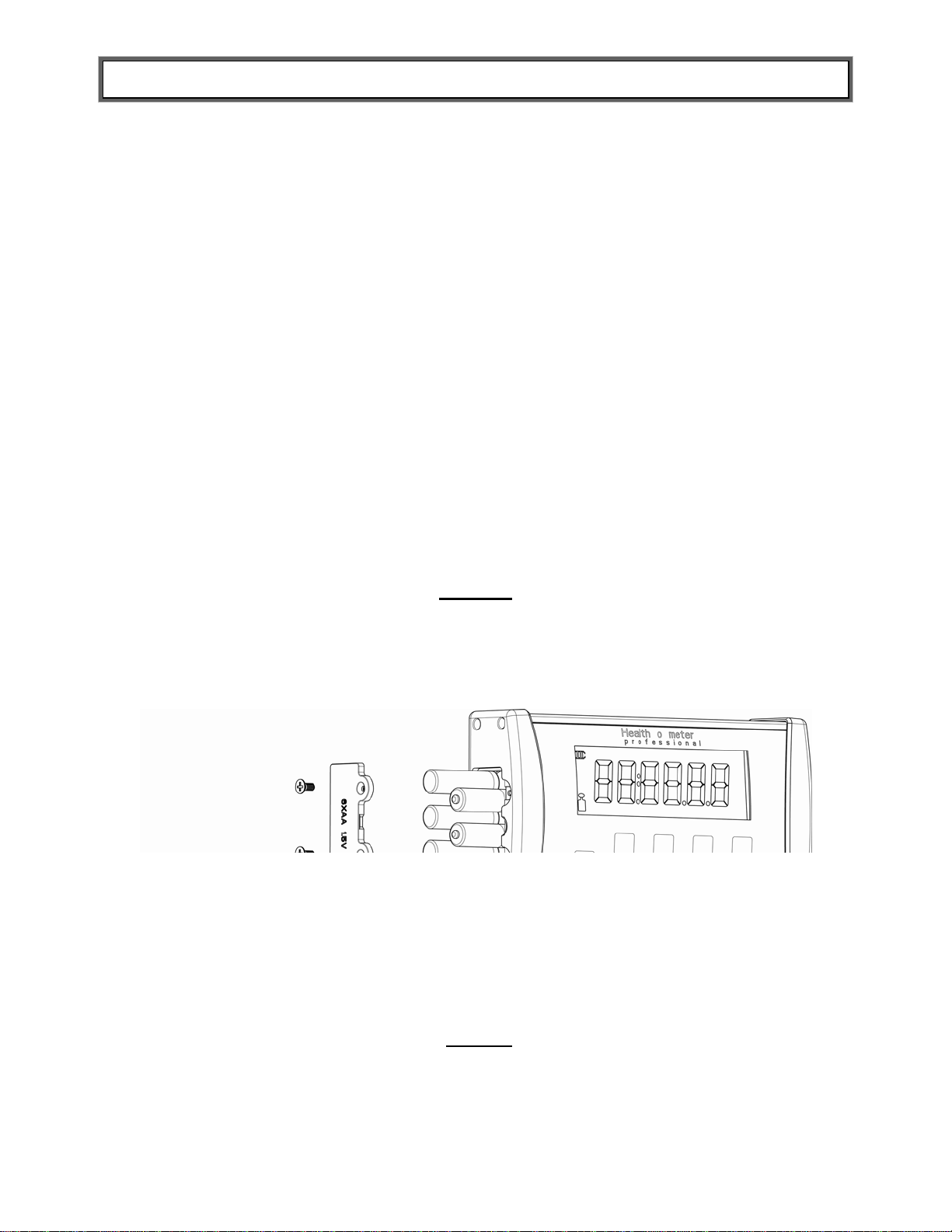

For accurate weighing, if the “Lo bAtt” indicator activates, replace the
batteries or switch to the AC adapter as soon as possible.
When operating the scale with the display assembly on a flat surface,
ensure that the load cell cable is routed to prevent a tripping hazard to the
patient or user.
When operating the scale with the display assembly on the wall, ensure
that the display is securely mounted with the appropriate anchors and
screws.
To prevent scale damage, ensure that the wall-mounted display is
removed off the wall prior to scale transport.
When wall mounting the display assembly, ensure that the mounting
location is free of electrical lines, gas pipes, and other safety hazards.
When replacing / inserting batteries, be sure to use all new batteries.

4
CAUTION AND WARNING
To prevent patient injury, the patient must be attended throughout the
entire weighing event. Exercise caution when rolling patient onto and off
of the scale.
To prevent injury, excise care when adjusting wheelchair ramps.
To prevent injury and damage to your scale, do not drop or mishandle
scale, while handling or transporting scale. As this can permanently
damage the load cells and may also cause injury to one self.

5
SPECIFICATIONS FOR THESE SCALES
General
The Model 2650KL and 2700KL Patient Scales use highly sophisticated microprocessor
technology. Each precision scale is designed to provide accurate, reliable, and repeatable
weight measurements. In addition, each scale is designed to provide the user with features that
make the weighing process simple, fast, and convenient.
These scales are set up to use motion-sensing weighing technology in order to determine the
actual weight of a moving patient.
Weight can be displayed in pounds or in kilograms. For privacy and convenience in use, the
scale features a remote display head which may be held by the operator, placed on a table or
other flat surface, or mounted on a wall. Both scale models have 2 wheels built-in for easy
mobility. Each scale can be powered using an AC adapter (included), or by 6 - AA
batteries (not included).
2650KL / 2700KL Specifications
Capacity and Resolution 2650KL / 2700KL: 1000 lb x 0.2 lb (454 kg x 0.1 kg)
Power Requirements 120V - 240V AC, 50 - 60Hz-9V DC adapter or 6 - AA batteries
Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)
Storage temperatures: 30°F to 125°F (0°C to 50°C)
Maximum Humidity: 85% rH, non-condensing
Physical Dimensions Platform-2650KL
Length: 31-½” (80.0 cm)
Width: 31-¼” (79.4 cm)
Height: 2-½” (6.2 cm)
Assembled Size and Weight
Length: 34-¼” (87 cm)
Width: 33” (83.8 cm)
Height: 6” (15.2 cm)
Weight: 80.5 lb (36.5 kg)
Physical Dimensions Platform-2700KL
Length: 32-½” (82.6 cm)
Width: 36” (91.4 cm)
Height: 2-½” (6.2 cm)
Assembled Size and Weight
Length: 41-½” (105.4 cm)
Width: 56-¼” (143 cm)
Height: 3-⅛” (8 cm)
Weight: 80.5 lb (36.5 kg)

6
CERTIFICATIONS / CONNECTIVITY / DISPOSAL
Certification Descriptions
2650KL / 2700KL Scale Connectivity Information
To enable reliable transmission of weight, height, and Body Mass Index (BMI) data, these
scales are designed to connect to a computer, monitor, or other electronic device via a built-in
USB port. This connectivity helps minimize a source of potential medical errors caused by
incorrectly copying and then recording patient data.
These scales are EMR-EHR compatible. For more information regarding how to connect these
scales to other electronic devices, please contact Health o meter® Professional Scales
Technical Support, available during normal business hours at ([phone] or (+1) 708-
377-0600.
2650KL / 2700KL Scale Disposal
These Health o meter® Professional scales must be disposed of properly as electronic waste.
Follow the national, regional or local regulations which apply to you for disposal of electronic
waste or batteries. Do not dispose of this device in the domestic waste stream.
Pelstar, LLC has been officially certified as the manufacturer
of Health o meter® Professional medical devices. The Pelstar,
LLC quality assurance system covers the development,
production, sales and service of medical scales and
measuring systems.
This product is tested to and meets the requirements of:
1. UL60601-1 First Edition: Safety for Medical Electrical
Equipment
2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment

7
2650KL ASSEMBLY INSTRUCTIONS
Before Assembly
Each 2650KL scale is shipped disassembled in a single carton. Carefully inspect the carton for
shipping damage before unpacking. If damage is found, contact your shipper or a Health o
meter® Professional representative immediately. Claims must be filed with the shipper as soon
as possible after receipt of the package. The following information details what you will find
inside the main carton as you unpack the parts for assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the
protective inner packaging.
Parts List
(1) Scale Platform
(1) User Instructions
(1) Box Containing:
(1) Display Assembly
(1) Load Cell Connector Cable
(1) AC Adapter
(4) Feet
Note: In order to mount the scale’s display assembly onto the wall, a set of wall anchors and
screws will be required (not included). Refer to the user instructions for secure display
assembly mounting.
Tools Required
Phillips head screwdriver (not included), Allen wrenches (included).

8
2650KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Assembling the 2650KL Scale (Refer to Figures 1-3)
Caution: It is recommended that the assembly be performed by two persons.
1. Place scale platform on a flat, level, and dry surface, and carefully turn the platform upside
down.
Caution: Ensure that the wheelchair ramps are held in place when moving the scale -
ramps can flip open.
2. Thread the (4) feet into the underside of the platform. Each foot should be completely hand
tightened into the platform. Back feet out 1-½ full turns. This will allow for proper load cell
operation and scale accuracy.
3. Carefully flip the scale over to its upright position on the floor.
Warning: Do not drop scale, as this can permanently damage the load cells.
4. Adjust the feet to level the scale. Be certain that the feet are not completely tightened into the
platform for proper load cell operation.
5. Open the scale to its operational position by folding open the wheelchair ramps.
6. Connect the load cell cable to the scale platform by inserting the load cell cable connector
into the load cell port (see Figure 2).
7. Ensure that the other load cell cable connector is securely plugged into the display assembly
load cell jack (located on the rear panel of the display assembly). The load cell jack is labeled
“LOAD CELL” (see Figure 3).
8. If the AC adapter will be used, connect the AC adapter cord plug into the AC power jack,
located on the back of the display assembly. The AC power jack is labeled “POWER” (see
Figure 3).
9. Connect the AC adapter to the power port, located on the back of the display assembly.
Caution: Do not plug the scale into a power source until the scale is fully assembled.
10. The scale is now assembled. Plug the AC adapter into a power source and / or insert the
batteries.
11. Carefully position the display assembly on the desk, table, or other flat surface.
Caution: Ensure that the load cell cable is adequately secured to prevent a tripping
hazard to the patient or user.
Note: Refer to “Display Assembly Wall Mounting Instructions”, located in this User Instruction
Manual.

9
2650KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 1
Figure 2
Load Cell Port

10
2650KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 3

11
2700KL ASSEMBLY INSTRUCTIONS
Each 2700KL scale is shipped disassembled in a single carton. Carefully inspect the carton for
shipping damage before unpacking. If damage is found, contact your shipper or a Health o
meter® Professional representative immediately. Claims must be filed with the shipper as soon
as possible after receipt of the package. The following information details what you will find
inside the main carton as you unpack the parts for assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the
protective inner packaging.
Parts List
(1) Scale Platform
(1) User Instructions
(1) Box Containing:
(1) Display Assembly
(1) Load Cell Connector Cable
(1) AC Adapter
(4) Feet
Note: In order to mount the scale’s display assembly onto the wall, a set of wall anchors and
screws will be required (not included). Refer to the User Instructions for secure display
assembly mounting.
Tools Required
Phillips head screwdriver (not included), Allen wrenches (included).

12
2700KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Assembling the 2700KL Scale (Refer to Figures 4-6)
Caution: It is recommended that the assembly be performed by two persons.
1. Place scale platform on a flat, level, and dry surface, and carefully turn the platform upside
down.
Caution: Ensure that the wheelchair ramps are held in place when moving the scale -
ramps can flip open.
2. Thread the (4) feet into the underside of the platform. Each foot should be completely hand
tightened into the platform. Back out 1-½ full turns. This will allow for proper load cell operation
and scale accuracy.
3. Carefully flip the scale over to its upright position on the floor.
Warning: Do not drop scale, as this can permanently damage the load cells.
4. Adjust the feet in order to level the scale. Ensure that the feet are not completely tightened
into the platform for proper load cell operation.
5. Open the scale to its operational position by folding open the wheelchair ramps.
6. Connect the load cell cable to the scale platform by inserting the load cell cable connector
into the load cell port (See Figure 5).
7. Ensure that the other load cell cable connector is securely plugged into the display assembly
load cell jack (located on the rear panel of the display assembly). The load cell jack is labeled
“LOAD CELL” (see Figure 3).
8. If the AC adapter will be used, connect the AC adapter cord plug into the AC power jack,
located on the back of the display assembly. The AC power jack is labeled “POWER” (see
Figure 3).
9. Connect the AC adapter to the power port, located on the back of the display assembly.
Caution: Do not plug the scale into a power source until the scale is fully assembled.
10. The scale is now assembled. Plug the AC adapter into a power source and / or insert the
batteries.
11. Carefully position the display assembly on the desk, table, or other flat surface.
Caution: Ensure that the load cell cable is adequately secured to prevent a tripping
hazard to the patient or user.
Note: Refer to “Display Assembly Wall Mounting Instructions”, located in this user instruction
Manual.

13
2700KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 4
Figure 5
Load Cell Port

14
2700KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 6
Figure 7

15
DISPLAY ASSEMBLY WALL MOUNT INSTRUCTIONS
Display Assembly Wall Mounting Instructions
Caution: When wall mounting the display assembly, ensure that the
mounting location is free of electrical lines, gas pipes, and other safety
hazards. Ensure that wall is of construction that can support the display
assembly.
1. Position the display assembly on the wall, and carefully trace around the display outline.
2. Mark a level horizontal line, 2-¾” (70mm) below the top of the display outline.
3. Mark a vertical line through the center of the display outline. The center line is 4-½” (114mm)
from each side of the display outline.
4. On the level horizontal line, mark two drill holes 2-¼” (57mm) away from the center line.
5. Use the appropriate plastic or metal anchors for the type of wall construction, and carefully
drill the appropriate sized holes.
6. Insert the anchors into the wall, and screw in the two mounting screws into the anchors.
Adjust the screw head depth such that the bracket can be mounted over the two screw heads.
7. Position the display assembly mounting holes onto the mounting screws, and pull down on
the display assembly to secure the bracket over the screws.
Required Parts
(1) Display Assembly
(2) #8 Anchoring Screws (4.2mm nominal OD)
(2) Mounting Anchors, Compatible with Wall Construction
Note: Anchors and Anchoring Screws are not included with these scales.

16
SETUP / BATTERIES / TRANSPORT
Preparing the 2650KL / 2700KL Scale for Use
1. Remove the protective plastic film covering the display (the film says “FACTORY
CALIBRATED”).
2. Place batteries into the battery holder (see Figure 7).
3. Plug the scale’s AC adapter into the power source.
4. Ensure all objects are removed from the scale’s platform. Press the ON/OFF button to turn
the scale on. The display will show “Start”, then “0.0LB” or “0.0KG”.
5. Press the UNIT button to select the weight mode (lb or kg).
Note: These scales will always default to the settings and units last used (lb or kg).
6. When the AC adapter is disconnected from the scale, the scale will switch to battery power if
batteries are installed.
Note: If the set up procedure failed, refer to the troubleshooting instructions. If the problem is
not corrected, refer to qualified service personnel.
Replacing / Inserting Batteries
1. Unplug the AC adapter from the power source.
2. Remove the battery cover on the side of the display assembly by unscrewing the (2) battery
cover screws (see Figure 7).
3. Replace or install the batteries with new units. Health o meter recommends using an alkaline
or lithium battery, rated for 130°F (54°C) operation. Do not use Zinc-Carbon batteries.
4. Re-attach the battery cover to the display assembly.
Warning: If the scale will not be used for some time, remove the batteries to avoid a
safety hazard. Disposal of batteries must be performed in accordance with the prevailing
national, regional or local regulations which apply to you.

17
SETUP / BATTERIES / TRANSPORT (CONTINUED)
Preparing a 2650KL / 2700KL Scale for Transport
These scales can be easily folded for movement from one room to another. Both scales include
mounting pins to secure the display assembly during transport (the pins are located on the right
wheelchair ramp). To prepare the scale for transport, follow these steps:
1. Remove the display assembly from the wall by lifting up the assembly off of the mounting
screws.
2. Unplug the AC adapter from the display assembly, and remove the adapter from the outlet.
Carefully store the AC adapter and cord to prevent damage during transport.
3. With the scale on the floor, fold both ramps onto the platform.
4. Position the display assembly onto the mounting pins, located on the right folded ramp. The
display assembly is mounted onto the ramp by sliding the display assembly brackets onto the
raised pins (see Figures 8 & 9).
5. For the 2650KL, grasp the guardrail, located on the opposite side the wheels, and lift the
scale onto the two wheels. The scale can now be transported by rolling the unit on its wheels.
6. For the 2700KL, grasp the handle, located on the opposite side of the wheels, and lift the
scale onto the two wheels. The scale can now be transported by rolling the unit on its wheels.
Figure 8
Figure 9
Mounting pins
on right folded
ramp

18
QUICK START / OPERATING INSTRUCTIONS
Keypad
Figure 10
Function Description
ON/OFF Turns scale on and off.
ZERO Zeros the scale prior to a weighing.
HOLD/RELEASE
►
Holds the weight value of the patient on the display until the button is
pressed again to clear the value. Also moves the cursor from left to right
on the display for entering height and pretare value.
BMI Prompts entry of height data to calculate patient’s Body Mass Index
(BMI).
RECALL Recalls the previous weight.
TARE/PRETARE TARE-Tares out weight of an object on the platform.
PRETARE-Prompts entry of a tare value that will be deducted from the
weight on the platform. Also releases tare weight (returns display to zero).
UNIT/▲Toggles between pounds and kilograms.
Also used to increment height value and pretare value.
REWEIGH Allows repeated weighing of the patient without stepping off the scale.
ENTER Used to accept height value in BMI mode, and tare value in PRETARE
mode. Also releases the recall value and BMI value.

19
QUICK START / OPERATING INSTRUCTIONS (CONT)
Tare Function
When using these scales, the weight of an object, such as a wheelchair, can be subtracted from
the total weight in order to determine the weight of the patient alone. The Tare Function
automatically performs this subtraction. The 2650KL and 2700KL scales allow tare weight to be
entered manually by using the keypad, or automatically, as outlined in this section.
Automatic (Push Button Tare)
1. With all weight off the scale, press the ON/OFF button to turn on the scale.
2. Wait until the “0.0LB” or “0.0KG” appears on the display.
3. Place the wheelchair on the scale. The display will show a value for the wheelchair’s weight.
4. Press the TARE button. The scale will zero out, and the word “TARE” will appear at the
bottom center of the display, indicating that there is a tare value for this patient’s wheelchair.
5. Remove the weight from the scale. Once it is removed from the scale, the display will show a
negative weight, equal to the weight of the wheelchair.
6. Place the patient and wheelchair on the scale. The scale will automatically deduct the tare
weight of the wheelchair from the gross weight of the patient and wheelchair together.
7. The weight of the patient will appear on the scale.
8. With no weight on the scale, the tare value will remain on the display until changed, cleared,
or until the scale is turned off.
9. To remove the Tare, press the TARE button again. The word “TARE” will disappear from the
bottom of the display, and the tare value will be cleared from the display. The scale will resume
normal operation.
Manual (Keyboard or Keypad Tare)
1. Make sure that there is no object on the weighing platform.
2. Press the ON/OFF button to turn on the scale.
3. Wait until the “0.0LB” or “0.0KG” and “ZERO” appear on the display.
4. Hold down the TARE button for 3 to 5 seconds. The word “TARE” will appear at the bottom
center of the display, and the user will be prompted to enter the tare value.
5. Use the keypad ►and ▲buttons to enter the weight of the wheelchair or other object. Press
the ENTER button.
6. The value entered will show as a negative value on the display.

20
QUICK START / OPERATING INSTRUCTIONS (CONT)
7. Place the patient in the wheelchair and roll the wheelchair on the scale. The scale will
automatically deduct the tare weight as entered, from the gross weight of the patient and the
wheelchair.
8. The weight of the patient will appear on the scale.
9. With no weight on the scale, the tare value will remain on the display until changed, cleared,
or until the scale is turned off.
10. To remove the Tare, press the TARE button again. The word “TARE” will disappear from the
display and the tare value will be cleared from the display. The scale will resume normal
operation.
Weighing a Patient
Note: When these scales are turned on, they will always default to the settings and units last
used (lb or kg).
1. Make sure there is no object on the weighing platform.
2. Press the ON/OFF button to turn the scale on.
3. Wait until the “0.0LB” or “0.0KG” appears on the display.
4. Tare out the weight of the wheelchair, and roll the patient in the wheelchair onto the scale.
The scale will begin to display weight information and will lock on the patient’s weight when the
stable weight of the patient is determined. Depending on the movement of the patient on the
scale, it may take several seconds for the scale to lock onto the weight.
Caution: To prevent patient injury, the patient must be attended throughout the entire
weighing event. Exercise caution when rolling patient onto and off of the scale.
5. Once a weight has been displayed, while the patient is still on the scale, Health o meter
recommends performing a second weighing by pressing the REWEIGH button.
6. The weight may be held on the display by pressing the HOLD/RELEASE button. To release,
press the HOLD/RELEASE button again.
7. After the weight measurement has been taken and is recorded, roll the patient off the scale.
8. Press the ON/OFF button to turn the scale off.
Weight Recall
The last weight reading on the scale can be recalled by pressing the RECALL button. To clear
the display of the recalled weight, press the ENTER button.
Note:Clearing the recalled weight from the display will not clear the recalled weight from
memory. The recalled weight will remain in memory until another weight is obtained.
