True UC900 User manual

* Assembly Guide & Warranty Card Included
UC900 UPRIGHT BIKE
OWNER’S MANUAL
Transcend Console
Model# UC900 Revision 020917
Escalate15 Console Escalate9Console Emerge Console

Truetness.com / 800.426.6570 / 636.272.7100
UC900 UPRIGHT BIKE OWNERS MANUAL
IMPORTANT:
All products shown are prototype. Actual product delivered may vary.
Product specications, features & soware are subject to change without notice.
For the most up-to-date owner’s manual please visit www.truetness.com.
For documents in additional languages please visit www.truetness.com/resources/document-library/
IMPORTANTE:
Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir.
Especicaciones de productos, características y soware están sujetas a cambios sin previo aviso.
Para la más actualizada de este manual del propietario, por favor visite www.truetness.com
Para los documentos en otros idiomas, por favor visite www.truetness.com/resources/document-library/
IMPORTANT: Tous les produits présentés sont prototype. Le produit réel livré peut varier. Spécications du
produit, caractéristiques et logiciels sont sujettes à modication sans préavis. Pour la plus à jour le manuel du
propriétaire s'il vous plaît visitez www.truetness.com. Pour documents dans des langues supplémentaires,
veuillez www.truetness.com/resources/document-library/ de visite
重要提示： 显示所有产品的原型。实际交付的产品可能有所不同产品规格，功能和软件如有更改，恕不另
行通知迄今为止对于大多数的使用说明书，请访问www.true󽗉tness.com 对于其他语言的文档，请访问
www.true󽗉tness.com/resources/document-library/
ھام:
جمیع المنتجات المعروضة ھي النموذج. قد تختلف المنتج الفعلي تسلیمھا.
مواصفات المنتج، والمیزات والبرامج قابلة للتغییر دون إشعار.
لمعظم ما یصل حتى الآن دلیل المالك یرجى زیارة www.truetness.com.
للمستندات في لغات إضافیة، یرجى زیارة www.truetness.com/resources/document-library/
WICHTIG: Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann
variieren. Produkt-Spezikationen, Funktionen und Soware können sich ohne vorherige Ankündigung
ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen Sie bitte www.truetness.com. Für
Dokumente in weiteren Sprachen nden Sie unter www.truetness.com/resources/document-library/
BELANGRIJK: Alle getoonde producten zijn prototype. Daadwerkelijke product geleverd kan verschillen.
Product specicaties, eigenschappen & soware zijn onderhevig aan verandering zonder kennisgeving. Voor
de meest actuele handleiding van de eigenaar kunt u terecht www.truetness.com. Voor documenten in andere
talen kunt u terecht op www.truetness.com/resources/document-library/
ВАЖНО: Все товары указаны прототипа. Фактический продукт, поставляемый могут отличаться.
Технические характеристики, особенности и программного обеспечения могут быть изменены без
предварительного уведомления. Для получения самой последней на сегодняшний день руководство по
эксплуатации пожалуйста, посетите www.truetness.com
.Для документов на другие языки, пожалуйста, посетите www.truetness.com/resources/document-library/

Truetness.com / 800.426.6570 / 636.272.7100
UC900 UPRIGHT BIKE OWNERS MANUAL
A MESSAGE TO OUR CUSTOMERS
Frank Trulaske began TRUE Fitness® over thirty-ve year ago with the simple philosophy of delivering superior
tness products, service, and support. Today, TRUE is the global leader in premium tness equipment for the
commercial and residential markets. Our goal is to be the leader in technology, innovation, performance, safety
and style. TRUE has received many awards for its product over the years and remains the benchmark for the
industry. Fitness facilities and consumers invest in TRUE products for their durable commercial platforms used
in all its products, both commercial and residential alike.
e proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line
of extraordinary cardio and strength equipment. As a result, people all over the world are beneting from the
TRUE experience. Innovation across the full product line has made TRUE successful and is a trademark of the
TRUE heritage. TRUE’s patented Heart Rate Control technology is just one of the remarkable ways we deliver
simple and superior performance every user can enjoy, and most importantly, use to achieve personal health and
tness goals.
At the heart of our success is the relentless and systematic life testing of both our products and their components.
We have dedicated employees who understand our philosophy is to deliver the best products in the world.
Our goal is to deliver the world’s best premium equipment for our customers’ health and tness solutions.

Truetness.com / 800.426.6570 / 636.272.7100
TABLE OF CONTENTS:
UC900 UPRIGHT BIKE OWNERS MANUAL
Chapter 1: Safety Instructions
Safety Instructions..................................................... 5
Space Requirements .................................................. 8
Grounding Instructions............................................ 9
Power Requirements ............................................... 10
Warning Decals........................................................ 11
Compliances............................................................. 11
Chapter 2: Assembly Instructions
Pre Assembly Checklist .......................................... 13
Assembly Steps......................................................... 14
Exploded Diagram .................................................. 30
Chapter 3: Product Overview
Product Overview ................................................... 35
Chapter 4: Programming & Operation
Heart Rate Monitoring ........................................... 37
Heart Rate Control .................................................. 38
Program Descriptions............................................. 39
Chapter 4A: Transcend Operation
Transcend Overview ............................................... 42
Touchscreen Introduction...................................... 44
Touchscreen Navigation ......................................... 44
Web Browser ............................................................ 50
Bluetooth Functions................................................ 51
TV Controls ............................................................. 54
Advanced Console Functions................................ 55
Chapter 4B: Escalate15 Operation
Escalate15 Overview................................................. 73
Console Navigation................................................. 75
TV Controls ............................................................. 79
Bluetooth Audio ...................................................... 80
Advanced Console Functions................................ 82
Chapter 4C: Escalate9Operation
Escalate9 Overview................................................... 98
Console Navigation...............................................100
Advanced Console Functions..............................106
Chapter 4D: Emerge Operation
Emerge Overview..................................................115
Console Navigation...............................................117
Advanced Console Functions..............................119
Chapter 5: Care & Maintenance
Care & Maintenance ............................................. 123
Cleaning the Equipment....................................... 123
Running Belt Alignment ......................................124
Tensioning the Running Belt ...............................125
Belt Lubrication .....................................................125
Leveling the Equipment........................................ 126
Other Scheduled Preventive Maintenance......... 126
Long Term Storage ................................................ 126
Chapter 6: Customer Service
Contacting Service ................................................ 127
Contacting Sales .................................................... 127
Reporting Freight or Parts Damage ....................128
Chapter 7: Additional Information
Troubleshooting Guide.........................................129
Specication Sheet................................................. 137
Warranty Registration...........................................139

Truetness.com / 800.426.6570 / 636.272.7100 5 of 34
CHAPTER 1: SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE SAFETY INSTRUCTIONS
is equipment is intended for a commercial or institutional setting. is owner’s manual should be accessible to all
personal trainers, faculty, and members.
WARNING: ALL EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING THE
EQUIPMENT.
WARNING:Heart rate monitoring systems may be inaccurate for some individuals. Over-exercising
may result in serious injury or death. If you feel faint, stop exercising immediately.
WARNING:Equipment should be immediately taken out of use if it fails to work properly or when a
warning is presented electronically.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program,
particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high
cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a tness
professional on the correct use of this product. If at any time while exercising the user experiences faintness, dizziness,
pain or shortness of breath, he or she must stop immediately.
WARNING:To reduce the risk of electrical shock, always unplug this TRUE product before cleaning
or attempting any maintenance activity. Do not handle the plug with wet hands.
WARNING:To reduce the risk of burns, re, electric shock, or injury, it is imperative to connect
each product to a properly grounded 110V electrical outlet. A risk of electrical shock may result from improper
connection of the equipment’s grounding conductor. Check with a qualied electrician if you are unsure about
proper ground techniques. Do not modify the plug provided wiht this product. If it will not t an electrical outlet,
have a proper outlet installed by a qualied electrician. Your TRUE Fitness product must be properly grounded
to reduce risk of shock if the equipment malfunctions. Your equipment is equipped with an electrical cord, which
includes an equipment grounding conductor and a grounding plug. e plug must be inserted into an outlet that
has been properly installed and grounded in accordance with all local codes and ordinances. A temporary adapter
cannot be used to connect this plug to a two-pole receptacle in North America. If a properly grounded 15 amp
outlet is not available, a qualied electrician must install one.
WARNING:Do not move the equipment by liing the console. Do not use the console as a handlebar
during a workout.
WARNING:is product contains chemicals known to the state of California to cause cancer and birth
defects or other reproductive harm.
WARNING:Keep equipment stable on at ground.

Truetness.com / 800.426.6570 / 636.272.7100 6 of 34
CHAPTER 1: SAFETY INSTRUCTIONS

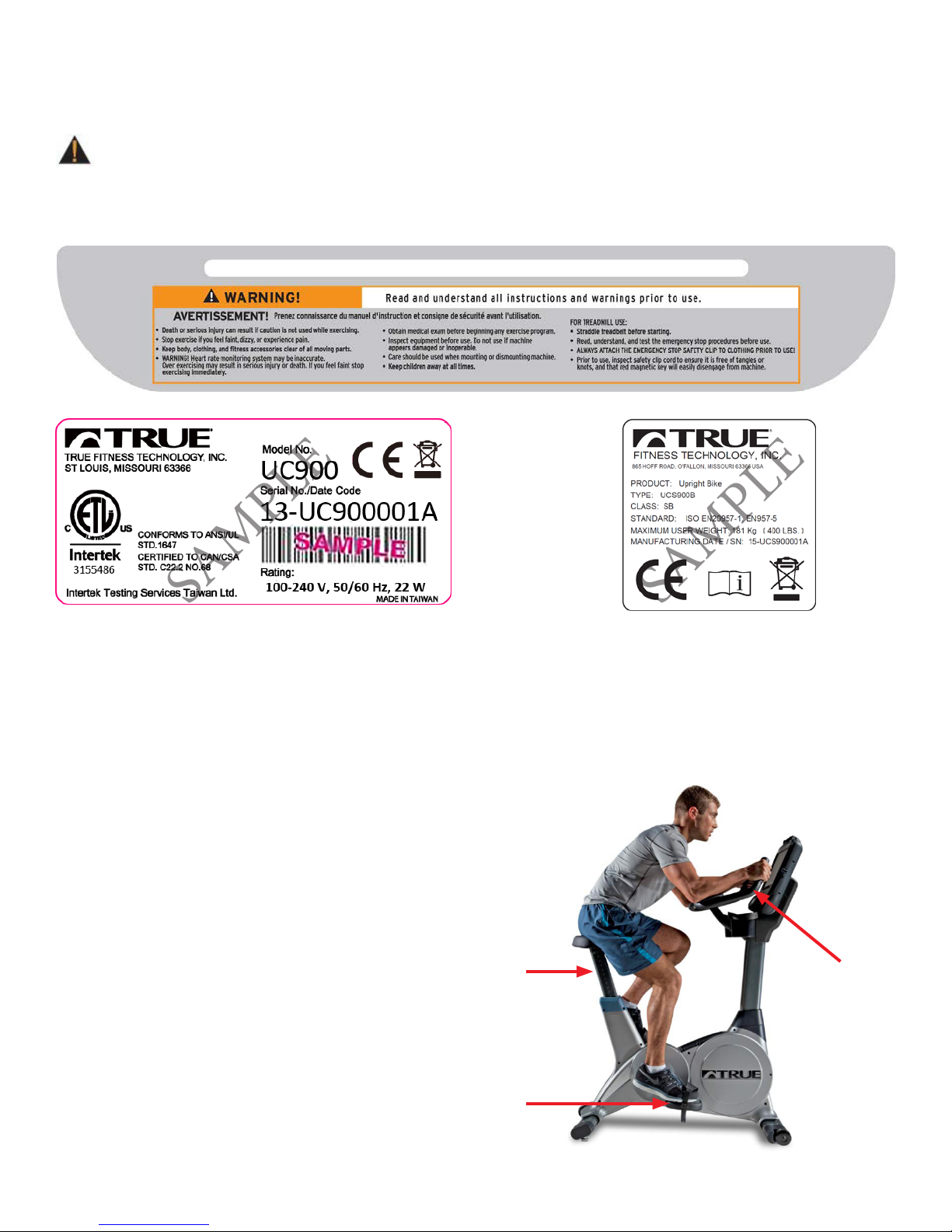

WARNING: Replace warning labels that may be worn, damaged, or missing.
WARNING:Replace any non-working or damaged components, remove the unit from service until
repair is performed.
WARNING:To reduce the risk of burns, re, and electric shock or injury to persons, follow these
instructions:
• is appliance should never be le unattended when plugged in.
• Do not use any type of extension cord with this product.
• Unplug it from the outlet when not in use and before any servicing.
• Do not operate the equipment while being covered with a blanket, plastic, or anything that insulates or stops airow.
WARNING:Risk of personal injury-crushing hazard when equipment is in operation - Keep feet,
hands, and ngers away from moving parts.
CAUTION:
• Do not use typing or web surng features at excessive speeds. Always stabilize yourself by holding a stationary handle
when using typing or web surng features (Varies by console option).
• Health related injuries may result from incorrect or excessive use of exercise equipment.
• Do not use the contact heart rate grips as a handlebar during a workout.
• Any changes or modications to this equipment could void the product warranty.
• To disconnect plug remove from electrical outlet.

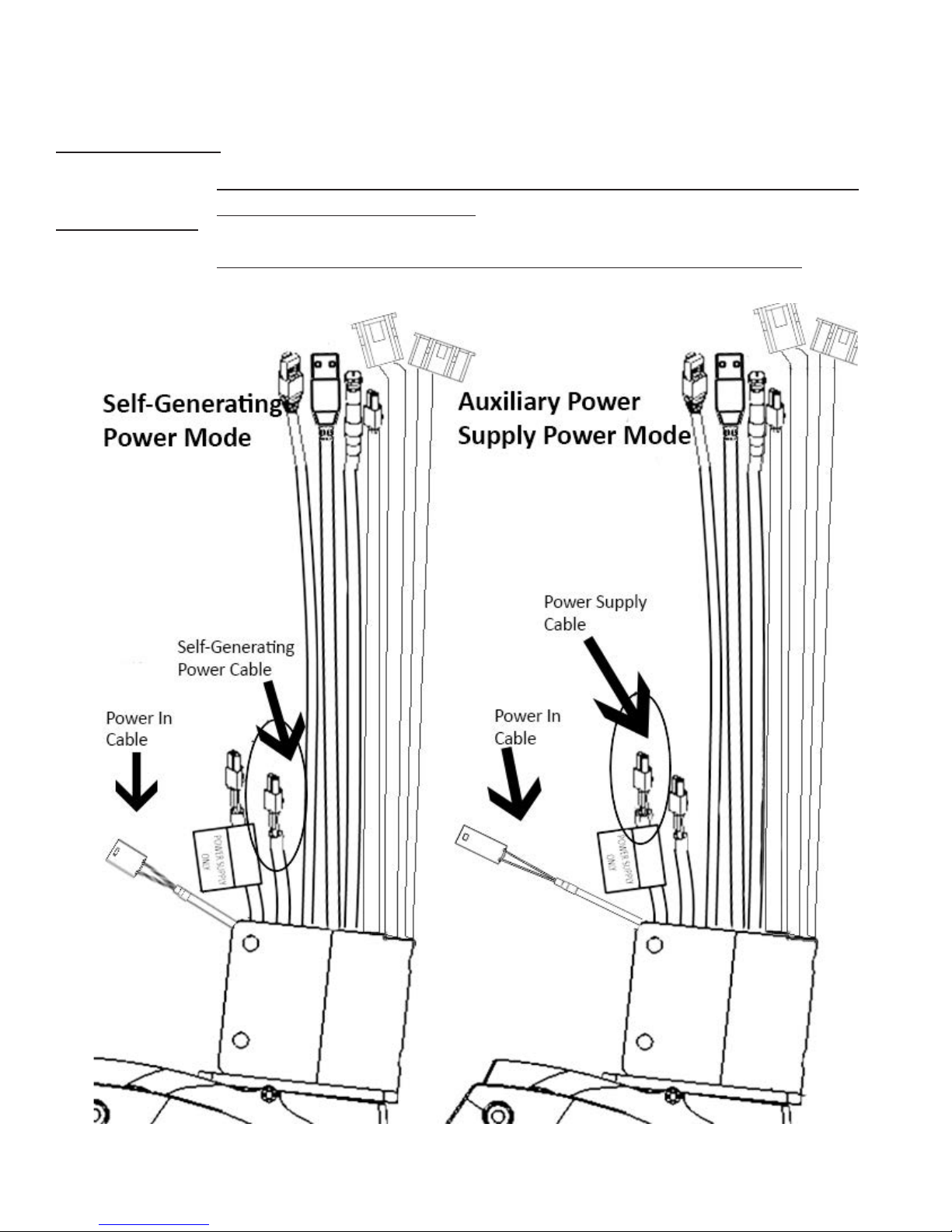

• e UC900 bike is self-generated and does not require the use of an electrical outlet with the LED console. Optional
TFT or touch screen consoles require 110V AC input and 9V DC 1.5Amp output for console operation only.
• Use a TRUE AC power cord or AC/DC adapter only
• Note the plug conguration for the power adapter may vary by country.
• e batteries within self-generated equipment contain materials that are considered hazardous to the environment.
Federal law requires proper disposal of these batteries.
• Position this product so the power cord plug is accessible to the user.
• Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the cord as a
handle. Do not run the power cord along the side or under the bike.
• If the bike power supply cord is damaged it must be replaced by the manufacturer, an authorized service agent, or a
similarly qualied person to avoid a hazard.
• Do not use this product in areas where aerosol spray products are being used or where oxygen is being administered.
Such substances create the danger of combustion and explosion.
• Always follow the console instructions for proper operation. Close supervision is necessary when used near children
under the age of 15, or disabled persons.
• Do not use this product outdoors, near water, while wet, or in areas if high humidity including extreme temperature
changes.
• Never operate a TRUE product with the air openings blocked. Keep air openings free of lint, hair or any obstructing
material.
• Never insert objects into any openings in this product. If an object should drop inside, turn o the power, unplug the
power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.
• Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with lids
are recommended.
• Wear shoes with rubber or high traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Make sure
no stones are embedded in the soles. Do not use this product in bare feet. Keep all loose clothing, shoelaces and towels
away from moving parts.
• Do not reach into or underneath the unit, or tip it on its side during operation.

Truetness.com / 800.426.6570 / 636.272.7100 7 of 34
CHAPTER 1: SAFETY INSTRUCTIONS
CAUTION:
• Use correct ergonomic positioning while operating the bike.
• Do not allow animals on or near the equipment while in operation.
• Do not exceed maximum user weight of 400 lbs (181 kg).
• Avoid exiting bike while the pedals are still in motion.
• Do use if you have a cold or fever.
• When using this exercise machine, basic precautions should always be followed.
• Use this bike only for its intended use as described in this manual.
• Do not use attachments not recommended by the manufacturer.
• Allow only trained personnel to service this equipment.
• Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out of
reach of the bike while it is in motion.
• Allow only one person at a time on the bike while it’s operating.
• It is the sole responsibility of the owner/operator to ensure regular and scheduled maintenance is performed.
• is appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
SPACE REQUIREMENTS:
TRUE’s recommendation is to leave a 39” (0.99m) safety zone at rear of bike. e sides of the bike should be at least 24”
(0.6m) away from the wall or obstructions. (See Fig 1)

Truetness.com / 800.426.6570 / 636.272.7100 8 of 34
CHAPTER 1: SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS:
is product must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. is product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. e plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER:
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
• Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product. If it will not t the outlet, have a proper outlet
installed by a qualied electrician.
• Do not remove the motor cover or you may risk injury due to electric shock.
• 120-Volt: is model is for use on a nominal 120-V circuit and has a grounding plug that looks like the plug
illustrated in gure A. Make sure the product is connected to an outlet having the same conguration as the
plug. No adaptor should be used with this product.
• 230-Volt: is model is for use on a circuit having a nominal rating more than 120-V and is factory-equipped
with a specic electric cord and has a grounding plug that looks like the plug illustrated in gure B. Make sure
that the product is connected to an outlet having the same conguration as the plug in Figure B. No adapter
should be used with this product. If the product must be reconnected for use on a dierent type of electric
circuit, the reconnection should be made by qualied service personnel.

Truetness.com / 800.426.6570 / 636.272.7100 9 of 34
CHAPTER 1: SAFETY INSTRUCTIONS

Truetness.com / 800.426.6570 / 636.272.7100 10 of 34
CHAPTER 1: SAFETY INSTRUCTIONS
WARNING DECALS:
WARNING: Replace warning labels that may be worn, damaged, or missing.
To replace any worn or missing decals contact TRUE FITNESS by visiting www.truetness.com or contact customer
service at 800-883-8783.
COMPLIANCES:
is equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit
www.truetness.com.
*e Transcend Touchscreen and Escalate9 console have passed ITS testing and are EN957 compliant.
PROPER TRAINING POSITION:
• Once seated, users should place their feet on the pedals
(A).
• When pedaling, e user should be able to extend
their legs fully while pedaling; if users do not have
enough room to fully extend their legs, they should
adjust their seat position (B) until their legs are able
to comfortably extend. Additionally, if users legs feel
overly stretched when they’re extended, the seat needs a
lower adjustment.
• During a workout the users hand should grasp the
handlebars (C).
SAMPLE
SAMPLE
C
B
A
