Healthy Choice AF1230 User manual

CAUTION: TO AVOID DAMAGE TO YOUR BENCH TOP AND SPLASH BACK,
DO NOT PLACE THE AIR FRYER DIRECTLY ON BENCH TOP.
HOUSEHOLD USE ONLY
Carefully read all instructions before use and save for future reference.
Model: AF1230 | Batch: PR4704
12L DIGITAL AIR FRYER
with viewing window

IMPORTANT SAFEGUARDS
PLEASE READ AND SAVE THIS INSTRUCTION MANUAL FOR
FUTURE REFERENCE
When using the appliance, basic safety precautions should be followed,
including:
1. Remove and safely disregard any packaging material and labels before using
this product for the first time. Ensure children and babies do not play with plastic
bags or any packaging materials.
2. Before use, check that your local voltage corresponds with the specifications
shown on the appliance nameplate located under the appliance.
3. Always operate the appliance on a horizontal surface that is level, stable and
non-combustible. Do not operate the appliance on or near combustible materials
such as tablecloths or curtains.
4. Do not place the appliance on or near a hot gas or electric burner, or in a
heated oven.
5. Never connect this appliance to an external timer or a separate remote-control
system.
CAUTION: TO AVOID DAMAGE TO YOUR BENCH TOP AND SPLASH BACK,
DO NOT PLACE THE AIR FRYER DIRECTLY ON BENCH TOP.
Please use air fryer on heat-proof material and on a dry, level and even surface.
Leave a minimum distance of 20cm from walls and other heat-sensitive materials.
Do not place the appliance against a wall or against other appliances. Hot air
up to 160 Degrees expels through the rear vent of the appliance. Leave at least
20cm clearance around the entire appliance, including directly above it.
Additional care should be taken when placing appliances on benchtop surfaces
or near splashbacks where such materials (acrylics, timber, stone etc.) do not
have high heat-resistant properties.
3

6. Never use this appliance with an extension cord or power board. Ensure it is
plugged into a dedicated power point and without any other appliances on the
same outlet.
7. Do not turn on the power until the appliance and parts are in place as required.
8. To protect against electric shock, do not immerse the cord, plug, or appliance
in water or any other liquid. Do not expose the appliance to dripping or splashing
and ensure that no objects filled with liquids such as vases are placed on the
appliance. Do not put any water or other liquid into the main housing of the
appliance through the vents. Do not rinse it under the tap.
9. Do not touch the appliance, power cord or power plug with wet hands.
10. Unplug from the outlet when not in use and before cleaning. Allow the
appliance to cool down before putting on or taking off the parts, and before
cleaning.
11. The appliance does not contain any serviceable parts inside. Do not attempt to
open and repair the appliance yourself. All components should only be serviced
by a qualified technician.
12. Do not use the appliance if the plug, power cable or unit itself are damaged.
If the power cord is damaged, you must have it replaced at a service centre by
qualified persons in order to avoid a hazard.
13. Do not use the appliance for anything other than the intended use. It is for
household use only. It is not to be used outdoors or for commercial purposes.
14. Close supervision is necessary when the appliance is used near children.
Keep the appliance and power cord out of reach of children when it is in
operation or during the cooling process.
15. This appliance is intended to be used in household and similar applications
such as:
- staff kitchen areas in shops, offices and other working environments;
- farmhouses;
- by clients in hotels, motels and other residential-type environments;
- bed and breakfast type environments.
16. Extreme caution must be used when moving an air fryer containing hot food.
17. Leave enough open space from other objects while in use. Do not block air
intakes or exhausts.
4

18. Do not place the appliance against a wall or against other appliances.
Leave at least 20 centimetres of free space on the back and sides and above the
appliance. Do not place anything on top of the appliance.
19. When the appliance is in operation, hot air is released through the air outlet
vent. Keep your hands and face at a safe distance from the air outlet vent.
20. Do not touch the hot surfaces. The appliance’s outer surfaces may become hot
during use. The rotisserie cage and rotisserie fork set will be hot. Wear oven mitts
or use the cage tongs to remove them. Wear oven mitts when handling the crisper
tray and drip tray.
21. Do not cover the pliance while in use.
22. Do not let the cord hang over the edge of the table or counter.
23. Do not unplug the appliance by pulling on the cord.
24. This appliance can be used by children 8 years and above and people
with a physical, sensory or mental impairment, or people without knowledge
or experience if they are supervised or given prior instructions concerning the
use of the appliance by someone responsible for their safety. Children must be
supervised to ensure that they do not play with the appliance.
25. Do not leave the appliance operating while unattended.
26. The appliance may emit light smoke during its first use. It is not defective, and
the smoke will burn off within a few minutes.
27. Should the appliance emit black smoke, unplug it immediately. Wait for the
smoke to stop before removing the contents inside.
28. To prevent the food from contacting the inner upper wall and heating element,
do not overfill the rotisserie fork or crisper trays.
29. Cleaning and user maintenance shall not be made by children unless they
are older than 8 and supervised. Keep the appliance and its cord out of reach of
children younger than 8 years.
30. This appliance may be operated under both 50Hz and 60Hz without any
adjustment.
5

1. Top cover
2. Housing body
3. Viewing window
7. Crisper tray
8. Rotisserie basket
9. Drip tray
4. Removable door
5. Handle
6. Air outlet vents
10. Rotisserie set
11. Rotisserie remover tool
1
2
3
4
5
6
7 8 9
10 11
6

Crisper tray
For air frying crispy snacks or reheating food such as pizza. The trays are also to
be used for dehydrating.
Rotisserie basket
Suitable for French fries, roasted nuts and other small or delicate snacks that can
benefit from rotating through the cooking time.
Drip tray
Always put the drip tray at the bottom of the air fryer when cooking, to speed up
the cleaning process.
Rotisserie set
Used for roasting meats, such as whole chicken. Put the rotisserie rod through
the centre of the meat. Secure the forks on both ends of the rod, and make sure
they’re holding the meat tightly. Lock in place with the set screws. Ensure the
screws are fitted tightly to the rotisserie rod.
Note: You can adjust the screws closer to the middle if needed, but never
outwards towards the ends. Ensure that the roast meat or chicken are not too large
and can rotate freely inside the air fryer. Tie up the chicken or other roast meat
with a cooking string to hold it tightly around the rotisserie stick.
Rotisserie remover tool
Rotisserie remover tool used to insert and remove food prepared on the rotisserie
or rotisserie basket.
ACCESSORIES
7

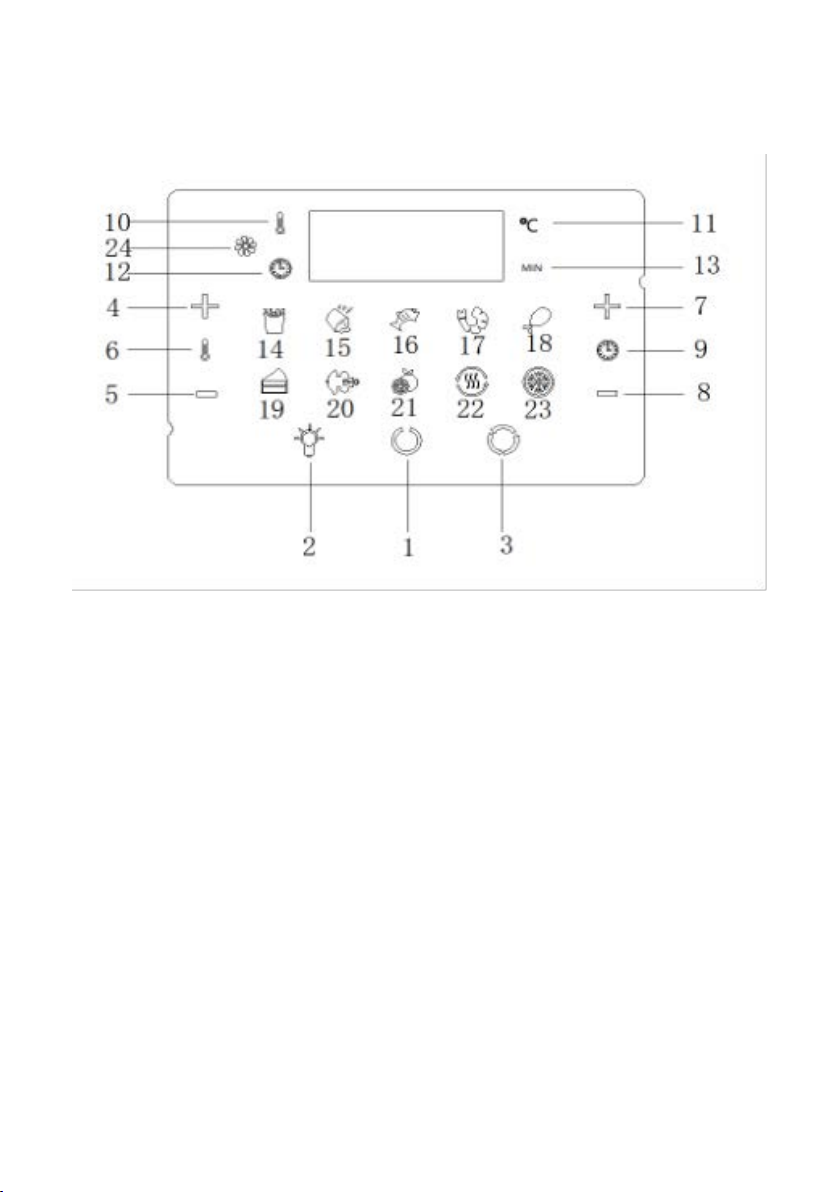

1: Power Switch
2: Light Switch
3: Rotation Function
4/5: Temperature Controls
6: Temperature Icon
7/8: Timer Controls
9: Timer Icon
10: Temperature Display Indicator
11: Temperature Unit Display Indicator (°Celsius)
12: Clock Display Indicator
13: Time Unit Display Indicator (minutes)
14: Hot Chips
15: Steak
16: Fish
17: Shrimp
18: Chicken Drumsticks
19: Baking
20: Rotisserie Chicken
21: Dehydrating
22: Reheating
23: Defrosting
24: Cooking In Progress Light
CONTROL PANEL
8

Power Switch
Once the air fryer is plugged in, the power switch will be illuminated and the rest
of the screen will be off. Press the power switch, the machine will beep once and
the screen will illuminate.
Pressing the power switch for a second time will activate the default cooking
process at the temperature of 190°C and time of 15 minutes.
During any cooking mode, pressing the power switch will turn the air fryer off. The
screen will turn off, and only the power button will remain illuminated. The fan will
continue running for up to 30 seconds to cool down the appliance.
Light Switch
Light switch helps operate the internal light. You can press the switch at any time
during machine operation. The internal light will be on and the Light Switch will
flash. When the door is opened, the light will automatically turn on.
Rotation Function
In any cooking mode, you can press the Rotation Function switch to make the
rotisserie or rotisserie basket rotate. The Rotation Function switch will flash during
cooking.
Time & Temperature Control
Time and temperature can be adjusted during cooking by pressing the + or –
buttons on the display screen.
LED Digital Display
During operation, the LED screen displays time & temperature, constantly
switching between temperature and remaining time.
Cooking In Progress Light
The indicator light will be on while cooking is in progress.
9

All cooking programs allow time and temperature adjustments.
Note on Rotisserie: Cooking time for meat on the rotisserie, for example, a whole
roast chicken will vary with weight. Use a meat thermometer (not included) to
check the internal temperature of the meat. This guide is only a reference.
Preset Cooking Times and Temperatures
Hot Chips 200°C 15 minutes
Steak 185°C 25 minutes
Fish 200°C 15 minutes
Shrimp 160°C 12 minutes
Chicken Drumsticks 190°C 20 minutes
Baking 175°C 30 minutes
Rotisserie Chicken 200°C 30 minutes
Dehydrating 80°C 4 hours
Reheating 115°C 12 minutes
Defrosting 40°C 1 hour
10

1. Place the food onto a crisper tray, on the rotisserie set or into the rotisserie
basket.
2. Place the food and chosen accessory into the air fryer and close the door. Plug
the power cord into a 220-240V dedicated outlet.
3. Press the power button once.
4. Select a preset cooking program or manually set the cooking time and
temperature.
5. Once the desired cooking time and temperature have been selected, press the
power button to begin the cooking process.
COOKING WITH THE AIR FRYER
Before first use
Please read all materials, warning stickers and labels before using the air fryer
for the first time. Remove all packaging materials, labels and stickers. Place the
appliance on a stable, level, horizontal and heat-resistant surface.
Wash all parts and accessories with warm soapy water. Wipe the inside and
outside of the unit with a clean, damp cloth.
Note: The main unit cannot be immersed in water.
Warning: Do not cover the top and back vents of the appliance or put anything
on top of the appliance. Do not put oil or liquid into any cooking container. This
machine only uses hot air for cooking. Never put food or accessories on the door.
When removing hot accessories or food, be sure to use oven mitts.
11

Food Item Min-Max Time Temperature Notes
Hamburger 115-500g 7-14min 180°C
Sausage Roll 115-500g 13-15min 200°C
Chicken Drumsticks 115-500g 18-22min 180°C
Chicken Breast 115-500g 10-15min 180°C
Spring Rolls 115-350g 15-20min 200°C use oven-ready
Frozen Chicken Nuggets 115-500g 10-15min 200°C use oven-ready
Frozen Fish Sticks 115-500g 6-10min 200°C use oven-ready
Mozzarella Sticks 115-500g 8-10min 180°C use oven-ready
Cake 300g 20-25min 160°C use baking tin
Quiche 350g 20-22min 180°C use baking tin
Muffins 300g 15-18min 200°C use baking tin
Frozen Onion Rings 400g 15min 180°C
Food Item Min-Max Time Temperature Notes
Thin Frozen Chips 1-3 cups 15-16min 200°C
Thick Frozen Chips 1-3 cups 15-20min 200°C
Homemade Chips 1-3 cups 10-16min 200°C add 1/2tbsp oil
Homemade Potato Wedges 1-3 cups 18-22min 185°C add 1/2tbsp oil
Homemade Potato Cubes 1-3 cups 12-18min 185°C add 1/2 tbsp oil
Hash Browns 1 cup 15-18min 185°C
Potato Gratin 2 cups 15-18min 200°C
Steak 115-500g 8-12min 180°C
Pork Chops 115-500g 10-14min 180°C
COOKING CHART

Unplug the appliance and allow it to cool down completely before handling,
cleaning or storing.
Wash all accessories in warm soapy water after every use.
Note: all included accessories are dishwasher safe.
The inside of the air fryer can be cleaned with hot water, a mild detergent and
a non-abrasive sponge. Wipe the outer housing body with a soft, damp cloth.
Do not use detergents or cleaners on the outside of the appliance. If necessary,
remove the excess food residue on the upper screen with a soft brush.
CLEANING AND MAINTENANCE
The door is detachable for easy cleaning.
Open the door to a 45° angle and gently remove it by sliding it out and upwards.
The removable door can be washed in warm soapy water. The removable door
is not dishwasher safe. Reattach the door by holding it at a 45°angle and gently
pushing it in and downward.
CAUTION: Do not immerse the power cord, plug or the housing body in water or
any other liquids as it may result in damage, fire, electric shock or injury.
STORING
Allow the appliance to cool down completely before storing it. Store the
appliance in an upright position in a dry location. Do not place any heavy items
on top of the appliance during storage as this may result in possible damage to
the appliance.
13

www.lenoxx.com.au
1300 666 848
LenoxxElectronics LenoxxElectronics @LenoxxAustralia
