HealthyAir Source Capture HA-SCV-G1-WD User manual

Source Capture
®
Vent
Dual Inlet
Owner’s Manual: HA-SCV-G1-WD
Patent Pend ng
Distributed by Aerovex Systems, Inc.
1-800-288-2023
www.aerovexsystems.com
[email protected]
1
Model HA-SCV-G1-WD
Source Capture® Vent
Dual Inlet
Patent Pend ng
Table of Contents
Installation Notice
1
Technical Specifications
1
Packaging Reference
2
Component Reference
3
Installation Instructions
4-12
Operation Guidelines
13
Maintenance
14
1- eart Limited Warranty
15
Product Registration Form
16
www.aerovexsystems.com

2
I. Installat on Not ce
Read the Owner's Manual and Installation Instructions carefully. Failure to follow
these instructions could cause a malfunction of the vent or unsatisfactory
performance. Follow a regular service and maintenance schedule for efficient
operation.
For safety reasons, unplug the power cord from the electric outlet socket under
the following conditions:
•When not in use for a long period of time
•When cleaning
•When moving the air purifier
II. Techn cal Spec f cat ons
Model Number HA-SVC-G1-WD
Rated Voltage 12V DC
Power Consumption 6W
Weight 4.4 lbs. (2 kg)
Base Dimensions 8”x4”x6”
(200x100x150)
3
III. Packag ng Reference
The Source Capture Vent is shipped in one (1) package that contains the
following contents:
•Source Capture Vent - Dual Unit
•Power Adapter
•Cover Plate (optional)
•Flange (optional)

4

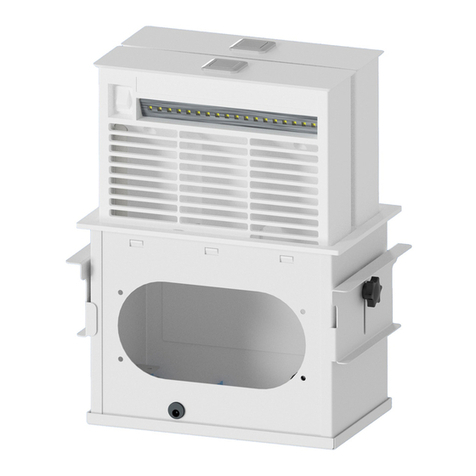

IV. Component Reference
1. Inlet Vent
2. Light Switch
3. Pop-Up Knob
4. LED Light
5. Outlet Port
6. Power Socket
7. Access Cover
8. Mounting Bracket
9. Housing
5
V. Installat on Instruct ons
5.1 To mount the Source Capture
®
Vent, cut an opening in table-top or preferred
mounting surface. The dimensions of the cut-out are 8-3/8” x 4-7/8”, as
shown in Fig. 1
Fig. 1 - Cut-Out Dimensions
5.2 To flush-mount the vent, such that the top of the unit is flush with the table top
or surface, produce a 3/16” rebate around the perimeter of the cut-out, as
shown in Fig. 2.
Fig. 2 – Rebate for Flush-Mount

6
V. Installat on Instruct ons
5.3 Unscrew the two (2) Thumb Screws to remove the two (2) Mounting Brackets
from the unit, as shown in Fig. 3.
Fig. 3 – Remove Mounting Brackets
5.4 Remove the Access Cover from bottom of the Source Capture
®
Vent, as
shown in Fig. 4.
Fig. 4 – Remove Access Cover
7
V. Installat on Instruct ons
5.5 Install the Source Capture
®
Vent in the table by inserting it into the cut-out, as
shown in Fig. 5.
Fig. 5 – Install Source Capture
®
Vent
5.6 Reattach the two (2) Mounting Brackets to the unit by screwing in the two (2)
Thumb Screws, as shown in Fig. 6.
Fig. 6 – Reattach Mounting Brackets

8
V. Installat on Instruct ons
5.7 Slide the Mounting Brackets up against the bottom of the table. Then tighten
the Thumb Screws to secure the Mounting Brackets, as shown in Fig. 7.
Fig. 7 – Secure Mounting Brackets
5.8 The Source Capture
®
Vent should now be firmly installed in the table or
mounting surface
Fig. 8 – Source Capture
®
Vent Installed
9
V. Installat on Instruct ons
5.9 Push the Pop-Up Knobs down to release it, as shown in Fig. 9.
Fig. 9 – Release Pop-up Knob
5.10 Grab the Pop-Up Knob and pull it straight up to pull the Inlet Vent from the
Housing component. Pull the Inlet Vent up as far as it goes, such that it is in
the active position as shown in Fig. 10.
Fig. 10 – Inlet Vent in Active Position

10
V. Installat on Instruct ons
5.11 Remove the Access Cover, which is secured by two magnets, from the
bottom of the unit. There are two (2) Outlet Ports on the unit, with one on
each side of the Housing. Generally, one shall be blanked-off and the other
used for connection with a duct to the HealthyAir
®
Air Purification System.
Install the Blank-Off Plate on one side and the Outlet Flange on the other
side, by passing them thru the opening at the bottom of the Housing, as
shown in Fig. 11.1, and mounting them on the (4) Stud Screws, respectively.
Using the Hex Nuts, tighten and secure the Outlet Flange and the Blank-Off
Plate. Finally, reinstall the Access Cover.
Note that, there are four types of Outlet Flanges available; a Single
Circular Outlet Flange, Dual Circular Outlet Flange Oval Outlet Flange,
and Rectangular Outlet Flange, as shown in Fig. 11.2.
Fig. 11.1 – Installation of Blank-Off Plate and Outlet Flange
11
V. Installat on Instruct ons
Fig. 11.2– Outlet Flange Options
5.12 Duct the outlet of the Source Capture
®
Vent to the inlet of the HealthyAir
®
Air Purification System, as shown in Fig. 12.
Note that, the duct geometry and size will naturally vary depending on the
type of Outlet Flange utilized and the required length of the duct.
Fig. 12 – Duct Connection to HealthyAir
®
Unit

12
V. Installat on Instruct ons
5.13 Plug the Power Adaptor, shown in Fig. 13.1, into the Power Socket to
power the LED light.
Fig. 13.1– Plug-in Power Adaptor
If the Source Capture
®
Vent is directly installed on the HealthyAir
®
System, as shown in Fig. 13.2, the LED Cord located in the Housing can
be directly plugged into the LED Cord located in the inlet of the
HealthyAir
®
System.
Installation with HealthyAir
®
Ceiling Mount System: Note that, the Source
Capture
®
Vent may also be integrated with the HealthyAir
®
Ceiling Mount
Source Capture System, as shown in Fig. 14. Contact Healthy Air Inc. for
additional information for custom installations.
13
V. Installat on Instruct ons
Fig. 13.2 –Connect LED Cord to LED Cord in HealthyAir
®
System
Fig 14 – Connection to HealthyAir
®
Ceiling Mount System

14
VI. Operat on Gu del nes
Opt mal Effect veness
For optimal effectiveness all work that generates fine particulate and fumes
should be performed within 12”, and preferably 6”, of the inlet of the Source
Capture
®
Vent.
Act vat on of Source Capture® Vent
6.1 Plug the Power Cord into the Power Socket, located on the bottom of the
side panel of the unit, and then plug the other end of the cord into a wall
power socket.
6.2 To position the Source Capture
®
Vent in the active-state, simply push the
spring-loaded Pop-up Knob located on the top panel of the unit, grab the
knob, and pull the knob straight up to pull the Inlet Vent from the Housing
Component.
6.3 Turn the LED light on by pressing the On/Off Switch located on the face on
the Inlet Vent.
6.4 Power on the HealthyAir
®
Air Purification System to generate airflow and
activate the Source Capture
®
Vent.
15
VII. Ma ntenance
Clean ng Source Capture® Vent Hous ng
Once a month inspect the Housing for particulate accumulation. To do so, first
unplug the Power Adaptor from the power socket and then place a waste
container below the Access Cover to catch any dust that drops down after the
Access Cover is removed.
Once the Access Cover is removed, empty the Housing of all debris. A
vacuum cleaner may be used to suck all the dust out of the Housing.
After the Housing have been satisfactorily cleaned, replace the Access Cover and
plug the Power Adaptor into the power socket. The unit is then ready for operation.

16
Healthy Air Inc. 1-Year L m ted Warranty
Healthy Air Inc. only makes this 1-ear Limited Warranty ("Limited Warranty") to the
original retail purchaser who submits the enclosed Warranty Registration Card within
10 days of purchase by email to [email protected]
This Limited Warranty applies only to the repair or replacement of any manufactured
or supplied part of this product which, upon inspection by Healthy Air Inc. authorized
personnel, proves to have failed in normal use due to defects in material or
workmanship.
The sole responsibility of Healthy Air Inc. under this Limited Warranty is, in its sole
discretion, to either repair or replace a duly registered product (or defective part
thereof) with the same or a comparable model within a reasonable period of time,
subject to the following exclusions, limitations, statutory rights and warranty claim
procedures.
This Limited Warranty is exclusive, and Healthy Air Inc. expressly disclaims all other
or additional warranties, whether written or oral, expressed or implied, including, but
not limited to, warranties of merchantability, workmanship, or fitness for a particulate
purpose.
Retain proof of purchase and the original box and packing materials.
Exclus ons to the Warranty
This Limited Warranty does not apply, or is void, as to any product or part damaged by
(1) accident, misuse, abuse, or lack of reasonable care or normal maintenance; (2)
installation or operation under conditions other than those recommended by Healthy
Air Inc.; (3) subjecting the product to any but the specified voltage; (4) servicing or
disassembly by unauthorized personnel; (5) removing or defacing the serial number;
or (6) modifying the original factory-assembled unit in any way.
This Limited Warranty does not apply to shipping charges for product shipped to or
from the manufacturer or designated distributor in connection with warranty claims nor
does it apply to any damages that occur during such shipment.
This Limited Warranty does not apply to installation, removal, reinstallation, and/or
related expenses. This Limited Warranty does not apply to replacement filters.
17
Healthy A r Inc.
1-Year L m ted Warranty
Product Reg strat on Form
Please complete the Product Registration Form and submit it to Healthy Air Inc.
within ten (10) days of the original purchase, to validate 1- ear Limited Warranty.
Submit the completed form via email by sending a scanned image or photograph
to [email protected].
Note that, the Model Number and Serial Number are written on the sticker located
at the bottom of the side panel of the unit.
Please contact us at [phone] or visit www.aerovexsystems.com for
Customer Service and Orders.
