Hearth and Home Technologies RBV4236IH User manual

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 1
Model(s):
RBV4236IH, RBV4236IT
RBV4842IH, RBV4842IT
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
Installation and service of this appliance should be
performed by quali ed personnel. Hearth & Home
Technologies suggests NFI certi ed or factory trained
professionals, or technicians supervised by an NFI
certi ed professional.
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.
• DO NOT store or use gasoline or other  am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the  re department.
• Installation and service must be performed
by a quali ed installer, service agency, or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a  re
or explosion may result causing property
damage, personal injury, or death.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas  tter.
A CO detector shall be installed in the room where the appliance
in installed.
DO NOT
DISCARD
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
 replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other  ammable
materials away.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/132
Listing Label Information/Location
Model Name: ___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on replace: _____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
A. Congratulations
Congratulations on selecting a Hearth & Home Tech-
nologies gas replace, an elegant and clean alternative
to wood burning replaces. The Hearth & Home Tech-
nologies gas replace you have selected is designed to
provide the utmost in safety, reliability, and efciency.
As the owner of a new replace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future reference.
We suggest that you keep it with your other important
documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Hearth & Home Technologies gas replace will
give you years of durable use and trouble-free enjoyment.
Welcome to the Hearth & Home Technologies family of
replace products!
We recommend that you record the following pertinent
information about your replace.
The model information regarding your specic replace can be found on
the rating plate usually located in the control area of the replace.
Homeowner Reference Information
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
XXXX
CERTIFIED
FOR CANADA
CERTIFIÉ POUR LE
CANADA
Hearth & Home Technologies Inc
7571 215th Street West
Lakeville, MN 55044
SERIAL
NO. DE SÉRIE
ANSI Standard
MODEL MFG. DATE
MODÈLE DATE DE FAB.
GAS TYPE/TYPE DE GAZ NATURAL/NATUREL PROPANE
ALTITUDE 0-2000 2000-4000 FT/PI 0-2000 2000-4000 FT/PI
MAX INPUT/DÉBIT XX,XXX XX,XXX BTUH XX,XXX XX,XXX BTUH
MIN INPUT/DÉBIT XX,XXX XX,XXX BTUH XX,XXX XX,XXX BTUH
MANIFOLD PRESSURE/PRESSION TUBULAIRE
MAX. XX IN. W.C./C. D'EAU XX IN. W.C./C. D'EAU
MIN. XX IN. W.C./C. D'EAU XX IN. W.C./C. D'EAU
MIN. INLET PRESS. XX IN. W.C./C. D'EAU 1XX IN. W.C./C. D'EAU
FOR THE PURPOSE OF INPUT ADJUSTMENT
PRESS. MIN. D'ALIMENTATION
ORIFICE SIZE
DIAM. DE L'INJECTEUR XX/XX DIA. in./mm XX/XX DIA. in./mm
LESS THAN/MOINS DE 3 AMPÈRES., 115V., 60 Hz
DO NOT REMOVE OR COVER THIS LABEL.
VENTED GAS FIREPLACE - NOT FOR USE WITH SOLID FUEL.
FOYER À GAZ À ÉVACUATION - NE DOIT PAS ÊTRE UTILISÉ
AVEC UN COMBUSTIBLE SOLIDE.
XXXXXXXXX
XXXXXX
Serial #
Gas Type
Orifice
Size
Model #

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 3
Safety Alert Key:
 Indicates a hazardous situation which, if not avoided will result in death or serious injury.
 Indicates a hazardous situation which, if not avoided could result in death or serious injury.
 CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
 NOTICE: Used to address practices not related to personal injury.
Table of Contents
A. Congratulations 2
B. Warranty 4
1 Listing and Code Approvals
A. Appliance Certication 6
B. Tempered Glass Specications 6
C. BTU Specications 6
D. High Altitude Installations 6
E. Non-Combustible Materials Specication 6
F. Combustible Materials Specication 6
G. Electrical Codes 6
User Guide
2 Operating Instructions
A. Gas Fireplace Safety 7
B. Your Fireplace 7

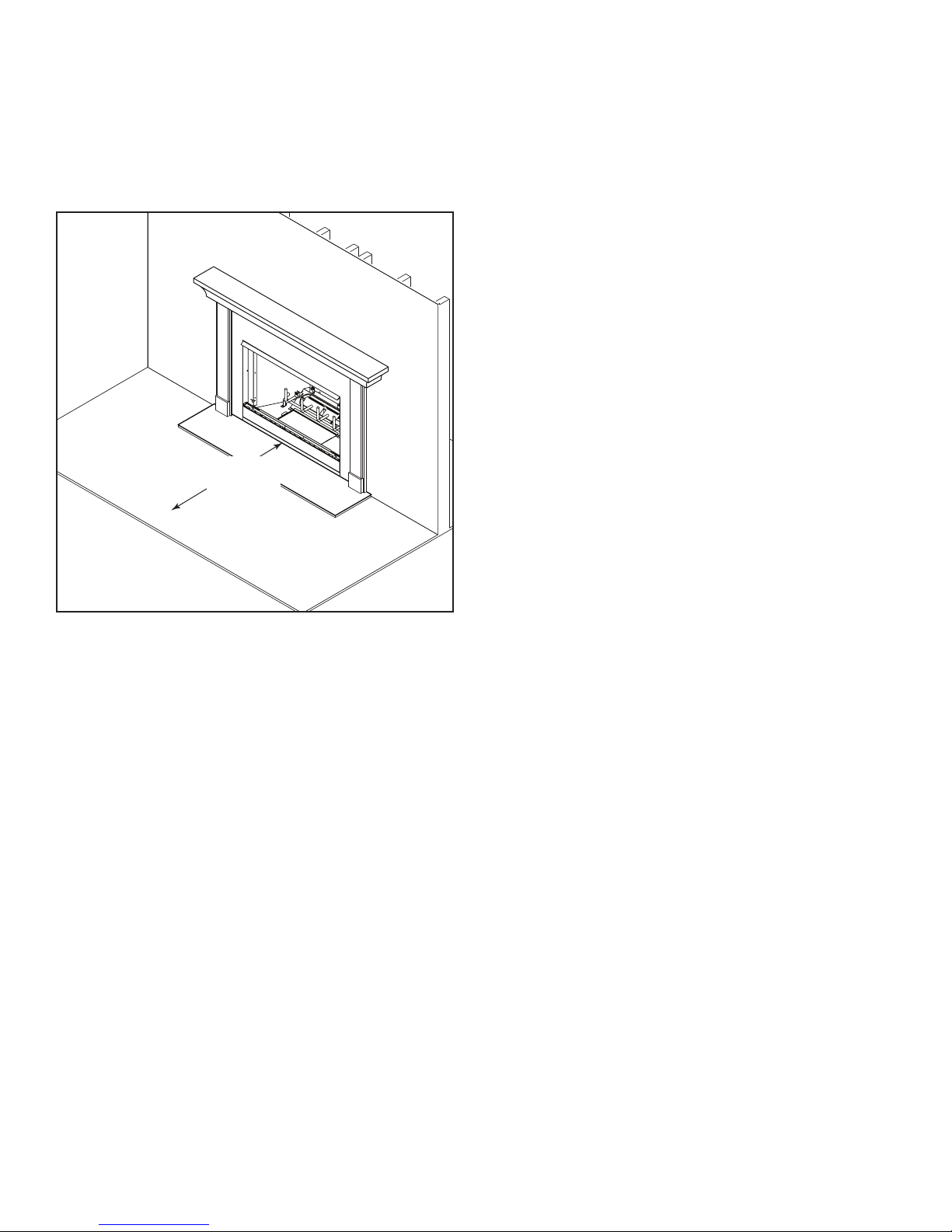

C. Clear Space 8
D. Decorative Doors and Fronts 8
E. Remote Controls, Wall Controls and Wall Switches 8
F. Outside Air (optional) 8
G. Before Lighting Fireplace 8
H. Lighting Instructions (IPI) 9
I. After Fireplace is Lit 10
J. Flame Adjustment Control 10
K. Frequently Asked Questions 10
3 Maintenance and Service
A. Maintenance Tasks-Homeowner 11
B. Maintenance Tasks-Qualied Service Technician 12
Installer Guide
4 Getting Started

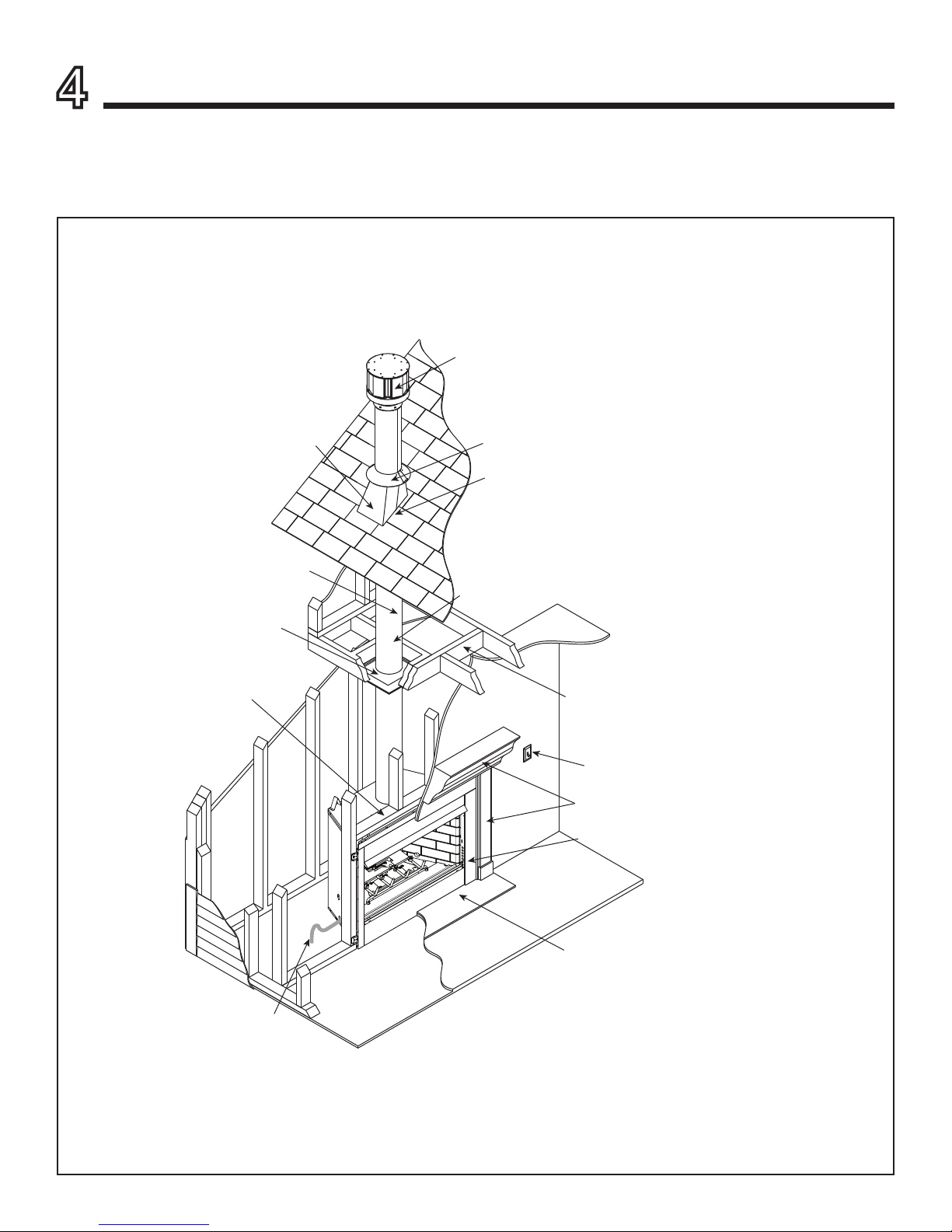

A. Typical Appliance System 13
B. Design and Installation Considerations 14
C. Tools and Supplies Needed 14
D. Inspect Appliance and Components 14
E. Negative Pressure 15
5 Framing and Clearances

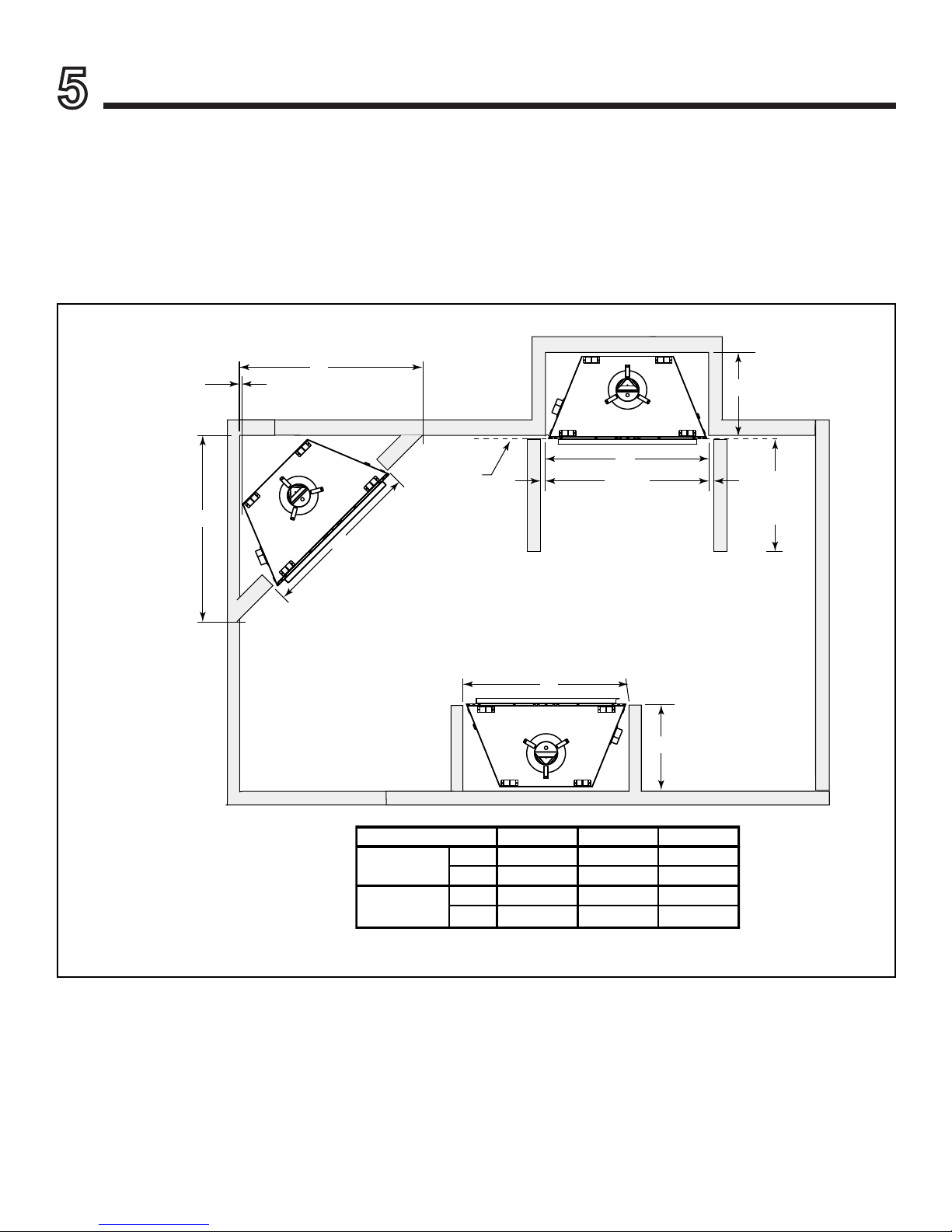

A. Selecting Appliance Location 16
B. Constructing the Appliance Chase 17
C. Clearances 17

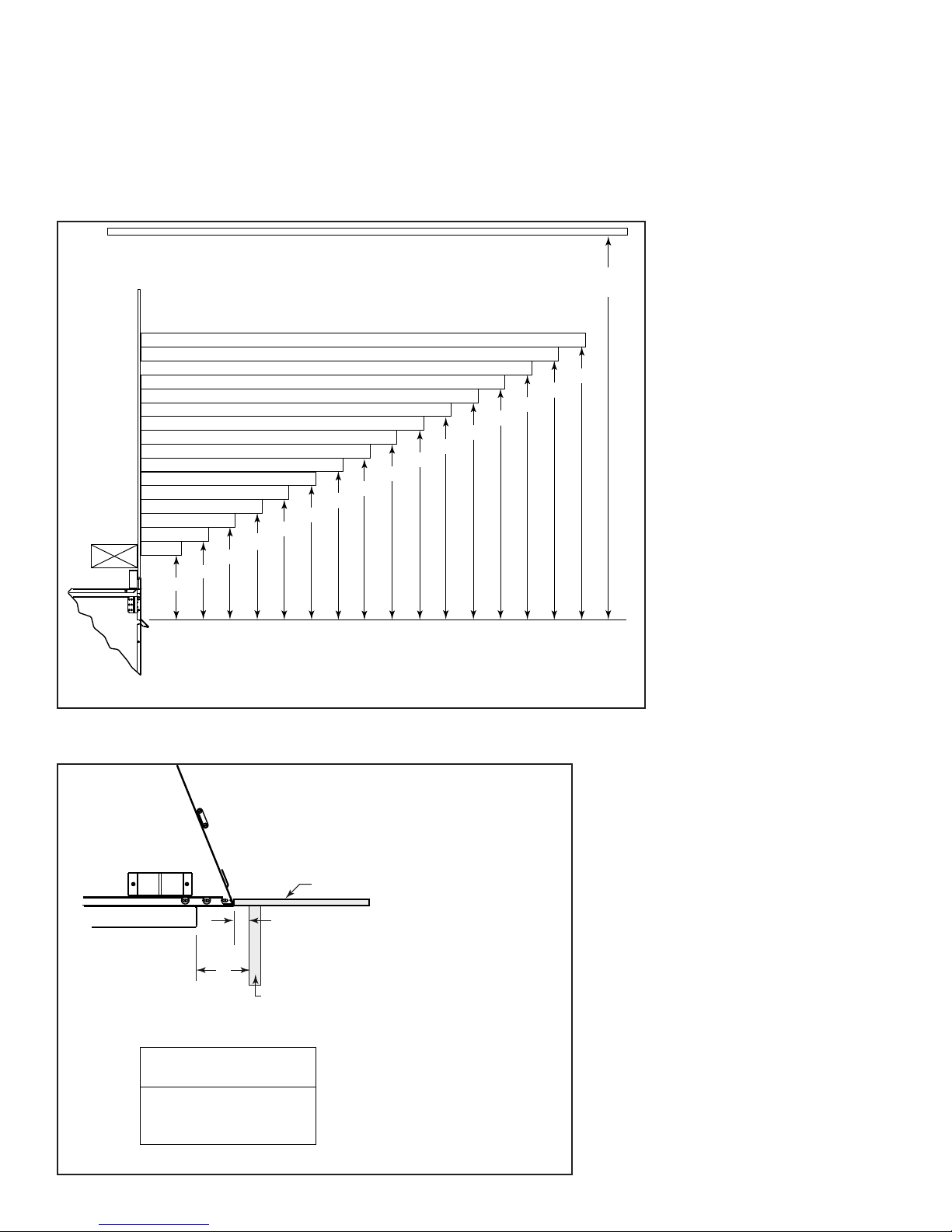

D. Mantel and Wall Projections 18
6 Termination Locations
A. Vent Termination Minimum Clearances 19

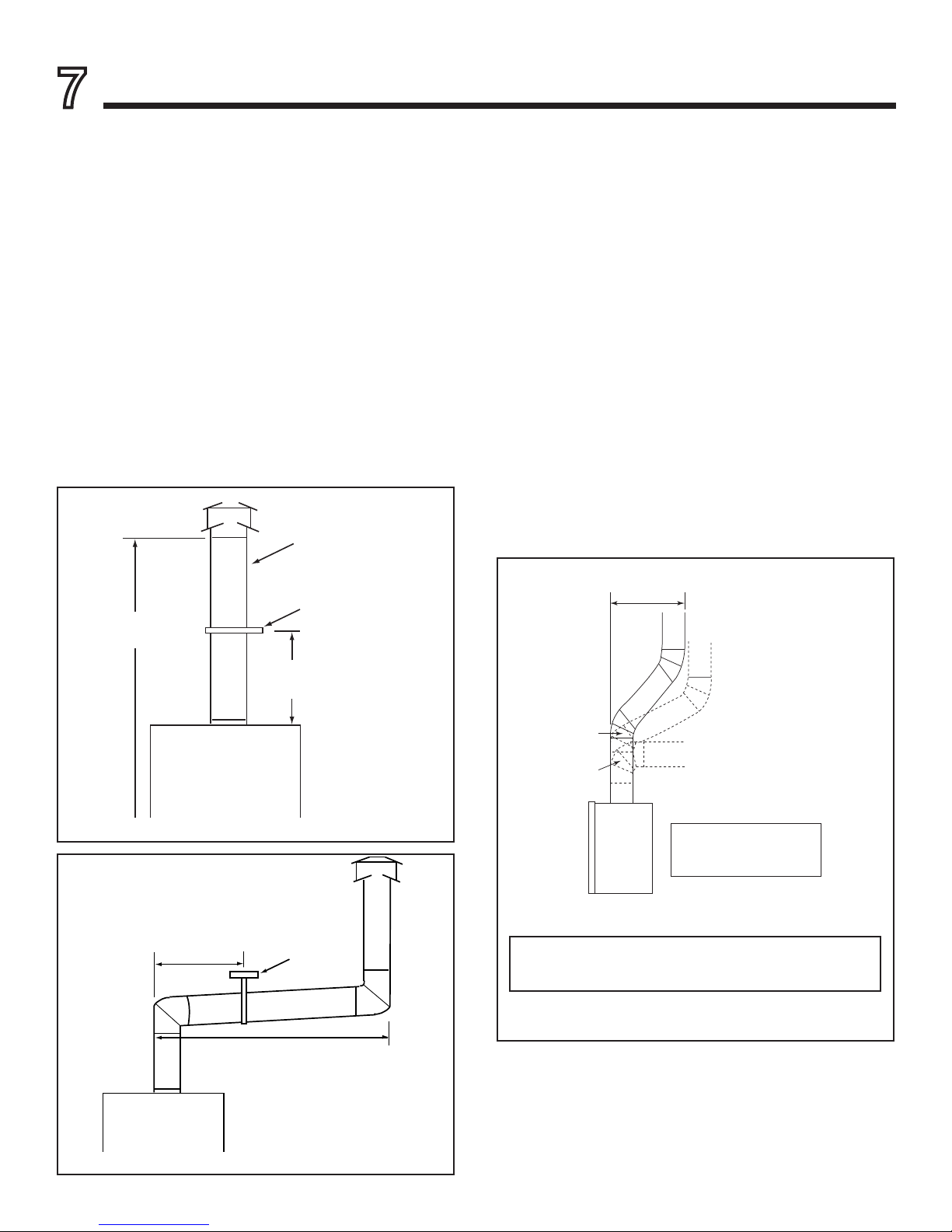

7 Vent Information and Diagrams
A. Vent Guidelines 20
B. Vent System Conguration 20
8 Vent Clearances and Framing
A. Pipe Clearances to Combustibles 21
B. Wall and Ceiling Penetration Framing 21
C. Vertical Penetration Framing 21
9 Appliance Preparation
A. Installing Outside Air Kit Damper Assembly 22
B. Gas and Electrical Connections 22
C. Securing and Leveling the Appliance 22
10 Installing Vent Pipe
A. Assembly of Vent Sections 23
B. Attaching Vent to Firebox 23
C. Securing Vent Sections 23
D. Install Attic Insulation Shield 23
11 Gas Information
A. Fuel Conversion 24
B. Gas Pressure 24
C. Gas Connection 24
D. High Altitude Installations 24
12 Electrical Information
A. Wiring Requirements 25
B. Intellire Ignition System Wiring 25
C. Optional Accessories Requirements 25
D. Electrical Service and Repair 26
E. Junction Box Installation 27
13 Finishing
A. Mantel and Wall Projections 28
B. Facing Material 29
14 Appliance Setup
A. Remove the Shipping Materials 30
B. Remove Shipping Supports 30
C. Clean the Appliance 30
D. Accessories 30
E. Install the Log Assembly 30
F. Place the Lava Rock & Vermiculite 31
G. Place the Rockwool 31
H. Log Removal/Replacement 32
I. Glass Door Assembly 33
J. Install Hood 33
K. Air Shutter Setting 34
15 Troubleshooting
A. Intellire Ignition System 35
16 Reference Materials
A. Appliance Dimension Diagram 37
B. Service Parts List 38
C. Optional Components 46
D. Contact Information 47
 = Contains updated information.


Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/134
B. Warranty
4021-645F 02-18-13 Page 1 of 2
Hearth & Home Technologies
LIMITED LIFETIME WARRANTY
Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT
gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo-
nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for
parts and labor for covered components is produced in the following table.
The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for
gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These
time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.
See conditions, exclusions, and limitations on next page.
Parts Labor Gas Wood Pellet EPA
Wood
Coal Electric Venting
XXXXXXX
All parts and material except as
covered by Conditions,
Exclusions, and Limitations
listed
XXX
Igniters, electronic components,
and glass
X X X X X Factory-installed blowers
X Molded refractory panels
X Firepots and burnpots
5 years 1 year X X Castings and baffles
7 years 3 years X X X Manifold tubes,
HHT chimney and termination
10
years
1 year X Burners, logs and refractory
Limited
Lifetime
3 years X X X X X Firebox and heat exchanger
XXXXXXX All replacement parts
beyond warranty period
Warranty Period HHT Manufactured Appliances and Venting
1 Year
Components Covered
3 years
2 years
90 Days

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 5
B. Warranty (continued)
4021-645F 02-18-13 Page 2 of 2
WARRANTY CONDITIONS:
• This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of
HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the HHT appliance remains at the site of original installation.
• This warranty is only valid in the country in which the HHT authorized dealer or distributor that sold the appliance
resides.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact
the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service
from a dealer other than the dealer from whom you originally purchased the product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges
for parts are not covered by this warranty.
This warranty is void if:
• The appliance has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging
chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling,
cracking and discoloration of steel or enamel finishes.
• The appliance is subjected to prolonged periods of dampness or condensation.
• There is any damage to the appliance or other components due to water or weather damage which is the result of, but
not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
• The owner’s exclusive remedy and HHT’s sole obligation under this warranty, under any other warranty, express or
implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no
event will HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states
do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you.
This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO
THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE
EXPRESSED WARRANTY SPECIFIED ABOVE.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and
exterior surface finishes may occur. This is not a flaw and is not covered under warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items,
or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts
include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, batteries and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com-
plaints related to this noise are not covered by this warranty.
• Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation
instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to
install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper opera-
tion, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/
incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting
caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or
forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7)
installation or use of components not supplied with the appliance or any other components not expressly authorized
and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the appliance.
• Non-HHT venting components, hearth components or other accessories used in conjunction with the appliance.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed.
• HHT’s obligation under this warranty does not extend to the appliance’s capability to heat the desired space. Informa-
tion is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consider-
ation must be given to appliance location and configuration, environmental conditions, insulation and air tightness of
the structure.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/136
B. Tempered Glass Specications
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous
locations such as bathtub enclosures as dened by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certied to the
requirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certication Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01 and
02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certication and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certicate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
C. BTU Specications
MODELS: RBV4236/RBV4842 Series
Underwriters Laboratories, Inc. (UL)
Vented Gas Fireplace
STANDARD: ANSI Z21.50a-2008/CSA 2.22a-2008
A. Appliance Certication
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136, Stan-
dard Test Method for Behavior of Materials in a Vertical
Tube Furnace at 750 ºC and UL763 shall be considered
non-combustible materials.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemental
room heat or as a decorative appliance. It should not be fac-
tored as primary heat in residential heating calculations.
D. High Altitude Installations
If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility or
authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Reduce input rate 10% for elevations
between 2000 feet and 4500 feet. Above 4500 feet,
consult local gas utility.
Check with your local gas utility to determine proper
orice size.
This installation must conform with local codes
or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and
Propane Installation Code, CSA B149.1.
1 Listing and Code Approvals
G. Electrical Codes
 This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed
paper, plant bers, plastics, or other material that can ig-
nite and burn, whether ame proofed or not, or plastered
or unplastered shall be considered combustible materials.
Reveal Series RBV4236 RBV4842
IPI
Input Rate (NG) 40,000 BTUH 43,000 BTUH
Orice Size (NG) #31/3.05 mm .125 in./3.18 mm
Input Rate (LP) 38,000 BTUH 41,000 BTUH
Orice Size (LP) #49/1.85 mm #48/1.93 mm

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 7
2 Operating Instructions
Figure 2.1 General Operating Parts
B. Your Fireplace

Failure
to operate  replace according to operating instructions
could cause  re or injury.
If you expect that small children or vulnerable adults may
come into contact with this  replace, the following precau-
tions are recommended:
• Install a physical barrier such as:
- A decorative  rescreen.
- Adjustable safety gate.
A. Gas Fireplace Safety • Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot  replace, whether
operating or cooling down.
• Teach children to NEVER touch the  replace.
• Consider not using the  replace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/staysafe.
To prevent unintended operation when not using your
 replace for an extended period of time (summer months,
vacation, trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug 3 volt adapter plug and remove batteries on IPI
models.
Hearth
(not required)
Clear Space
Section 2.C.
High Limit Switch
Remote Control
Section 2.E.
Mantel
Section 5.D.
Outside Air
UP - Closed
DOWN - Open


Decorative Doors or Fronts
(not shown) Section 2.D.
User Guide
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
 replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other  ammable
materials away.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/138
Clear Space
3 ft (0.91 m)
in front of
appliance
C. Clear Space

High tempera-
tures may start a re. See Figure 2.2.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.
Figure 2.2 Clear Space
F. Outside Air (optional)
The outside air kit supplies some fresh combustion air for
your replace. It may help reduce the effects of negative
air pressure. (See Section 9.A.)
• Refer to Figure 2.1 for location of control.
• Close the inlet to prevent cold drafts when the replace
is not being used.
The outside air control handle
is HOT when replace is in operation. Adjust BEFORE
lighting re.
D. Decorative Doors and Fronts
Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause replace to overheat.
For more information refer to the instructions supplied
with your decorative door or front.
E. Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your replace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
G. Before Lighting Fireplace
Before operating this replace for the rst time, have a
qualied service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the rebox.
• Review proper placement of logs, ember material and/or
other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the glass is sealed and in the proper position
and that the integral barrier is in place.
Fire/Asphyxiation!  operate
replace with rescreen assembly removed.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 9
H. Lighting Instructions (IPI)
• For normal use, activate/deactivate your replace with the wall switch or remote control.
• The IPI system may be operated with two D-cell batteries. When using batteries, unplug the transformer. To prolong
battery life, remove them when using the transformer.
• If your replace must be deactivated for serviced or an extended period of time, follow the instructions below.
A. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by
hand.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this label.
2. Turn wall switch to the "OFF" position or thermostat to the
lowest setting.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the pilot. Do NOT try to light the pilot by
hand.
5. Wait five minutes to clear out any gas. If you then smell gas, STOP!
Follow "B" in the safety information above on this label. If you don't
smell gas, go to the next step.
6. To turn on the burner, turn on all electric power to this appliance and
turn on the wall switch or set the thermostat to the desired setting.
7. If the appliance will not operate, follow the instructions "TO TURN OFF
GAS TO APPLIANCE" and call your service technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1. Turn off wall switch or set thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is to be
performed.
3. Push the gas control lever in and move to the "OFF" position
or push the gas control lever to the "OFF" position. Do not
force.
4. Replace the control access panel.
Due to high surface temperatures, keep children, clothing and furniture away.
Keep burner and control compartment clean. See installation and operating instructions accompanying the appliance.
WARNING: If you do not follow these instructions exactly, a fire
or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY READ BEFORE LIGHTING
33631D
C. Use only your hand to push in and move the gas control
valve or turn the gas control knob. Never use tools. If the
lever or knob will not move by hand, don't try to repair it, call
a qualified service technician. Force or attempted repair may
result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
This appliance needs fresh air for safe operation
and must be installed so there are provisions for
adequate combustion and ventilation air.
This appliance must be installed in accordance with
local codes, if any; if not, follow ANSI Z223.1 or, in
Canada, current CAN/CGA-B149.
WARNING: Improper installation,
adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to the
owner's information manual provided with the
appliance. For assistance or additional information
consult a qualified installer, service agency or the
gas supplier.
CAUTION: Hot while in operation. Do
not touch. Keep children, clothing, furniture,
gasoline and other liquids having flammable vapors
away.
WARNING RISK OF FIRE
This appliance is intended to burn a specified gas
fuel only. Do not attempt to use with solid wood fuel
or another type of fuel. Do not attempt to modify or
use any other type of gas burner system.
* Also certified for installation in a bedroom or a
bed-sitting room.
* For U.S. only!
WARNING: Disconnect the electric power
before servicing. If for any reason the original wire
supplied with the appliance must be replaced, it must
be replaced with 105° C or its equivalent.
For use with natural gas or propane. A conversion kit
as supplied by the manufacturer shall be used to
convert this appliance to the alternative fuel.
This appliance must be properly connected to a
venting system in accordance with the
manufacturer's installation instructions.
NATURAL GAS

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/1310
Initial Break-in Procedure
• The fireplace should be run three to four hours
continuously on high.
• Turn the replace off and allow it to completely cool.
• Run continuously on high an additional 12 hours.
This cures the materials used to manufacture the re-
place.
Open windows for air circulation during replace
break-in.
• Some people may be sensitive to smoke and
odors.
• Smoke detectors may activate.
I. After Fireplace is Lit
K. Frequently Asked Questions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the appliance warms, this
condensation will disappear.
Blue ames This is a result of normal operation and the ames will begin to yellow as the appliance is allowed
to burn for 20 to 40 minutes.
Odor from appliance When rst operated, this appliance may release an odor for the rst several hours. This is
caused by the curing of materials from manufacturing. Odor may also be released from nishing
materials and adhesives used near the appliance. These circumstances may require additional
curing related to the installation environment.
Film on the glass This is a normal result of the curing process of the paint and logs. Glass should be cleaned within
3 to 4 hours of initial burning. A non-abrasive cleaner such as gas appliance glass cleaner may
be necessary. See your dealer.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to
the sound produced by a furnace or heating duct. This noise does not affect the operation or
longevity of the appliance.
Is it normal to see the pilot
ame burn continually?
In an IntelliFire ignition system (IPI), the pilot ame should turn off when appliance is turned off.
Some optional control systems available with IPI models may allow pilot ame to remain lit. In a
standing pilot system the pilot will always stay on.
J. Flame Adjustment Control
Some appliances come equipped with a high/low ame
adjustment control.
• Open control access panel
• Compare your valve to Figures 2.4 & 2.5.
• Adjust the ame by turning knob as indicated in the
photo matching your valve.
HILO
Indicator
Indicator
HI LO
Figure 2.4 DEXEN Valve - IntelliFire Ignition System
Figure 2.5 SIT Valve - Standing Pilot Ignition System

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 11
3 Maintenance and Service
A. Maintenance Tasks-Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
More frequent cleaning may be required due to lint from
carpeting or other factors. Control compartment, burner
and circulating air passageway of the replace must be
kept clean.
The replace should be
turned off and cooled before servicing.
When properly maintained, your replace will give you
many years of trouble-free service. We recommend an-
nual service by a qualied service technician.
Doors, Surrounds, Fronts
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Assess condition of glass and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
• Vacuum and dust surfaces.
Any safety screen or guard removed for servicing must be
replaced prior to operating the replace.
Installation and repair should be done by a qualied service
technician only. The replace should be inspected before use
and at least annually by a professional service person.
Remote Control
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote control in-
structions.
• Locate remote control transmitter and receiver.
• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your replace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin-
tended operation:
• Remove batteries from remote controls.
• Unplug 3 volt adapter plug on IPI models.
Venting
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect venting and termination cap for blockage or
obstruction such plants, bird nests, leaves, snow, debris,
etc.
• Verify termination cap clearance to subsequent
construction (building additions, decks, fences, or
sheds). See Section 6.
• Inspect for corrosion or separation.
• Verify weather stripping, sealing and ashing remains
intact.
• Inspect draft shield to verify it is not damaged or missing.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/1312
Burner Ignition and Operation
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, ashlight, voltmeter, indexed drill bit set, and a manom-
eter.
• Verify burner is properly secured and aligned with
igniter.
• Clean off burner top, inspect for plugged ports, corrosion
or deterioration. Replace burner if necessary.
• Replace ember materials with new dime-size pieces.
DO NOT block ports or obstruct lighting paths. Refer to
Section 14 for proper ember placement.
• Verify batteries have been removed from battery back-
up IPI systems to prevent premature battery failure or
leaking.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other ame problems.
• Verify air shutter setting is correct. See Section 14.J.
for required air shutter setting. Verify air shutter is clear
of dust and debris.
• Inspect orice for soot, dirt and corrosion. Verify orice
size is correct. See Service Parts List for proper orice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot ame pattern and strength. See Figure 3.1
for proper pilot ame pattern. Clean or replace orice
spud as necessary.
• Inspect IPI ame sensing rod for soot, corrosion and
deterioration. Clean with emery cloth or replace as
required.
• Verify that there is not a short in ame sensing circuit
by checking continuity between pilot hood and ame
sensing rod. Replace pilot as necessary.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Use caution when cleaning these areas. Screw tips that
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Firebox
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace replace if rebox has been perforated.
Logs
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves.
• Inspect for damaged or missing logs. Replace as
necessary. Refer to Section 14.D. for log placement
instructions.
• Verify correct log placement and no ame impingement
causing sooting. Correct as necessary.
B. Maintenance Tasks-Qualied Service
Technician
The following tasks must be performed by a qualied
service technician.
Figure 3.1 IPI Pilot Flame Patterns

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 13
Noncombustible roof
flashing maintains minimum
clearance around pipe
Ceiling Firestop
on floor of attic
Listed B-Vent Pipe
Framing/Header
(SECTION 5)
Gas Line
(SECTION 11)
Framing Headed off
in Ceiling Joists
(SECTION 8)
Mantel & Mantel Leg
(SECTION 13)
Surround
Hearth Extension
(not required)
Optional
Wall Switch
Vertical Termination Cap
Storm Collar
Attic insulation shield (not shown) must be used here to
keep insulation away from vent pipe if attic is insulated.
Vent pipe penetrates roof,
preferably without affecting
roof rafters
A. Typical Appliance System
Illustrations and photos reect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual
Figure 4.1 Typical System
4 Getting Started
Installer Guide

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/1314
B. Design and Installation Considerations
Hearth & Home Technologies B-type vent gas appliances
are designed to operate with all exhaust gases expelled
to the outside of the building, and combustion air pulled
from the room.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ofcials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping.
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
D. Inspect Appliance and Components
The following B-vent components are needed for installa-
tion.
• Fireplace Box
• Pipe Components
• Firestops
• Attic Insulation Shield
• Elbows
• Strapping
• Roof Flashing or Chase Top
• Termination Cap
• Storm Collar
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benet.
Damaged parts
could impair safe operation. DO NOT install damaged,
incomplete or substitute components. Keep appliance dry.
C. Tools and Supplies Needed
Before beginning the installation be sure that the follow-
ing tools and building supplies are available.
Tape measure Framing material
Pliers High temperature caulking
material
Hammer Phillips screwdriver
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
Noncorrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws

use this appliance if any part has been under wa-
ter. Call a qualied service technician to inspect the appli-
ance and to replace any part of the control system and/or
gas control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a re hazard.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 15
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Multi-level Roofs
Windward
Leeward
Location
Not
Recommended
Figure 4.2
E. Negative Pressure
Negative pressure can
cause spillage of combustion fumes and soot. Fireplace
needs to draft properly for safety.
Draft is the pressure difference needed to vent replaces
successfully. Considerations for successful draft include:
• Preventing negative pressure
• Location of replace and chimney
Negative pressure results from the imbalance of air
available for the replace to operate properly. Causes for
this imbalance include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks (recessed lighting, attic hatch
opening, duct leaks)
To minimize the effects of negative air pressure, the fol-
lowing must be considered:
• Install the fresh air kit. Install the intake on the side of
the house towards prevailing winds during the heating
season.
• Ensure adequate outdoor air is supplied for combustion
appliances and exhaust equipment.
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the replace.
• Avoid installing the replace near doors, walkways or
small isolated spaces.
• Recessed lighting should be of “sealed can” design; attic
hatches weather stripped or sealed; and attic mounted
ductwork and air handler joints and seams taped or
sealed.
• Basement installations should be avoided due to stack
effect. Stack effect creates negative pressure in lower
levels. Hearth & Home Technologies recommends the
use of direct vent replaces in basements.
Location of the replace and chimney will affect perfor-
mance. As shown in Figure 4.2, the chimney should:
• Be installed through the warm space enclosed by the
building envelope. This helps to produce more draft,
especially during lighting and die-down of the re.
• Penetrate the highest part of the roof. This minimizes
the effects of wind turbulence.
• Be located away from trees, adjacent structures, uneven
roof lines and other obstructions.
Offsets can restrict draft so their use should be mini-
mized. Consider the replace location relative to oor
and ceiling and attic joists.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/1316
In addition to these framing dimensions, also reference the
following sections:
• Clearances and Mantel Projections (Sections 3.C. and 3.D.)
• Vent Clearances and Framing (Section 6)
A
A
A
C
B
B
1/2 in. (13 mm) min.
appliance
to combustibles
Alcove
Installation
C
Drywall 48 in.
(1219 mm)
max.
1 in.
(25 mm)
min.
A B C
in. 42 48 22
mm 1067 1219 559
in. 48 51-1/4 22
mm 12191327 559
Model #
RBV4236
RBV4842
5 Framing and Clearances
A. Selecting Appliance Location
When selecting a location for the appliance it is important
to consider the required clearances to walls (see Fig-
ure 5.1).
      Provide adequate
clearance around air openings and for service access. 


 Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
Figure 5.1 Appliance Locations

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 17
C
B
A
Per Vent Manufacturer’s
Specifications
30 in.
(762 mm)
to ceiling
0 in.
Drywall
0 in.
1/2 in.
(13 mm)
1/2 in.
(13 mm)
Combustible Object
0 in.to level
of standoffs
Combustible flooring may be installed
next to the front of the appliance.
36 in.
(914 mm)
A
Rough Opening
(Width)
B
Rough Opening
(Height)
C
Rough Opening
(Depth)
in. 42 39-3/4 22
mm 1067 1010 559
in. 48 39-3/4 22
mm 1219 1010 559
Model #
RBV4236
RBV4842
B. Constructing the Appliance Chase
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should enclosed inside the chase.
 Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes for the
requirements of local building codes. Therefore, you MUST
check local building codes to determine the requirements
to these steps.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
Walls, ceiling, base plate and cantilever oor of the chase
should be insulated. Vapor and air inltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air inltration may be an issue, the inside surfaces may
be sheetrocked and taped for maximum air tightness. To
further prevent drafts, the wall shield and ceiling re-
stops should be caulked with high temperature caulk to
Figure 5.2 Clearances to Combustibles
C. Clearances
Install appliance on hard metal or wood surfaces
extending full width and depth.  install directly on
carpeting, vinyl, tile or any combustible material other than
wood.
Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to
prevent accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.
seal gaps. Gas line holes and other openings should
be caulked with high temp caulk or stuffed with unfaced
insulation. If the appliance is being installed on a cement
slab, a layer of plywood may be placed underneath to
prevent conducting cold up into the room.
Note: If the inside of the framed cavity is to be nished,
the framing dimensions must include the nished surface.
Example: If drywall is to be attached to the rear wall, the
depth must be measured from the drywall surface.

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/1318
1 in. (25mm) min.
to perpendicular wall
A
3-1/2 in. (89 mm) min.
from fireplace opening
to perpendicular wall
B
Mantel Leg or
Perpendicular Wall
Top of
Appliance
Drywall
A
B
Measured from top of hood (in inches)
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
6-1/2
8-1/2
9-1/4
10
10-3/4
11-1/2
12-1/4
13
13-3/4
14-1/2
15-1/4
16
16-3/4
17-1/2
18-1/4
19
30 in. minimum
to ceiling
D. Mantel and Wall Projections
Comply with all minimum clear-
ances as specied. Framing or nishing material closer
than the minimums listed must be constructed entirely
of noncombustible materials (i.e., steel studs, concrete
board, etc).
Figure 5.3 Minimum Vertical and Maximum Horizontal Dimensions
Mantels
Figure 5.4 Mantel Leg or Wall Projections (Acceptable on both sides of opening)
Mantel Legs or Wall Projections

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/13 19
A. Vent Termination Minimum Clearances
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A *
*If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
In a staggered installation with both gas and wood terminations, the
wood termination cap must be higher than the gas termination cap.
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
Figure 6.1 Minimum Height From Roof To Lowest Discharge
Opening
6 Termination Locations
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation
or other materials.
Failure to keep insulation or other materials away
from vent pipe may cause overheating and re.
WARNING
Figure 6.2 Termination Cap Clearances
12
X
8 ft
(2.44 m)
Lowest
Discharge
Opening
Termination
Cap
Roof Pitch
is X / 12
Vertical
wall
H (min.) - Minimum height
from roof to lowest
discharge opening.
Roof Pitch H (Min.) Ft. Roof Pitch H (Min.) Ft.
Flat to 6/12 1.0* Over 11/12 to 12/12 4.0
Over 6/12 to 7/12 1.25* Over 12/12 to 14/12 5.0
Over 7/12 to 8/12 1.5* Over 14/12 to 16/12 6.0
Over 8/12 to 9/12 2.0* Over 16/12 to 18/12 7.0
Over 9/12 to 10/12 2.5 Over 18/12 to 20/12 7.5
Over 10/12 to 11/12 3.25 Over 20/12 to 21/12 8.0
* 3 ft. minimum in snow regions
Storm Collar
Roof
Flashing

Hearth & Home Technologies • RBV4236/RBV4842 • 4048-210 • Rev Z • 12/16/1320
Minimum
clearances are
per vent
manufacturer's
specifications
Metal
plumber's strap
secured to
framing
Vent supports are per
vent manufacturer's
specifications
12 ft (3.66 m) min.
60 ft (18.29 m) max.
45°
Elbow
90°
Elbow
Offsets exceeding
45° adapt horizontal
limitations
Maximum
horizontal
30 ft (9.14 m)
Note: Maximum horizontal
distance is 50% of vertical
vent height.
Maximum horizontal run is 50% of
vertical. Horizontal run cannot be
more than 30 ft. (9.14 m).
Vent supports
are per vent
manufacturer’s
specifications.
Metal
Plumbers'
Strap
7 Vent Information and Diagrams
A. Vent Guidelines
This appliance re-
quires the specied pipe for operation. Incorrect pipe may
cause spillage, condensation and overheating.
These models require 6 in. (152 mm) double wall, B-vent
pipe.
• Follow pipe manufacturer’s installation guidelines when
installing the appliance.
B. Vent System Conguration
ALL vent conguration speci-
cations MUST be followed. This product is tested and listed
to these specications. Appliance performance will suffer if
specications are not followed.
Rise to Run Ratio = 2:1
Maximum Total Horizontal Run = 30 Feet
Minimum Total Vertical Rise = 12 Feet
Maximum Total Vertical Rise = 60 Feet
Maximum Number of Elbows: Four (45º or 90°)
    
connect this gas appliance to a chimney ue serving a
separate solid-fuel or gas burning appliance.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
May impair safe operation of this appliance or other
appliances connected to the ue.
Insulation and
other combustibles must not infringe on clearances.
• ALWAYS maintain specied clearances around venting
and restop systems.
• Install restops as specied.
Failure to keep insulation or other material away from vent
pipe may cause re.
Figure 7.1 Vertical Termination Clearances
Figure 7.2 Maximum Horizontal Run
Figure 7.3 Maximum Horizontal Run
Note: 46° to 90° elbows are not allowed without a xed
glass door. Only 45° elbows or less are allowed. A straight
section is not required before the rst elbow.
