Hearth and Home Technologies B36S-AU User manual

1
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
NOTE: NOT INTENDED FOR FIREPLACE
INSERT. PRIMARILY A DECORATIVE AND
NOT A HEATING APPLIANCE.
Installation Manual
Installation and Appliance Setup
Models:
NOTICE: DO NOT discard this manual!
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
B36S-AU
DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.
Ref No GMK10598
AS/NZS 5263.1.8
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity.
High temperatures could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist....................3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications..............................4
C. Gas Pressure Requirements .......................4
D. High Altitude Installations ..........................5
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 5
F. Combustible Materials Specication .................5
G. Electrical Codes .................................5
2 Getting Started
A. Design and Installation Considerations ...............6
B. Good Faith Wall Surface/TV Guidelines ..............6
C. Tools and Supplies Needed ........................6
D. Inspect Appliance and Components.................. 7
3 Framing and Clearances

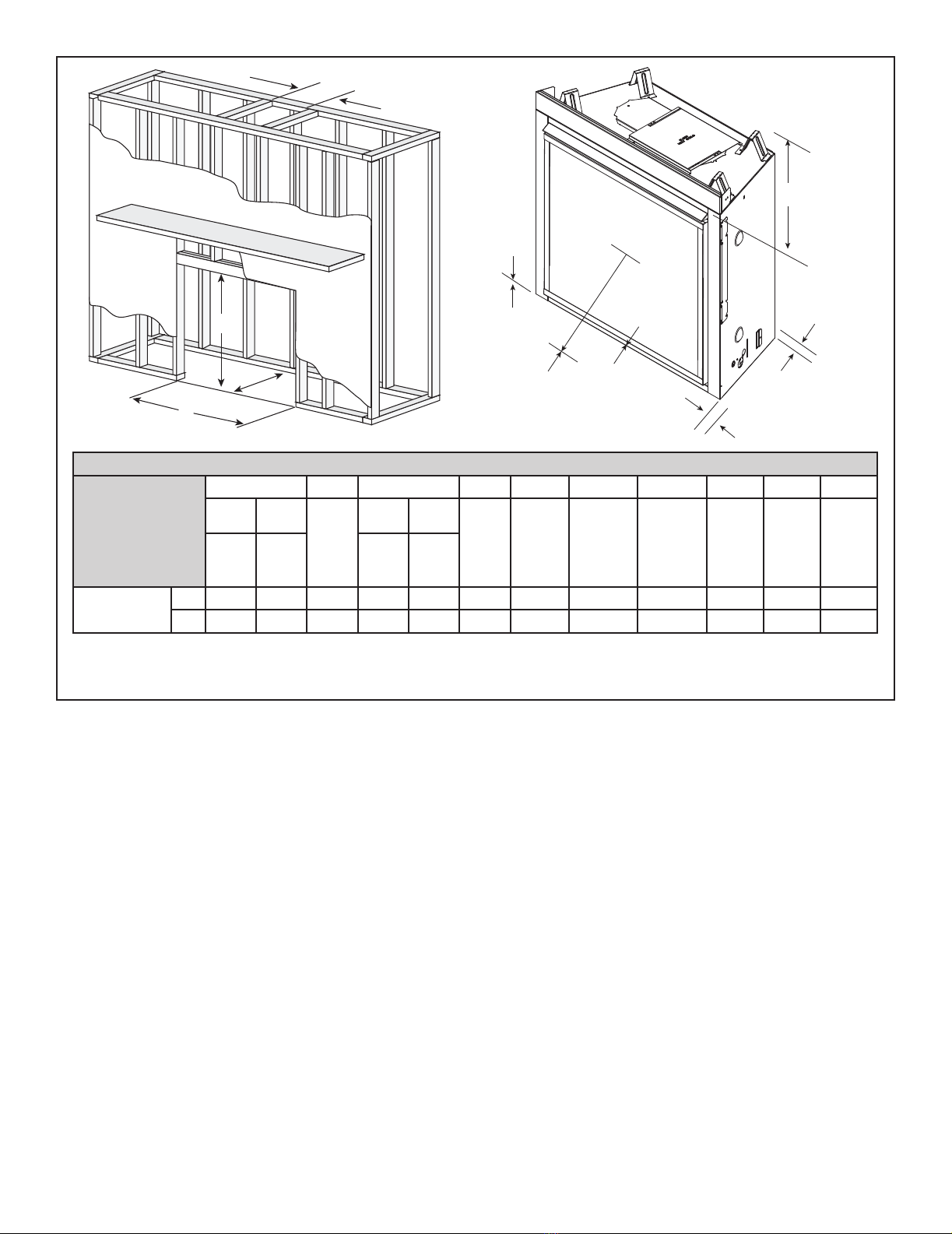

A. Appliance/Decorative Front Dimension Diagrams ....... 8

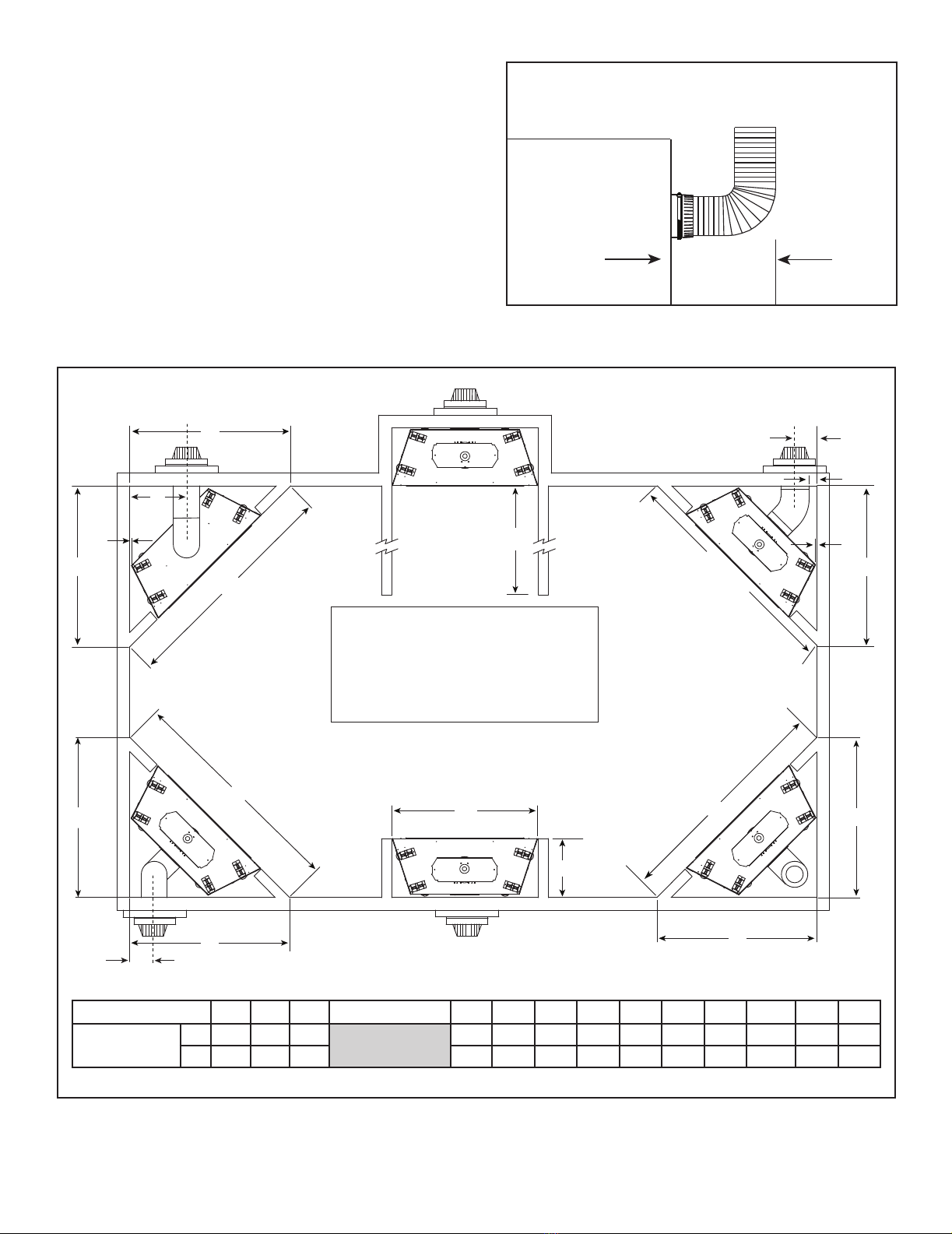

B. Appliance Location and Clearances to Combustibles ...10
C. Constructing the Appliance Chase ..................12
D. Floor Protection ................................12
4 Termination Location and Vent Information

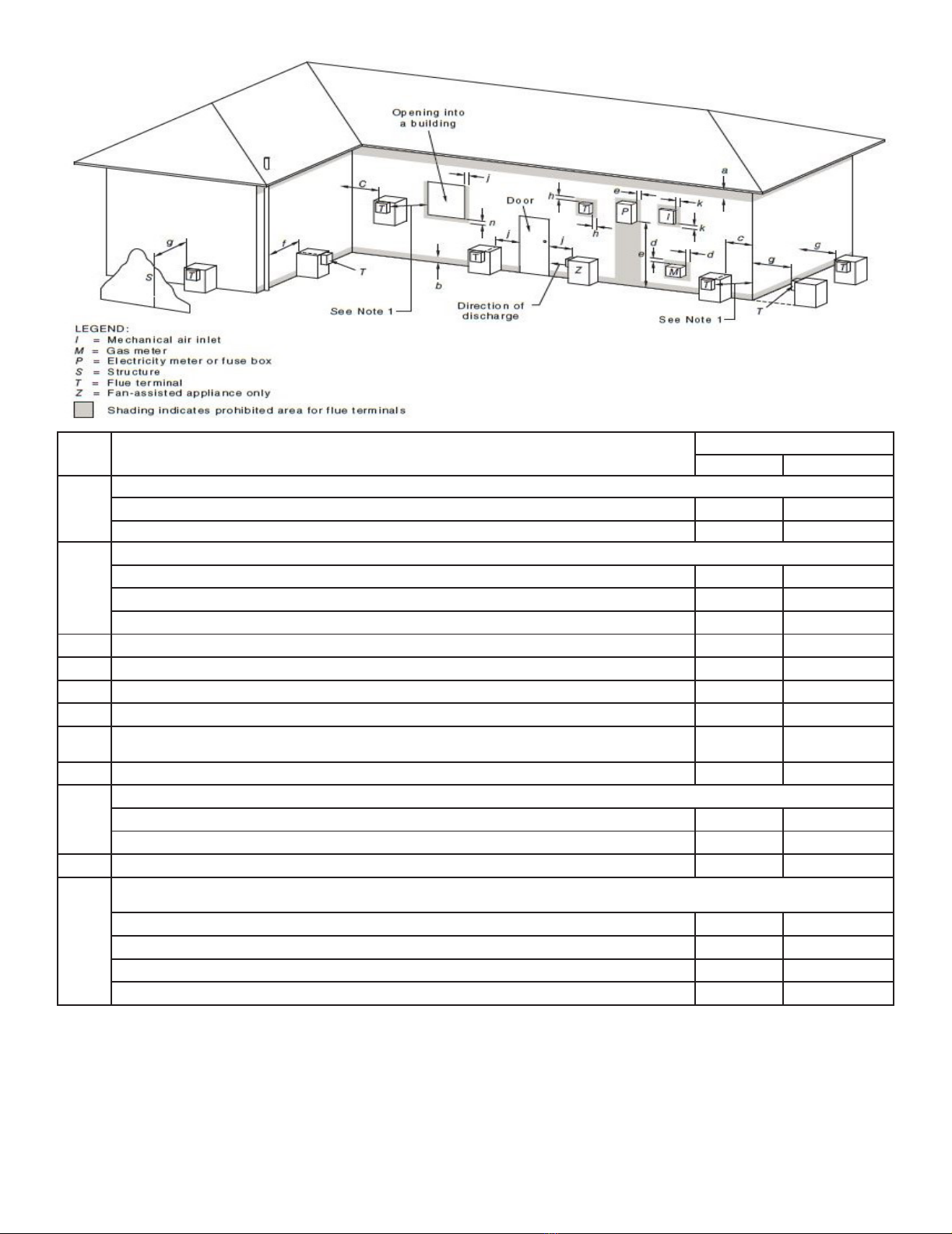

A. Vent Termination Minimum Clearances ..............13

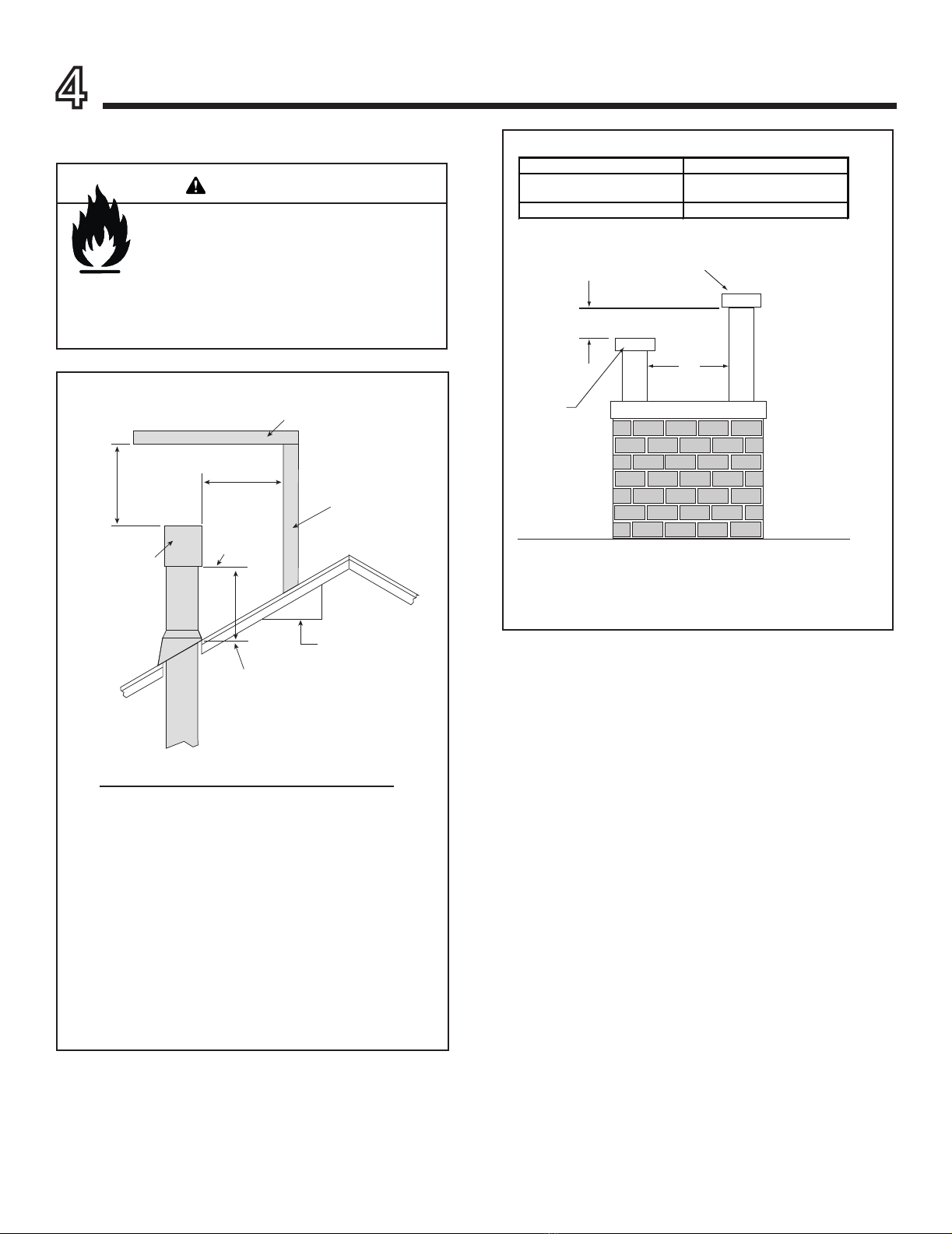

B. Chimney Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C. Approved Pipe .................................15

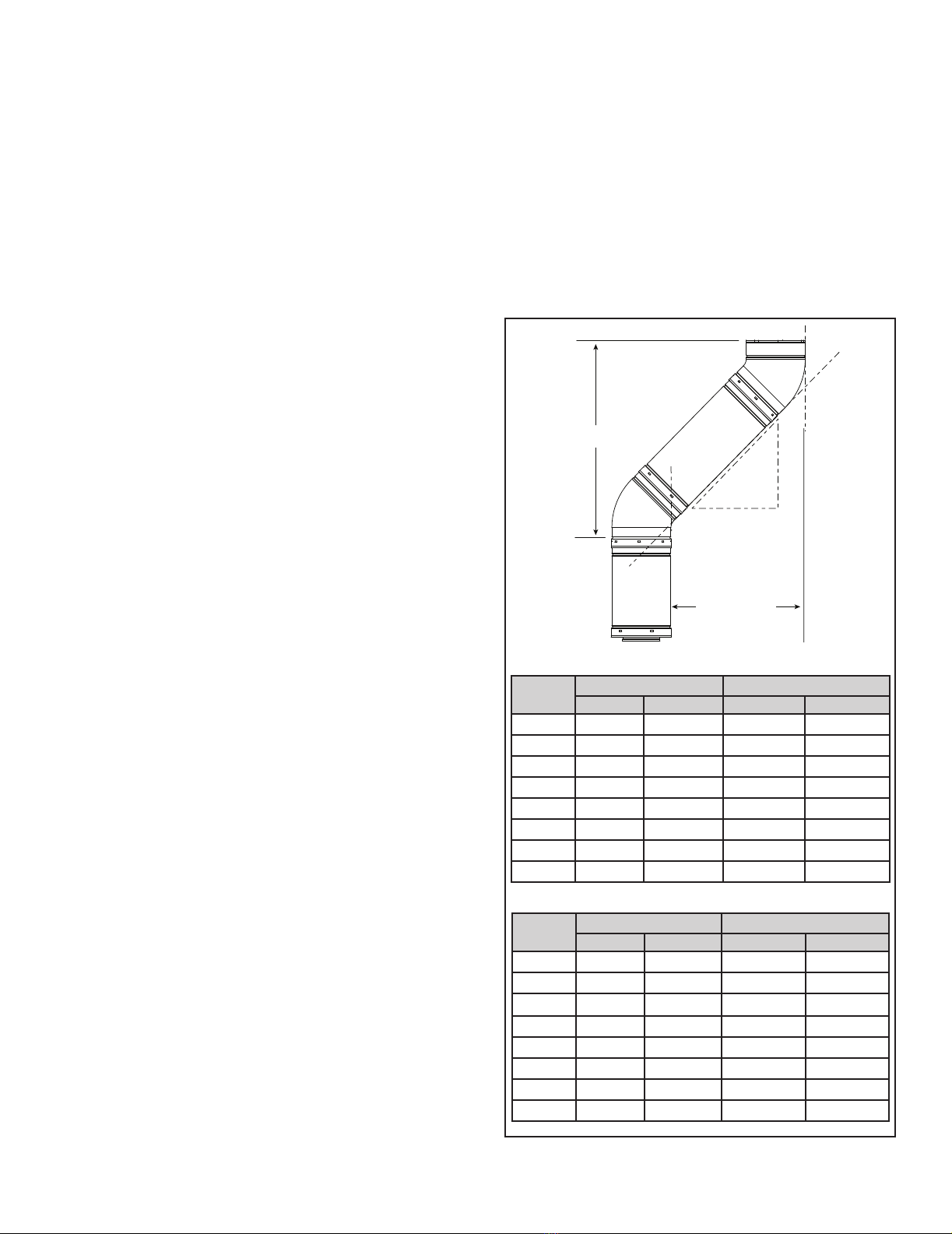

D. Use of Elbows .................................15

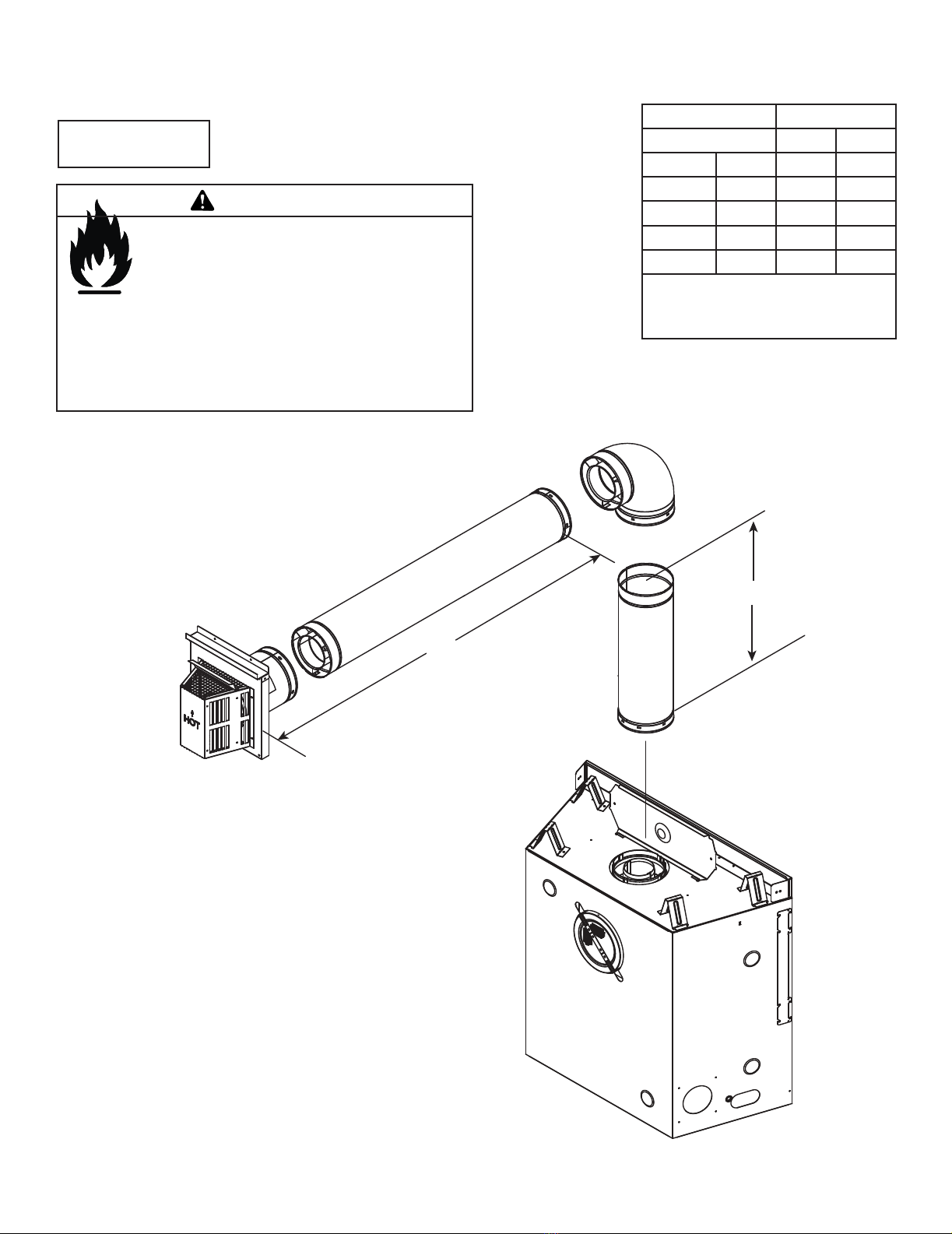

E. Vent Diagrams .................................16
F. Measuring Standards ............................17
5 Vent Clearances and Framing
A. Pipe Clearances to Combustibles ..................30
B. Wall Penetration Framing/Firestops .................31
C. Ceiling Firestop/Floor Penetration Framing ...........32
D. Install Attic Insulation Shield.......................32
6 Appliance Preparation
A. Vent Collar Preparation ..........................33
B. Securing and Leveling the Appliance ................35
7 Venting and Chimneys
A. Assemble Vent Sections. . . . . . . . . . . . . . . . . . . . . . . . . . 36
B. Assemble Slip Sections ..........................38
C. Secure the Vent Sections .........................39
D. Disassemble Vent Sections .......................39
E. Vertical Termination Requirements..................40
F. Horizontal Termination Requirements ...............41
8 Electrical Information
A. General Information .............................43
B. Wiring Requirements ............................44
C. Control Module Operation ........................44
9 Gas Information
A. Fuel Conversion ................................45
B. Gas Pressure ..................................45
C. Gas Service Access .............................45
D. Gas Connection ................................45
E. High Altitude Installations ......................... 45
F. Air Shutter Setting ..............................46
10 Finishing
A. Facing Material................................. 47
B. Mantel and Wall Projections....................... 47
C. Decorative Barrier Front Finishing ..................49
11 Appliance Setup
A. Remove the Shipping Materials ...................50
B. Clean the Appliance ............................50
C. Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 51
D. Ember and Lava Rock Placement .................. 53
E. Fixed Glass Assembly ...........................54
F. Install Decorative Front/Hood......................54
12 Reference Materials
A. Vent Components Diagrams ......................55
B. Accessories ...................................63
= Contains updated information.

3
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): B36S-AU
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Veried that the chase is insulated and sealed. (Pg. 12) ___________________________
Veried clearances to combustibles. (Section 3) ___________________________
Fireplace is leveled and secured. (Pg. 35) ___________________________
Venting/Chimney Section 7 (Pg. 36-42)
Venting conguration complies to vent diagrams. ___________________________
Venting installed, locked and secured in place with proper clearance. ___________________________
Firestops installed. ___________________________
Attic insulation shield installed. ___________________________
Exterior wall/Roof ashing installed and sealed. ___________________________
Terminations installed and sealed. ___________________________
Electrical Section 8 (Pg. 43-44)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg. 45-46)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veried. ___________________________
Veried proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg. 47-49)
Combustible materials not installed in non-combustible areas. ___________________________
Veried all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg. 50-54)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, logs, media and embers installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Mesh, doors, or decorative barrier front properly installed. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and veried no gas leaks exist. ___________________________
2563-980 10/19
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a re or explosion. Install ONLY components and accessories approved by Hearth & Home
Technologies. Unapproved components and accessories could cause replace to overheat
ATTENTION INSTALLER:
Follow this Standard Work Checklist

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
4
1 Product Specic and Important Safety Information
A. Appliance Certication
PRIMARILY A DECORATIVE AND NOT A HEATING
APPLIANCE.
B. Glass Specications
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous lo-
cations such as bathtub enclosures as dened by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certied to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certication Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
MODELS: B36S-AU
LABORATORY: IAPMO OCEANA
TYPE: Type 2 Decorative Effect Gas Appliance
STANDARD: AS/NZS 5263.1.8
C. Gas Pressure Requirements
Pressure requirements for B36S-AU appliances are
shown in table below.
Two taps are provided on the gas control for a test gauge
connection to measure the inlet and outlet pressures.
The appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in
excess of 3.4 kPa.
If the appliance must be isolated from the gas supply pip-
ing system by closing an individual shut-off valve, it must
be of the handle-less type.
This appliance must be installed in accordance with the AS/
NZS 5601.1 rules in force.
NOTE: An inline fuel pressure regulator is recom-
mended to limit NG inlet pressure to 2.49 kPa, and
Propane inlet pressure to 3.25 kPa, to ensure optimum
product performance. The inline fuel pressure regula-
tor may be needed if any of the following symptoms
exist: pilot jetting, a highly visible pilot ame, ame
variation, etc. The inline pressure regulator should
be installed in the gas line upstream of the appliance
gas valve either at the appliance or in the utility room.
Final main and manifold gas pressure must be tested
with inline pressure regulator installed.
NOTE: The gas control valve supplied with this prod-
uct is approved for a maximum inlet pressure of
3.40 kPa. For pressures over 3.40 kPa, an in line pres-
sure regulator must be installed upstream from the gas
control valve.
B36S-AU
NATURAL GAS PROPANE
Inlet Gas Pressure 1.13 - 3.40 kPa 2.75 - 3.40 kPa
* Outlet (Manifold) Gas
Pressure .77 kPa 2.43 kPa
Max. Gas Consump-
tion 19.5 MJ/h 20.5 MJ/h
Min. Gas
Consumption 14.2 MJ/h 16.5 MJ/h
Burner Injector DMS
(mm)
#45
(2.08 mm)
#55
(1.32 mm)
Pilot Injector .023 in.
(.584 mm)
.014 in.
(.356 mm)
* The allowable Outlet (Manifold) Gas Pressure ranges
are: Natural Gas 0.63 - .95 kPa (0.77 kPa nominal)
and Propane 2.37 - 2.61 kPa (2.43 kPa nominal).
Certication testing setpoint values are shown.
NOTE: To achieve the listed nominal gas consumption for
natural gas appliances in areas of reduced inlet pressure
(1.13 - 1.30 kPa) it may be necessary to remove the gas
shut-off valve and exible gas line assembly up stream of
the gas valve and supply directly into the gas valve. If the
provided assembly is removed, it is recommended that a
new gas shut-off be installed inside the envelope of the
appliance before the gas valve.

5
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 ft. (610 m) elevation:
Reduce input rate 4% for each 1000 ft. (305 m) above
2000 ft. (610 m).
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
All electrical safety testing has been done following the
IEC/EN 60335-2-102 standard. Local codes apply.

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
6
2 Getting Started
A. Design and Installation Considerations
Hearth & Home Technologies direct vent gas appliances
are designed to operate with all combustion air siphoned
from outside of the building and all exhaust gases ex-
pelled to the outside. No additional outside air source is
required.
This appliance must be installed in accordance with the
AS/NZS 5601.1 rules in force. Consult insurance carrier,
local building inspector, re ofcials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping requirements.
• Provisions for optional heat management system.
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories - devices such as a wall
switch, or remote control - are desired.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Hand Tools Tape measure
Level Framing material
Manometer Framing square
Voltmeter Electric drill and bits -1/4 in. (6 mm)
Plumb line Safety glasses/gloves
Wrenches Reciprocating saw
1/4 in. nut driver
Non-corrosive leak check solution
1/2 - 3/4 in. (13 - 19 mm) length, #6 or #8 Self-drilling
screws
Caulking material (300 ºF (149 ºC) minimum continuous
exposure rating)
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.

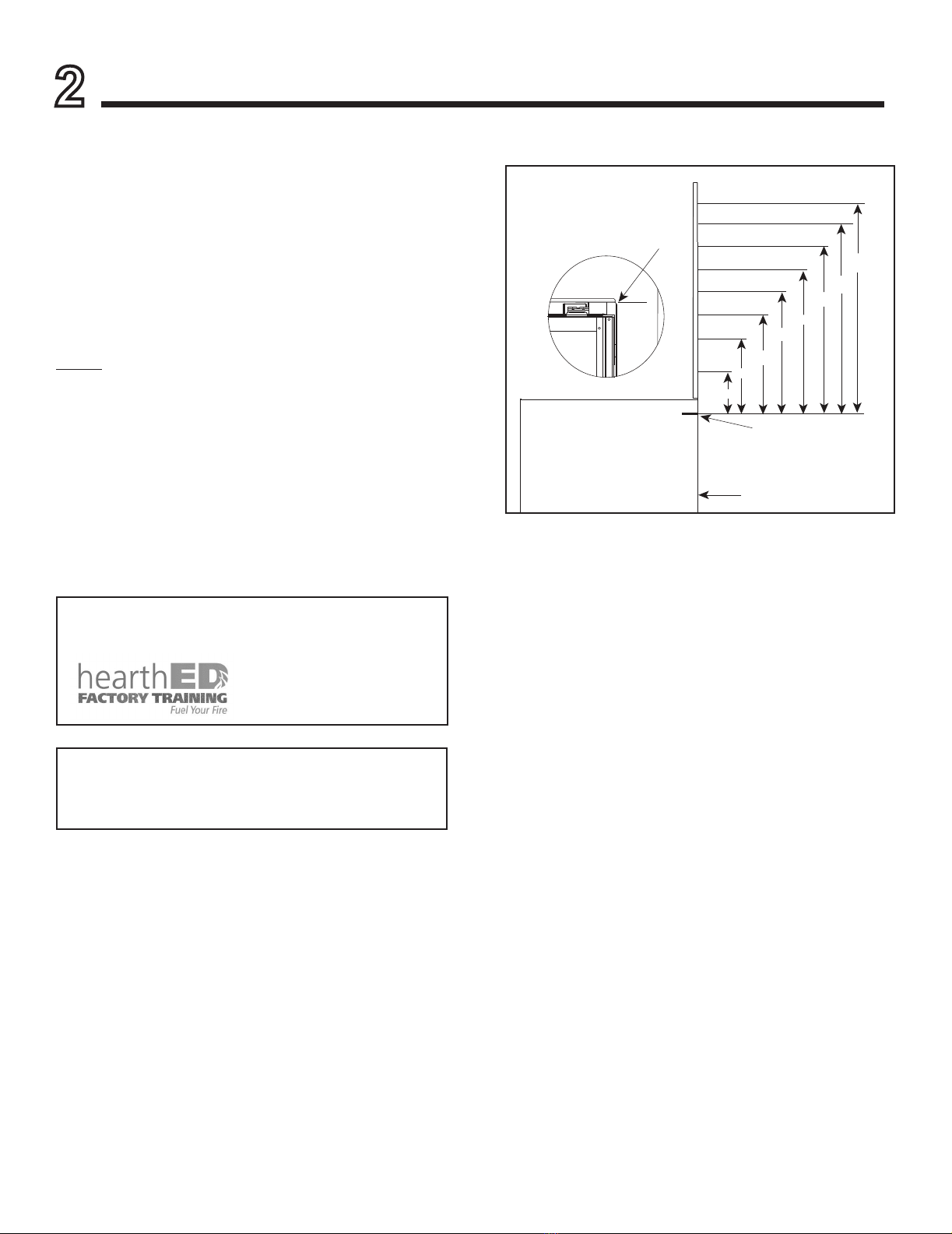

Figure 2.1 Good Faith Wall Surface Temperatures Above Appliance
B. Good Faith Wall Surface/TV Guidelines
NOTICE: Surface temperatures listed above are taken with
a temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured.Use appropriate nishing
materials that are able to withstand these conditions. For
additional nishing guidelines, see Section 10.
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
152 mm
1219
mm
TO CEILING
1069
mm
49 °C
43 °C
46 °C
52 °C
54 °C
60 °C
66 °C
APPLIANCE FRONT
FIREPLACE
OPENING
38 °C
305 mm
457 mm
610 mm
762 mm
914 mm
Installation and service of this appliance should be performed
by qualified personnel. Hearth & Home Technologies
recommends HHT Factory Trained or certied professionals.

7
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative barrier
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a re hazard.

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
8
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 3.1 Appliance Dimensions
Location Inches Millimeters Location Inches Millimeters
A36 914 L16-5/16 414
B31-1/8 791 M1/2 13
C27-3/16 691 N25-3/4 654
D18-1/16 459 O12-7/8 327
E34-5/16 872 P15-7/8 403
F31 787 Q6-5/8 168
G6-7/8 175 R30 762
H2-3/8 60 S2-3/16 56
I36-7/16 926 T6 152
J8 203 U1-1/16 27
K8-13/16 224 V23-3/8 594
N
O
P
T
S
R
GAS LINE ACCESS
K
L
M
Q
Ø
A
B
E
C
D
U
F
ELECTRICAL
ACCESS
G
H
I
J
Ø
V

9
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
DECORATIVE BARRIER FRONT
A B C D E F G
SRV2496-021 in. 28-7/8 25-1/8 31 2-5/8 1-5/8 27-1/8 28-3-/4
mm 733 638 787 67 41 689 730
CD
A
G
B
E
F
Figure 3.2 Decorative Front Dimensions
IMPORTANT! This replace requires an installed decorative barrier front to prevent direct contact with the
hot viewing glass. DO NOT operate the replace with the barrier removed.
Decorative barrier front must be ordered at time of replace purchase. If decorative barrier front is not
present, contact dealer.
Note: See Section 10 for mantel and nishing
requirements.

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
10
K
C
A
L
F
I
B
G
E
D
J
JG
A
F
CA
H
M
N
Refer to Section 10.B for mantel and wall
projection information.
Consider the mantel or cabinet system to be
installed and comply with the necessary
requirements for elevated hearth. Refer to
instructions included with cabinet system.
Figure 3.3 Appliance Locations
NOTICE: Additional clearance are required for Heat-Zone®-240V
installations. Provisions must be made in advance to ensure t within the
framing.
Model A B C D E Min. F Min. G H I J K L M N
B36S-AU
in. 42 37 59-1/2 See Section 10.B for
Alcove Installation
1 1/2 44 62-1/4 16-1/4 48-1/2 68-3/4 15-1/16 7-1/2 7-1/8
mm 1067 940 1511 25 13 1117 1581 413 1232 1746 383 191 181
B. Appliance Location and Clearances to
Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls and allow suf-
cient clearance for heat management systems venting.
See Figure 3.3 and Figure 3.4.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be lo-
cated out of trafc and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
NOTICE: Allow 18 in. (457 mm) minimum
clearance on side(s) of appliance for venting
of heat management system.
18 IN. MIN.
(457 mm)
Figure 3.4 Clearance for Heat Management System

11
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
Figure 3.5 Clearances to Combustibles
E
FROM TOP
OF HOOD
TO CEILING
I
F
G
J
H
* Adjust framing dimensions for interior sheathing (such as sheetrock)
C** Add 12 inches for rear venting with one 90º elbow.
MINIMUM FRAMING DIMENSIONS*
Models
A B C D E F G H I J
DVP
Pipe
SLP
Pipe Rough
Opening
(Height)
**DVP
Pipe
SLP
Pipe Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Rough
Opening
(Width)
Rough
Opening
(Width)
Rough
Opening
(Depth)
Rough
Opening
(Depth)
B36S-AU
in. 10 8-5/8 34-3/4 16-1/4 16-1/4 37 32 0 0 1/2 1/2 36
mm 254 219 883 413 413 940 813 0 0 13 13 914
C
B
D
A

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
12
D. Floor Protection
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with appliance or chimney.
• Failure to maintain airspace may cause overheating and
a re.
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
NOTICE: When installing a sprinkler head in a replace
chase, it is recommended to use a sprinkler head with a
sprinkler activation temperature classied as Extra High.
Keep sprinkler head away from vent and chimney.
Chases should be constructed and insulated in the same
manner as the thermal envelope of the home based on
the code requirements for that climate zone to prevent air
leakage and draft problems. The chase is an extension of
the building thermal envelope.
To further prevent drafts and air leakage, the wall shield
and ceiling restops should be sealed with caulk with a
minimum of 300 ºF (149 ºC) continuous exposure rating
to seal gaps. Gas line holes and other openings should
be sealed with caulk with a minimum of 300 ºF (149 ºC)
continuous exposure rating or stuffed with unfaced insula-
tion. If the appliance is being installed on a cement surface, a
layer of plywood may be placed underneath to prevent con-
ducting cold up into the room.
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly on
carpeting, vinyl, or any combustible material other than
wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.
C. Constructing the Appliance Chase

13
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
A. Vent Termination Minimum Clearances
4 Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and re.
WARNING
Figure 4.1 Minimum Height From Roof To Lowest Discharge
Opening
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
VERTICAL
WALL
TERMINATION
CAP
HORIZONTAL
OVERHANG
305 mm
X
ROOF PITCH
IS X/ 305 mm
LOWEST
DISCHARGE
OPENING
510 mm MIN.
610 mm MIN.
Angle H (Min.) mm
0°-26.6° ..........................................................500*
26.6°-30.3° ..........................................................500*
30.3°-33.7° ..........................................................500*
33.7°-36.9° ..........................................................610*
36.9°-39.8° ..........................................................760*
39.8°-42.5° ..........................................................990
42.5°-45.0° ........................................................1220
45.0°-49.4° ........................................................1520
49.4°-53.1° ........................................................1830
53.1°-56.3° ........................................................2130
56.3°-59.0° ........................................................2290
59.0°-60.3° ........................................................2440
* H minimum may vary depending on regional
snowfall. Refer to local codes.
Figure 4.2 Staggered Termination Caps
Wood or Fuel Oil
Termination Cap
B
**Gas
Termination
Cap
A *
* If using decorative cap cover(s), this distance may need to be increased.
Refer to the installation instructions supplied with the decorative cap cover.
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. (508 mm) and over 0 in. (0 mm) minimum
** If two gas terminations are present, they may be level (B = 0 in. (0 mm)
provided A is a minimum of 6 in. (152 mm).

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
14
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. Flue terminal under covered area:
a) The covered area or recess shall be open on at least two sides.
   b)Fanassistedueapplianceshallhaveatleastonesideopenandtheterminalshallbe
within 500 mm of the opening and discharging in the direction of the opening.
  4. ClearancefromaueterminaltoaLPcylindershallbeaminimumof1meter.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
Ref. Item Minimum Clearance (mm)
Natural Draft Fan Assisted
a
Below eaves, balconies or other projections
Appliances up to 50 MJ/h input 300 200
Appliances over to 50 MJ/h input 500 300
b
From the ground or above a balcony
Appliances 32 MJ/h and below 300 355
Appliances from 32 MJ/h to 53 MJ/h 300 410
Appliances 53 MJ/h and above 300 460
cFrom a return wall or external corner 500 300
dFrom a gas meter (M) 1000 1000
eFrom an electricity meter or fuse box (P) 500 500
fFrom a drain or soil pipe 150 75
gHorizontally from any building structure (unless appliance approved for closer installation) or obstruction
facing a terminal 500 500
hFromanyotherueterminal,cowl,orcombustionairintake 500 300
j
Horizontallyfromanopenablewindow,door,non-mechanicalairinlet,oranyotheropeningintoabuilding,withtheexceptionofsub-oorventilation
Appliances up to 150 MJ/h input 500 300
All fan assisted appliances in the direction of discharge - 1500
kFrom a mechanical air inlet, including a spa fan 1500 1000
n
Verticallybelowanopenablewindow,non-mechanicalairinletoranyotheropeningintoabuilding,withtheexceptionofSeetablesub-oor
ventilation
For space heaters up to 50 MJ/h input 150 150
For other appliances up to 50 MJ/h input 500 500
For appliances over 50 MJ/h input and up to 150 MJ/h 1000 1000
For appliances over 150 MJ/h input 1500 1500
B. Chimney Diagram
Figure 4.3 Minimum Clearances for Termination

15
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
D. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.4.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 in. (216
mm) horizontal run and 8-1/2 in. (216 mm) vertical run. A
length of straight pipe is allowed between two 45º elbows.
See Figure 4.4.
Figure 4.5 shows the vertical and horizontal offsets for
DVP or SLP elbows.
Figure 4.4
HORIZONTAL
VERTICAL
RUN
RISE
EFFECTIVE
LENGTH
DVP
Pipe
Effective Length Rise/Run
Inches Millimeters Inches Millimeters
DVP4 4 102 2-3/4 70
DVP6 6 152 4-1/4 108
DVP12 12 305 8-1/2 216
DVP24 24 610 17 432
DVP36 36 914 25-1/2 648
DVP48 48 1219 34 864
DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108
DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216
SLP
Pipe
Effective Length Rise/Run
Inches Millimeters Inches Millimeters
SLP4 4 102 2-3/4 70
SLP6 6 152 4-1/4 108
SLP12 12 305 8-1/2 216
SLP24 24 610 17 432
SLP36 36 914 25-1/2 648
SLP48 48 1219 34 864
SLP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108
SLP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216
C. Approved Pipe
Approved Pipe - Rigid
This appliance is approved for use with Hearth & Home
Technologies DVP or SLP venting systems. Refer to Sec-
tion 12.A for vent component information and dimensions.
DO NOT mix pipe, ttings or joining methods from differ-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
WARNING! Risk of Fire or Asphyxiation. This appli-
ance requires a separate vent. DO NOT vent to a pipe
serving a separate solid fuel burning appliance.

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
16
Y
X
X
X
Vent Type X
Inches Millimeters
DVP 16-1/4 413
SLP 11-1/4 286
Figure 4.5 Vertical and Horizontal Offset for DVP and SLP Elbows
Vent
Type
X Y
Inches Millimeters Inches Millimeters
DVP 4-1/2 114 17 432
SLP 5 127 11-3/4 298
E. Vent Diagrams
Figure 4.6 Vent Cap - Generic Appliance Shown
WALL
1/4 in. max.
(6 mm)
General Rules:
• SUBTRACT 3 ft. (914 mm) from the total H measurement
for each 90º elbow installed horizontally.
• SUBTRACT 1-1/2 ft. (457 mm) from the total H
measurement for each 45º elbow installed horizontally.
• Rear Vented: A maximum of three 90º elbows (or six 45º
elbows) may be used in any vent conguration. Some
elbows may be installed horizontally. See Figure 4.23
and 4.25.
• Top Vented: A maximum of four 90º elbows (or eight 45º
elbows) may be used in any vent conguration. Some
elbows may be installed horizontally. See Figure 4.16.
• Elbows may be placed back to back anywhere in the
system.
• Any 90º elbow may be replaced with two back to back
45º elbows.
• When penetrating a combustible wall, a wall shield
restop must be installed.
• When penetrating a combustible ceiling, a ceiling restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.
• Horizontal termination cap should have a 1/4 in. (6
mm) downward slant to allow any moisture in cap to be
released. See Figure 4.6.

17
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
F. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards:
• Pipe measurements are shown using the effective length
of pipe. See Section 12.A for information on effective
length of pipe components.
• Horizontal terminations are measured to the outside
mounting surface (flange of termination cap). See
Figure 4.7.
• Vertical terminations are measured to top of last section
of pipe. See Figure 4.8.
• Horizontal pipe installed level with no rise.
MEASURE TO SHADED SURFACE
(OUTSIDE MOUNTING SURFACE)
Figure 4.7 Measure to Outside Mounting Surface
Figure 4.8. Measure to Top of Last Section of Pipe
Figure 4.9 Measure Horizontal and Vertical Termination
Clearance to Trapezoid Portion of Cap
OVERHANG
A
C
WALL
A and C dimensions are dened in Figure 4.3.

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
18
Top Vent - Horizontal Termination
V
1
Minimum** H
1
Maximum
90 Elbow Only** 2 ft. 610 mm
1/2 ft.** 152 mm 2 ft. 610 mm
1-1/2 ft.** 457 mm 3 ft. 914 mm
2-1/2 ft.** 762 mm 5 ft. 1.5 m
3-1/2 ft. 1.1 m 7 ft. 2.1 m
4-1/2 ft. 1.4 m 15 ft. 4.6 m
H1MAX. =15 ft. (4.6 m)
V1+ H1MAX. = 40 ft. (12.2 m)
** See Warning.
Figure 4.10
One Elbow
Fire Risk.
Install required minimum vertical venting to prevent
overheating and re.
• When using SLP-HRC-SS termination cap on top
vented replaces, a one foot minimum vertical vent
section is required before installing rst elbow.
• Installation of the elbow heat shield is required when
the clearance to combustible material above the rst
vent elbow is 6 in. (152 mm) or less. See Section
5.A and 5.B.
WARNING**
Note: Use SLP Series
components only.
H1
V1

19
Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
Two Elbows
Top Vent - Horizontal Termination - (continued)
Figure 4.11
V1Minimum**
H1 + H2 Maximum
90 Elbow Only** 1/2 ft. 152 mm
1/2 ft.** 152 mm 1 ft. 305 mm
1-1/2 ft.** 457 mm 2 ft. 610 mm
2-1/2 ft.** 762 mm 4 ft. 1.2 m
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 14 ft. 4.3 m
H1+ H2MAX. =14 ft. (4.3 m)
V1+ H1+ H2MAX. = 40 ft. (12.2 m)
**See Warning Below.
Fire Risk.
• When using SLP-HRC-SS termination cap on top
vented replaces, a one foot minimum vertical
vent section is required before installing rst
elbow.
WARNING**
Note: Use SLP Series
components only.
INSTALLED
HORIZONTALLY
H1
H2
V1

Hearth & Home Technologies • B36S-AU Installation Manual • 2563-980 • 10/19
20
Top Vent - Horizontal Termination - (continued)
Figure 4.12
Three Elbows
V1Minimum**
H1 Maximum
H1 + H2Maximum
V2
V1+ V2 Minimum
90 Elbow Only** 1-1/2 ft. 457 mm 2 ft. 610 mm * *
1/2 ft.** 152 mm 1-1/2 ft. 457 mm 4 ft. 1.2 m * *
1-1/2 ft. 457 mm 3 ft. 914 mm 6 ft. 1.8 m * *
2-1/2 ft. 762 mm 5 ft. 1.5 m 10 ft. 3.0 m * *
3-1/2 ft. 1.1 m 7 ft. 2.1 m 14 ft. 4.3 m * *
4-1/2 ft. 1.4 m 14 ft. 4.3 m 14 ft. 4.3 m * *
H1+ H2MAX. =14 ft. (4.3 m)
*No specic restrictions on this value EXCEPT V1+ V2+ H CANNOT exceed 40 ft. (12.2 m)
V1+ V2+ H1+ H2MAX. = 40 ft. (12.2 m)
** See Warning Below.
Fire Risk.
• When using SLP-HRC-SS termination cap
on top vented replaces, a one foot minimum
vertical vent section is required before installing
rst elbow.
WARNING**
Note: Use SLP Series
components only.
H2
H1
V2
V1
