HeartSine TRN-350-1 User manual

HeartSine samaritan
PAD 350P Trainer
Manual
Get an original copy of the HeartSine samaritan PAD 350P
Trainer Operators Guide for manufacturer information about
service, available accessories and how to use and maintain
your device.

HeartSine samaritan®PAD
SAM 350P Trainer
User Manual
model TRN-350-1

2 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 3

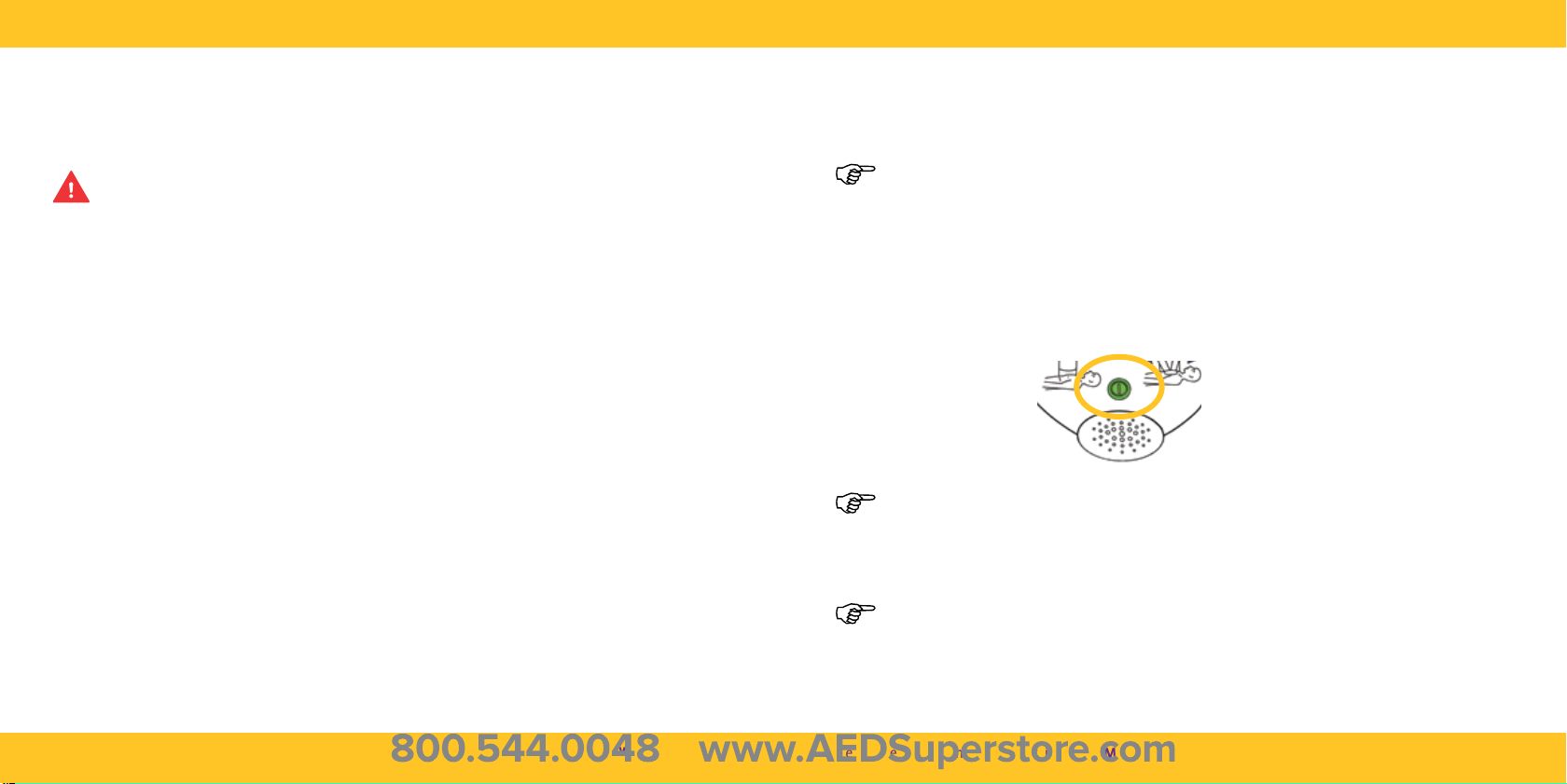

Preparing the HeartSine samaritan PAD 350P Trainer for Use
HeartSine samaritan PAD 350P Trainer, model TRN-350-1
This User Manual provides instructions on how to operate the HeartSine samaritan PAD 350P Trainer.
The HeartSine samaritan PAD 350P Trainer is a non-medical device intended to be used for the training of emergency
responders in the proper use of the HeartSine samaritan PAD 350P automated external debrillator. The Trainer has no
therapeutic capabilities and must not be used in real life rescue situations.
IMPORTANT: In order to avoid confusion in the event of a real life rescue, do not store or leave the Trainer near the
HeartSine samaritan PAD 350P automated external debrillator.
To allow quick and easy identication the HeartSine samaritan PAD 350P Trainer incorporates a yellow front user interface
membrane whereas the HeartSine samaritan PAD 350P automated external debrillator has a navy blue/black front
membrane.
HeartSine recommends that responders who may use one of its debrillators should be trained in Cardiopulmonary
Resuscitation with debrillator use (CPR-D). The HeartSine samaritan PAD 350P Trainer is intended to be used by approved
CPR-D training providers for this purpose.
The HeartSine samaritan PAD 350P Trainer is factory congured to operate in accordance with the joint American Heart
Association/European Resuscitation Council 2015 guidelines for CPR. The device comes with six preprogrammed scenarios
based on these guidelines.
Should the CPR guidelines change, soware will be available to upgrade the HeartSine samaritan PAD 350P Trainer to comply.
Please contact your HeartSine authorized distributor or HeartSine Technologies direct.
Once turned on the HeartSine samaritan PAD 350P Trainer will play audible voice prompts with accompanying visual
indicators. The Trainer can also be manually controlled using the accompanying Remote Control included with the device.
Please contact your authorized HeartSine distributor for a list of replacement accessories.
1) Ensure that the HeartSine samaritan PAD 350P Trainer is fully charged (see the Charging section of this manual).
2) Place the HeartSine samaritan PAD 350P Trainer and the Trainer-Pak™on a at surface. Push the Trainer-Pak into the
opening of the HeartSine samaritan PAD 350P Trainer and listen for a “click” sound to ensure that it is properly inserted.
3) Place the batteries supplied with your Trainer into the HeartSine samaritan PAD 350P Remote Control.
Do not press any buttons whilst inserting the Remote Control batteries as this will reset the Remote Control ID.
4) Press the On/O button on the HeartSine samaritan PAD 350P Trainer and listen to the voice prompts to ensure that the
unit is functioning.
5) If the HeartSine samaritan PAD 350P Trainer has insucient charge, it will not function correctly. When switched on, the
Status Indicator will ash red to indicate that charging is required. If the battery is fully depleted the device will not power
on at all. For full charging instructions see the Charging section of this manual.
Turning on and o the HeartSine samaritan PAD 350P Trainer
To turn on the HeartSine samaritan PAD 350P Trainer press the green On/O button.
By default the Trainer will function in the last scenario setting used.
To turn o the HeartSine samaritan PAD 350P Trainer press the On/O button again.
Once the HeartSine samaritan PAD 350P Trainer has been turned on, it may be turned o using the accompanying Remote
Control. To turn the Trainer o press the O button (red button) on the Remote Control.
When turned on the HeartSine samaritan PAD 350P Trainer will automatically turn o aer een minutes if the device is
not being used.

4 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 5

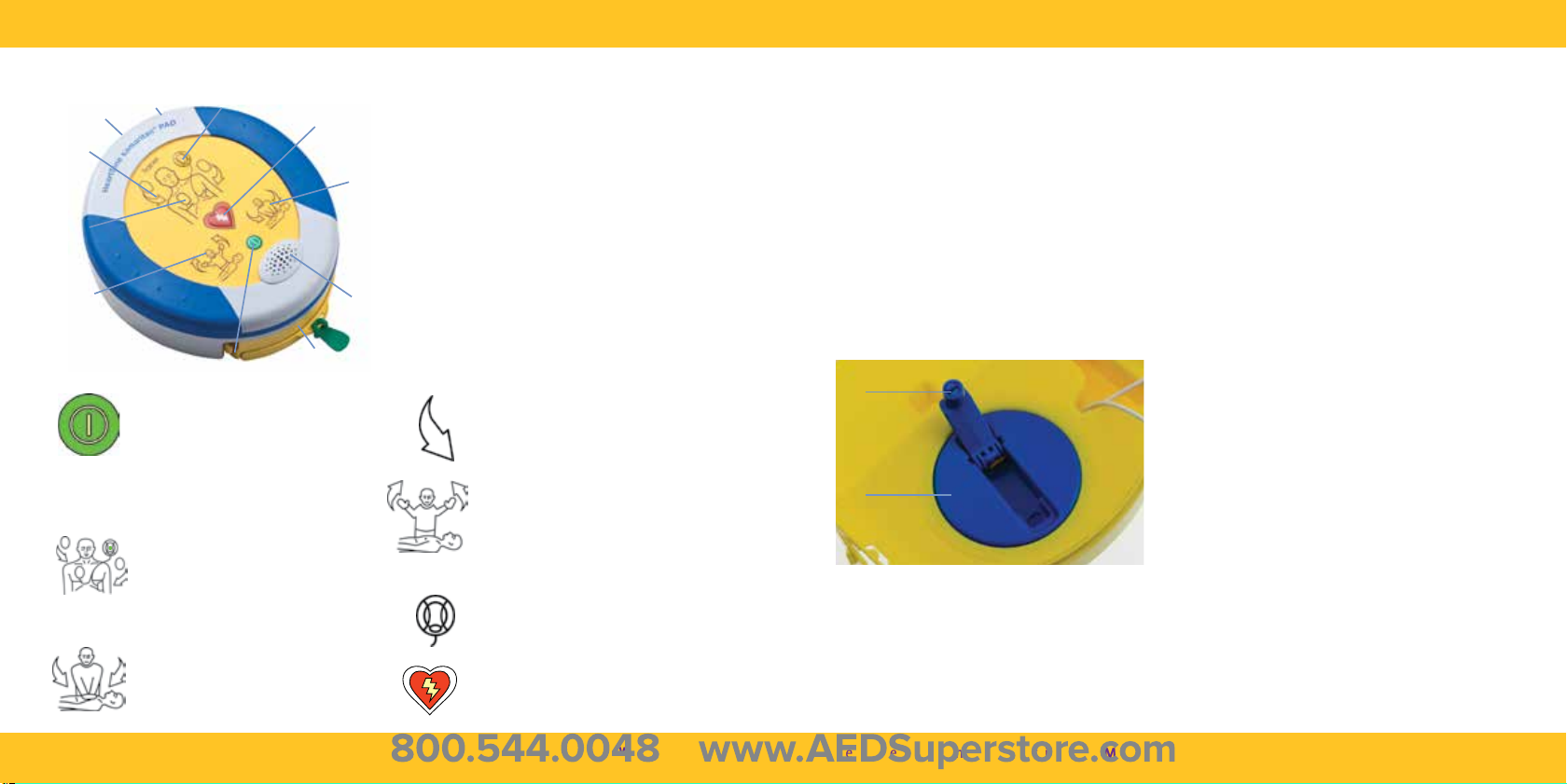

HeartSine samaritan PAD 350P Trainer, model TRN-350-1
A Data Port
B Battery Charge Status LED
C Status Indicator
D Shock Button
E Safe To Touch Indicator
F Speaker
G Trainer-Pak Cartridge
H On/O Button
I Do Not Touch Indicator
J Pads Placement Indicator
K Action Arrows
ACD
IF
G
H
E
J
K
HeartSine samaritan PAD 350P Trainer
BUsing the Electrodes
The training scenarios include audible prompts to remove the electrodes from the Trainer-Pak and to position the electrode
pads as indicated. Follow the steps below when prompted to do so.
1) Pull the green tab to open the Trainer-Pak cartridge and fully extend the electrode cables.
2) Peel the electrode pads from their protective liners.
3) Position the electrode pads as indicated by the Pads Placement Indicator; sternum and apex electrode pads are clearly
identied on their respective pads.
4) Press the pads rmly to ensure that proper contact is made.
Rewinding the Electrodes aer Use
1) Re-attach the protective liners to the electrode pads, or replace with new pads.
2) Fold the pads together so that the liner is on the outside.
3) Let the electrodes hang from the device and use the handle in the blue coil mechanism to fully rewind the electrodes:
4) Place the pads on top of the Trainer-Pak cartridge, ensuring that the wires are beneath the pads.
5) Close the Trainer-Pak cartridge by sliding the yellow tray into place.
On/O button
Press this button to turn the device on and
o. (If pressed whilst a shock is advised,
a warning is issued “Warning, O button
pressed”; the device will not power O
unless you press the button again within
three seconds.)
Pads placement indicator
The action arrows around this icon will
ash to instruct the user that the HeartSine
samaritan PAD 350P pads should be
attached to the patient as indicated.
Safe to touch indicator
It is safe to touch the patient when the
action arrows around this icon are ashing.
You may perform CPR or check the patient.
Action arrows
The action arrows around an icon will ash to
indicate the actions that the user should be
performing.
Do not touch indicator
Do not touch the patient when the action
arrows around this icon are ashing. The
HeartSine samaritan PAD 350P may be
analyzing the patient’s heart rhythm or
preparing to deliver a shock.
Status Indicator
Flashing green - Trainer is ready for use
Flashing red - Trainer requires charging
Shock icon
This indicates that a simulated shock will be
delivered.
A Coil Mechanism
B Coil Handle
Managing the Electrodes
A
B

6 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 7
Turning o the Trainer
The Remote Control can be used to turn o the HeartSine samaritan PAD 350P Trainer. To turn the Trainer o
press the red button on the Remote Control.
Changing the Volume
There are four volume settings available on the HeartSine samaritan PAD 350P Trainer. The volume control
buttons are to the le of the O button on the Remote Control. To increase the volume press the ‘+’ button
and to decrease the volume press the ‘-’ button.
Pausing the Trainer
During training the HeartSine samaritan PAD 350P Trainer may be paused. To pause the Trainer press the
Pause button ( ||/►). The Trainer will remain paused until the Pause button is pressed again at which point it
will continue to play the scenario selected.
Changing the Scenario
The HeartSine samaritan PAD 350P Trainer comes with six preprogrammed training scenarios. (For details on
the scenarios see the training scenarios section of this manual.) The scenario may be changed by pressing the
appropriate number button on the Remote Control i.e. pressing ‘3’ will select training scenario three.
Once the scenario has been changed the device will operate as detailed in the scenarios section. The device
will remain in this scenario until a new scenario is selected.

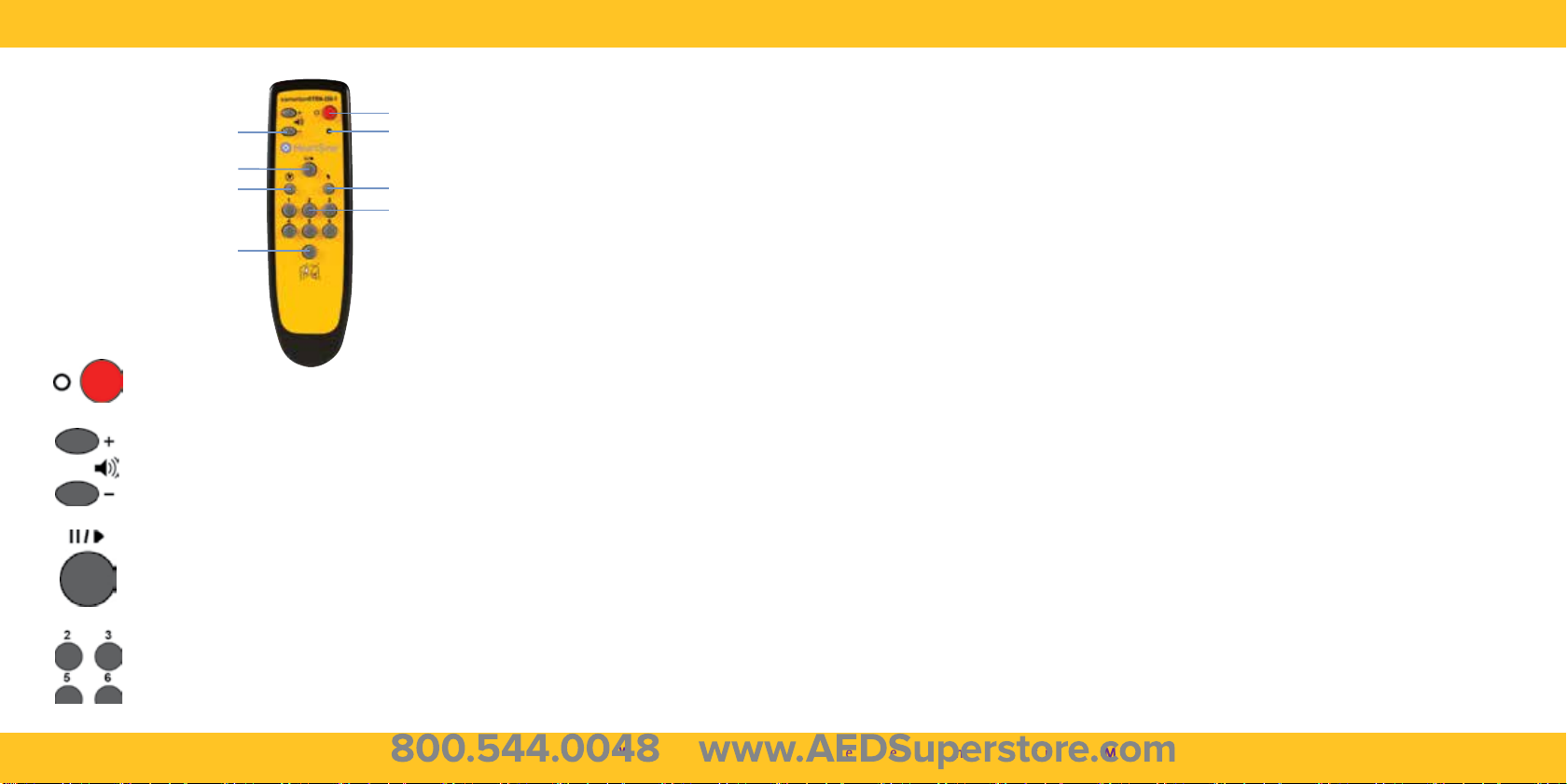

HeartSine samaritan PAD 350P Trainer Remote Control
A O Button
B Volume Control
C Low Battery Indicator
D Pause Button
E No Shock Required Scenario
F Shock Required Scenario
G Select Scenario
H Attach Electrode Pads
The HeartSine samaritan PAD 350P Trainer has six preprogrammed training scenarios to choose from. All preprogrammed
scenarios are based on AHA/ERC 2015 guidelines. Details of the scenarios are given below.
Scenario 1
1. Setup mode - “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention - “Pads” button to be pressed to conrm electrodes placed
3. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
4. Shock advised - User to press the shock button
5. CPR mode - User to apply CPR with advisory as required
6. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
7. No shock advised
8. CPR mode - User to apply CPR with advisory as required
9. Repeat - Steps 6 to 8 repeated until ‘On/O’ button is pressed
Scenario 2
1. Setup mode - “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention - “Pads” button to be pressed to conrm electrodes placed
3. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
4. No shock advised
5. CPR mode - User to apply CPR with advisory as required
6. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
7. Shock advised - User to press the shock button
8. CPR mode - User to apply CPR with advisory as required
9. Repeat - Steps 6 to 8 repeated until ‘On/O’ button is pressed
Scenario 3
1. Electrodes - Device assumes the electrodes are already attached
2. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
3. Check Pads - “Check Pads”
4. User intervention - “Pads” button to be pressed to conrm electrodes placed
5. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
6. Shock advised - User to press the shock button
7. CPR mode - User to apply CPR with advisory as required
8. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
9. No shock advised
10. CPR mode - User to apply CPR with advisory as required
11. Repeat - Steps 3 to 10 repeated until ‘On/O’ button is pressed
The Remote Control Preprogrammed Training Scenarios
A
B
D
EF
G
H
C

8 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 9
Scenario 4
1. Electrodes - Device assumes electrodes are already attached
2. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
3. Shock advised - User to press the shock button
4. CPR mode - User to apply CPR with advisory as required
5. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
6. Shock advised - User to press the shock button
7. CPR mode - User to apply CPR with advisory as required
8. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
9. No shock advised
10. CPR mode - User to apply CPR with advisory as required
11. Repeat - Steps 5 to 10 repeated until ‘On/O’ button is pressed
Scenario 5
Scenario 5 is the same as Scenario 1 with the addition of audible indications of when to perform rescue breaths during CPR mode.
1. Setup mode - “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention - “Pads” button to be pressed to conrm electrodes placed
3. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
4. Shock advised - User to press the shock button
5. CPR mode - User to apply CPR with advisory as required; this includes an audible indication of when to perform
rescue breaths - the metronome changes from a “beep” to a “tick” for the duration of ten compressions.
6. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
7. No shock advised
8. CPR mode - User to apply CPR with advisory as required; this includes an audible indication of when to perform
rescue breaths - the metronome changes from a “beep” to a “tick” for the duration of ten compressions.
9. Repeat - Steps 6 to 8 repeated until ‘On/O’ button is pressed
Scenario 6
Scenario 6 is the same as Scenario 2 with the addition of audible indications of when to perform rescue breaths during CPR mode.
1. Setup mode - “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention - “Pads” button to be pressed to conrm electrodes placed
3. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
4. No shock advised
5. CPR mode - User to apply CPR with advisory as required; this includes an audible indication of when to perform
rescue breaths - the metronome changes from a “beep” to a “tick” for the duration of ten compressions.
6. Monitor mode - “Assessing heart rhythm”, “Do not touch the patient”, etc
7. Shock advised - User to press the shock button
8. CPR mode - User to apply CPR with advisory as required; this includes an audible indication of when to perform
rescue breaths - the metronome changes from a “beep” to a “tick” for the duration of ten compressions.
9. Repeat - Steps 6 to 8 repeated until ‘On/O’ button is pressed

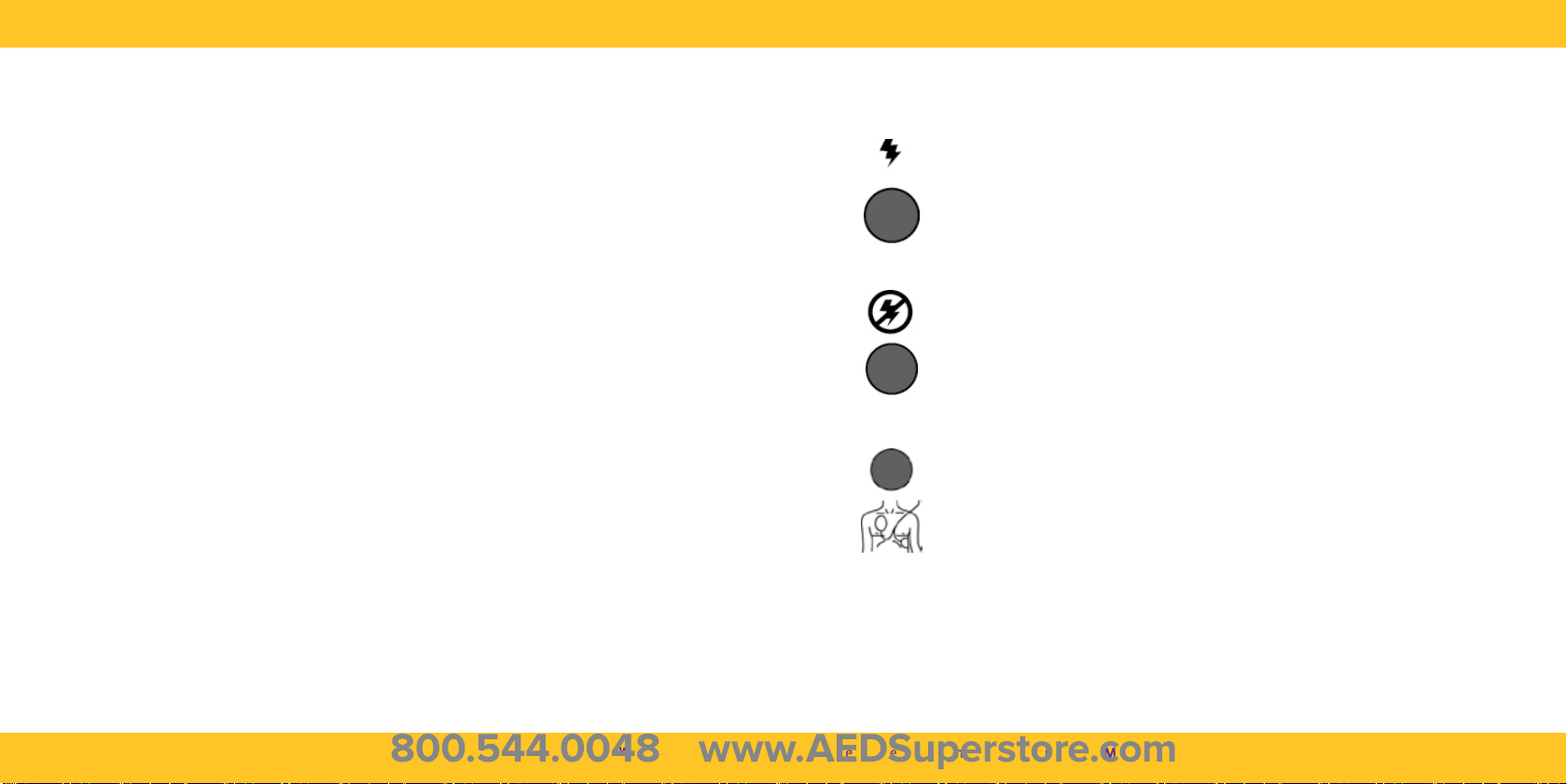

The Remote Control allows Training providers to control the scenario manually. When turned on the HeartSine samaritan
PAD 350P Trainer will operate as detailed in the training scenarios listed. Training providers can override this by pressing the
‘Shock required’, ‘No Shock required’ or ‘Attach Electrode Pads’ button.
Manual Control of the HeartSine samaritan PAD 350P Trainer
Preprogrammed Training Scenarios
Shock Required
Pressing the ‘Shock required’ button will cause the HeartSine samaritan PAD 350P Trainer to
override the selected training scenario and simulate a shockable rhythm. Each subsequent
analysis period will advise a shock to be delivered until either the Trainer is turned o or the ‘No
Shock required’ button on the Remote Control is pressed.
No Shock Required
Pressing the ‘No Shock required’ button will cause the HeartSine samaritan PAD 350P Trainer to
override the selected training scenario and simulate a non-shockable rhythm. Each subsequent
analysis period will advise no shock to be delivered until either the Trainer is turned o or the
‘Shock required’ button on the Remote Control is pressed.
Attach Electrode Pads
If the ‘Attach Electrode Pads’ button is pressed the Trainer will play the ‘Attach the electrodes’
prompts during the analysis period of operation. The Trainer will continue to play ‘Attach the
electrodes’ prompts until the ‘Attach Electrode Pads’ button is pressed again.

10 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 11
Maintenance
HeartSine samaritan PAD 350P Trainer Battery Management
The HeartSine samaritan PAD 350P Trainer contains a rechargeable battery. It is recommended that you ensure the HeartSine
samaritan PAD 350P Trainer is fully charged prior to commencing training activities.
When fully charged the HeartSine samaritan PAD 350P Trainer will give you approximately seven hours of usage before it
needs to be recharged.
The HeartSine samaritan PAD 350P Trainer will monitor the capacity of the battery as it approaches depletion. A minimum of
one hour prior to the battery becoming depleted the Trainer will play the following message:
“Warning. Low battery”
If this warning is heard you may continue to use your HeartSine samaritan PAD 350P Trainer for a limited period of time.
If the battery becomes completely depleted the Trainer device will shut itself down. At this point the Trainer should be
recharged.
Charging and Recharging the HeartSine samaritan PAD 350P Trainer
To safely charge or recharge the HeartSine samaritan PAD 350P Trainer follow the instructions given below.
1) Insert the charger adaptor into the socket on the side of the HeartSine samaritan PAD 350P Trainer. Ensure that the
adaptor is fully inserted.
2) Plug the charger into the mains electricity supply.
3) Leave the Trainer to charge. The Battery Charge Status LED (located beside the socket) will be red when fast charging and
will ash when charging is almost complete. Once charging is complete the LED light will switch o. To charge a depleted
HeartSine samaritan PAD 350P Trainer will take a maximum of six hours.
4) Remove the adaptor from the HeartSine samaritan PAD 350P Trainer. Turn on the Trainer to ensure that the device is
working.
If the HeartSine samaritan PAD 350P Trainer is switched on during charging the charger should be switched o then on again
to restart fast charging.
The HeartSine samaritan PAD 350P Trainer must only be charged with the charger supplied with it. Use of any other charging
device will nullify the warranty and may result in damage to the HeartSine samaritan PAD 350P Trainer.
The HeartSine samaritan PAD 350P Trainer and charger are designed for indoor use only. Do not use in wet or damp
environments.
There are no user serviceable parts inside your HeartSine samaritan PAD 350P Trainer, Trainer-Pak or charger. These products
should not be opened. In the unlikely event of a malfunction, please contact your distributor immediately.
Remote Control Batteries
The HeartSine samaritan PAD 350P Trainer Remote Control contains a low battery warning indicator. If this indicator ashes
red two times aer a button on the Remote Control is pressed it is an indication that the batteries within the Remote Control
need to be replaced.
The Remote Control uses two standard AAA batteries.
The batteries can be accessed by removing the battery cover at the back of the Remote Control.
Inserting the batteries into the Remote Control whilst pressing the O button will cause the Remote Control to enter
pairing mode and take a new transmission ID. This will be dierent to that previously stored on the Trainer. If this
occurs accidentally it will be necessary to complete the pairing procedure in full to pair the Remote Control with the
HeartSine samaritan PAD 350P Trainer again.
Normal battery replacement does not cause a problem since pairing is only initiated when the O button is also
held down.
HeartSine samaritan PAD 350P Trainer Conguration Tool
The HeartSine samaritan PAD 350P Trainer conguration tool is soware that can be downloaded for free from the HeartSine
website (www.heartsine.com). This soware allows you to upgrade your Trainer. The following options are available:
Language
The HeartSine samaritan PAD 350P Trainer can be reprogrammed to operate with audible prompts in any one of a
selection of languages. Download the current HeartSine samaritan PAD 350P Trainer conguration tool user manual from
the HeartSine website for instructions on how to do this.
Pairing a Remote Control with the HeartSine samaritan PAD 350P Trainer
Each HeartSine samaritan PAD 350P Trainer has a specic Remote Control to operate it. This is to allow multiple devices to
be used in close vicinity without interference. In the unlikely event that your Remote Control no longer operates with your
Trainer it may need to be paired with your Trainer again.
The HeartSine samaritan PAD 350P Trainer Conguration Tool can be used to pair a Remote Control with your Trainer. Full
instructions are contained within the accompanying user manual.
Device Identications
Each HeartSine samaritan PAD 350P Trainer is given an identication number between 001 and 255 during manufacture.
The Remote Control for each Trainer is then given the same identication number. In the unlikely event that two devices
with the same ID number are being used at the same time use the HeartSine samaritan PAD 350P Trainer Conguration
Tool to assign new numbers to the devices. It will be necessary to pair the device with its Remote Control aer assigning
a new ID number.
Maintenance

12 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 13
CPR Guidelines 2015
Disposal Instructions
The HeartSine samaritan PAD 350P Trainer is a reusable device. If maintained in accordance with the instructions in this
manual it has a warranty period of two years from the date of manufacture.
If you wish to dispose of the HeartSine samaritan PAD 350P Trainer unit, it should be disposed of at an appropriate recycling
facility according to national, state and local requirements. Alternatively return the unit to your local distributor or HeartSine
Technologies for disposal.
Disposal within the European Union:
Do not dispose of the HeartSine samaritan PAD 350P Trainer unit as unsorted municipal waste: keep the HeartSine samaritan
PAD 350P Trainer separate, to be reused or recycled in accordance with Directive 2002/96/EEC of the European Parliament and
the Council of the European Union on Waste Electronic and Electrical Equipment (WEEE), or return to your local distributor or
HeartSine Technologies for disposal.
Warranty Exclusion
HeartSine Technologies or the authorized distributors are not obliged to carry out service/repairs under warranty if:
a. Unauthorized modications have been made to the device.
b. Non-standard components are used.
c. The user has not used the device in accordance with the indications for use or the instructions provided in this manual.
d. The serial number of the apparatus is removed, defaced, misused or altered.
e. The device, electrodes or batteries are stored or used operationally outside of environmental specications.
f. The device has been tested using unapproved methods or inappropriate equipment (see the Maintenance section of this
manual).
Any claims made under warranty must be directed via your distributor from whom the device was originally purchased.
Before carrying out service under warranty, HeartSine Technologies require evidence of purchase. The product must be used
in accordance with the user manual and for the purpose for which it was intended. If you have a query please contact
[e-mail] for assistance.
HeartSine samaritan PAD 350P Trainer, model TRN-350-1
The following is a brief overview of the fundamentals of CPR for lay rescuers as advised by both the American Heart Association (AHA) and
the European Resuscitation Council (ERC) in their 2015 published Guidelines for CPR and ECC. This is intended only as a quick reference for
trained CPR providers. HeartSine recommend that all potential users of the HeartSine samaritan PAD 350P are trained by a competent training
organization in both the use of CPR and HeartSine samaritan PAD 350P, prior to placing a HeartSine samaritan PAD 350P into service. Should
the Guidelines change, soware will be available to upgrade the HeartSine samaritan PAD 350P to comply. Please contact your HeartSine
authorized distributor or HeartSine Technologies direct.
If available use an AED.
Continue CPR until Emergency Services
arrive. Alternate with second person
aer one cycle or 2 minutes.
Perform CPR following the latest
AHA or ERC guidelines.
Perform CPR until an AED is available
OR arrival of emergency physician.
Engage other people to help you and
alternate CPR.
Watch, feel, listen.
Open the airway, check for
breathing.
CALL Emergency Services
(119/999/911 etc.).
Send for an AED.
Person not responsive?
Address person and shake on
shoulder. Call Emergency Services.
Continue until the patient starts to wake up, i.e.
moves, opens eyes and breathes normally.
If AED is available switch on and follow
instructions - AED assesses rhythm.
NO SHOCK
ADVISED
Continue CPR for
2 minutes.
SHOCK
ADVISED
DELIVER
SHOCK
Continue CPR for
2 minutes.

14 www.heartsine.com HeartSine samaritan PAD 350P Trainer User Manual 15
Notes Notes

www.heartsine.com
© 2017 HeartSine Technologies LLC. All rights reserved.
The HeartSine products
described in this brochure
meet the European Medical
Directive requirement.
UL Classied.
See complete marking
on product.
H036-019-100-2 EN
U.S./Americas
HeartSine Technologies LLC
121 Friends Lane, Suite 400
Newtown, PA 18940
Toll Free: [phone]
Tel: [phone]
Fax: [phone]
[email protected]
EMEA/APAC
HeartSine Technologies, Ltd.
203 Airport Road West
Belfast, Northern Ireland
BT3 9ED
Tel: [phone]
Fax: [phone]
[email protected]
