Heat & Glo 6000TV-OAK User manual

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 1
Model:
6000TV-OAK
6000TV-OAK-IPI
Underwriters
Laboratories Listed
IntheCommonwealthof Massachusetts:
• installation must be performed by a licensed
plumberor gasfitter;
• a CO detector shall be installed in the room
where the appliance is installed.
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Donot useany phonein yourbuilding.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyfor usewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat & Glo dealer with any
questionsorconcerns. For thenumberof your nearest
Heat &Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2005
Heat&Glo, a brandofHearth & HomeTechnologies Inc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
Thisproductmaybecoveredbyoneormoreofthefollowingpatents:(UnitedStates)4593510,4686807,4766876,4793322,4811534,5000162,5016609,5076254,5113843,5191877,5218953,5263471,
5328356,5341794,5347983,5429495, 5452708, 5542407, 5601073,5613487,5647340,5688568,5762062,5775408,5890485,5931661,5941237, 5947112,5996575,6006743,6019099,6048195,
6053165,6145502,6170481,6237588,6296474,6374822,6413079,6439226,6484712,6543698, 6550687,6601579,6672860,6688302B2,6715724B2,6729551,6736133,6748940,6748942,6769426,
6774802,6796302,6840261,6848441,6863064,6866205,6869278,6875012,6880275,6908039, 6919884, D320652, D445174, D462436; (Canada)1297749,2195264,2225408,2313972;(Australia)
780250,780403, 1418504 orother U.S.and foreign patentspending.
Owner’s Manual
Installation and Operation

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/052
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children shouldbe CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 3
TABLE OF CONTENTS
Safety and Warning Information. ............................................... 2
Service Parts Lists. .................................................................... 4
Section 1: Approvals and Codes............................................... 8
ApplianceCertification................................................................... 8
Installation Codes.......................................................................... 8
HighAltitude Installations............................................................... 8
Section 2: Getting Started ......................................................... 9
Introducing the Heat & Glo Gas Fireplaces................................... 9
Pre-installationPreparation........................................................... 9
Section 3: Installing the Fireplace...........................................11
Constructing the Fireplace Chase ...............................................11
Step 1 Locating the Fireplace ..................................................11
Step 2 Framing the Fireplace.................................................. 12
Step 3 Negative PressureMake-upAir ................................... 12
Step 4 Installing the Vent System............................................ 13
A. Vent SystemApprovals........................................... 13
B. System Components ............................................. 13
C. Bedroom Installation in Canada ............................. 14
D. Vent Termination .................................................... 14
Step 5 Positioning, Leveling,and
Securing the Fireplace................................................. 14
Step 6 The Gas Control Systems........................................... 14
Step 7 The Gas Supply Line ................................................... 15
Step 8 Gas Pressure Requirements ...................................... 15
Step 9 Wiring the Fireplace .................................................... 16
Step 10 Finishing ...................................................................... 18
Step 11 Installing Trim, Logs, and Ember Material.................... 18
Installing theTrim......................................................... 18
Positioning the Logs .................................................... 18
Shutter Settings........................................................... 18
Placing the Ember Material.......................................... 18
Glass Specifications ..................................................... 19
Step 12 Before Lighting the Fireplace ....................................... 19
Step 13 Lighting the Fireplace .................................................. 19
Afterthe Installation ..................................................................... 19
Section 4: Maintaining and Servicing Your Fireplace......... 20
Î
Î= Containsupdated information.
Î

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/054
Partnumber list onfollowing page.
6 Log Set Assembly
5
4
2
1
3
11
10
12
8
7
9
13

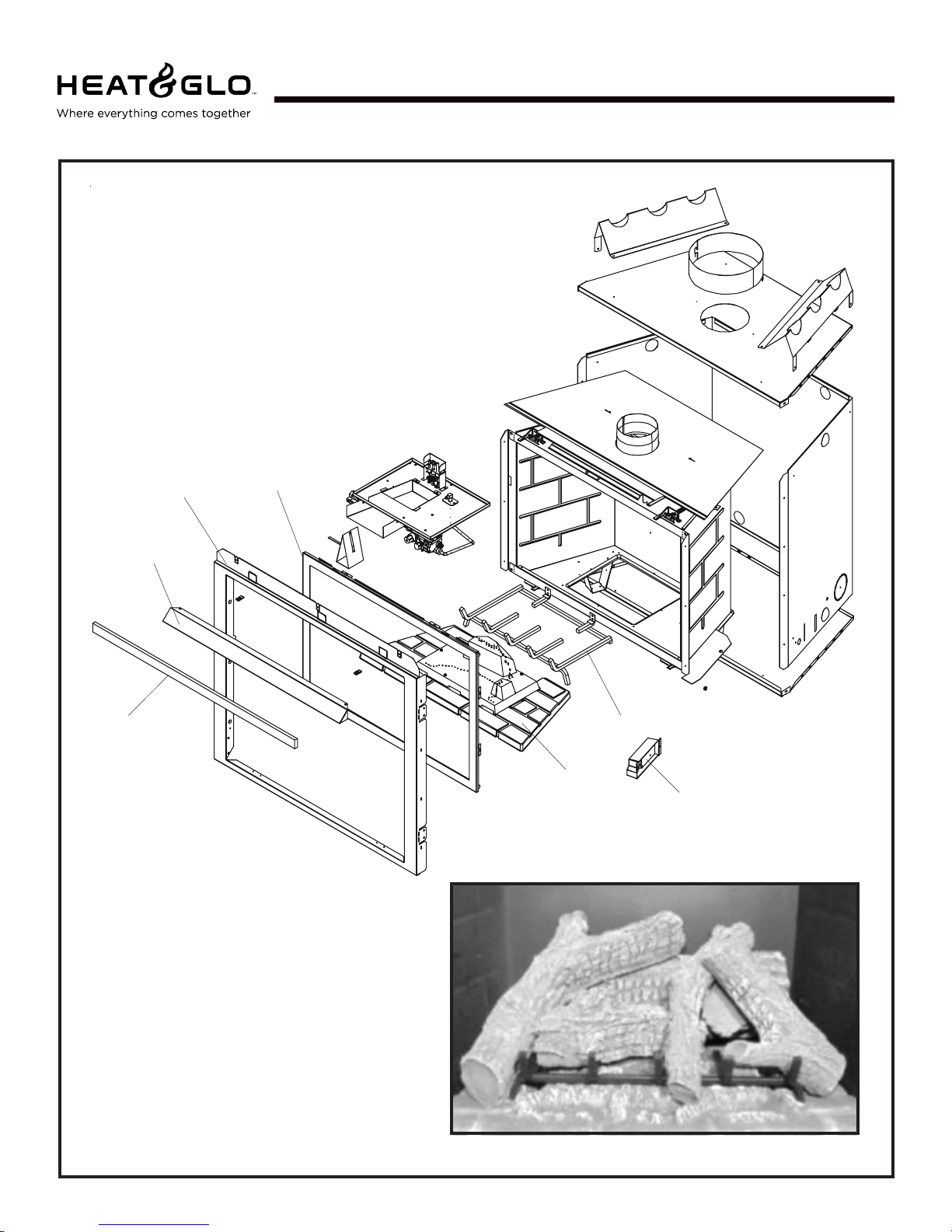

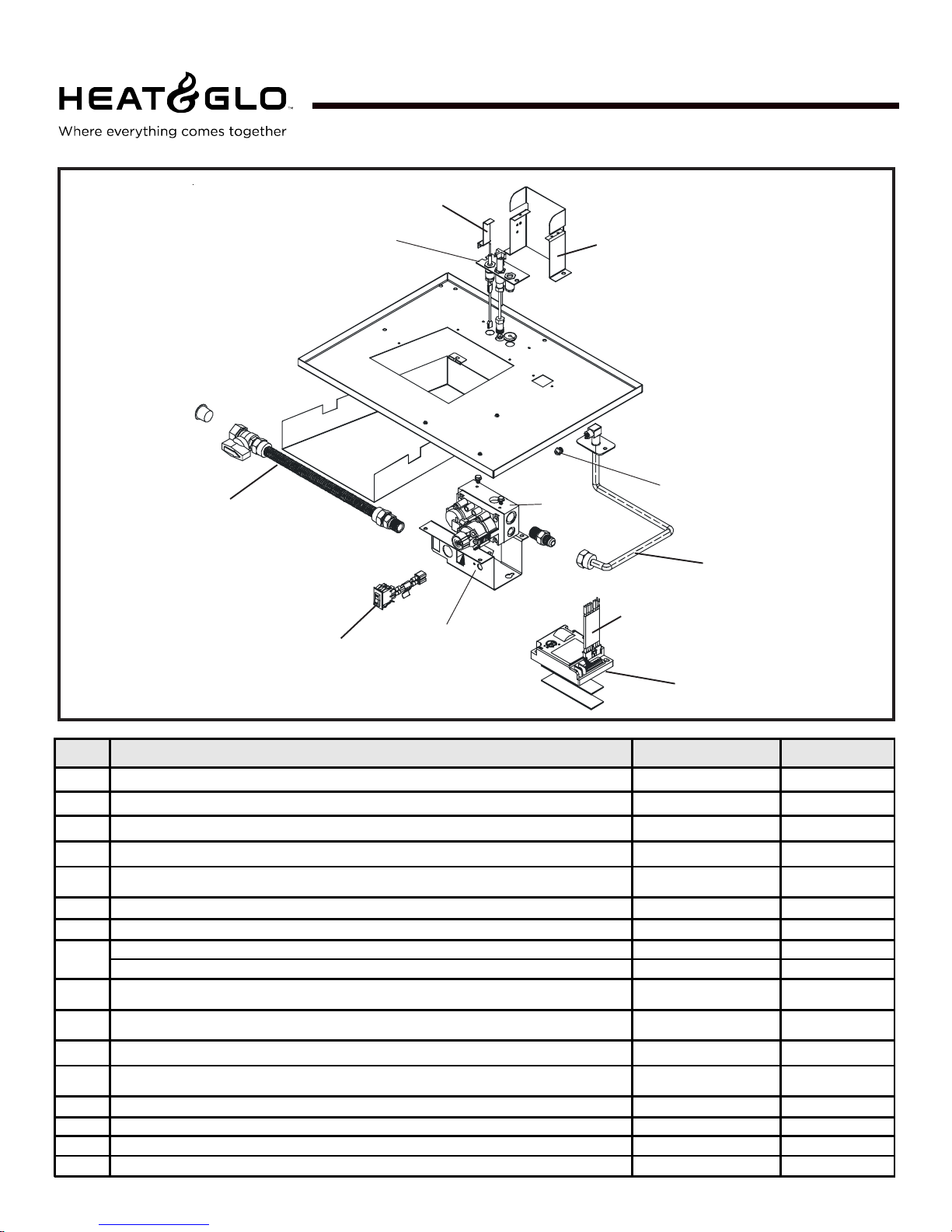

(NG, LP) Exploded Parts Diagram
Service Parts
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
6000TV-OAK, 6000TV-OAK-IPI

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 5
Service Parts List
ITEM COMMON PARTS SERIAL # PART NUMBER
1BurnerNG,LP SRV383-338A
2 Glass Door Assembly GLA-6TROC
3 Surround PRE 002324021
POST 002324021 385-130 2026-108
4Hood SRV60-143-BK
5 Log Grate 383-360A
6 Oak Log Set Assembly LOGS-6OAK
7 Log 1 SRV385-720
8 Log 2 SRV385-724
9 Log 3 SRV385-721
10 Log 4 SRV385-723
11 Log 5 SRV385-722
12 Combustion Board 385-401
Touch Up Paint TUP-GBK-12
Glass Latch Assembly 386-122A
Mineral Wool Embers 050-721
Vermiculite Embers MYSTIC-EMBERS
High Temp Limit Switch 066-531
Pilot Orifice NG 446-505
Pilot Orifice LP 446-517
STANDING PILOT IGNITION ONLY
13 Junction Box PRE 002324021
POST 002324021 100-250A 4021-013
Thermocouple 446-511
Thermopile 060-512
Conversion Kit NG NGK-6TVOC
Conversion Kit LP LPK-6TVOC
INTERMITTENT PILOT IGNITION (IPI) ONLY
13 Junction Box PRE 002324021
POST 002324021 383-250A 4021-013
Conversion Kit LP LPK-6TVOC-IPI
ACCESSORIES
Trim Door Mesh MESH-6000
Fan Kit GFK-160A
Wall Switch Kit, Off-white WSK-21
Wall SwitchKit, White WSK-21-W
IMPORTANT: THISIS DATED INFORMATION.The mostcurrent information islocatedon yourdealersVIPsite.Whenorder-
ing, supply serial and model numbers to ensure correct service parts.
6000TV-OAK, 6000TV-OAK-IPI

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/056
(NG, LP) Exploded Parts Diagram
Service Parts
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
Intermittent Pilot Ignition
ValveAssembly
ITEM DESCRIPTION SERIAL # PART NO.
1 Flex Ball Valve Assembly 302-320A
2 ON/OFF Rocker Switch 060-521A
3ValveNG 750-500
3 Valve LP 750-501
4 Flexible Gas Connector PRE 002324021
POST 002324021 477-301A 383-302A
5 Module 593-592
6WireAssembly 593-590A
7Burner Orifice NG (#40C) 582-840
Burner Orifice LP (#53C) 582-853
8PilotAssemblyNG PRE 002324021
POST 002324021 385-510A 4021-025
8PilotAssemblyLP PRE 002324021
POST 002324021 385-511A
4021-026
9 Pilot Bracket 385-164
10 Valve Bracket PRE 002324021
POST 002324021 550-169 2025-101
11 Ground Strap 2025-512
3V Adaptor Plug 593-593A
Battery Pack 593-594A
72" & 80" Wire Assembly 522-504A
4
5
6
1
8
3
9
7
210
6000TV-OAK-IPI
11

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 7

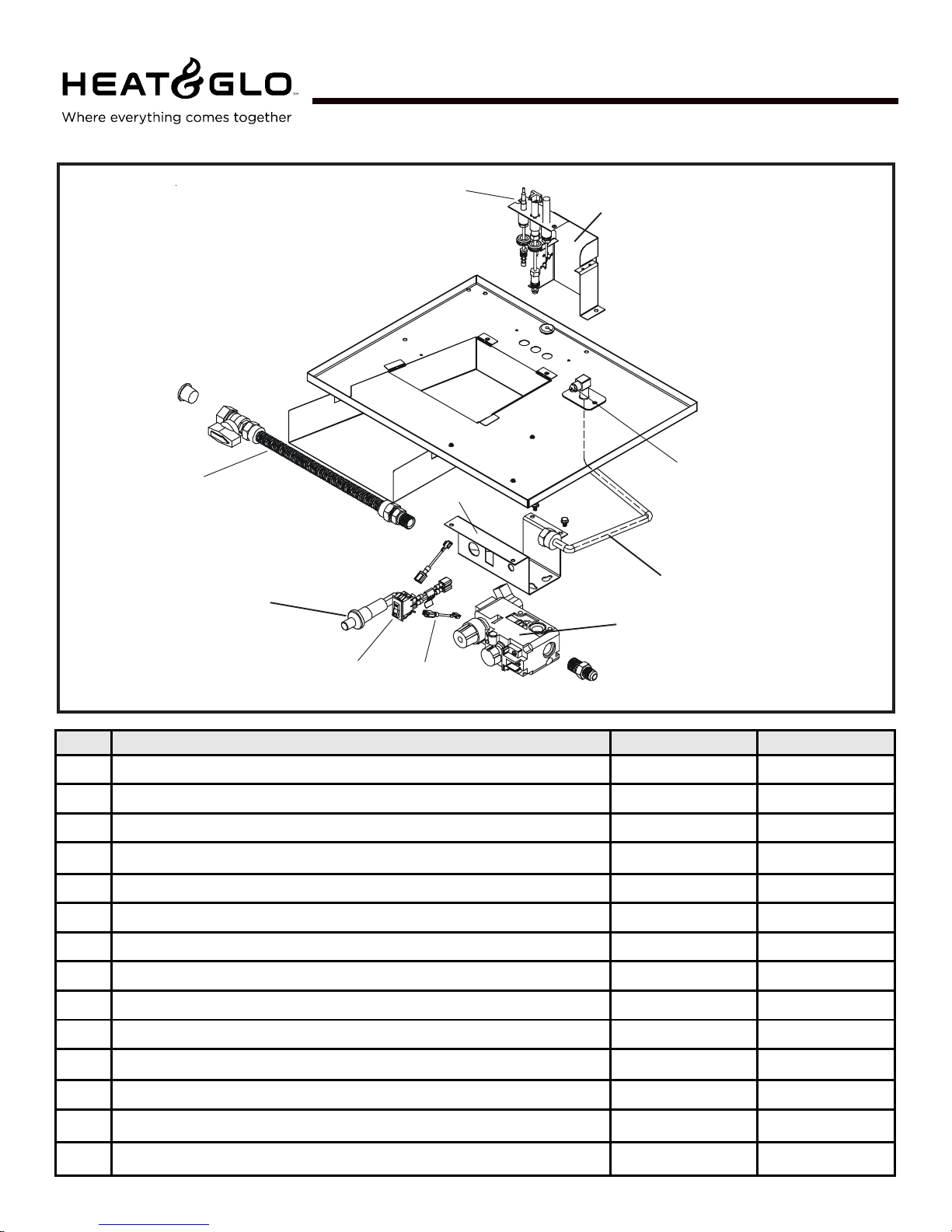

(NG, LP) Exploded Parts Diagram
Service Parts 6000TV-OAK
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
Standing Pilot Ignition
ValveAssembly
5
2
9
10 3
7
14
8
6
ITEM DESCRIPTION SERIAL # PART NUMBER
1 ON/OFF Rocker Switch 060-521A
2 Valve NG (30 Sec) 060-522
2 Valve LP (30 Sec) 060-523
3 Flexible Gas Connector PRE 002324021
POST 002324021 477-301A 383-302A
4WireAssembly 049-552A
5PilotAssemblyNG 485-510A
5 Pilot Assembly LP 485-511A
6 Pilot Bracket 385-164
7 Burner Orifice (NG) (#40C) 582-840
7 Burner Orifice (LP) (#53C) 582-853
8 Valve Bracket PRE 002324021
POST 002324021 550-169 2025-101
9 Flex Ball Valve Assembly 302-320A
10 Piezo Ignitor 291-513
80" Wire Assembly 522-503A

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/058
Appliance Certification
TheHeat&Glofireplace models discussed inthisInstallers
Guidehave been testedtocertificationstandardsand listed
bythe applicablelaboratories.
Certification
MODEL: 6000TV-OAK
LABORATORY: UnderwritersLaboratories
TYPE: Vented Gas Fireplace
STANDARD: ANSI Z21.50•CGA2.2
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsenceoflocal codes, the fireplace installationmust
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)ortheCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPANo. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(inCanada).
Thesemodels(naturalgasand propane) can beinstalledin
a bedroom (in the United States) which has a total volume
ofunconfinedspaceappropriate totheparticularinstallation.
Refertothe National FuelGasCodeANSI Z223.1/NFPA54
1Approvals and Codes
(current edition). The Uniform Mechanical Code - (current
edition),and local Building Officials forthe optionsallowed
in obtaining an effective bedroom volume of unconfined
space.
Thesemodels(naturalgasand propane) can beinstalledin
abedroom(inCanada) if athermostat(ModelWH-STAT)is
installed with the unit. Consult local code authorities.
Detailed installation instructions for Model WH-STAT are
included with the kit.
HighAltitude Installations
U.L.Listedgasappliancesare tested and approved without
requiringchanges forelevations from0 to 2,000 feet in the
U. S.A. and in Canada.
Wheninstalling thisappliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changingthe existingburner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000and4500feetinCanada.Ifthe heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
Ifinstalling this appliance at an elevation above4,500 feet
(in Canada), check with local authorities.
Heat & Glo Quality Systems
registeredby SGS ICS

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 9
2Getting Started
Introducing the Heat & Glo Gas Fireplaces
Heat & Glo B-type vent gas fireplaces are designed to op-
erate with all exhaust gases expelled to the outside of the
building.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplacediagrams,includingthedimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and its components are testedand safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
Thevent systemcomponents, gas logs and trimdoors are
shippedinseparate packages. Loginstallationinstructions
areprovided in the manual bagassembly shipped withthe
unit.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
TheHeat &Glo Warrantywillbe voided by, and Heat & Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat & Glo.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruse of anycomponentpart not manu-
factured and approved by Heat & Glo, not withstanding
anyindependenttesting laboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•Thevent system configuration to beused.
•Gas supply piping.
•Electricalwiring.
•Framingand finishingdetails.
•Whether optional accessories—devices such as a fan,
wallswitch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplaceshould be installed on a metal or wood panelthat
extends the full width and depth of the fireplace.

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/0510
Figure 1. Diagram of the 6000TV-OAK
GAS ACCESS
GAS
CONTROLS
RATING PLATES
& LABELS
VENT COLLARS
HOOD
STANDOFFS
ACCESS
ELECTRICAL
OUTSIDE
AIR
GAS LINE
ACCESS
6-7/8
(174mm)
2-1/8
(55mm)
38
(965mm)
36-1/8
(916mm)
41
(1043mm)
34-5/8
(879mm)
ELECTRICAL
ACCESS
3-1/2
(90mm)
6-1/2
(165mm)
6” B-VENT (152mm)
9-3/8
(238mm)
21-1/2
(548mm)
28-1/2 (724mm)

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 11
3Installing the Fireplace
Step 1. Locating the Fireplace
Thediagram shows spaceandclearance requirements for
locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
Top ................................... 3 1/2 ................... 89
Ceiling* .............................. 31 .................... 787

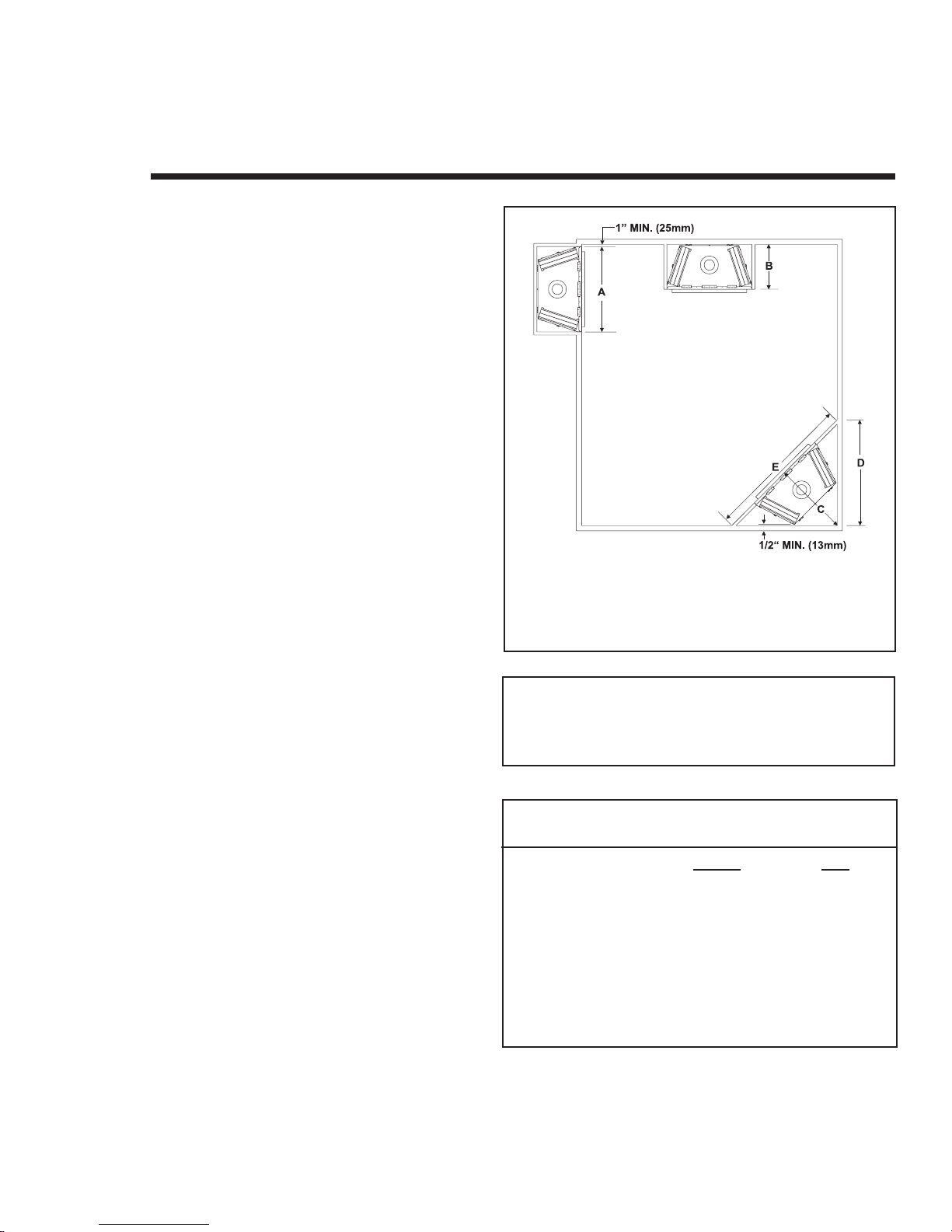

Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances from the B-Type Vent Pipe to
Combustible Materials is 1 inch (25mm) all around the
pipe.
* Theclearanceto theceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 13).
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimum clearancetoa perpendicular wall
extending past the face of the fireplace is one inch (25
mm). The back of the fireplace may be recessed 21 1/2
inches (546 mm) into combustible construction.
The minimum clearancefrom the topface of thefireplace to
combustiblefinishingmaterials such asdrywall, is oneinch
(25mm).
Constructing the Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/oritsvent system. Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOPSPACERS AND
CONSTRUCTIONOFTHECHASEMAYVARYWITH THE
TYPE OF BUILDING. THESE INSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES.THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTSFOR THESE STEPS.
Factory-builtfireplacechases should beconstructed inthe
manner of all outside walls of the home to prevent cold air
draftingproblems. The chase should notbreak theoutside
buildingenvelopeinanymanner.
Thismeansthatthewalls, ceiling, base plateandcantilever
floorofthe chase should beinsulated.Vapor and airinfiltra-
tionbarriersshouldbe installed in thechaseasperregional
codesfortherestofthehome.Additionally, in regions where
cold air infiltration may be an issue, the inside surfaces
maybe sheetrocked and taped for maximum air tightness.
To further prevent drafts, the firestops should be caulked
with high temperature caulk to seal gaps. Gas line holes
andotheropeningsshould be caulkedwithhightemp caulk
or stuffed with unfaced insulation. If the appliance is being
installedonacement slab,alayerofplywoodmaybeplaced
underneathto prevent conductingcold up intothe room.
THECHASE SHOULDBECONSTRUCTED SOTHATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
The distance from the unit to combustible construc-
tion is to be measured from the unit outer wrap sur-
face to the combustible construction, NOT from the
screw heads that secure the unit together.

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/0512
Step 3. Negative Pressure Make-upAir
Negative Pressure warning: Whennegative pressureis
present, an atmospherically vented fireplace (with a draft
hood) may not function properly and it may down draft. In
the case of a gas appliance, spillage of the combustion
gases may occur. This may create a dangerous carbon
monoxide situation in the house.
The causes of negative pressure to a house can include
thefollowing:
• Stack effect in the building.
• Exhaust only appliances (mechanically and
atmosphericallyvented).
• Inadequatemake-up air(which is increasingly
moreprevalent in newconstruction).
NOTE:Thisfireplacewill operate correctlyonly if adequate
ventilation is provided to allow proper draft to the fireplace
system. Heat & Glo assumes no responsibility for the
improper performance of the fireplace system caused by
inadequate draft due to environmental conditions, down
drafts, tight sealing construction of the structure, or
mechanicalexhaustingdevices which createanegative air
pressurewithinthe structure wherethe fireplace is located.
Air Damper
Before lighting the burner, open the damper. Close the
damperwhen the burner is off.
Detailed installation instructions for ModelAK-TV Outside
Air kit are found in the kit.
Figure 4. Make-up Air
!
Itis recommendedthat allnatural ventingnon-air tightgas
fireplaces have outside air connected to them. It is also
recommendedthatthe buildingbemechanicallyorpassively
balancedtoallow atmospherically ventedappliances,such
as top vented gas fireplaces with draft hoods, to draft
properly. If the home experiences negative pressure or is
likely to experience negative pressure, connection to an
outside air source is mandatory.
Installing Optional Outside Make-up Air:
Thisunitis equipped toaccept outside air. Byusing outside
make-up air, the amount of room air used for combustion
willbe reduced. It is recommendedthat anAK-TV air kit be
used with this appliance.
WARNING: INA NEGATIVE PRESSURE CON-
DITION (LIKELY TO OCCUR IN NEW HOMES
THAT DO NOT HAVE ADEQUATE MAKE-UP
AIR) THE OUTSIDE AIR KIT MUST BE IN-
STALLED TO OBTAIN PROPER PERFOR-
MANCE AND TO HELP PREVENT SPILLAGE
OF COMBUSTION GASES.
A 4-inch side collar/damper (found in AK-TV Kit) must be
installedon the fireplace by attaching the sidecollar to the
outerwrapofthefireplaceattheright-handrearcornerusing
sheetmetal screws. See Figure 4. Attach one end of a 4-
inch flexible air duct (not provided in theAK-TV Kit) to the
sidecollar andthe other end of the duct to the make-up air
termination cap. Use plastic tie straps to secure the ends
of the flex duct to each collar.

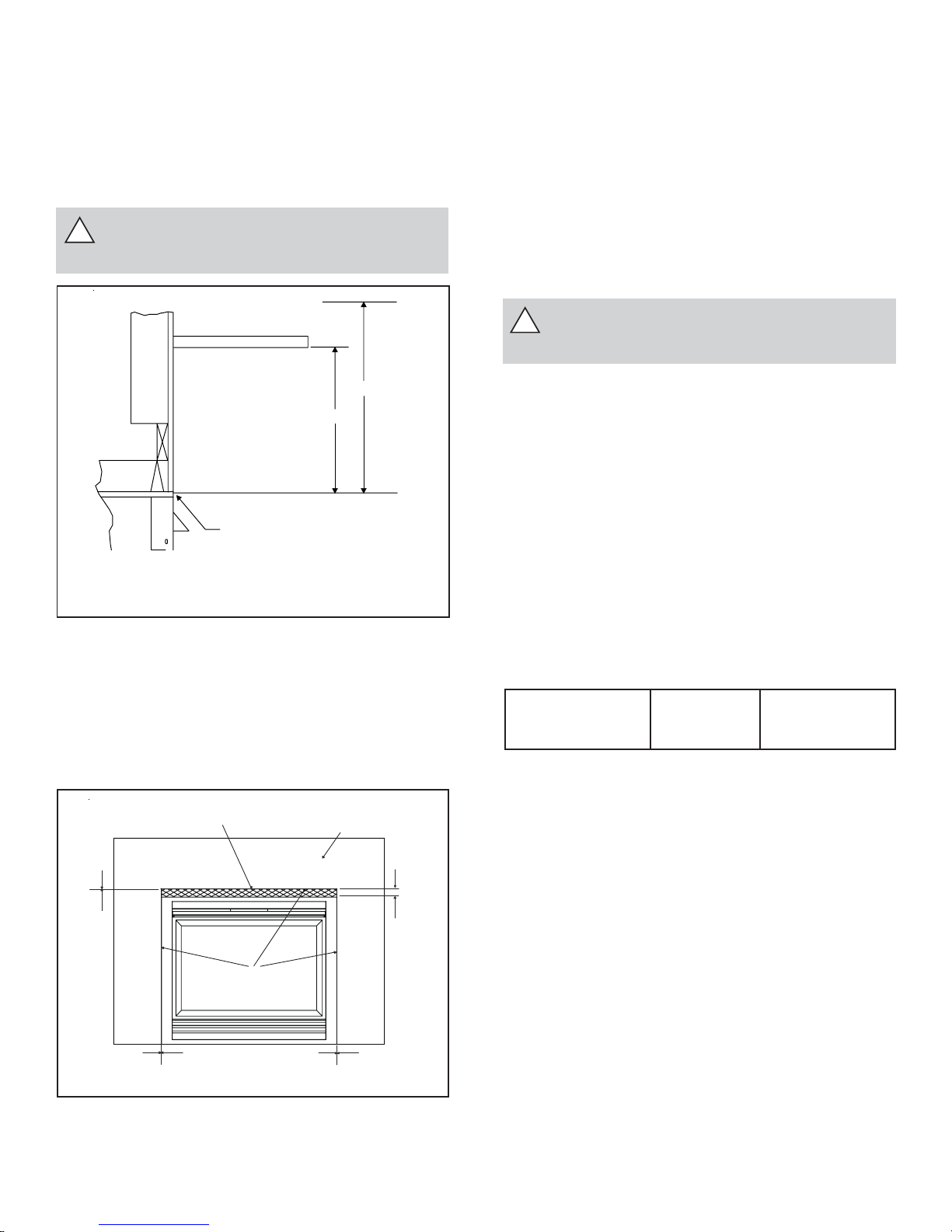

A. 42” B. 38 1/2” C. 22”
Figure 3. Framing Dimensions
Framing should be
constructed of 2 X 4
lumber or heavier.
Step 2. Framing the Fireplace
Fireplaceframingcanbe built before orafterthefireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshowsframing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFOREFRAMING.
AIR DAMPER
ASSEMBLY
4-INCH DUCT
COLLAR

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 13
!
!
Step 4. Installing the Vent System
A. Vent System Approvals
Model 6000TV-Oak is approved to use 6-inch (152mm)
diameter B-type vent. B-type vent must be used when the
vent system is within combustible construction.
Thesemodels may also use singlewall rigid or flexible gas
vent IF and ONLY IF the vent system is installed within
non-combustibleconstructionsuch as amasonry chimney.
The same diameter noted above for B-type vent must be
usedfor single-wallvent. SeeFigure 5.
For B-type vent the clearance to combustibles is 1-inch.
FollowventmanufacturersREQUIRED clearances.
The flame and ember appearance may vary based on the
typeof fuel burned and theventing configurationused.
B. System Components.
Vent SystemConfiguration
RISE TO RUN RATIO = 2:1
MAXIMUM TOTALHORIZONTALRUN =15 FT.
MINIMUM TOTALVERTICALRISE = 9 FT.
MAXIMUM NO. Of ELBOWS: 2 - 90oor 4 - 45o
Planandinstalltheventsystemusingtheparametersshown
above.
WARNING: YOU MUST NOT EXCEED THESE
PARAMETERS.
Connecta B-Type vent component to theflue outletcollar.
Lookatthe vent pipethroughthe holes inthe10 5/8” ringto
check that the vent pipe is attached.
NOTE:Itisalways better to first attachastraightsection
of vent to the unit before attaching an elbow. Avoid
using elbows in the vent system if possible.
A90-degree elbow can be attacheddirectly tothe unit. If it
is, it can be followed by a MAXIMUM 15-feet horizontal
run, a second 90-degree elbow ending in a minimum 30
footvertical.
Aminimumof9footverticalriseendinginalistedtermination
cap is required for the unit.
Continue to add vent components, until the vent run is
completed.
WARNING:YOUMUSTNOTEXCEEDATOTAL
MAXIMUMHORIZONTALRUNOF15FEETFOR
THEENTIRE VENT SYSTEM. Figure 5. Vent System Attachment
MINIMUMVERTICAL RISE =9FT
MAXIMUMHORIZONTALRUN =15FT
V:H = 2:1
!
NOTE: The vent termination must be in a vertical posi-
tion and the termination cap must be listed for the
vent pipe used.
ConsultLocalBuilding Code OfficialsandCodes for proper
vent system installations.
WARNING:THIS GAS FIREPLACE MUST NEV-
ER BE VENTED BY CONNECTING TO A CHIM-
NEYFLUESERVINGASEPARATESOLID FUEL
BURNINGAPPLIANCE.
LISTED
TERMINATION CAP
LISTED SINGLE-WALL
GAS VENT
NON-COMBUSTIBLE
CONSTRUCTION
B-TYPE
VENT
V
H

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/0514
!
C. Bedroom Installation in Canada
This model MUST NOT be vented into a vent system in-
stalled exterior to a building. The part of the vent system
abovethe roof line can be exterior tothe building.
D. Vent Termination
WARNING: MAJOR U.S. BUILDING CODES
SPECIFY MINIMUM CHIMNEY AND/OR VENT
HEIGHTABOVE THE ROOF TOP. THESE MIN-
IMUM HEIGHTS ARE NECESSARY IN THE IN-
TEREST OF SAFETY. FIGURE 6 AND TABLE
SHOW MINIMUM HEIGHTS, PROVIDED THE
TERMINATION CAP IS AT LEAST 8-FEET
FROMAVERTICALWALL.
!
ROOF PITCH H (MIN.) FT.
FLATTO 6/12 1.0
OVER6/12 TO7/12 1.25
OVER7/12 TO8/12 1.5
OVER8/12 TO9/12 2.0
OVER9/12 TO10/12 2.5
OVER 10/12TO 11/12 3.25
OVER11/12TO12/12 4.0
OVER12/12 TO 14/12 5.0
OVER14/12 TO 16/12 6.0
OVER16/12 TO 18/12 7.0
OVER18/12 TO 20/12 7.5
OVER20/12 TO 21/12 8.0
Figure 6. Vent Termination
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Step 5. Positioning, Leveling, and
Securing the Fireplace
Toproperly position,level, andsecure thefireplace:
• Place the fireplace into position (see Figure 7).
• Level the fireplace from side to side and from front to
back.
• Shim the fireplace with non-combustible material, such
as sheet metal, as necessary.
• Securethefireplacetotheframingbynailingorscrewing.
!
!
Figure 7. Proper Positioning, Leveling,
and Securing of a Fireplace
Step 6. The Gas Control Systems
WARNING: THIS UNITISNOT FORUSEWITH
SOLID FUEL.
Twotypesofgascontrolsystemsareusedwiththesemodels:
Standing Pilot Ignition and Intermittent Pilot Ignition (IPI).
Standing Pilot Ignition System
This system includes millivolt control valve, standing pilot,
thermopile/thermocoupleflame sensor,and piezo ignitor.
WARNING: 110-120 VAC MUST NEVER BE
CONNECTED TO A CONTROL VALVE IN A
MILLIVOLT SYSTEM.
Intermittent Pilot Ignition (IPI) System
TheIPIsystem includes a3V control valve,electronicmod-
ule, and intermittent pilot.
WARNING: CONTINUOUS 110-120 VAC SER-
VICE MUST BE WIRED TO THE FIREPLACE
JUNCTIONBOX.

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 15
Figure 9. Gas Supply Line
• Insert insulation from the outside of the fireplace and
pack the insulation tightly to totally seal between the
pipe and the outer casing.
• At the gas line access hole the gap between the supply
piping and gas access hole can be plugged with non-
combustibleinsulation to prevent cold air infiltration.
Step 7. The Gas Supply Line
NOTE: Have the gas supply line installed in accordance
with local building codes by a qualified installer
approved and/or licensed as required by the locality.
(IntheCommonwealthofMassachusettsinstallationmust
be performed by a licensed plumber).
NOTE: Before the first firing of the fireplace, the gas
supply line should be purged of any trapped air.
NOTE: Consult local building codes to properly size
the gas supply line leading to the 1/2 inch
(13 mm) hook-up at the unit.
This gas fireplace is designed to accept a 1/2 inch
(13 mm) gas supply line.
To install the gas supply line:
• Alisted(and CommonwealthofMassachusettsapproved)
1/2inch (13mm)tee-handle manual shut-off valve and a
listed flexible gas connector are connected to the 1/2
inch(13mm)inlet of thecontrolvalve. NOTE: Ifsubstitut-
ingfor these components,please consultlocal codes for
compliance.
• Locate the gas line access hole in the outer casing of
thefireplace.
• The gas line may be run from either side of the fireplace
provided the hole in the outer wrap does not exceed 2” in
diameterandit does notpenetratethe actual firebox.
• Open the fireplace lower grille, insert the gas supply line
throughthegaslinehole,andconnectittotheshut-offvalve.
!
Step 8. Gas Pressure Requirements
Pressure requirements for Heat & Glo gas fireplaces are
shown in the table below.
Pressure Natural Gas Propane
Minimum 5.0 inches 11.0 inches
InletPressure w.c. w.c.
MaximumInlet 14.0 inches 14.0 inches
Gas Pressure w.c. w.c.
Manifold 3.5 inches 10.0 inches
Pressure w.c. w.c.
A one-eighth (1/8) inch (3 mm) N.P.T. plugged tapping is
providedon the inletand outlet sideof the gascontrolfor a
test gauge connection to measure the manifold pressure.
The fireplace and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in
excess of one-half (1/2) psig (3.5 kPa).
The fireplace must be isolated from the gas supply piping
system by closing its individual shut-off valve during any
pressure testing of the gas supply piping system at test
pressuresequaltoorless than one-half(1/2)psig(3.5kPa).
USE A WRENCH ON
SHUT-OFF VALVE WHEN
TIGHTENING GAS LINE
GAS VALVE
FLEX
CONNECTOR
MANUAL
SHUT-OFF VALVE
• Whenattaching thepipe, support the control so that the
lines are not bent or torn.
• Afterthegas line installationiscomplete,all connections
mustbetightened and checked forleakswith a commer-
ciallyavailable,non-corrosiveleakchecksolution.Besure
to rinse off all leak check solution following testing.
WARNING: DO NOT USE AN OPEN FLAME
TO CHECK FOR GAS LEAKS.
STANDING PILOT
3/8” (10mm)
Figure 8. Gas Control Systems
IPI IGNITION
VENT
COLLARS
GLASS
ASSEMBLY
GAS LINE
ACCESS
GAS
CONTROLS
TOP
STANDOFFS
FLAME
SENSOR
ROD

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/0516
Step 9. Wiring the Fireplace
NOTE: Electrical wiring must be installed by a licensed
electrician.
CAUTION: DISCONNECT REMOTE CONTROLS IF AB-
SENT FOR EXTENDED TIME PERIODS TO PREVENT
ACCIDENTAL FIREPLACE OPERATION.
For Standing Pilot Ignition Wiring
Appliance Requirements
•ThisapplianceDOESNOT require110-120VACtooperate.
WARNING: DO NOT CONNECT 110-120 VAC
TO THE GAS CONTROL VALVE OR THE AP-
PLIANCE WILL MALFUNCTION AND THE
VALVE WILLBE DESTROYED.
OptionalAccessories
Optional fan and remote control kits require that 110-120
VAC be wired to the factory installed junction box before
thefireplace is permanently installed.
!!

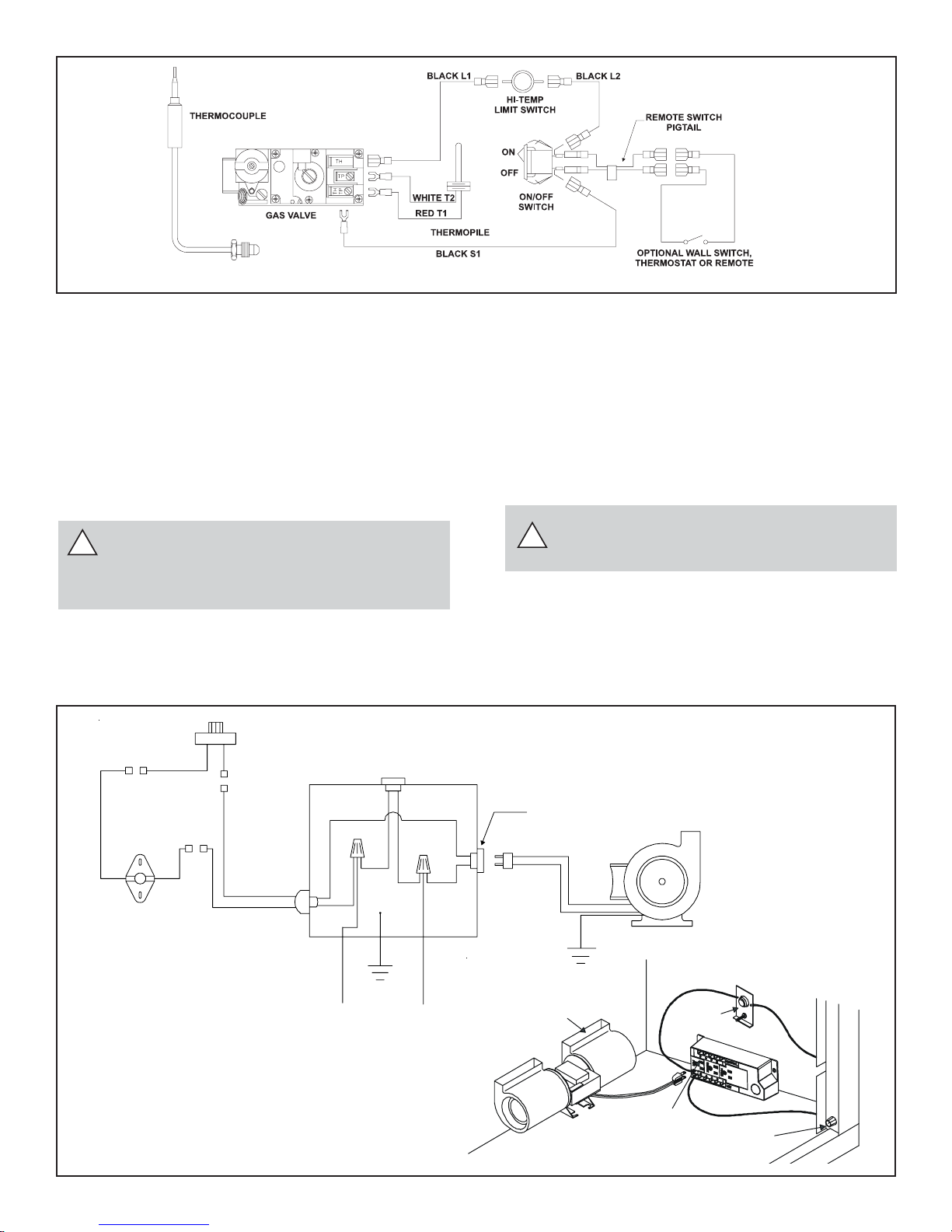

Figure 10. Standing Pilot Ignition Wiring Diagram
Figure 11. Fan Wiring Diagram
Wall Switch
Positionthewall switchinthedesiredpositiononthe wall.An
assembly of 18 ft of 20AWG is provided with the fireplace to
connect the wall switch to the appliance. Instead of the sup-
pliedassembly,wirewith alengthof25ftorlessandagauge
of20AWGthrough14AWGisacceptable.The wire needsa
jacketwith a temperaturerating of 140oF(60oC)or higher.At
theapplianceconnectthewiretotheON/OFFswitchpigtails.
WARNING: DO NOT CONNECT 110-120 VAC
TO THE WALL SWITCH OR THE CONTROL
VALVE WILLBE DESTROYED.
CAUTION: LABEL ALL WIRES PRIOR TO DISCON-
NECTION WHEN SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERATION. VERIFY PROPER OPERATION AFTER
SERVICING.
NOTE: IF ANY OF THE ORIGINAL WIRE
AS SUPPLIED WITH THE APPLIANCE
MUST BE REPLACED, IT MUST BE
REPLACED WITH TYPE 105 C RATED WIRE.
O
JUNCTION BOX
VARIABLE SPEED CONTROL
TEMPERATURE
SENSOR SWITCH
WHT
GRN
BLK
BLK
110-120 VA
C
BLOWER
BLOWER RECEPTACLE
BLK
BLK
BLK
BLK
WHT
GROUND
WHT
BLK
BLK
BLK
BLOWER SENSOR
SWITCH
“FAN”
RECEPTACLE SPEED
CONTROL

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 17

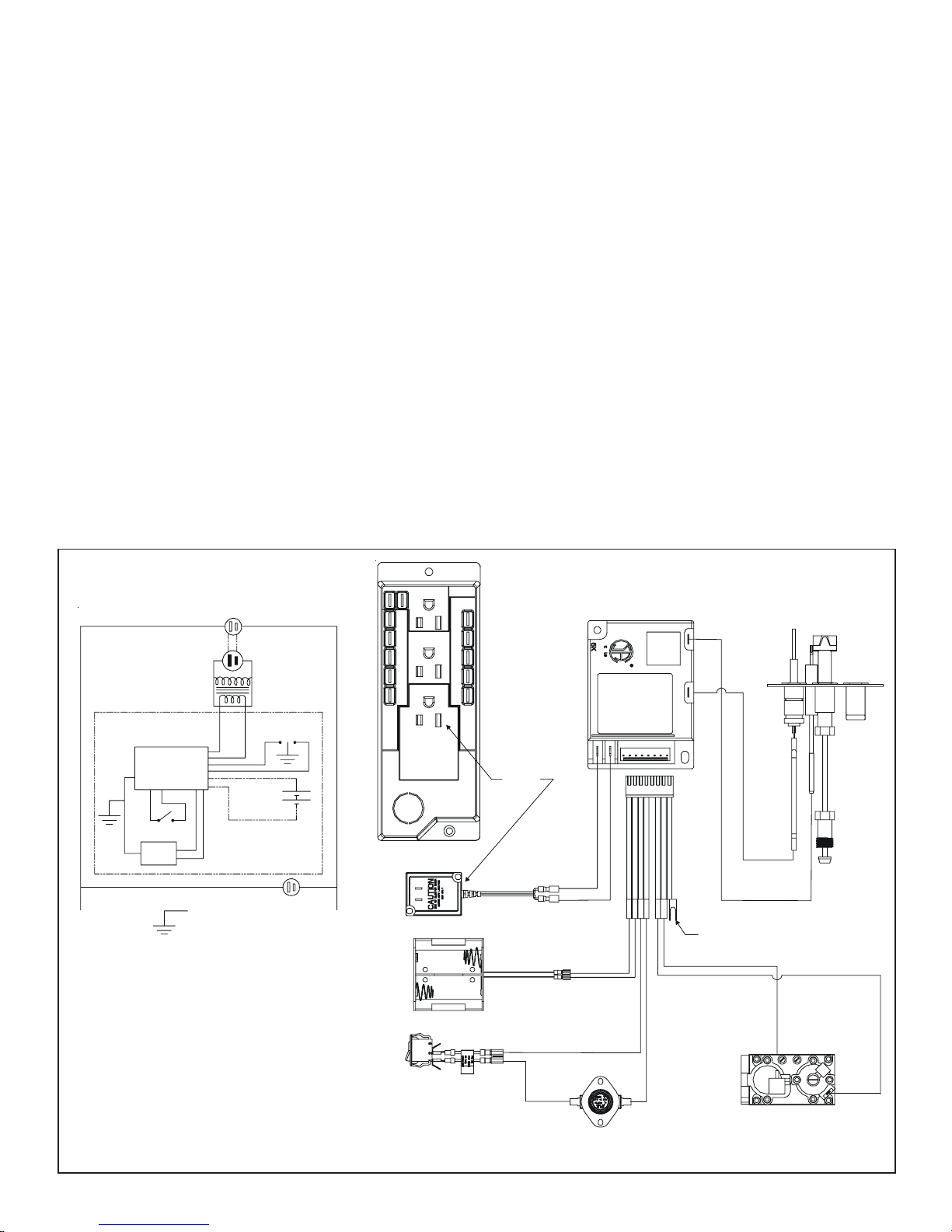

For Intermittent Pilot Ignition (IPI) Wiring
3 Volt Transformer
Thisappliance comeswith a3 volt transformer.Thetrans-
former plugs into the junction box and the two leads plug
intothe green control module (see Figure 12).
Appliance Requirements
This appliance requires that 110-120 VAC be wired to the
junctionboxincludedinthemanualbag assembly.Maintain
correct polarity when wiring the junction box.
The junction box is installed by sliding one tab of the box
through the slot on the lower right side of the outer wrap
anddriving a screwthrough theother tab intothe pilot hole
onthe outerwrap.
Operation using Battery Power
This fireplace has an optional battery operation. The sys-
tem is fully functional with the use of two “D” size batteries
withoutordinary 110-120 VAC power.
Wiring to the battery pack should be left disconnected in
ordertoconserve battery life. Inthecase of alossofpower,
Figure 12. Intermittent Ignition (IPI) Wiring Diagram
simplyconnect red and black wire leads toactivate battery
power (connect red to red, black to black). The fireplace
can be used as necessary. Once power (110 VAC) is re-
stored, disconnect red and black wire leads to extend bat-
tery life.
OptionalAccessories
Optional fan and remote control kits require that 110-120
VAC be wired to the fireplace junction box.
Wall Switch
Positionthewall switchinthedesiredpositiononthe wall.An
assembly of 18 ft of 20AWG is provided with the fireplace to
connectthewallswitchtotheappliance.Insteadofthesupplied
assembly,wire withalengthof25ftorlessandagauge of20
AWGthrough14AWGisacceptable.Thewireneedsajacket
with a temperature rating of 140oF (60oC) or higher. At the
appliance connect the wire to the ON/OFF switch pigtails.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TIONWHENSERVICINGCONTROLS. WIRING ERRORS
CAN CAUSE IMPROPER AND DANGEROUS OPERA-
TION.VERIFYPROPER OPERATIONAFTER SERVICING.
NOTE 1: Ignition module, valve, pilot and
wall switch operate on 3 volts. 120 VAC
is required at junction box unless
equipped with battery back-up.
NEUTRAL GROUND REMOTE
CONTROL HOT
LOW VOLTAGE
SEE NOTE 1
ON/OFF
WALL SWITCH
VALVE
TRANSFORMER OUTLET
PLUG-IN
3V TRANSFORMER
FLAME SPARKER /
SENSOR
LOW VOLTAGE
SEE NOTE 1
OPTIONAL
BATTERY
BACK-UP
IGNITION
MODULE
(3V)
ORANGE
(IGNITOR)
WHITE
(SENSOR)
S
I
IGNITION MODULE 3 VAC INTERMITTENT PILOT IGNITOR
GROUND TO
FIREPLACE
CHASSIS
GREEN
ORANGE
VALVE
TEMP SENSOR
OPTIONAL BATTERY PACK
TRANSFORMER
3 VAC
PLUG-IN
FAN
REM/AUX
TRANS
NEUTRAL
HOT
5 4 3 2 1 5 4 3 2 1
BLACK
RED
BROWN
BROWN
Î

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/0518
Step 10. Finishing
Figure 13 shows the minimum vertical and corresponding
maximumhorizontaldimensionsoffireplacemantelsorother
combustible projections above the top front edge of the
fireplace.SeeFigures2and3forotherfireplaceclearances.
Only non-combustible materials may be used to cover the
blackfireplace front.
WARNING:WHENFINISHINGTHEFIREPLACE,
NEVER OBSTRUCT OR MODIFY THE AIR IN-
LET/OUTLET GRILLES IN ANY MANNER.
!
Figure 13.
Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles above Fireplace
CAUTION: IF JOINTSBETWEEN THE FINISHEDWALLS
AND THE FIREPLACE SURROUND (TOP AND SIDES)
ARE SEALED, A 300° F. MINIMUM SEALANT MATE-
RIAL MUST BE USED. THESE JOINTS ARE NOT RE-
QUIRED TO BE SEALED. ONLY NON-COMBUSTIBLE
MATERIAL (USING 300° F. MINIMUM ADHESIVE, IF
NEEDED) CAN BEAPPLIED AS FACING TO THE FIRE-
PLACE SURROUND. SEE THE DIAGRAM BELOW.
Hearth Extensions
Ahearthextension may bedesirablefor aesthetic reasons.
However,ANSIorCAN/CGAtestingstandardsdonot require
hearthextensions forgas fireplaceappliances.
Figure 14. Sealant Material
Installing the Trim
Combustible materials may be brought up to the specified
clearanceson theside and top front edgesof thefireplace,
but MUST NEVER overlap onto the front face. The joints
between the finished wall and the fireplace top and sides
canonlybesealedwith a 300° F(149°C)minimumsealant.
WARNING:WHEN FINISHINGTHEFIREPLACE,
NEVEROBSTRUCTORMODIFYTHEAIRINLET/
OUTLETGRILLESIN ANY MANNER.
Install optional marble and brass trim surround kits as
desired.Marble, brass, brick,tile, or othernon-combustible
materials can be used to cover up the gap between the
sheet rock and the fireplace.
Do not obstruct or modify the air inlet/outlet grilles. When
overlappingon bothsides, leaveenough spaceso thatthe
bottomgrille can be lowered and the trim door removed.
Positioning the Logs
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the instructions that accompany the
logs. Save the log instructions with this manual.
If sooting occurs, the logs might need to be repositioned
slightlyto avoidexcessive flameimpingement.
!
Step 11. Installing Trim, Logs
and Ember Material
Placing the Ember Material
Embermaterial isshipped withthis gasfireplace.Toplace
theember material:
• Pullthe four glass latches outof the groove on theglass
frame.Removeglass door fromthe unit (seeFigure30).
• Embers CANNOT be placed directly over ports. Care
should be taken not to cover the lighting trail of ports
(fromback tofront).
• When placing Glowing embers onto the burner care
shouldbe taken sothat theports are notcovered. Place
the embers along side the port trail, but not on or in
between the ports. Failure to follow this procedure will
likely cause lighting and sooting problems.
• Place Mystic embers on areas of base refractory away
fromportholes. Use thismaterial to give yourfireplace a
realistic ash bed.
• Savethe remainingember materials for use during fire-
placeservicing.
• Replacethe glassdoor anda front trim door on the unit.
• Pull out and latch the glass clips into the groove on the
glassframe.
12”
12"
TOP FRONT EDGE
OF FIREPLACE
31”
CEILING
NON-COMBUSTIBLE ZONE
MATERIAL SUPPLIED WITH UNIT
1 1/2”
0”
0” 0”
HIGH TEMPERATURE
(300F/149C. MIN.)
SEAL JOINT
00
FINISH WALL MATERIA
L
MAY BE COMBUSTIBLE
- TOP AND SIDES
Note: Thereare 3metal tabs holding the non-combustible
board in place for shipping. These tabs are to be cut off or
bentback before finishingaround thefireplace front.
___________________________________________
Shutter Settings
NG LP
Burner 1/8” 1/4”

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 19
Glass Specifications: TEMPERED

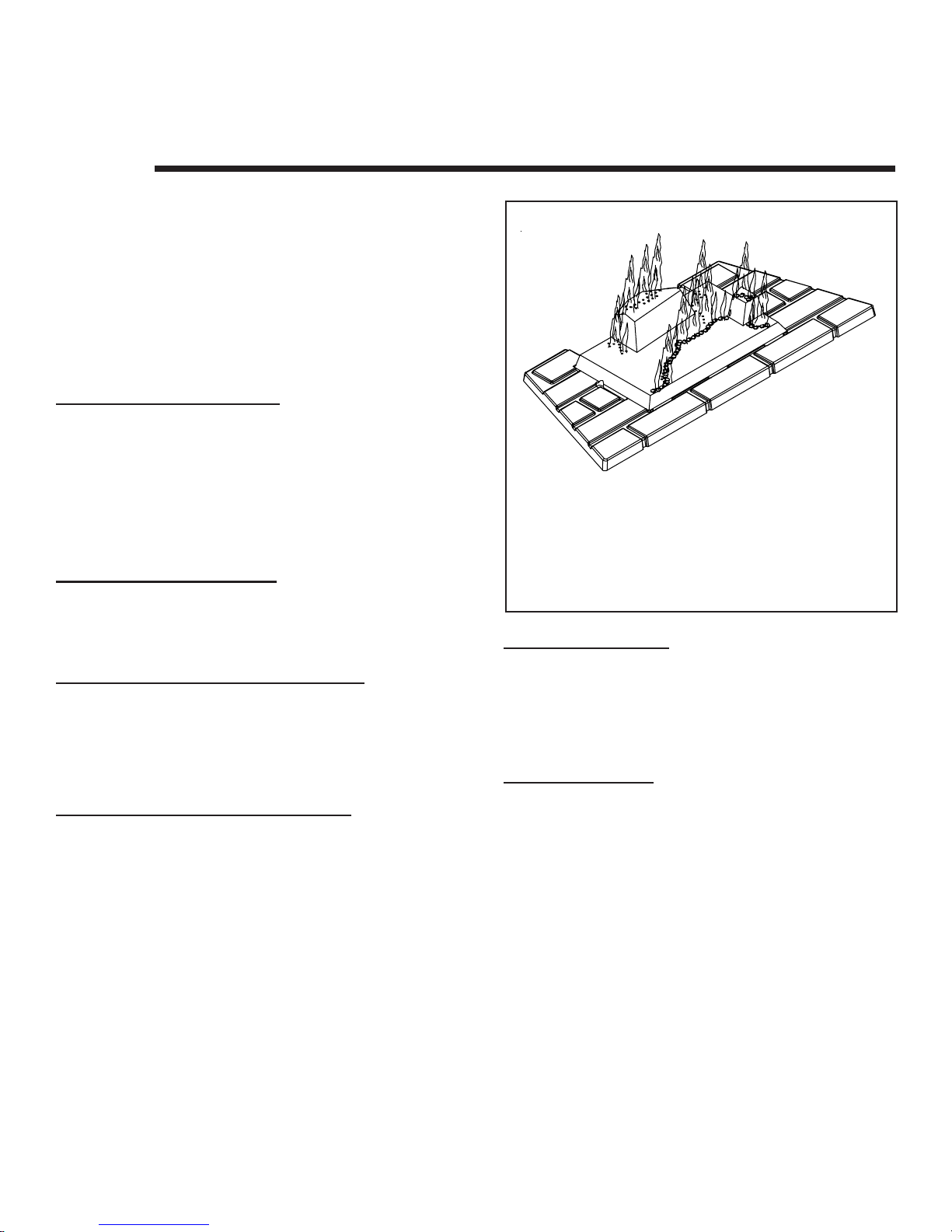

Figure 16. Placement of the Ember Material

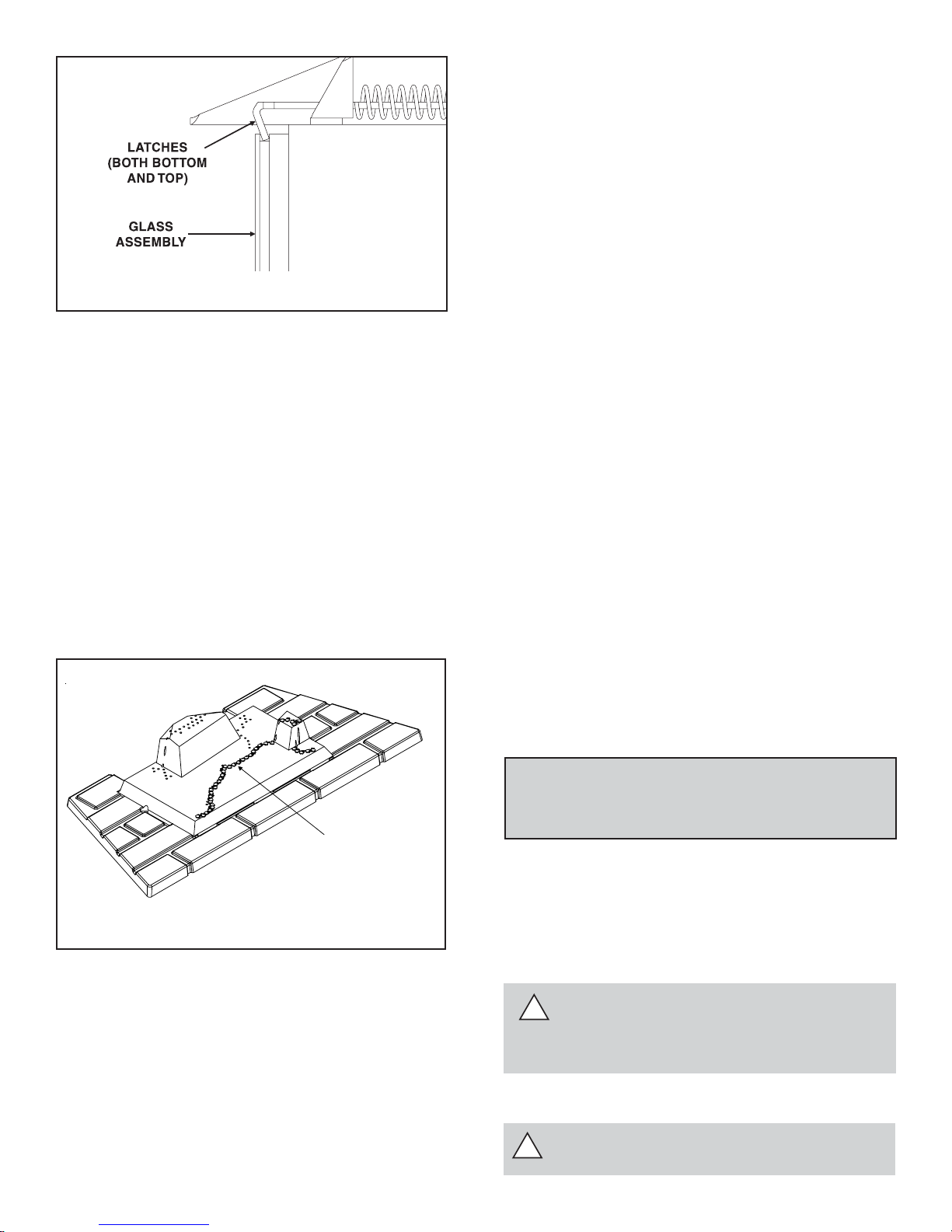

Figure 15. Glass Assembly
Step 12. Before Lighting the Fireplace
Before lighting the fireplace, be sure to do the following:
Remove all paperwork from underneath the fireplace.
Review safety warnings and cautions
• Read the Safety and Warning Information section at
the beginning of this InstallersGuide.
Double-check for gas leaks
• Before lighting the fireplace, double-check the unit for
possible gas leaks.
Double-check vent terminations and front grilles for
obstructions.
• Before lighting the fireplace, double-check the unit for
possibleobstructions that couldbe blocking thevent ter-
minations or the front grilles.
Double-check for faulty components
• Any component that is found to be faulty MUST BE re-
placedwithan approved component.Tampering with the
fireplacecomponentsisDANGEROUS andvoidsallwar-
ranties.
A small amount of air will be in the gas supply lines. When
first lighting the fireplace, it will take a few minutes for the
lines to purge themselves of this air. Once the purging is
complete, the fireplace will light and will operate normally.
Subsequent lightings of the fireplace will not require this
purging of air from the gas supply lines, unless the gas
valve has been turned to the OFF position, in which
casethe airwould have to be purged.
NOTE:Thefireplaceshouldberun 3 to 4 hoursontheinitial
start-up.Turn it off and let it cool completely. Remove and
cleanthe glass.Replace the glass and runthe fireplacefor
an additional 8 hours. This will help to cure the products
used in the paint and logs.
Heat & Glo fireplaces manufactured with tempered glass
may be installed in hazardous locations such as bathtub
enclosures as defined by the CPSC. The tempered glass
has been tested and certified to the requirements ofANSI
Z97.1-1984andCPSC16CFR1202.(SafetyGlazingCerti-
ficationCouncilSGCC#1595 and 1597. ArchitecturalTest-
ing,Inc.Reports02-31919.01and 02-31917.01.)
This statement is in compliance with CPSC 16 CFR Sec-
tion1201.5 “Certification and labeling requirements”which
refers to 15 USC 2063 stating “…Such certificate shall ac-
companythe product orshallotherwise be furnishedto any
distributoror retailer towhom the productis delivered.”
Somelocalbuildingcodesrequiretheuse of tempered glass
with permanent marking in such locations. Glass meeting
this requirement is available from the factory. Please con-
tactyour dealer or distributor to order.
EMBER MATERIAL
During this break-in period it is recommended that some
windowsinthehousebeopenedforaircirculation.Thiswill
helpavoidsettingoffsmokedetectors,andhelpeliminate
any odors associated with the fireplace’s initial burning.
!
!
Step 13. Lighting the Fireplace
You’ve reviewed all safety warnings, you’ve checked the
fireplace for gas leaks, you know the vent system is
unobstructed, and you’ve checked for faulty components.
Now you’re ready to light the fireplace.
WARNING: PLEASE REFER TO THE USER’S
MANUALFORALLCAUTIONS, SAFETY, AND
WARNING INFORMATION PERTAINING TO THE
LIGHTINGAND OPERATION OF THE FIREPLACE.
After the Installation
LEAVE THIS INSTALLATION MANUAL WITH
THE APPLIANCE FOR FUTURE REFERENCE.

Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/0520
4Maintaining and Servicing Your Fireplace
Fireplace Maintenance
Althoughthefrequencyofyourfireplace servicing and main-
tenancewilldepend on useand the typeofinstallation, you
shouldhaveaqualifiedservice technician perform anappli-
ance check-up at the beginning of each heating season.
See the table below for specific guidelines regarding each
fireplacemaintenance task.
IMPORTANT: TURNOFFTHEGASBEFORE SERVICING
YOURFIREPLACE.
Replacing old ember material
Frequency: Once annually, during the checkup.
By: Qualifiedservice technician.
Task: Brush away loose ember material near the burner.
Replace old ember material with Mystic Embers. New
ember material should be placed alternately on top of the
burner as noted in Step 11. Save the remaining ember
material and repeat this procedure at your next servicing.
For more information, see Placing Ember Material.
Cleaning Burner and Controls
Frequency: Once annually.
By: Qualifiedservice technician.
Task:Brushor vacuum thecontrol compartment, fireplace
logsand burnerareas surroundingthe logs.
Cleaning Flame Sensor Rod (IPI Systems)
Frequency:Annually.
By: Qualifiedservice technician.
Task: Makea visual check of thestraight flame sensor rod
(see Figure 8). Use emery cloth to carefully remove any
existing film or white deposits.
Checking Flame Patterns, Flame Height
Frequency: Periodically.
By: Qualifiedservicetechnician/Home owner.
Task: Makeavisualcheckofyourfireplace’sflamepatterns.
Make sure the flames are steady - not lifting or floating.
See Figure 17. The flame sensor (IPI) or thermopile/
thermocouple (standing pilot) tips should be covered with
flame.See Figure 8.
Figure 17.
Burner Flame Patterns
MAKESURE THEFLAMES
ARESTEADY—NOT
LIFTINGOR FLOATING.
Checking Vent System
Frequency: Before initial use and at least annually
thereafter, morefrequently if possible.
By: Qualifiedservicetechnician/Home owner.
Task: Inspect the external vent cap on a regular basis to
ensurethatno debrisisinterferingwiththeflowofair.Inspect
entirevent systemfor proper function.
Cleaning Glass Door
Frequency: After the first 3 to 4 hours of use. As neces-
saryafter initial cleaning.
By: Homeowner.
Task: Removeandclean glass afterthefirst 3 to4 hours of
use.After the initial cleaning, clean as necessary, particu-
larlyafteradding new ember(flamecolorant) material. Film
deposits on the inside of the glass door should be cleaned
offusingahouseholdglasscleaner.NOTE: DONOThandle
or attempt to clean the door when it is hot and DO NOT
use abrasive cleaners.
