Heat & Glo LCOR-HVB-IPI User manual

1
Models:
Pier-HVB-IPI
ST-HVB-IPI
LCOR-HVB-IPI
RCOR-HVB-IPI
Underwriters
Laboratories Listed
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
IntheCommonwealthofMassachusetts:
• installation must be performed by a licensed
plumberorgasfitter;
• a CO detector shall be installed in the room
where the appliance is installed.
!
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Donotuse any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyfor usewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questionsor concerns. Forthe number ofyournearest
Heat-N-Glodealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2005
Heat &Glo, a brand ofHearth & HomeTechnologies Inc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
2006-900J 5/05
Owner’s Manual
Installation and Operation

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
Safety and Warning Information
!
!

3
Safety and Warning Information.................................................. 2
Service Parts List ......................................................................... 4
Approvals and Codes ................................................................ 13
ApplianceCertification ................................................................................. 13
InstallationCodes ........................................................................................ 13
HighAltitudeInstallations............................................................................. 13
Getting Started............................................................................ 14
IntroducingtheHeat&Glo Gas Fireplaces .................................................. 14
Pre-installPreparation ................................................................................. 14
Installing the Fireplace ............................................................... 18

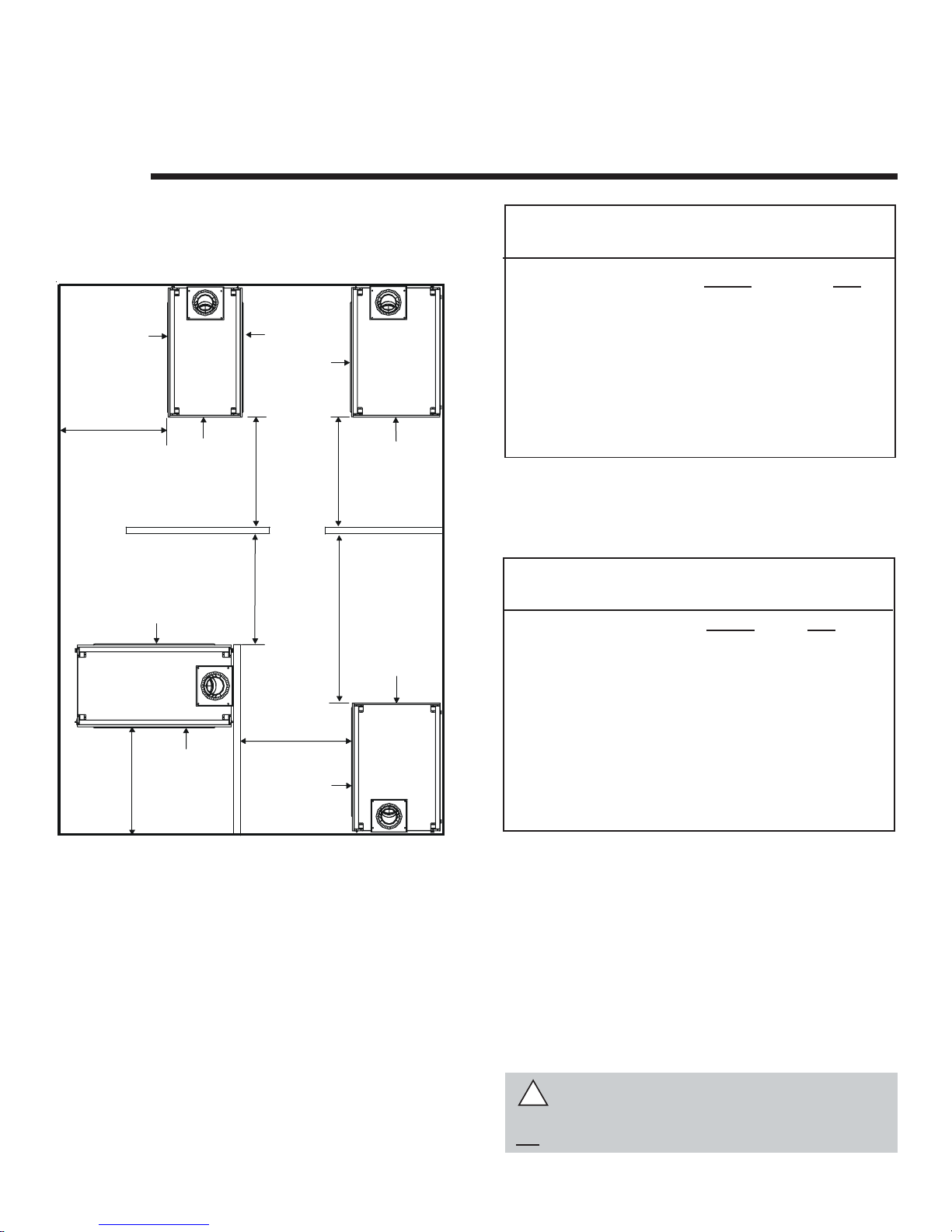

Step 1. Locating the Fireplace .................................................................... 18

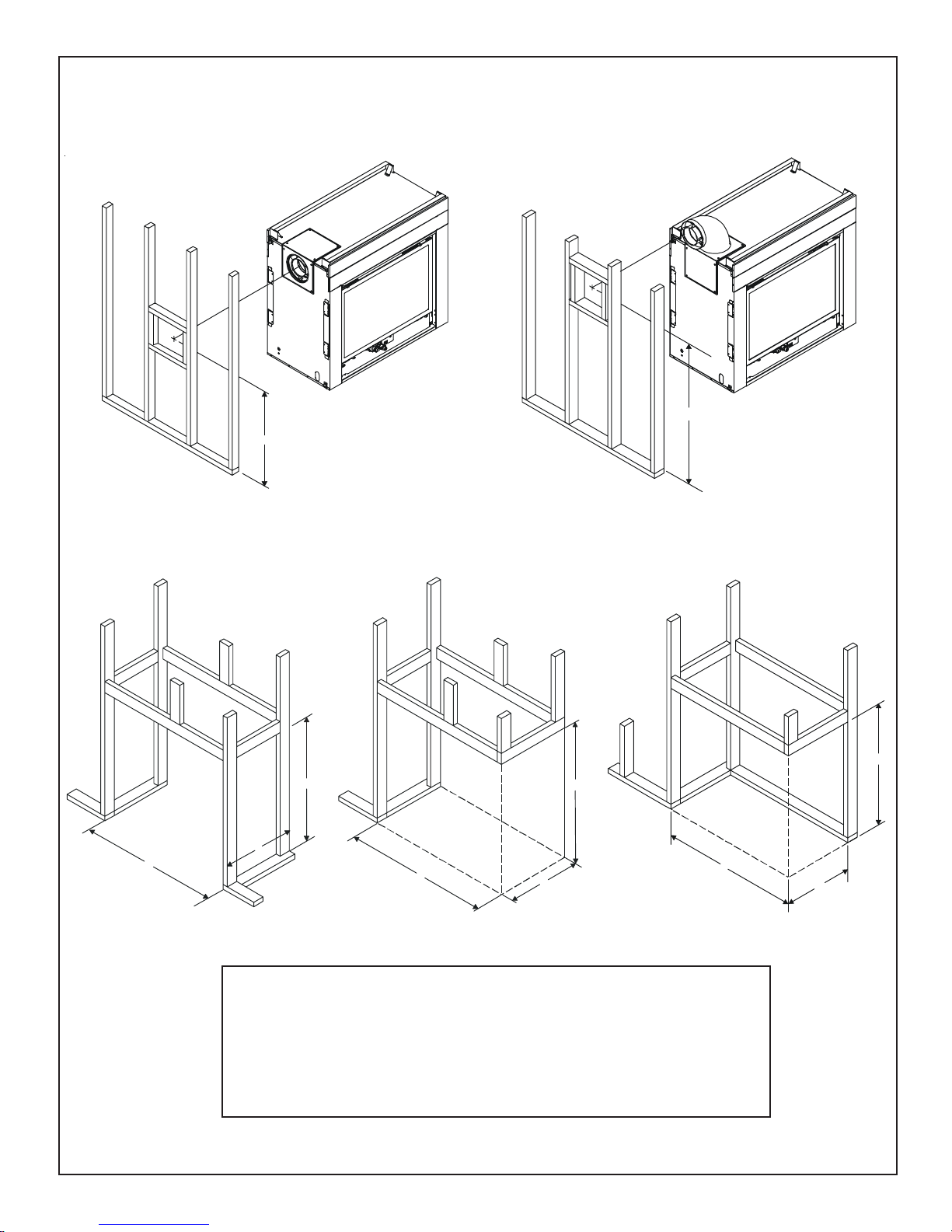

Step 2. Framing the Fireplace ..................................................................... 18
Step 3. Installing the Vent System.............................................................. 21
A. Vent SystemApprovals ......................................................... 21
B. Installing Vent Components ................................................... 28
C. VentTermination.................................................................... 30
Step4. Positioning, Leveling, and Securing the Fireplace ........................... 33
Step 5. The Gas Control System ................................................................ 33
Step 6. The Gas Supply Line ...................................................................... 34
Step 7. Gas Pressure Requirements........................................................... 34
Step 8. Wiring the Fireplace........................................................................ 35
Step 9. Finishing......................................................................................... 37
Step10. Installing Trim, Logs & Ember Material .......................................... 38
Installingthe Trim .......................................................................... 38
Positioningthe Logs...................................................................... 38
Shutter Settings ............................................................................ 38
GlassSpecifications...................................................................... 38
AttachmentofLower LouverDoorAssembly.................................. 38
Placingthe Ember Material ........................................................... 39
EmberLight Bulb Replacement ..................................................... 39
Step 11. Before Lighting the Fireplace........................................................ 40
Step 12. Lighting the Fireplace ................................................................... 40
After theInstallation ..................................................................................... 40
Maintaining and Servicing Your Fireplace................................ 41
!= Containsupdated information.
Table of Contents
!

4
*Partnumberlistonfollowing page.
*La liste des numéros de pièce se trouve à la page suivante.
5 Log Assembly

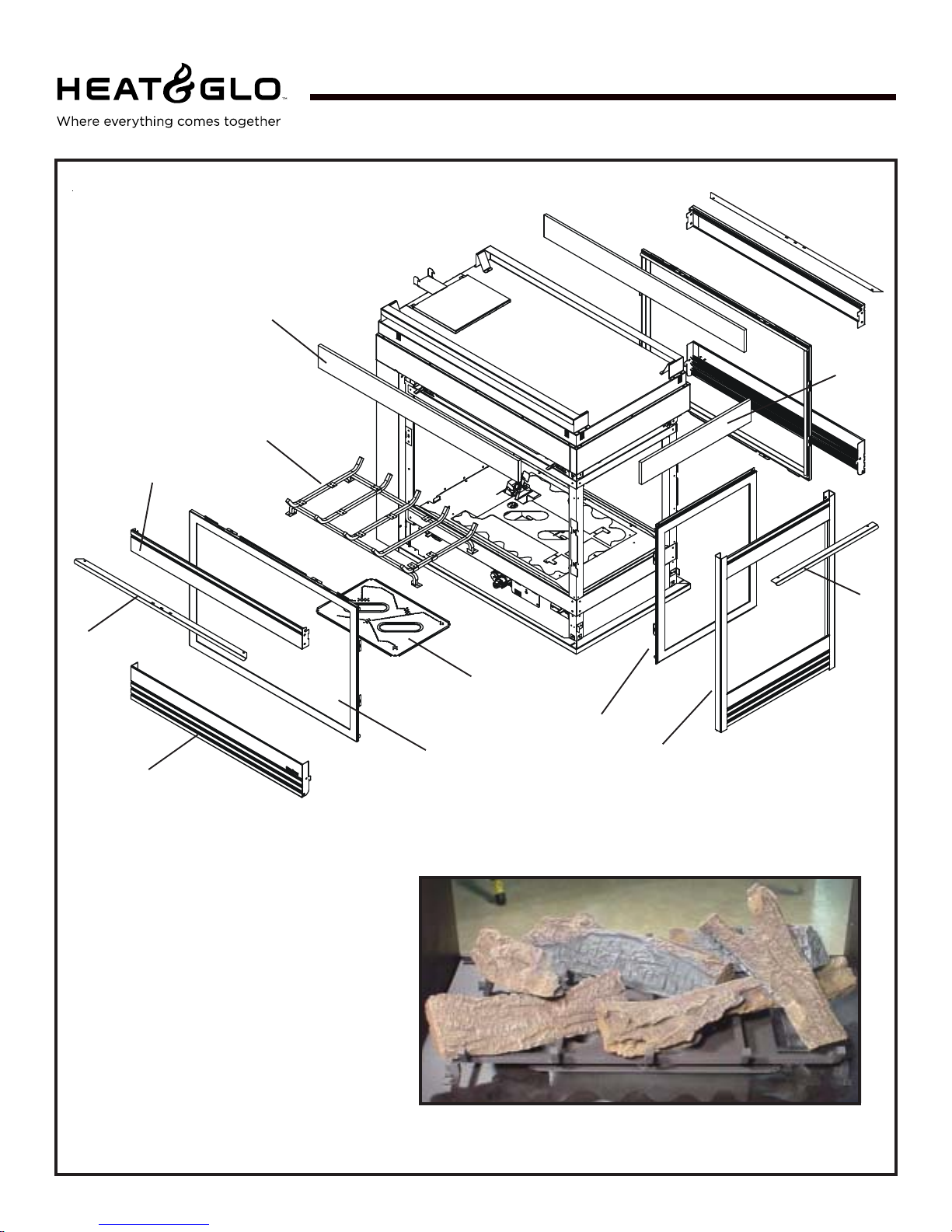

(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts List Pier-HVB-IPI
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
2
1
3
4
6
7
8
9
10
!
11
12

5
(NG, LP) Exploded Parts Diagram / Vue éclatée des pièces
IMPORTANT: THISIS DATEDINFORMATION.Themost currentinformation islocated onyourdealersVIPsite.Whenordering,
supplyserialandmodelnumbersto ensurecorrect serviceparts./IMPORTANT : L'informationfourniedanscettebrochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillez fournir les numérosdesérie et de modèles pourunremplacement adéquat des pièces.
ITEM /
PIÈCE COMMON PART / PIÉCES COMMUNES SERIAL # /N°DE SÉRIE PART NUMBER / N° DE PIÈCE
Burner Orifice NG (#33C) / Orifice de brûleur GN (#33C) 582-833
Burner Orifice LP (#50C) / Orifice de brûleur PL (#50C) 582-850
1EndGlassAssembly GLA-MS
2 Glass Door Assembly / Porte en verre GLA-6TROC
3 Burner Assembly / Brûleur 2039-006
4 Log Grate / Grille de Bûche 2039-012
5 Log Set Assembly(Sold as set only) / Jeu de bûches (Venducomme mettre seulement) LOGS-MSB
6 Louvers with Mesh - End Panel / Louvers avec la Maille - le Panneau de Fin MS-Louvers-EP
7 Louver, Top / Louvre, supérieure 2040-005
Lava Rock Bag / Le Sac de Rocher de lave 2005-790
Flue Restrictor / Restricteur de conduite de cheminée 385-128
Ember Mesh Assembly / Assemblée de Maille de Charbonardent 2006-008
Junction Box / Boîtier de raccordement 4021-013
Mesh Assembly / Écran 2005-033A
Bracket, Junction Box / Parenthèse, Boîte de Jonction 2005-173
8 Louver, Bottom / Louvre, inférieure 2040-004
9 Insulation Board, Side / Le Conseil d'isolation, le Côté 2006-136
10 Insulation Board, End / Le Conseil d'isolation, la Fin 2006-137
Mineral Wool / Laine minérale 050-721
Fiberglass Rope / Corde de fibre de verre 060-455
BatteryPack / Paquet de Batterie(Pile) 593-594A
3V Plug 593-593A
11 Hood, black / Le Capuchon, noire SRV2005-190
12 Hood End, black / La Fin de Capuchon, noire SRV2006-194
IPI IGNITION ONLY / ALLUMAGE IPI SEULEMENT
Conversion Kit NG / Module de conversion GN NGK-MS
ConversionKit LP / Module de conversionPL LPK-MS
ACCESSORIES / ACCESSOIRES
Fan Kit / Module de ventilateur GFK-160A
Remote Control Kit / Commande à distance RC-SMART-HNG
Remote Control Kit / Commande à distance SMART-STAT-HNG
Remote Control - Multi-functional / Télécommande - Multi-fonctionnel RCT-MLT-HNG
Wall Switch, Multi-functional / Commutateur Mural, Multi-fonctionnel WSK-MLT
Plug Adapator Kit (for WSK-MLT / Branchez(Bouchez) Kit Adapator (pour WSK-MLT) PLUG-ADP
Electric Ember Kit / Kit de Charbon ardent Électrique EmberKit-MS
Logs - Burner - Grate Ugrade Kit / Rondins - Brûleur - Râpe Kit Ugrade LOGS-UPGRADE
Side Refractory (Optional) / Côté Réfractaire (Facultatif) SRV2005-730
Outside Air Kit / La Trousse d'Air d'extérieur AK-TV
PIER-HVB-IPI
!
!

6
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts ST-HVB-IPI
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
*Partnumberlistonfollowing page.
*La liste des numéros de pièce se trouve
à la page suivante.
4 Log Assembly
2
3
1
6
5
7
!
8

7
(NG, LP) Exploded Parts Diagram / Vue éclatée des pièces
IMPORTANT: THISIS DATEDINFORMATION.Themost currentinformation islocated onyourdealersVIPsite.When ordering,
supplyserialandmodelnumbersto ensurecorrect serviceparts./IMPORTANT : L'informationfournie danscette brochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillez fournir les numérosdesérie et de modèles pourunremplacement adéquat des pièces.
ST-HVB-IPI
ITEM /
PIÈCE COMMON PART / PIÉCES COMMUNES SERIAL # /N° DE SÉRIE PART NUMBER / N° DE PIÈCE
Burner Orifice NG (#32C) / Orifice de brûleur GN (#32C) 582-832
Burner Orifice LP (#50C) / Orifice de brûleur PL (#50C) 582-850
1 Glass Door Assembly / Porte en verre GLA-6TROC
2 BurnerAssembly / Brûleur 2039-006
3 Log Grate / Grille de Bûche 2039-012
4Log Set Assembly(Sold as setonly) / Jeude bûches (Vendu comme mettre
seulement) LOGS-MSB
5 Louver, Top / Louvre, supérieure 2040-005
6 Louver, Bottom / Louvre, inférieure 2040-004
7 Non-combustible Board / Conseil incombustible 2005-172
Lava Rock Bag / Le Sac de Rocher de lave 2005-790
Flue Restrictor / Restricteur de conduite de cheminée 385-128
Ember Mesh Assembly / Assemblée de Maille de Charbon ardent 2005-008
Junction Box / Boîtier de raccordement 4021-013
MeshAssembly / Écran 2005-033A
Bracket, Junction Box / Parenthèse, Boîte de Jonction 2005-173
3V Plug 593-593A
BatteryPack / Paquet de Batterie(Pile) 593-594A
Mineral Wool / Laine minérale 050-721
Fiberglass Rope / Corde de fibre de verre 060-455
Glass Latch / VerrouDe verre 386-122A
8 Hood, black / Le Capuchon, noire SRV2005-190
IPI IGNITION ONLY / ALLUMAGE IPI SEULEMENT
ConversionKit NG / Module de conversionGN NGK-MS
ConversionKit LP / Module de conversion PL LPK-MS
ACCESSORIES / ACCESSOIRES
Hood, Black, Larger, Optional / Le capuchon, Noir, plus Grand, Facultatif SRV60-143-bk
Fan Kit / Module de ventilateur GFK-160A
Remote Control Kit / Commande à distance RC-SMART-HNG
Remote Control Kit / Commande à distance SMART-STAT-HNG
Remote Control - Multi-functional / Télécommande - Multi-fonctionnel RCT-MLT-HNG
Wall Switch, Multi-functional / Commutateur Mural, Multi-fonctionnel WSK-MLT
Plug Adapator Kit (for WSK-MLT / Branchez(Bouchez) Kit Adapator (pour WSK-MLT) PLUG-ADP
Electric Ember Kit / Kit de Charbon ardent Électrique EmberKit-MS
Logs - Burner - Grate Ugrade Kit / Rondins - Brûleur - Râpe Kit Ugrade LOGS-UPGRADE
Side Refractory (Optional) / Côté Réfractaire (Facultatif) SRV2005-730
See through Refractory Kit / Voir par Kit Réfractaire BRICK-ST-HV
Outside Air Kit / La Trousse d'Air d'extérieur AK-TV
!

8
*Partnumberlistonfollowing page.
*La liste des numéros de pièce se trouve
à la page suivante.
5 Log Assembly
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts LCOR-HVB-IPI
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
6
2
3
4
7
8
1
9
10
!
11
12

9
(NG, LP) Exploded Parts Diagram / Vue éclatée des pièces
IMPORTANT: THISIS DATEDINFORMATION.Themost currentinformation islocated onyourdealersVIPsite.Whenordering,
supplyserialandmodelnumbersto ensurecorrect serviceparts./IMPORTANT : L'informationfourniedanscettebrochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillez fournir les numérosdesérie et de modèles pourunremplacement adéquat des pièces.
LCOR-HVB-IPI
ITEM /
PIÈCE COMMON PART / PIÉCES COMMUNES SERIAL # /N°DE SÉRIE PART NUMBER / N° DE PIÈCE
Burner Orifice NG (#32C) / Orifice de brûleur GN (#32C) 582-832
Burner Orifice LP (#50C) / Orifice de brûleur PL (#50C) 582-850
1 End Glass Assembly GLA-MS
2 Glass Door Assembly / Porte en verre GLA-6TROC
3 Burner Assembly / Brûleur 2039-006
4 Log Grate / Grille de Bûche 2039-012
5 Log Set Assembly (Sold as set only) / Jeu de bûches (Vendu comme mettre seulement) LOGS-MSB
6 Louvers with Mesh - End Panel / Louvers avec la Maille - le Panneau de Fin MS-Louvers-EP
7 Louver, Top / Louvre, supérieure 2040-005
8 Louver, Bottom / Louvre, inférieure 2040-004
9 Insulation Board, Side / Le Conseil d'isolation, le Côté 2006-136
10 Insulation Board, End / Le Conseil d'isolation, la Fin 2008-114
Lava Rock Bag / Le Sac de Rocher de lave 2005-790
Flue Restrictor / Restricteur de conduite de cheminée 385-128
Ember Mesh Assembly / Assemblée de Maille de Charbon ardent 2006-008
Junction Box / Boîtier de raccordement 4021-013
Mesh Assembly / Écran 2005-033A
Bracket, Junction Box / Parenthèse, Boîte de Jonction 2005-173
Mineral Wool / Laine minérale 050-721
Fiberglass Rope / Corde de fibre de verre 060-455
Glass Latch / Verrou De verre 386-122A
3V Plug 593-593A
BatteryPack / Paquet de Batterie(Pile) 593-594A
11 Hood, black / Le Capuchon, noire SRV2005-190
12 Hood End, black / La Fin de Capuchon, noire SRV2006-194
IPI IGNITION ONLY / ALLUMAGE IPI SEULEMENT
Conversion Kit NG / Module de conversion GN NGK-MS
ConversionKit LP / Module de conversionPL LPK-MS
ACCESSORIES / ACCESSOIRES
Fan Kit / Module de ventilateur GFK-160A
Remote Control Kit / Commande à distance RC-SMART-HNG
Remote Control Kit / Commande à distance SMART-STAT-HNG
Remote Control - Multi-functional / Télécommande - Multi-fonctionnel RCT-MLT-HNG
Wall Switch, Multi-functional / Commutateur Mural, Multi-fonctionnel WSK-MLT
Plug Adapator Kit (for WSK-MLT / Branchez(Bouchez) Kit Adapator (pour WSK-MLT) PLUG-ADP
Electric Ember Kit / Kit de Charbon ardent Électrique EmberKit-MS
Logs - Burner - Grate Ugrade Kit / Rondins - Brûleur - Râpe Kit Ugrade LOGS-UPGRADE
Side Refractory (Optional) / Côté Réfractaire (Facultatif) SRV2005-730
Corner Refractory Kit / Coincez(Verrouillez) Kit Réfractaire BRICK-COR-HV
!
!

10
*Partnumberlistonfollowing page.
*La liste des numéros de pièce se trouve
à la page suivante.
5 Log Assembly
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts RCOR-HVB-IPI
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
1
3
2
4
7
8
6
910
!
12
11

11
(NG, LP) Exploded Parts Diagram / Vue éclatée des pièces
IMPORTANT: THISIS DATEDINFORMATION.Themost currentinformation islocated onyourdealersVIPsite.When ordering,
supplyserialandmodelnumbersto ensurecorrect serviceparts./IMPORTANT : L'informationfournie danscette brochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillez fournir les numérosdesérie et de modèles pourunremplacement adéquat des pièces.
RCOR-HVB-IPI
ITEM /
PIÈCE COMMON PART / PIÉCES COMMUNES SERIAL # /N°DE SÉRIE PART NUMBER / N° DE PIÈCE
Burner Orifice NG (#32C) / Orifice de brûleur GN (#32C) 582-832
Burner Orifice LP (#50C) / Orifice de brûleur PL (#50C) 582-850
1 End Glass Assembly GLA-MS
2 Glass Door Assembly / Porte en verre GLA-6TROC
3 Burner Assembly / Brûleur 2039-006
4 Log Grate / Grille de Bûche 2039-012
5 Log Set Assembly (Sold as set only) / Jeu de bûches (Vendu comme mettre seulement) LOGS-MSB
6 Louvers with Mesh - End Panel / Louvers avec la Maille - le Panneau de Fin MS-Louvers-EP
7 Louver, Top / Louvre, supérieure 2040-005
8 Louver, Bottom / Louvre, inférieure 2040-004
9 Insulation Board, Side / Le Conseil d'isolation, le Côté 2006-136
10 Insulation Board, End / Le Conseil d'isolation, la Fin 2008-114
Lava Rock Bag / Le Sac de Rocher de lave 2005-790
Flue Restrictor / Restricteur de conduite de cheminée 385-128
Ember Mesh Assembly / Assemblée de Maille de Charbon ardent 2006-008
Junction Box / Boîtier de raccordement 4021-013
Bracket, Junction Box / Parenthèse, Boîte de Jonction 2005-173
Mineral Wool / Laine minérale 050-721
Fiberglass Rope / Corde de fibre de verre 060-455
Glass Latch / Verrou De verre 386-122A
3V Plug 593-593A
BatteryPack / Paquet de Batterie(Pile) 593-594A
11 Hood, black / Le Capuchon, noire SRV2005-190
12 Hood End, black / La Fin de Capuchon, noire SRV2006-194
IPI IGNITION ONLY / ALLUMAGE IPI SEULEMENT
Conversion Kit NG / Module de conversion GN NGK-MS
Conversion Kit LP / Module de conversion PL LPK-MS
ACCESSORIES / ACCESSOIRES
Fan Kit / Module de ventilateur GFK-160A
Remote Control Kit / Commande à distance RC-SMART-HNG
Remote Control Kit / Commande à distance SMART-STAT-HNG
Remote Control - Multi-functional / Télécommande - Multi-fonctionnel RCT-MLT-HNG
Wall Switch, Multi-functional / Commutateur Mural, Multi-fonctionnel WSK-MLT
Plug Adapator Kit (for WSK-MLT / Branchez(Bouchez) Kit Adapator (pour WSK-MLT) PLUG-ADP
Electric Ember Kit / Kit de Charbon ardent Électrique EmberKit-MS
Logs - Burner - Grate Ugrade Kit / Rondins - Brûleur - Râpe Kit Ugrade LOGS-UPGRADE
Side Refractory (Optional) / Côté Réfractaire (Facultatif) SRV2005-730
Corner Refractory Kit / Coincez(Verrouillez) Kit Réfractaire BRICK-COR-HV
!
!

12
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts L&RCOR-HVB-IPI
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
ITEM DESCRIPTION SERIAL # PART NUMBER
1 FlexBall Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
2 ON/OFF Wire Assembly / Assemblée "MARCHE/ARRÊT" de Fil 060-521A
3ValveNG/ValveGN 750-500
3 Valve LP / Valve PL 750-501
4 Flexible Gas Connector / Tuyau à gaz flexible 2005-009
5 Module / Module 593-592
6 Wire Assembly / Module de fil 593-590A
7 Ember Box Assembly / Assemblée de Box 'Ampoule) de Charbon ardent 2005-014
8Pilot Assembly NG / Module de veilleuse NG 385-510A
8 Pilot Assembly LP / Module de veilleuse PL 385-511A
9 Valve Bracket / Parenthèse de Valve 2005-120
10 Gasket Orifice / Orifice de Joint 2005-166
Pilot Support Arm / Piloter le Bras de Soutien 385-120
Ground Strap / Courroie de Raison(Terre) 385-512
Pilot Tube / Tube de veilleuse 446-301
Orifice Spud NG / Pioche d'Orifice GN 446-505
Orifice Spud LP / Pioche d'Orifice PL 446-517
PIER-HVB-IPI,ST-HVB-IPI
24
5
6
7
8
9
10
3
1
NOTE:Replacement bulbsto be suppliedby homeowner. Recommendedreplacements:Sylvania Mini Candelabra75 watts.
!
"
"

13
Appliance Certification
TheHeat &Glo fireplacemodelsdiscussed inthis Installers
Guidehave beentestedto certificationstandards andlisted
bytheapplicablelaboratories.
Certification
MODELS: PIER-HVB-IPI, ST-HVB-IPI,
LCOR-HVB-IPI, RCOR-HVB-IPI
LABORATORY: UnderwritersLaboratories
TYPE: Vented Gas Fireplace Heater
STANDARD: ANSI Z21.88•CGA2.22•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Inthe absenceof localcodes, thefireplaceinstallation must
conformto theNational Fuel GasCodeANSIZ223.1 (in the
United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPANo. 70
(intheUnitedStates),ortothe CSAC22.1 CanadianElectric
Code(in Canada).
Thesemodels may be installed inabedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
Heat & Glo Quality
Systems registered
by SGS ICS
HighAltitude Installations
U.L. Listed gas appliances are tested and approved with-
outrequiring changes for elevations from 0 to 2,000 feet in
the U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000and4500feetinCanada.Iftheheating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
Ifinstalling this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

14
2Getting Started
Introducing the Heat & Glo Gas Fireplaces
Heat& Glo direct vent gas fireplacesaredesigned to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,including thedimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
Theventsystemcomponents areshippedin separatepack-
ages. The gas logs are packaged separately and must be
fieldinstalled.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
TheHeat & Glo Warrantywill be voidedby,and Heat & Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat & Glo.
• Improper positioning of the gas logs or the glass door.
• Installationand/or use ofany component partnotmanu-
factured and approved by Heat & Glo, not withstanding
anyindependenttestinglaboratoryor otherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary
to determine:
•Where the unit is to be installed.
•Thevent system configuration to be used.
•Gas supply piping.
•Electricalwiring.
•Framingandfinishing details.
•Whether optional accessories—devices such as a fan,
wallswitch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile,
or on any combustible material other than wood
flooring, the fireplace should be installed on a metal
or wood panel that extends the full width and depth
of the fireplace.

15

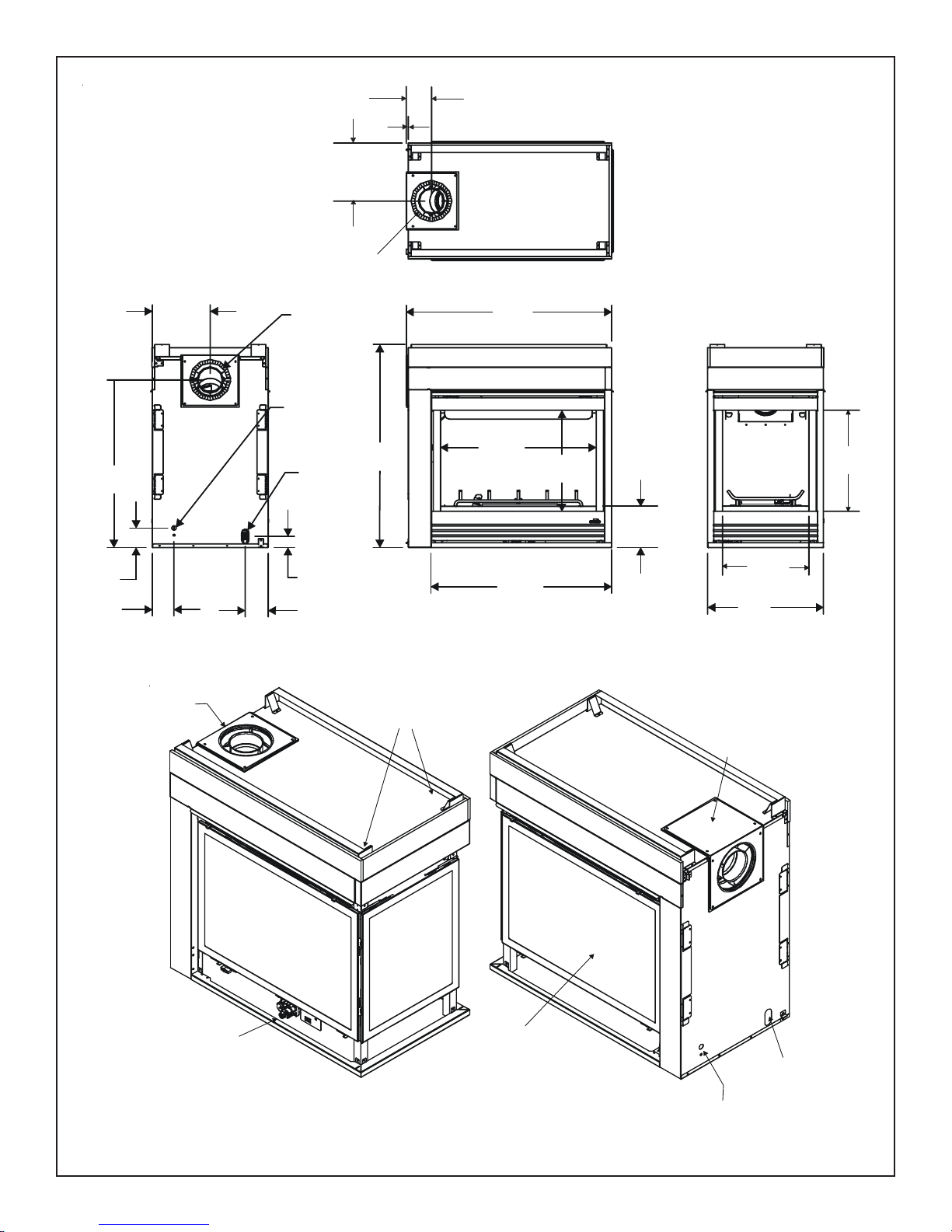

Figure 1. Diagram of the PIER-HVB-IPI
42-5/8
(1082mm)
Ø8
(204mm)
12
(305mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
34-3/4
(882mm)
4-1/16
(102mm)
4-1/2
(114mm) 4-3/4
(121mm)
2-5/16
(58mm) 37-7/16
(950mm)
32-5/16
(820mm) 21
(533mm)
42
(1067mm)
17-15/16
(455mm)
24
(610mm)
21
(533mm)
5-1/4
(133mm)
1/2
(13mm)
(2)
12
(306mm)
Ø8
(204mm)
8-1/2
(216mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
SIDE GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS

16
Figure 2. Diagram of the ST-HVB-IPI
5-14
(133mm)
12
(306mm)
1/2
(13mm)
(4)
46-5/8
(1183mm)
42
(1067mm) 32-5/16
(820mm)
21
(533mm)
36-3/16
(919mm)
2-5/16
(58mm)
4-3/4
(121mm)
4-1/16
(102mm)
4-1/2
(114mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
12
(305mm)
4-1/2
(114mm)
2-9/16
(64mm)
24
(610mm)
8-1/2
(216mm)
34-3/4
(882mm)
Ø8
(204mm)
Ø8
(204mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS SIDE GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS

17

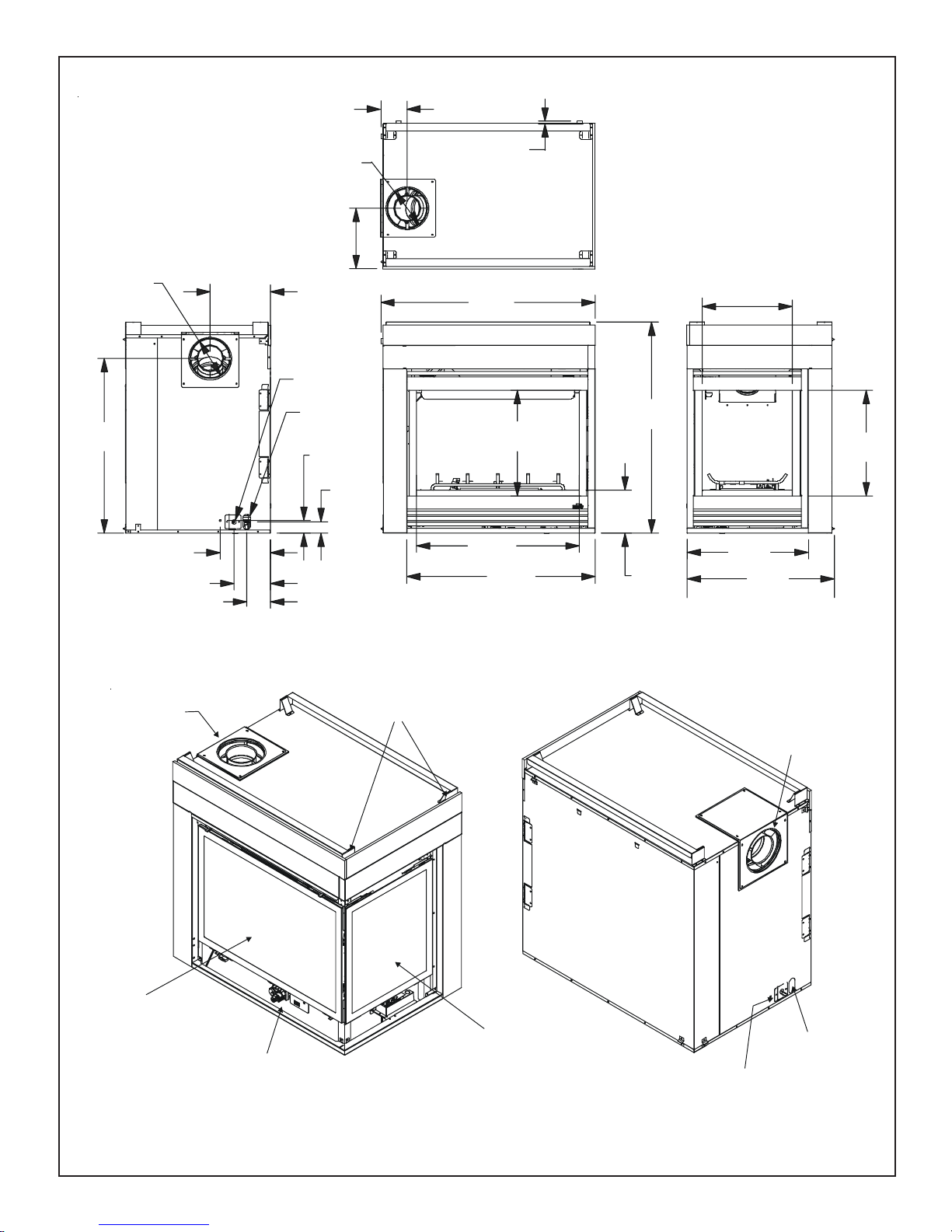

Figure 3. Diagram of the LCOR-HVB-IPI and RCOR-HVB-IPI
12
(305mm)
Ø8
(204mm)
34-3/4
(882mm)
4-3/4
(121mm)
37-7/16
(950mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
42-5/8
(1082mm
2-5/16
(58mm)
21
(533mm)
24-1/8
(612mm)
8-1/2
(216mm)
21
(533mm)
42
(1066mm
32-5/16
(820m)
17-15/16
(455mm)
2-9/16
(64mm)
1/2
(13mm)
(4)
5-1/4
(133mm)
12
(305mm)
29-1/4
(743mm)7-1/4
(184mm)
Ø8
(204mm)
10
(254mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
END GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS
SIDE GLASS
DOOR

18
3Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Sides or Ends.......... 36 .................... 914
Floor ................................... 0 ....................... 0
RearVent...........................1/2 ..................... 13
Metal Sides or Ends ..........1/2 ..................... 13
Top ................................... 2 1/2 ................... 64
Ceiling* .............................. 31 .................... 787
Figure 4. Fireplace Dimensions and Locations
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimum clearance toa perpendicular wall
extendingpast theface ofthe fireplaceisone inch(25 mm).
Themetal ends of the fireplace may NOT be recessed into
combustible construction.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 30 and 31 in this manual.
Step 2. Framing the Fireplace
Fireplaceframing canbe built beforeor afterthe fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelow showsframing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top.................................. 2 1/2 ............63.7
Bottom ..............................1/2............... 13
Sides ................................. 1 ................ 25
* Theclearancetotheceilingismeasuredfromthetopof
theunit,excludingthe standoffs(seeFigures 37 & 38).
Thedistance from the unitto combustible construction isto
be measured from the unit outer wrap surface to the com-
bustible construction, NOT from the screw heads that se-
curethe unit together.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALSONEXTERIOR OF FRAMING ONLYAND
NO SHEETROCK ON INTERIOR OF FRAMING.
36"
GLASS
GLASS
GLASS
36"
GLASS
GLASS
36"
GLASS
36"
GLASS
GLASS
GLASS
36"
36"
36"
PIER-HVB-IPI
TOP VIEW RCOR-HVB-IPI
TOP VIEW
LCOR-HVB-IPI
TOP VIEW
ST-HVB-IPI
TOP VIEW

19
Framingshould be
constructedof2X4
lumberorheavier.
Model A B C D E
PIER-HVB-IPI 42-1/8 42-1/2 23 35-3/4 48
ST-HVB-IPI 47-5/8 42-1/2 23 35-3/4 48
L&RCOR-HVB-IPI 42-1/8 42-1/2 28-3/4 35-3/4 48
Figure 5. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN INCHES
Shows center of 10” x 12” vent framing holes for top and rear venting. The center
of the hole is one inch (25.4mm) above the center of the horizontal vent pipe.
PIER-HV-IPI
ST-HV-IPI L & R-COR-HV-IPI
A
C
B
D
B
C
A
A
C
B
E

20
NOTE: PIPES OVERLAP 1-1/4 INCHES
AT EACH JOINT.
Figure 6. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4
